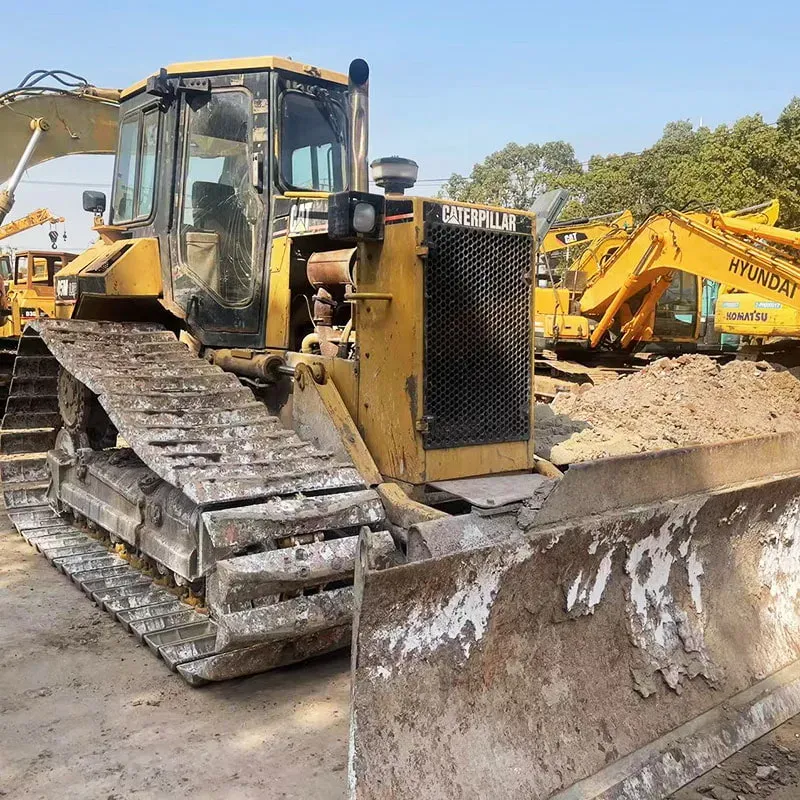

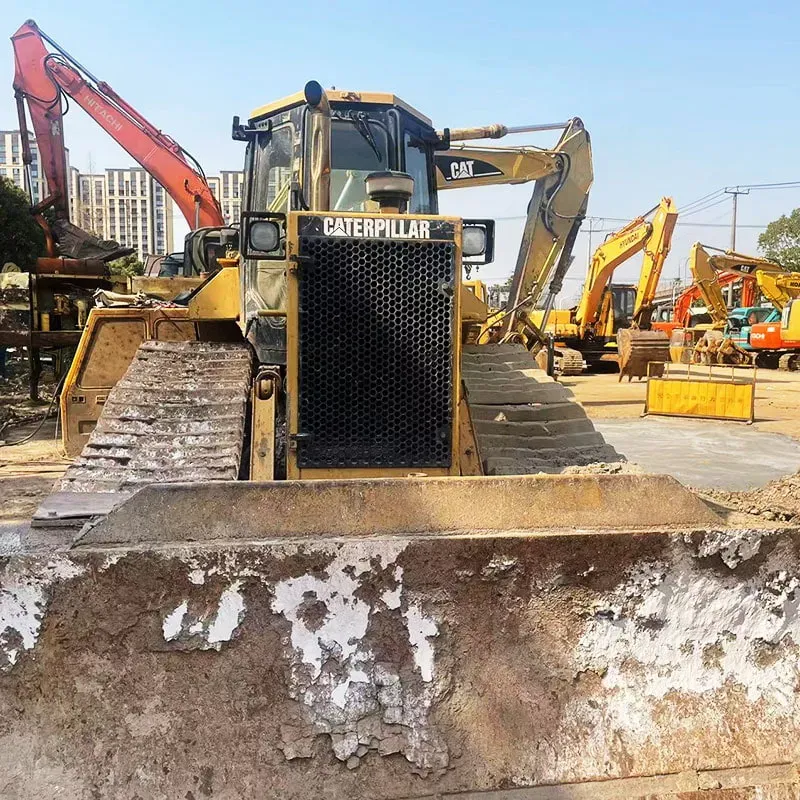

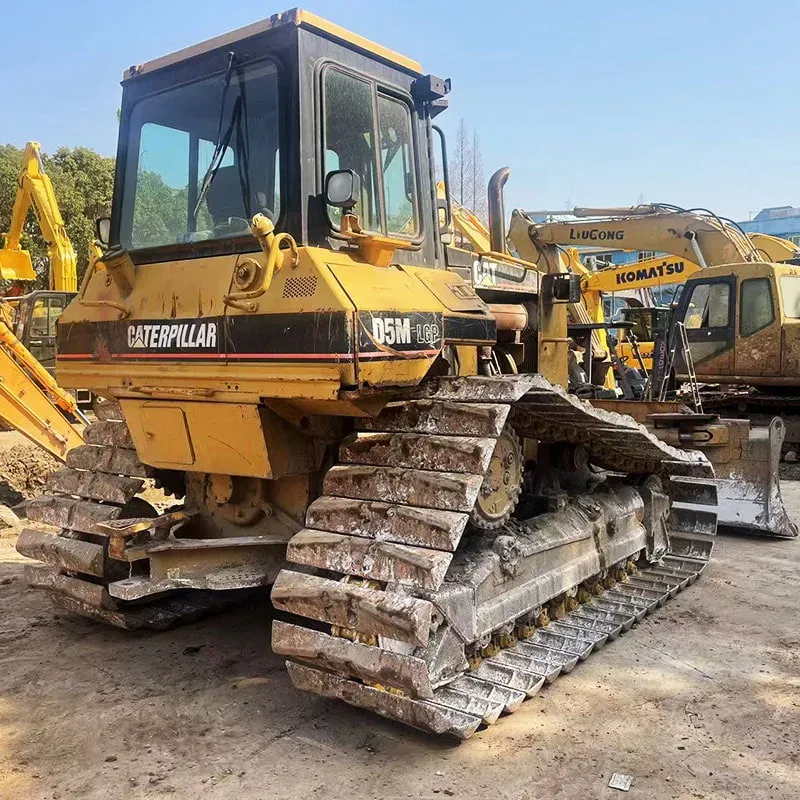

Used Caterpillar D5MBulldozer

Reading: 27

📋 Overview

The Caterpillar D5M is a medium-sized track-type tractor (bulldozer) manufactured by Caterpillar Inc. from approximately 1984 to the mid-1990s. It replaced the earlier D5H model and was part of Caterpillar's "M" series of dozers, which represented a generational upgrade in technology, reliability, and operator comfort.

The D5M sits between the smaller D4 series and larger D6 series in Caterpillar's product lineup, making it a versatile mid-range machine ideal for a wide variety of earthmoving tasks.

🔧 Technical Specifications

Specification	Details
Engine Model	Caterpillar 3116
Engine Type	6-cylinder, turbocharged, aftercooled diesel
Displacement	588 cu in (9.6 liters)
Rated Power	~162 hp (121 kW) @ 2,200 rpm
Operating Weight	~22,700 lbs (10,296 kg)
Transmission	Power shift, 6 forward / 2 reverse speeds
Blade Capacity (Straight)	~3.5 cu yd (2.7 cu m)
Ripper	Single shank, 14–15 in (356–381 mm) penetration
Ground Pressure	~6.5 psi (44.8 kPa)
Fuel Capacity	~85 gal (322 L)
Length	~18.5 ft (5.6 m)
Width	~10.8 ft (3.3 m)
Height (to top of ROPS)	~10.4 ft (3.2 m)

🚜 Key Features & Design

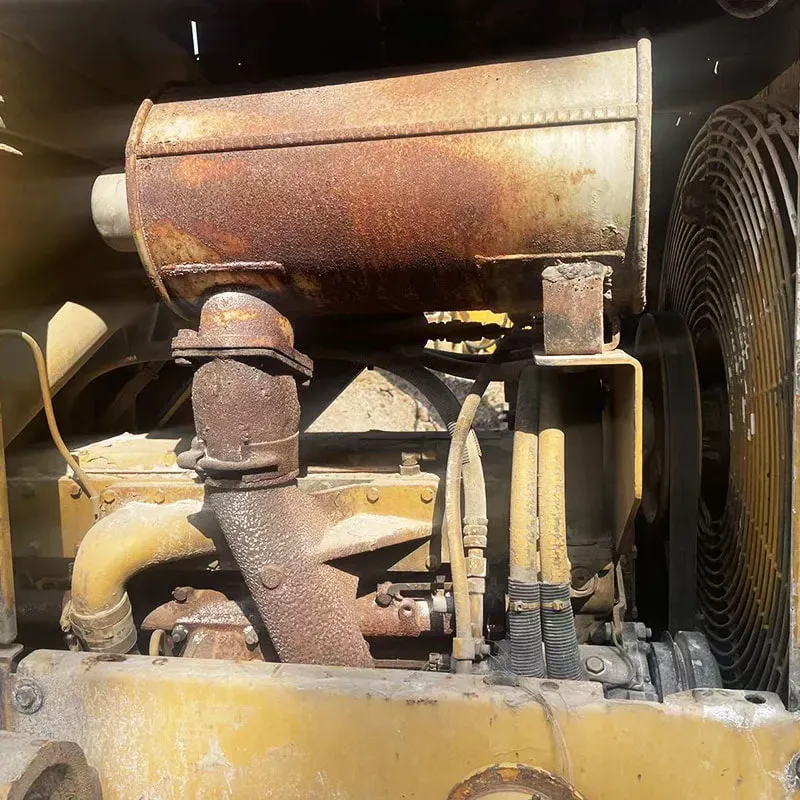

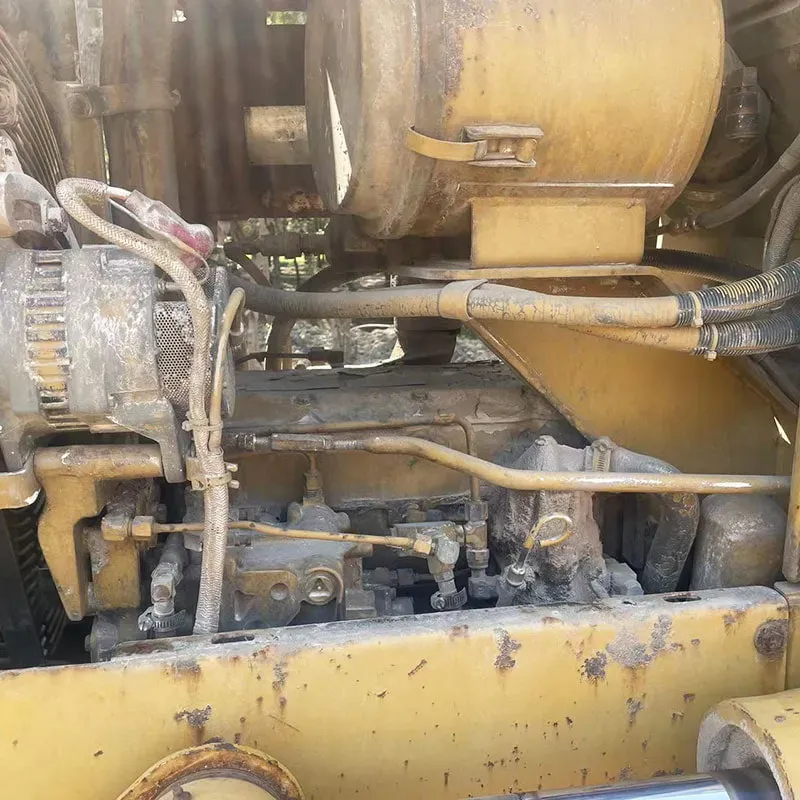

1. Engine - Cat 3116

One of Caterpillar's most reliable and proven diesel engines
Turbocharged and aftercooled for better performance in hot/high-altitude conditions
Known for excellent fuel efficiency and durability
Easy to maintain with good parts availability

2. Power Shift Transmission

Smooth gear shifting without clutch engagement
6 forward and 2 reverse speeds for versatile operation
Improved productivity compared to older manual-shift models

3. Blade Options

Blade Type	Use
Straight (S) Blade	General dozing, pushing, fine grading
Universal (U) Blade	Carrying and spreading material, side-casting
Semi-U Blade	Combination of dozing and material spreading
Tilt Blade	Fine grading and precision work

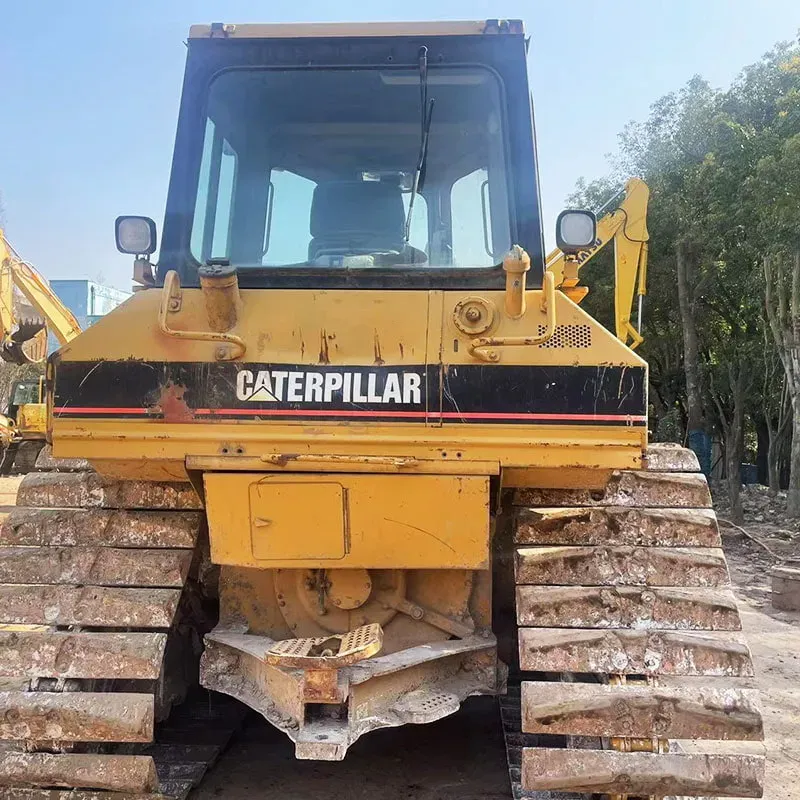

4. Ripper

Single-shank rear ripper for breaking hard ground, rock, and compacted soil
14–15 inch penetration depth
Hydraulic lift and tilt control

5. Operator Station (ROPS/FOPS)

ROPS = Roll-Over Protective Structure
FOPS = Falling Object Protective Structure
Improved ergonomics over the D5H
Air-suspension seat
Better visibility and climate control

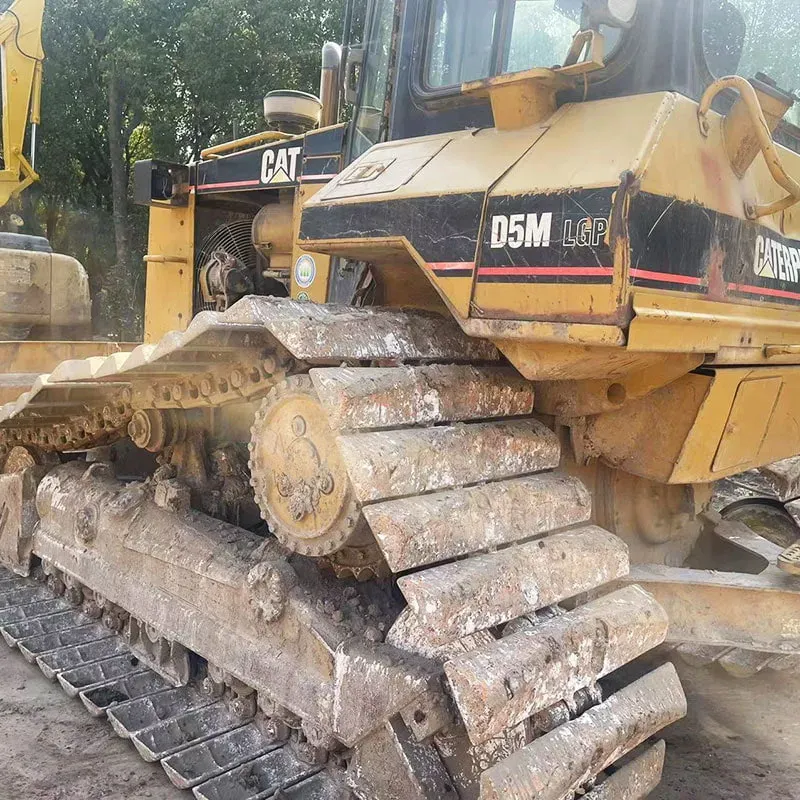

6. Undercarriage

Heavy-duty track shoes
Adjustable track width for different ground conditions
Sealed and lubricated (S&L) track with grease lubricated pins and bushings (reducing maintenance)

💼 Applications

The D5M is a highly versatile machine used in:

Industry	Typical Tasks
🏗️ Construction	Site grading, foundation work, backfilling
🛣️ Road Building	Road grading, shoulder work, ditch cleaning
🌲 Land Clearing	Brush clearing, tree pushing, stump removal
& Mining & Quarrying	Stockpiling, hauling short distances, ripping
🏭 Utilities	Pipeline trenching, landfill compaction
🌊 Environmental	Wetland restoration, levee construction
🗑️ Waste Management	Landfill operations, waste compaction

✅ Advantages

Advantage	Details
💪 Reliability	Cat 3116 engine is legendary for longevity (10,000+ hours common)
🔧 Parts Availability	Huge aftermarket support, easy to find parts worldwide
📈 Resale Value	Holds value well due to brand reputation
🎯 Versatility	Can doze, rip, grade, carry — true all-rounder
👤 Operator Comfort	Significant improvement over D5H
💰 Cost-Effective	Lower purchase price than D6, nearly as capable

⚠️ Limitations

Limitation	Details
📏 Size	Too small for heavy mining or large-scale earthmoving
🔄 Age	Older machine (1980s–90s), may need refurbishment
🐌 Speed	Slow travel speed (~7 mph max) — not for road travel
🛢️ Fuel Consumption	~3–5 gal/hr depending on load

🔄 D5M vs. Comparable Models

Model	Power	Weight	Blade Capacity
D4H (predecessor)	~130 hp	~19,800 lbs	~3.0 cu yd
D5M ⭐	~162 hp	~22,700 lbs	~3.5 cu yd
D5N (successor)	~165 hp	~23,200 lbs	~3.5 cu yd
D6N (larger)	~205 hp	~28,000 lbs	~4.5 cu yd

The D5N (1990s–2000s) was the direct successor with minor upgrades (improved hydraulics, better cooling).

📊 Market & Value (2024)

Condition	Estimated Price (USD)
🟢 Excellent / Low Hours	$25,000 – $45,000
🟡 Good / Medium Hours	$15,000 – $25,000
🔴 Fair / High Hours	$8,000 – $15,000
🔧 For Parts	$3,000 – $8,000

Prices vary by region, condition, hours, and attachments.

🏁 Summary

The Caterpillar D5M is a workhorse of the construction world — a reliable, powerful, and versatile medium dozer that earned its reputation through decades of hard work. Whether you're grading a road, clearing land, or ripping hardpan, the D5M gets the job done. Its legendary Cat 3116 engine and excellent parts support make it one of the best value-for-money dozers on the used equipment market today.
