Used Doosan DX60Excavator

Reading: 36

The Doosan DX60 is a 6-ton class mini/compact excavator manufactured by Doosan Infracore (formerly Doosan Construction Equipment), a South Korean heavy equipment maker. It is one of the most popular models in Doosan's compact excavator lineup, widely used in urban construction, landscaping, utility work, and small-scale earthmoving.

📋 MODEL VARIANTS

Variant	Description
DX60R	Rubber-tracked mini excavator (most common)
DX60W	Wheeled version (faster road travel)
DX60LC	Long-reach / compact tail version (market dependent)

The DX60R is the flagship variant and the most widely sold.

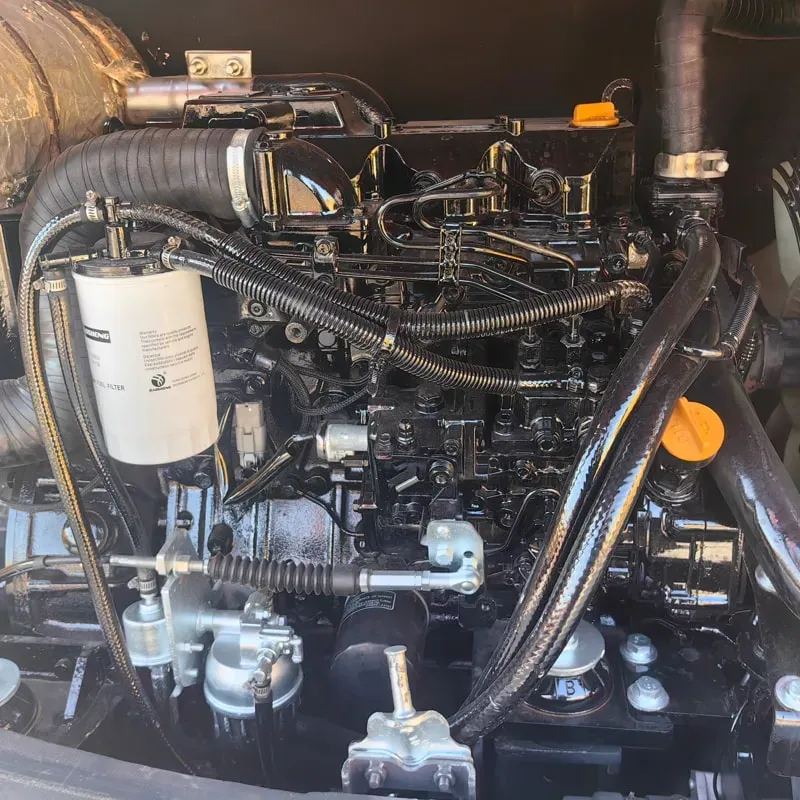

& ENGINE SPECIFICATIONS

Parameter	Details
Engine Model	Doosan D24 (4-cylinder, turbocharged diesel)
Alternative Engine	Kubota V2403-T (in some markets)
Displacement	2.438 L
Rated Power	35.6 kW (47.7 HP) @ 2,200 rpm
Emissions	Stage V / Tier 4 Final (depending on region)
Fuel Tank Capacity	~100 L
Cooling System	Water-cooled with fan

The engine is known for being fuel-efficient, reliable, and low-emission, meeting modern environmental standards.

🔧 HYDRAULIC SYSTEM

Parameter	Details
Pump Type	Variable displacement axial piston pump
Max Flow Rate	~70–80 L/min (single pump)
Working Pressure	~210 bar (3,045 psi)
Auxiliary Hydraulics	2 lines available (for attachments like breakers, augers, grapples)
Control System	Joystick with proportional control

📐 DIMENSIONS & WEIGHT

Parameter	DX60R
Operating Weight	~5,870 – 6,000 kg (12,940 – 13,230 lbs)
Overall Length	~5,850 mm
Overall Width	~1,990 mm (with tracks)
Overall Height	~2,590 mm (to top of cab)
Ground Clearance	~310 mm
Track Width	300 / 400 / 500 mm (adjustable rubber tracks)

🏗️ PERFORMANCE / DIGGING CAPACITY

Parameter	DX60R
Max Digging Depth	~3,900 – 4,000 mm
Max Digging Reach	~5,800 – 6,000 mm
Max Dumping Height	~4,200 mm
Max Vertical Wall Dig	~3,200 mm
Bucket Capacity	0.1 – 0.23 m³ (standard)
Breakout Force (Arm)	~30 kN
Breakout Force (Bucket)	~38 kN
Travel Speed	~4.5 km/h (2-speed: High / Low)
Gradeability	~70% (35°)

⭐ KEY FEATURES

Feature	Description
🔄 Zero Tail Swing (ZTS)	The upper structure does NOT swing beyond the track width — ideal for tight/urban spaces
🛞 Rubber Tracks	Road-friendly, non-marking, low ground pressure (~32 kPa) — can travel on public roads without trailer
🎮 2-Speed Travel	High speed for transport / Low speed for precision work
🔋 Dozer Blade	Standard — can be angled for grading
🪟 ROPS/FOPS Cab	Fully enclosed cab with AC, heater, radio, and excellent visibility
🔌 Quick Coupler Ready	Hydraulic quick coupler available for fast attachment changes
🛠️ Easy Maintenance	Ground-level service points, wide-open engine hood
📊 LCD Monitor	Engine info, hour meter, fault diagnostics

🛠️ COMMON ATTACHMENTS

Attachment	Use Case
Hydraulic Breaker (Hammer)	Rock breaking, demolition
Auger / Earth Drill	Post holes, piling
Hydraulic Thumb (Grapple)	Material handling, demolition
Ripper	Hard ground breaking
4-in-1 Bucket	Grading, ditching, cleaning
Compactor Plate	Soil compaction

🌍 MARKETS & APPLICATIONS

Application	Details
🏙️ Urban Construction	Tight spaces, building foundations, utility trenches
🌿 Landscaping	Tree planting, grading, drainage
🔌 Utility Work	Pipe laying, cable trenches
🏠 Residential	Small excavations, septic tanks, driveways
🏗️ Road Work	Small road repairs, curb work
🏭 Rental Fleet	Very popular in rental companies due to versatility

Sold in Europe, North America, Asia, Middle East, Africa, South America, and Oceania.

✅ ADVANTAGES

✅ Pros	Details
Compact size	Fits through standard gates, narrow lanes
Low ground pressure	Won't damage lawns, driveways, indoor floors
Fuel efficient	~5–7 L/hour under normal operation
Reliable engine	Doosan D24 is proven with millions of hours
Low maintenance cost	Simple design, easy parts availability
Resale value	Strong in the used equipment market
Dealer network	Doosan has one of the largest global dealer networks

⚠️ LIMITATIONS

❌ Cons	Details
Limited power	Not suitable for heavy-duty mining or large-scale earthmoving
Small bucket	Requires more cycles for large volumes
Rubber track wear	Tracks need replacement every 1,500–3,000 hours
Price	Slightly higher than some Chinese competitors (but better build quality)

📊 COMPETITORS

Competitor	Model	Class
CAT	306 CR	6-ton
Komatsu	PC60-8	6-ton
Kubota	KX060-4	6-ton
JCB	8065	6.5-ton
Hyundai	R60CR-9A	6-ton
Yanmar	SV60-6	6-ton
Sany	SY60C	6-ton

💰 APPROXIMATE PRICING (2024 Estimates)

Region	Price Range (USD)
North America	$55,000 – $70,000
Europe	€50,000 – €65,000
Asia	$45,000 – $60,000
Middle East / Africa	$50,000 – $65,000

Prices vary by configuration, attachments, and market.

📋 SUMMARY

Category	Rating (out of 5)
Power & Performance	⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐
Comfort & Ergonomics	⭐⭐⭐⭐⭐
Build Quality & Reliability	⭐⭐⭐⭐⭐
Versatility	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐

🎯 Bottom Line:
The Doosan DX60R is one of the best 6-ton mini excavators on the market — offering an excellent balance of compact size, reliability, fuel efficiency, and versatility. It is the go-to machine for contractors working in urban, residential, and utility environments where space is limited but productivity matters. Doosan's global service network and strong resale value make it a smart long-term investment.
