Used Volvo 290 Excavator

Reading: 42

🏢 Overview

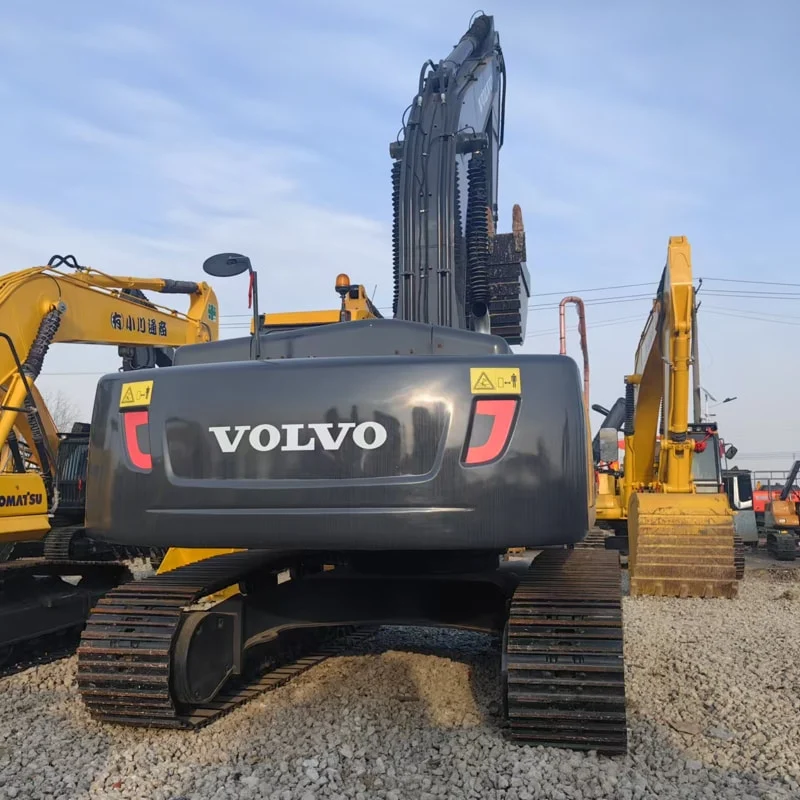

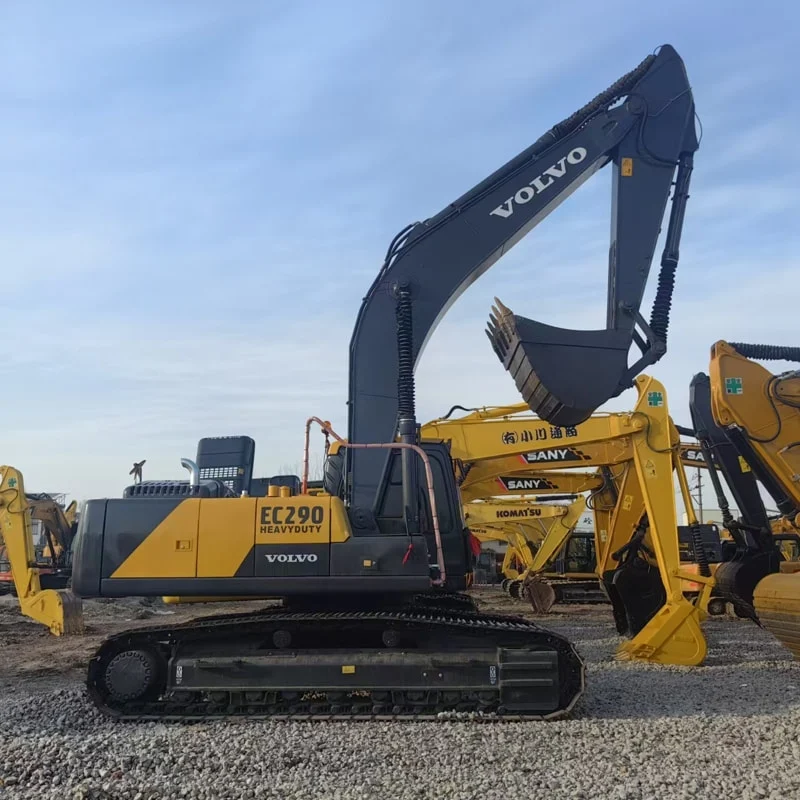

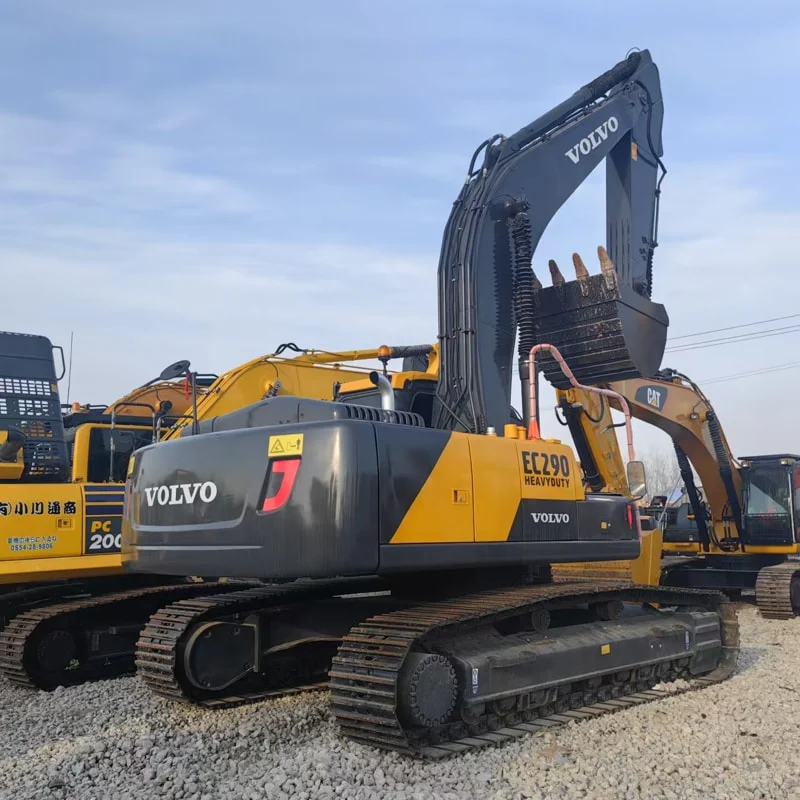

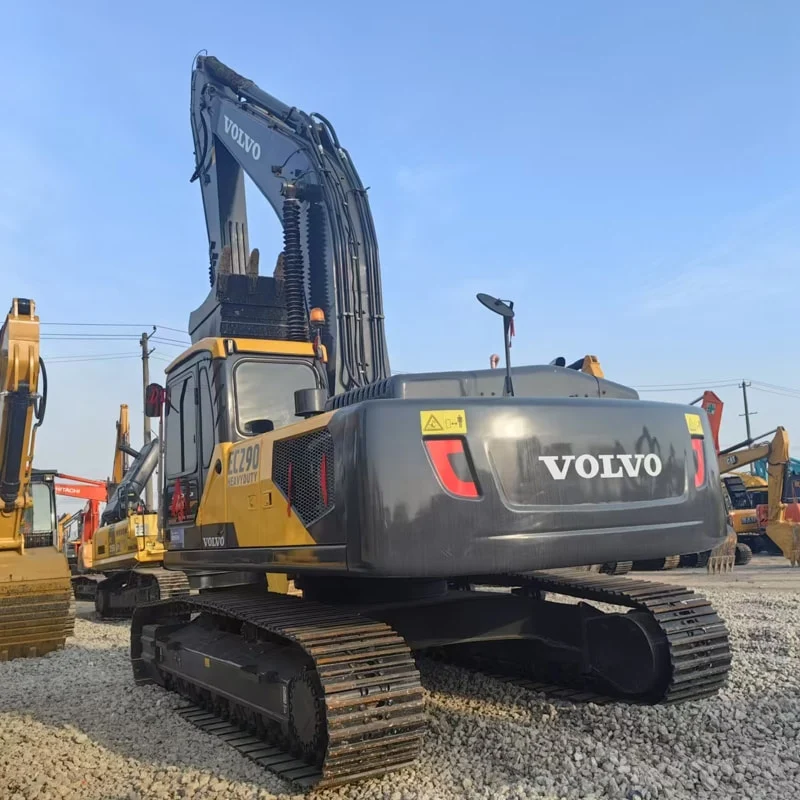

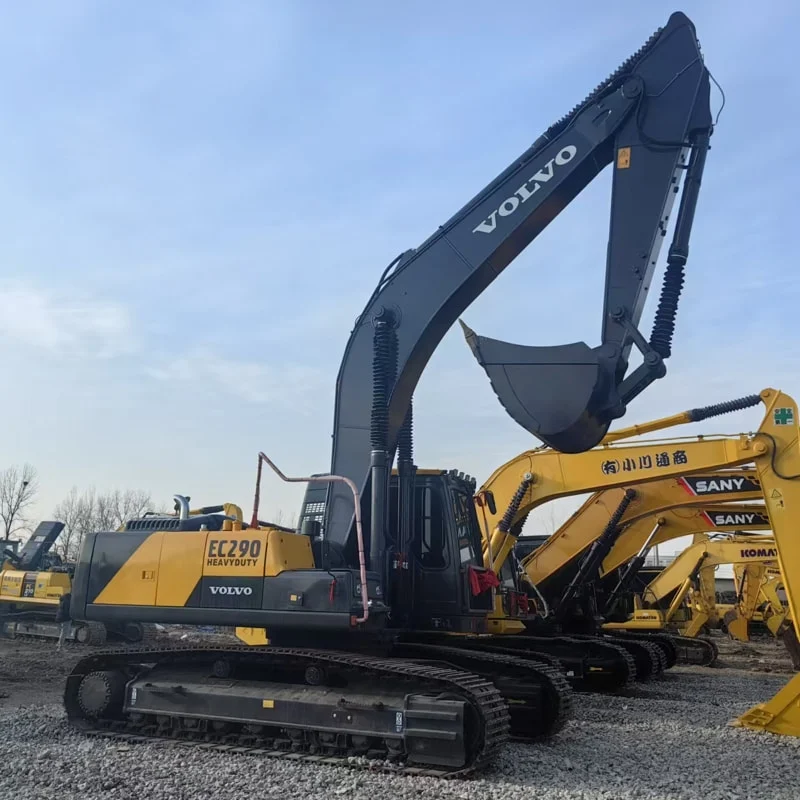

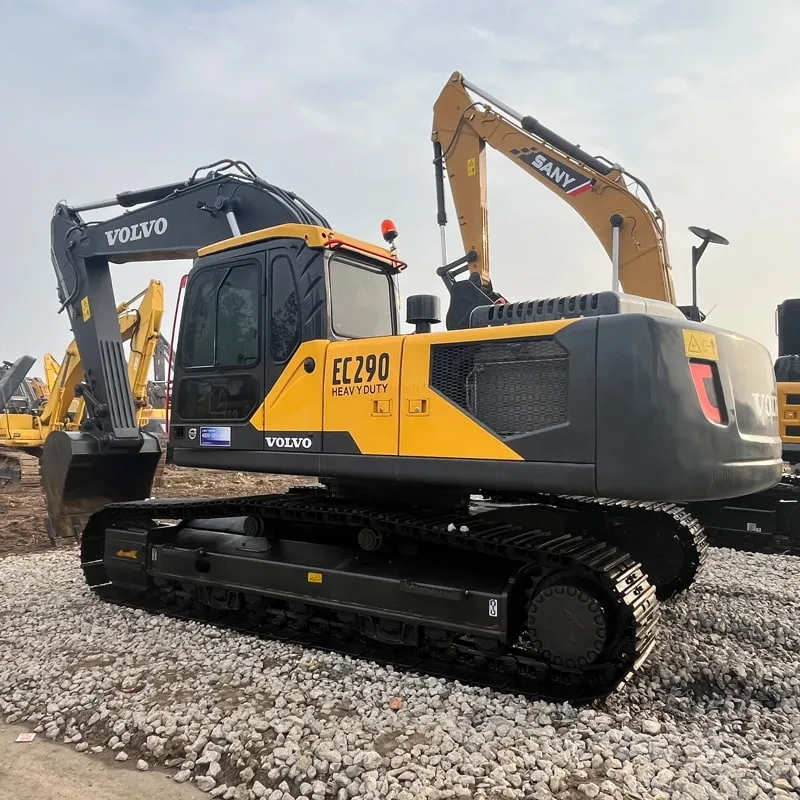

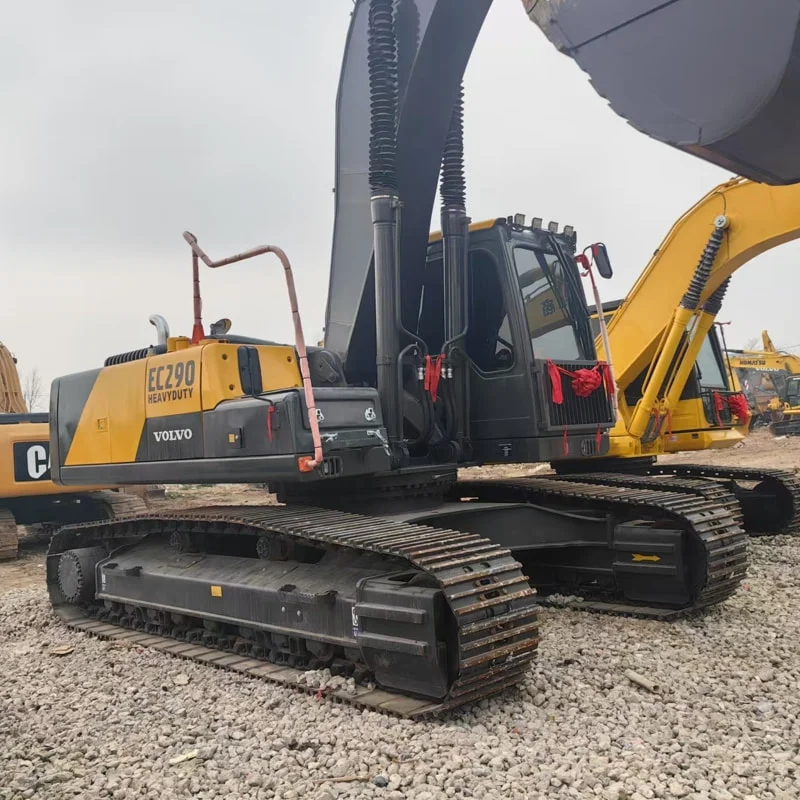

The Volvo EC290 is a mid-to-large class crawler excavator manufactured by Volvo Construction Equipment (Volvo CE). It belongs to Volvo's popular EC Series and sits between the EC250 and EC300 in terms of size and capability. It was designed for heavy-duty construction, road building, utility work, mining, and demolition applications.

Parameter	Specification
Model	EC290
Class	25–30 tonne (29-tonne class)
Production Era	~2011 – 2018 (succeeded by EC300E)
Manufacturer	Volvo Construction Equipment (Sweden)

🔧 Engine & Powertrain

Spec	Detail

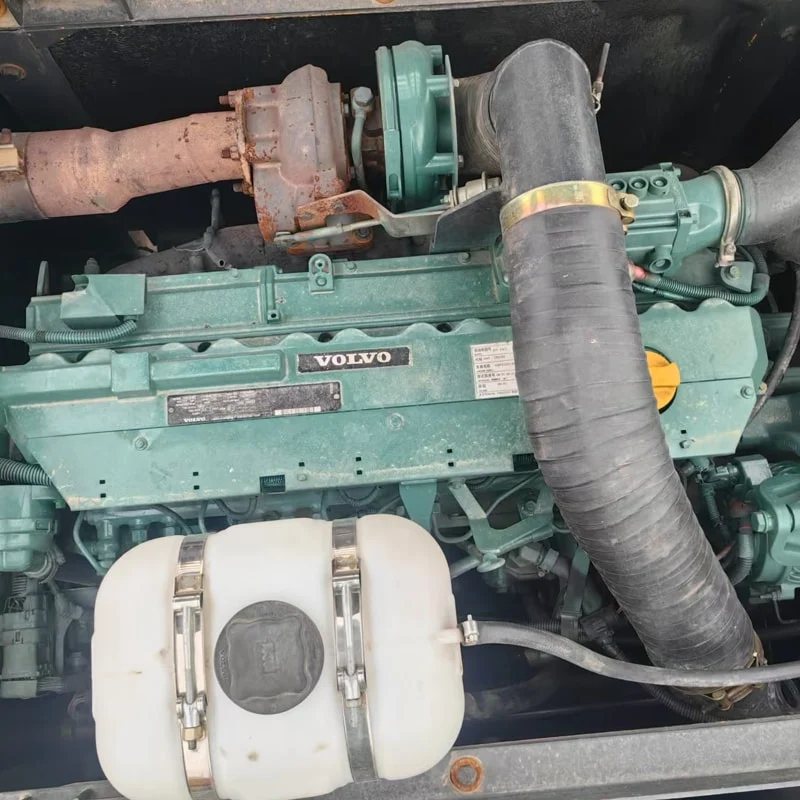

Engine Model	Volvo D7E (6-cylinder, inline turbo diesel)
Displacement	6.7 liters
Power Output	~168–172 hp (125–128 kW) @ 1,800 rpm
Emission Standard	Tier 4 Final / Stage IV / Euro IIIB (depending on market)
Fuel Tank Capacity	~400 liters (105.7 US gal)
Fuel Efficiency	Optimized via Volvo's ECO mode — among the best in its class

The D7E engine is known for its durability, low fuel consumption, and excellent torque characteristics at low RPM, making it ideal for heavy digging and loading tasks.

📐 Dimensions & Weight

Spec	Detail
Operating Weight	~28,000 – 29,000 kg (61,700 – 63,900 lbs)
Transport Length	~9,870 mm
Transport Width	~3,190 mm
Transport Height	~3,010 mm
Ground Clearance	~460 mm
Track Width	600 mm (triple grouser shoes standard)
Tail Swing Radius	~2,940 mm

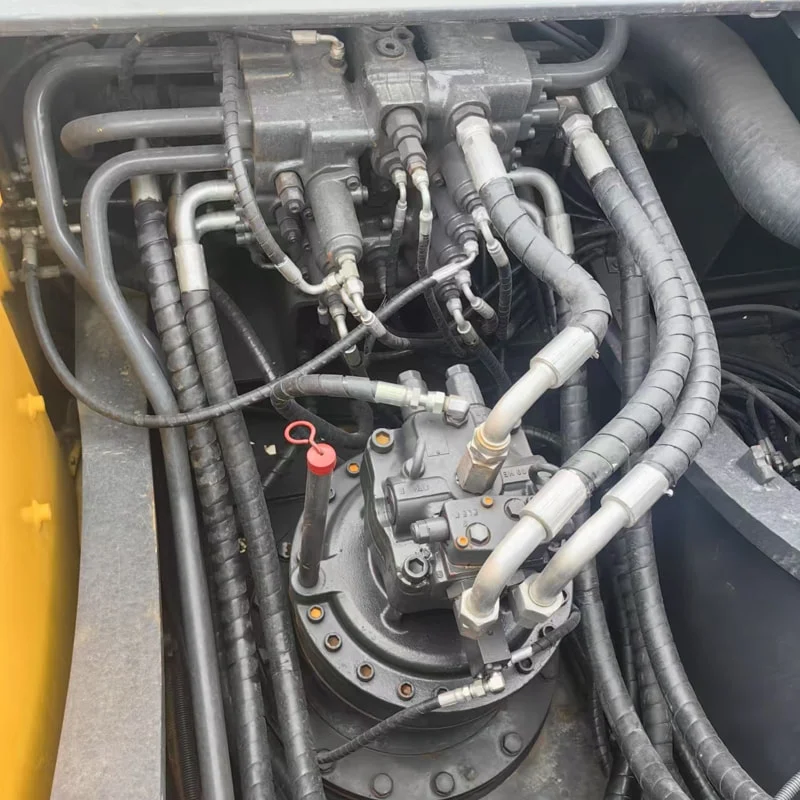

&draulic System & Performance

Spec	Detail
Hydraulic Pump	Load-sensing, variable displacement axial piston pump
Max Flow	~2 × 210 L/min (420 L/min total)
System Pressure	350 bar (5,076 psi)
Max Digging Depth	~7.2 m (23.6 ft)
Max Reach (Ground Level)	~9.8 m (32.2 ft)
Max Digging Force (Boom)	~150 kN (33,700 lbf)
Max Digging Force (Arm)	~110 kN (24,700 lbf)
Bucket Capacity Range	0.8 – 1.4 m³ (1.0 – 1.8 cu yd)

🖥️ Cab & Operator Comfort

The EC290 features Volvo's acclaimed cab design, which is one of the best in the industry:

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Noise Level	~68 dB(A) — very quiet for its class
Seat	Air-suspended, heated, with armrests
Climate Control	Full air conditioning with automatic temperature control
Display	7-inch color LCD monitor (Co-Pilot interface)
Controls	Electronic joystick controls with programmable functions
Visibility	360° excellent visibility with large windows
Storage	Ample storage compartments, USB ports, cup holders

🤖 Technology & Smart Features

Technology	Description
Volvo Co-Pilot	Integrated machine control system with 3D/2D grade control, boom control, and bucket guidance
CareTrack ™	Volvo's telematics system — real-time machine monitoring, fuel tracking, diagnostics, and fleet management
ECO Mode	Reduces engine RPM automatically when full power isn't needed — saves up to 15% fuel
Auto Idle Shutdown	Engine automatically shuts off after preset idle time
Volvo Active Link	(Optional) Wireless connectivity for data transfer to office
Boom Assist / Return to Dig	Speed up cycle times with automated boom and stick movement

🔩 Undercarriage & Durability

Feature	Detail
Undercarriage	Heavy-duty X-frame design with reinforced rollers
Track Shoes	600 mm triple grouser — replaceable grouser bars
X-Link	Volvo's patented undercarriage linkage system for superior stability
Counterweight	Large cast iron counterweight for stability during heavy lifts
Service Intervals	Extended service intervals — up to 1,000 hours between oil changes

📊 Comparison with Competitors

Model	Weight	Power	Dig Depth
Volvo EC290	~29,000 kg	168 hp	7.2 m
CAT 329F	~29,800 kg	174 hp	7.3 m
Komatsu PC290LC-11	~29,200 kg	174 hp	7.2 m
Hitachi ZX290LC-6	~28,700 kg	174 hp	7.3 m
Doosan DX290LC-5	~29,000 kg	161 hp	7.1 m

The EC290 was highly competitive, especially known for fuel efficiency, operator comfort, and low operating costs.

✅ Strengths / Advantages

✅	Advantage
1	Excellent fuel efficiency — ECO mode + optimized hydraulics
2	Best-in-class operator comfort — quiet, spacious, well-appointed cab
3	Strong resale value — Volvo brand reliability
4	Low maintenance costs — long service intervals, easy access points
5	Advanced Co-Pilot technology — boosts productivity for operators
6	Robust & durable build — Swedish engineering quality

⚠️ Limitations

⚠️	Limitation
1	Higher initial purchase price vs. some Asian competitors
2	Parts can be more expensive than CAT/Komatsu in some regions
3	Discontinued — replaced by EC300E (parts availability may vary)

🔄 Successor

The Volvo EC290 was succeeded by the Volvo EC300E (E-Series), which brought:

Improved fuel efficiency (~10% better)
Updated electronics and Co-Pilot system
Stage V emission compliance
Enhanced cab comfort features

🎯 Summary

Category	Rating (out of 5)
Power & Performance	⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐⭐
Durability & Build	⭐⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐

The Volvo EC290 is widely regarded as one of the best 29-tonne excavators ever made — combining Swedish engineering excellence, outstanding fuel economy, and an unmatched operator experience. It remains a popular choice in the used equipment market for its reliability and low total cost of ownership.
