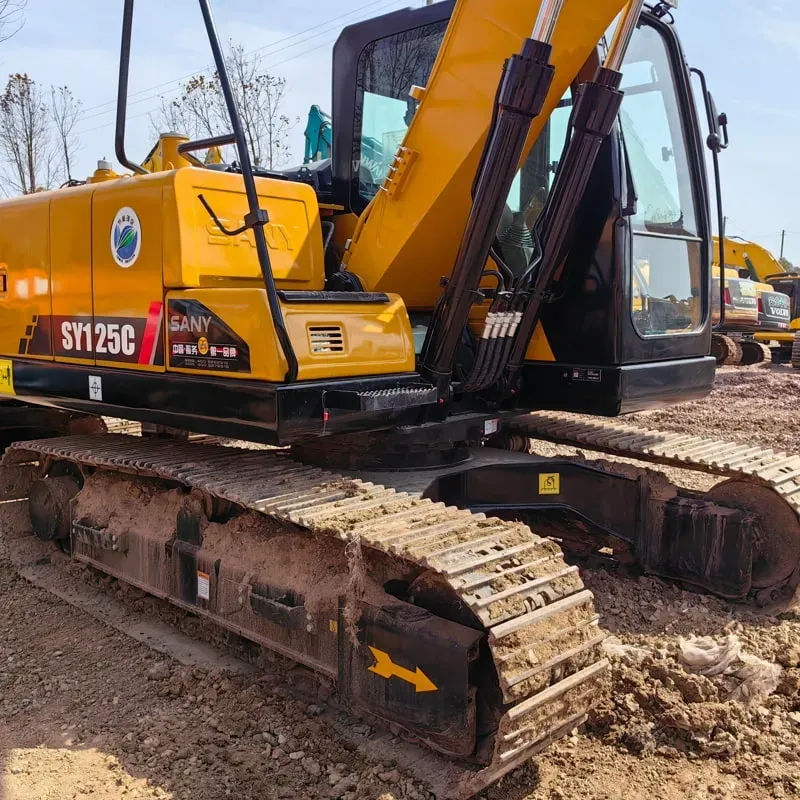

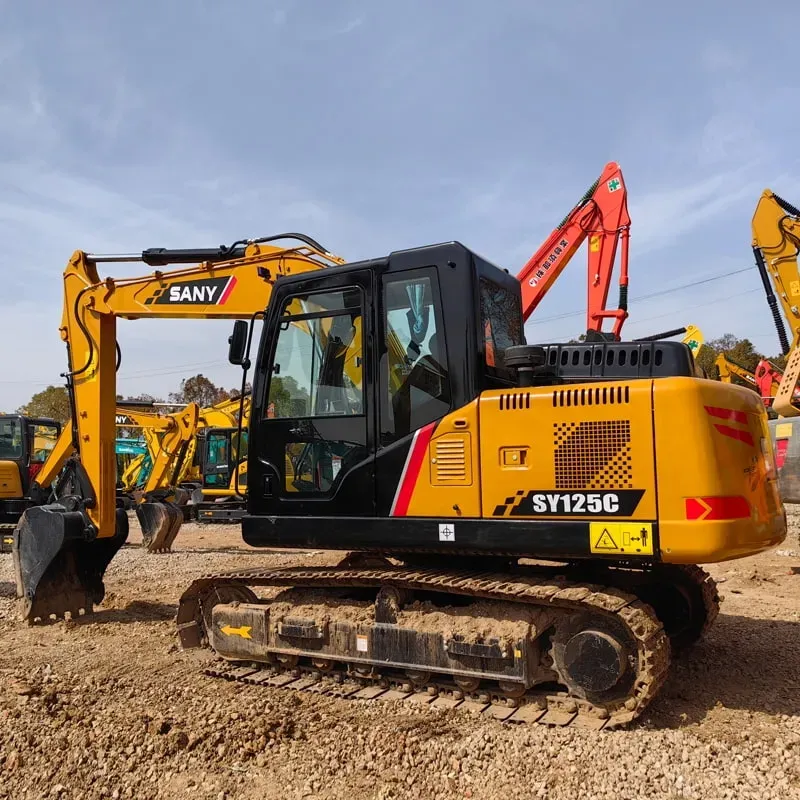

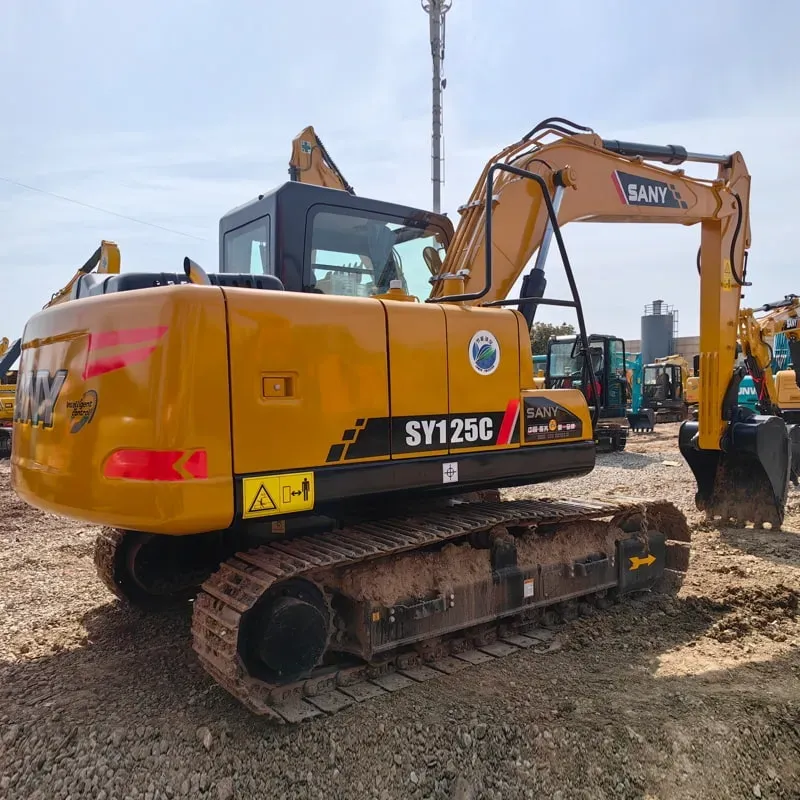

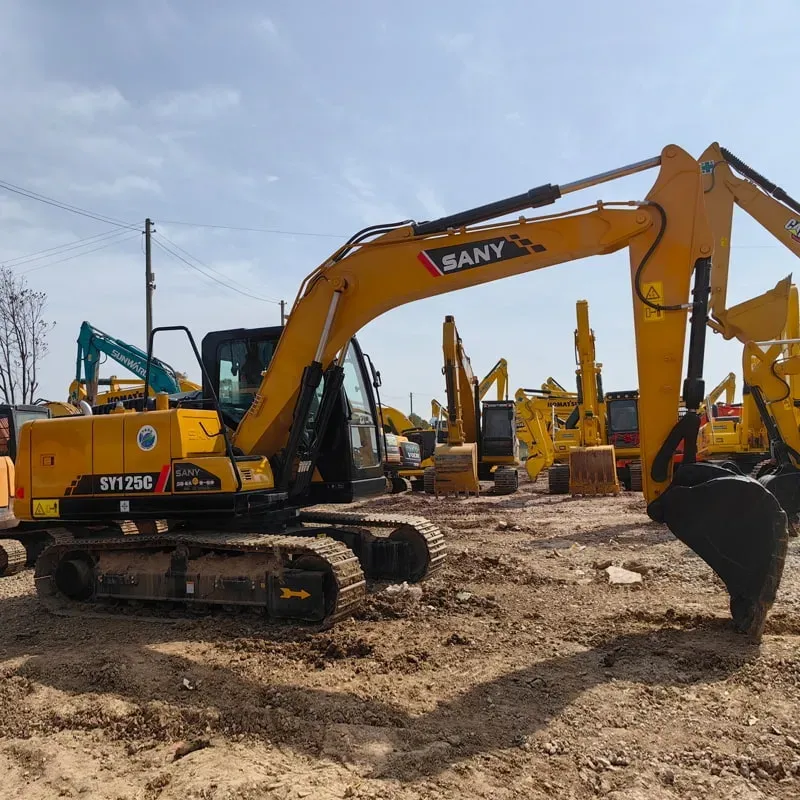

Used Sany 125Excavator

Reading: 23

📌 1. OVERVIEW

Item	Detail
Model	SANY SY125C
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Class	Medium-sized Crawler Excavator (~12-ton class)
Production	Ongoing (Global markets)
Main Market	Construction, mining, municipal works, landscaping

The SY125C is one of SANY's most popular mid-size excavators, known for its reliability, fuel efficiency, and smart technology. It competes with models like CAT 312, Komatsu PC120, and Doosan DX140.

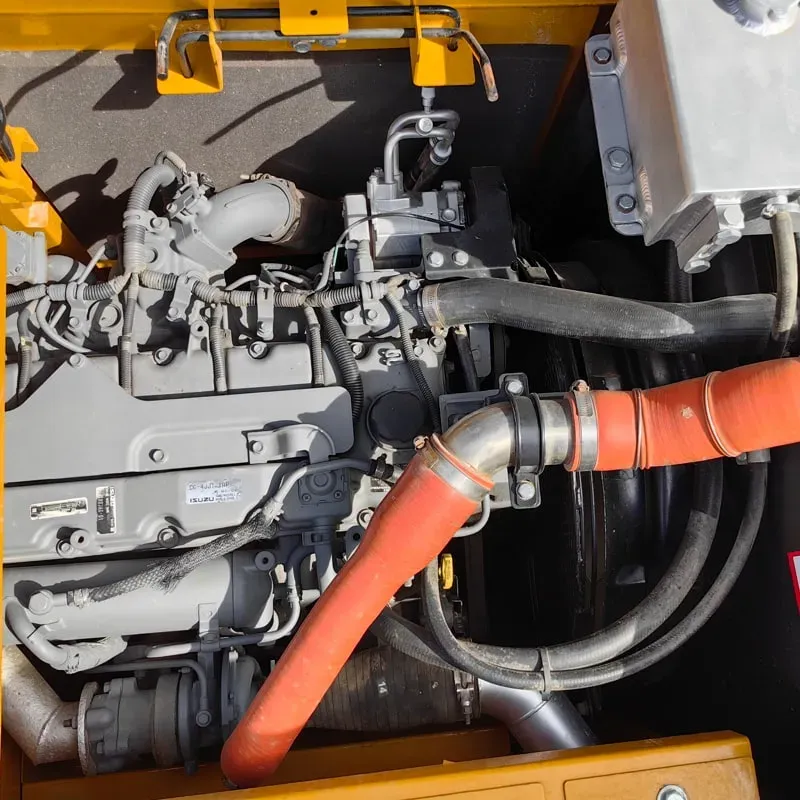

& 2. ENGINE & POWER SYSTEM

Specification	Detail
Engine Model	Yanmar 4TNV98-ZPLYS (or Isuzu CC-4JG1 in some markets)
Engine Type	4-cylinder, turbocharged, water-cooled diesel
Displacement	3.32 L
Rated Power	~92 HP (68 kW) @ 2,200 rpm
Emission Standard	China III / EPA Tier 4 Final (varies by region)
Fuel Tank Capacity	~200 L

✅ The engine is known for low fuel consumption (~12-15 L/hr under normal load) and easy maintenance.

📐 3. TECHNICAL SPECIFICATIONS

Parameter	Value
Operating Weight	12,300 – 12,500 kg
Bucket Capacity (Standard)	0.45 – 0.50 m³
Max Digging Depth	~5,800 mm
Max Digging Reach	~8,600 mm
Max Dumping Height	~6,200 mm
Max Digging Force (Boom/Arm)	~83 / ~58 kN
Track Gauge	2,500 mm
Track Shoe Width	600 mm
Ground Pressure	~42 kPa
Max Travel Speed	~5.0 km/h
Swing Speed	~10 rpm
Gradeability	70% (35°)
Tail Swing Radius	~2,400 mm

🖥️ 4. INTELLIGENT CONTROL — SYMC SYSTEM

One of SANY's biggest selling points:

Feature	Description
SYMC (SANY Mobile Control)	Proprietary electro-hydraulic control system — replaces traditional lever controls
One-Key Auto-Dig	Automatically adjusts boom, arm, bucket for optimal digging
Intelligent Load Sensing	Matches engine output to hydraulic demand → saves 10-15% fuel
Multi-Mode Operation	E / P / B modes (Economy / Power / Boost)
LCD Monitor	Real-time data: fuel, hours, diagnostics, GPS tracking
Remote Diagnostics	Connects to SANY cloud for maintenance alerts

🧠 Think of it as the "smart brain" of the machine — makes operation easier even for less-experienced operators.

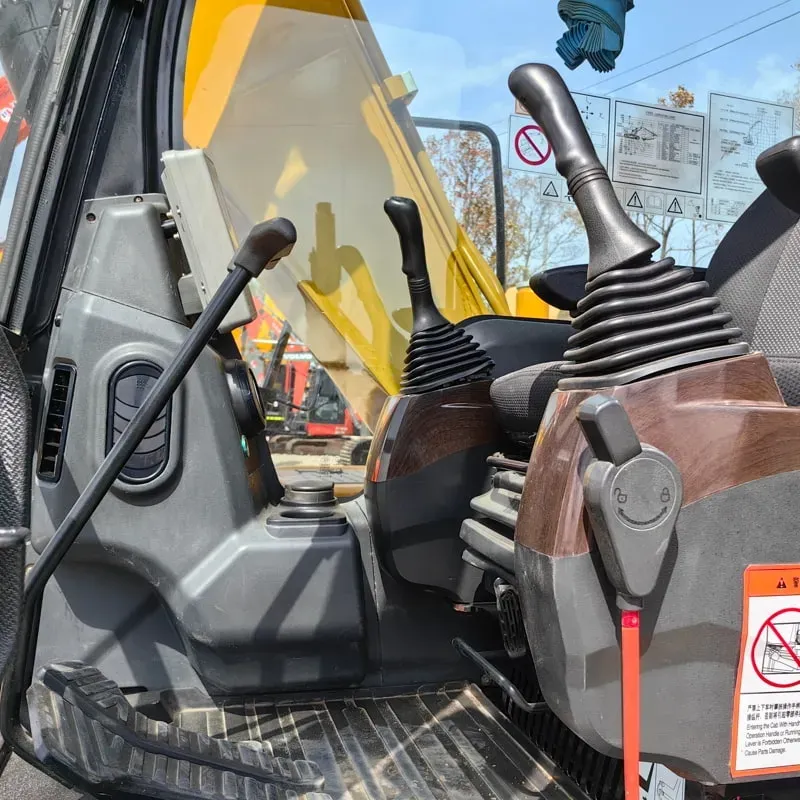

🛋️ 5. OPERATOR CAB & COMFORT

Feature	Detail
Cab Type	Enclosed, ROPS/FOPS certified
Air Conditioning	✅ Standard
Suspension Seat	✅ Air-suspended, adjustable
Noise Level	~73 dB(A) — relatively quiet
Vision	Large glass area, rear-view camera available
Controls	Joystick-type (SYMC), ergonomic design
Storage	Phone holder, cup holder, USB charging

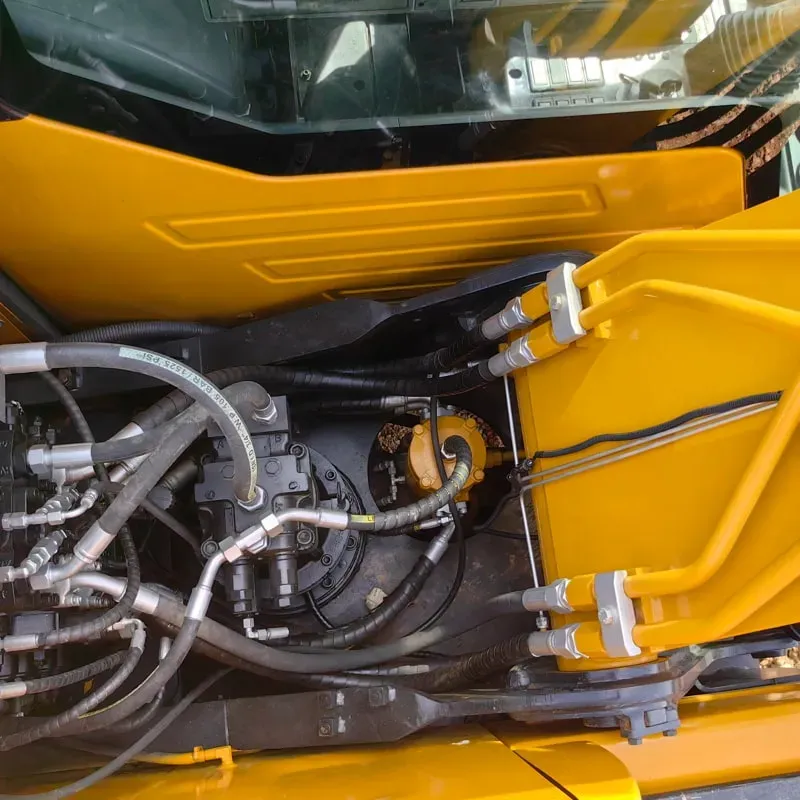

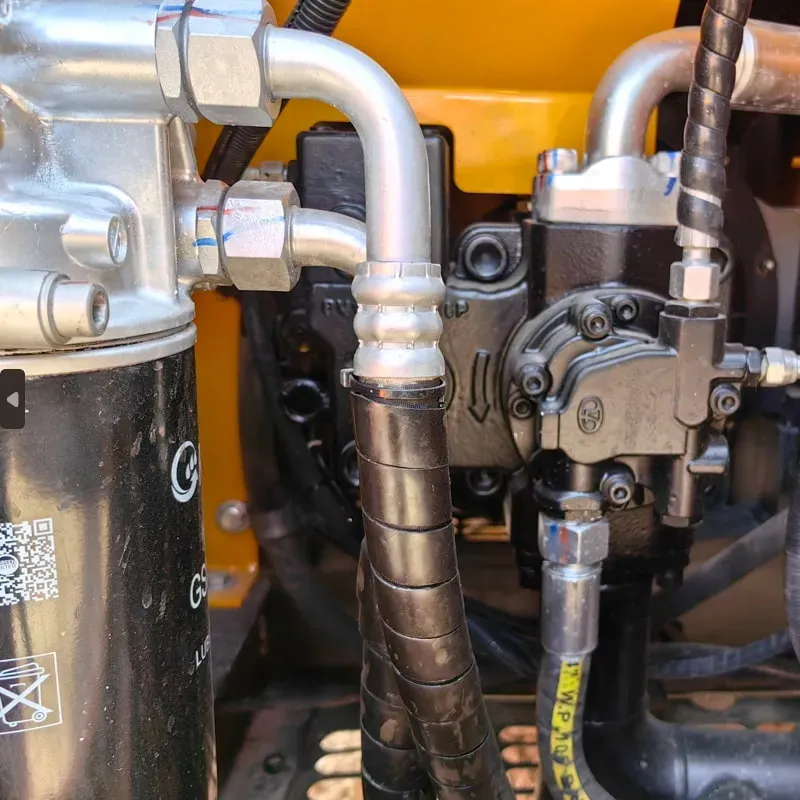

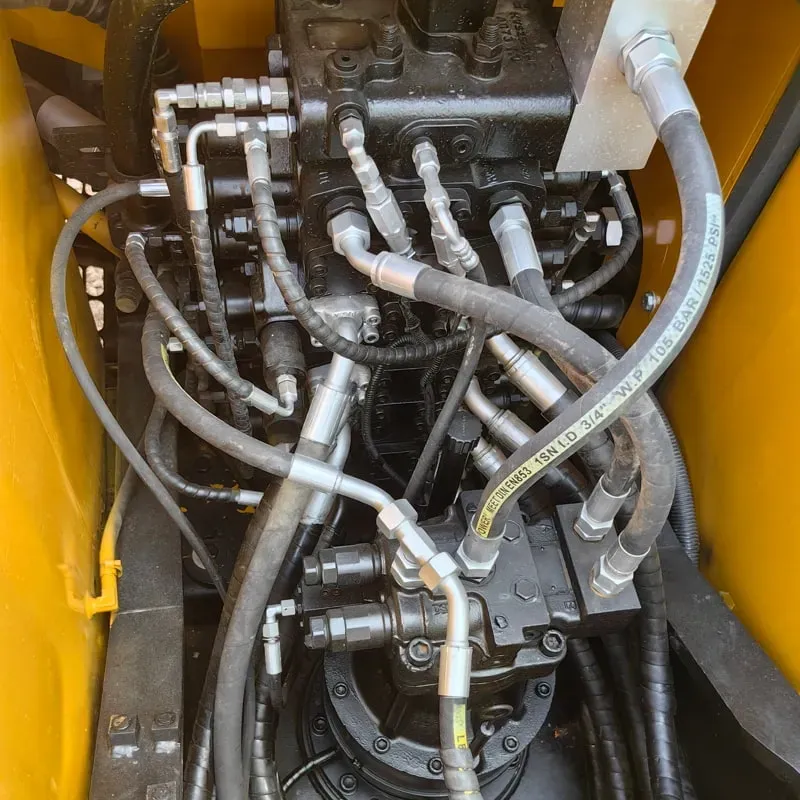

🔧 6. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Variable displacement axial piston pump
Main Pump Flow	~2 × 160 L/min
System Pressure	34.3 MPa (343 bar)
Auxiliary Hydraulic Line	✅ Available (for hammers, thumbs, etc.)
Hydraulic Quick Coupler	Optional

🛠️ 7. ATTACHMENTS & VERSATILITY

The SY125C is a multi-purpose machine with quick coupler compatibility:

Attachment	Use Case
🪣 Standard Bucket (0.45m³)	General excavation
🔨 Hydraulic Breaker	Demolition, rock breaking
🤏 Hydraulic Thumb	Grappling, log handling
🔄 Rotating Grapple	Scrap handling, forestry
🔩 Auger	Pile driving
🌿 Rake	Landscaping, leveling
🪵 Hydraulic Shear	Demolition, scrap cutting

🌍 8. GLOBAL PRESENCE & WARRANTY

Region	Presence
🇨🇳 China	#1 domestic brand
🌏 Southeast Asia	Very strong (Vietnam, Thailand, Indonesia, Philippines)
🌍 Africa	Growing rapidly
🌎 South America	Brazil, Chile, Colombia
🌐 Middle East	UAE, Saudi Arabia
🇪🇺 Europe	Available in select markets
🇺🇸 North America	Limited but expanding

Warranty	Detail
Standard Warranty	12 months / 2,000 hours (whichever first)
Extended Warranty	Up to 24 months available
Parts Availability	Good — SANY has growing global dealer network

✅ 9. ADVANTAGES (Pros)

✅ Advantage	Explanation
💰 Competitive Price	15-25% cheaper than CAT/Komatsu of same class
🧠 Smart SYMC System	Easy operation, fuel-saving
&Fuel Efficient**	Yanmar engine is very economical
🔧 Easy Maintenance	Ground-level service points, long intervals
📈 Resale Value	Improving rapidly in global markets
🏭 SANY Brand	Top 3 global construction equipment maker

⚠️ 10. CONSIDERATIONS (Cons)

⚠️ Point	Explanation
🌐 Dealer Network	Not as dense as CAT/Komatsu in some regions
🔄 Parts Availability	Can be slower in remote areas
📉 Resale (in some markets)	Still behind Japanese brands in perception
🖥️ SYMC Learning Curve	New operators need time to adapt

🆚 11. COMPARISON WITH COMPETITORS

Spec	SANY SY125C	CAT 312	Komatsu PC120	Doosan DX140
Power	92 HP	122 HP	118 HP	129 HP
Weight	12.5T	12.1T	11.9T	14.0T
Bucket	0.45 m³	0.50 m³	0.42 m³	0.47 m³
Smart System	✅ SYMC	✅ Cat Grade	✅ KOMTRAX	✅ DoosanCONNECT
Price (Approx.)	$75K-90K	$110K-130K	$100K-120K	$95K-110K
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 SANY wins on PRICE-TO-PERFORMANCE ratio

🏁 12. SUMMARY


Best For	General construction, municipal works, rental fleet, developing markets
Ideal Operator	Contractors looking for value + smart tech without paying premium Japanese prices
Rating	⭐⭐⭐⭐☆ (4/5) — Excellent value, rapidly improving brand

📌 Bottom Line: The SANY SY125C is arguably the best value mid-size excavator on the market today. With its intelligent SYMC system, fuel-efficient Yanmar engine, and competitive pricing, it's a serious challenger to the traditional Japanese brands — especially for buyers who prioritize cost-effectiveness and technology.

Would you like more details on pricing in a specific country, rental rates, or comparison with another model? 🚜
