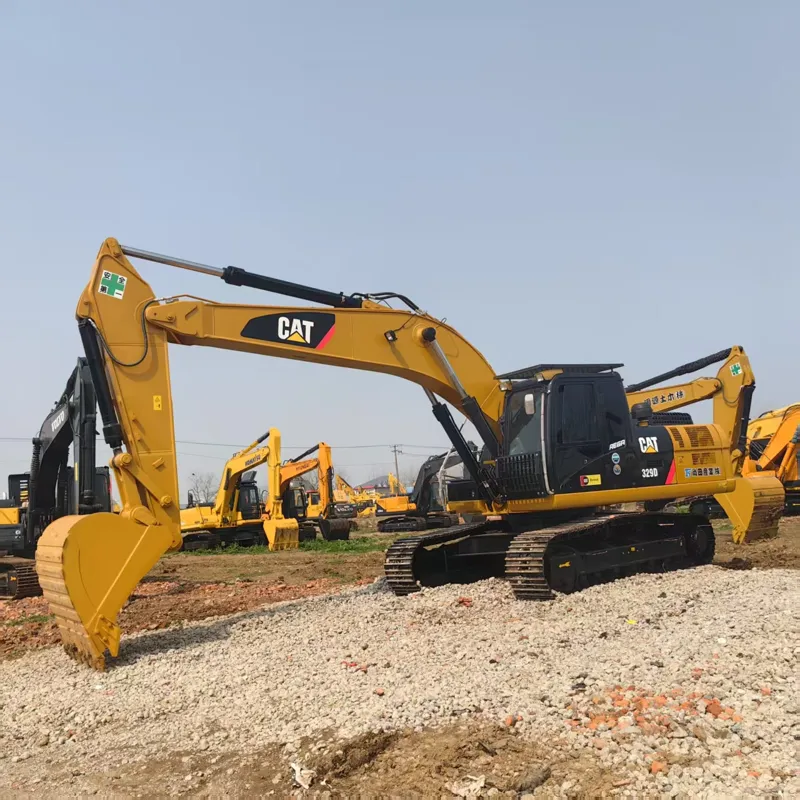

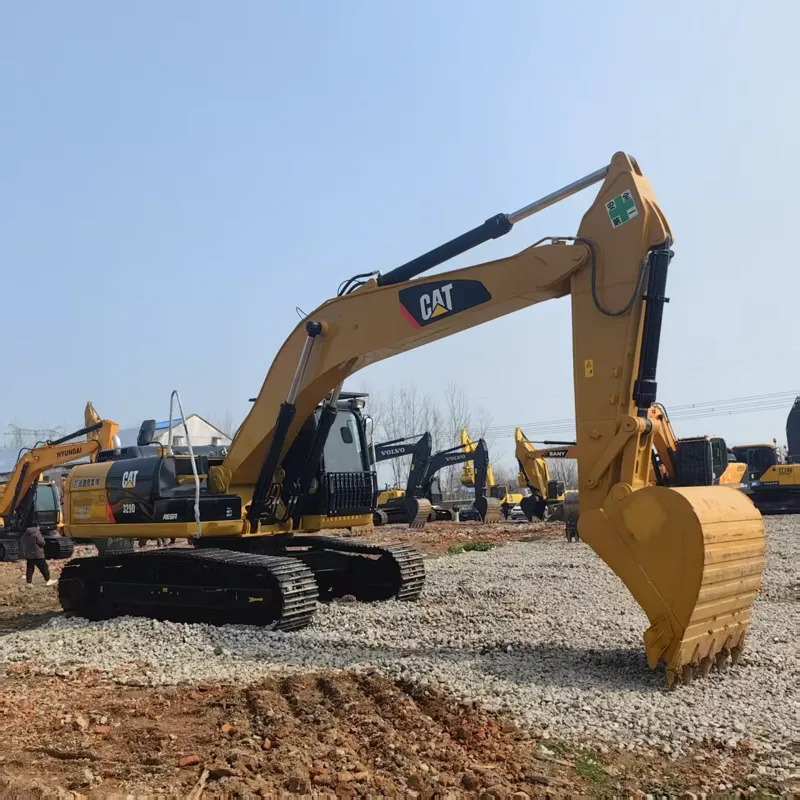

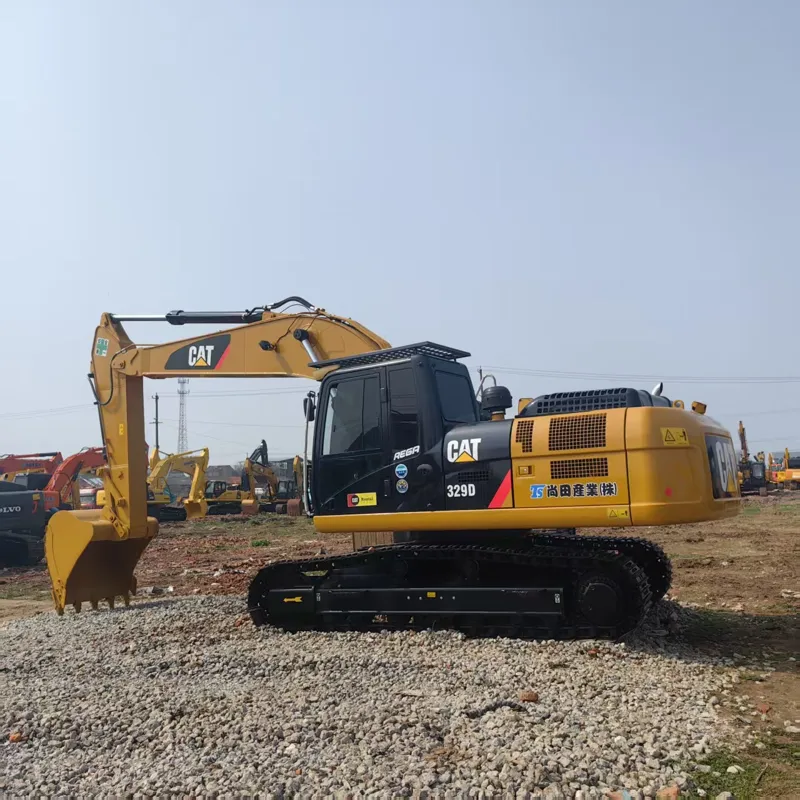

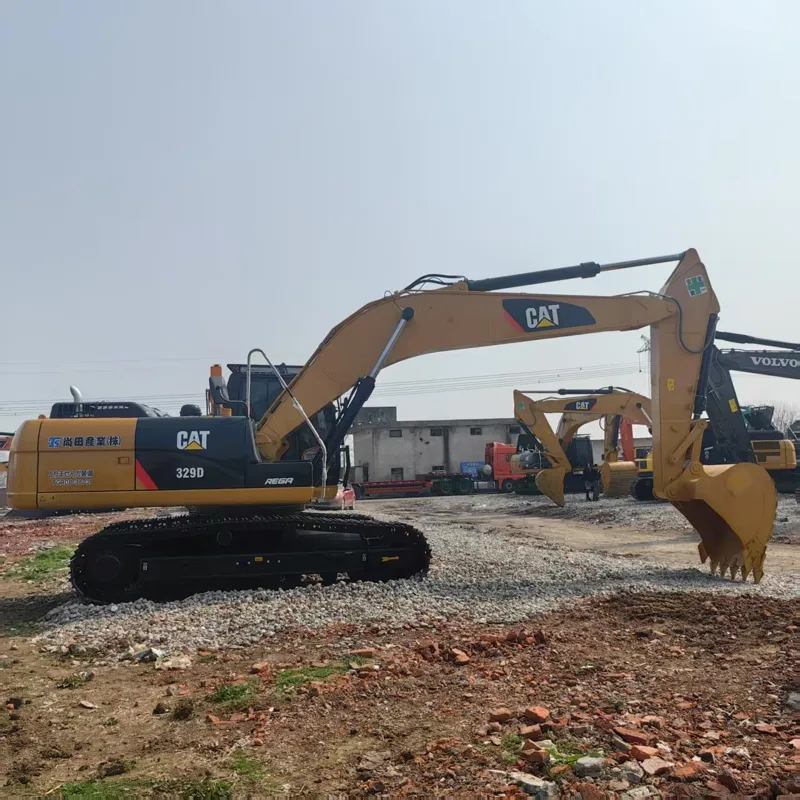

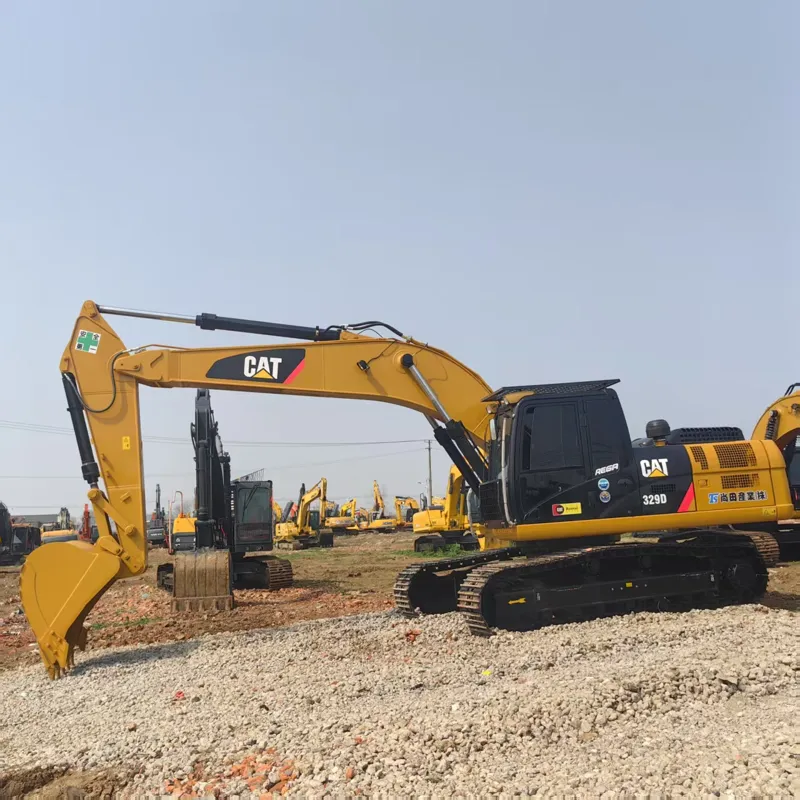

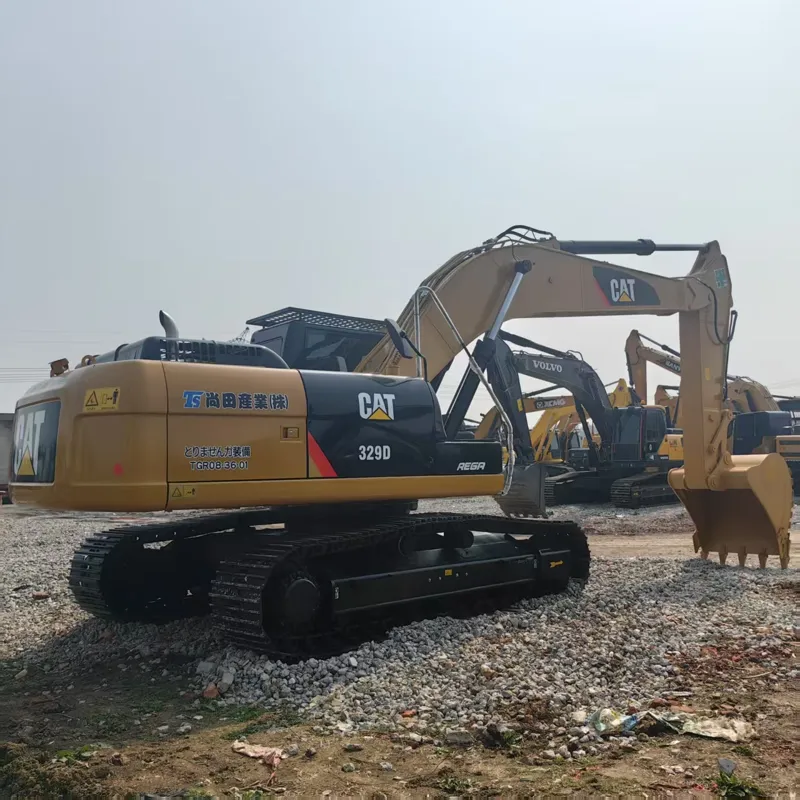

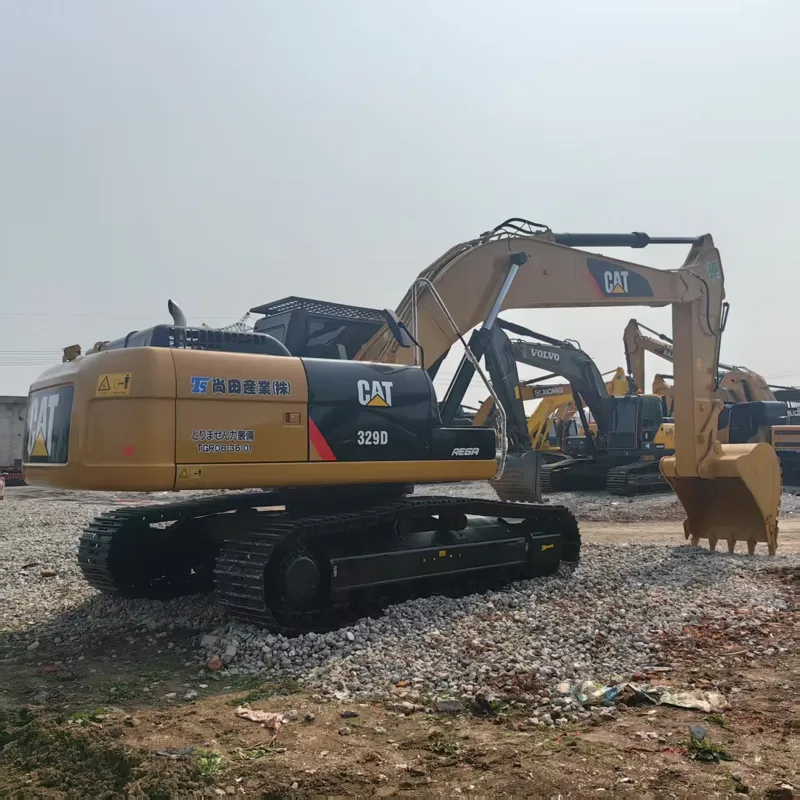

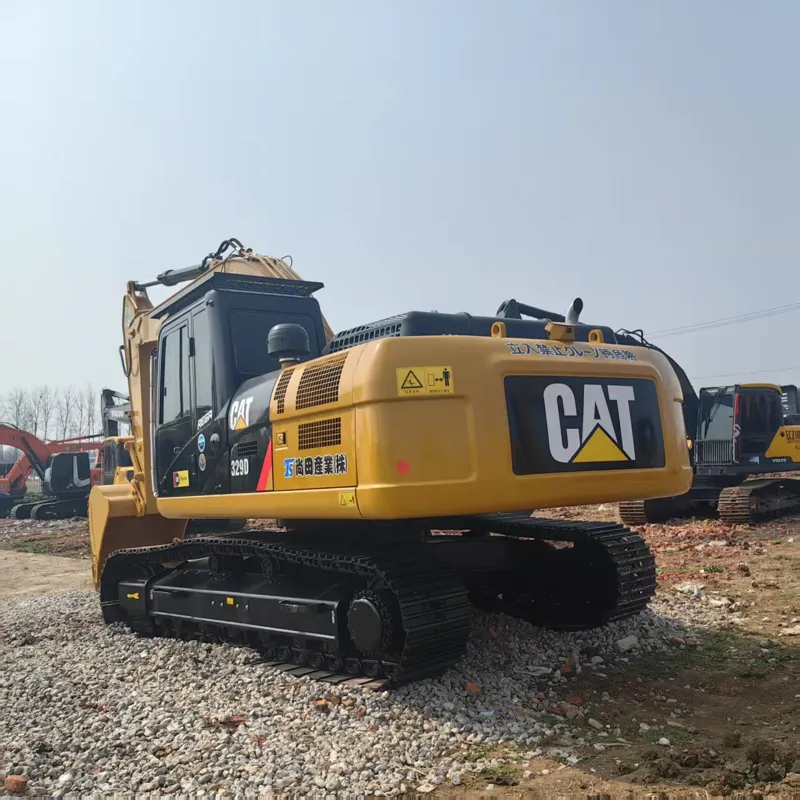

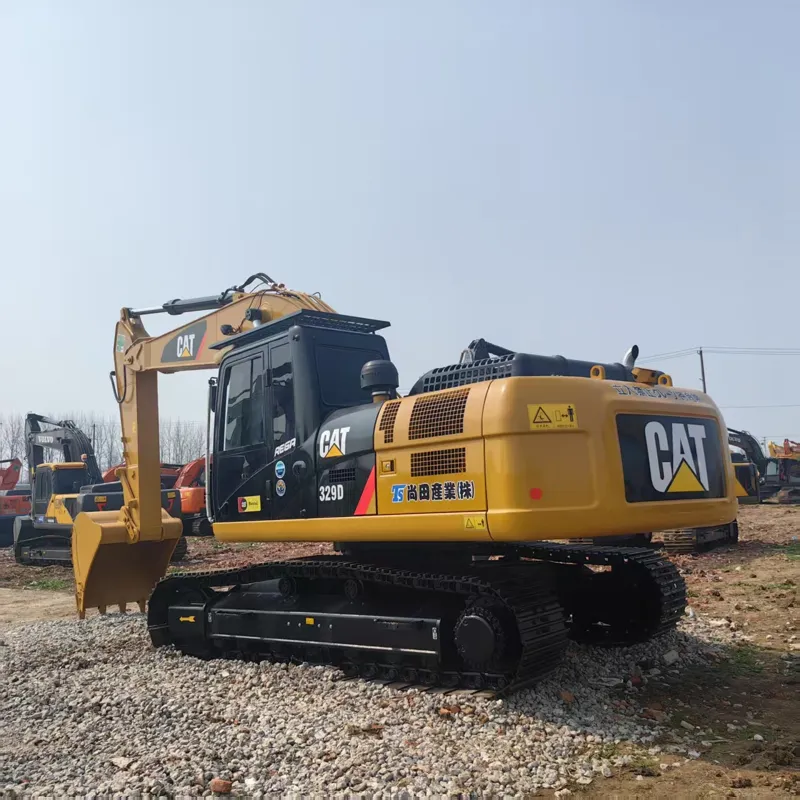

Used Caterpillar 329DExcavator

Reading: 13

📋 1. GENERAL OVERVIEW

Parameter	Details
Manufacturer	Caterpillar Inc.
Series	D-Series (Mid-Size Excavator)
Class	29-ton (Medium) Excavator
Production Years	~2011 – 2019 (succeeded by Next Gen / GC models)
Primary Market	General construction, road building, utilities, mining, demolition
Origin	United States 🇺🇸

The Cat 329D sits between the 325D and 330D in Caterpillar's D-Series lineup. It was designed to deliver high performance, fuel efficiency, and operator comfort for medium-scale earthmoving operations. It has been largely succeeded by the Cat 329 GC / 329 Next Generation, but the 329D remains widely used in the global second-hand market.

& 2. ENGINE & POWERTRAIN

Specification	Details
Engine Model	Cat® C7.1 ACERT®
Engine Type	6-cylinder, turbocharged, aftercooled diesel
Displacement	7.1 L (434 in³)
Rated Power	201 hp (150 kW) @ 2,000 rpm
Emission Standard	EPA Tier 4 Final / EU Stage IIIB
Fuel Tank Capacity	~400 L (106 gal)
DEF Tank	~20 L (for SCR aftertreatment system)

🔧 Engine Features:

ACERT Technology — Advanced combustion for lower emissions & better fuel economy
Electronic fuel injection — Precise fuel delivery
Auto engine idle — Automatically reduces RPM when not working (saves fuel)
Auto engine shutdown — Shuts off engine after preset idle time

📐 3. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	~29,000 – 30,200 kg (63,900 – 66,600 lbs)
Transport Length (w/o boom)	~9,970 mm (32.7 ft)
Transport Height	~3,190 mm (10.5 ft)
Transport Width	~2,990 mm (9.8 ft)
Ground Clearance	~460 mm (18.1 in)
Track Width	600 mm (24 in) standard / 450 mm (18 in) narrow option
Track Length on Ground	~3,630 mm (11.9 ft)

🏗️ 4. HYDRAULIC SYSTEM & PERFORMANCE

Specification	Details
Main Pump Type	Variable displacement, piston pump
System Pressure	35 MPa (5,076 psi)
Hydraulic Flow	2 × 260 L/min (total ~520 L/min)
Swing Speed	9.5 rpm
Swing Torque	105 kN·m
Travel Speed	5.2 km/h (3.2 mph)
Gradeability	70% (35°)

🪣 5. DIGGING PERFORMANCE

Parameter	Value
Max Digging Depth	~7.0 m (23.0 ft)
Max Reach (Ground Level)	~9.7 m (31.8 ft)
Max Digging Height	~9.9 m (32.5 ft)
Max Dump Height	~7.0 m (23.0 ft)
Max Vertical Wall Dig	~5.7 m (18.7 ft)
Bucket Capacity (SAE)	0.9 – 1.6 m³ (1.2 – 2.1 yd³)
Arm Force (Breakout)	~160 kN (36,000 lbf)
Bucket Force	~147 kN (33,000 lbf)

⚡ Performance varies based on boom/arm configuration (2-piece or 3-piece) and undercarriage choice.

🖥️ 6. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, pressurized & filtered
Climate Control	Full air conditioning & heating
Seat	Air-suspension, heated, with armrests
Display	8" (203 mm) LCD touchscreen monitor
Controls	Proportional joysticks with fingertip controls
Camera System	Rearview & sideview cameras (optional)
Sound Level	~72 dB(A) (very quiet for its class)
Vibration Level	Low — excellent operator comfort rating

📡 CAT PRODUCT LINK™

Real-time machine monitoring
Fleet management & diagnostics
Fuel usage tracking
Location tracking (GPS)
Remote troubleshooting

🧠 7. SMART TECHNOLOGY FEATURES

Technology	Description
Cat GRADE with 2D	Optional GPS-based grade control for precision digging
Cat PAYLOAD	Real-time bucket payload weighing (±1-2% accuracy)
Cat DETECT	Object detection system (radar + camera) to prevent collisions
POWER MODE	Adjustable engine power (Eco / Power / Smart) for fuel savings up to 15%
Auto-Idle / Auto-Shutdown	Saves fuel during idle periods
Kickback Detection	Automatically reduces power if kickback is detected

🔧 8. WORK TOOL ATTACHMENTS (Options)

The 329D is highly versatile with quick coupler and auxiliary hydraulic lines:

Attachment	Application
🔨 Hydraulic Hammer (Breaker)	Rock breaking, demolition
🫳 Thumb (Grapple)	Material handling, sorting
🔄 Quick Coupler	Fast attachment changeover
🪚 Hydraulic Shear	Metal cutting, demolition
🪣 Tiltrotator	Precise positioning, grading
🪵 Grapple (Orange Peel / Sorting)	Scrap handling, recycling
🔩 Auger / Drill	Foundation work, piling
🌊 Ripper (Single Shank)	Hard ground breaking
🧹 Bucket (GP / Clean-up / Trenching)	Various digging tasks

🆚 9. COMPARISON WITH SIMILAR MODELS

Model	Weight	Power	Bucket	Price Range (Used)
Cat 325D	~25,000 kg	174 hp	0.8–1.3 m³	$55K–$80K
⭐ Cat 329D	~29,500 kg	201 hp	0.9–1.6 m³	$75K–$110K
Cat 330D	~31,000 kg	218 hp	1.0–1.7 m³	$90K–$130K
Cat 329 GC	~30,000 kg	201 hp	0.9–1.6 m³	$100K–$140K
Komatsu PC290	~29,000 kg	197 hp	0.9–1.5 m³	$70K–$100K
Hitachi ZX290	~29,500 kg	196 hp	0.9–1.5 m³	$65K–$95K

✅ 10. ADVANTAGES

✅ Pros	Details
💪 Powerful	201 hp — excellent power-to-weight ratio
&Fuel Efficient**	Up to 15% fuel savings vs previous C-Series
🪑 Comfortable Cab	Among the best in its class
🔧 Reliable	Cat C7.1 engine — proven, low maintenance
📡 Connected	Product Link for fleet management
🔄 Versatile	20+ work tool configurations available
💰 Resale Value	Excellent — Cat holds value very well
🔩 Parts Availability	Global Cat dealer network

❌ Cons	Details
💲 Higher Purchase Price	Premium pricing vs competitors
🔧 Maintenance Cost	Higher than Asian brands (Komatsu, Hitachi)
📦 DEF Required	Needs Diesel Exhaust Fluid (Tier 4)
🏋️ Heavy	Transport costs can be high

🌍 11. COMMON APPLICATIONS

Industry	Use Case
🏗️ General Construction	Excavation, foundation, trenching
🛣️ Road Building	Grading, ditching, pipe laying
🏭 Utilities	Water/sewer line installation
🪨 Mining & Quarrying	Loading trucks, rock breaking
🏚️ Demolition	Building tear-down (with breaker/shear)
🌳 Landscaping	Grading, pond digging, tree planting
🔄 Recycling	Scrap metal handling (with grapple)

📊 12. SUMMARY SPEC SHEET

Parameter	Value
Model	Cat 329D
Engine	C7.1 ACERT, 6-cyl, 7.1L
Power	201 hp (150 kW)
Operating Weight	~29,500 kg (65,000 lbs)
Bucket Range	0.9 – 1.6 m³
Max Dig Depth	7.0 m (23 ft)
Max Reach	9.7 m (31.8 ft)
Fuel Tank	400 L
Swing Speed	9.5 rpm
Emission	Tier 4 Final / Stage IIIB
Series	D-Series (2011–2019)

🎯 CONCLUSION

The Caterpillar 329D is one of the most popular and well-regarded medium-class excavators ever produced. It strikes an excellent balance between power, efficiency, comfort, and versatility. Whether you're doing general earthmoving, road construction, or demolition work, the 329D delivers reliable, high-performance operation with the backing of Caterpillar's world-class dealer network and parts support.

📌 If you're buying used: Look for machines under 8,000–10,000 hours with full service history for the best value. The C7.1 engine is known to last 15,000–20,000+ hours with proper maintenance.
