Used Sany 215Excavator

Reading: 68

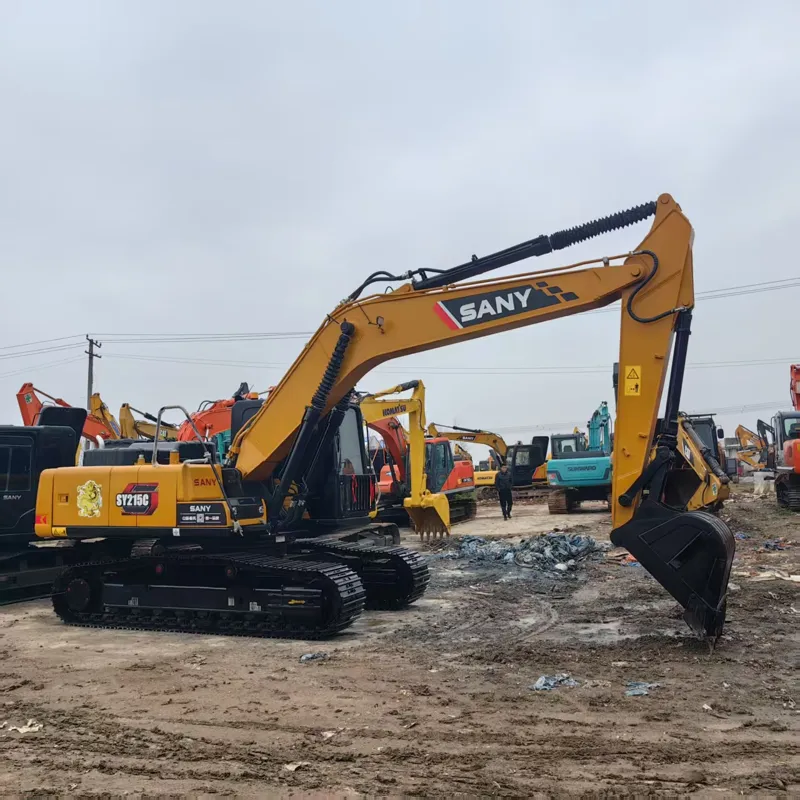

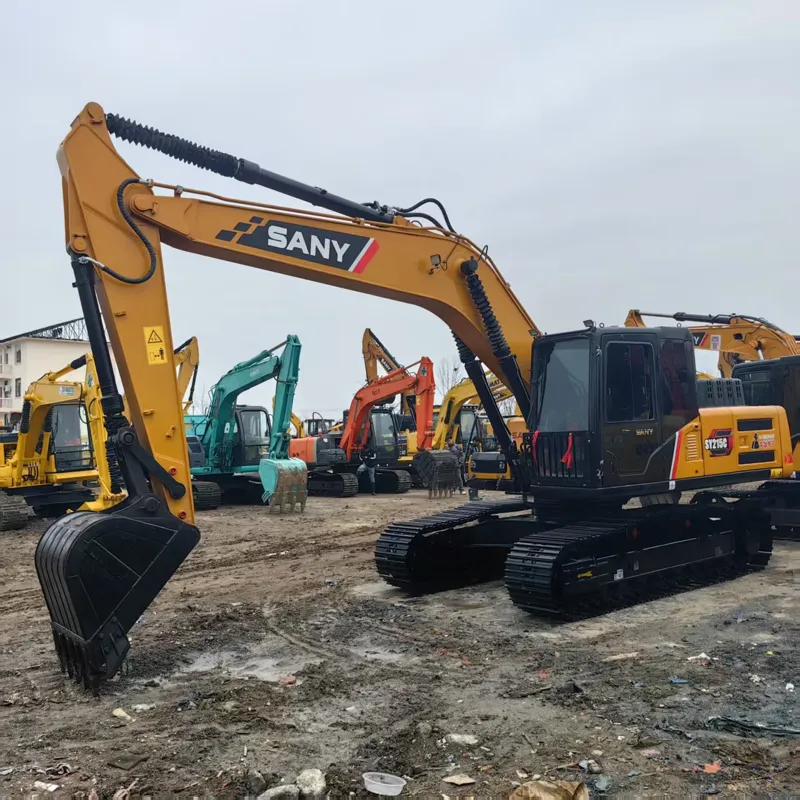

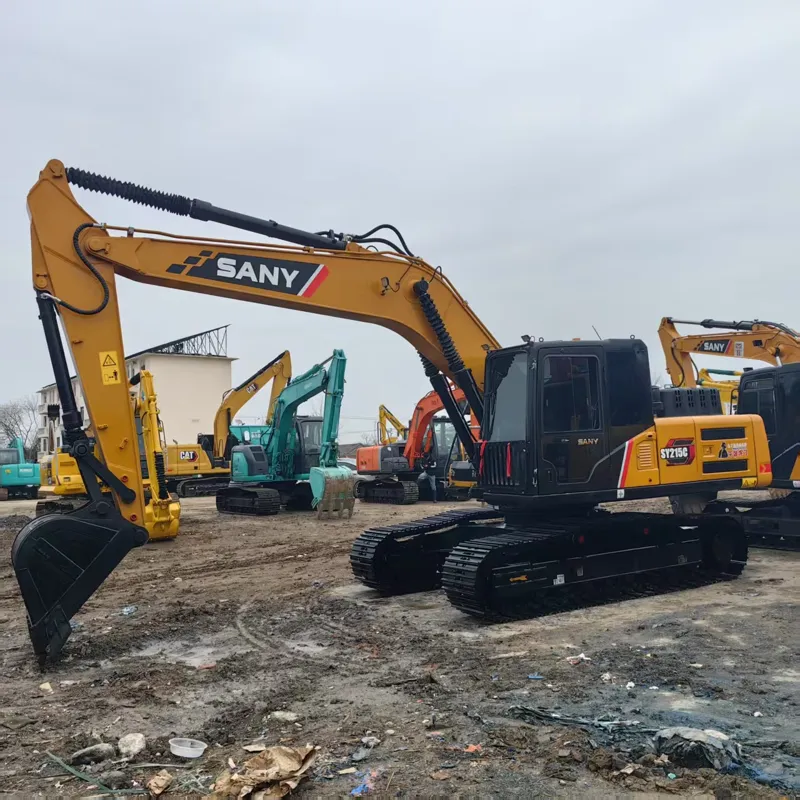

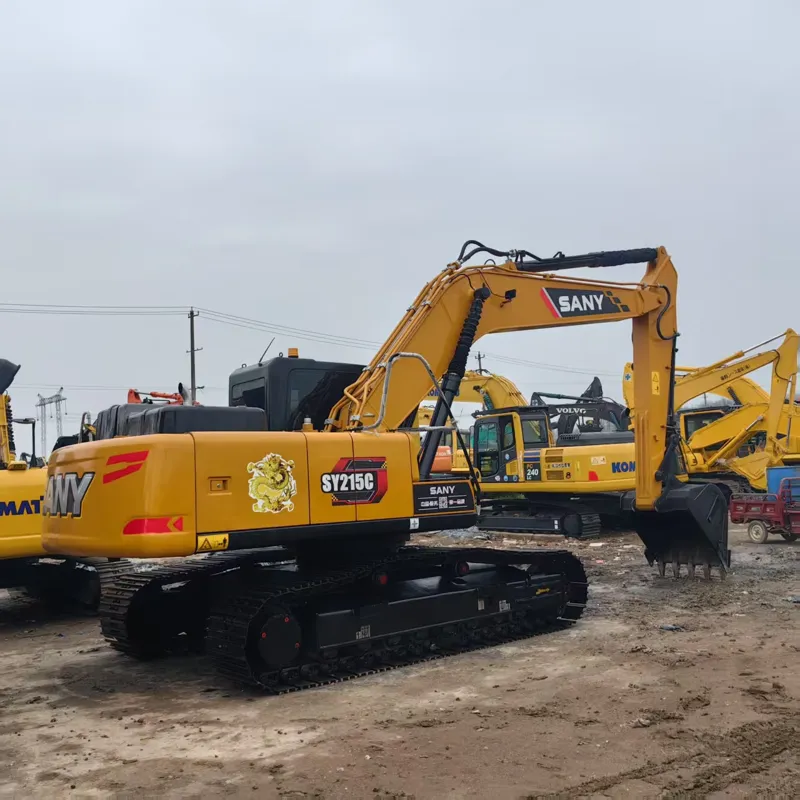

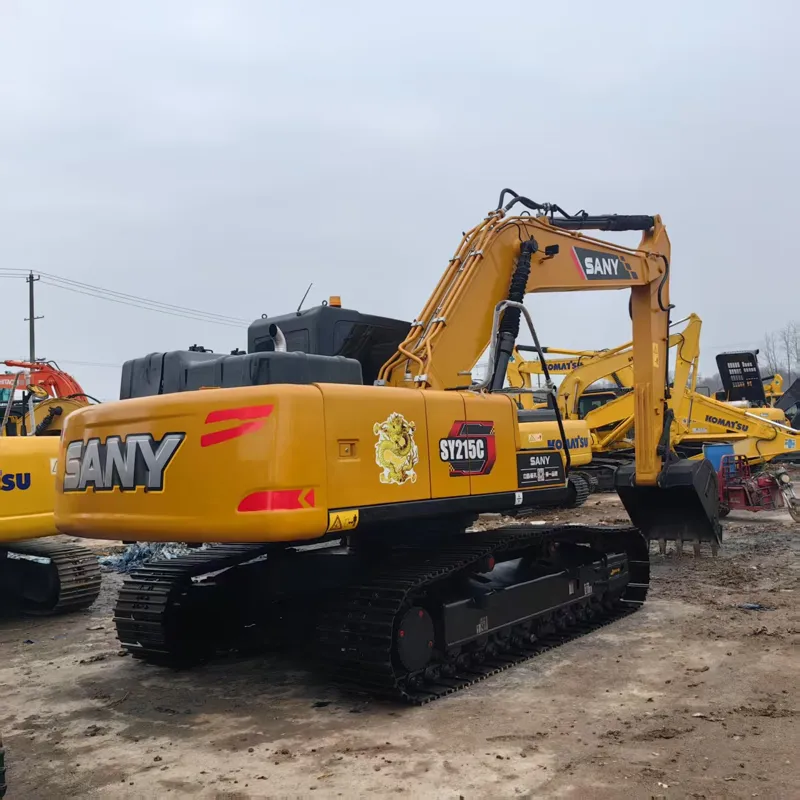

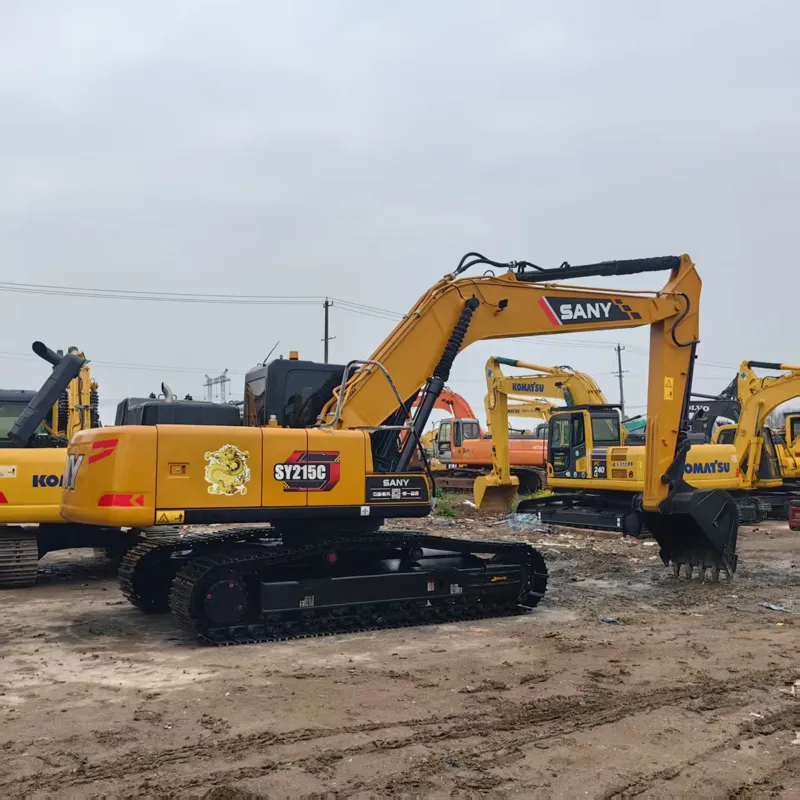

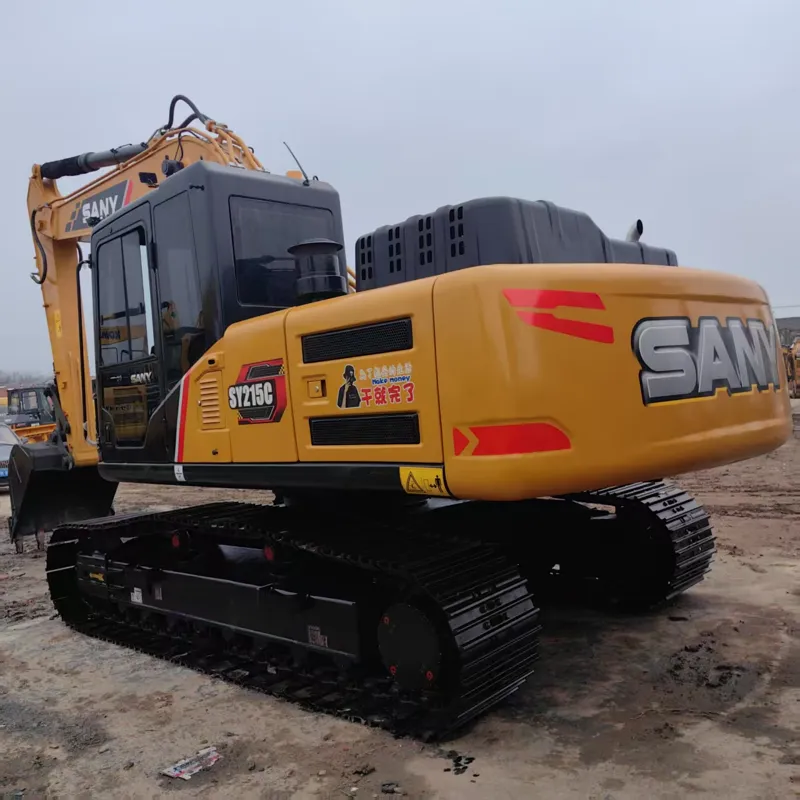

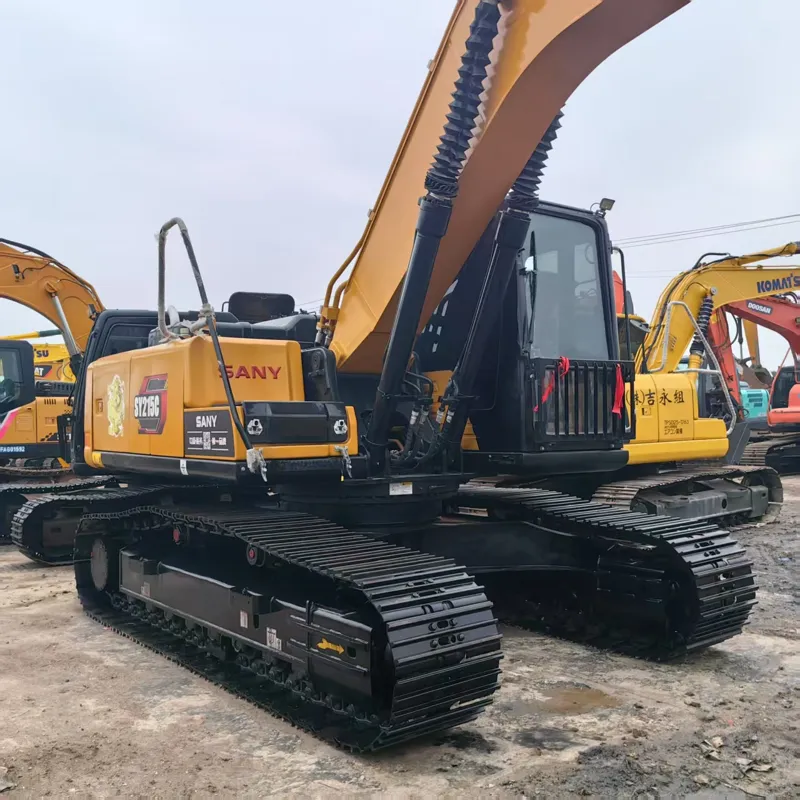

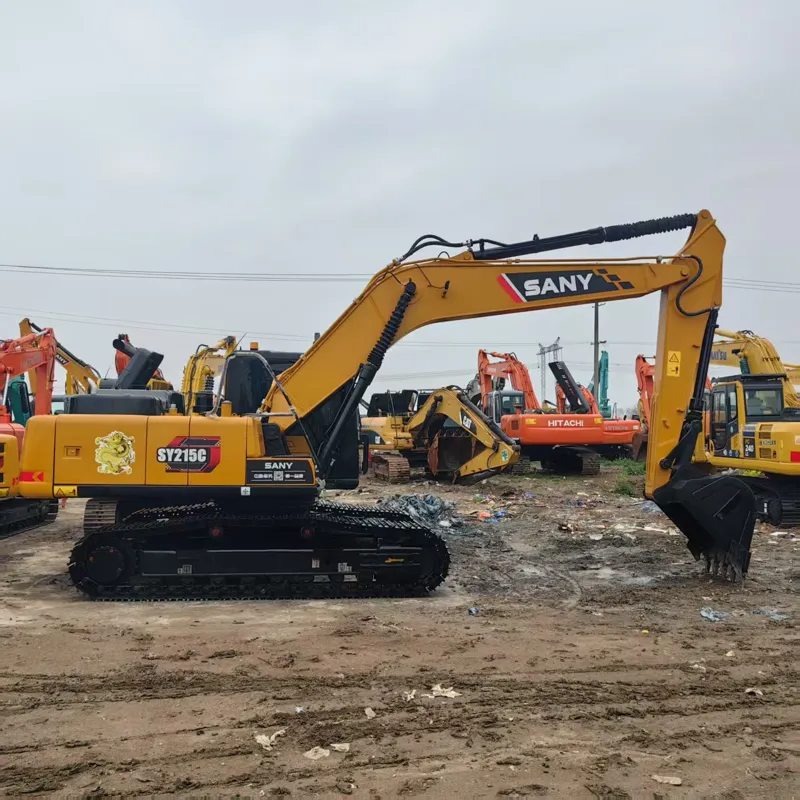

The Sany SY215C is a 21.5-ton class hydraulic crawler excavator manufactured by Sany Heavy Industry Co., Ltd., one of the world's top construction machinery makers (ranked among the global top 5). It competes directly with the CAT 320, Komatsu PC210, Hitachi ZX210, and Hyundai R215.

📋 1. BASIC SPECIFICATIONS

Parameter	Specification
Model	SY215C / SY215C-10 / SY215C Pro
Operating Weight	~21,500 kg (47,400 lbs)
Engine Brand	Cummins QSB6.7 (Tier 4 Final)
Engine Power	125 kW (167 HP) @ 2,000 rpm
Engine Displacement	6.7 L
Fuel Tank Capacity	~400 L
Bucket Capacity (Std)	0.83 – 1.0 m³
Track Width	600 mm (triple grouser shoes)
Track Gauge	2,990 mm

📐 2. DIMENSIONS

Dimension	Value
Overall Length	~9,780 mm
Overall Width	~2,990 mm
Overall Height (to cab top)	~3,080 mm
Ground Clearance	~460 mm
Tail Swing Radius	~2,940 mm (short tail)

💪 3. PERFORMANCE / WORKING RANGE

Parameter	Value
Max Digging Depth	~7,200 mm
Max Digging Radius	~9,900 mm
Max Dumping Height	~7,500 mm
Max Digging Reach (Ground Level)	~9,700 mm
Max Vertical Wall Digging Depth	~5,500 mm
Max Digging Force (Boom/Arm)	~153 kN
Max Tractive Force	~148 kN
Swing Speed	~10.5 rpm
Travel Speed (H/L)	5.5 / 3.5 km/h

& 4. HYDRAULIC SYSTEM

Feature	Specification
Main Pump Type	Dual variable-displacement axial piston pump
System Pressure	34.3 MPa (350 bar)
Pump Flow (×2)	2 × 298 L/min
Control System	Load-sensing + Positive Flow Control (optional)
Swing Motor	Axial piston motor with brake
Travel Motor	Axial piston motor (×2)

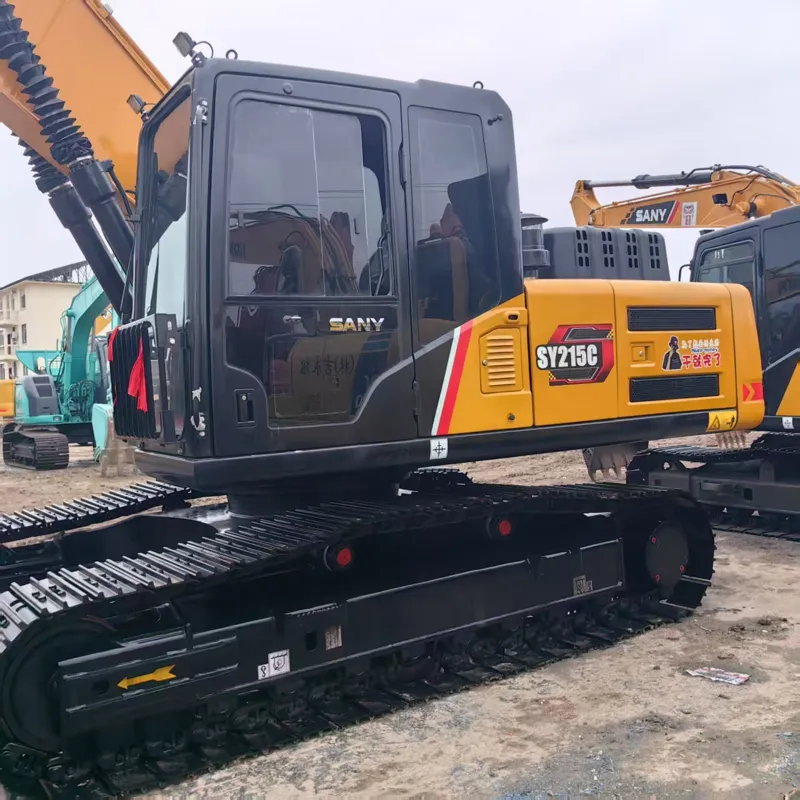

🖥️ 5. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified
Air Conditioning	✅ Full automatic A/C
Seat	Suspended air-ride seat with armrest
Display	7-inch LCD color monitor
Joystick Control	Pilot-operated, ergonomic
GPS Ready	✅ Pre-wired for fleet management
Camera System	Rear-view & side-view cameras (optional)
Auto Idle	✅ Engine auto-idle to save fuel
Sound Level	~70 dB(A) (relatively quiet)

🔧 6. KEY FEATURES & ADVANTAGES

Feature	Description
🏆 Reliability	Sany's "Smart Excavation" technology, proven durability
&Fuel Efficiency**	~15-20% less fuel vs. competitors (Cummins + load-sensing)
🧠 Intelligent System	Sany iControl smart system, auto-tuning
🔄 Easy Maintenance	Ground-level service points, wide-open engine hood
🛡️ Durability	Reinforced boom/arm, heavy-duty X-frame undercarriage
📶 Connectivity	Sany Cloud / IoT telematics for remote monitoring
🔌 Versatile Attachments	Quick coupler ready, hammer/breaker line ready

🏗️ 7. TYPICAL APPLICATIONS

Application	Suitability
✅ General earthmoving	Excellent
✅ Road construction	Excellent
✅ Pipeline trenching	Excellent
✅ Building demolition	Very Good (with breaker)
✅ Mining (small scale)	Good
✅ Landscaping	Good
✅ Foundation work	Excellent

📊 8. COMPARISON WITH COMPETITORS

Model	Weight	Power	Bucket	Price Range (USD)
Sany SY215C	21.5T	167 HP	1.0 m³	$120K–$145K ⭐ Best Value
CAT 320 GC	21.3T	163 HP	0.93 m³	$150K–$170K
Komatsu PC210	21.0T	150 HP	0.85 m³	$145K–$165K
Hyundai R215VS	21.5T	163 HP	0.93 m³	$130K–$150K
Doosan DX225LC	22.5T	160 HP	0.95 m³	$140K–$160K

💡 Sany offers the best price-to-performance ratio, especially in emerging markets (Southeast Asia, Africa, South America, Middle East, Central Asia).

🌍 9. AVAILABILITY & AFTER-SALES

Region	Availability
🇨🇳 China	Excellent (home market)
🌏 Southeast Asia	Very Strong (Thailand, Indonesia, Vietnam, Philippines)
🌍 Africa	Growing rapidly
🌎 South America	Strong (Brazil, Chile, Peru)
🏗️ Middle East	Growing
🇺🇸 North America	Limited (Sany is expanding)
🇪🇺 Europe	Available in select markets

Warranty: Typically 2 years / 2,000 hours (whichever comes first)
Parts Availability: Sany has invested heavily in global parts distribution centers

✅ SUMMARY

✔️ Pros	❌ Cons
Best value for money	Brand perception still behind CAT/Komatsu in some markets
Low fuel consumption	Limited dealer network in Western markets
Comfortable & modern cab	Resale value slightly lower than Japanese brands
Strong after-sales in Asia/Africa	Some users report minor electronics issues
Smart/IoT connectivity

🏅 VERDICT

The Sany SY215C is an excellent mid-size excavator offering near-premium performance at a mid-range price. It's the go-to choice for cost-conscious buyers who don't want to compromise on quality. With Sany's rapid global expansion, it's becoming a serious challenger to the traditional Japanese and American brands.
