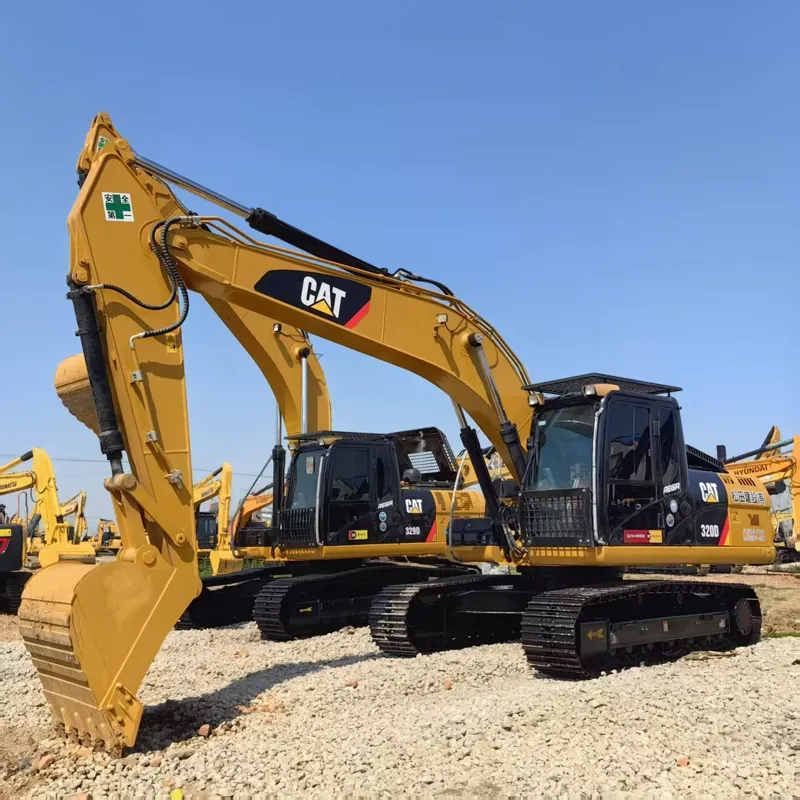

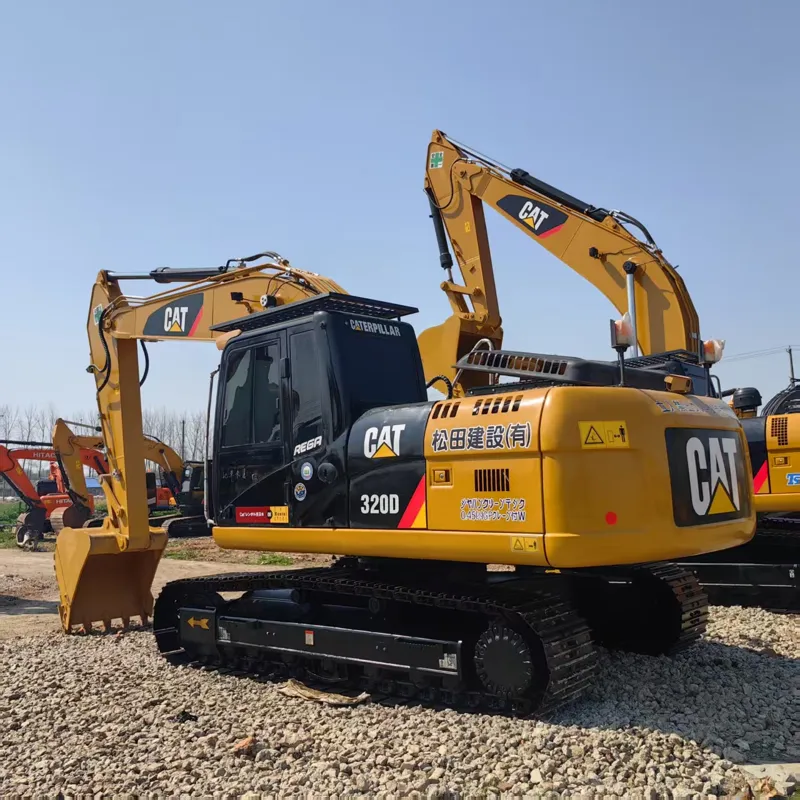

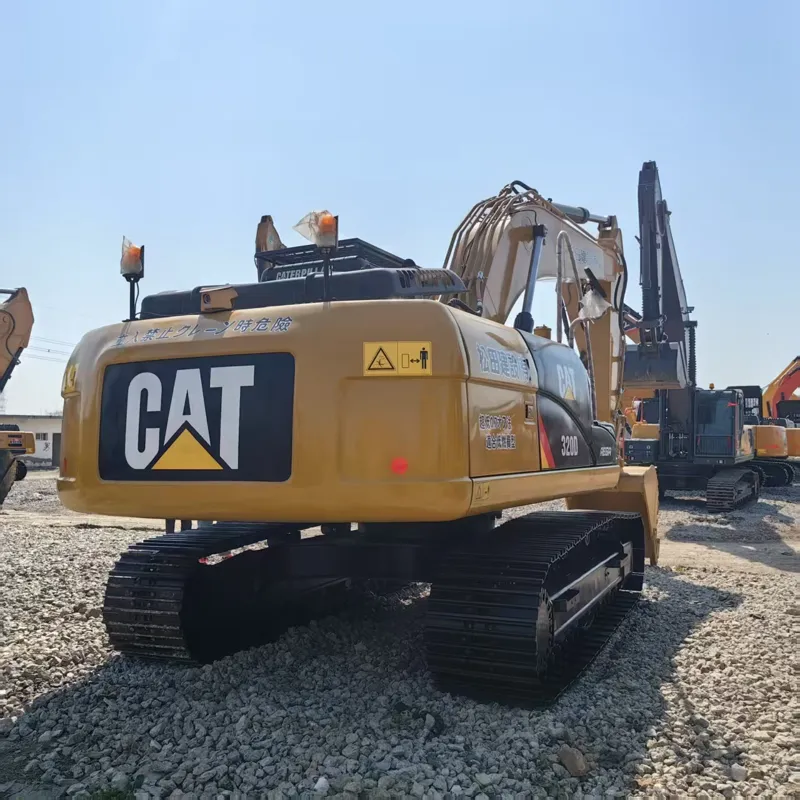

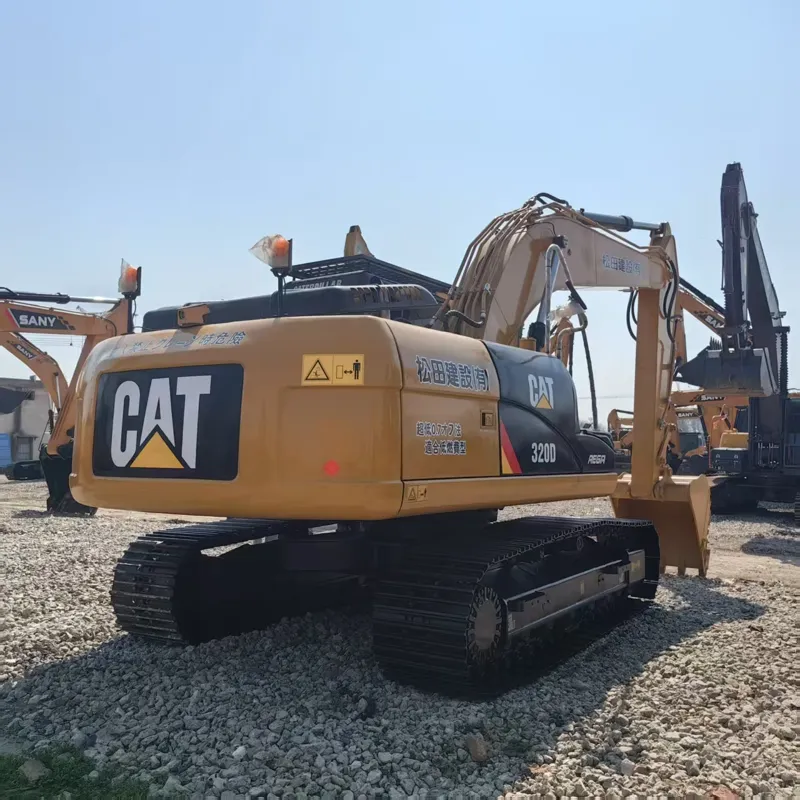

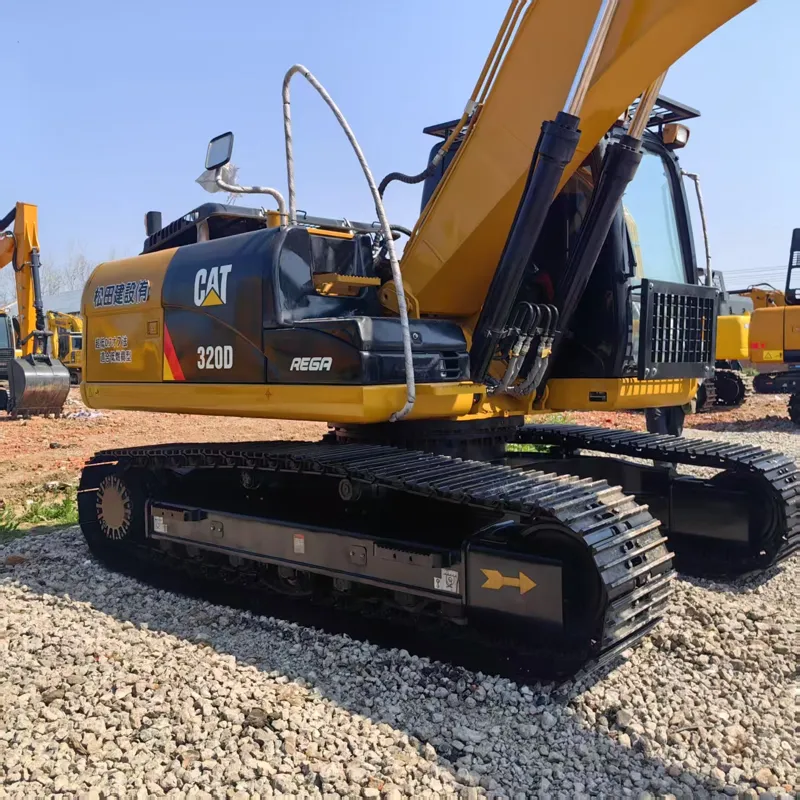

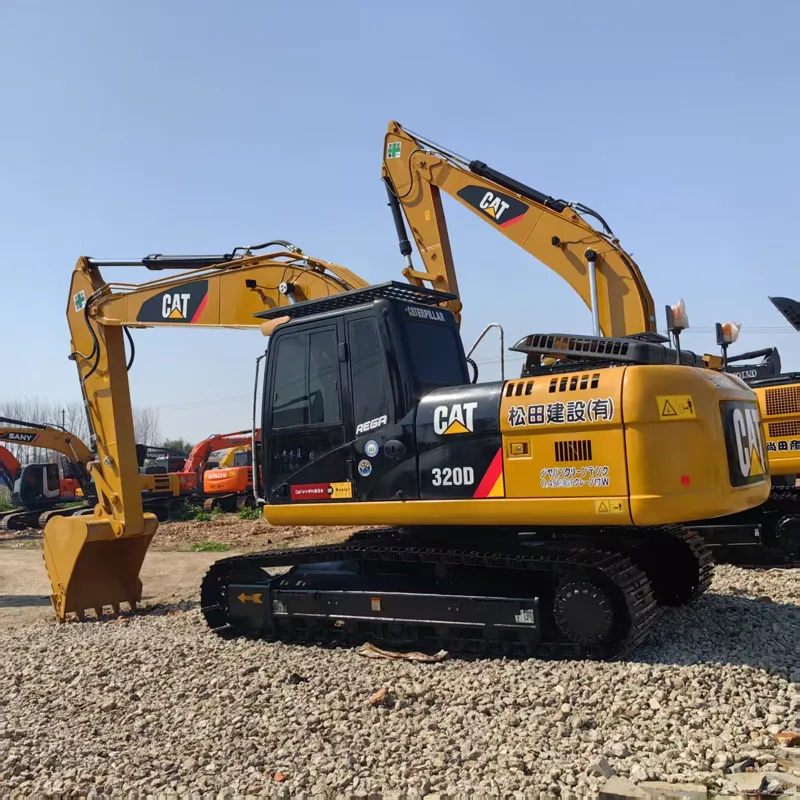

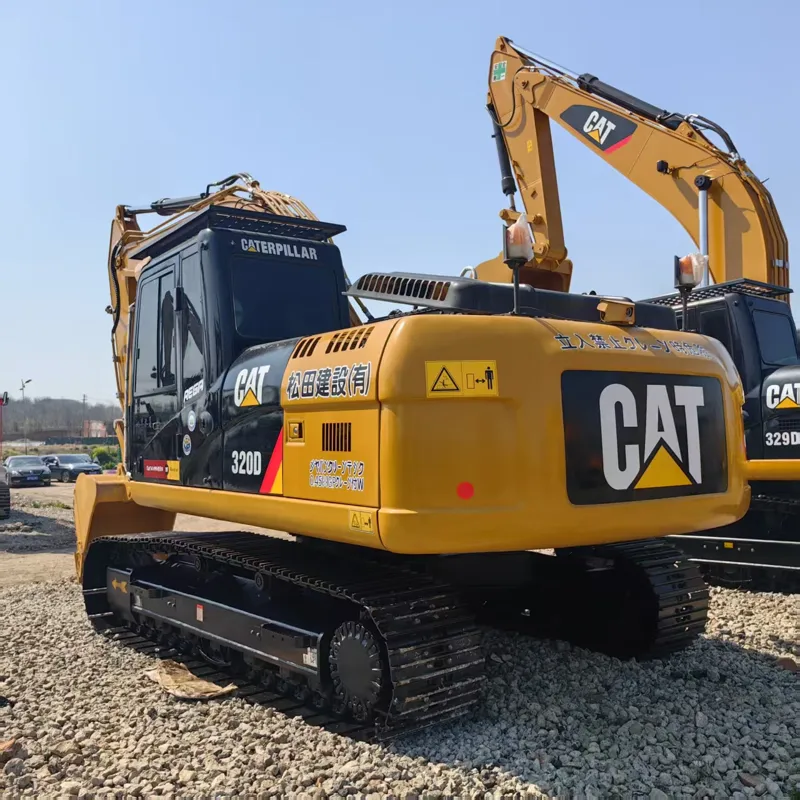

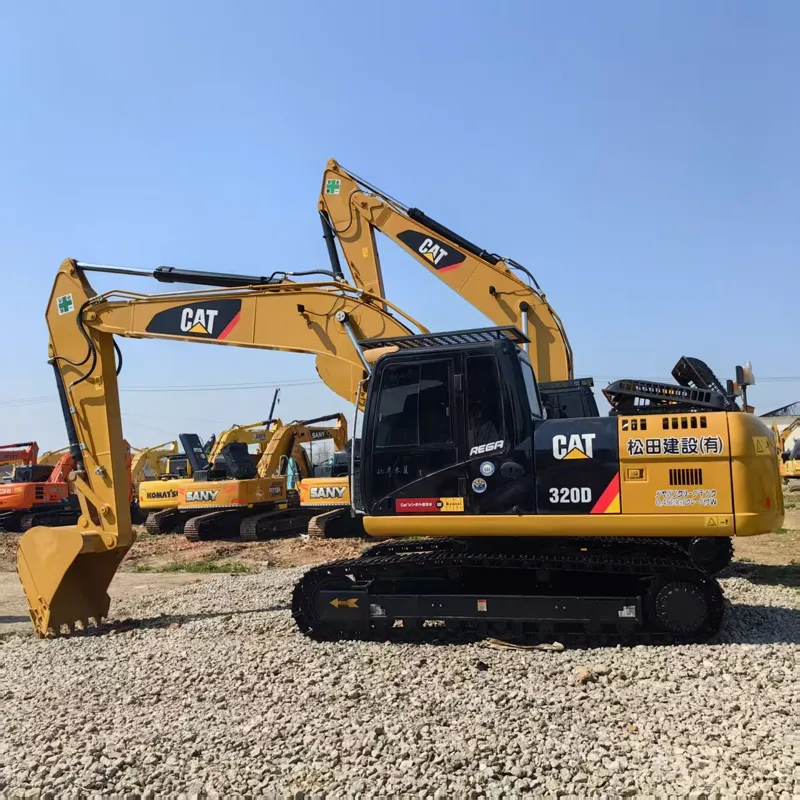

Used Caterpillar 320D2Excavator

Reading: 102

📋 OVERVIEW

The Caterpillar 320D2 is a 20-ton class hydraulic excavator from Caterpillar's D2 Generation series, introduced around 2014-2015 as the successor to the 320D. It's designed for versatile performance in construction, demolition, mining, and material handling applications.

⚙️ KEY SPECIFICATIONS

Parameter	Details
Operating Weight	20,000 - 20,800 kg (44,090 - 45,855 lbs)
Engine	Cat C4.4 ACERT Diesel (4-cylinder, turbocharged)
Engine Power	110 kW (147 hp) @ 2,000 rpm
Max Digging Depth	6,540 mm (21 ft 5 in)
Max Reach (Ground Level)	9,700 mm (31 ft 10 in)
Bucket Capacity	0.75 - 1.0 m³ (1.0 - 1.3 yd³)
Max Breakout Force	~125 kN (28,100 lbf)
Hydraulic Flow	2 × 236 L/min (62.3 gpm)
Operating Pressure	34.5 MPa (5,000 psi)
Swing Speed	10.7 rpm
Travel Speed	5.0 km/h (3.1 mph)
Fuel Tank Capacity	370 L (97.7 gal)

🔧 ENGINE & PERFORMANCE

🛢️ C4.4 ACERT Engine

4-cylinder, 4.4L displacement
Turbocharged & Aftercooled
Meets Tier 4 Final / Stage IIIB emission standards
Electronic fuel injection for optimal efficiency
20% better fuel efficiency compared to 320D predecessor

⚡ Power Modes

Mode	Description
Power Mode	Maximum performance for heavy digging
Smart Mode	Auto-adjusts power based on workload (most fuel-efficient)
ECO Mode	Reduced power for light work, saves up to 20% fuel

🏗️ FEATURES & TECHNOLOGY

📱 Operator Environment

✅ Spacious, pressurized cab with ROPS/FOPS certification
✅ Air conditioning & heated seat (standard)
✅ 7" color touchscreen monitor with rearview camera
✅ Adjustable armrests & suspended seat
✅ Low noise level: 72 dB(A)

📡 Cat Technology

Technology	Function
Cat Product Link™	Real-time telematics, location tracking, diagnostics
VisionLink®	Fleet management & reporting
Grade with 2D	Optional GPS-guided digging system
Payload System	Real-time bucket loading weight display
Cat Detect with Vision	Object detection around the machine

🔧 Hydraulic System

Load Sensing Hydraulics (LS)
Auxiliary Hydraulic Lines (2 circuits, 4th function ready)
Quick Coupler Ready (optional)
Hydraulic Quick Connect for attachments

🛠️ BOOM & STICK CONFIGURATIONS

Configuration	Dig Depth	Reach
5.4m Boom + 2.9m Stick	6,540 mm	9,650 mm
5.4m Boom + 3.0m Stick	6,700 mm	9,700 mm
5.9m Boom + 2.9m Stick	7,060 mm	10,100 mm

(Long reach options also available up to 11m+)

🎯 APPLICATIONS

Application	Suitability	⭐⭐⭐⭐⭐
🏗️ General Construction	Excavation, trenching, backfilling	⭐⭐⭐⭐⭐
🏚️ Demolition	With hydraulic breaker/crusher	⭐⭐⭐⭐⭐
🪨 Mining & Quarrying	Rock excavation, loading trucks	⭐⭐⭐⭐
🛤️ Road Building	Grading, ditch digging	⭐⭐⭐⭐⭐
🌳 Landscaping	Grading, planting, utility work	⭐⭐⭐⭐
🏗️ Pipeline Work	Trenching, pipe laying	⭐⭐⭐⭐⭐

🔩 COMMON ATTACHMENTS

Attachment	Use
🪣 Standard Bucket (0.8-1.0 m³)	General digging
🔨 Hydraulic Breaker	Demolition, rock breaking
✂️ Hydraulic Shear	Steel cutting, demolition
🫳 Thumb	Pipe, log, scrap handling
🔄 Tilting Rotator	Trenching, grading
🪝 Quick Coupler	Fast attachment change
🕳️ Auger	Drilling, piling
🪨 Grapple	Material handling, sorting

📊 ADVANTAGES vs COMPETITORS

Feature	CAT 320D2	Komatsu PC200-8	Hitachi ZX200-5G
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Dealer Network	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Operating Cost	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

💰 APPROXIMATE PRICING (2024)

Condition	Price (USD)
New Machine	$140,000 - $175,000
Used (3,000-5,000 hrs)	$85,000 - $110,000
Used (8,000-10,000 hrs)	$65,000 - $85,000

(Prices vary by region, configuration & condition)

📈 SUMMARY

Strengths	Considerations
✅ Excellent fuel efficiency	⚠️ Higher purchase price
✅ Advanced technology & telematics	⚠️ Parts can be expensive
✅ Comfortable operator cab	⚠️ Requires trained operator
✅ High resale value	⚠️ Regular maintenance essential
✅ Versatile attachment options
✅ Reliable & durable

🏆 VERDICT

The CAT 320D2 is one of the best-selling 20-ton excavators worldwide due to its perfect balance of power, efficiency, technology, and reliability. It's ideal for contractors who need a versatile, fuel-efficient machine for general construction and demanding applications.

"The 320D2 represents the sweet spot in the medium excavator class — powerful enough for heavy work, efficient enough to save fuel, and smart enough to maximize productivity." 🏗️
