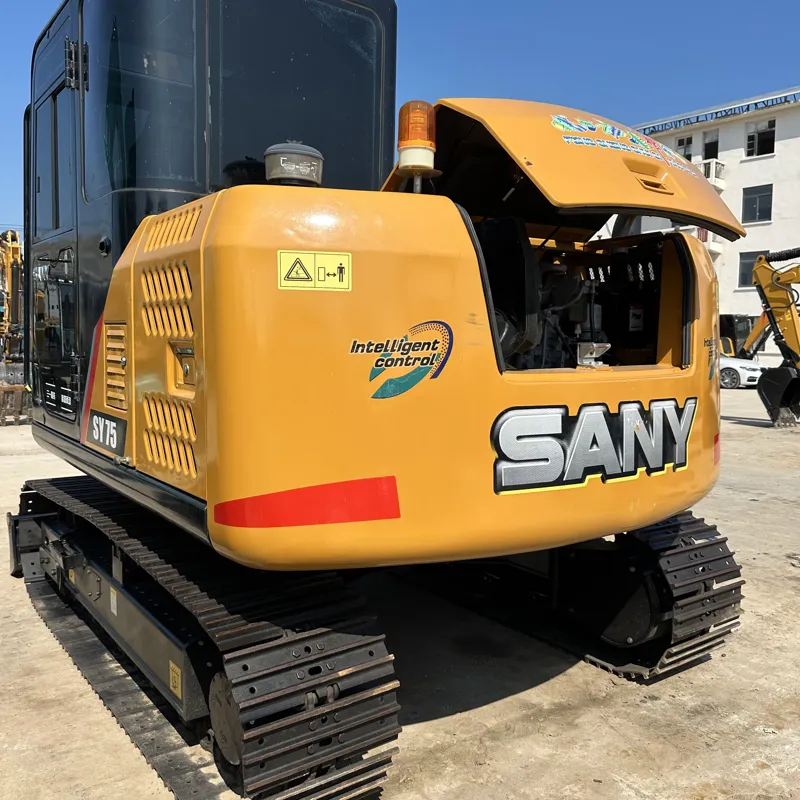

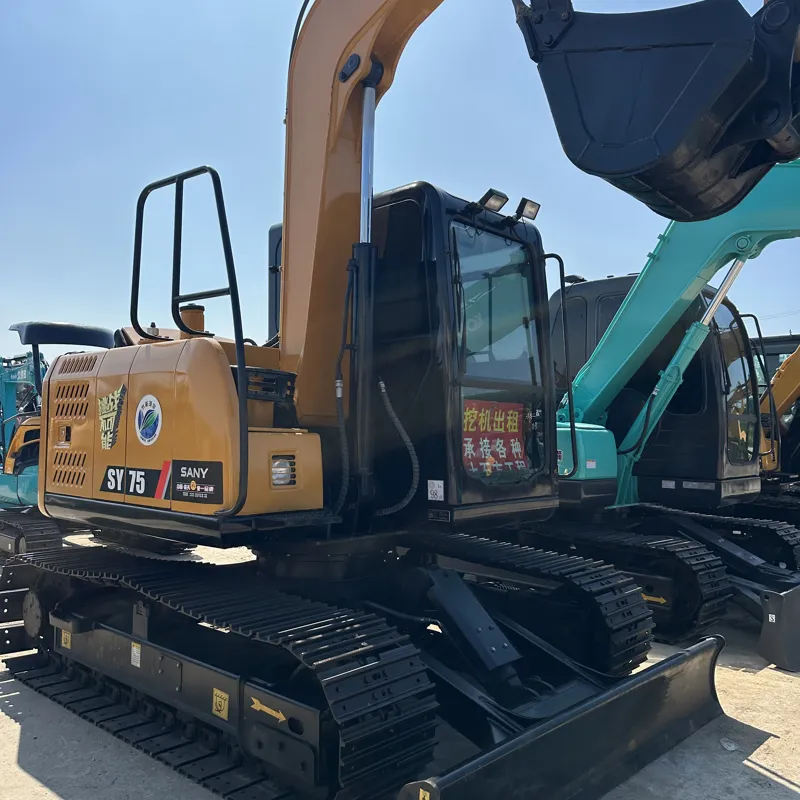

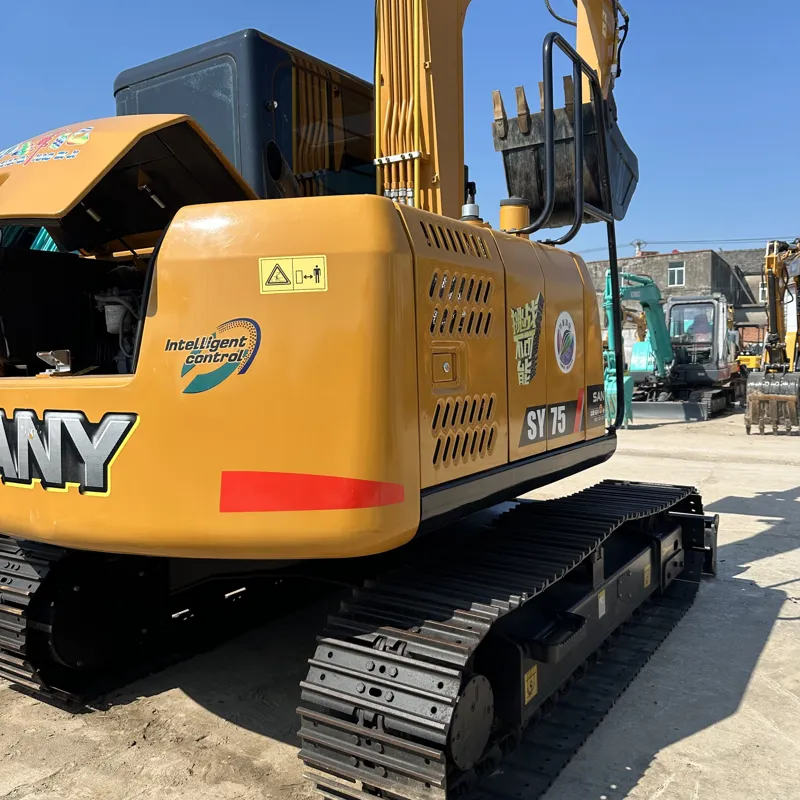

Used Sany 75Excavator

Reading: 84

The SANY SY75 is a 7.5-ton class midi excavator manufactured by SANY Heavy Industry, one of the world's largest construction machinery makers (headquartered in Changsha, China). It is one of SANY's best-selling models globally, widely used in urban construction, landscaping, pipeline work, and small-scale mining.

📋 1. Basic Specifications

Parameter	Details
Model	SY75C / SY75U (C = conventional tail; U = ultra-short tail)
Operating Weight	~7,300 – 7,500 kg
Engine	Yanmar 4TNV98-ZPLYS (or similar)
Engine Power	40.5 kW (54.3 HP) @ 2,200 rpm
Emission Standard	China III / Tier 4 Final / EU Stage V
Fuel Tank Capacity	~130 L
Hydraulic Tank	~80 L
Max Digging Depth	~4,200 – 4,400 mm
Max Digging Reach	~7,800 – 8,100 mm
Max Dumping Height	~5,200 – 5,500 mm
Bucket Capacity	0.22 – 0.30 m³ (standard)
Travel Speed	~2.8 – 4.7 km/h
Ground Pressure	~35 – 38 kPa

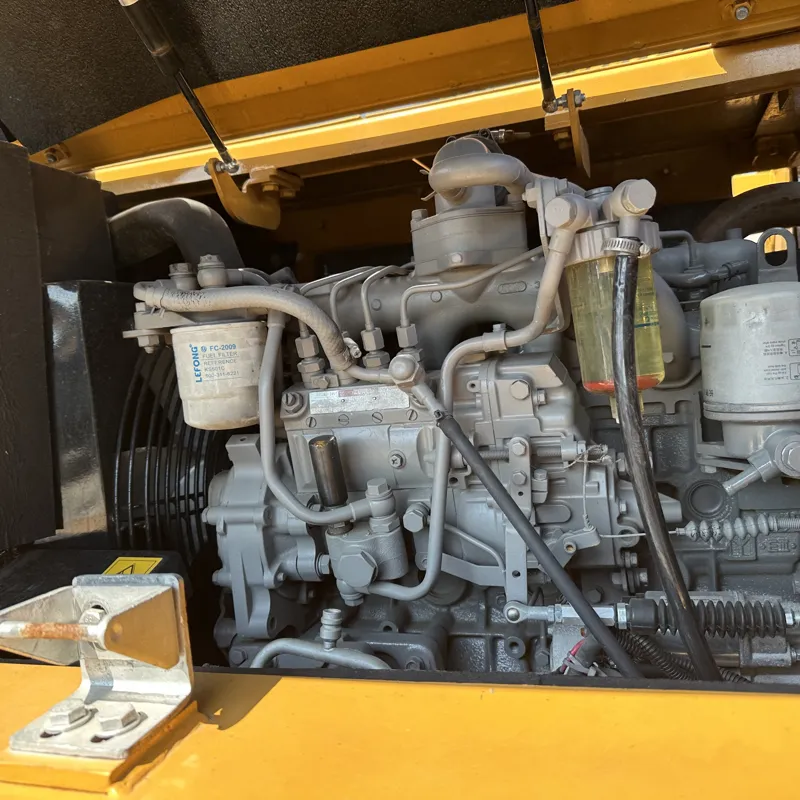

& 2. Engine & Power System

Feature	Detail
Engine Brand	Yanmar (Japan) — known for reliability & fuel efficiency
Type	4-cylinder, turbocharged, intercooled diesel
Displacement	3.32 L
Fuel Efficiency	~8–12 L/hour (varies by workload)
Cooling	Water-cooled with radiator + fan
Emission Tech	EGR + DOC (Diesel Oxidation Catalyst)

✅ The Yanmar engine is a major selling point — it gives the SY75 excellent reliability and low operating costs compared to many Chinese-brand competitors.

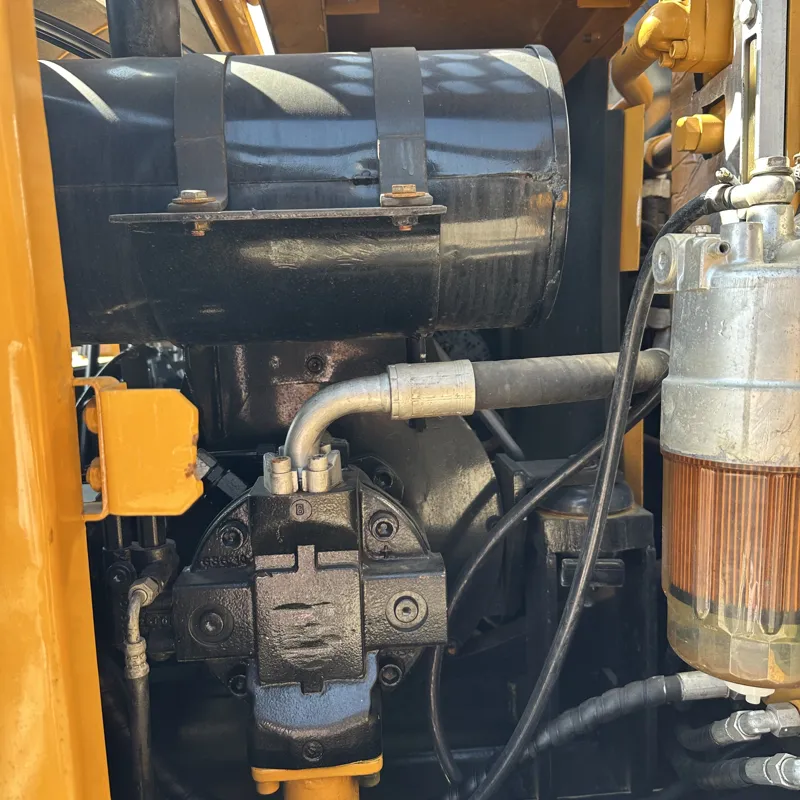

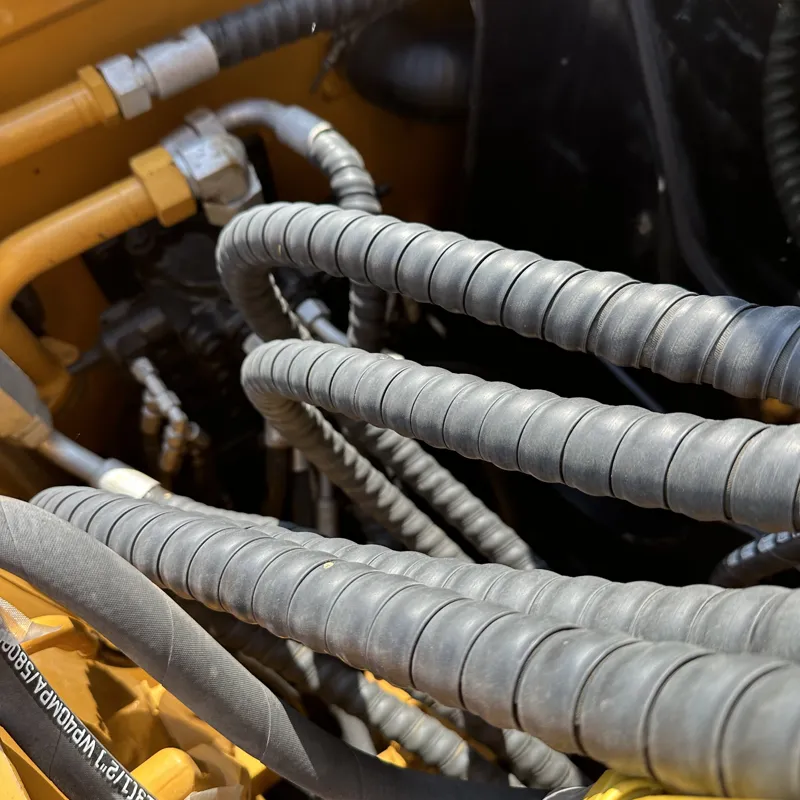

🔧 3. Hydraulic System

Feature	Detail
Pump Type	SANY Positive Flow Control (PFC) variable displacement piston pump
Main Pump Flow	~2 × 95 L/min
System Pressure	34.3 MPa (350 bar)
Work Modes	P (Power) / E (Economy) / B (Breakout) / A (Attachment)
Boom Cylinder	1 × (with regenerative circuit option)
Arm Cylinder	1 ×
Bucket Cylinder	1 ×
Swing Motor	High-torque gear motor
Swing Speed	~10 rpm

🔑 The PFC hydraulic system automatically matches pump output to demand, saving 10–20% fuel compared to fixed-displacement systems.

🏗️ 4. Structural & Chassis

Feature	Detail
Boom & Arm	High-strength steel, optimized stress distribution
Undercarriage	Steel track (450mm or 500mm width options)
Track Shoes	600mm (standard), 400mm (narrow option available)
Dozer Blade	Standard — adjustable angle, can be used for leveling
Counterweight	Cast iron, optimized for stability
Tail Swing	SY75C: Conventional tail (2,650mm) / SY75U: Zero tail (1,350mm)

📌 The SY75U (ultra-short tail) version is very popular in urban/tight-space work where the house doesn't swing beyond the track width.

🪑 5. Operator Cab & Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, sealed & pressurized
Air Conditioning	Standard (heating + cooling)
Seat	Suspended, adjustable, with armrest
Controls	Joystick + pedal, ergonomic layout
Display	LCD monitor — engine info, hours, fault codes, fuel level
Sound Level	~72 dB(A) — relatively quiet
Windshield	Large, flat — excellent visibility
Lighting	LED work lights (front + rear)
USB/Charging	Available on newer models

🛡️ 6. Smart & Safety Features

Feature	Detail
Anti-Theft System	Immobilizer + GPS tracking (SANY Cloud optional)
Auto-Idle	Engine auto-stops after 5 min inactivity → saves fuel
Overload Protection	Hydraulic relief valves + electronic monitoring
Bucket Auto-Leveling	Optional
Grade Control Ready	2D/3D GPS-ready (SANY iCOS system compatible)
Maintenance Alert	Automatic service reminders
Central Lubrication	Auto-grease system for pins & bushings

💰 7. Performance Highlights

Advantage	Explanation
🔥 Fuel Efficient	Yanmar engine + PFC hydraulics = lowest fuel consumption in class
🔩 Low Maintenance	Long service intervals (500h), easy access to filters
💪 Strong Breakout Force	~38–42 kN bucket breakout force
🏙️ Urban Friendly	SY75U version ideal for narrow streets
📡 Connected	SANY Cloud telematics for fleet management
🌏 Global Support	SANY has 300+ dealers in 150+ countries
💵 Cost-Effective	15–25% cheaper than Japanese brands (Komatsu PC75, Kubota) with similar quality

🆚 8. Comparison with Competitors

Model	Weight	Engine	Power	Price (Approx.)
SANY SY75C	7.5T	Yanmar 54HP	40.5kW	$45,000 – $55,000
Komatsu PC75	7.5T	Komatsu 56HP	41kW	$60,000 – $70,000
Kubota KX080-4	8T	Kubota 60HP	44kW	$55,000 – $65,000
XCMG XE75DA	7.5T	Isuzu/Yuchai 55HP	40kW	$40,000 – $50,000
Doosan DX75R	7.5T	Doosan 56HP	41kW	$55,000 – $65,000

🏆 SANY SY75 wins on price-to-performance ratio, especially with the Yanmar engine.

📦 9. Common Attachments (SANY offers 20+)

Attachment	Use Case
🪣 Standard Bucket (200/300mm)	General digging
🔨 Hydraulic Breaker (Hammer)	Rock breaking, demolition
🪓 Hydraulic Thumb	Log grabbing, pipe handling
🔄 Quick Coupler	Fast attachment change
🔩 Auger Drill	Post holes, pile driving
🧹 Tilt Rotator	Pipe laying, forestry
🏗️ 4-in-1 Bucket	Grading, ditching, cleaning
📋 Ripper (1-shank)	Hard ground, frozen soil

📊 10. Summary — Who Should Buy the SY75?

✅ Ideal For	❌ Not Ideal For
Urban construction & renovation	Heavy mining (need 15T+)
Landscaping & garden work	Very deep digging (>5m)
Pipeline & utility work	Extreme cold (-30°C without options)
Rental companies (low TCO)	Operators needing premium brand prestige
Small contractors / owners

🎯 Final Verdict

The SANY SY75 is arguably the best value 7.5-ton excavator on the market today. With a reliable Yanmar engine, fuel-saving PFC hydraulics, excellent cab comfort, and SANY's growing global service network, it competes directly with Japanese brands at a significantly lower price. It's the go-to choice for contractors who want quality without the premium price tag. 🏆
