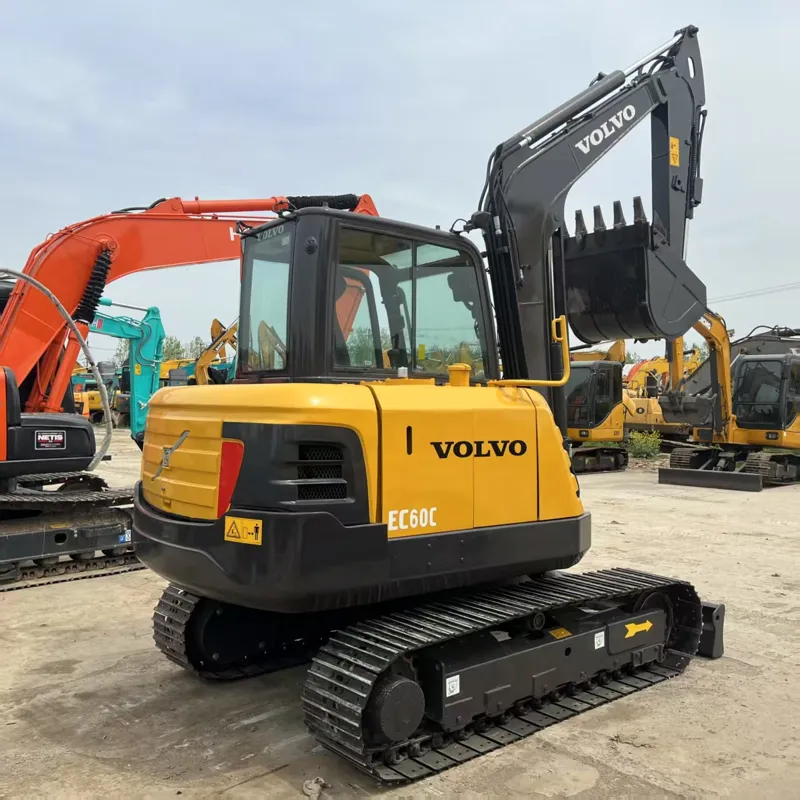

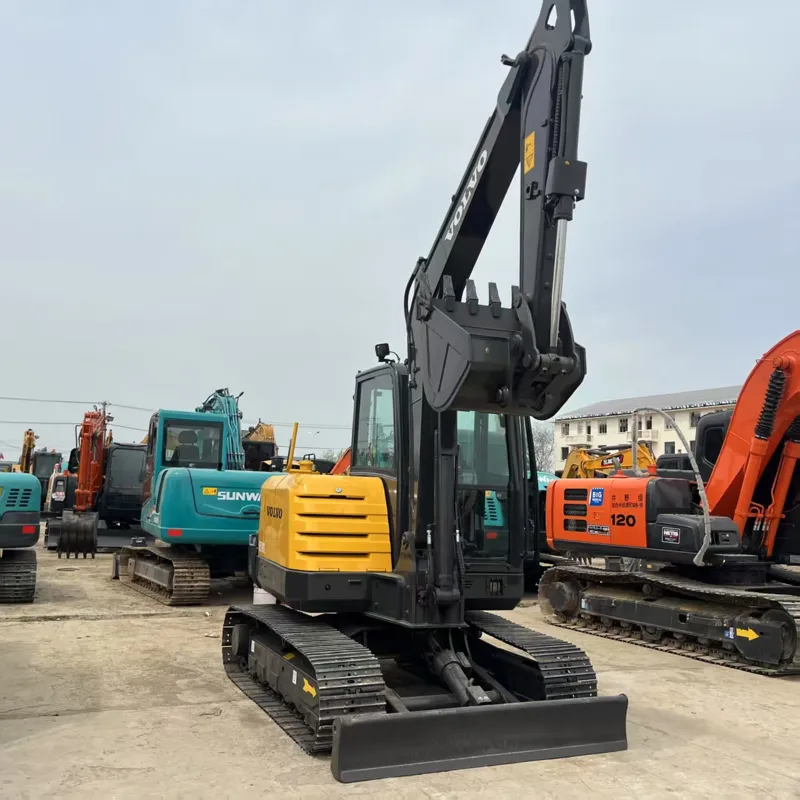

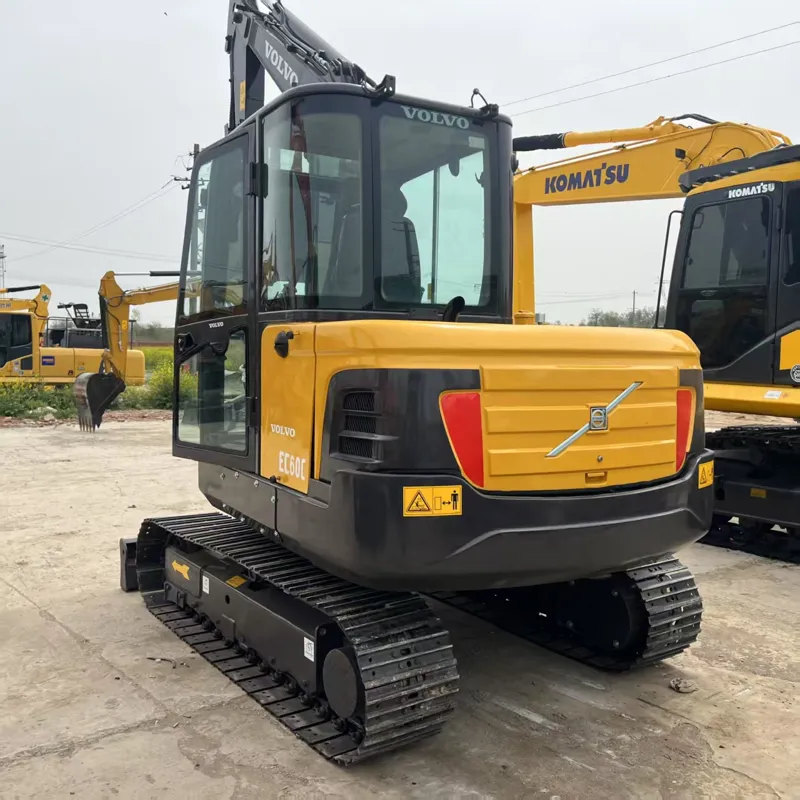

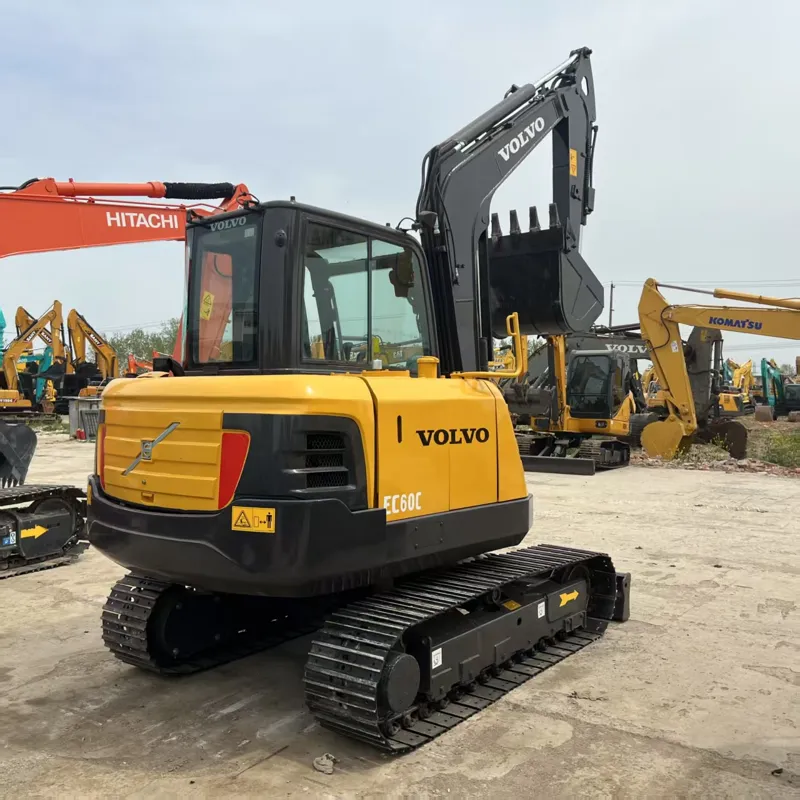

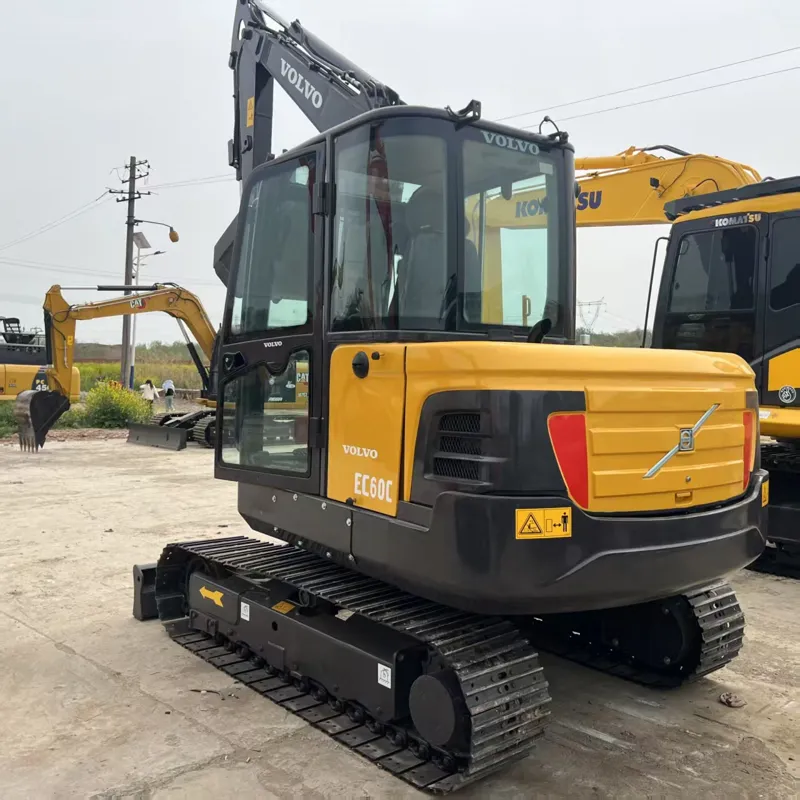

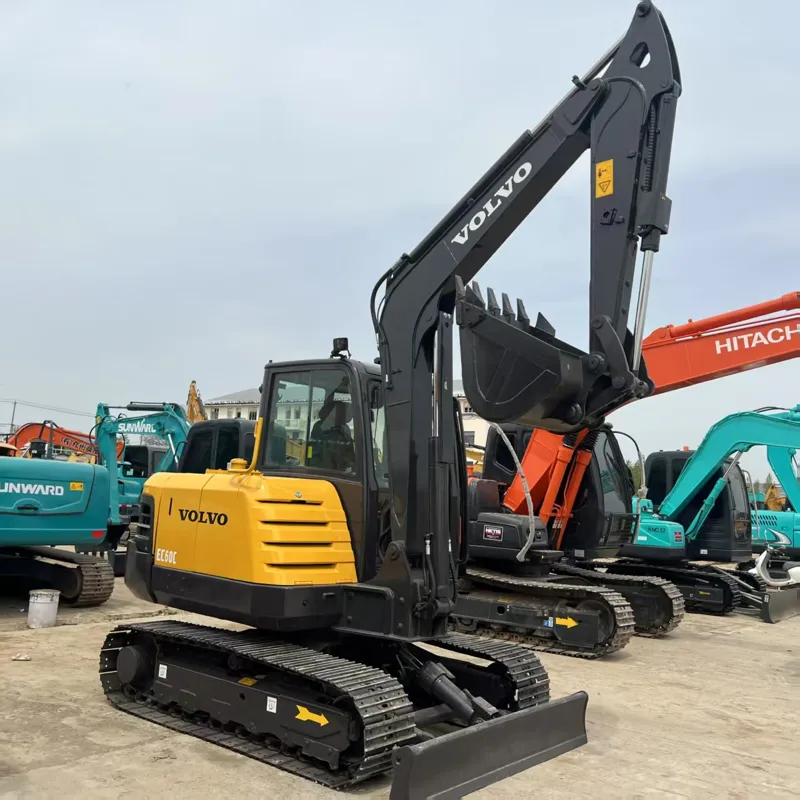

Used Volvo 60Excavator

Reading: 23

The Volvo EC60 is a 6-tonne class compact (mini) excavator from Volvo Construction Equipment's renowned E-Series lineup. It is designed for versatility, efficiency, and operator comfort, making it one of the most popular mini excavators in the global market.

📋 General Overview

Parameter	Details
Model	Volvo EC60 (also available as ECR60, EC60C, EC60E)
Class	Compact / Mini Excavator (~6 tonnes)
Manufacturer	Volvo Construction Equipment (Sweden)
Primary Use	Utility, landscaping, small construction, road maintenance, agriculture
Production	Ongoing (part of Volvo E-Series, launched ~2018+)

& Engine & Powertrain

Specification	Details
Engine Model	Volvo D1.7
Type	3-cylinder, turbocharged diesel
Displacement	1.7 L
Power Output	~39–42 kW (52–56 hp) @ 2,200 rpm
Emission Standard	Stage V / EPA Tier 4 Final
Fuel Tank Capacity	~80–90 liters
Cooling System	Liquid-cooled with fan
Fuel Efficiency	~8–12 L/hr depending on workload

✅ The D1.7 engine is known for its reliability, low emissions, and excellent fuel economy — key for compact excavators.

📐 Dimensions & Weight

Parameter	EC60E (ZTS)	EC60C (Compact)
Operating Weight	5,950–6,200 kg	5,700–5,900 kg
Transport Weight	~5,800 kg	~5,600 kg
Length (w/o bucket)	~5,980 mm	~5,680 mm
Width (tracks)	1,100–1,400 mm (adjustable)	1,100–1,400 mm
Height (to cab top)	~2,580 mm	~2,520 mm
Ground Clearance	~370 mm	~350 mm
Track Width	Adjustable: 1,100 / 1,200 / 1,300 / 1,400 mm

🔨 Working Performance

Parameter	Specification
Max Digging Depth	~3,600–3,900 mm
Max Reach (Ground Level)	~5,800–6,200 mm
Max Digging Height	~5,900–6,300 mm
Dump Height	~4,200–4,500 mm
Max Breakout Force (Arm)	~25–28 kN
Max Breakout Force (Bucket)	~38–42 kN
Bucket Capacity	0.13–0.25 m³ (varies with bucket)
Hydraulic Flow	~55–75 L/min (main pump)
Auxiliary Hydraulic Flow	~25–35 L/min (for attachments)
Auxiliary Pressure	~210 bar
Swing Speed	~10 RPM
Travel Speed	~4.5 km/h
Gradeability	~70% (35°)
Max Trench Depth	~2,900 mm

🏗️ Undercarriage Options

Option	Details
Steel Tracks	Standard — durable, long-lasting
Rubber Tracks	Optional — better for road travel, reduced ground damage, ~4 km/h max speed
Dozer Blade	Available — straight or tilting blade for grading
Track Width	4 adjustable positions (1,100–1,400 mm)

🪑 Cab & Operator Comfort

The Volvo EC60 is renowned for having one of the best cabs in its class:

Feature	Details
Cab Type	ROPS/FOPS certified enclosed cab
Visibility	Excellent all-round visibility with large glass panels
Seat	Air-suspended, fully adjustable, heated
Climate Control	Air conditioning (standard/optional)
Noise Level	~72 dB(A) — very quiet for a mini excavator
Controls	Ergonomic levers, adjustable armrests, fingertip controls
Display	7-inch color monitor (option: Volvo Co-Pilot ready)
Storage	Ample storage compartments, cup holders, phone holder
Lighting	LED work lights (front & rear)

🤖 Technology & Smart Features

Technology	Description
📡 Volvo Co-Pilot	Optional auto-grade control — automatically levels the bucket using GPS/laser
📡 Volvo CareTrack	Telematics system — tracks location, fuel usage, hours, maintenance alerts
🔋 ECO Mode	Engine speed automatically reduces during idle/light work — saves up to 15% fuel
🔄 Auto-Idle	Engine automatically idles down when controls are not in use
🖥️ Digital Dashboard	Real-time machine info, diagnostic codes, service intervals
🔧 Volvo Active Care	Preventive maintenance alerts via telematics

🔄 Variants / Model Lineup

Model	Description	Tail Swing
EC60C	Compact version — shorter for tight spaces	Conventional (small)
EC60E	Zero Tail Swing (ZTS) — most popular	Zero Tail Swing ✅
ECR60	Short Radius — for very confined areas	Zero Tail Swing ✅
EC60	Standard version	Conventional

🔑 EC60E (ZTS) is the best-seller — ideal for working near walls, fences, and buildings.

🛠️ Popular Attachments (via Auxiliary Hydraulics)

Attachment	Use Case
🪣 Hydraulic Thumb	Better grip on rocks, logs, demolition
🔨 Hydraulic Breaker	Rock breaking, concrete demolition
🪚 Hydraulic Saw	Cutting pipes, rebar, trees
🧹 Tiltrotator	360° rotation of any attachment
🔩 Auger	Post-hole drilling, piling
🧹 Grapple	Sorting, handling scrap, logs
🪣 Quick Coupler	Fast attachment change (no pins)
🚜 Rake	Leveling, landscaping

✅ Key Advantages

Advantage	Detail
🏆 Brand Reputation	Volvo is #1 in customer satisfaction globally
💰 Resale Value	Excellent — Volvo holds value better than most competitors
🔧 Service Network	Massive global dealer network
&Fuel Efficiency**	Class-leading with ECO mode
🪑 Comfort	Best-in-class cab comfort and low noise
🛡️ Reliability	Proven Volvo D-series engine — very low downtime
📱 Technology	Co-Pilot & CareTrack keep you connected
🔄 Versatility	Huge range of attachments for any job

📊 Competitors Comparison

Feature	Volvo EC60E	CAT 306	Kobelco SK60	Komatsu PC60
Power	52–56 hp	55 hp	48 hp	54 hp
Weight	~6,000 kg	~6,000 kg	~5,900 kg	~6,000 kg
Tail Swing	ZTS ✅	Conventional ❌	ZTS ✅	Conventional ❌
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Cab Comfort	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏁 Summary


Best For	Utility contractors, landscapers, rental companies, small builders
Price Range (New)	~$55,000 – $80,000 USD (varies by market & configuration)
Service Interval	Every 500 hours / 6 months
Warranty	Volvo 2-year standard warranty (extendable)
Rating	⭐⭐⭐⭐⭐ — One of the best 6-ton excavators in the world

💡 Bottom Line: The Volvo EC60 is the gold standard in the 6-tonne mini excavator class. It combines Swedish engineering, fuel efficiency, operator comfort, and cutting-edge technology — making it the top choice for professionals worldwide.
