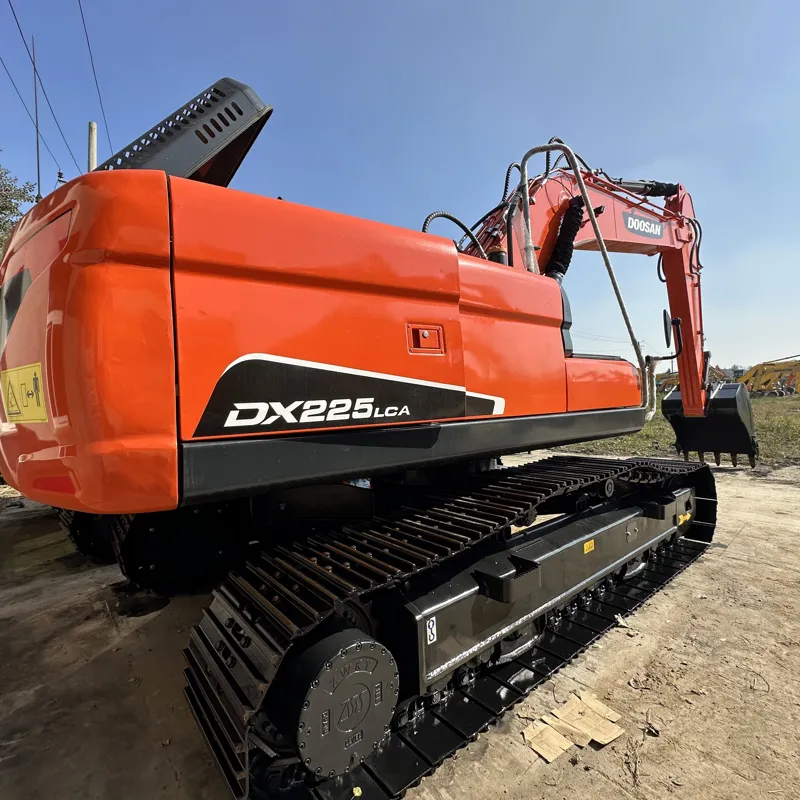

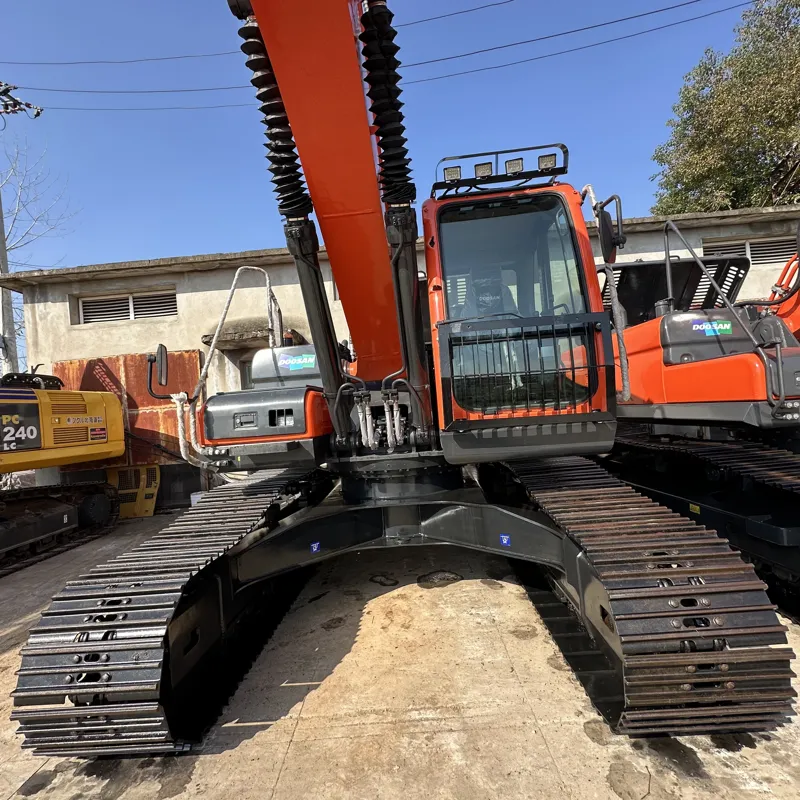

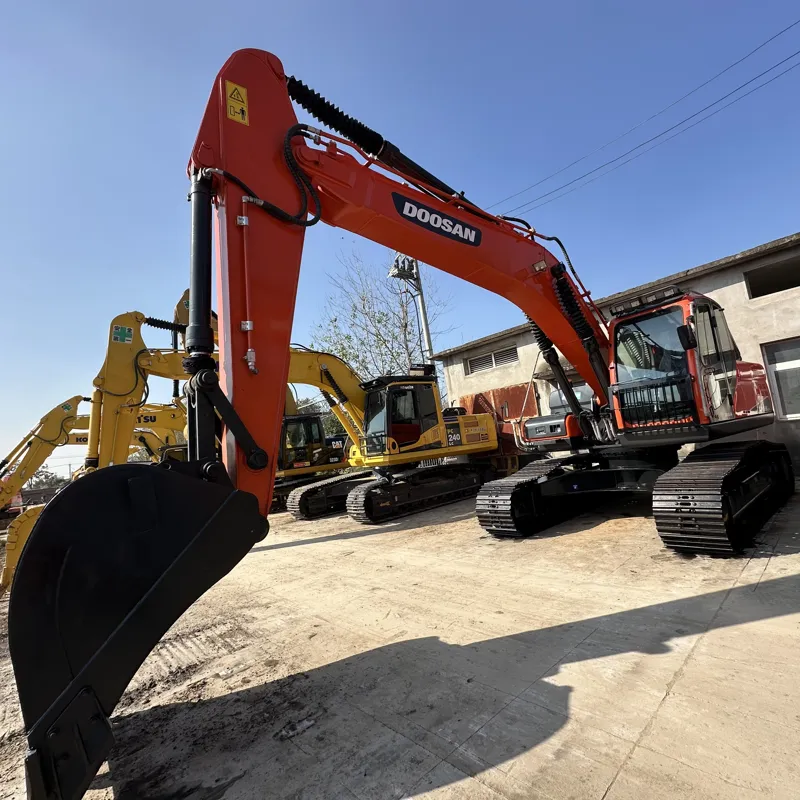

Used Doosan 225LCA Excavator

Reading: 52

📌 1. OVERVIEW

Item	Details
Manufacturer	Doosan Infracore (South Korea)
Model	225LCA
Class	Medium Excavator (22–25 ton class)
Emission Standard	Stage V / Tier 4 Final (EU & US compliant)
Production Era	~2019–present (Stage V update)
Designation	LCA = Long Crawler Arm — extended boom/arm configuration for deeper digging & longer reach

The 225LCA is designed for general construction, road building, landscaping, utility work, and material handling. It replaces older Stage IIIB/IV models like the Doosan DX225LCA.

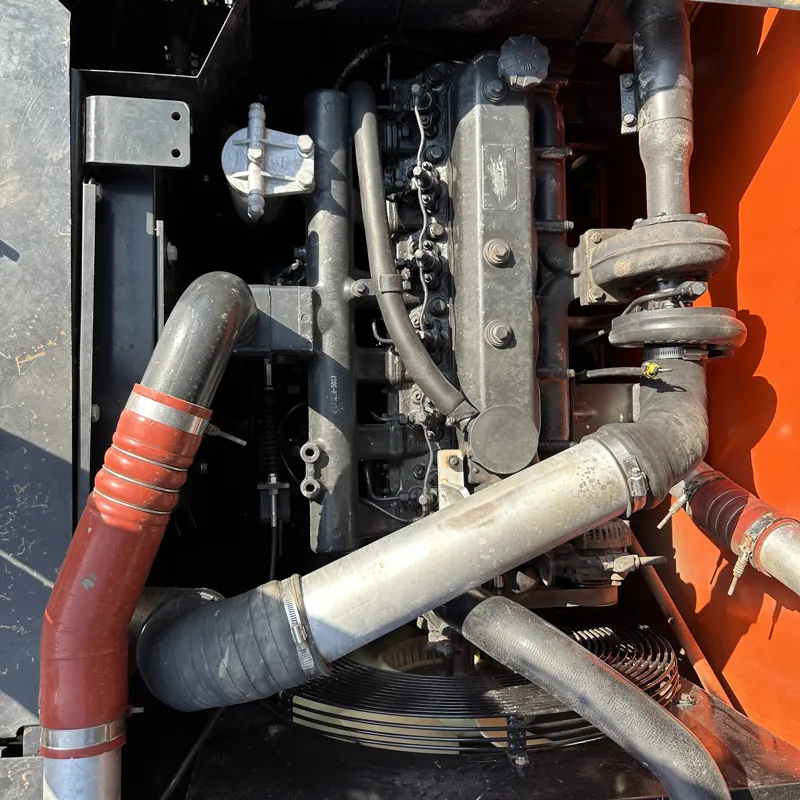

🔧 2. ENGINE SPECIFICATIONS

Parameter	Specification
Engine Model	Doosan DL06K (in-house)
Type	6-cylinder, inline, turbocharged diesel
Displacement	6.03 L
Rated Power	129 kW (173 hp) @ 1,900 rpm
Max Torque	~686 Nm @ 1,400 rpm
Emission Tech	SCR (Selective Catalytic Reduction) + DPF (Diesel Particulate Filter) — NO AdBlue in some markets (Doosan's clean SCR system)
Fuel Tank	~400 L
Cooling System	Water-cooled with auto-reverse fan

✅ The DL06K is known for excellent fuel efficiency and low maintenance costs.

&3. PERFORMANCE & DIMENSIONS

Parameter	Value
Operating Weight	~22,500 – 25,000 kg (depending on configuration)
Bucket Capacity (Std.)	0.93 m³ (1.22 yd³)
Max Bucket Capacity	up to ~1.1 m³
Max Digging Depth	~6,850 – 7,100 mm
Max Digging Reach	~9,800 – 10,200 mm
Max Digging Height	~9,500 – 9,800 mm
Max Dump Height	~6,700 mm
Swing Speed	~11 rpm
Travel Speed	~5.2 km/h (high) / ~3.4 km/h (low)
Ground Pressure	~45 kPa
Track Shoe Width	600 mm (triple grouser option available)

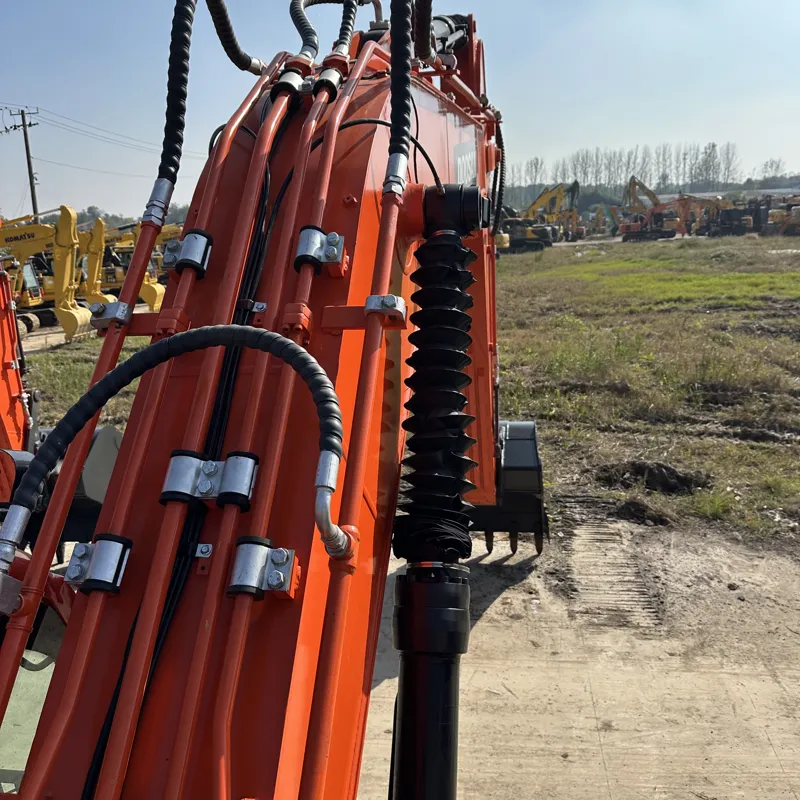

Boom Type	Long Reach Boom
Arm Type	Long Arm

🔑 The LCA (Long Crawler Arm) variant gives ~5–10% more reach and depth compared to the standard 225LC model.

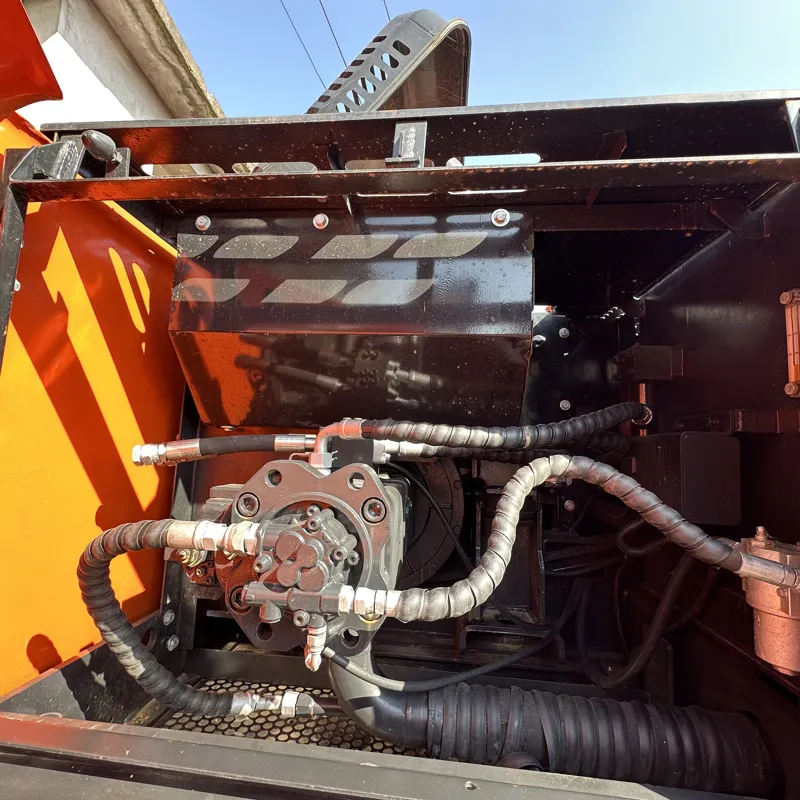

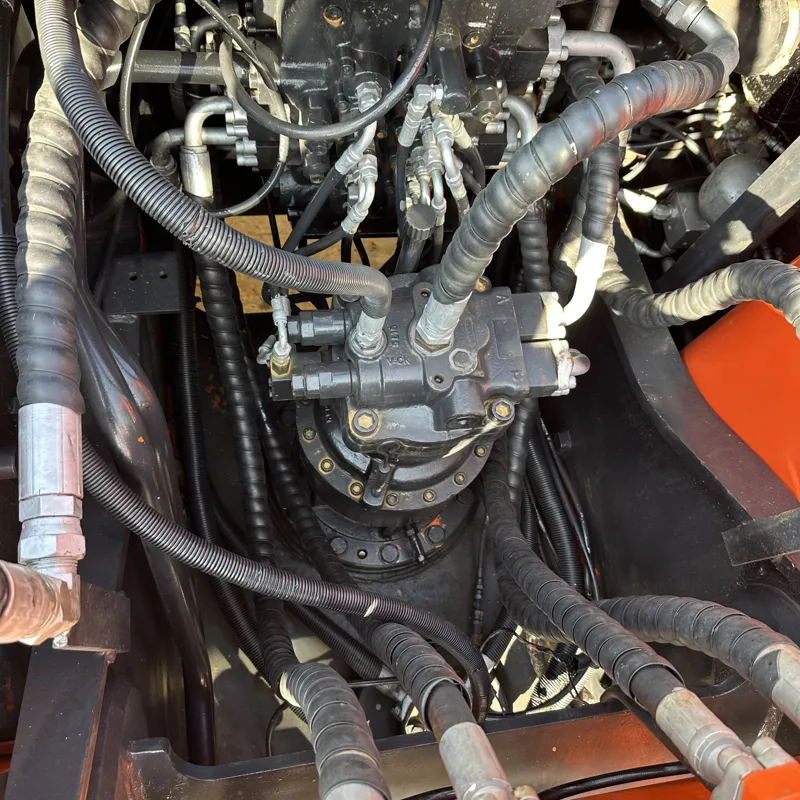

🏗️ 4. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Variable displacement axial piston pump (2 pumps)
System Pressure	350 bar (standard) / 370 bar (heavy duty)
Flow Rate	~2 × 230 L/min
Control System	Doosan Smart Control (EPC) — electronic proportional control
Attachment Flow	~150 L/min (auxiliary line for breaker, grapple, etc.)
Hydraulic Quick Coupler	Available as option

🖥️ 5. CAB & OPERATOR COMFORT

Feature	Detail
Cab Type	Enclosed, ROPS/FOPS certified
Climate Control	Full air conditioning with auto mode
Seat	Air-suspended, heated, adjustable seat with armrests
Display	7-inch LCD monitor with rear-view camera
Joysticks	Electronic proportional joysticks with auto-idle
Sound Level	~68 dB(A) (very quiet for its class)
USB/Bluetooth	Available
LED Work Lights	Front & rear (auto on/off)
Glass Area	Large panoramic glass for excellent visibility

🧠 6. SMART FEATURES (DoosanConnect™)

Technology	Function
DoosanConnect™	Telematics — real-time machine tracking, fuel monitoring, maintenance alerts via smartphone/web
Eco Mode	Auto-adjusts engine RPM to save fuel (up to 10–15% fuel savings)
Auto Idle	Engine automatically idles after 5 sec of no operation
Weight Measurement	On-board load estimation system
2D Grade Control Ready	Compatible with Topcon, Trimble, etc.
3D GPS Ready	For precision earthwork (optional)

🛡️ 7. SAFETY & DURABILITY

Feature	Detail
ROPS/FOPS	Fully certified
Anti-Theft System	Immobilizer + GPS tracking
Auto-Lubrication	Centralized grease system
Undercarriage	Heavy-duty X-frame with reinforced track frame
Counterweight	Large rear counterweight for stability
Service Access	Wide-open engine hood, ground-level fuel fill
Maintenance Interval	500 hr (engine oil) / 1,000 hr (hydraulic oil)

📊 8. COMPARISON WITH COMPETITORS

Model	Weight	Power	Bucket	Dig Depth
Doosan 225LCA	~24,000 kg	173 hp	0.93 m³	~7,000 mm
CAT 325 GC	~25,200 kg	176 hp	1.0 m³	~7,100 mm
Komatsu PC228USLC-11	~24,600 kg	174 hp	0.94 m³	~7,200 mm
Hyundai R225LCA	~24,800 kg	168 hp	0.96 m³	~6,950 mm
Volvo EC225E	~24,000 kg	174 hp	0.95 m³	~7,000 mm

🏆 Doosan 225LCA is competitive in fuel efficiency, cab comfort, and after-sales support.

💰 9. APPROXIMATE PRICING (2024)

Region	Price Range (USD)
USA/Canada	$135,000 – $165,000
Europe	€120,000 – €150,000
Asia/Middle East	$110,000 – $140,000
Used (2019–2022)	$85,000 – $110,000

(Prices vary by configuration, attachments, and dealer)

✅ 10. SUMMARY — KEY STRENGTHS

✅ Strength	Description
🔋 Fuel Efficient	Eco mode + auto-idle saves 10–15% fuel
🪑 Best-in-class Cab	Spacious, quiet, excellent visibility
📡 DoosanConnect	Real-time telematics & fleet management
🔧 Low Maintenance	Long service intervals, easy access
💪 Strong Hydraulics	350 bar system handles heavy attachments
🌍 Global Support	Doosan has 300+ dealers worldwide
🌱 Eco-Friendly	Stage V compliant, low emissions

🎯 BEST SUITED FOR:

✅ Road & highway construction✅ Pipeline & utility work✅ Landscaping & grading✅ Demolition (with breaker)✅ Material loading & handling✅ Mining (light to medium)

📌 Bottom Line: The Doosan 225LCA is one of the most well-rounded medium excavators in its class — offering a great balance of power, efficiency, comfort, and technology at a competitive price point. It's an excellent choice for contractors looking for reliability and low operating costs.
