Used Komatsu 225Excavator

Reading: 16

📌 1. OVERVIEW

The Komatsu PC225 (also known as PC225USLC / PC225LC) is a mid-size hydraulic excavator in the 22–25 ton class, widely used in construction, mining, road building, and general earthmoving operations. It belongs to Komatsu's popular -8 / -11 series (the latest generation).

Model Variant	Description
PC225USLC-8	US spec, Long Undercarriage, Conventional
PC225USLC-11	US spec, Long Undercarriage, Latest Gen (2020+)
PC225LC-8	EU/Global spec, Long Undercarriage, Conventional
PC225LC-11	EU/Global spec, Long Undercarriage, Latest Gen (2020+)

The "-11" models are the current/latest version with significant upgrades in engine, hydraulics, and technology.

📌 2. ENGINE SPECIFICATIONS

Parameter	Details
Engine Model	Komatsu SAA6D107E-5 (Tier 4 Final / Stage V)
Type	6-cylinder, inline, turbocharged & aftercooled diesel
Displacement	6.7 L (6,690 cc)
Rated Power	129 kW (173 hp) @ 1,800 rpm
Max Torque	~686 N·m (506 lb-ft) @ 1,400 rpm
Emissions	Tier 4 Final (US) / Stage V (EU) — uses DPF + SCR + DOC (no DEF/AdBlue in some markets)
Fuel Tank	~400 L (106 US gal)

📌 3. OPERATING WEIGHT & DIMENSIONS

Parameter	PC225USLC-11	PC225LC-11
Operating Weight	~24,700 kg (54,450 lb)	~24,500 kg (54,000 lb)
Transport Length	~9,970 mm (32.7 ft)	~9,990 mm (32.8 ft)
Transport Width	~3,190 mm (10.5 ft)	~3,190 mm (10.5 ft)
Transport Height	~3,250 mm (10.7 ft)	~3,250 mm (10.7 ft)
Ground Clearance	~460 mm (18.1 in)	~460 mm (18.1 in)
Tail Swing Radius	~2,990 mm (9.8 ft)	~2,990 mm (9.8 ft)

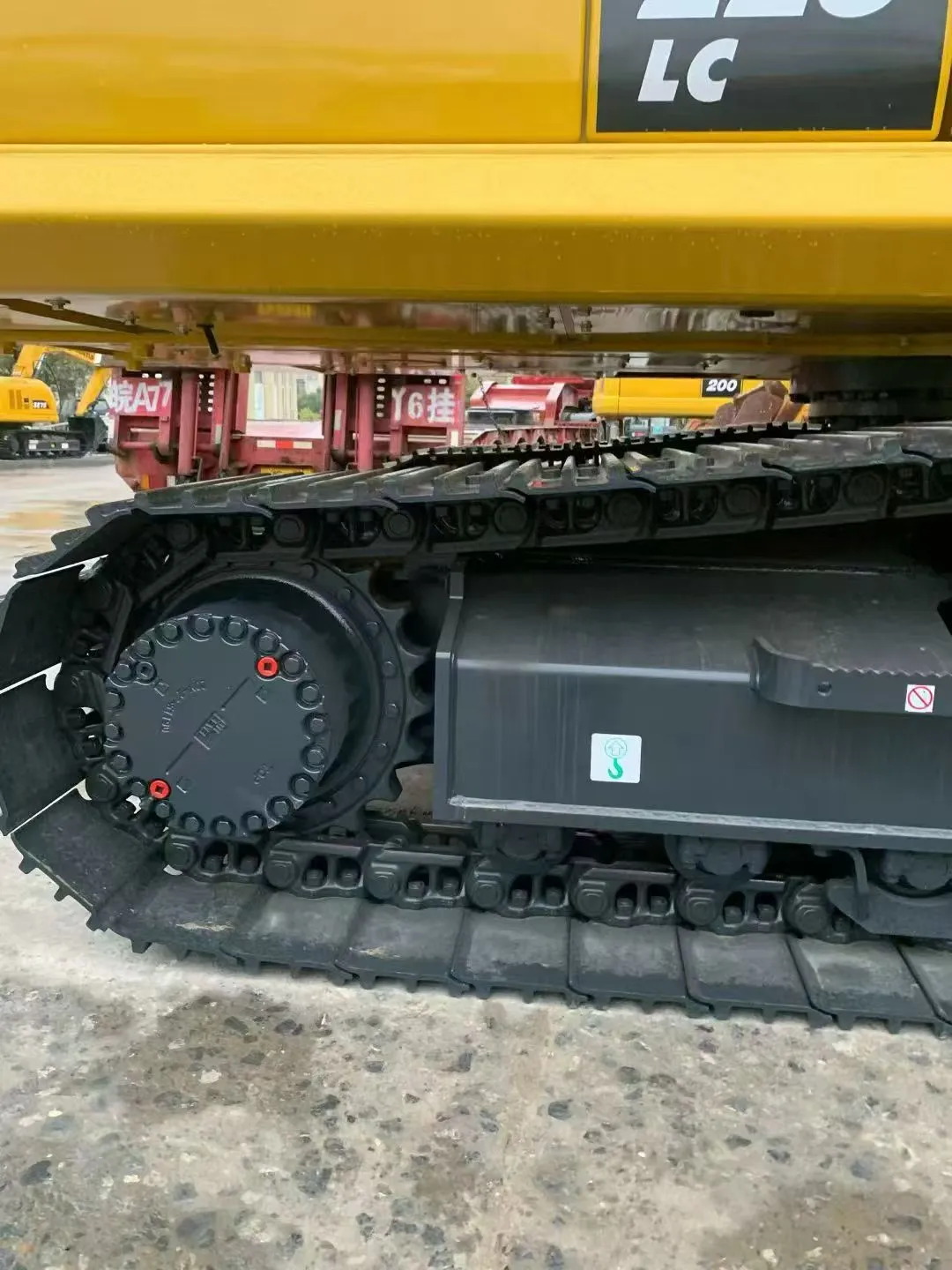

📌 4. UNDERCARRIAGE

Parameter	Details
Track Gauge	2,600 mm (8.5 ft)
Track Shoe Width	600 mm (24 in) — standard / 700 mm (28 in) — wide option
Ground Contact Length	~3,600 mm (11.8 ft)
Track Pitch	199 mm (7.8 in)
Number of Rollers (each side)	5 bottom rollers + 1 carrying roller

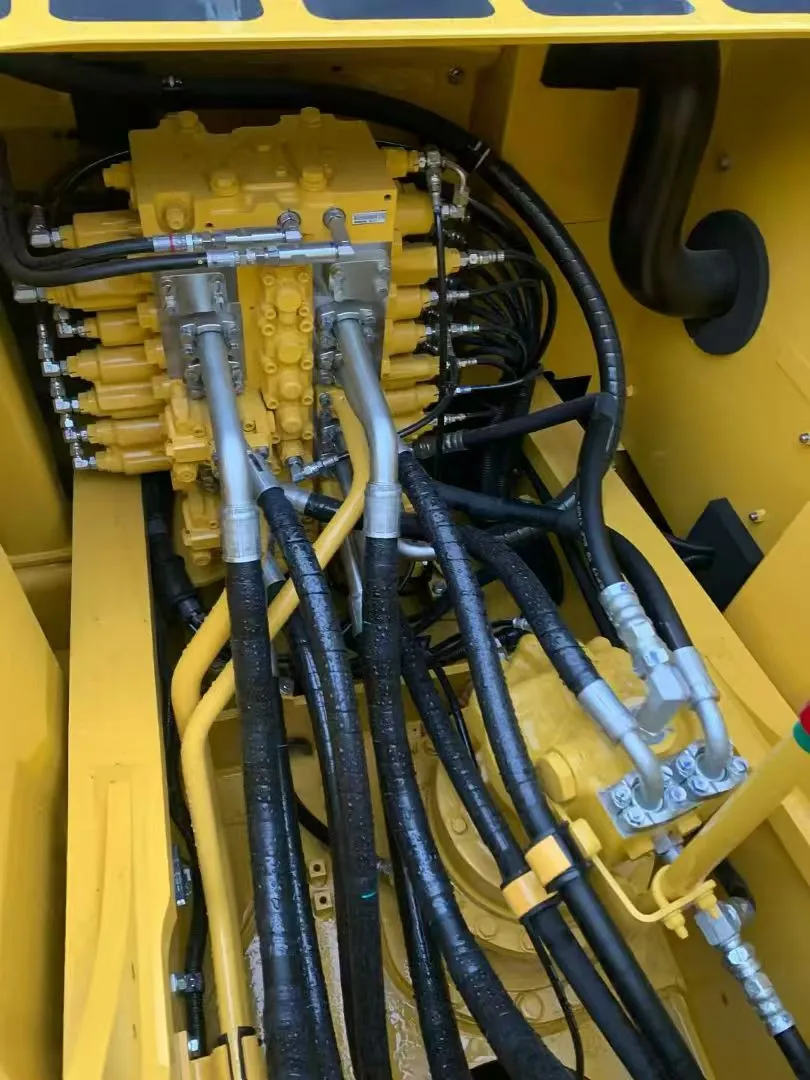

📌 5. HYDRAULIC SYSTEM

Parameter	Details

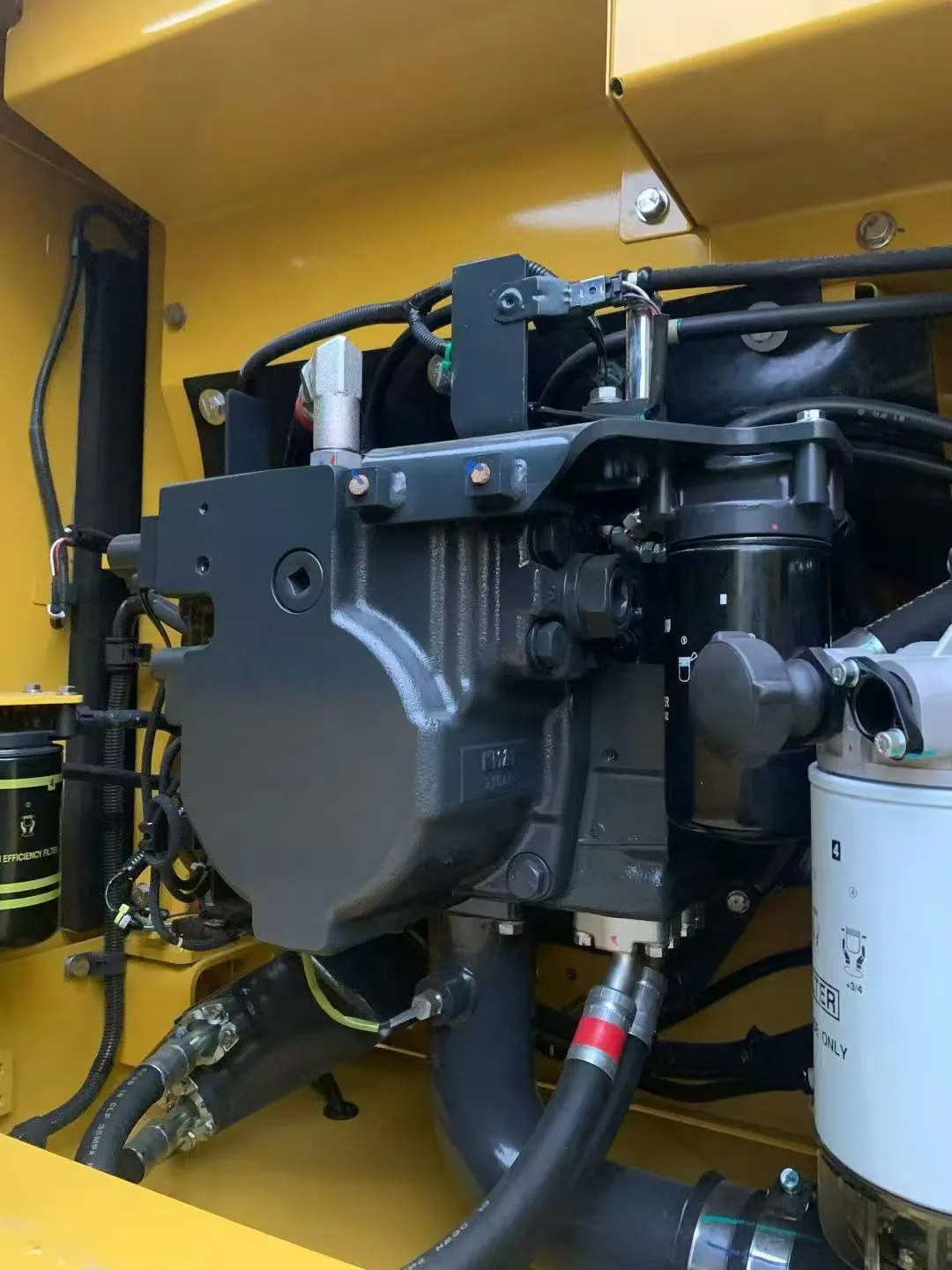

Main Pump Type	Variable displacement axial piston pump (×2)
Total Flow	~2 × 280 L/min (592 GPM)
System Pressure	34.3 MPa (4,975 psi)
Swing System	Variable displacement piston motor
Swing Speed	~8.5 rpm
Travel Speed	~5.1 km/h (3.2 mph)

📌 6. WORKING RANGE (PERFORMANCE)

Parameter	PC225USLC-11	PC225LC-11
Max Digging Depth	~7,370 mm (24.2 ft)	~7,390 mm (24.2 ft)
Max Digging Reach	~9,830 mm (32.3 ft)	~9,850 mm (32.3 ft)
Max Digging Height	~9,710 mm (31.9 ft)	~9,730 mm (31.9 ft)
Max Dump Height	~6,900 mm (22.6 ft)	~6,920 mm (22.7 ft)
Max Digging Force (Boom)	~147 kN (33,000 lbf)	~147 kN (33,000 lbf)
Max Digging Force (Arm)	~104 kN (23,400 lbf)	~104 kN (23,400 lbf)
Bucket Capacity (Standard)	0.9 – 1.1 m³ (1.2 – 1.4 yd³)	0.9 – 1.1 m³ (1.2 – 1.4 yd³)

📌 7. KEY FEATURES & TECHNOLOGY (Gen -11)

Feature	Description
🖥️ KOMTRAX	Remote machine monitoring & diagnostics (GPS + telematics)
🤖 Auto Engine Idle Shutdown	Engine auto-stops after preset idle time — saves fuel
⚡ ECO Mode	Reduces engine RPM during light work — up to 10–15% fuel savings
📊 LCD Monitor	10-inch color display — real-time info, camera, work management
🎥 Rear & Side Cameras	Standard on -11 models — improved visibility & safety
❄️ Auto A/C	Climate-controlled cab with automatic temperature adjustment
🪑 Suspension Seat	Air-suspension seat with armrest — reduces operator fatigue
🔧 Easy Maintenance	Ground-level daily check points, centralized grease points
🛡️ ROPS/FOPS Cab	Roll-Over & Falling Object Protective Structure certified
🔌 USB Charging Ports	Built-in USB ports in the cab
🏗️ KOMTRAX-ready	Fleet management integration

📌 8. ATTACHMENT OPTIONS

The PC225 is a versatile platform compatible with many attachments:

Attachment	Application
🪣 Standard Bucket	General excavation
🦷 Ripper (1-shank / 2-shank / 3-shank)	Rock breaking, hard ground
🔨 Hydraulic Breaker (Hammer)	Demolition, concrete breaking
' Hydraulic Shear	Steel cutting, scrap processing
🪵 Grapple (Orange Peel / Sorting)	Material handling, recycling
🔩 Thumb	Pipe handling, log grabbing
🪚 Tiltrotator	360° attachment rotation — increased versatility
🏗️ Compaction Wheel	Soil compaction

📌 9. FUEL EFFICIENCY

Mode	Approximate Fuel Consumption
Full Load (Heavy Digging)	~28–32 L/hr (7.4–8.5 gal/hr)
Medium Load	~20–25 L/hr (5.3–6.6 gal/hr)
Idle	~4–5 L/hr (1.1–1.3 gal/hr)
ECO Mode	Up to 15% less fuel vs standard mode

🔋 The -11 model is approximately 10–15% more fuel-efficient than the -8 model.

📌 10. COMPETITORS

Brand	Model	Class
🟡 CAT	325 GC / 325	25-ton class
🔴 Hitachi	ZX225USLC-7 / ZX225-7	25-ton class
🟠 Doosan	DX225LC-7	25-ton class
🔵 Volvo	EC225E	25-ton class
🟢 Hyundai	R225LC-9A	25-ton class
🟡 JCB	JS225LC	25-ton class

📌 11. SUMMARY — WHY CHOOSE PC225?

✅ Strengths	Details
🏗️ Reliability	Komatsu's legendary durability — low downtime
&Fuel Efficiency**	Best-in-class with ECO mode & auto idle
🖥️ Technology	KOMTRAX, LCD monitor, cameras — smart machine
🪑 Operator Comfort	Premium cab with A/C, suspension seat
🔧 Easy Service	Ground-level checks, wide-open engine compartment
💰 Resale Value	Komatsu holds strong resale value globally
🌐 Parts Availability	Excellent global dealer & parts network

📌 12. APPROXIMATE PRICE (2024)

Region	New Machine Price (USD)
🇺🇸 USA	$180,000 – $230,000 (depending on config)
🇪🇺 Europe	€170,000 – €220,000
🌏 Asia / Other	$150,000 – $200,000
🔄 Used (2018-2022)	$90,000 – $150,000

💡 Bottom Line: The Komatsu PC225LC-11 / PC225USLC-11 is one of the best mid-size excavators in the 22–25 ton class, offering a perfect balance of power, efficiency, technology, and operator comfort. It's a workhorse machine trusted worldwide. 🚜💪
