📌 1. OVERVIEW

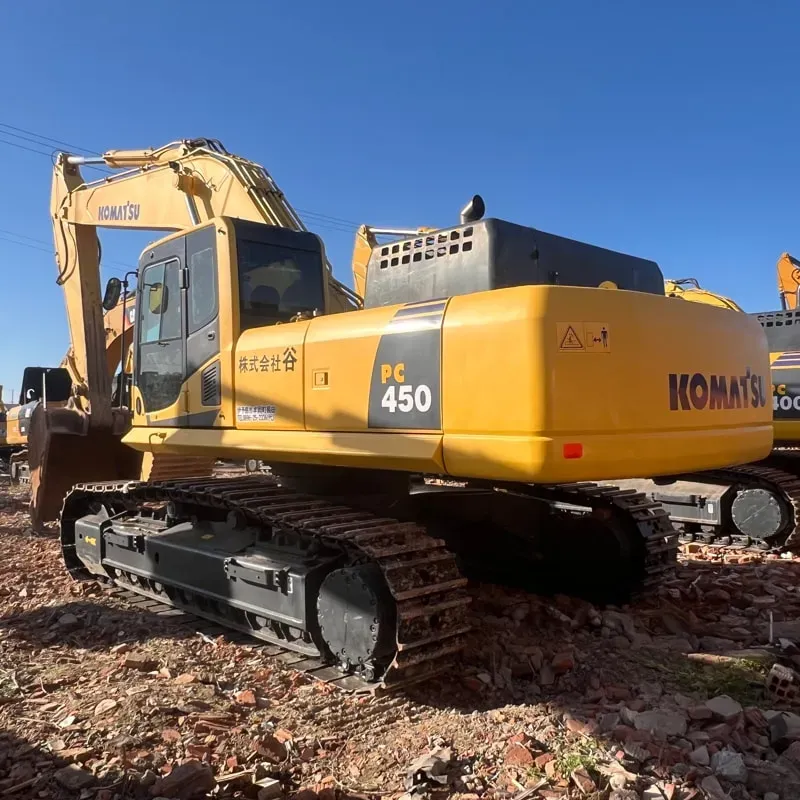

The Komatsu PC450-8 is a large-class hydraulic excavator in the 45-ton (44,700–45,300 kg) category, designed for heavy-duty earthmoving, mining, quarrying, and large-scale construction projects. It is part of Komatsu's -8 generation (launched ~2012–2015), replacing the earlier PC450-7 model. The "-8" series features improved fuel efficiency, operator comfort, and advanced electronics.

📌 2. KEY SPECIFICATIONS

Parameter	Specification
Operating Weight	~44,700 – 45,300 kg (98,600 – 99,900 lbs)
Engine Model	Komatsu SAA6D125E-5
Engine Type	6-cylinder, turbocharged, aftercooled diesel
Rated Power	243 kW (326 hp) @ 1,900 rpm
Max Torque	~1,340 N·m (988 lb-ft) @ 1,300 rpm
Displacement	11.64 L (710 cu in)
Emission Standard	EPA Tier 4 Final / EU Stage IIIB / Japan 2014
Fuel Tank Capacity	~650 L (171.7 US gal)
Hydraulic Tank Capacity	~150 L (39.6 US gal)
Swing Speed	~7.0 rpm
Travel Speed	~4.8 km/h (3.0 mph)
Ground Pressure	~75 kPa (10.9 psi)

📌 3. DIMENSIONS & WORKING RANGE

Parameter	Value
Transport Length	~11,270 mm (37.0 ft)
Transport Width	~3,190 mm (10.5 ft)
Transport Height	~3,310 mm (10.9 ft)
Max Digging Depth	~7,060 mm (23.2 ft)
Max Digging Reach	~10,440 mm (34.3 ft)
Max Dumping Height	~7,380 mm (24.2 ft)
Max Digging Radius (Ground Level)	~10,230 mm (33.6 ft)
Max Vertical Wall Digging Depth	~6,120 mm (20.1 ft)
Bucket Capacity (Standard)	1.6 – 2.2 m³ (2.1 – 2.9 cu yd)
Blade Width	3,190 mm (10.5 ft)

📌 4. ENGINE — SAA6D125E-5

Feature	Detail
Configuration	Inline 6-cylinder, DOHC, 24 valves
Turbocharger	Single turbo with intercooler
Fuel System	Common rail direct injection (CRDI)
Emission Tech	DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) with AdBlue/DEF
Fuel Efficiency	Improved ~10–15% over PC450-7
Cooling System	Pressurized water cooling with 2 radiators

The SAA6D125E-5 is one of Komatsu's workhorse engines, known for reliability and durability in harsh conditions.

📌 5. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Variable displacement axial piston pump (×2 main + ×1 pilot)
System Pressure	34.3 MPa (4,975 psi)
Flow Rate	~2 × 320 L/min (total ~640 L/min)
Control System	EPC (Electronic Pump Controller) — load-sensing, pressure-compensated
Auxiliary Hydraulics	Available (for hammer, grapple, etc.) — up to ~190 L/min

📌 6. UNDERCARRIAGE

Feature	Detail
Track Shoe Width	600 mm (23.6 in) / 700 mm (27.6 in) / 800 mm (31.5 in) options
Number of Rollers	2 per side (upper) + 9 per side (lower)
Track Pitch	2,140 mm (84.3 in)
Shoe Length	~4,600 mm
Ground Contact Length	~3,700 mm

📌 7. OPERATOR CAB & COMFORT

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Air Conditioning	Fully automatic climate control
Seat	Air-suspended, heated, with armrest
Display	10.4-inch full-color LCD monitor with multi-function display
Controls	Electronic joystick with auto-idle, work mode selector
Noise Level	~69 dB(A) (very quiet for its class)
Visibility	Large windshield, rear-view camera, work light
Smartphone Connectivity	Optional Komtrax telematics integration

📌 8. INTELLIGENT MACHINE CONTROL (IMC) — OPTIONAL

Feature	Detail
GPS/GNSS Ready	3D machine control ready (Topcon, Trimble, Leica compatible)
Auto-Grade	Automatic blade/bucket control for grading
2D/3D Grading	Laser or GPS-based automatic leveling
Automation	Semi-autonomous operation capability

📌 9. SAFETY & MAINTENANCE

Feature	Detail
Anti-Theft	Engine immobilizer, Komatsu Smartlock
Daily Check	Easy-access ground-level service points
Grease Points	Centralized auto-lubrication system
Fuel Filter/Water Separator	Easy access, ground-level drain
DEF (AdBlue) Tank	~30 L, easy refill access
Service Intervals	Engine oil: 500 hrs / Hydraulic oil: 4,000 hrs

📌 10. APPLICATIONS

Application	Detail
🏗️ Large-scale excavation	Foundation, trench, basement work
& Mining & quarrying	Loading haul trucks, bench work
🛣️ Road construction	Embankment, cutting, grading
🏗️ Demolition	With hydraulic breaker or crusher attachment
🌊 Dredging	With long-reach or dredge bucket
🌲 Forestry	With grapple attachment

📌 11. COMPARISON: PC450-8 vs PC450-7

Feature	PC450-7	PC450-8
Engine	SAA6D125E-3	SAA6D125E-5
Power	243 kW (326 hp)	243 kW (326 hp)
Emissions	Tier 3	Tier 4 Final
Fuel Efficiency	Baseline	~10–15% better
Cab	Conventional LCD	Larger 10.4" LCD + better ergonomics
Weight	~44,700 kg	~45,300 kg
Hydraulics	EPC	Enhanced EPC
Telematics	Basic	Komtrax advanced

📌 12. COMPETITORS

Model	Operating Weight	Power
🔵 CAT 349 GC / 349	~48,000 kg	261 kW (350 hp)
🟡 Hitachi ZX470LCH-6	~46,700 kg	254 kW (340 hp)
🔴 Volvo EC480E	~48,000 kg	270 kW (362 hp)
🟠 Doosan DX420LC-9C	~42,000 kg	235 kW (315 hp)
🟢 Hyundai R480LC-9A	~47,000 kg	254 kW (340 hp)

The PC450-8 is highly competitive, especially in fuel efficiency, residual value, and dealer network.

📌 13. PRICE (Approximate, 2024)

Region	Estimated Price (USD)
🇺🇸 USA/North America	$380,000 – $450,000
🇪🇺 Europe	€350,000 – €420,000
🌏 Asia-Pacific	$300,000 – $380,000
📦 Used (2015–2018)	$180,000 – $280,000

(Prices vary by configuration, attachments, and market conditions)

✅ SUMMARY — WHY CHOOSE PC450-8?

✅ Strength	📝 Detail
💪 Proven Engine	SAA6D125E-5 is legendary for reliability
&Fuel Efficient**	Best-in-class for 45-ton machines
🤖 Smart Technology	IMC-ready, Komtrax, large LCD
🪑 Operator Comfort	Best cabin in its class
🔧 Low Maintenance	Long service intervals, easy access
📈 Resale Value	Komatsu holds value exceptionally well
🌍 Global Support	180+ countries, massive parts network

🔑 Bottom Line: The Komatsu PC450-8 is one of the best large hydraulic excavators in the 45-ton class — offering a perfect balance of power, efficiency, technology, and durability for the most demanding jobs worldwide.
