Used Caterpillar 312GCExcavator

Reading: 19

🏗️ Overview

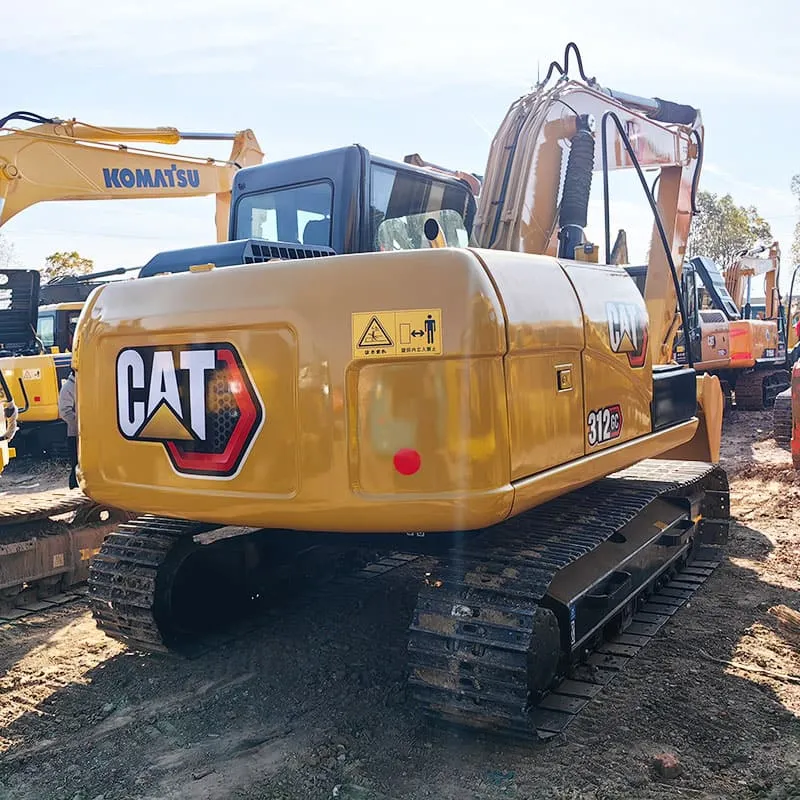

The Cat 312 GC (Generation C) is a medium-class hydraulic excavator weighing approximately 12 metric tons (26,455 lb). It was introduced around 2019 as part of Caterpillar's next-generation excavator lineup, replacing the earlier 312D/312F models. The "GC" stands for Generation C, representing Cat's latest design philosophy focused on operator comfort, fuel efficiency, technology integration, and productivity.

It is widely used in general construction, road building, utility work, landscaping, and material handling.

📐 Key Specifications

Specification	Details
Operating Weight	~12,000 – 12,800 kg (26,455 – 28,220 lb)
Engine Model	Cat® C4.4 ACERT®
Engine Power	86 hp (64 kW) @ 2,000 rpm
Bucket Capacity (Standard)	0.38 – 0.52 m³ (0.5 – 0.68 yd³)
Max Dig Depth	~5.7 – 5.9 m (18.7 – 19.4 ft)
Max Reach (Ground Level)	~8.7 – 9.1 m (28.5 – 29.9 ft)
Max Digging Force	~72 kN (16,200 lbf)
Hydraulic Flow	~260 L/min (68.7 gpm)
Fuel Tank Capacity	~220 L (58.1 gal)
Tail Swing Radius	~1.86 m (6.1 ft)

Note: Specifications vary slightly between Standard Boom and Long Reach (LR) configurations.

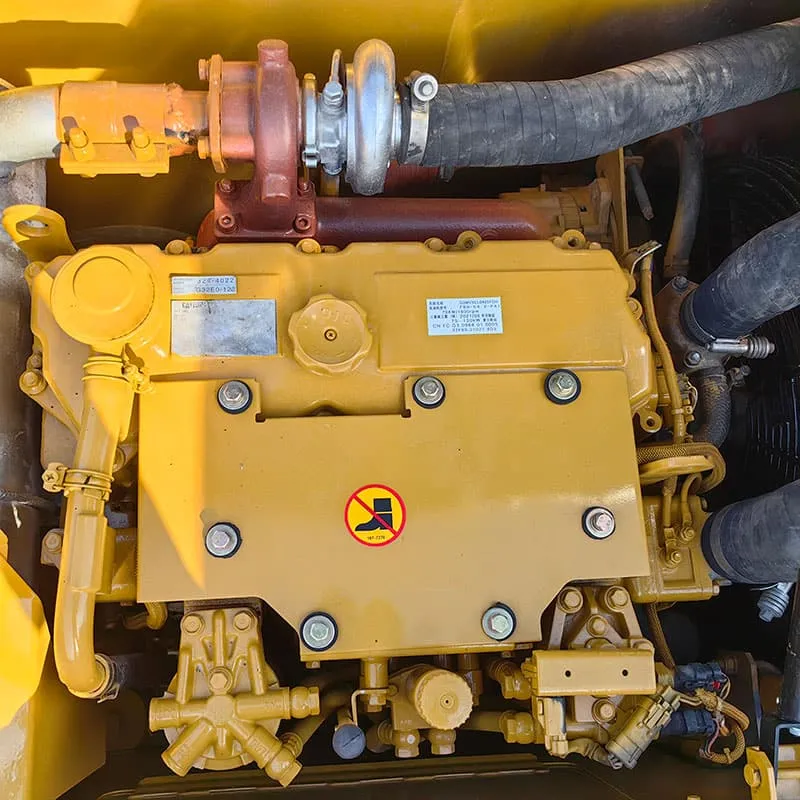

🔧 Engine — Cat C4.4 ACERT

Feature	Detail
Displacement	4.4 L (268 cu in)
Turbocharged & Aftercooled	Yes
Emissions Standard	EPA Tier 4 Final / EU Stage V
Fuel Type	Diesel
Cooling System	Coolant-cooled
Features	Automatic Engine Speed Control, Eco Mode

The C4.4 ACERT delivers excellent fuel efficiency while meeting the strictest emissions regulations. It features:

✅ Auto idle — engine speed automatically reduces when not working
✅ Eco mode — optimizes power vs. fuel consumption
✅ Low-maintenance design — extended service intervals (500-hour or 1,000-hour)

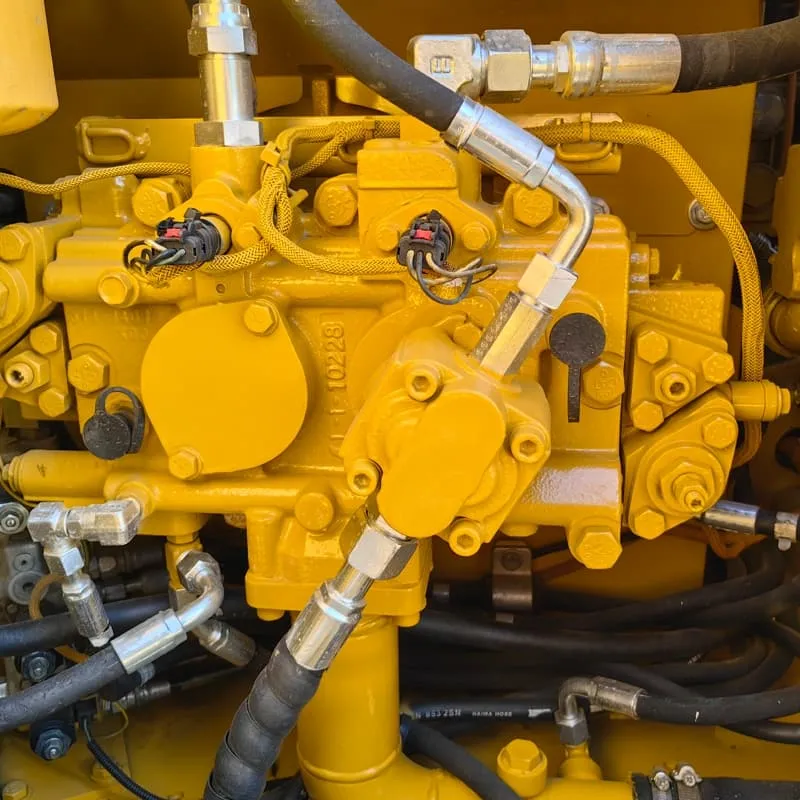

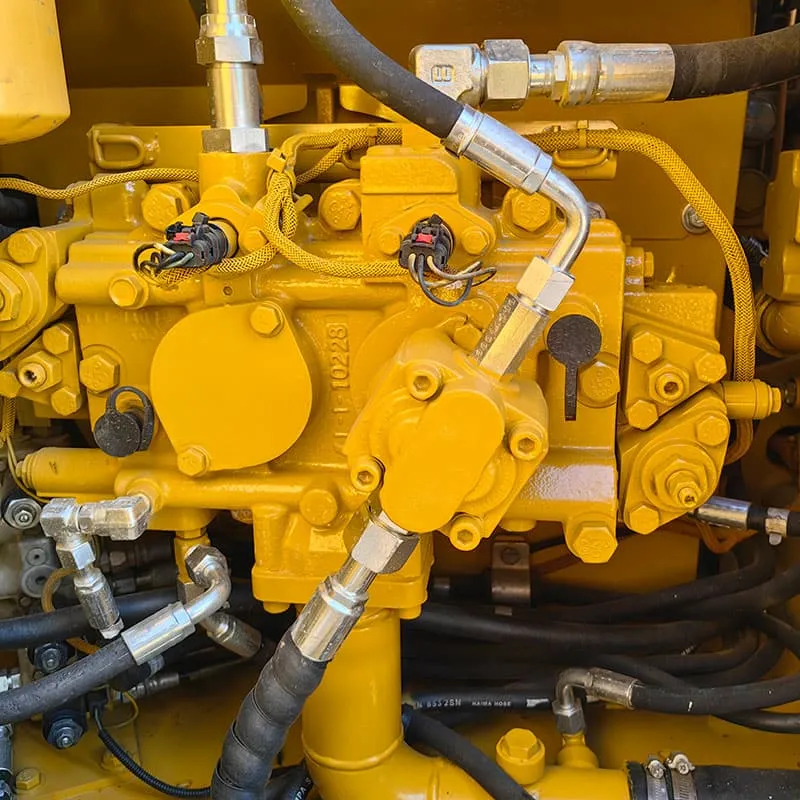

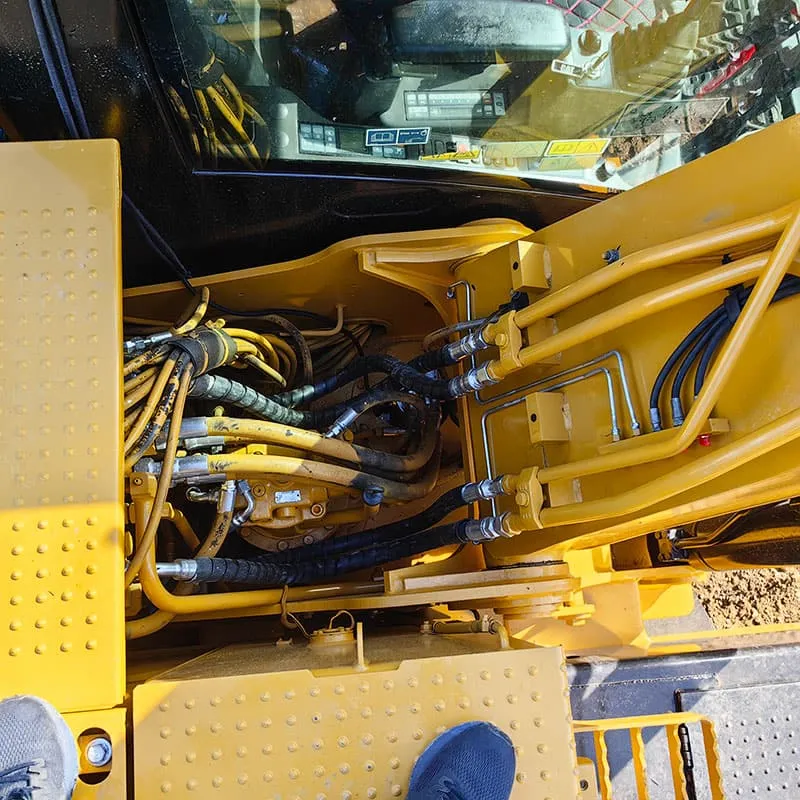

🖐️ Hydraulic System

Feature	Detail
System Type	Load-Sensing (LS) Hydraulic System
Pump Type	Variable Displacement Axial Piston
Max Flow	~260 L/min (68.7 gpm)
Max Pressure	35 MPa (5,076 psi)
Auxiliary Hydraulics	Standard — 2 lines, 70 L/min (18.5 gpm)
Quick Coupler Ready	Yes (optional)

The load-sensing hydraulic system matches oil flow and pressure to the operator's demand, resulting in:

⚡ Faster cycle times
🛢️ Reduced fuel consumption (up to 15% savings vs. previous gen)
🎯 Smoother, more precise control

🖥️ Technology & Features

The 312 GC comes loaded with Cat's latest technology:

Technology	Description
📡 Cat GRADE with 2D	Standard on many markets — enables real-time grade checking, slope control, and depth control without GPS
🛰️ Cat GRADE with 3D (GPS)	Optional — full 3D machine guidance for complex grading
📊 Cat Product Link™	Telematics — tracks location, fuel usage, hours, diagnostics, and fleet management
🖥️ Touchscreen Monitor	8" (203 mm) color LCD display with multi-language support
🎚️ Auto-Swing Control	Automatically stops swing at the end of each cycle for faster digging
📹 Rearview Camera	Standard — improves visibility and safety
🔧 Cat Payload	Optional — real-time bucket payload weighing
📱 Cat Apps	Compatible with Cat GRADE apps for smartphones/tablets

🪑 Operator Comfort (Cab)

One of the biggest upgrades in the GC generation:

Feature	Detail
Cab Type	Enclosed, pressurized ROPS/FOPS certified
Suspension Seat	Air-suspended, fully adjustable with armrests
Climate Control	Automatic A/C with heater
Noise Level	~72 dB(A) — very quiet for its class
Vibration Level	Significantly reduced vs. previous generation
Joystick Controls	Ergonomic proportional levers with auxiliary controls
Foot Pedals	Travel, swing, and auxiliary — easy-to-reach layout
Storage	Cup holders, phone holder, glove box, USB ports
Visibility	Large glass area, slim pillars, excellent all-around view

The cab has been redesigned with operator-centric ergonomics, reducing fatigue during long workdays.

🏗️ Undercarriage & Structure

Feature	Detail
Track Width	600 mm (23.6 in) — triple-grouser shoes standard
Track Shoe Options	Steel, rubber pads, or triple grouser
Undercarriage	Heavy-duty X-frame design
Boom/Arm	High-strength steel, optimized for durability
Counterweight	Cast iron, optimized for stability
Blade	Available (dozer blade option for grading)
Lifting Points	4 designated points for safe lifting

📊 Performance Highlights

Metric	Value
Fuel Efficiency	Up to 15% better than 312F
Cycle Time	Up to 10% faster than previous generation
Lift Capacity (at max radius)	~2,900 kg (6,393 lb)
Ground Pressure	~42 kPa (6.1 psi)
Service Intervals	Engine oil: 1,000 hrs / Hydraulic oil: 4,000 hrs / Final drive: 4,000 hrs

🔄 Available Configurations

Configuration	Description
Standard Boom	2,950 mm (9.68 ft) — best for digging & truck loading
Long Reach (LR)	3,400 mm (11.15 ft) — extended reach for deep excavation
With Blade	Dozer blade for grading & finishing
With Thumb	Hydraulic thumb for material handling
With A/C Cab / Heat	Climate-controlled cab
With GPS Grade	Cat GRADE 2D or 3D ready

💰 Approximate Pricing (2024 Estimate)

Region	Price Range (USD)
North America	$130,000 – $170,000 (depending on config)
Europe	€120,000 – €160,000
Asia/Other	Varies by market

Prices exclude attachments, GPS, and options.

✅ Strengths (Pros)

✅	Description
🛢️	Excellent fuel efficiency
🖥️	Best-in-class technology (GRADE, Product Link)
🪑	Outstanding operator comfort
💪	Strong digging force for its class
🔧	Long service intervals = lower owning cost
📶	Telematics-ready for fleet management

⚠️ Considerations (Cons)

⚠️	Description
💰	Higher upfront cost vs. some competitors
🔧	Cat parts can be expensive
📦	Limited dealer network in some regions

🏆 Comparison vs. Competitors

Model	Weight	Power	Bucket
Cat 312 GC	12,000 kg	86 hp	0.52 m³
Komatsu PC128US-11	12,800 kg	89 hp	0.47 m³
JCB JS131	13,200 kg	97 hp	0.53 m³
Volvo EC130E	13,000 kg	96 hp	0.50 m³
Hitachi ZX135US-6	13,500 kg	94 hp	0.54 m³

The Cat 312 GC stands out for technology integration and fuel efficiency, while competitors may offer slightly more raw power.

🎯 Ideal Applications

Application	Suitability
🏗️ General Excavation	⭐⭐⭐⭐⭐
🛣️ Road Construction	⭐⭐⭐⭐⭐
🔌 Utility/Pipeline Work	⭐⭐⭐⭐⭐
🌳 Landscaping	⭐⭐⭐⭐
🏚️ Demolition (with thumb)	⭐⭐⭐⭐
📦 Material Handling	⭐⭐⭐⭐
⛰️ Heavy Mining	⭐⭐⭐ (underpowered for large-scale mining)

📌 Summary

The Caterpillar 312 GC is a well-rounded, technology-rich medium excavator that excels in fuel efficiency, operator comfort, and productivity. It's an ideal choice for contractors who value lower operating costs, smart technology (GRADE/Product Link), and operator satisfaction. While the purchase price is on the higher end, the total cost of ownership (TCO) is very competitive thanks to fuel savings and long service intervals.
