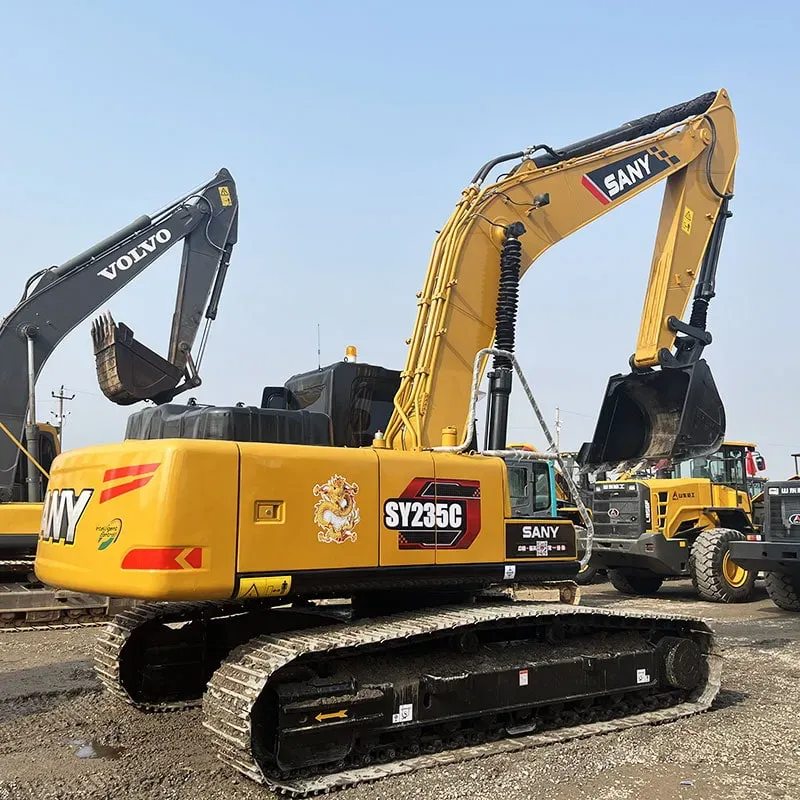

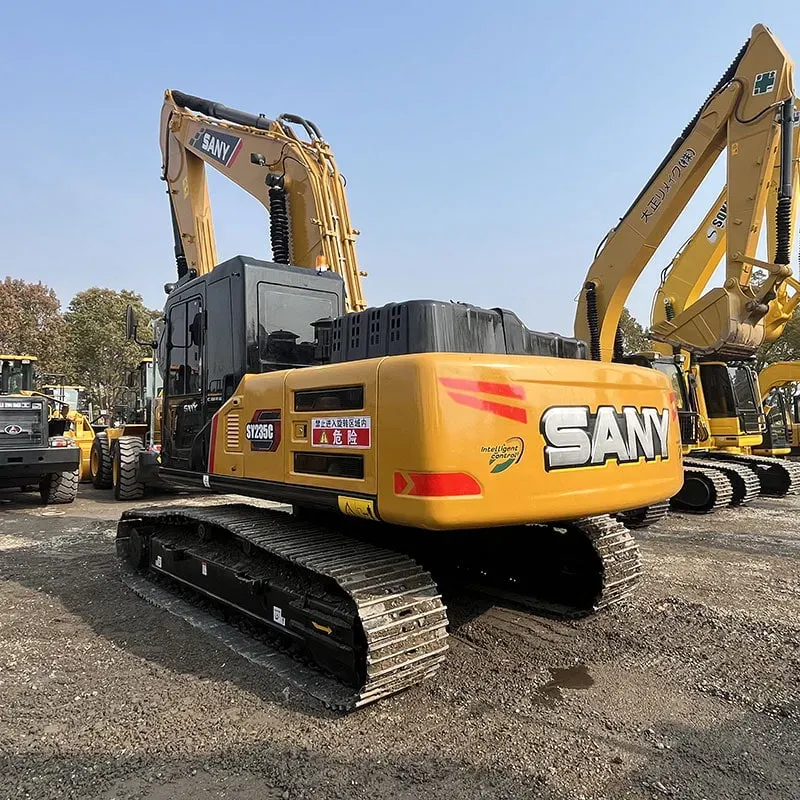

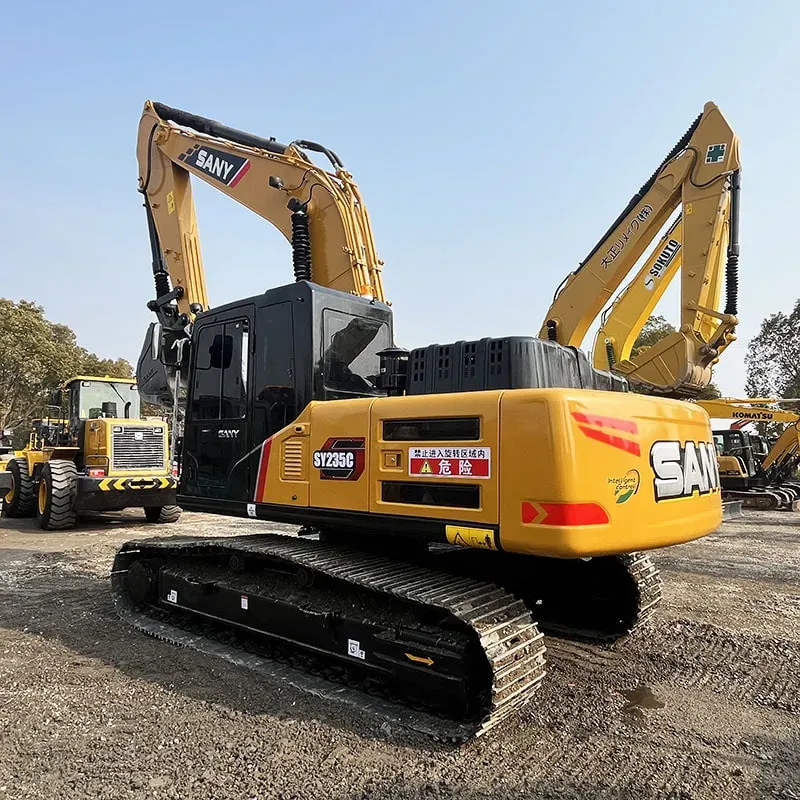

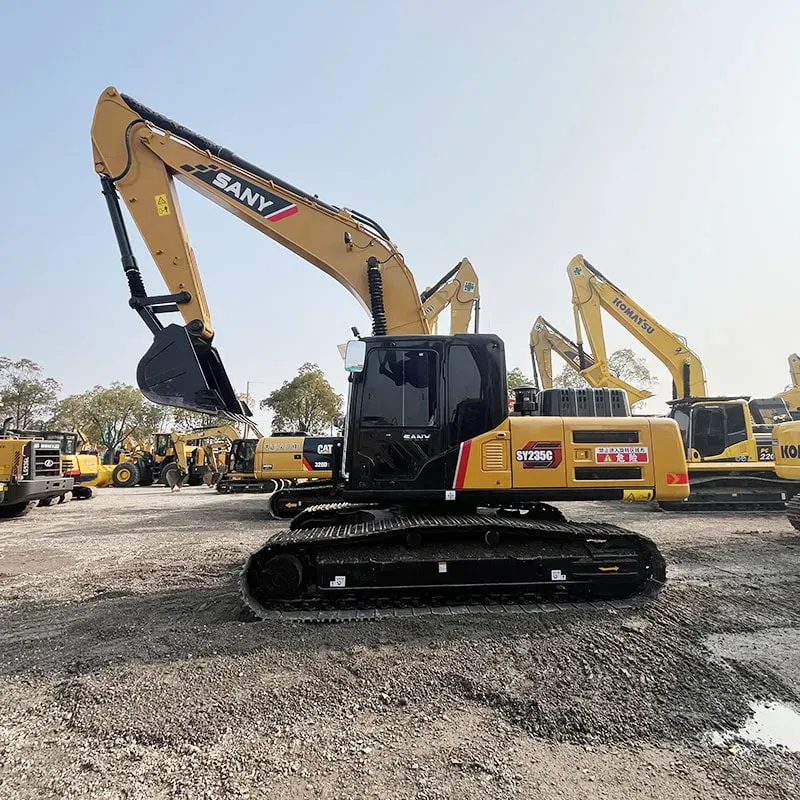

Used Sany 235Excavator

Reading: 29

📌 1. OVERVIEW

Item	Details
Model	SANY SY235C / SY235U / SY235H
Class	Medium-sized (20–25 ton class)
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Application	General construction, earthmoving, mining, demolition, landscaping
Market Position	Competes with Cat 323, Komatsu PC220, Volvo EC220, Doosan DX225

🔧 2. ENGINE SPECIFICATIONS

Parameter	Details

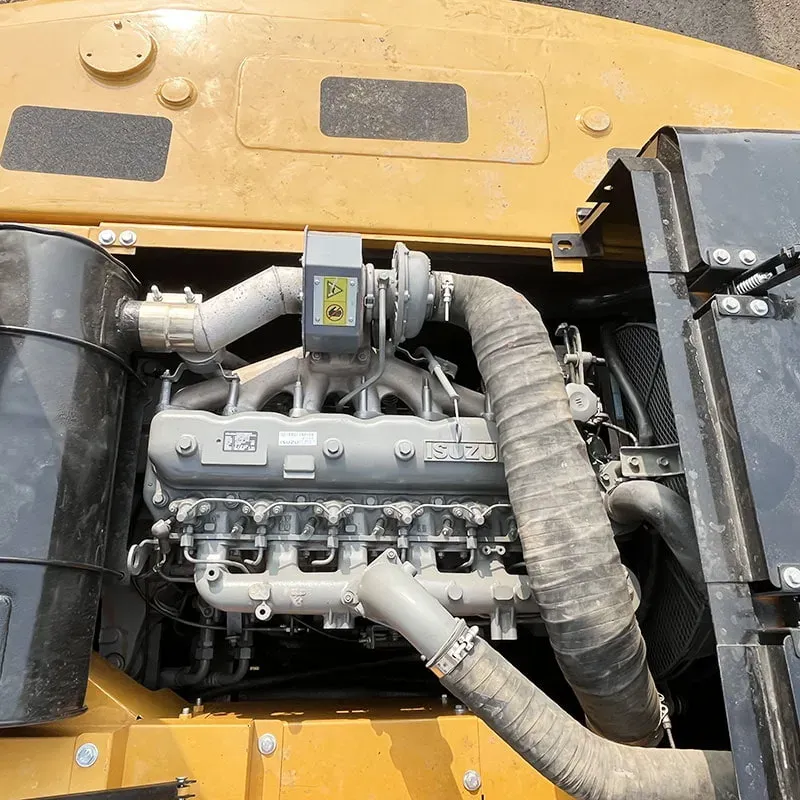

Engine Model	Isuzu AA-6HK1XQB-6 (most common) / Cummins QSB6.7 (some markets)
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	7.79 L
Rated Power	134 kW (180 HP) @ 2,000 rpm
Max Torque	677 N·m @ 1,500 rpm
Emission Standard	China III / EU Stage V / Tier 4 Final (market dependent)
Fuel Tank Capacity	~400 L

✅ The engine is known for fuel efficiency, low noise, and strong low-end torque — ideal for heavy digging tasks.

⚙️ 3. HYDRAULIC SYSTEM

Parameter	Details

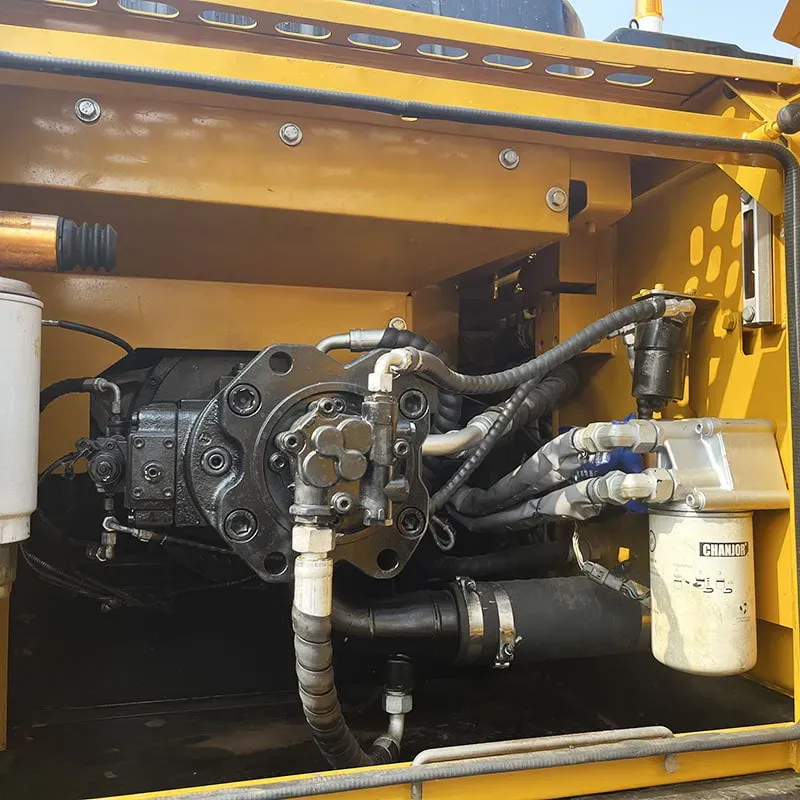

Main Pump Type	Dual variable-displacement axial piston pump
Pump Flow	2 × 240 L/min (total ~480 L/min)
System Pressure	34.3 MPa (350 bar)

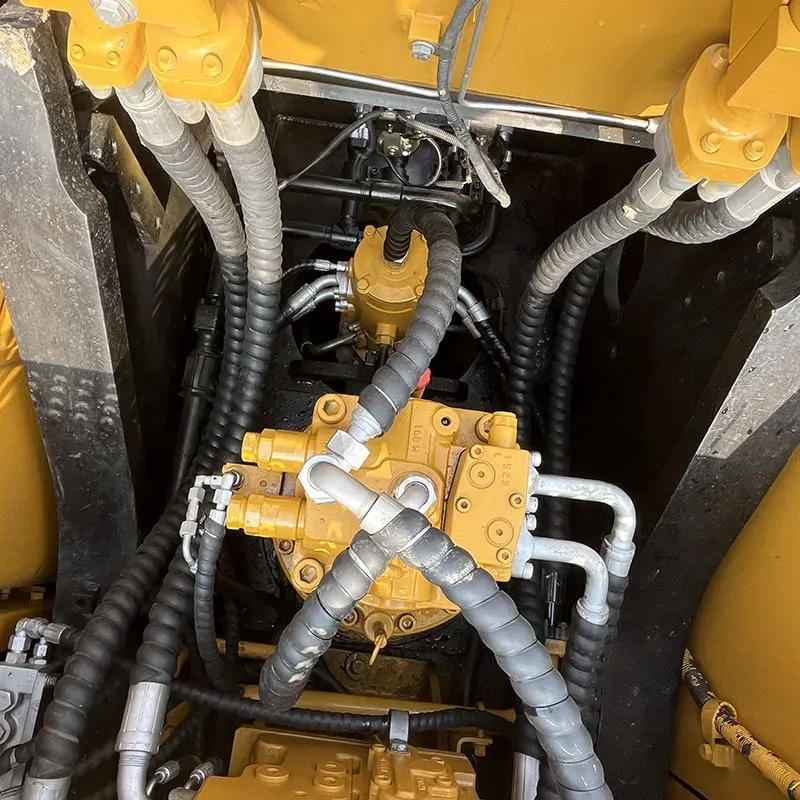

Swing Motor	Axial piston motor with brake
Travel Motor	Axial piston motor (dual)
Hydraulic Oil Capacity	~240 L

🧠 Intelligent Hydraulic System (iHPS): Matches engine output to hydraulic demand in real-time, saving 5–15% fuel compared to conventional systems.

📐 4. DIMENSIONS & WEIGHT

Parameter	Details
Operating Weight	23,500 – 23,700 kg
Transport Length	~9,980 mm
Transport Width	~2,990 mm
Transport Height	~3,190 mm
Ground Clearance	~450 mm
Track Width	600 mm (standard) / 500 mm (narrow option)
Track Shoe Width	600 mm
Tail Swing Radius	~2,960 mm

🏗️ 5. WORKING RANGE (PERFORMANCE)

Parameter	SY235C (Standard Arm)	SY235C (Long Arm)
Max Digging Depth	~6,850 mm	~7,550 mm
Max Digging Reach	~9,900 mm	~10,600 mm
Max Digging Height	~9,850 mm	~10,550 mm
Max Dumping Height	~7,000 mm	~7,700 mm
Max Vertical Wall Dig	~6,200 mm	~6,900 mm
Max Digging Force (Boom)	~146 kN	~155 kN
Max Digging Force (Arm)	~105 kN	~110 kN
Bucket Capacity (Std)	0.93 m³ (1.0 m³ optional)	0.85 m³

🚀 6. SPEED & MOBILITY

Parameter	Details
Swing Speed	~10.5 rpm
Travel Speed (High)	~4.8 km/h
Travel Speed (Low)	~3.2 km/h
Gradeability	70% (35°)
Max Trench Crossing	~2,600 mm
Climbing Ability	~600 mm

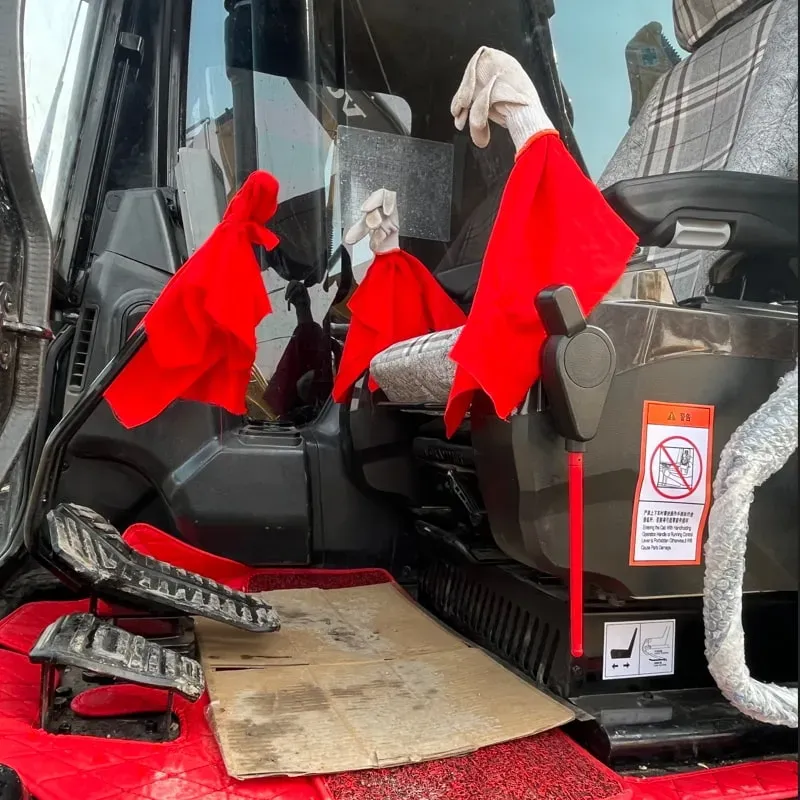

🛡️ 7. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, spacious & sound-insulated
Noise Level	~68 dB(A) (very quiet for its class)
Air Conditioning	Full auto A/C with filter
Seat	Suspended air-ride seat with armrests
Display	7-inch color LCD monitor with rearview camera
Control	Electronic joystick with auto-idle, ECO mode
USB/Bluetooth	✅ Available
Vibration	Low vibration design (< 2.5 m/s²)

🧠 8. SMART TECHNOLOGY & FEATURES

Technology	Description
SANY iCRC	Intelligent Control System — optimizes boom/arm/bucket coordination
Eco Mode	Auto-reduces engine RPM when idle → saves 10–15% fuel
Smart Weight System	Auto-adjusts swing brake based on load
SANY Cloud (SY-Cloud)	Remote monitoring, fleet management, fault diagnosis via 4G
Auto-Idle	Engine auto-shuts off after 5 min inactivity
One-Key Start	Engine start + system check with one button
Anti-Theft System	GPS tracking + engine immobilizer

🔩 9. DURABILITY & MAINTENANCE

Feature	Details
Boom/Arm	High-strength steel (Q690/Q890), finite element optimized
Bucket	Reinforced with wear-resistant steel, optional tooth guards
Undercarriage	Heavy-duty X-frame, sealed & lubricated track rollers
Service Interval	Engine oil: 500h / Hydraulic oil: 2,000h / Fuel filter: 500h
Ground-level Service	Easy access to filters, drains, grease points
Warranty	2 years / 2,000 hours (varies by region)

🆚 10. COMPARISON WITH COMPETITORS

Spec	SANY SY235C	CAT 323 GC	Komatsu PC220-8	Volvo EC220E
Power	180 HP	162 HP	162 HP	162 HP
Weight	23.7T	23.5T	22.3T	22.5T
Bucket	0.93 m³	0.93 m³	1.0 m³	0.93 m³
Max Depth	6,850 mm	6,700 mm	6,850 mm	6,740 mm
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Price	💰💰💰 (Most Affordable)	💰💰💰💰💰	💰💰💰💰	💰💰💰💰
Smart Tech	⭐⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 SANY SY235 wins on: Price, Power, Fuel Efficiency & Smart Technology

💰 11. APPROXIMATE PRICING (2024)

Region	Price Range (USD)
China	$65,000 – $80,000
Southeast Asia	$75,000 – $90,000
Middle East / Africa	$80,000 – $95,000
Europe	€85,000 – €100,000

💡 SANY is typically 15–30% cheaper than CAT/Komatsu/Volvo with comparable or better specs.

✅ 12. SUMMARY – WHY CHOOSE SANY SY235?

✅ Strengths	⚠️ Considerations
✅ Best power-to-weight ratio in class	⚠️ Smaller dealer network vs CAT/Komatsu in some regions
✅ Excellent fuel economy (iHPS + Eco mode)	⚠️ Resale value slightly lower than Japanese brands
✅ Advanced smart technology (SY-Cloud, iCRC)	⚠️ Parts availability may vary in remote areas
✅ Very competitive pricing
✅ Low noise & vibration cab
✅ Strong build quality (SANY is a global Top 3 excavator maker)
✅ Fast after-sales service in China & Asia

📞 13. MODEL VARIANTS

Variant	Description
SY235C	Standard crawler – most popular
SY235U	Ultra-short tail swing (ideal for urban work)
SY235H	High-dump version (for truck loading)
SY235E	Electric version (available in select markets)

🏗️ Bottom Line: The SANY SY235 is one of the best value-for-money mid-size excavators on the market in 2024–2025. It delivers more power, better technology, and lower fuel consumption than most competitors at a significantly lower price. If you're looking for a reliable, smart, and cost-effective 23-ton excavator — SANY SY235 is a top choice. 🔥

Would you like more details on any specific aspect — like attachments, financing, or comparison with a specific model? 😊
