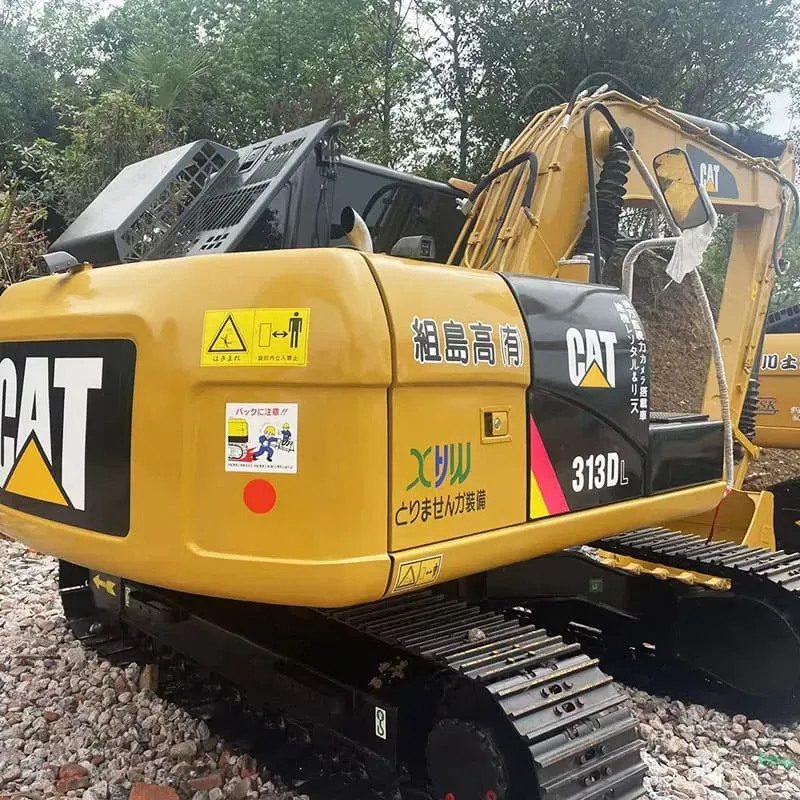

Used Caterpillar 313DLExcavator

Reading: 34

📌 1. OVERVIEW

Item	Details
Manufacturer	Caterpillar Inc.
Series	L-Series (Next Generation)
Model	313DL GC
DL Meaning	Deep / Long Reach
GC Meaning	Ground Control
Class	Mid-size Hydraulic Excavator
Replaced	Cat 313D / 313D L (previous generation)
Primary Use	General construction, utility work, landscaping, road building, pipeline work

The 313DL GC is one of Cat's most popular mid-size excavators, weighing around 13 metric tons, designed for versatility, fuel efficiency, and operator comfort.

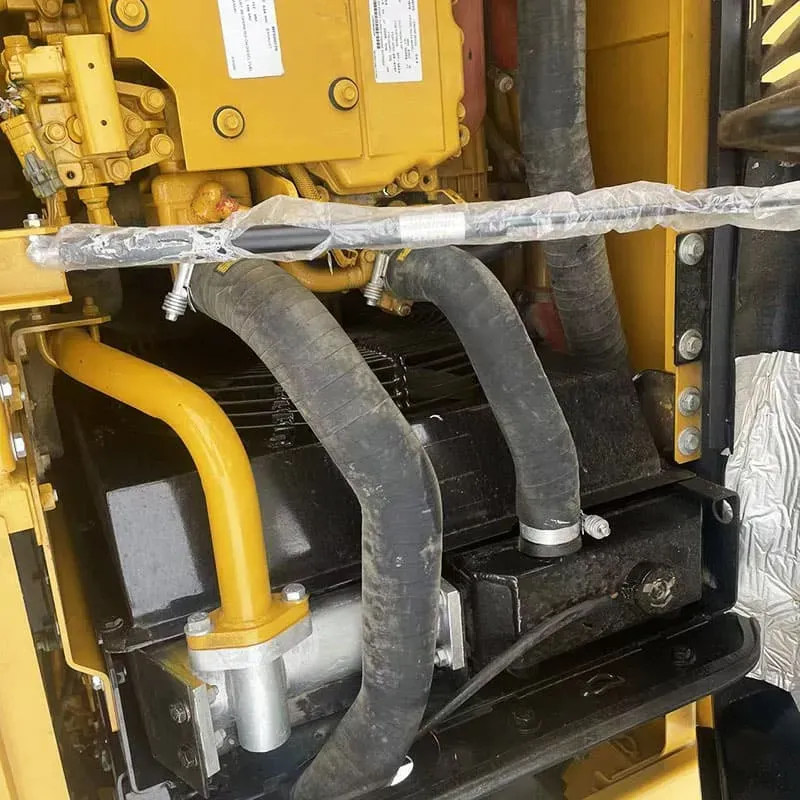

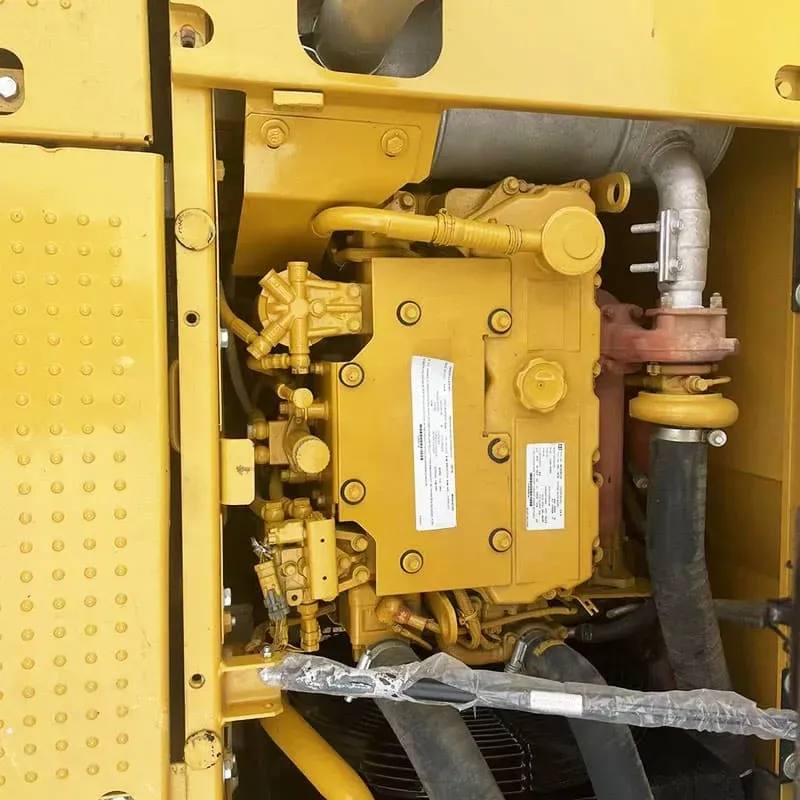

📌 2. ENGINE SPECIFICATIONS

Specification	Details
Engine Model	Cat C4.4 ACERT®
Type	4-cylinder, turbocharged, aftercooled diesel
Displacement	4.4 liters (268 cu in)
Rated Power	86 kW (115 hp) @ 2,200 rpm
Emission Standards	EPA Tier 4 Final / EU Stage V
Fuel Tank Capacity	~300 L (79 gal)
Aftertreatment	Diesel Particulate Filter (DPF) + DOC (no DEF/AdBlue required)

✅ No DEF (Diesel Exhaust Fluid) needed — simplified maintenance!

📌 3. OPERATING WEIGHT & DIMENSIONS

Specification	Details
Operating Weight	12,950 – 13,700 kg (28,550 – 30,200 lbs) (varies by configuration)
Transport Length	~9,790 mm (32.1 ft)
Transport Width	~2,990 mm (9.8 ft)
Transport Height	~3,060 mm (10.0 ft)
Tail Swing Radius	~2,750 mm (9.0 ft)
Track Gauge	2,200 mm (87 in)
Ground Clearance	~445 mm (17.5 in)

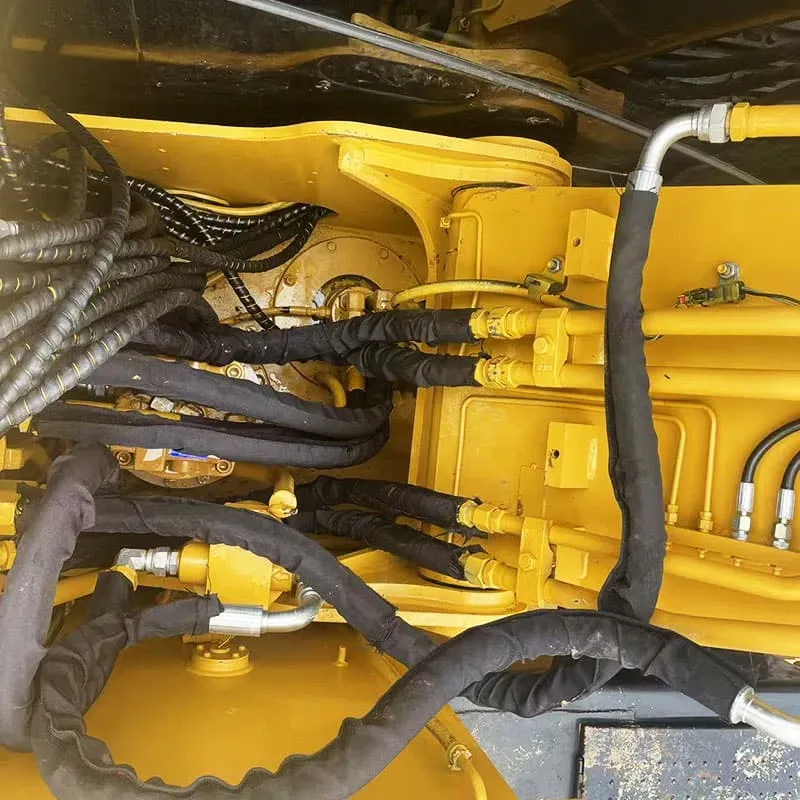

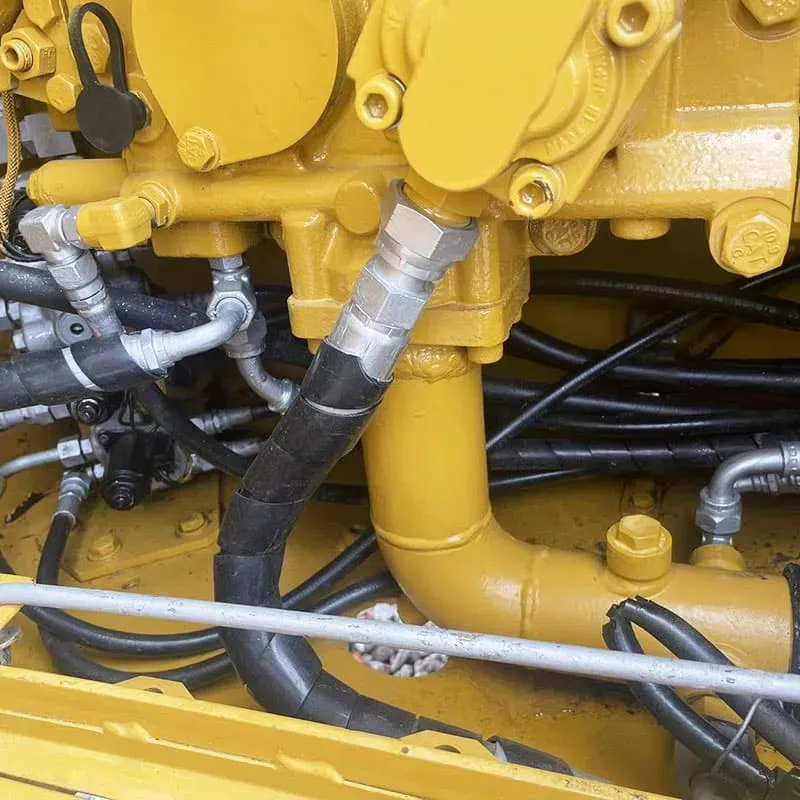

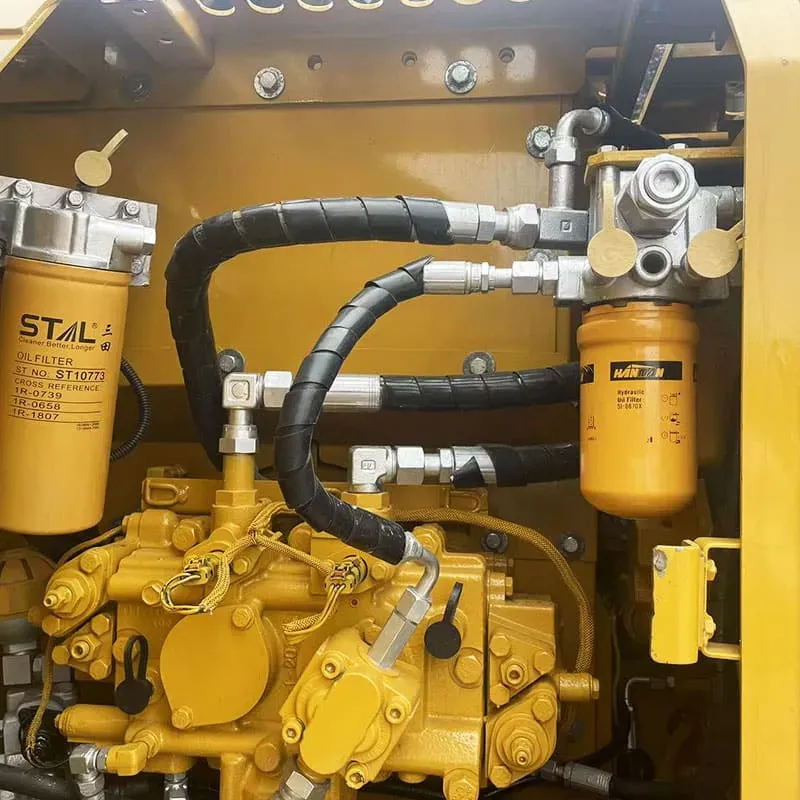

📌 4. HYDRAULIC SYSTEM

Specification	Details
Pump Type	2x Variable Displacement Axial Piston Pumps
Max System Pressure	350 bar (5,076 psi)
Total Flow	2 x 228 L/min (2 x 60 gpm)
Auxiliary Flow	Up to 65 L/min (17.2 gpm)
Auxiliary Pressure	350 bar (5,076 psi)
Hydraulic Quick Coupler	✅ Ready (factory-installed or optional)

📌 5. DIGGING PERFORMANCE 🏗️

Performance	Metric	Imperial
Max Digging Depth	6,930 mm	22.7 ft
Max Reach (Ground Level)	9,820 mm	32.2 ft
Max Digging Height	9,870 mm	32.4 ft
Max Dump Height	7,040 mm	23.1 ft
Max Digging Force (Boom)	89 kN (20,000 lbf)	—
Max Digging Force (Arm)	63 kN (14,200 lbf)	—
Bucket Tear-Out Force	74 kN (16,600 lbf)	—

📌 6. BUCKET CAPACITIES

Type	Capacity (m³)	Capacity (yd³)
Min (Narrow)	0.24	0.31
Standard (GP)	0.52	0.68
Max (Wide)	0.68	0.89

📌 7. UNDERCARRIAGE & TRACKS

Specification	Details
Track Width Options	450 mm (18 in) or 600 mm (24 in)
Shoe Width	600 mm (24 in)
Number of Rollers (each side)	5
Number of Carrier Rollers (each side)	2
Ground Pressure	~46 kPa (6.7 psi)
Travel Speed (High)	5.0 km/h (3.1 mph)
Travel Speed (Low)	3.0 km/h (1.9 mph)
Gradeability	70% (35°)
Max Climb Angle	35°

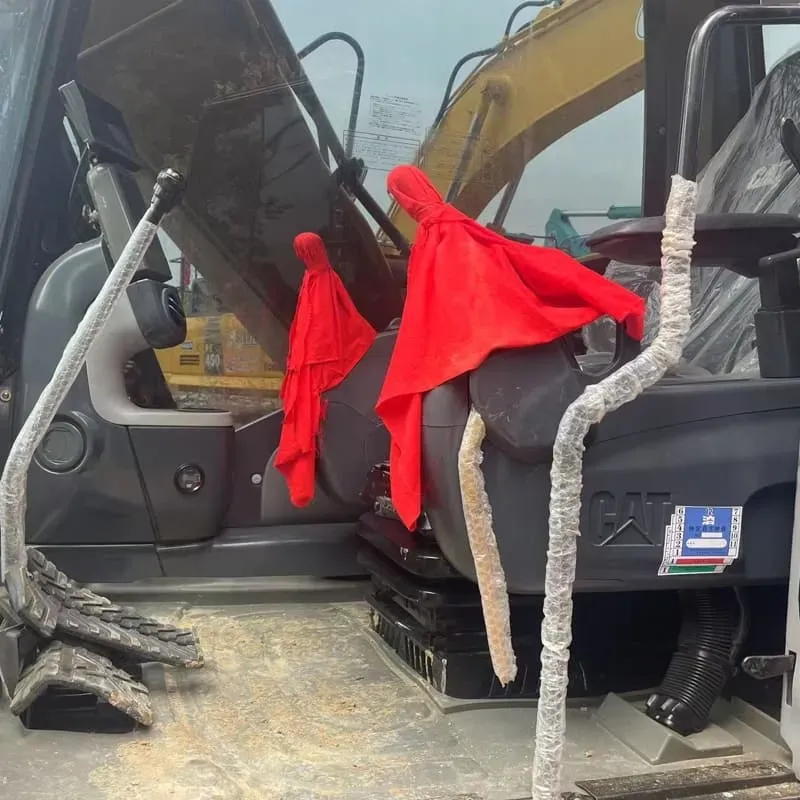

📌 8. CAB & OPERATOR COMFORT 🪑

Feature	Details
ROPS/FOPS	✅ Certified (Rollover & Falling Object Protection)
Climate Control	✅ Full air conditioning with HEPA filter
Seat	Air-suspended, heated, adjustable with armrests
Display	7" (178 mm) color touchscreen monitor
Camera System	✅ Rearview & side-view cameras available
Noise Level (Inside)	~72 dB(A)
Vibration Level	Low — improved over previous gen
One-Walk-Around Greasing	✅ Ground-level lubrication points
Storage	Generous cab storage compartments

📌 9. SMART TECHNOLOGY & EFFICIENCY 🧠

Technology	Description
Cat Product Link™	Remote machine monitoring, diagnostics, location tracking
Cat GRADE with 2D	✅ Optional — Laser/GPS grade control for precise digging
Work Modes	🔹 Power — Maximum performance 🔹 Smart — Auto-matched to application 🔹 Eco — Maximum fuel savings (up to 20%)
Auto-Idle	✅ Engine automatically reduces RPM when not working
Auto-Swing Stop	✅ Reduces swing when not in use
Auto-Reversing Fan	✅ Reverses airflow to keep radiator clean
E-Fence / Geofence	✅ Virtual boundary alerts
Payload Weighing	Optional — real-time load measurement

📌 10. FUEL EFFICIENCY &

Metric	Value
Fuel Consumption (Eco Mode)	~15–18 L/hr (4–4.8 gal/hr)
Fuel Savings vs. Previous Gen	Up to 15–20% improvement
Auto-Idle Savings	Up to 10% additional fuel savings

📌 11. SAFETY FEATURES 🛡️

Feature	Details
✅ ROPS/FOPS Certified Cab
✅ Auto-Idle
✅ Rearview Camera
✅ Work Light Package
✅ Anti-Theft System (CAT Security)
✅ Engine Immobilizer
✅ Ground Level Engine Shut-Off

📌 12. ATTACHMENT COMPATIBILITY 🔧

Attachment	Compatible?
Hydraulic Hammer (Breaker)	✅
Hydraulic Thumb	✅
Quick Coupler	✅ (Standard)
Grapple (Orange Peel / Sorting)	✅
Auger / Drill	✅
Rippers (Single Shank)	✅
Compactors / Plate Compactors	✅
Tiltrotator	✅
Shears (Demolition)	✅
Hydraulic Pulverizer	✅

📌 13. COMPARISON: 313DL vs. 313D (Old Gen)

Feature	313DL GC (New)	313D L (Old)
Power	115 hp	110 hp
Fuel Efficiency	~20% better	Baseline
Cab Comfort	Significantly improved	Good
Monitoring	7" Touchscreen	Basic LCD
Emission	Tier 4 Final / Stage V	Tier 4 Final
Weight	~13,000 kg	~13,100 kg
Service Access	Improved	Standard
Smart Tech	Advanced	Limited

📌 14. KEY ADVANTAGES ✅

#	Advantage
1	🏆 Best-in-class fuel efficiency in 13-ton class
2	🏗️ Excellent reach & digging depth for its size
3	🪑 Superior operator comfort — low noise & vibration
4	🧠 Smart technology — Product Link, Grade Control, Eco Mode
5	🔧 Easy maintenance — ground-level greasing, wide-open engine bay
6	🛡️ No DEF required — simpler operation
7	💰 Lower operating cost — fuel, maintenance, productivity
8	🔄 Quick coupler standard — fast attachment change

📌 15. TYPICAL APPLICATIONS

Application	Suitability
🏗️ General Excavation	⭐⭐⭐⭐⭐
🛣️ Road Construction	⭐⭐⭐⭐⭐
🔧 Utility / Pipeline Work	⭐⭐⭐⭐⭐
🌳 Landscaping	⭐⭐⭐⭐
🏠 Residential Construction	⭐⭐⭐⭐⭐
🏭 Demolition (with shear/pulverizer)	⭐⭐⭐⭐
🏔️ Mining / Quarry (light duty)	⭐⭐⭐
🚿 Dredging	⭐⭐⭐

📌 16. PRICING (Approximate — 2024/2025)

Configuration	Estimated Price (USD)
313DL GC (Base)	$165,000 – $185,000
With Grade Control	$195,000 – $215,000
With Thumb + Coupler	$185,000 – $205,000
With Camera + E-Fence	$175,000 – $195,000

💰 Prices vary by region, dealer, and configuration.

🏁 SUMMARY

Category	Rating
Power	⭐⭐⭐⭐
Efficiency	⭐⭐⭐⭐⭐
Comfort	⭐⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐
Versatility	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐

🏆 The Cat 313DL GC is widely regarded as one of the best mid-size excavators in the world, offering the perfect balance of power, efficiency, technology, and operator comfort for contractors worldwide.
