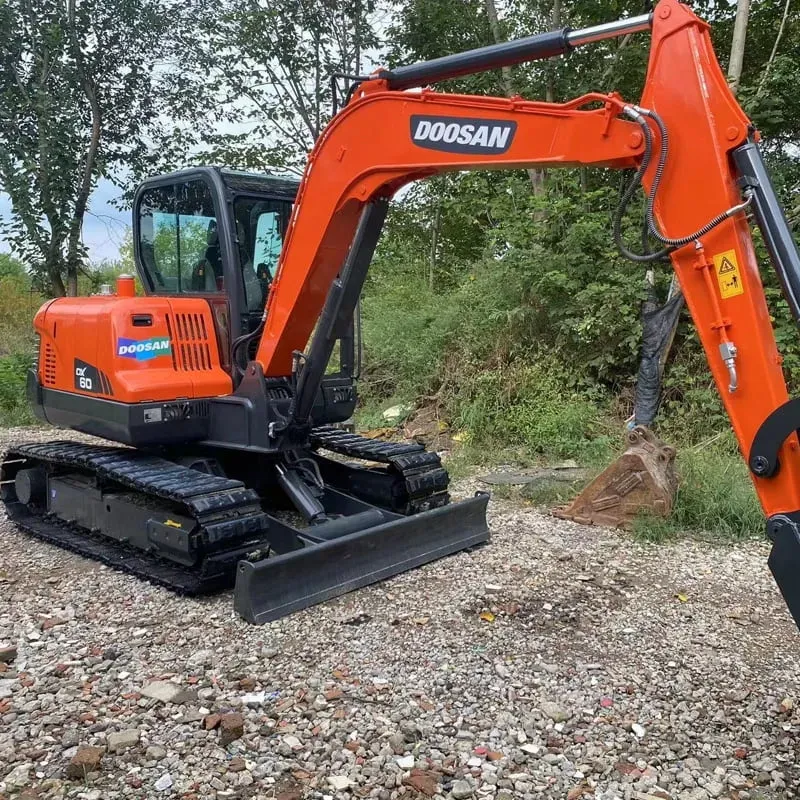

Used Doosan DX60Excavator

Reading: 13

📌 Overview

Parameter	Details
Manufacturer	Doosan Infracore (South Korea)
Class	Compact / Midi Excavator (~6 ton)
Production	2010s–Present
Primary Use	Urban construction, landscaping, utility work, narrow-space excavation

The DX60 is one of Doosan's best-selling compact excavators, designed for versatility, fuel efficiency, and operator comfort in tight job sites.

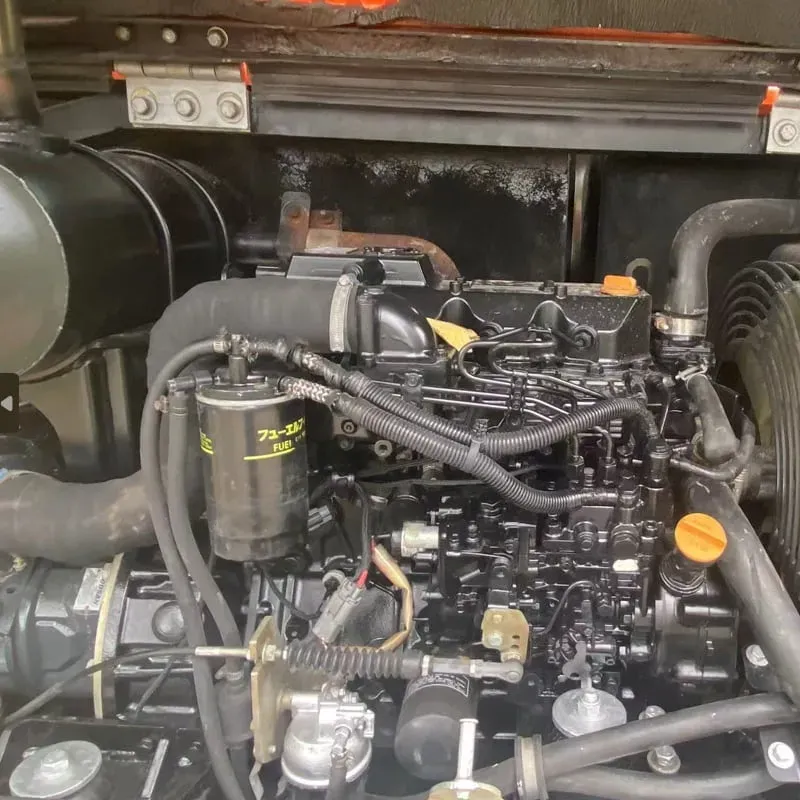

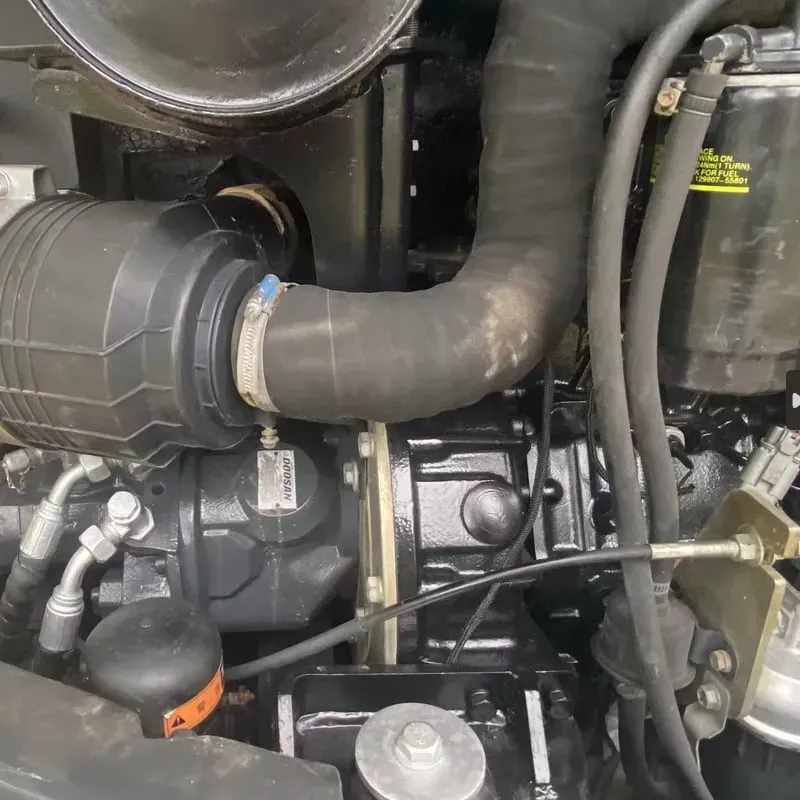

& Engine Specifications

Spec	Detail
Engine Model	Doosan D24 / Deutz BF4L2011
Type	4-cylinder, turbocharged, water-cooled diesel
Displacement	2.44 L
Rated Power	41.5 kW (55.7 HP) @ 2,200 rpm
Max Torque	~214 Nm @ 1,400 rpm
Emission Standard	Stage V / Tier 4 Final (varies by market)
Fuel Tank Capacity	~120 L

✅ Known for excellent fuel efficiency (~8–10 L/hr under normal operation)

📐 Dimensions & Weight

Parameter	Value
Operating Weight	5,960 – 6,180 kg (depends on configuration)
Overall Length	~5,990 mm
Overall Width	~2,190 mm (with standard bucket)
Overall Height	~2,600 mm (to cab top)
Ground Clearance	~380 mm
Track Width	1,600 – 1,800 mm (adjustable)
Track Length on Ground	~2,200 mm

🔧 Performance / Working Range

Parameter	Value
Max Digging Depth	~3,950 mm
Max Digging Reach	~6,670 mm
Max Dumping Height	~4,660 mm
Max Digging Force (Arm)	~37 kN
Max Digging Force (Bucket)	~28 kN
Swing Speed	~10 rpm
Travel Speed	~4.5 km/h
Max Gradeability	~70% (35°)
Hydraulic Flow	~130 L/min (total)

🪣 Bucket & Attachment Options

Configuration	Bucket Capacity
Standard	0.16 – 0.20 m³
Narrow (600mm)	0.12 – 0.16 m³
Grading	0.25 – 0.28 m³

🔌 Hydraulic Attachment Compatibility (Quick Coupler)

Attachment	Application
🔨 Hydraulic Breaker	Demolition, concrete breaking
🔩 Hydraulic Auger	Post-hole drilling
🦾 Grapple	Material handling, sorting
🌿 Tiltrotator	Precise grading & placement
🪓 Thumb	Pipe handling, log grabbing
🧹 Planer / Rake	Landscaping, leveling

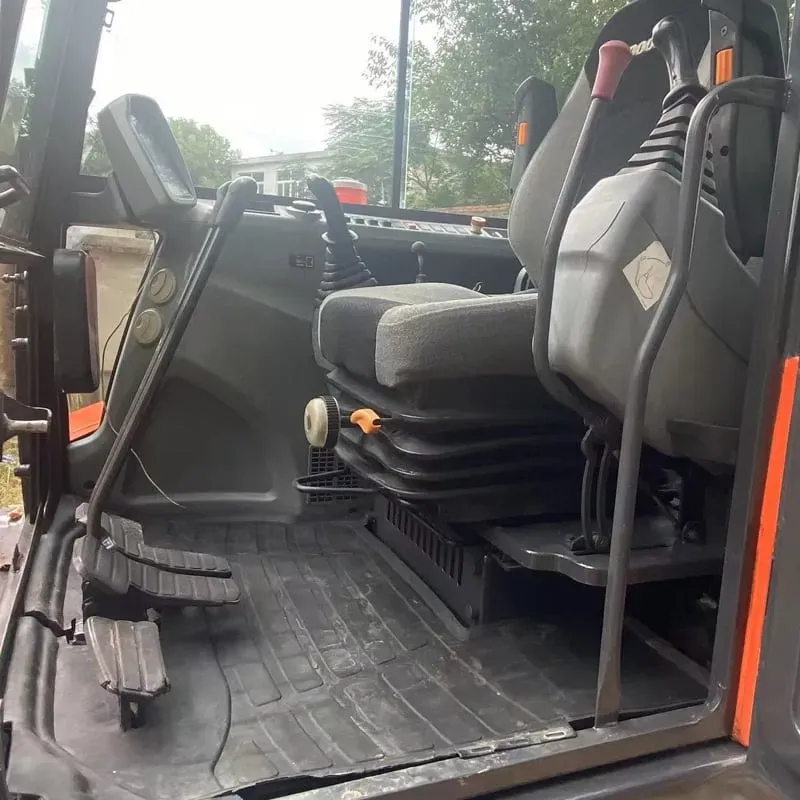

🛡️ Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified enclosed cab
Air Conditioning	✅ Standard
Heater	✅ Standard
Suspension Seat	✅ Adjustable, armrest equipped
Display	LCD monitor with diagnostic info
Controls	Pilot joysticks (proportional)
Sound Level	~70 dB(A) — relatively quiet
Visibility	Large front/side glass, rear camera option

🔄 Key Features & Technologies

Feature	Description
Zero Tail Swing (ZTS)	✅ Available — ideal for working near walls/structures
Eco Mode	✅ Auto-adjusts engine RPM for fuel savings (up to 15%)
Auto Idle	✅ Engine auto-shuts off after inactivity
Doosan Smart Care	✅ Remote diagnostics & maintenance alerts
Rubber Track Option	✅ Available for pavement-friendly operation
Blade Dozer	✅ Optional dozer blade for fine grading
Thumb-ready	✅ Factory-prep for thumb attachment

🆚 Competitors Comparison

Model	Weight	Power	Bucket
Doosan DX60	~6,000 kg	55.7 HP	0.16–0.28 m³
CAT 306	~6,100 kg	54 HP	0.16–0.26 m³
Kobelco SK60	~6,000 kg	54.8 HP	0.14–0.25 m³
Volvo ECR60	~6,200 kg	56 HP	0.16–0.28 m³
Hyundai R60-9	~6,000 kg	56 HP	0.16–0.26 m³

🏆 The DX60 is generally praised for best-in-class fuel economy and spacious cab.

💰 Approximate Pricing (2024, Varies by Market)

Region	Price Range (USD)
USA/Canada	$65,000 – $85,000
Europe	€60,000 – €80,000
Southeast Asia	$55,000 – $70,000
Used (2018–2020)	$35,000 – $55,000

✅ Summary — Why Choose the DX60?

Strength	Rating
& Efficiency	⭐⭐⭐⭐⭐
🪑 Operator Comfort	⭐⭐⭐⭐⭐
💪 Digging Performance	⭐⭐⭐⭐
🔧 Service & Parts	⭐⭐⭐⭐⭐ (Doosan has global network)
💵 Value for Money	⭐⭐⭐⭐⭐
🏗️ Versatility	⭐⭐⭐⭐⭐

🔑 Bottom Line: The Doosan DX60 is a top-tier 6-ton compact excavator — perfect for contractors who need reliability, low operating costs, and comfort in urban and utility environments. It's one of the go-to machines in its class worldwide. 🏗️🚜
