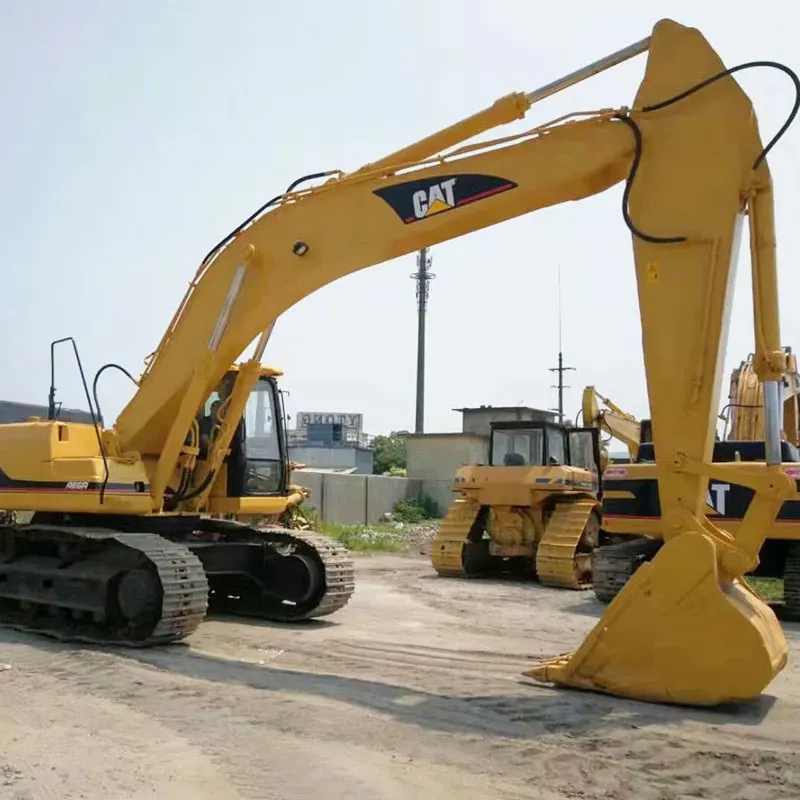

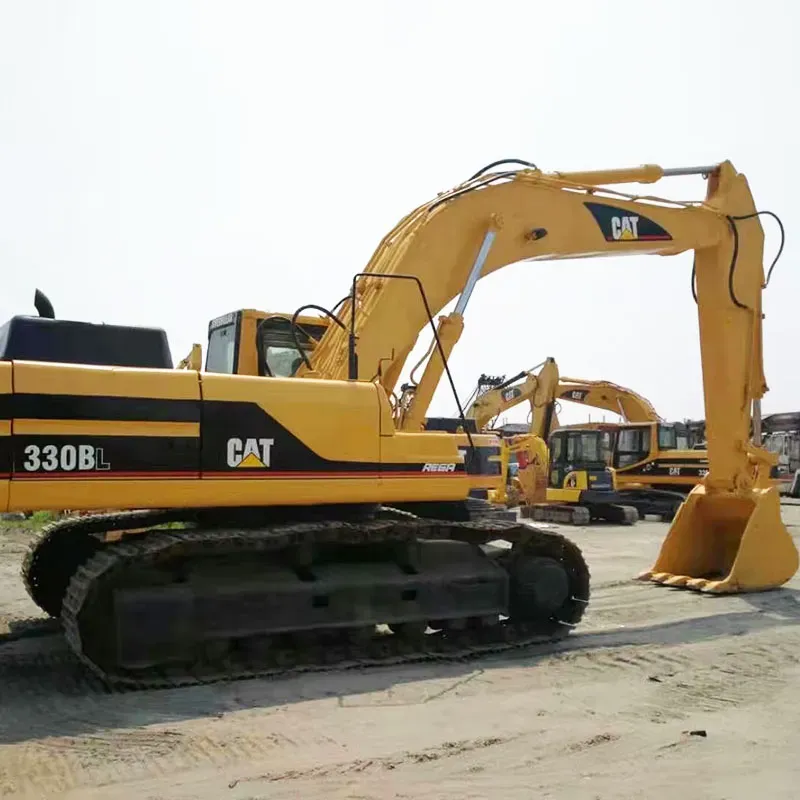

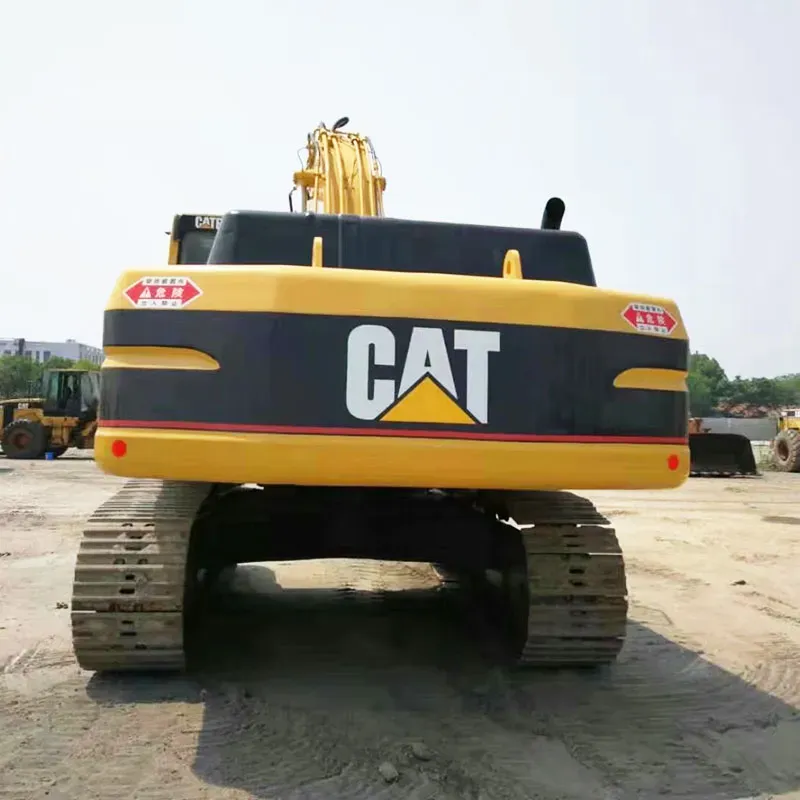

Used Caterpillar 330BLExcavator

Reading: 23

📌 Overview

The Caterpillar 330BL is a hydraulic tracked excavator from Caterpillar's legendary B-Series (also known as the "old generation" or "B-Line") of excavators. It was manufactured from approximately 1986 to the early 1990s. The "L" in the model name stands for "Long", indicating it features a long boom/arm configuration designed for extended reach applications.

It sits in the 30-ton (metric) class and was widely used in general construction, mining, road building, and heavy earthmoving operations.

🔧 Key Specifications

Specification	Details
Manufacturer	Caterpillar Inc.
Model	330BL
Series	B-Series (Old Generation)
Production Years	~1986 – early 1990s
Engine	Caterpillar 3116 TA (Turbocharged Aftercooled) Diesel
Engine Power	185–205 HP (138–153 kW) @ 2,000 rpm
Operating Weight	66,000 – 70,000 lbs (29,900 – 31,750 kg) ≈ 30–33 metric tons
Fuel Tank Capacity	~200–250 gallons (757–946 liters)

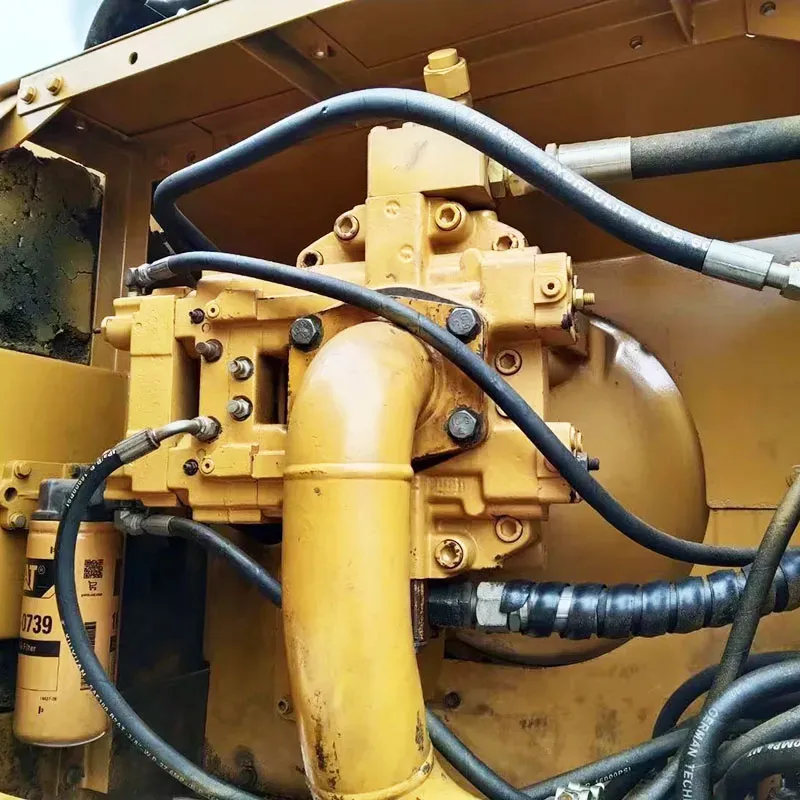

Hydraulic System	Load-sensing, variable displacement pump
Travel Speed	~2.8 mph (4.5 km/h)
Ground Pressure	~5.5–6.0 psi (38–41 kPa)

🪣 Digging Performance

Performance Metric	Value (Approx.)
Max Digging Depth	22–23 ft (6.7–7.0 m)
Max Digging Reach	32–34 ft (9.8–10.4 m)
Max Dump Height	~23–24 ft (7.0–7.3 m)
Bucket Capacity	0.8 – 1.8 cu yd (0.6 – 1.4 m³)
Max Breakout Force	~32,000–35,000 lbs (142–156 kN)
Swing Speed	~8–9 RPM

🔑 The long boom (L) configuration gives the 330BL significantly greater reach compared to the standard 330B, making it ideal for deep trenching, long-reach loading, and working at extended distances.

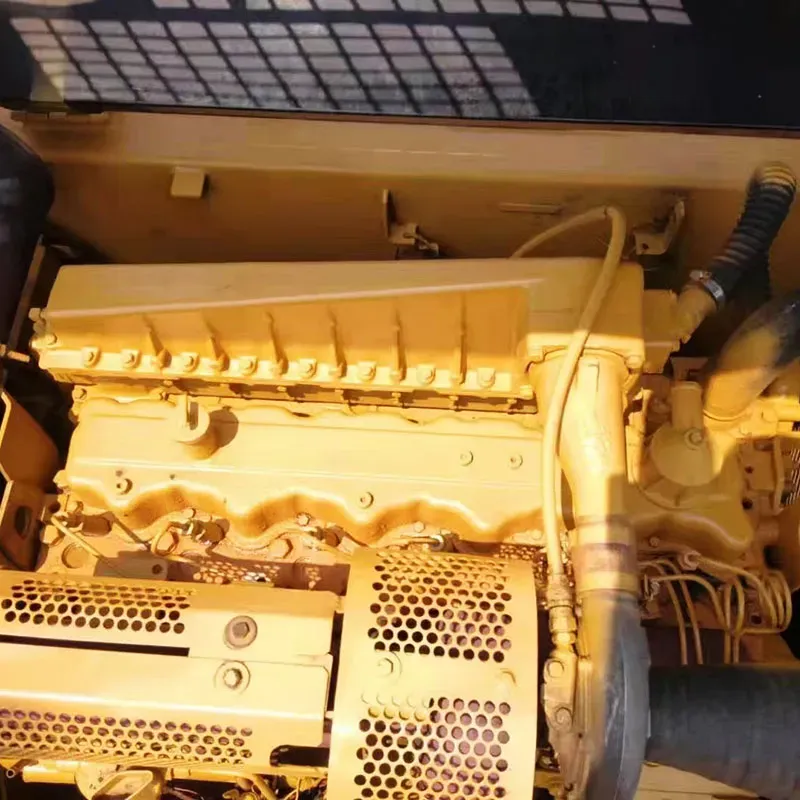

🏗️ Engine Details — CAT 3116 TA

Feature	Detail
Type	6-cylinder, inline, turbocharged & aftercooled diesel
Displacement	531 cu in (8.7 L)
Rated Power	185–205 HP
Cooling	Water-cooled with radiator
Emissions	Pre-Tier 4 / EPA standards of the era

The 3116 engine was known for its ruggedness, reliability, and ease of maintenance — a hallmark of Caterpillar's B-Series machines.

🚜 Undercarriage & Dimensions

Feature	Detail
Track Type	Steel track shoes (adjustable width)
Track Width	~24–30 inches (610–762 mm)
Shoe Width	24" (610 mm) or 30" (762 mm)
Ground Clearance	~1.5 ft (457 mm)
Transport Length	~33 ft (10.1 m)
Transport Height	~9.8 ft (2.99 m)
Transport Width	~8.5 ft (2.59 m)

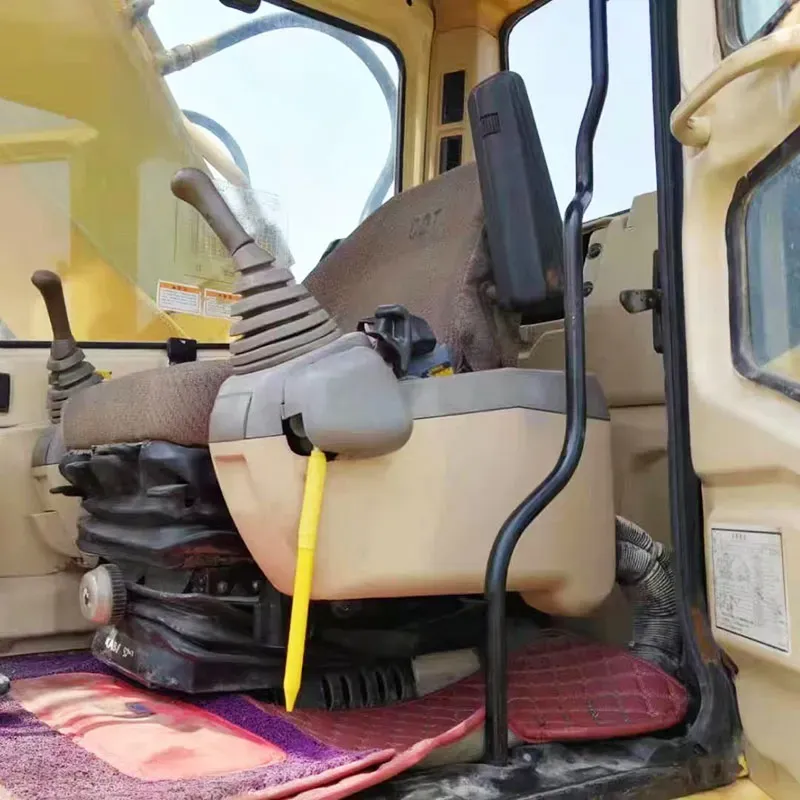

🏢 Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified enclosed cab
Climate Control	Heater and fan (AC optional)
Seat	Suspended, adjustable
Controls	Levers with auxiliary hydraulics
Visibility	Good all-around visibility for its era
Noise Level	~95–100 dB(A)

⚠️ While comfortable by 1980s standards, the cab is significantly less refined compared to modern Cat machines (Neo/GC series).

✅ Strengths / Advantages

✅ Advantage	Explanation
Built Like a Tank	B-Series machines are legendary for durability and longevity
Simple & Robust	Easier to maintain and repair than modern electronics-heavy machines
Parts Availability	Huge aftermarket support; many parts are interchangeable across B-Series
Long Reach (L model)	Excellent for deep digging and extended loading
Strong Resale Value	Still sought after in developing markets and rental fleets
Low Operating Cost	Fuel-efficient for its class; simple hydraulic system

❌ Limitations / Disadvantages

❌ Limitation	Explanation
Old Technology	No GPS, no telematics, no electronic monitoring (by modern standards)
Fuel Consumption	Higher than modern Tier 4 Final machines
Emissions	Does not meet current EPA/EU emission standards
Operator Comfort	Cab is dated — more noise, vibration, and heat
Hydraulics	Lower flow capacity compared to newer models
Weight	Heavier than modern equivalents with similar performance

🔄 Predecessor & Successor

Machine	Relationship
Caterpillar 330B	Standard boom version (shorter reach)
Caterpillar 330BL ✅	Long boom version (this machine)
Caterpillar 330L (L-Series)	Direct successor (1990s)
Caterpillar 330C / 330D / 330 GC	Modern generation successors

🌍 Market & Usage Today

Region	Status
North America / Europe	Mostly retired; some in collector/museum status
Africa / Middle East / Asia / Latin America	Still actively used in mining, construction, and rental
Auction Value (2024)	~$15,000 – $45,000 USD depending on condition, hours, and location

The 330BL remains one of the most respected and longest-lasting excavator models Caterpillar ever produced. Many units with 15,000–25,000+ hours are still running strong.

📊 Quick Summary Table

Category	Rating (out of 5) ⭐
Power	⭐⭐⭐⭐
Durability	⭐⭐⭐⭐⭐
Reach (Long Boom)	⭐⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐
Operator Comfort	⭐⭐⭐
Parts Availability	⭐⭐⭐⭐⭐
Value for Money (Today)	⭐⭐⭐⭐

🎯 Bottom Line

The Cat 330BL is a workhorse legend — a 30-ton, long-reach excavator built during Caterpillar's golden era of rugged, no-nonsense machinery. While it lacks modern electronics and emissions compliance, its simplicity, durability, and reach make it still relevant in many parts of the world decades after production ended. If you're looking for a reliable, affordable, heavy-duty excavator and don't need telematics — the 330BL is hard to beat. 🚜💪
