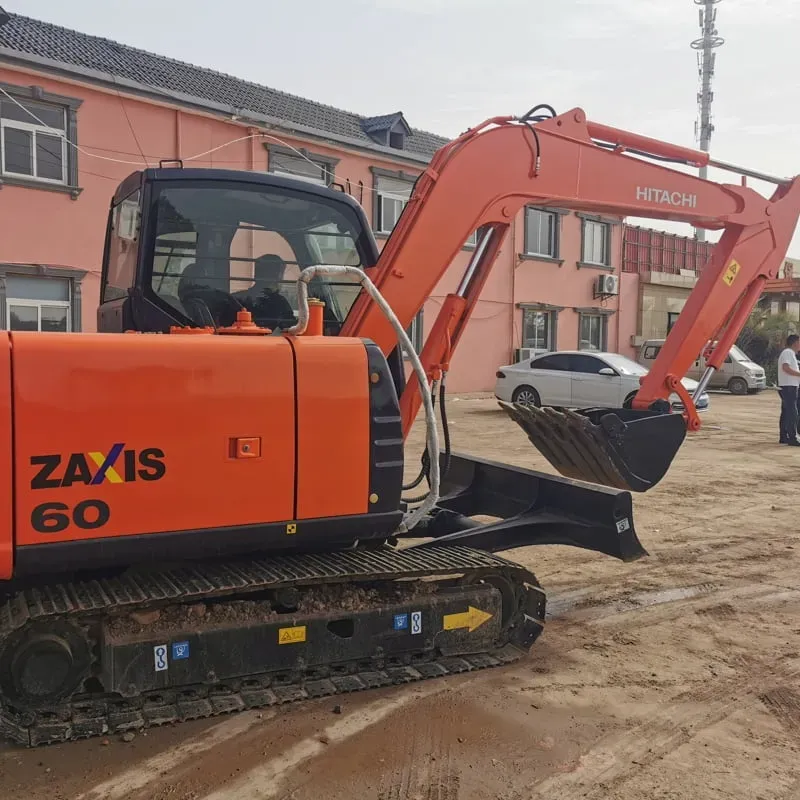

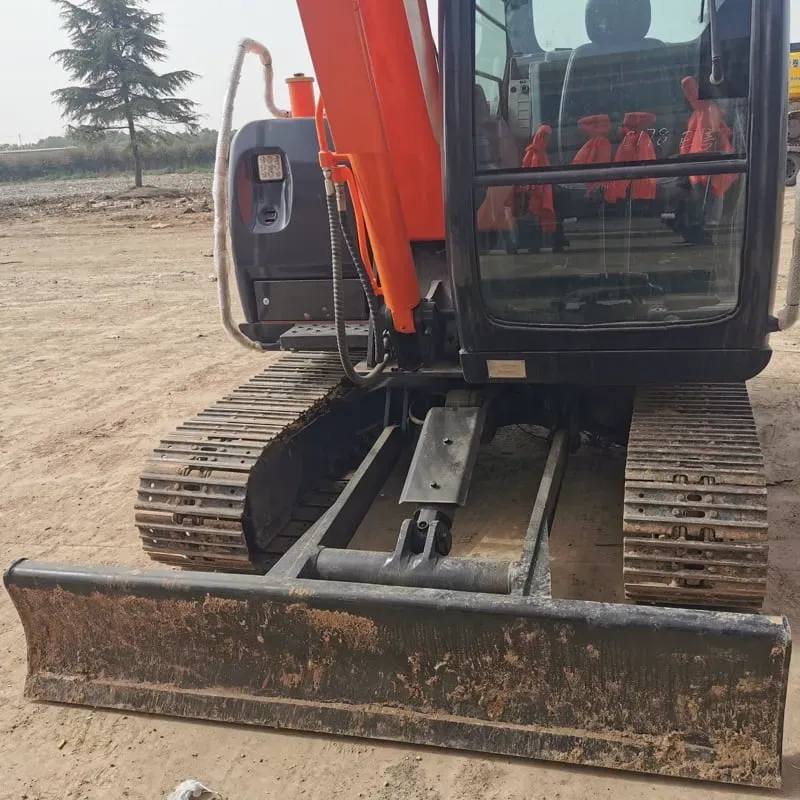

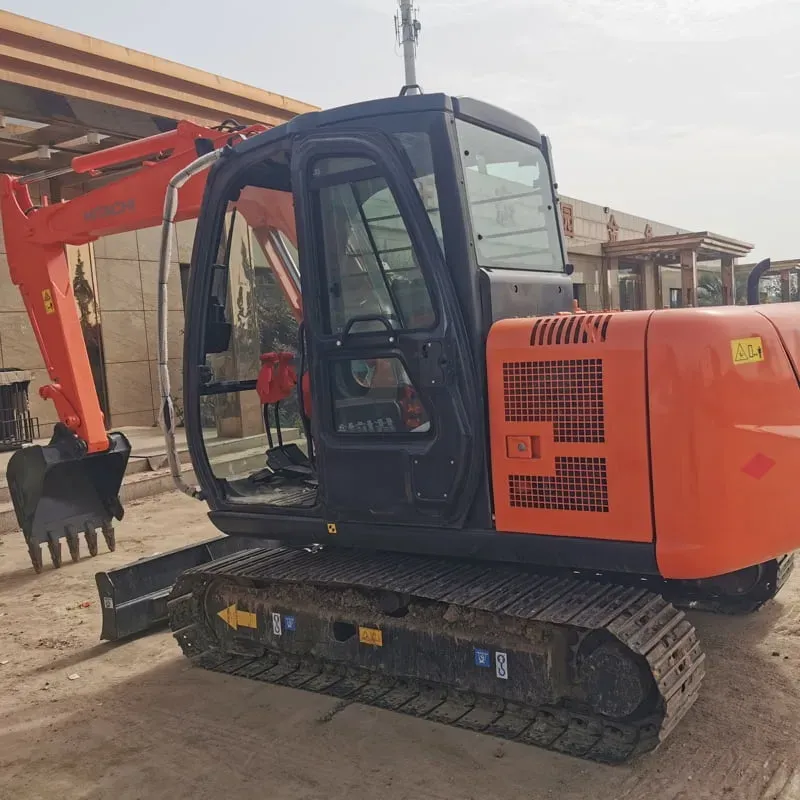

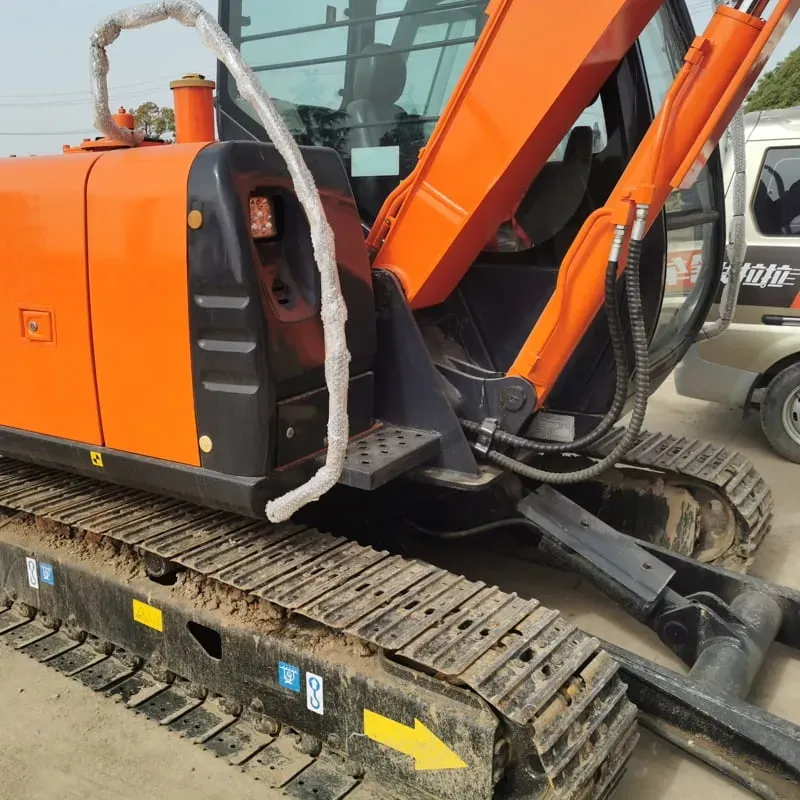

Used Hitachi ZX60Excavator

Reading: 12

🏗️ 1. OVERVIEW

Item	Details
Manufacturer	Hitachi Construction Machinery
Series	Zaxis
Class	6-ton (Mini/Compact Excavator)
Production	Ongoing (widely sold globally)
Primary Use	Construction, landscaping, utility work, municipal projects, residential work

The Hitachi ZX60 is one of the most popular 6-ton class mini excavators in the world. It is designed for versatility, fuel efficiency, and tight-space operation, making it ideal for urban construction, utility trenching, landscaping, and small-scale earthmoving.

📐 2. KEY SPECIFICATIONS

Parameter	ZX60 (Standard)	ZX60USB (Zero Tail Swing)
Operating Weight	~5,800 – 6,200 kg	~5,900 – 6,300 kg
Engine	Isuzu AJ-4HK1X (4-cyl diesel)	Isuzu AJ-4HK1X
Power Output	44.7 HP (33.4 kW) @ 2,200 rpm	44.7 HP (33.4 kW) @ 2,200 rpm
Displacement	2,192 cc	2,192 cc
Bucket Capacity	0.15 – 0.25 m³	0.15 – 0.25 m³
Max Digging Depth	~3,880 mm	~3,850 mm
Max Digging Reach	~6,200 mm	~6,100 mm
Max Dumping Height	~4,200 mm	~4,100 mm
Hydraulic Flow	2 × 58 L/min (total ~116 L/min)	2 × 58 L/min
Operating Pressure	35 MPa (350 bar)	35 MPa
Track Width	1,800 mm (rubber) / 1,300 mm (steel)	1,800 mm
Ground Clearance	~350 mm	~350 mm
Travel Speed	~4.5 km/h	~4.5 km/h
Fuel Tank	~100 L	~100 L

⚠️ Specs may vary slightly by region, model year, and configuration.

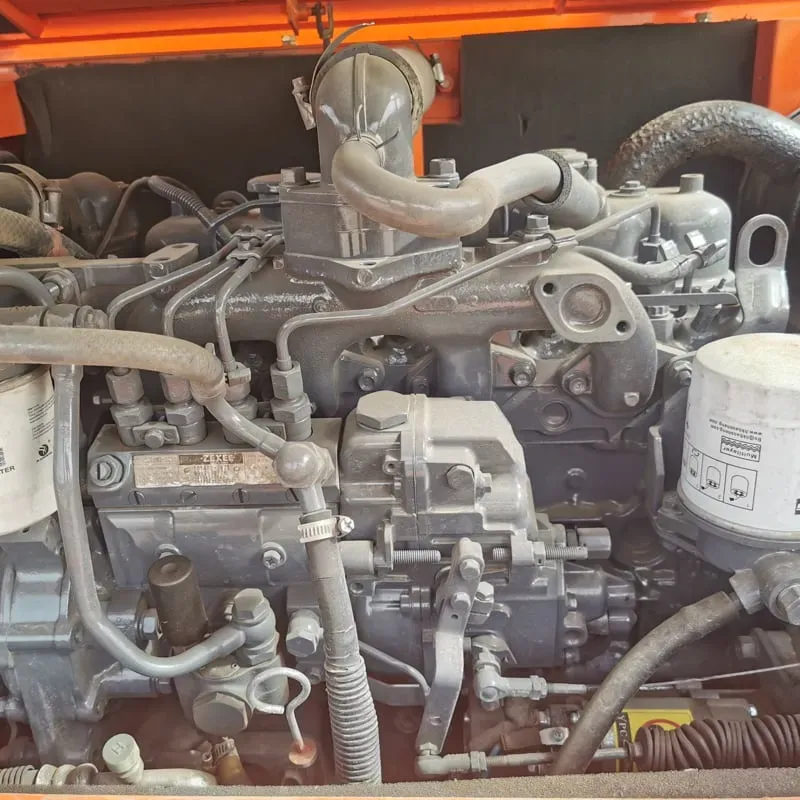

🔧 3. ENGINE DETAILS

Feature	Description
Engine Model	Isuzu AJ-4HK1X — 4-cylinder, turbocharged, intercooled diesel
Emissions Standard	Stage V / EPA Tier 4 Final (depending on market)
Cooling System	Water-cooled with radiator
Fuel Type	Diesel
Emission Tech	DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) with AdBlue/DEF
Advantages	Excellent fuel economy (~8-12 L/hr), low noise, high reliability

🎛️ 4. KEY FEATURES & TECHNOLOGY

✅ a) Zero Tail Swing (ZX60USB)

The upper structure does NOT swing beyond the tracks when rotating
Ideal for working near walls, fences, buildings, and in tight alleyways
Saves space = more job site flexibility

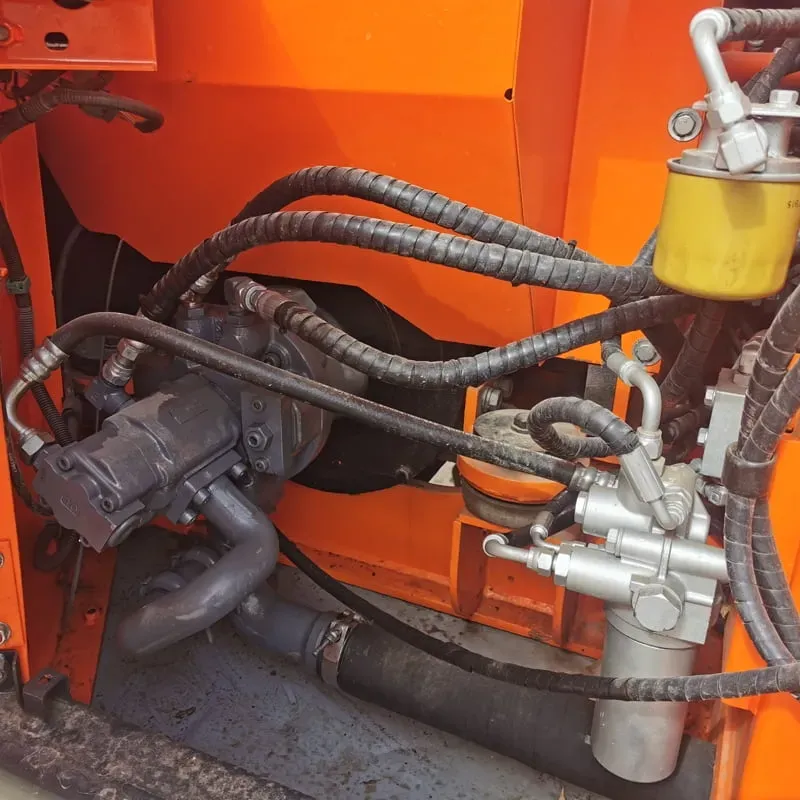

✅ b) Hydraulic System

CLSS (Closed Center Load Sensing System) — smooth, precise control
2-pump system — main pump + pilot pump
Auto-idle function saves fuel when not working
Adjustable flow sharing for attachments

✅ c) Boom Side-Shift (Optional)

Allows the boom to shift left/right without moving the machine
Extremely useful for ditch digging and trench work alongside obstacles

✅ d) DOOS (Digital Oil Optimization System)

Hitachi's proprietary system that optimizes hydraulic oil flow to each function
Reduces fuel consumption by up to 10%
Smoother operation with less heat generation

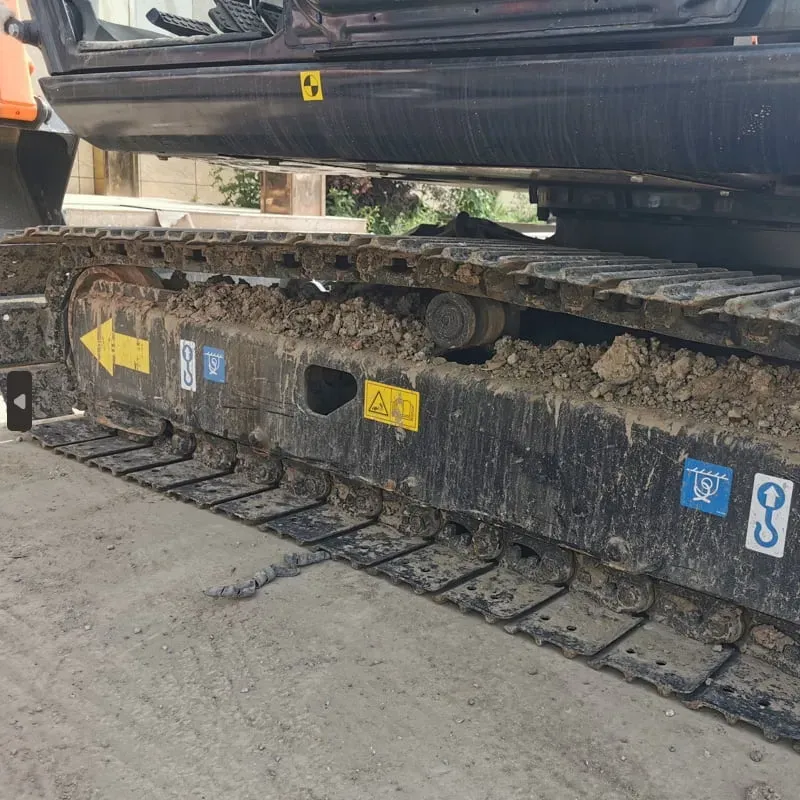

✅ e) Rubber Track Option

Available as an alternative to steel tracks
Less ground damage — ideal for indoor work, paved areas, and sensitive surfaces
Quieter operation

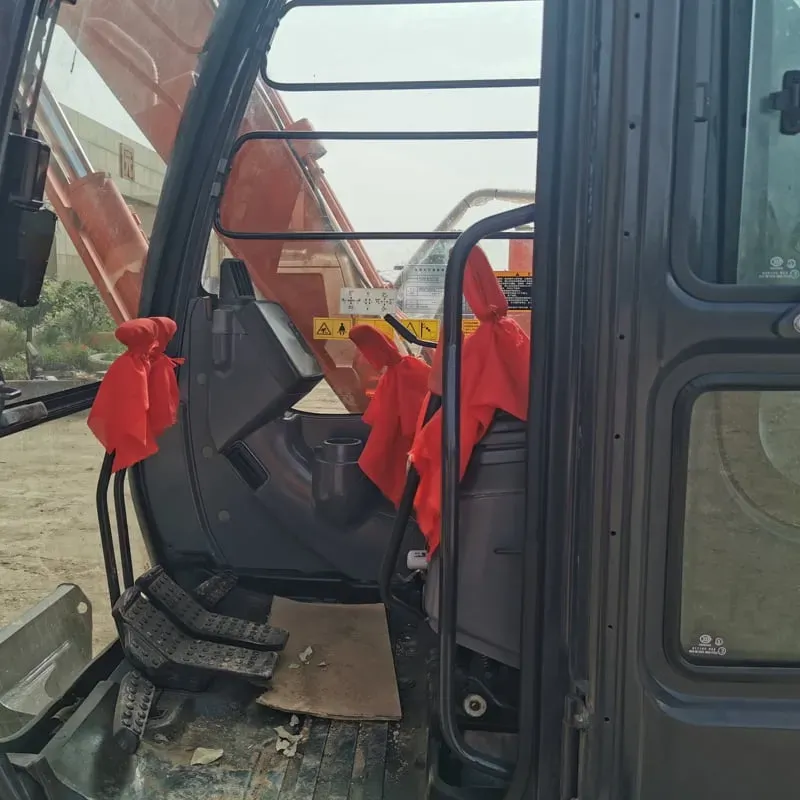

✅ f) Cab & Canopy Options

Option	Features
Open Canopy (ROPS)	Roll-Over Protective Structure — basic protection
Enclosed Cab (FOPS/BOPS)	Falling/Flying Object Protection — A/C, heater, radio, LCD monitor
Comfort	Adjustable seat, joystick controls, spacious interior

✅ g) Smart Technology

Hitachi Site Monitoring (compatible with telematics)
Real-time machine tracking, fuel usage, working hours
Fleet management ready

🔩 5. HYDRAULIC ATTACHMENT COMPATIBILITY

The ZX60 supports a wide range of quick-coupler attachments:

Attachment	Use Case
🪓 Hydraulic Breaker (Hammer)	Rock breaking, concrete demolition
🪚 Hydraulic Thumb	Grappling, sorting materials
🕳️ Auger / Earth Drill	Post hole drilling, piling
🪣 Grading Bucket	Fine grading, leveling
🔧 Hydraulic Shear	Metal cutting, demolition
🧹 Rake / Rake Bucket	Landscaping, debris removal
🌱 Trencher	Narrow trench digging
🔩 Compaction Plate	Soil compaction

Uses pin-type or quick-coupler attachment system

📊 6. MODEL VARIANTS

Model	Description
ZX60	Standard tail swing (most common)
ZX60USB	Zero Tail Swing — best for tight spaces
ZX60USB-5A / -5G	Updated 2020+ model with Stage V engine
ZX60W	Wheeled version — faster travel on roads (up to 30 km/h)
ZX60USBL	Long Arm (Long Reach) — extended digging depth ~5,000+ mm
ZX60USB-5A (Rubber Track)	Rubber track version of zero tail swing

🌐 7. COMPETITORS (Same Class)

Brand	Model	Weight	Power
Caterpillar	CAT 306	6,050 kg	47 HP
Komatsu	PC60-8	6,000 kg	46 HP
Kubota	KX060-4	5,800 kg	45 HP
John Deere	60G	6,000 kg	48 HP
Doosan	DX60R-5	6,050 kg	48 HP
Volvo	ECR58	5,800 kg	47 HP
⭐ Hitachi	ZX60	~6,000 kg	44.7 HP

The ZX60 is known for excellent fuel efficiency, comfortable cab, and reliable Isuzu engine — often considered one of the best in its class for total cost of ownership (TCO).

✅ 8. ADVANTAGES (Why Choose ZX60?)

Advantage	Explanation
🏆 Fuel Efficiency	~8-12 L/hr — among the best in class
🔇 Low Noise	~72 dB(A) — good for urban/residential work
📐 Compact Size	Fits through standard gates, narrow passages
🔄 Zero Tail Swing Option	Maximizes workspace in tight areas
🛠️ Reliability	Isuzu engine + Hitachi build = proven durability
💰 Low Maintenance Cost	Easy access to filters, long service intervals
🤖 Smart Tech Ready	Telematics, DOOS, auto-idle = saves money
🏗️ Versatile	Dozens of attachment options = one machine, many jobs

📉 9. LIMITATIONS

Limitation	Detail
& Limited Lifting Capacity	Not suitable for heavy material handling (~2,300 kg max)
🪨 Not for Large-Scale Work	Better suited for small-medium jobs
💰 Higher Purchase Price	Slightly premium vs. Chinese competitors
🔧 Parts Availability	Can be slower/more expensive in some regions vs. CAT/Komatsu

🎯 10. TYPICAL APPLICATIONS

Application	Details
🏗️ Residential Construction	Foundations, footings, basement excavation
🚿 Utility Work	Water, gas, electric trenching
🌳 Landscaping	Tree planting, grading, drainage
🏙️ Municipal/Road Work	Manhole work, curb installation
🏚️ Demolition	Small building tear-down (with breaker/shear)
🌾 Agriculture	Drainage ditches, fence post holes
🏭 Industrial	Pipe laying, equipment placement

💵 11. APPROXIMATE PRICING (2024)

Region	Price Range (USD)
🇺🇸 USA	$55,000 – $75,000
🇪🇺 Europe	€50,000 – €70,000
🇦🇺 Australia	AUD $80,000 – $110,000
🇨🇳 China	¥350,000 – ¥480,000
🌐 Used Market	$25,000 – $45,000 (depending on hours)

Prices vary by configuration (cab, rubber tracks, long arm, etc.)

📋 12. SUMMARY TABLE

Category	Rating (out of 5)
⚡ Power	⭐⭐⭐⭐
& Efficiency	⭐⭐⭐⭐⭐
🔧 Reliability	⭐⭐⭐⭐⭐
📐 Compactness	⭐⭐⭐⭐⭐
🛋️ Operator Comfort	⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐
🔄 Versatility	⭐⭐⭐⭐⭐

🏁 CONCLUSION

The Hitachi ZX60 is a top-tier 6-ton mini excavator that excels in fuel efficiency, reliability, and versatility. With its Isuzu engine, DOOS hydraulic system, zero tail swing option, and wide attachment range, it is one of the most recommended machines in its class for contractors who need a dependable, cost-effective workhorse for small to medium projects.

🔑 Best for: Contractors doing utility work, landscaping, residential construction, and anyone who values low operating costs and tight-space capability.
