Used Caterpillar 312D2GCExcavator

Reading: 31

📌 1. OVERVIEW

The Caterpillar 312D2 GC is a next-generation 12-ton (medium-size) hydraulic excavator belonging to Cat's D2 Series. The "GC" designation typically stands for "General Construction" configuration, optimized for a wide range of general construction, utility, landscaping, and infrastructure applications. It is the successor to the popular 312D2 and offers significant improvements in fuel efficiency, operator comfort, technology, and productivity.

Parameter	Specification
Series	D2 (Next Generation)
Class	12-ton (Medium)
Manufacturer	Caterpillar Inc.
Primary Markets	Global (with GC variant for specific regional demands)

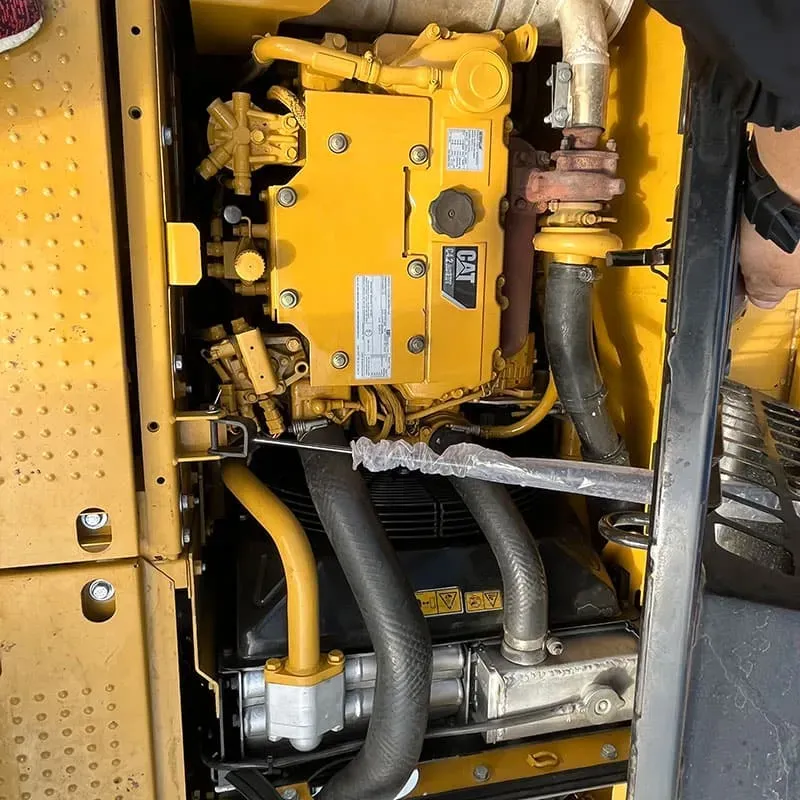

📌 2. ENGINE & POWER

Specification	Detail
Engine Model	Cat C4.4 ACERT® DI Turbo
Displacement	4.4 L (267 in³)
Net Power	86 hp (64 kW) @ 2,200 rpm
Emission Standards	EPA Tier 4 Final / EU Stage V (with DOC + DPF + SCR aftertreatment)
Fuel Type	Diesel (ULSD)
Fuel Tank Capacity	~250 L (66 gal)
Cooling System	Pressurized with thermostat control

✅ The C4.4 ACERT engine delivers excellent fuel efficiency (up to 10% improvement over the previous D2 model) while meeting the strictest global emission standards.

📌 3. OPERATING WEIGHT & DIMENSIONS

Parameter	Value
Operating Weight	~12,100 – 12,500 kg (26,675 – 27,558 lbs)
Transport Length	~7,440 mm (24.4 ft)
Transport Width	~2,490 mm (8.2 ft)
Transport Height	~2,990 mm (9.8 ft)
Ground Clearance	~440 mm (17.3 in)
Track Gauge	~1,990 mm (6.5 ft)
Track Length on Ground	~2,980 mm (9.8 ft)
Tail Swing Radius	~1,640 mm (5.4 ft)

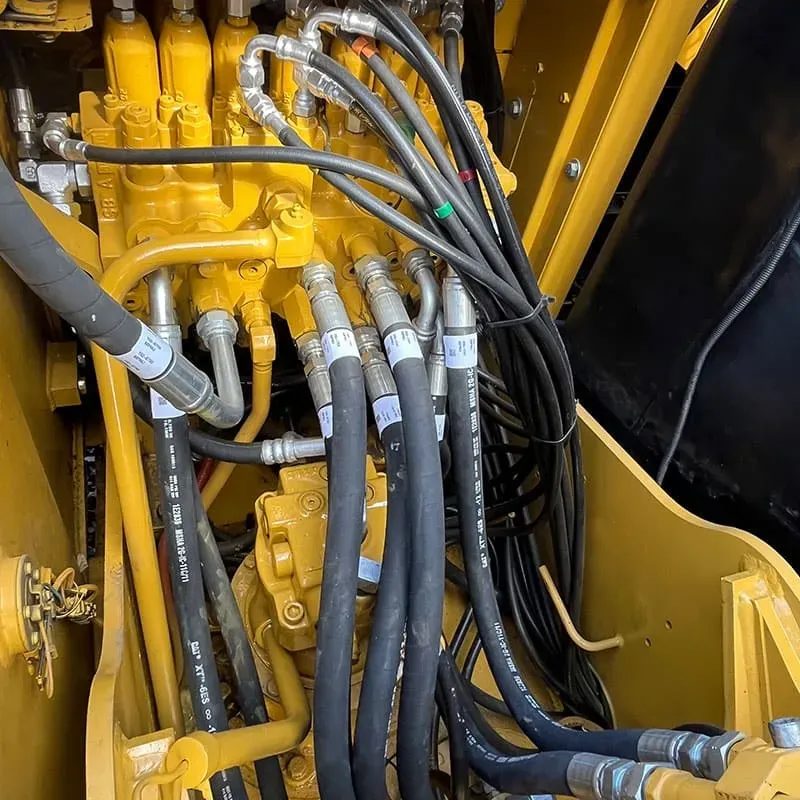

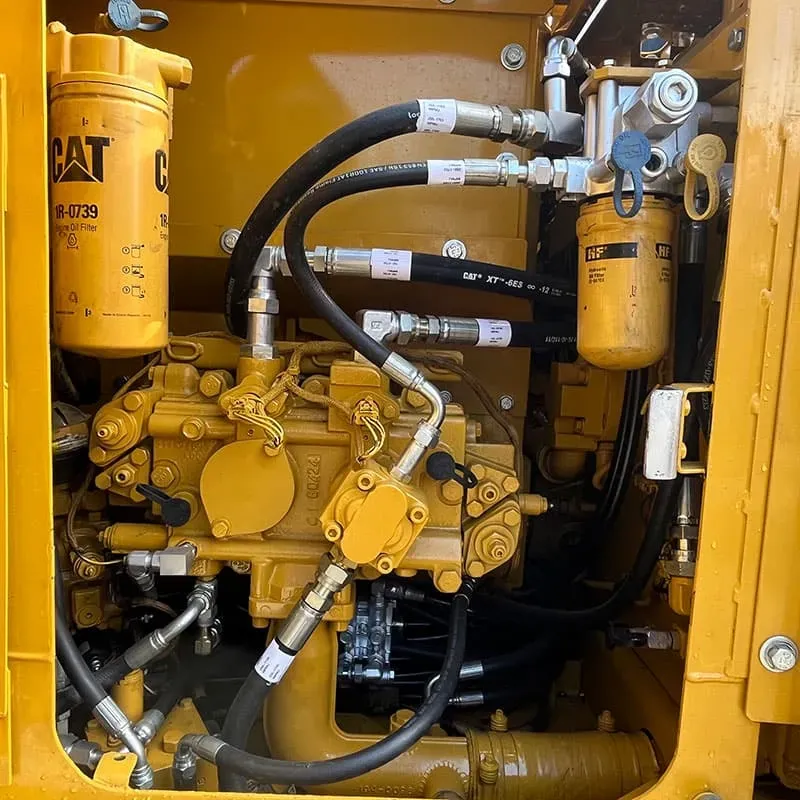

📌 4. HYDRAULIC SYSTEM & PERFORMANCE

Parameter	Value
Hydraulic Pump Type	Variable displacement piston pump
System Pressure	350 bar (5,076 psi)
Hydraulic Flow	~2 × 114 L/min (2 × 30.1 gpm)
Swing Speed	11.3 rpm
Swing Torque	~7.4 kN·m (5,458 lb·ft)
Travel Speed (High/Low)	~5.0 / ~3.2 km/h (3.1 / 2.0 mph)
Max Digging Force (Boom)	~68 kN (15,287 lbf)
Max Digging Force (Arm)	~47 kN (10,566 lbf)
Max Digging Force (Bucket)	~81 kN (18,210 lbf)

📌 5. DIGGING PERFORMANCE (RANGE)

Parameter	Value
Max Digging Depth	~5,640 mm (18.5 ft)
Max Reach (Ground Level)	~8,770 mm (28.8 ft)
Max Dumping Height	~6,060 mm (19.9 ft)
Max Digging Depth (2.5m Stick)	~6,270 mm (20.6 ft)
Max Vertical Wall Digging	~4,330 mm (14.2 ft)
Max Reach at Ground Level	~8,530 mm (28.0 ft)

📌 6. BUCKET CAPACITIES

Bucket Type	Capacity (m³ / yd³)	Width (mm / in)
General Purpose (GP)	0.28 – 0.52 m³ (0.36 – 0.68 yd³)	600 – 1,200 mm (24 – 48 in)
Heavy Duty (HD)	0.28 – 0.48 m³ (0.36 – 0.63 yd³)	600 – 1,000 mm
Trenching	0.12 – 0.22 m³ (0.16 – 0.29 yd³)	250 – 600 mm (10 – 24 in)
Grading / Tilt	0.38 – 0.58 m³ (0.50 – 0.76 yd³)	1,200 – 1,800 mm

🔧 The undercarriage is designed with a reinforced X-frame for durability in tough conditions.

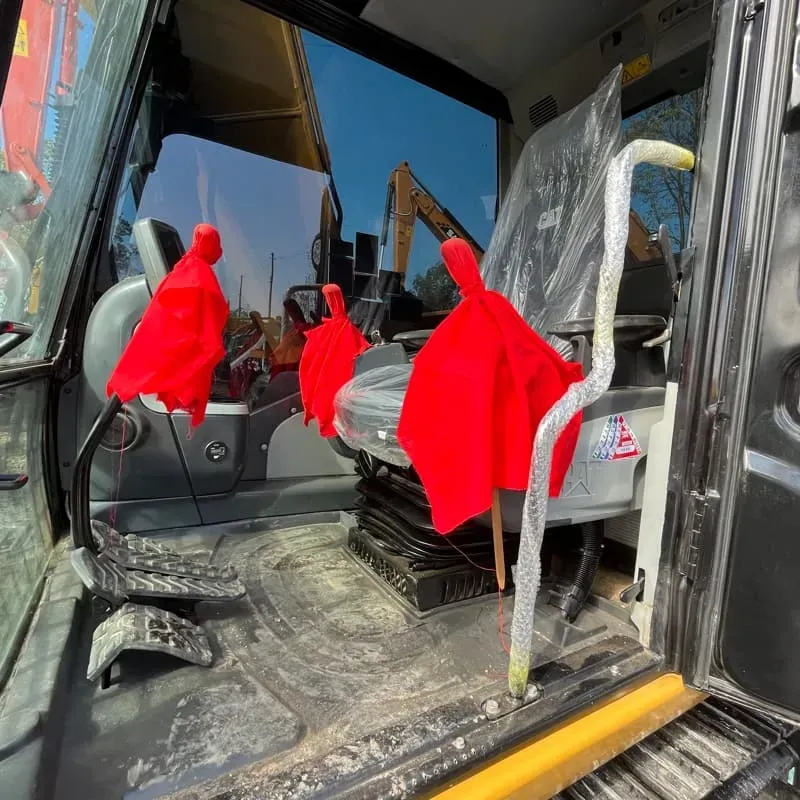

📌 7. CAB & OPERATOR COMFORT

The 312D2 GC features a redesigned, spacious cab — one of the best in its class:

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Noise Level	~71 dB(A) (one of the quietest in class)
Air Conditioning	Fully automatic climate control
Seat	Air-suspended, heated, with armrests & lumbar support
Display	7" (178 mm) color LCD monitor with rear-view camera
Controls	Joystick with auxiliary functions, thumb-operated flow control
Visibility	Excellent all-around visibility with large glass area
Storage	Ample storage compartments, USB ports, 12V outlet
Vibration	Significantly reduced with improved mounts

📌 8. TECHNOLOGY & SMART FEATURES

Technology	Description
🖥️ Cat Product Link™	Remote machine monitoring, diagnostics, location tracking, fleet management
📊 Cat Grade with 2D	Optional GPS/GNSS grading technology for precise digging
🔋 Eco Mode	Automatically reduces engine speed & hydraulic flow when full power isn't needed — saves up to 15% fuel
🛡️ Security	Cat Security system with alarm, immobilizer, and GPS tracking
🔧 Cat Detect	Optional payload weighing system
📡 Telematics Ready	Compatible with VisionLink® for fleet management
🔊 Cat GRADE Ready	2D/3D grade control ready

📌 9. FUEL EFFICIENCY

Mode	Fuel Consumption (approx.)
Standard Operation	~10 – 13 L/hr (2.6 – 3.4 gal/hr)
Eco Mode	~8 – 10 L/hr (2.1 – 2.6 gal/hr)
Idle (Auto-idle)	~1.5 – 2.5 L/hr

🏆 The 312D2 GC delivers up to 10–15% better fuel efficiency compared to the previous D2 generation, thanks to the optimized C4.4 engine and Eco mode.

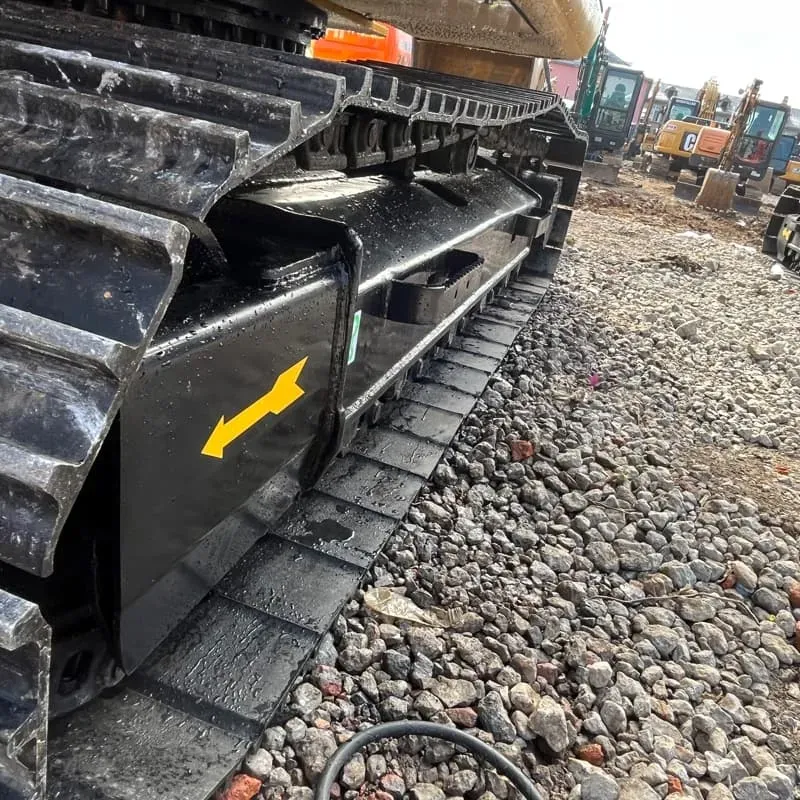

📌 10. UNDERCARRIAGE & DURABILITY

Feature	Detail
Track Type	Triple-grouser, 450 mm (17.7 in) wide steel tracks
Shoe Type	Single or double grouser (optional)
Rollers	5 per side (with sealed, lubricated design)
Carrier Rollers	2 per side
Idler	Adjustable with tensioning mechanism
Sprocket	Segmented for easy replacement
Service Intervals	Engine oil: 500 hrs / Hydraulic oil: 2,000 hrs

📌 11. APPLICATIONS

The 312D2 GC is extremely versatile and is used in:

Application	Details
🏗️ General Construction	Foundation excavation, utility trenches
🛣️ Road Building	Pipe laying, grading, ditching
🌳 Landscaping	Tree planting, grading, material handling
🏠 Residential/Light Commercial	Small building sites, backyard work
🔧 Utility Work	Water, gas, electric line installation
🏚️ Demolition	Light to medium demolition (with breaker attachment)
🪨 Material Handling	Loading trucks, stockpiling

📌 12. KEY COMPETITORS

Machine	Class	Engine Power	Operating Weight
Komatsu PC128US-11	12-ton	86 hp	~12,700 kg
John Deere 120G LC	12-ton	85 hp	~12,300 kg
Hitachi ZX130LCN-7	13-ton	87 hp	~13,100 kg
Volvo ECR128E	13-ton	87 hp	~13,000 kg
Kobelco SK135SR-8	13-ton	88 hp	~13,500 kg

💪 The 312D2 GC competes very well with its superior fuel efficiency, operator comfort, technology package, and Cat dealer network support.

📌 13. SUMMARY — WHY CHOOSE THE 312D2 GC?

✅ Strength	Details
&Fuel Efficiency**	Up to 15% savings with Eco mode
🏠 Operator Comfort	Best-in-class cab, low noise, low vibration
🖥️ Technology	Product Link, Grade-ready, telematics
🔧 Low Maintenance	Extended service intervals, easy access
🌐 Dealer Network	Largest global dealer/parts network
💰 Resale Value	Excellent residual value
🛡️ Reliability	Proven Cat C4.4 engine, rugged build

📌 14. QUICK SPEC SHEET

Spec	Value
Model	312D2 GC
Engine	Cat C4.4 ACERT, 86 hp (64 kW)
Weight	~12,200 kg (26,896 lbs)
Bucket	0.28 – 0.65 m³ (0.36 – 0.85 yd³)
Max Dig Depth	5,640 mm (18.5 ft)
Max Reach	8,770 mm (28.8 ft)
Emissions	Tier 4 Final / Stage V
Fuel Tank	250 L (66 gal)
Swing Speed	11.3 rpm
Price Range (New)	~$115,000 – $145,000 USD (varies by region/options)

The Caterpillar 312D2 GC is one of the most popular and well-rounded 12-ton excavators on the market, offering an excellent balance of power, efficiency, comfort, and technology for general construction applications worldwide. 🚜💪
