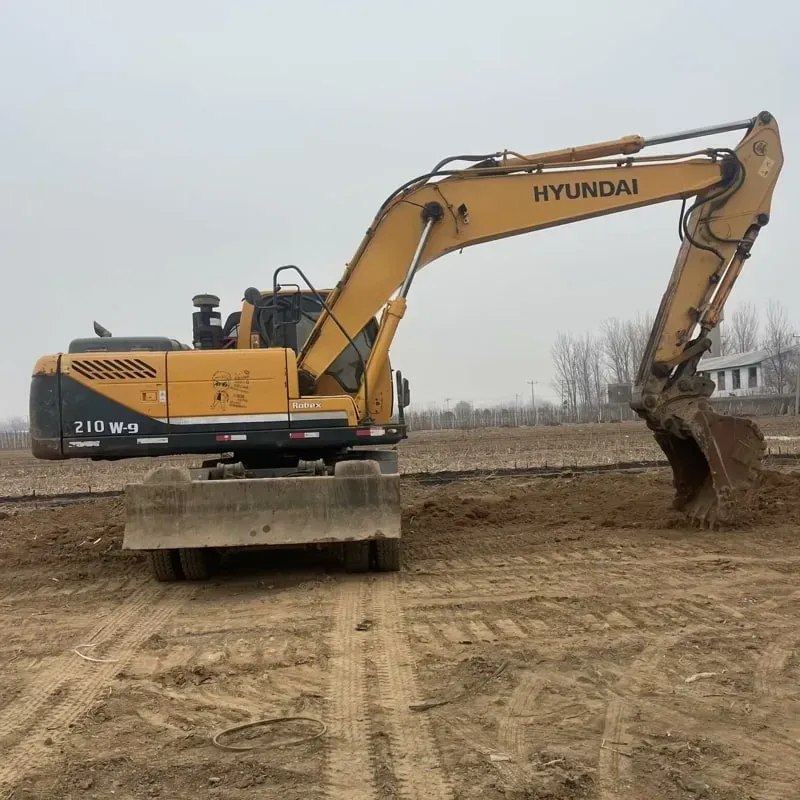

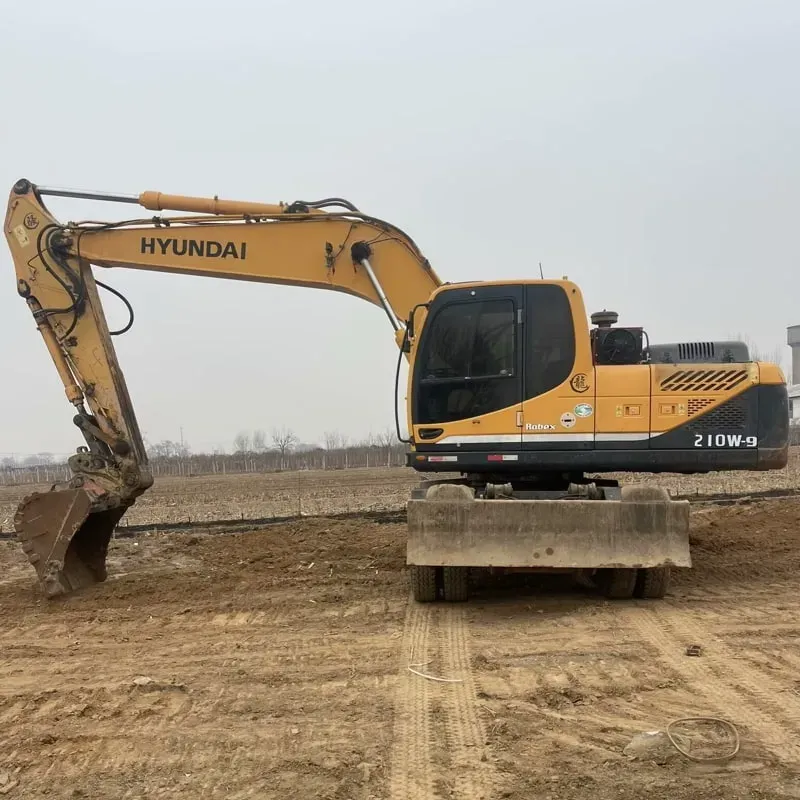

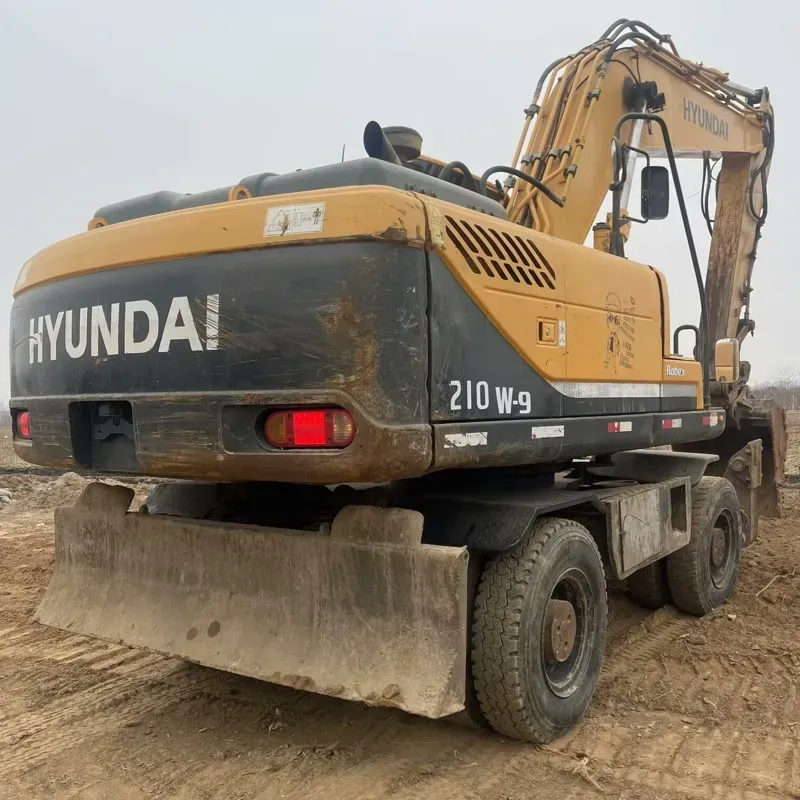

Used Hyundai 210 wheel Excavator

Reading: 34

🏗️ Overview

The Hyundai R210W-9 is a 21-ton class wheel excavator manufactured by Hyundai Construction Equipment (HCE). It is one of the most popular mid-to-large wheel excavators in the global market, designed for versatility in urban construction, road work, utility excavation, landscaping, and material handling. Its wheel-based mobility makes it ideal for projects requiring frequent repositioning on paved surfaces without the need for a trailer.

📐 Key Specifications

Parameter	Specification
Model	R210W-9 (also R210W-9S, R210W VS)
Operating Weight	~20,500 – 21,300 kg (45,200 – 47,000 lbs)
Engine	Hyundai D6GA
Engine Type	6-cylinder, turbocharged diesel, water-cooled
Displacement	5.89 L
Rated Power	134 – 140 hp (100 kW) @ 1,900 rpm
Bucket Capacity	0.7 – 1.1 m³ (standard)
Max Digging Depth	~6,400 – 6,800 mm
Max Digging Reach	~9,500 – 10,000 mm
Max Dumping Height	~7,500 mm
Swing Speed	~9 – 10 rpm
Travel Speed (Hi/Lo)	35 / 20 km/h (~22 / 12 mph)
Hydraulic Flow	2 × 230 L/min (load-sensing system)
Fuel Tank Capacity	~300 L
Tire Size	10.00-20 (standard)
Emissions	Stage V / Tier 4 Final

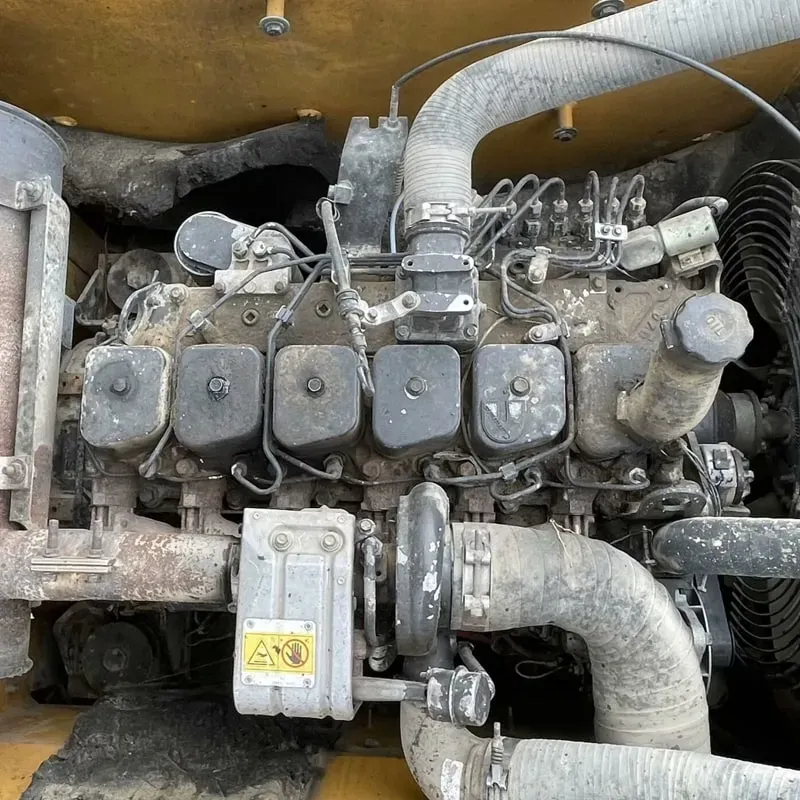

🔧 Engine — Hyundai D6GA

Feature	Detail
Configuration	Inline 6-cylinder, turbocharged & intercooled
Displacement	5,890 cc
Power Output	134 hp (100 kW) at 1,900 rpm
Torque	~520 Nm @ 1,500 rpm
Emission Standard	Euro Stage V / EPA Tier 4 Final (via DOC + DPF + SCR)
Fuel Efficiency	Optimized with electronic fuel injection (Common Rail)
Cooling	Water-cooled with radiator

✅ The D6GA engine is known for reliability, fuel efficiency, and low maintenance costs — a hallmark of Hyundai's engine lineup.

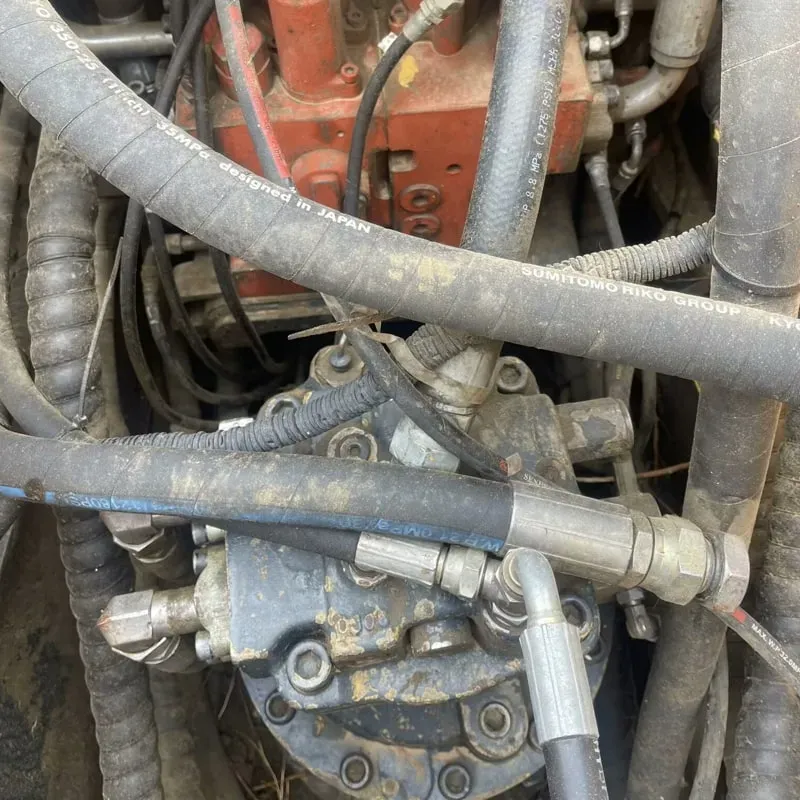

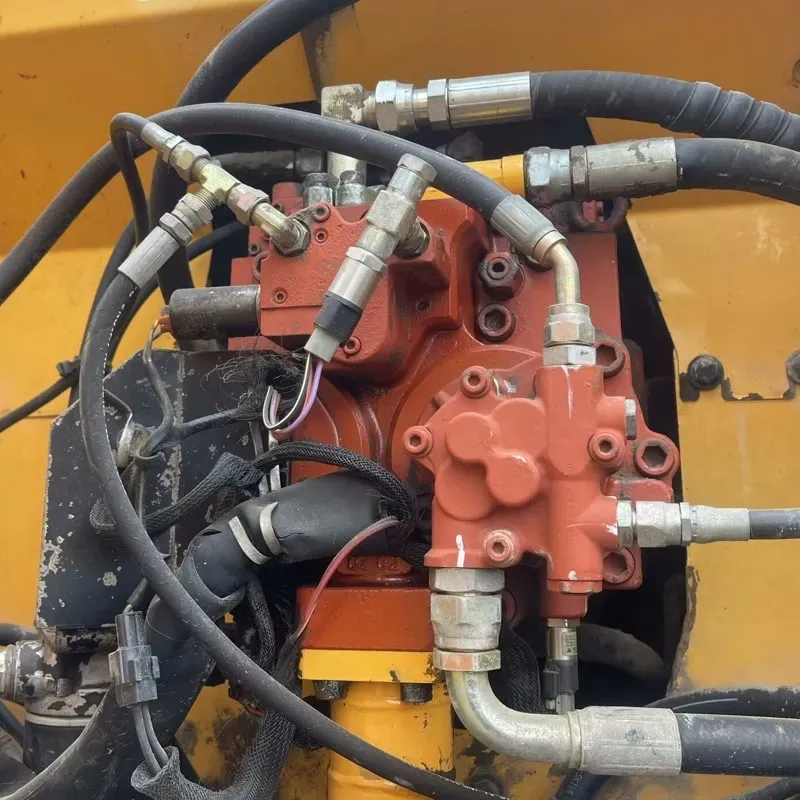

🚜 Hydraulic System

Feature	Detail
System Type	Load-Sensing (LS) + Variable Displacement Pump
Pump Flow	2 × 230 L/min (tandem gear pump)
Working Pressure	350 bar (5,075 psi)
Auxiliary Hydraulics	2–3 circuits available for attachments (breakers, grapples, etc.)
Boom/Arm/Bucket Cylinders	Heavy-duty, with cushion valves

✅ The load-sensing hydraulic system matches pump output to demand, improving fuel efficiency by up to 15% compared to conventional systems.

🏗️ Undercarriage & Mobility

Feature	Detail
Configuration	4-wheel drive (4WD)
Tires	10.00-20 (12-ply rated)
Axle Type	Oscillating front & rear axles (for better ground contact)
Dozer Blade	Optional, 6-way adjustable
Outriggers/Stabilizers	4 hydraulic outriggers (front & rear) for digging stability
Ground Clearance	~380 mm
Gradeability	~30°
Turning Radius	~7,100 mm

✅ The 4WD + oscillating axles give excellent mobility on rough terrain, mud, and paved roads. No trailer needed — it drives itself to job sites at up to 35 km/h.

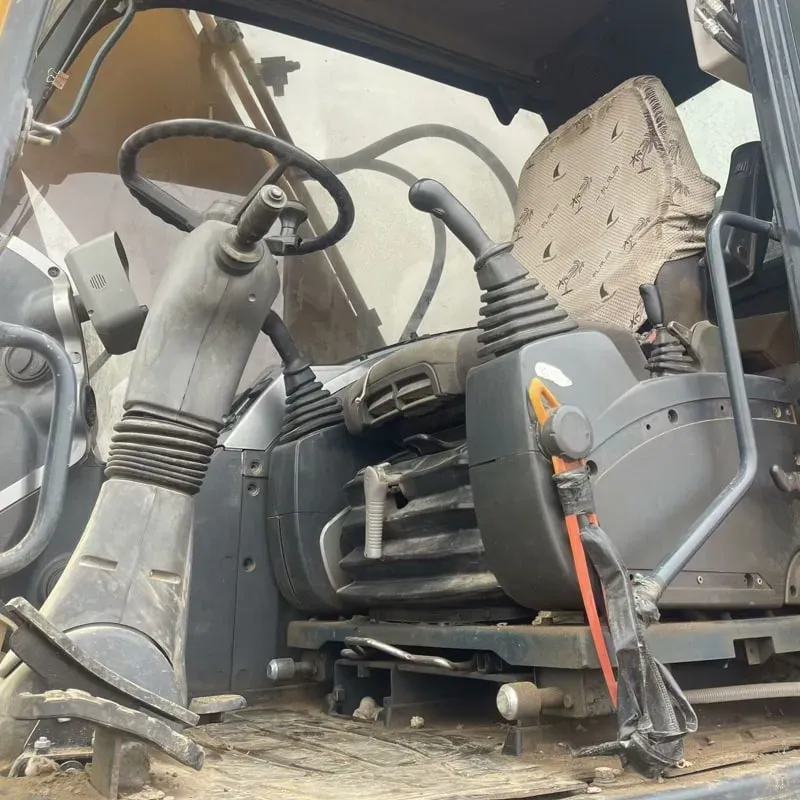

🖥️ Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Seat	Air-suspended, heated, with armrests
Controls	Electronic joystick controls (proportional)
Display	7-inch color LCD monitor (engine info, camera, diagnostics)
Air Conditioning	Auto climate control
Noise Level	~72 dB(A) (very quiet for its class)
Camera System	Rear-view + side-view cameras (standard on newer models)
USB/Bluetooth	Available
Vibration Damping	Cab mounted on rubber isolators

✅ Hyundai is widely praised for having one of the best cabs in the industry — spacious, quiet, and ergonomically designed for all-day operation.

& Working Equipment (Boom & Arm Options)

Configuration	Digging Depth	Digging Reach	Best For
Standard Boom (2.9m)	~6,400 mm	~9,500 mm	General excavation
Long Reach Boom (3.2m)	~7,000 mm	~10,500 mm	Deep digging, dredging
High Dump Boom	~6,000 mm	~9,000 mm	Truck loading
Short Boom (2.5m)	~5,500 mm	~8,500 mm	Urban/tight space work

🔌 Attachment Versatility

The R210W-9 is designed as a multi-purpose platform with quick-coupler compatibility:

Attachment	Application
🔨 Hydraulic Breaker	Demolition, rock breaking
🪓 Hydraulic Grapple	Scrap handling, log grabbing
🪣 Thumb Bucket	Pipe handling, precise digging
🔄 Rotating Grapple	Material sorting
🪚 Hydraulic Shear	Metal cutting/demolition
🔩 Auger/Drill	Piling, fencing
🧹 Sweeper	Road cleaning
🏋️ Magnet	Scrap metal handling

✅ With 2–3 auxiliary hydraulic lines and quick coupler, changing attachments takes under 2 minutes.

🛡️ Safety Features

Feature	Detail
✅ ROPS/FOPS Certified Cab	Rollover & falling object protection
✅ Rear-View Camera	Standard
✅ Warning Alarm (Beacon)	Rotating beacon light
✅ Auto Engine Idle Stop	Reduces fuel waste (saves ~10% fuel)
✅ Overload Protection	Hydraulic & structural
✅ Emergency Stop	Easy-access buttons
✅ LED Work Lights	Front & rear (optional)
✅ Anti-Theft System	Engine immobilizer

📊 Performance Highlights

Metric	Value
Fuel Consumption	~18–22 L/hr (varies by application)
Digging Force (Bucket)	~130 kN
Digging Force (Arm)	~95 kN
Swing Torque	~18 kNm
Productivity	~200–300 m³/day (depending on application)
Service Interval	500 hrs / 6 months (oil & filter)
1,000 hr Service	Major service at 1,000 hrs

💰 Approximate Pricing (2024 Estimates)

Region	Price Range (USD)
🇺🇸 North America	$130,000 – $165,000
🇪🇺 Europe	€120,000 – €150,000
🇦🇺 Australia	AUD $200,000 – $260,000
🇰🇷 South Korea (Home)	₩180,000,000 – ₩220,000,000
🇮🇳 India	₹1.8 – ₹2.4 Crore

Prices vary by configuration, attachments, and market.

🆚 Competitors Comparison

Model	Weight	Power	Bucket	Price (USD)
Hyundai R210W-9	21t	140 hp	0.7–1.1 m³	$130–165K
Volvo EW210E	21t	152 hp	0.7–1.1 m³	$145–180K
CAT M315	15.5t	116 hp	0.5–0.8 m³	$120–150K
Doosan DX210W	21t	148 hp	0.7–1.1 m³	$135–170K
Komatsu PW210-11	21t	155 hp	0.7–1.1 m³	$150–185K

✅ The R210W-9 offers excellent value for money with strong after-sales support and lower operating costs.

✅ Advantages (Why Choose R210W-9?)

✅ Advantage	Explanation
💰 Cost-Effective	Lower purchase price than European brands
🔧 Low Maintenance	Hyundai D6GA engine = proven reliability
🛋️ Best-in-Class Cab	Spacious, quiet, comfortable
&Fuel Efficient**	Load-sensing hydraulics + auto idle
🔄 Versatile	Quick coupler + multiple boom options
🌐 Wide Dealer Network	Strong global after-sales support
📈 Strong Resale Value	Hyundai holds value well in used market
🚛 Road-Legal	No trailer needed — saves transport costs

📋 Summary

Category	Rating
⭐ Overall	⭐⭐⭐⭐⭐ (4.5/5)
💪 Power	⭐⭐⭐⭐ (4/5)
🛋️ Comfort	⭐⭐⭐⭐⭐ (5/5)
⛽ Efficiency	⭐⭐⭐⭐⭐ (4.5/5)
🔧 Reliability	⭐⭐⭐⭐⭐ (5/5)
💰 Value	⭐⭐⭐⭐⭐ (5/5)

🎯 Bottom Line:
The Hyundai R210W-9 is a workhorse wheel excavator that combines powerful performance, operator comfort, fuel efficiency, and excellent value. It's ideal for contractors who need a versatile, reliable, and cost-effective 21-ton wheel excavator for general construction, utility work, and material handling. It's one of the best-selling wheel excavators globally for good reason. 🚜💪
