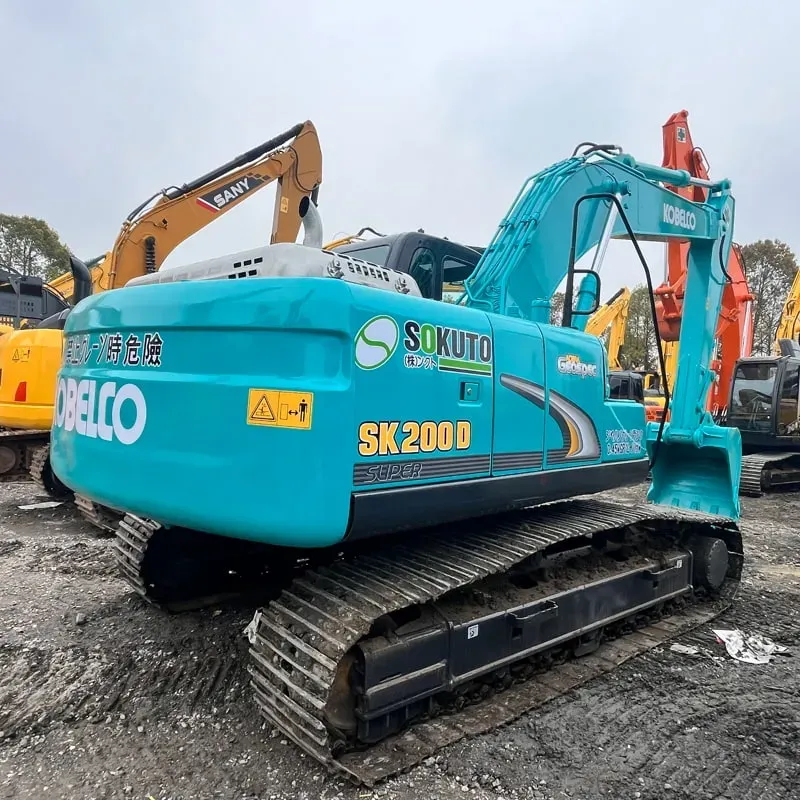

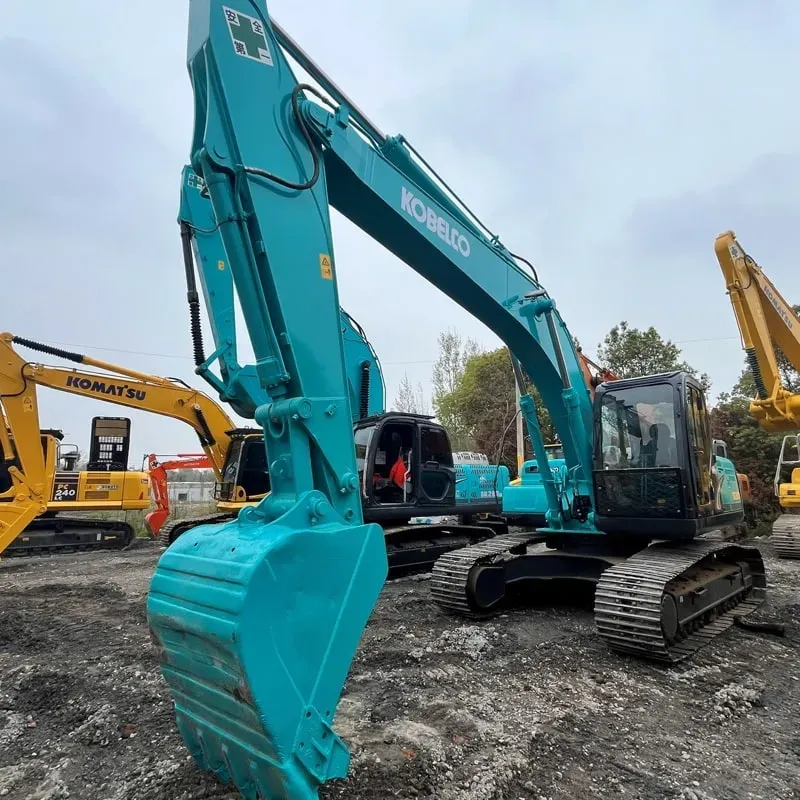

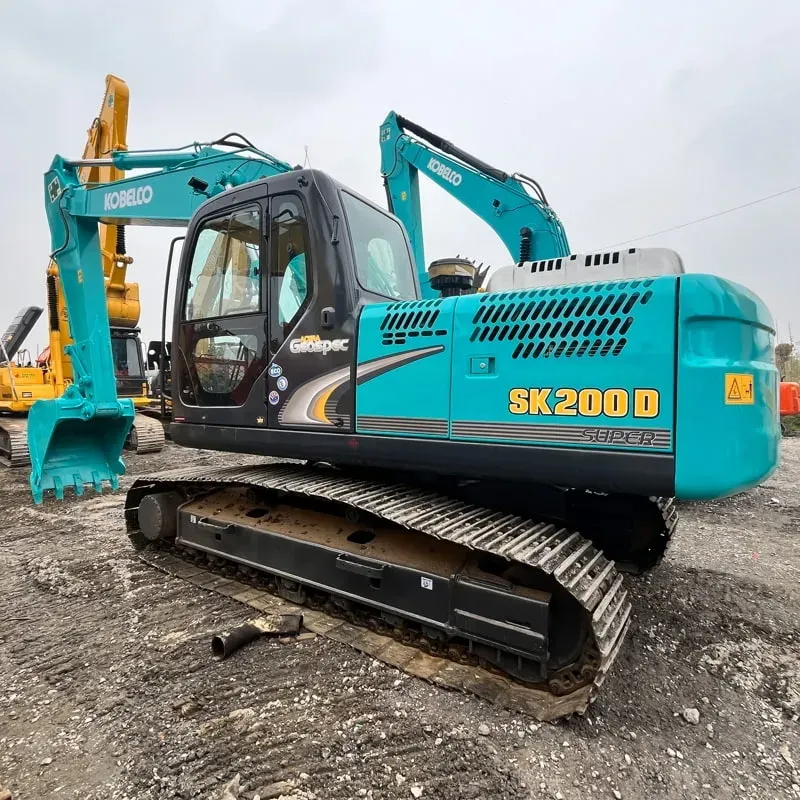

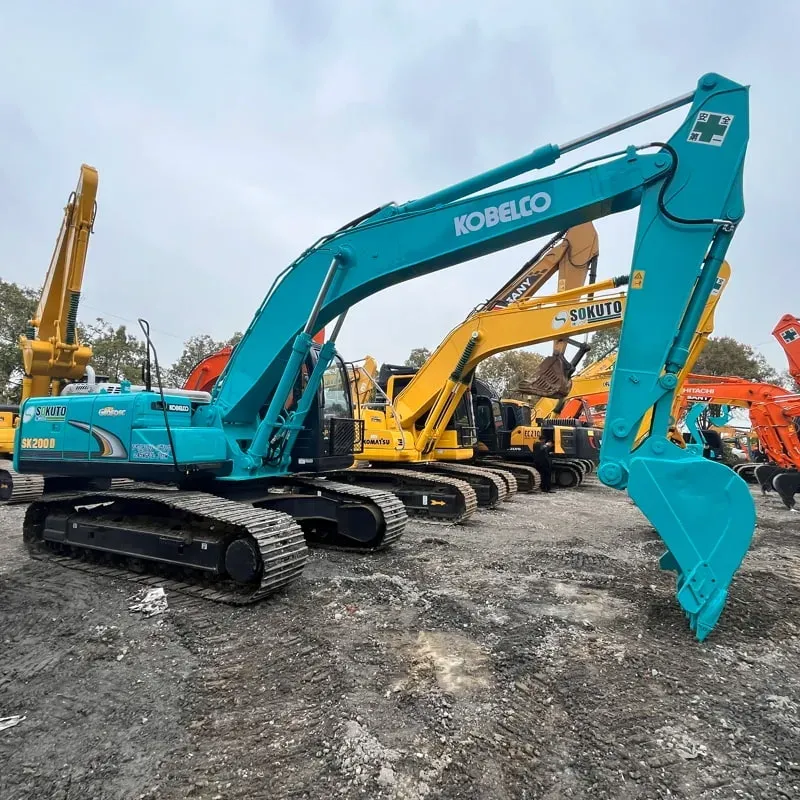

Used Kobelco SK200DExcavator

Reading: 20

📌 1. OVERVIEW

Item	Details
Manufacturer	Kobelco Construction Machinery Co., Ltd. (a subsidiary of Kobe Steel, Japan)
Model	SK200D (D-Series, ~20-ton class)
Launch Year	~2018–2019 (replacing SK200LC/SK200SR series)
Category	Mid-size Hydraulic Crawler Excavator
Primary Use	General construction, earthmoving, road building, mining, demolition, landscaping

The SK200D is part of Kobelco's "D-Series" lineup, which represents a major generational upgrade focused on fuel efficiency, operator comfort, smart technology, and lower emissions — meeting Tier 4 Final / Stage V emission standards.

📌 2. KEY SPECIFICATIONS

Parameter	Specification
Operating Weight	~19,800 – 20,400 kg (varies by configuration)
Engine	Isuzu AI-4HK1XQP (inline 4-cylinder, turbocharged, intercooled)
Engine Power	110 kW (148 HP) @ 2,000 rpm
Displacement	5.193 L
Fuel Tank Capacity	~400 L
Hydraulic Pump	Variable displacement axial piston pump (Kawasaki / KYB)
Max Digging Depth	~6,650 – 6,700 mm
Max Reach (Ground Level)	~9,700 – 9,800 mm
Max Dumping Height	~7,150 – 7,200 mm
Max Digging Force (Boom)	~135 – 140 kN
Max Digging Force (Arm)	~95 – 100 kN
Bucket Capacity (Standard)	0.8 – 1.0 m³ (0.8 m³ typical)
Track Width	600 mm (standard)
Track Shoe Width	600 mm
Ground Pressure	~43 – 45 kPa
Travel Speed	~5.0 km/h (High) / ~3.2 km/h (Low)
Gradeability	70% (~35°)
Swing Speed	~8.5 rpm
Tail Swing Radius	~2,700 mm

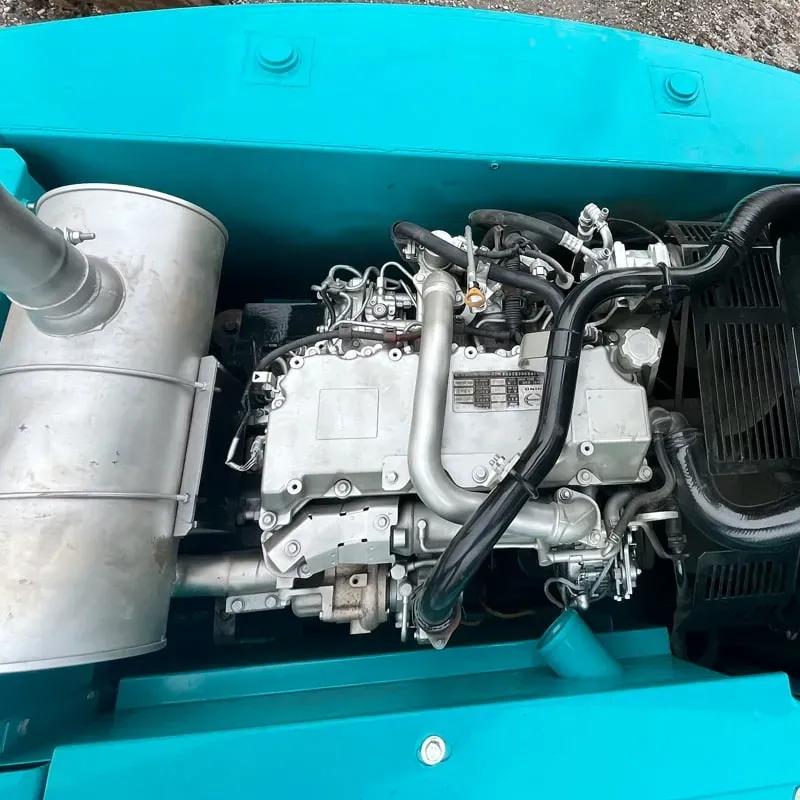

📌 3. ENGINE & EMISSIONS

Feature	Detail
Engine Brand	Isuzu (Japan)
Model	AI-4HK1XQP
Type	4-cylinder, inline, turbocharged, intercooled diesel
Emission Standard	EPA Tier 4 Final / EU Stage V
Aftertreatment	DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) + DOC (Diesel Oxidation Catalyst) — uses DEF (Diesel Exhaust Fluid / AdBlue)
Fuel Efficiency	~15–20% improvement over previous C-series

✅ No DEF needed in some markets — check regional configuration.

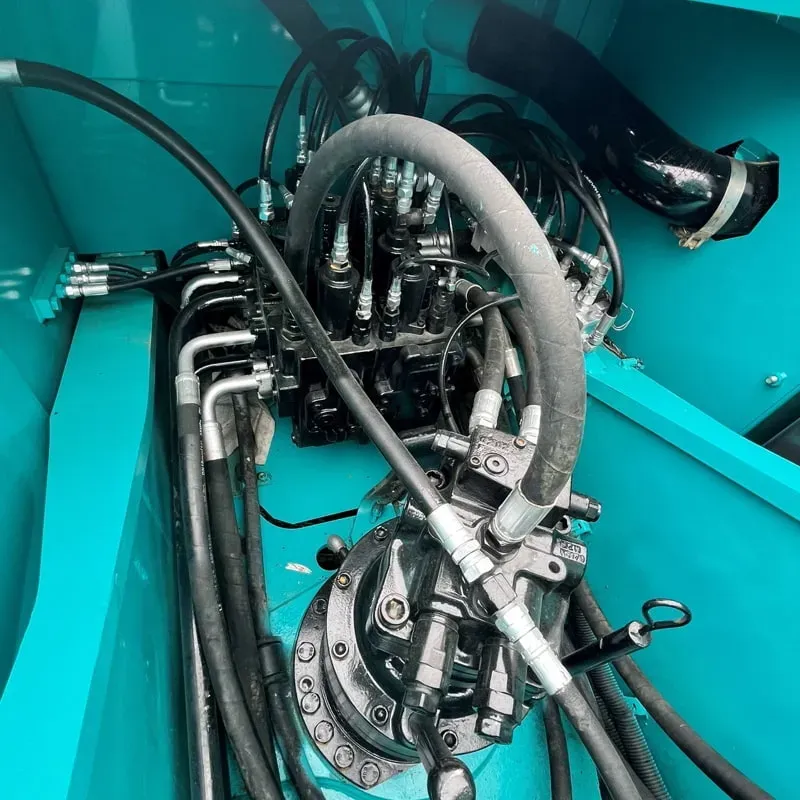

📌 4. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Variable displacement axial piston pump (Kawasaki)
System Pressure	34.3 MPa (350 kgf/cm²) — Standard mode
	39.2 MPa (400 kgf/cm²) — Power mode
Flow Rate	~2 × 250 L/min (main pump)
Hydraulic Circuit	CLSS (Closed Center Load Sensing System) — provides smooth, efficient operation
Auxiliary Hydraulics	2 circuits available (for breakers, augers, grapples, etc.)
Flow (Aux)	~40–50 L/min per circuit

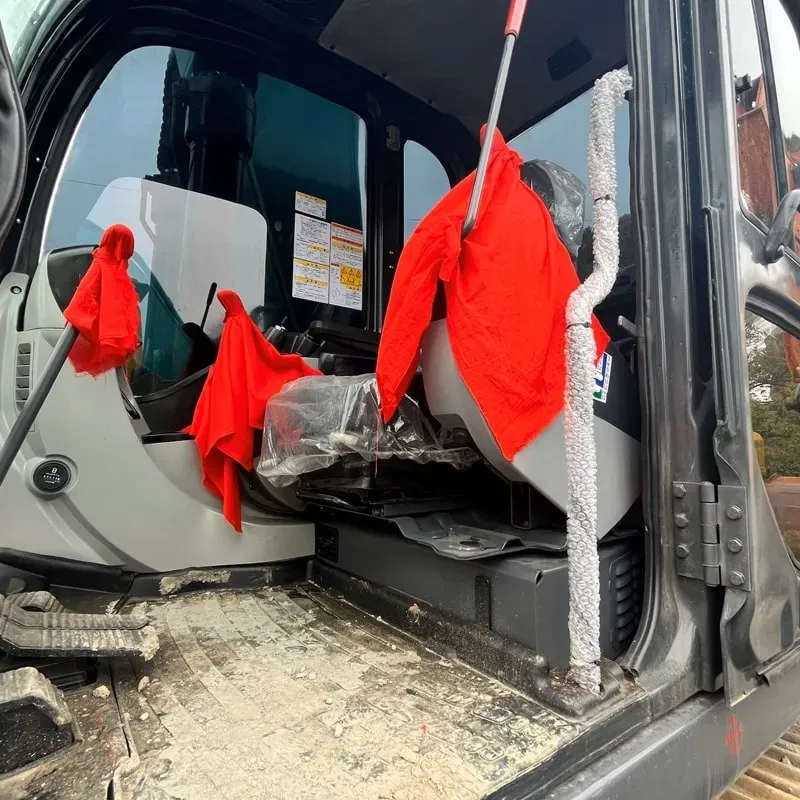

📌 5. CAB & OPERATOR COMFORT 💺

The SK200D is renowned for its excellent cab environment:

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Seat	Air-suspension seat with armrests, fully adjustable
Climate Control	Auto air conditioning with heater
Noise Level	~67 dB(A) — very quiet for its class
Vibration	Low vibration floor & seat mount
Display	7-inch color LCD monitor with multi-function display
Controls	Joystick-type with electronic throttle
Camera	Rear-view & side-view cameras (standard on many configs)
USB/Audio	Yes — USB port, radio, Bluetooth connectivity
Visibility	Large glass area, excellent all-around visibility

📌 6. SMART TECHNOLOGY & ELECTRONICS 🤖

Kobelco equips the SK200D with advanced KOBELCO Smart Technology:

System	Function
KOBELCO LINK	Telematics system — remote monitoring via smartphone/web
	📍 GPS tracking, fuel consumption, operating hours, maintenance alerts, fault diagnostics
Auto-Idle Stop	Engine automatically reduces RPM when idle → saves fuel
Eco Mode / Power Mode	Selectable operating modes for fuel savings or maximum performance
Auto Swing Stop	Swing automatically stops when not in use
2D/3D Grade Control Ready	Compatible with GPS grading systems (Topcon, Trimble, Leica)
Work Management System	Records digging location, depth, bucket usage for productivity analysis
Anti-Theft System	Engine immobilizer with PIN code

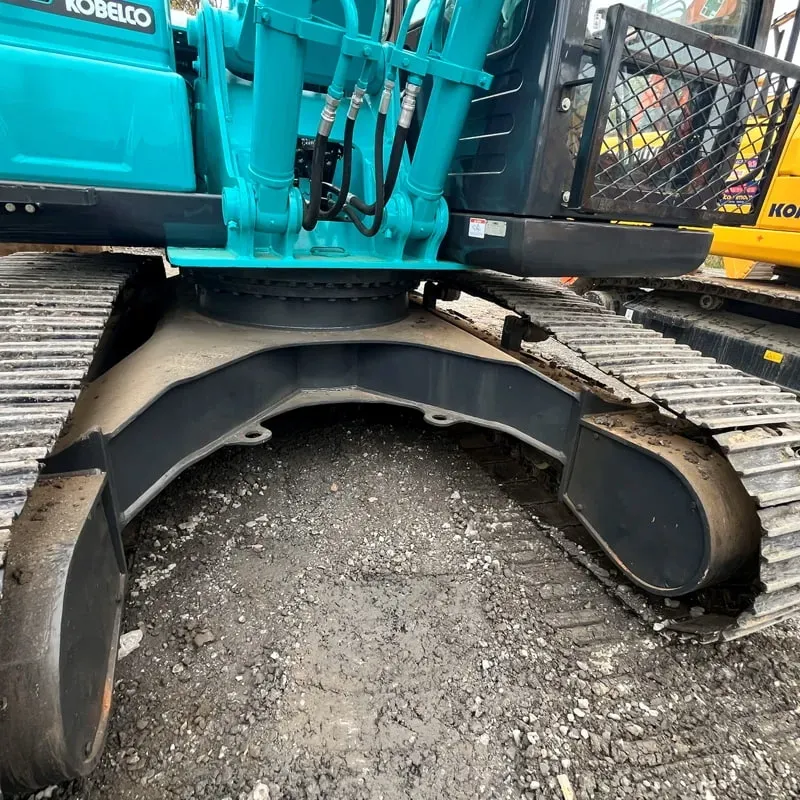

📌 7. UNDERCARRIAGE & STRUCTURE

Feature	Detail
Track Frame	High-strength steel, reinforced X-frame
Track Shoes	600 mm wide, triple grouser (standard) — 700 mm option available
Rollers	5 per side (upper & lower)
Dozer Blade	Available as option (for grading/leveling)
Boom/Arm	High-strength steel, reinforced stress points, optional long-reach arm
Counterweight	Cast iron, optimized for stability

📌 8. ATTACHMENT OPTIONS 🔧

The SK200D is highly versatile with quick coupler compatibility:

Attachment	Application
🪨 Standard Bucket	General digging
🔨 Hydraulic Breaker (Hammer)	Rock breaking, demolition
🔩 Hydraulic Shear	Demolition, scrap cutting
🌀 Auger / Drill	Pile driving, foundation work
🦾 Grapple	Material handling, scrap
🪵 Thumb	Log/pipe gripping
🧹 Rake / Clean-up bucket	Grading, cleanup
🔄 Tiltrotator	360° rotation of attachment
🏗️ Compactor Plate	Soil compaction

📌 9. MAINTENANCE & SERVICEABILITY 🔩

| Feature | Detail ||---------|--------|| Service Intervals | Engine oil: 500 hrs | Hydraulic oil: 2,000 hrs | Filters: 500 hrs || Ground-Level Service Points | Engine oil dipstick, fuel filter water separator, coolant level — all accessible from ground || Swing-Up Engine Hood | Easy access to engine & hydraulic components || Centralized Grease Points | Auto-lube system available on some configs || Kobelco Dealer Network | Strong worldwide service network (especially strong in Asia, Middle East, Australia, Africa, South America) |

📌 10. PROS & CONS ✅❌

✅ ADVANTAGES	❌ DISADVANTAGES
Excellent fuel efficiency (class-leading)	Higher purchase price vs. Chinese brands
Superior cab comfort & low noise	DEF/AdBlue required (adds running cost)
Reliable Isuzu engine	Parts can be expensive
Advanced smart telematics (KOBELCO LINK)	Limited availability in some markets (North America)
Strong build quality & durability	Resale value lower than CAT/Komatsu in some regions
Great resale value in Asia, Middle East, Aus
Low maintenance cost over lifetime
Smooth hydraulics & precise controls

📌 11. COMPETITORS (20-Ton Class)

Brand	Model	Notes
🇯🇵 Komatsu	PC200-11	Direct rival, strong in global markets
🇺🇸 Caterpillar	320 GC / 320	Premium brand, higher price
🇯🇵 Hitachi	ZX200-6	Strong in Asia
🇰🇷 Doosan/DX	DX225LC-5	Good value alternative
🇰🇷 Hyundai	R200VS-9	Competitive pricing
🇨🇳 Sany	SY205C	Budget-friendly, growing fast
🇨🇳 XCMG	XE200DA	Low-cost option
🇨🇳 LiuGong	CLG920E	Strong in emerging markets

📌 12. PRICING (Approximate, 2024)

Market	Price Range (USD)
China	$120,000 – $150,000
Southeast Asia	$130,000 – $160,000
Middle East	$140,000 – $170,000
Australia	$180,000 – $220,000 AUD
Europe	€150,000 – €190,000
North America	Limited availability (~$160,000–$200,000 if imported)

💰 Prices vary significantly by configuration, attachments, and dealer.

📌 13. SUMMARY

Rating	Score (out of 10)
🔧 Build Quality	⭐ 9/10
⛽ Fuel Efficiency	⭐ 9.5/10
💺 Operator Comfort	⭐ 9/10
🤖 Technology	⭐ 8.5/10
💰 Value for Money	⭐ 8.5/10
🔧 Parts Availability	⭐ 8/10 (excellent in Asia/ME, limited in NA)
📈 Resale Value	⭐ 8.5/10

🏁 CONCLUSION

The Kobelco SK200D is one of the best 20-ton excavators on the market, especially renowned for:

🏆 Fuel efficiency, operator comfort, reliability, and smart technology

It's the go-to choice in Asia, Middle East, Australia, Africa, and South America, and is increasingly popular in Europe. If you prioritize low operating cost, comfort, and technology over brand prestige, the SK200D is an excellent investment. 💪🚜
