Used Hyundai 60-7Excavator

Reading: 49

📌 1. OVERVIEW

Item	Detail
Model	R60-7 (Robex 60-7)
Manufacturer	Hyundai Construction Equipment (HCE)
Class	6-Ton Mini Excavator
Production Era	~2011–2016 (Successor to R60-5)
Primary Use	Urban construction, landscaping, utility work, pipeline, small demolition

The R60-7 is Hyundai's 6-ton class compact excavator, designed for tight workspaces while delivering strong digging performance. It replaced the popular R60-5 and is widely used in rental fleets and small-to-medium contractors worldwide.

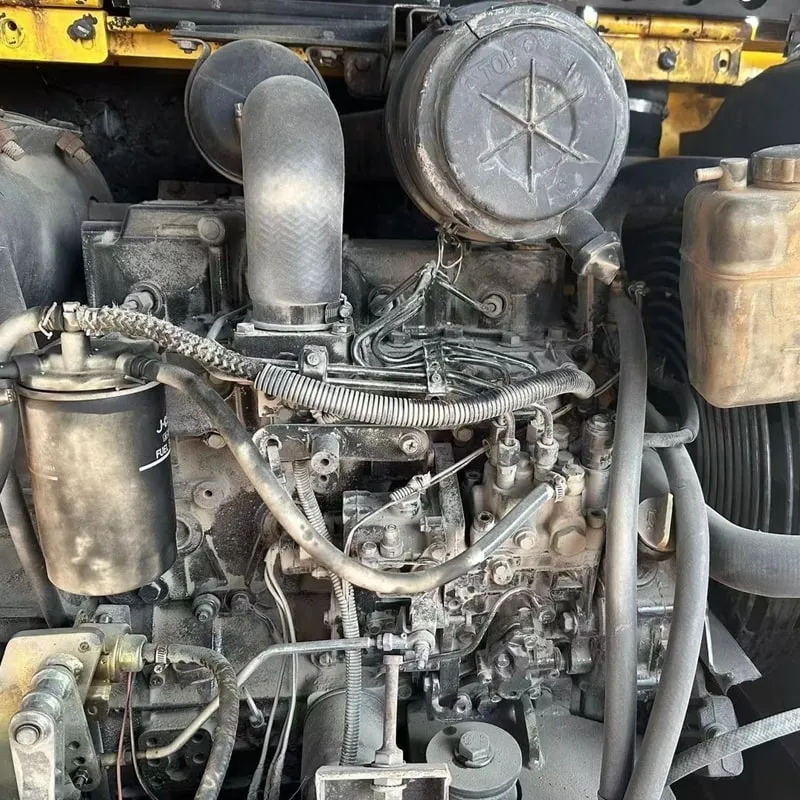

📌 2. ENGINE SPECIFICATIONS

Specification	Detail
Engine Model	Hyundai D34T
Type	3-Cylinder, Water-Cooled, Turbocharged Diesel
Displacement	2,194 cc (2.2L)
Rated Power	45.4 HP (33.6 kW) @ 2,200 RPM
Max Torque	~162 N·m @ 1,400 RPM
Emission Standard	Tier 3 / Stage IIIA (EU) / EPA (varies by region)
Fuel Tank Capacity	~120 Liters
Cooling System	Water-cooled with radiator

✅ The D34T engine is known for reliability, fuel efficiency, and low maintenance costs.

📌 3. DIMENSIONS & WEIGHT

Specification	Detail
Operating Weight	5,870 kg (12,941 lbs)
Transport Length	5,940 mm
Transport Width	2,100 mm
Transport Height	2,620 mm
Ground Clearance	380 mm
Track Width	Adjustable: 1,200 / 1,400 / 1,600 mm
Track Length on Ground	1,860 mm
Tail Swing Radius	1,530 mm (Zero Tail Swing / ZTS design) ⭐

⭐ Zero Tail Swing (ZTS) is a major advantage — the upper structure does NOT swing beyond the track width, making it ideal for narrow lanes, near walls, and urban work.

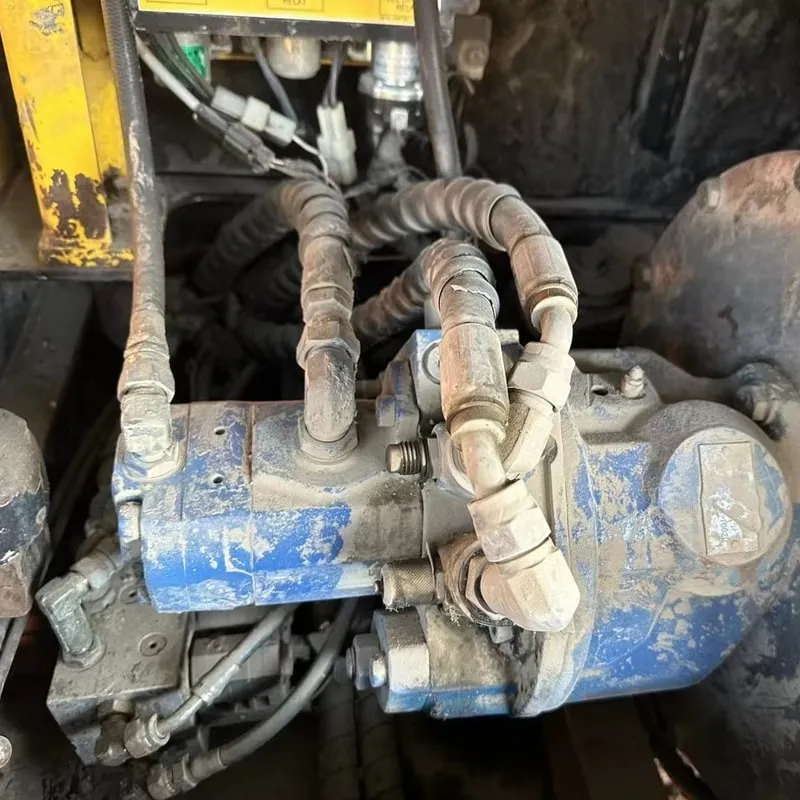

📌 4. HYDRAULIC SYSTEM

Specification	Detail
Pump Type	Variable Displacement Axial Piston Pump
System Pressure	34.3 MPa (350 bar)
Hydraulic Flow	2 × 57.4 L/min (Boom/Arm) + 1 × 42.5 L/min (Swing/Travel)
Auxiliary Hydraulic Flow	~40 L/min (for attachments)
Hydraulic Tank	~55 Liters

📌 5. DIGGING PERFORMANCE 🔨

Performance	Value
Max Digging Depth	3,950 mm (13.0 ft)
Max Digging Reach	6,660 mm (21.9 ft)
Max Dumping Height	4,570 mm (15.0 ft)
Max Digging Radius (Ground Level)	6,380 mm
Max Vertical Wall Digging Depth	3,280 mm
Dozing Capacity	Yes (with dozer blade)
Max Pull Force (Bucket)	~39 kN

📌 6. BUCKET OPTIONS

Bucket Size	Capacity	Width
Narrow (24")	0.16 m³ (0.21 cu yd)	600 mm
Standard (28")	0.22 m³ (0.29 cu yd)	700 mm
Wide (30")	0.28 m³ (0.37 cu yd)	750 mm
Grading/Tilt Bucket	0.22 m³	700 mm

📌 7. TRAVEL & MOBILITY

Specification	Detail
Travel Speed (H/L)	4.8 km/h / 3.2 km/h
Gradeability	70% (35°)
Climbable Step	500 mm
Trench Crossing	1,400 mm
Swing Speed	10.5 RPM
Swing Brake	Wet Multi-Disc
Track Type	Rubber Tracks (standard) / Steel Tracks (optional)

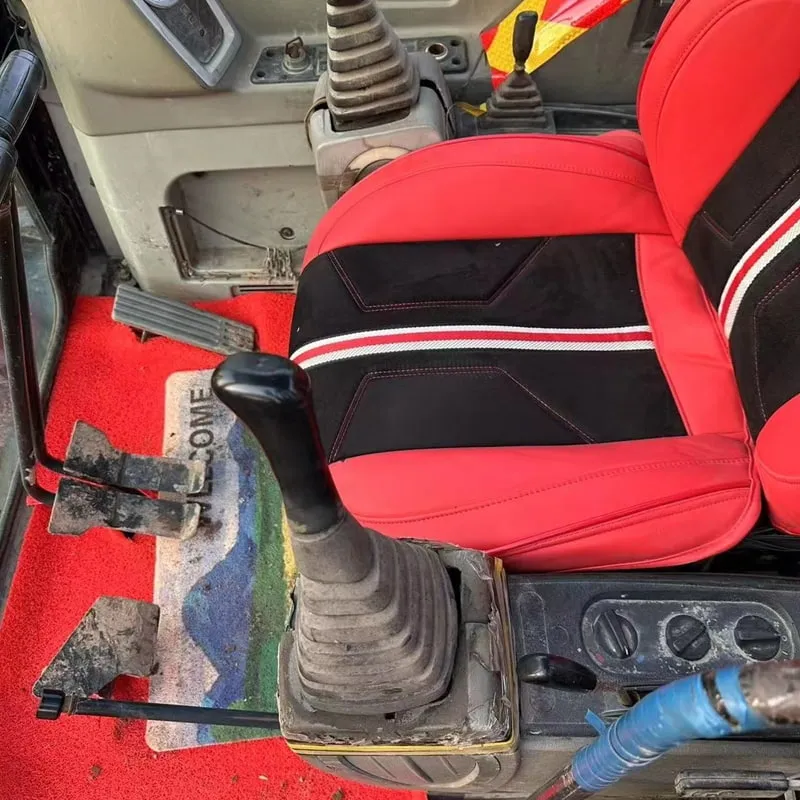

📌 8. CAB & OPERATOR COMFORT 💺

Feature	Detail
Cab Type	ROPS/FOPS Certified Enclosed Cab
Air Conditioning	✅ Standard
Heater	✅ Standard
Seat	Suspension seat with armrest
Controls	Pilot Joystick (Proportional)
Display	LCD Monitor (Engine info, hours, fault codes)
Sound Level	~73 dB(A) — relatively quiet for its class
Work Lights	Front & Rear LED
Rearview Camera	Optional on some markets
Bluetooth/USB	Available on newer variants

📌 9. ATTACHMENT COMPATIBILITY (Quick Coupler) 🔧

The R60-7 features a hydraulic quick coupler as standard, allowing fast switching between:

Attachment	Use
🪣 Hydraulic Breaker (Hammer)	Concrete/rock breaking
🔨 Hydraulic Thumb	Grappling, sorting
🔩 Auger / Earth Drill	Post holes, piling
🧹 Tilt Rotator	360° rotation for grading
📦 Grapple	Scrap handling, demolition
❄️ Hydraulic Shear	Steel cutting
🛢️ Ripper	Hard ground breaking

📌 10. MAINTENANCE & SERVICE INTERVALS

Item	Interval
Engine Oil Change	Every 250 hours or 6 months
Hydraulic Oil Filter	Every 500 hours
Fuel Filter	Every 500 hours
Air Filter	Every 500 hours
Track Tension Check	Every 250 hours
Grease Points	Every 8 hours (daily)
Coolant Change	Every 2,000 hours

🔧 Hyundai is known for excellent parts availability and lower TCO (Total Cost of Ownership) compared to many competitors.

📌 11. KEY ADVANTAGES ✅

Advantage	Explanation
⭐ Zero Tail Swing	Works in tight spaces — no overhang
⭐ Fuel Efficient	~4-5 L/hr under normal operation
⭐ Compact Size	Fits through standard gates (~1.2m)
⭐ Reliable Engine	D34T is proven with millions of hours
⭐ Low Operating Cost	Cheap parts, easy maintenance
⭐ Strong Resale Value	Very popular in rental & resale markets
⭐ Comfortable Cab	AC, suspension seat, low noise

📌 12. COMPETITORS COMPARISON

Model	Weight	Power	Tail Swing
Hyundai R60-7	5,870 kg	45.4 HP	✅ ZTS
CAT 306 CR	6,100 kg	47 HP	✅ ZTS
Komatsu PC60-8	6,020 kg	44.9 HP	❌ Conventional
Kobelco SK60-8	6,050 kg	44.6 HP	❌ Conventional
Doosan DX60R-7	5,970 kg	47.2 HP	❌ Conventional
Volvo ECR58D	5,850 kg	45.7 HP	✅ ZTS

🏆 The R60-7 competes very well, especially with its ZTS design + Hyundai's warranty/service network.

📌 13. PRICING (Approximate, 2024 Market)

Condition	Price Range (USD)
New	$55,000 – $75,000
Used (2015-2018, 3,000-5,000 hrs)	$28,000 – $45,000
Used (2019-2021, 1,000-3,000 hrs)	$40,000 – $58,000

(Prices vary significantly by region, condition, and attachments)

📌 14. SUMMARY

Category	Rating
🔧 Power & Performance	⭐⭐⭐⭐ (4/5)
📐 Compactness	⭐⭐⭐⭐⭐ (5/5)
💰 Fuel Efficiency	⭐⭐⭐⭐⭐ (5/5)
💺 Operator Comfort	⭐⭐⭐⭐ (4/5)
🔩 Reliability	⭐⭐⭐⭐⭐ (5/5)
💵 Value for Money	⭐⭐⭐⭐⭐ (5/5)

🎯 Bottom Line:
The Hyundai R60-7 is one of the best 6-ton mini excavators on the market. Its Zero Tail Swing design, fuel-efficient D34T engine, low operating costs, and excellent Hyundai dealer support make it a top choice for rental companies, landscapers, utility contractors, and small construction firms worldwide.

Would you like more details on any specific aspect — like comparison with a specific model, attachment recommendations, or buying tips? 🚜
