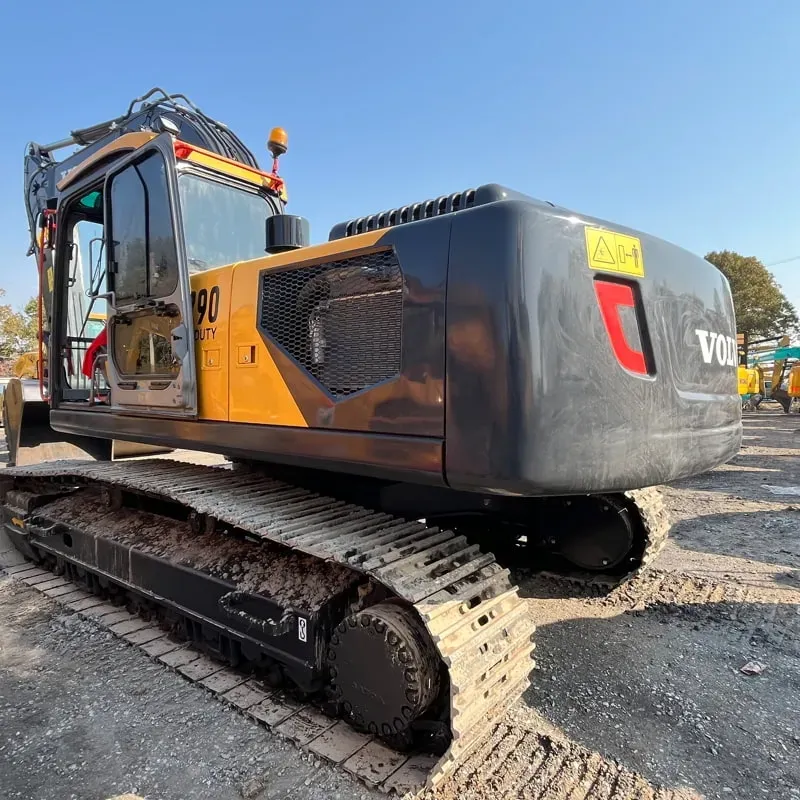

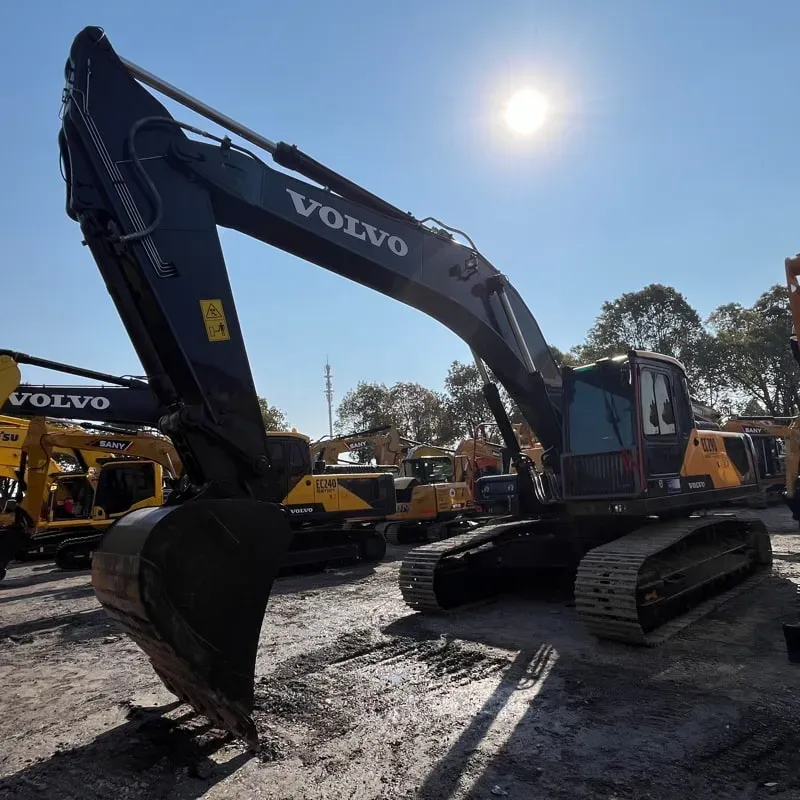

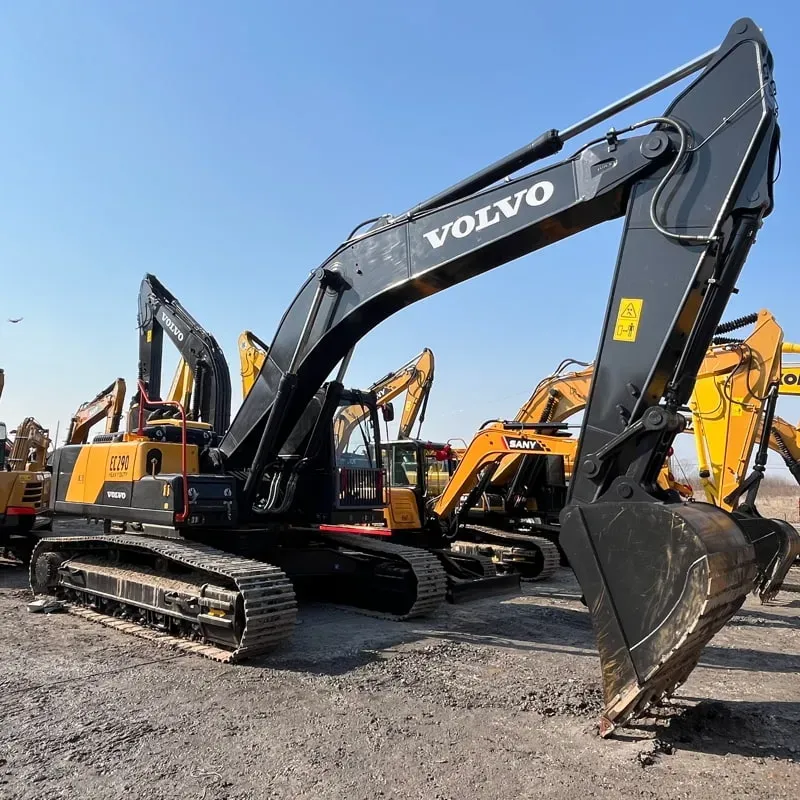

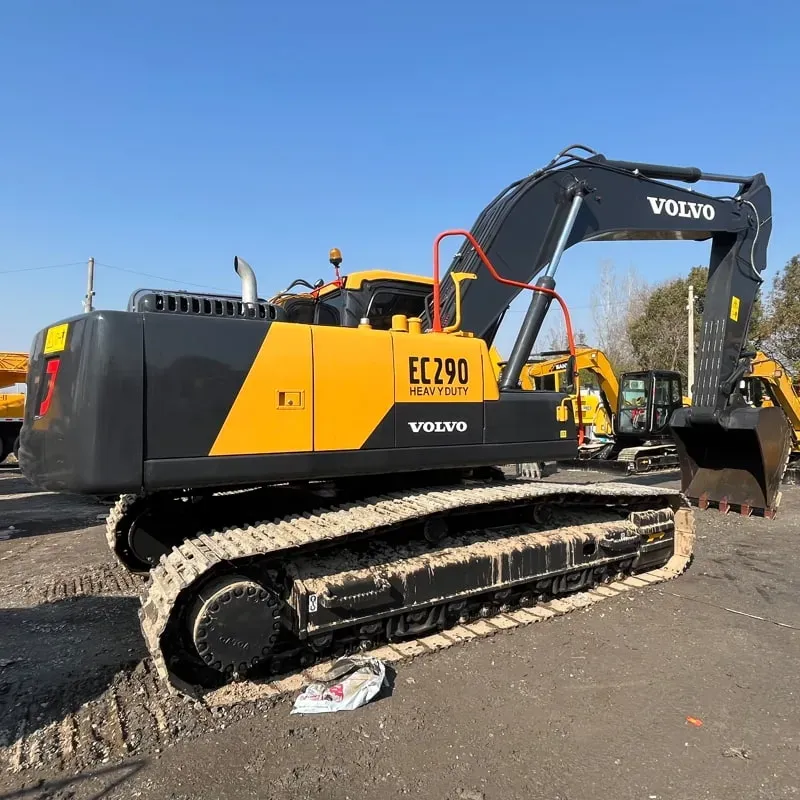

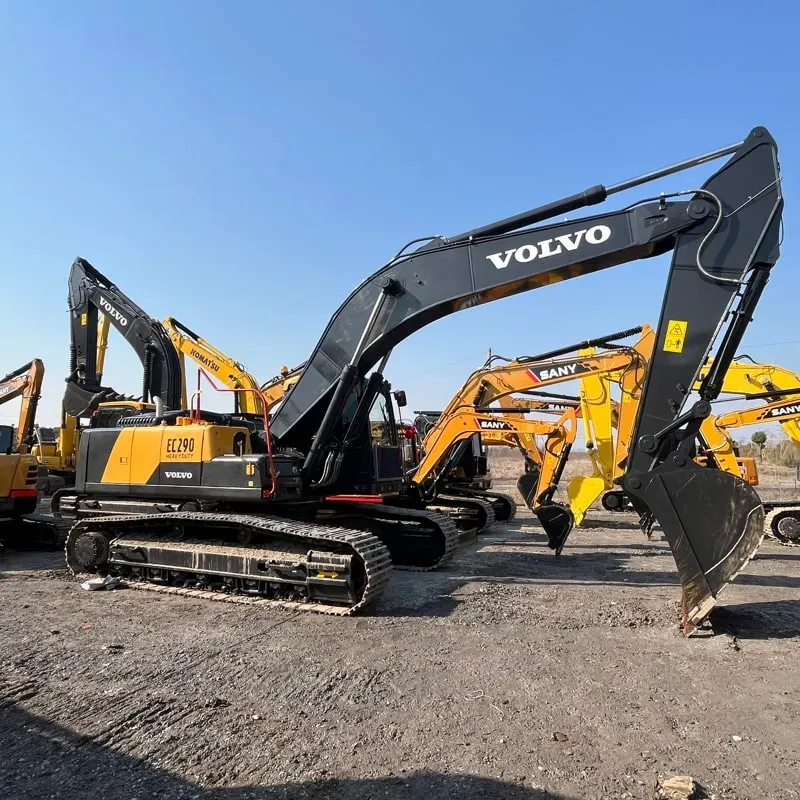

Used Volvo 290Excavator

Reading: 16

📌 Overview

The Volvo EC290 is a 29-ton class (large) crawler excavator from Volvo Construction Equipment's E-Series lineup. It sits between the EC250 and EC300 models, making it one of the most popular machines in the 25–30 ton segment. It's designed for heavy-duty applications including general excavation, mining, quarrying, road construction, and demolition.

There are two main generations:

Generation	Model	Production Era
Older	EC290B	~2011–2019
Current	EC290E	2019–Present

🔧 Technical Specifications (EC290E — Latest Gen)

Specification	Details
Operating Weight	~29,000 – 30,000 kg (63,900 – 66,100 lbs)

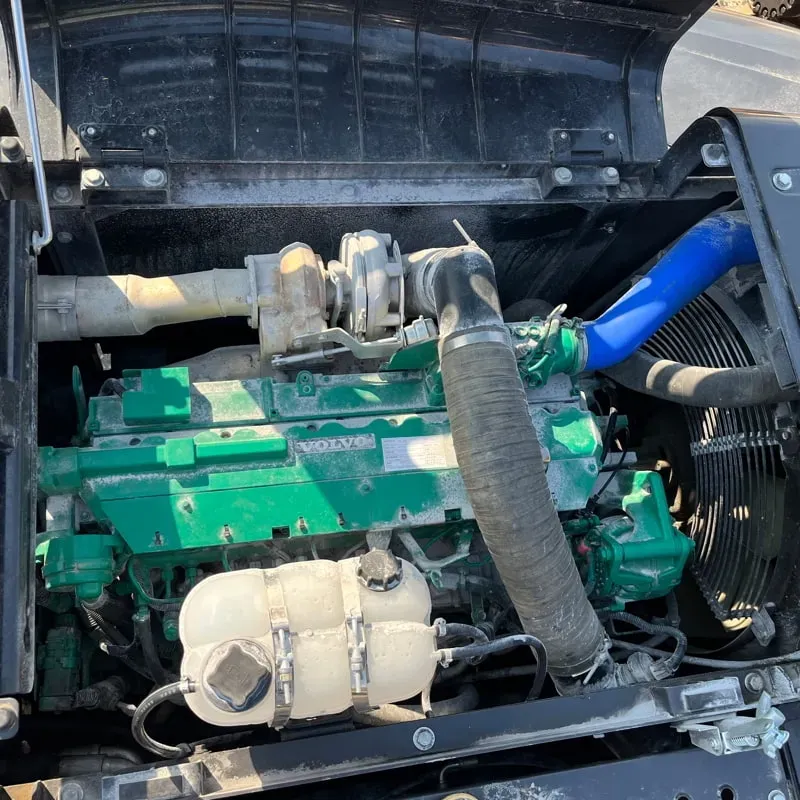

Engine	Volvo D8.8 TC (Stage V / Tier 4 Final)
Power Output	204 hp (152 kW) @ 1,800 rpm
Torque	~770 Nm @ 1,400 rpm
Fuel Tank Capacity	~450 L (119 US gal)
Hydraulic System	Load-Sensing (LS) with variable displacement pump
Max Hydraulic Flow	~2 × 290 L/min (combined)
System Pressure	350 bar (5,075 psi)
Travel Speed	5.5 km/h (3.4 mph)
Ground Pressure	~0.82 kg/cm² (11.7 psi)

📐 Dimensions & Performance

Specification	EC290B	EC290E
Max Digging Depth	7,060 mm (23.2 ft)	7,200 mm (23.6 ft)
Max Reach (Ground Level)	9,960 mm (32.7 ft)	10,200 mm (33.5 ft)
Max Dump Height	7,250 mm (23.8 ft)	7,300 mm (24.0 ft)
Max Digging Radius	10,100 mm (33.1 ft)	10,350 mm (34.0 ft)
Max Vertical Wall Dig	6,450 mm (21.2 ft)	6,550 mm (21.5 ft)
Bucket Capacity (Standard)	0.9 – 1.3 m³ (1.2 – 1.7 yd³)	1.0 – 1.5 m³ (1.3 – 2.0 yd³)
Boom Options	5.5 m / 6.0 m / Long Reach	5.5 m / 6.0 m / 6.5 m / Long Reach
Stick Options	2.9 m / 3.0 m	2.9 m / 3.0 m / 3.5 m

🧠 Key Features & Technology

1. 🖥️ Volvo Co-Pilot & Intelligent Machine Control (IMC)

GPS-guided digging for grade control, slope, and depth
3D machine control ready (Trimble, Topcon, Leica compatible)
Reduces operator skill dependency, improves accuracy

2. 📡 Volvo LIVE Telematics

Real-time machine monitoring (fuel, hours, location, diagnostics)
Fleet management integration
Preventive maintenance alerts

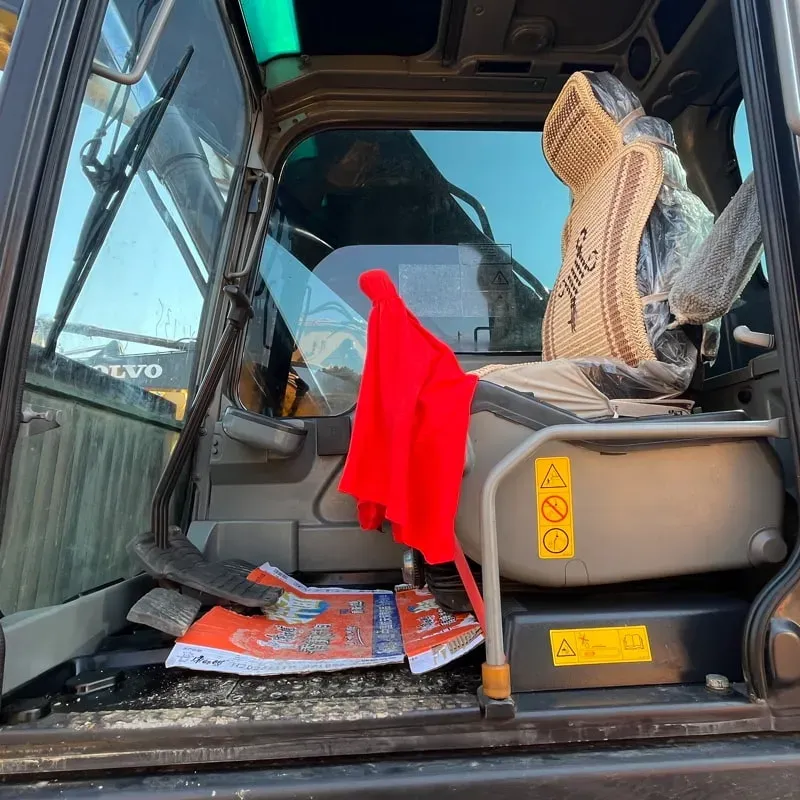

3. 🪑 Volvo CareCab (ROPS/FOPS Certified)

Excellent visibility with large windows
Low noise level: ~72 dB(A) (EC290E)
Climate-controlled cab with suspension seat
Heated/ventilated seat, air conditioning

4. &ECO Mode / Green Mode**

Automatically adjusts engine RPM and hydraulic flow
Up to 15–20% fuel savings in light-duty work
Maintains productivity while reducing fuel consumption

5. 🔋 Smart Power & Efficiency

Volvo's unique electronic system matches engine power to demand
Variable displacement pump reduces energy waste
Auto-idle function shuts down engine when not in use

6. 🛠️ Easy Maintenance

Ground-level daily checks
Centralized grease points
Quick-coupler ready (mechanical & hydraulic)
Extended service intervals: 500 / 1,000 / 2,000 hours

🛡️ Safety Features

Feature	Description
✅ ROPS/FOPS	Roll-Over & Falling Object Protective Structure
✅ Automatic Engine Idle	Shuts off after 5 min inactivity
✅ Rear-View Camera	Standard on EC290E
✅ LED Work Lights	Excellent night visibility
✅ Anti-Theft Immobilizer	Volvo Security System
✅ Slow-Down Function	Reduces speed near obstacles

🏗️ Typical Applications

Application	Details
🏗️ General Excavation	Foundation work, trenching, utility installation
🪨 Mining & Quarrying	Rock excavation, loading trucks
🛣️ Road Construction	Grading, ditch cleaning, pipe laying
💥 Demolition	With hydraulic breaker or grapple
🌲 Forestry	With grapple or harvester head
🏭 Material Handling	With magnet or sorting grapple

💰 Approximate Pricing (2024 Estimates)

Configuration	Price Range (USD)
EC290E (Base)	$250,000 – $290,000
EC290E (Fully Loaded w/ IMC)	$310,000 – $360,000
EC290B (Used, good condition)	$100,000 – $160,000

Prices vary by region, dealer, and configuration (long reach, GPS, quick coupler, etc.)

🆚 Competitors Comparison

Model	Weight	Power	Dig Depth
Volvo EC290E	29t	204 hp	7.2 m
CAT 329 GC	29.5t	208 hp	7.3 m
Komatsu PC290LC-11	28.7t	194 hp	7.2 m
Hitachi ZX290LC-7	29.4t	198 hp	7.2 m
Doosan DX290LC-7	29.2t	197 hp	7.1 m
Hyundai R290LC-7	29.1t	196 hp	7.0 m

✅ Pros & ❌ Cons

✅ Pros	❌ Cons
Excellent fuel efficiency (ECO mode)	Higher purchase price than some competitors
Superior cab comfort & low noise	Heavier than some rivals (higher ground pressure)
Best-in-class telematics (Volvo LIVE)	Parts can be expensive
Strong residual value	Service network not as wide as CAT in some regions
Easy maintenance access
Great operator comfort & visibility

🏁 Summary

The Volvo EC290E is widely regarded as one of the best 29-ton excavators on the market, known for its:

🏆 Fuel efficiency, operator comfort, advanced technology (IMC/Co-Pilot), and strong build quality.

It's the go-to choice for contractors who prioritize productivity, technology integration, and low operating costs over the machine's lifespan.

Would you like more details on any specific aspect — such as attachments, maintenance schedule, or comparison with a specific competitor? 🔧

Non flooded

No accident

Original product

High quality and low price

We guarantee the quality of each machine and promise
to offer you the most favorable price.

Used Volvo 290Excavator

RELATED PRODUCTS

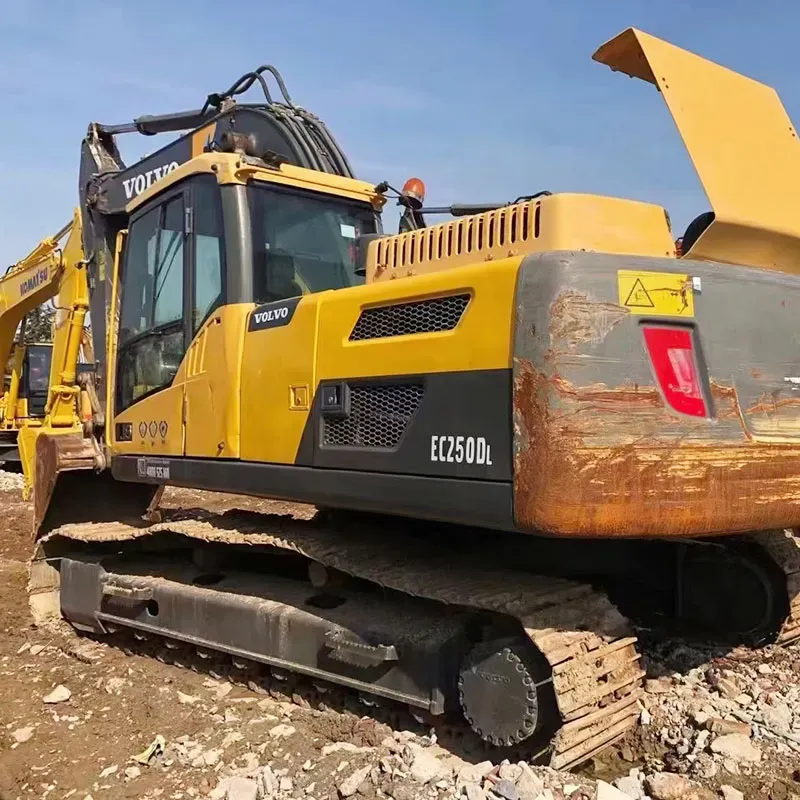

Volvo 250

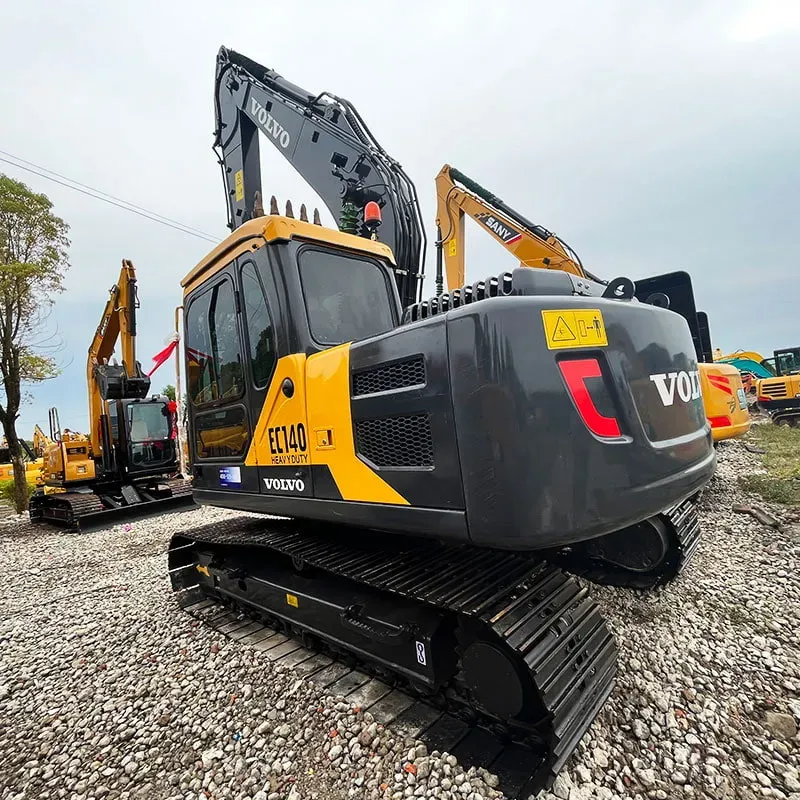

Volvo 140

Volvo 140

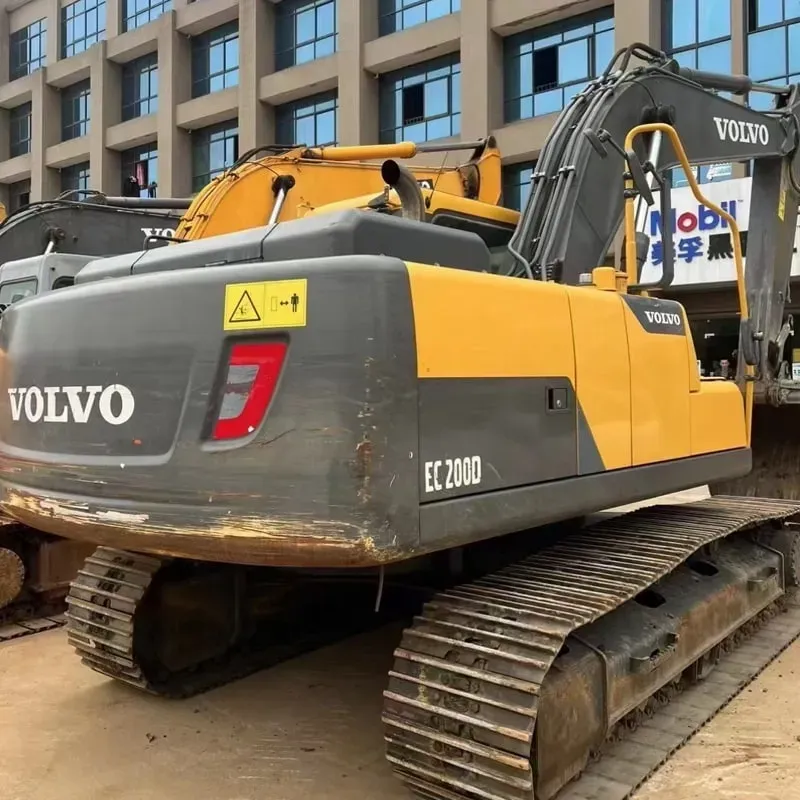

Volvo 200
