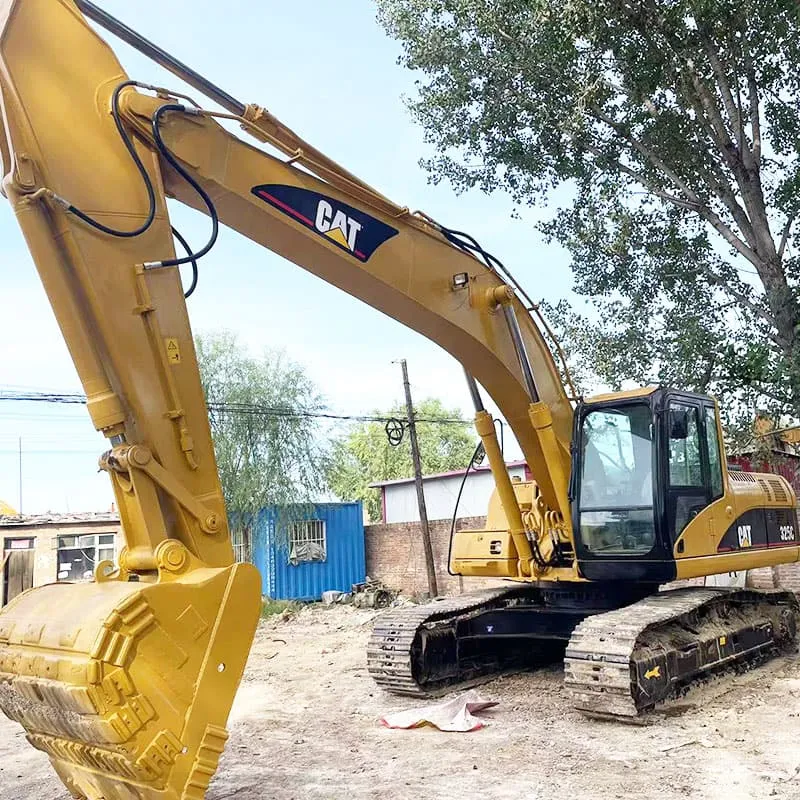

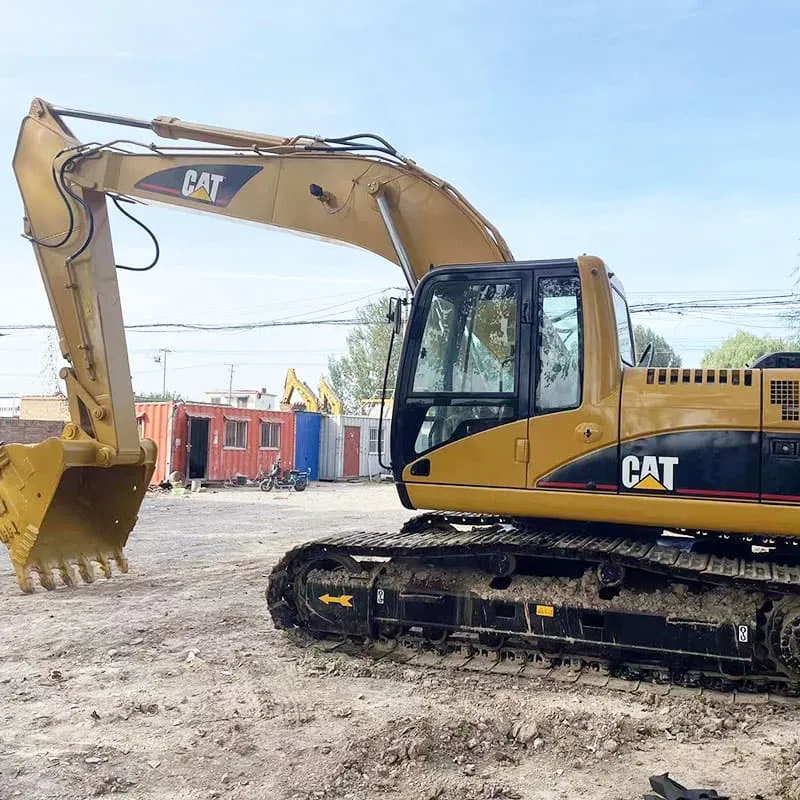

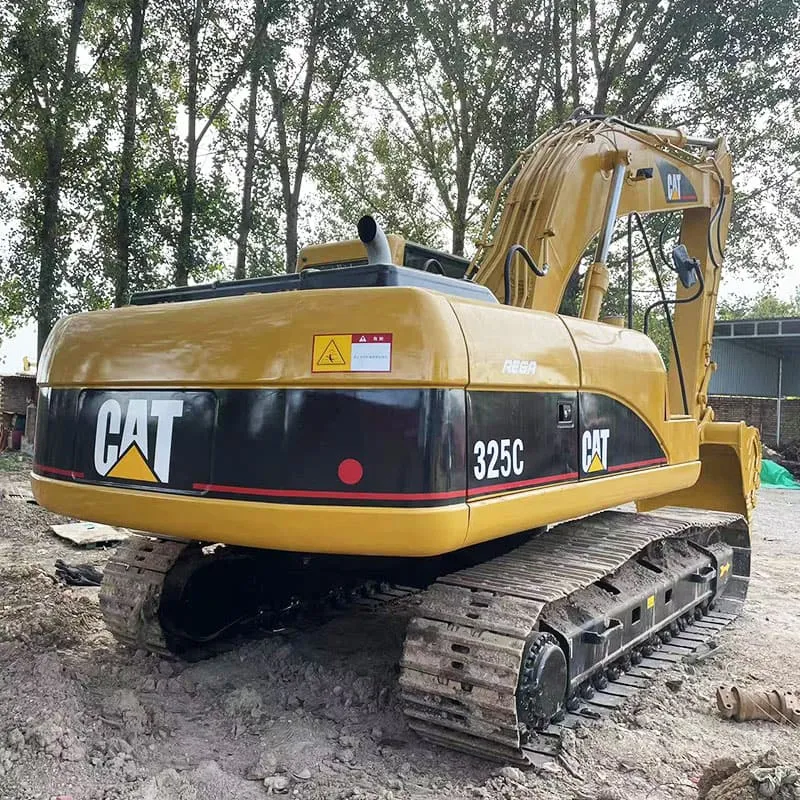

Used Caterpillar 325C Excavator

Reading: 17

📋 OVERVIEW

Specification	Details
Manufacturer	Caterpillar Inc.
Model	325C (also known as 325C L)
Production Years	~1999 – 2004
Series	C-Series (replaced 325B, succeeded by 325D)
Class	Mid-Size Hydraulic Excavator (~25-ton class)
Primary Use	General construction, road building, utility work, landscaping, mining

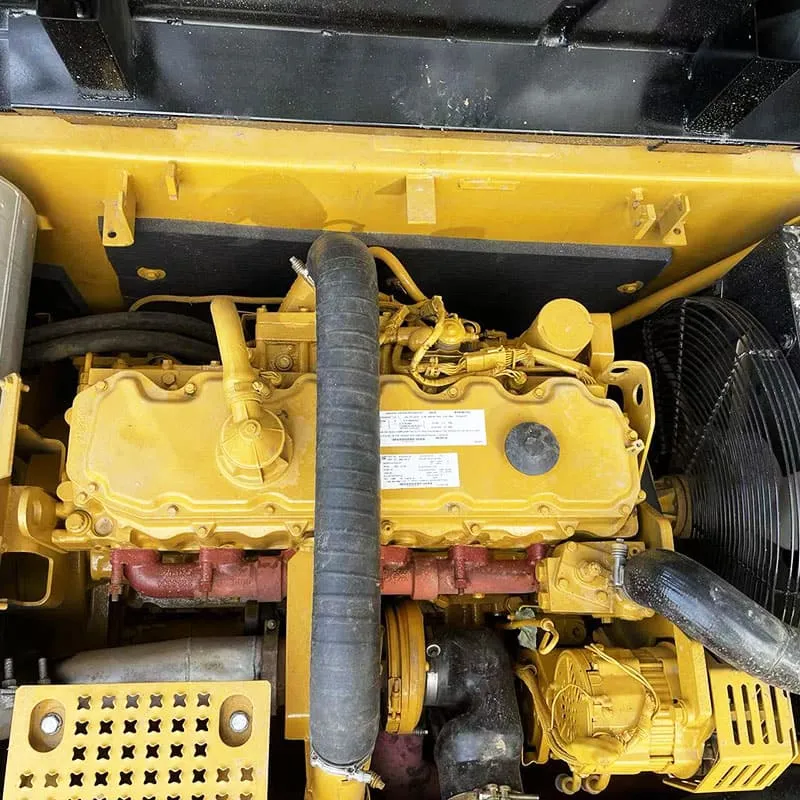

🔧 ENGINE

Feature	Specification
Engine Model	Caterpillar C7 ACERT® Turbocharged Diesel
Displacement	7.2 L (439 cu in)
Rated Power	121 hp (90 kW) @ 2,000 rpm
Torque	~425 Nm (313 lb-ft)
Emissions	ACERT technology for reduced emissions (Tier 1/Tier 2)
Fuel Tank Capacity	~400 L (106 gal)
Cooling System	Pressurized, with fan drive

✅ The ACERT (Advanced Combustion Emission Reduction Technology) was a major advancement, offering better fuel efficiency and lower emissions compared to the older 3176 engine in the 325B.

⚖️ OPERATING WEIGHT

Configuration	Weight
Operating Weight	24,900 kg (54,900 lb)
Shipping Weight	~25,400 kg (56,000 lb)
Ground Pressure	~45 kPa (6.5 psi)

🪣 DIMENSIONS & REACH

Specification	Metric	Imperial
Max Digging Depth	6,810 mm	22 ft 4 in
Max Reach (Ground Level)	9,440 mm	31 ft 0 in
Max Horizontal Reach	9,660 mm	31 ft 8 in
Max Dumping Height	7,060 mm	23 ft 2 in
Max Digging Reach (10 o'clock)	6,370 mm	20 ft 11 in
Tail Swing Radius	2,790 mm	9 ft 2 in
Undercarriage Length	3,870 mm	12 ft 8 in
Track Width	600 mm (triple grouser) or 800 mm (single grouser)	24" / 32"

🪣 BUCKET CAPACITIES

Bucket Type	Capacity (m³)	Capacity (yd³)
Standard	0.93	1.22
Heavy Duty	1.10	1.44
Max Capacity	1.40	1.83

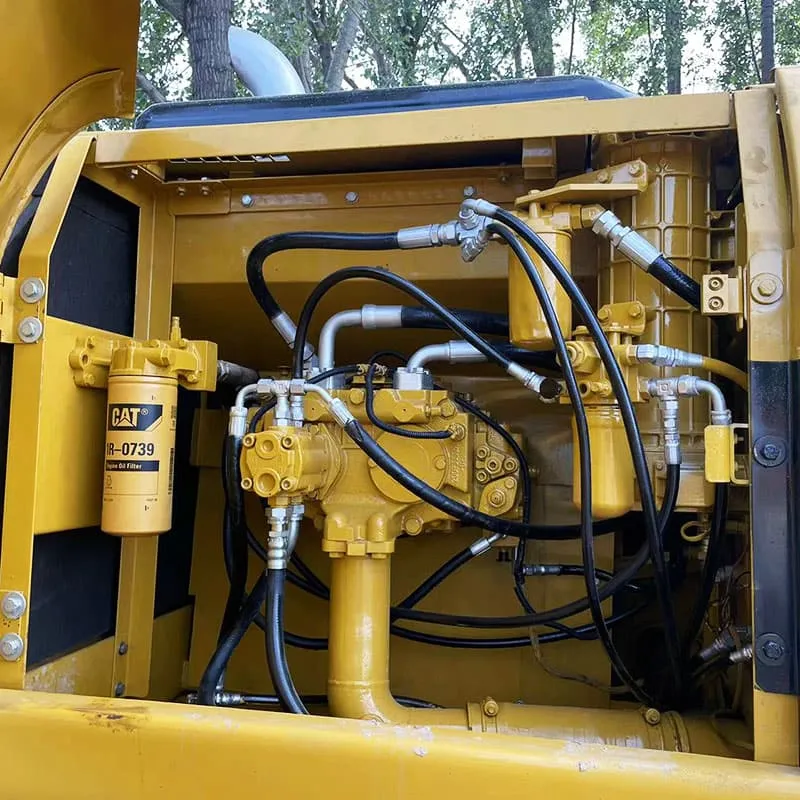

💧 HYDRAULIC SYSTEM

Feature	Specification
Main Pump Type	2 × Variable Displacement Axial Piston Pumps
Total Flow	2 × 155 L/min (41 gal/min) = 310 L/min (82 gal/min)
System Pressure	34,500 kPa (5,000 psi)

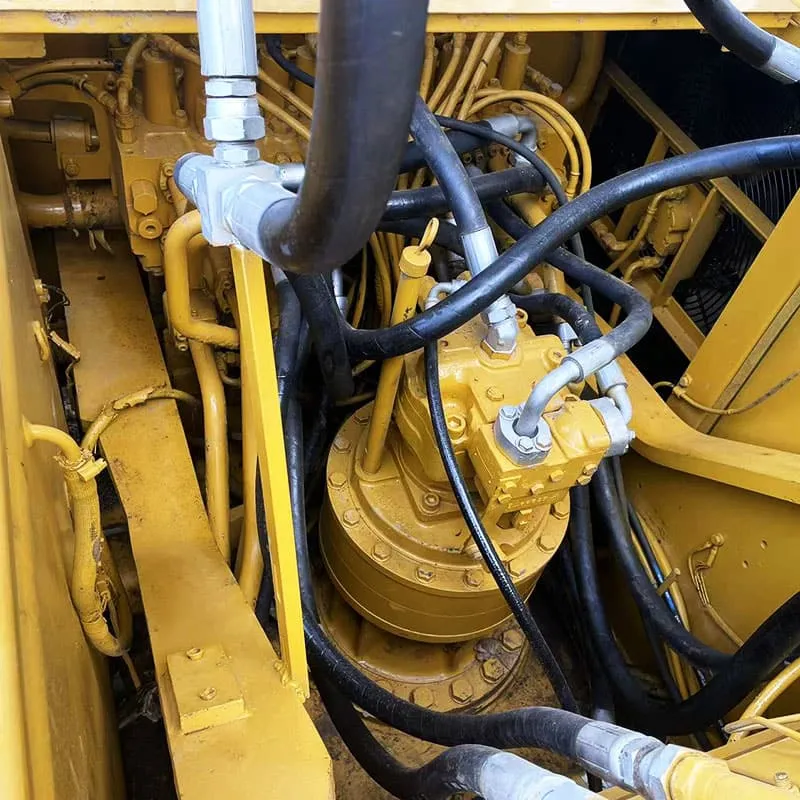

Swing Motor	Variable displacement axial piston
Swing Speed	11.4 rpm
Travel Speed	4.8 km/h (3.0 mph)
Auxiliary Hydraulics	Available (flow ~45 L/min for thumbs, hammers, etc.)

🏗️ UNDERCARRIAGE

Feature	Details
Track Type	Steel, 600 mm (24") triple grouser (standard)
Shoe Options	Single grouser (800 mm), triple grouser (600 mm)
Number of Rollers	5 per side
Number of Carrier Rollers	2 per side
Sprocket	Segment-type

🖥️ OPERATOR ENVIRONMENT (CAB)

Feature	Details
Cab Type	ROPS/FOPS certified
Climate Control	Air conditioning (standard)
Seat	Air-suspended, heated (premium)
Monitor	LCD instrument panel with diagnostic display
Controls	Levers with adjustable pattern changer (optional)
Noise Level	~73 dB(A)
Visibility	Large glass area, excellent all-round visibility
Radio/Audio	AM/FM radio ready
Product Link™	Available on later models — remote machine monitoring

🔑 KEY FEATURES & TECHNOLOGIES

Feature	Description
🔄 Pattern Changer	Allows operator to switch between dig, load, and dozer patterns
📡 Cat Product Link™	Remote monitoring of location, hours, fuel, diagnostics
🖥️ Cat VisionLink™	Fleet management and telematics
🛡️ ROPS/FOPS	Roll-Over & Falling Object Protective Structure
⚡ Auto-Idle	Engine automatically reduces RPM when not working (saves fuel)
🔧 Extended Service Intervals	500-hour or 1,000-hour service intervals
🛢️ Quick Couplers	Available for rapid attachment changes
🔨 Hydraulic Thumb Ready	Pre-piped for hydraulic thumb attachment

📊 PERFORMANCE SUMMARY

Parameter	Value
Power-to-Weight Ratio	~4.9 hp/tonne
Fuel Consumption	~15–20 L/hr (depending on workload)
Breakout Force	~118 kN (26,500 lbf)
Tractive Effort	~175 kN (39,300 lbf)
Gradeability	70% (35°)
Towing Capacity	~25 tonnes (on flat ground)

🆚 COMPARISON WITH NEIGHBORS

Model	Weight	Power	Class
Cat 320C	20,500 kg	97 hp	20-ton
Cat 325C ⭐	24,900 kg	121 hp	25-ton
Cat 330C	29,500 kg	155 hp	30-ton
Komatsu PC250-8	24,700 kg	127 hp	25-ton
Hitachi ZX250-3	25,200 kg	128 hp	25-ton

✅ STRENGTHS

✔️ Strength	Details
Reliability	Cat C7 engine is legendary for durability
Fuel Efficiency	ACERT + Auto-Idle = lower operating costs
Parts Availability	Massive global Cat dealer network
Resale Value	Holds value very well in the used market
Versatility	Works in construction, mining, demolition, landscaping
Comfort	One of the best cabs in its class

⚠️ Limitations	Details
Age	Being 20+ years old, parts may be harder to find
Emissions	Not Tier 4 Final — may be restricted in some zones
Technology	Lacks modern GPS/telematic features of newer models

💰 APPROXIMATE MARKET VALUE (2024)

Condition	Price Range (USD)
Good Condition (8,000–10,000 hrs)	$35,000 – $55,000
Excellent Condition (<6,000 hrs)	$55,000 – $75,000
Heavy Use (12,000+ hrs)	$20,000 – $35,000

(Varies significantly by region and condition)

📌 SUMMARY

The Caterpillar 325C is a proven, reliable, and versatile mid-size excavator that served the construction industry for over a decade. Powered by the dependable C7 ACERT engine, it offers excellent digging performance, low operating costs, and outstanding operator comfort. While it has been superseded by the 325D/325 GC, it remains a popular choice on the used equipment market due to its durability, parts availability, and strong resale value.

Would you like more details on any specific aspect — such as attachments, maintenance schedule, or comparison with the 325D? 🚜
