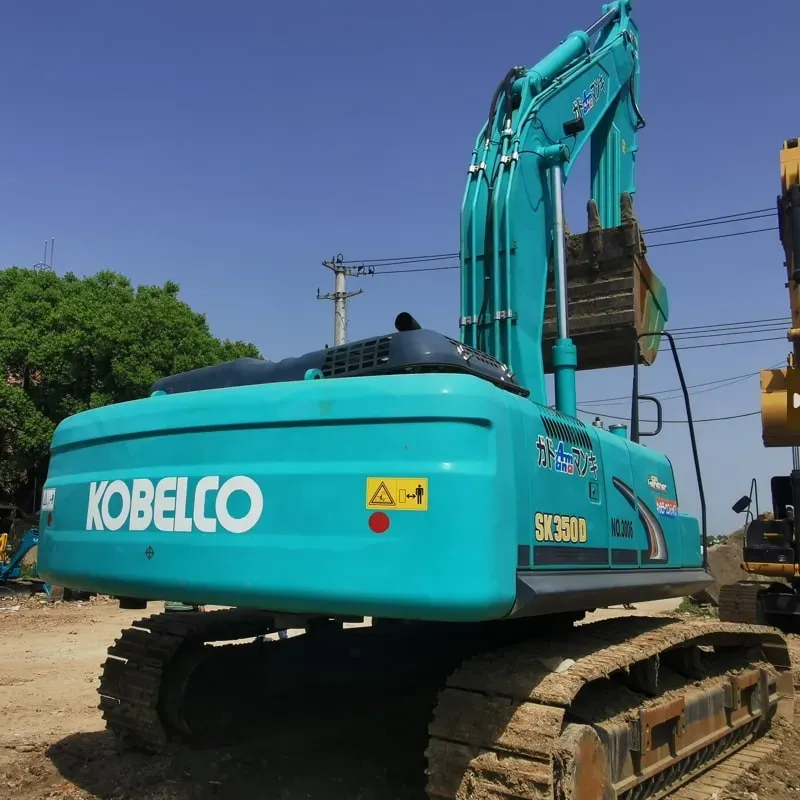

Used Kobelco SK350Excavator

Reading: 22

📌 1. OVERVIEW

The Kobelco SK350 (also known as SK350LC-8 / SK350LC-10) is a 35-ton class hydraulic crawler excavator manufactured by Kobe Steel Ltd. (Kobelco Construction Machinery), one of Japan's leading heavy equipment makers. It is designed for heavy-duty earthmoving, mining, quarrying, and large-scale construction projects.

Kobelco is globally recognized for its "Blue is the way forward" philosophy — focusing on fuel efficiency, durability, operator comfort, and low total cost of ownership (TCO).

🔧 2. MAIN MODELS / GENERATIONS

Model	Engine	Power	Production Era
SK350LC-8	Mitsubishi 6D31-TL	~240 HP (179 kW)	~2007–2012
SK350LC-8E	Mitsubishi 6D31-TL (Euro III)	~240 HP	~2012–2017
SK350LC-10	Isuzu AH-6HK1XQA	~260 HP (194 kW)	~2017–Present
SK350LC-10E	Isuzu AH-6HK1XQA (Euro V/Stage V)	~260 HP	Current

✅ The SK350LC-10 is the latest and most advanced version, featuring improved fuel efficiency, emissions compliance, and smart technology.

📐 3. KEY TECHNICAL SPECIFICATIONS (SK350LC-10)

Parameter	Specification
Operating Weight	~35,300 kg (77,820 lbs)

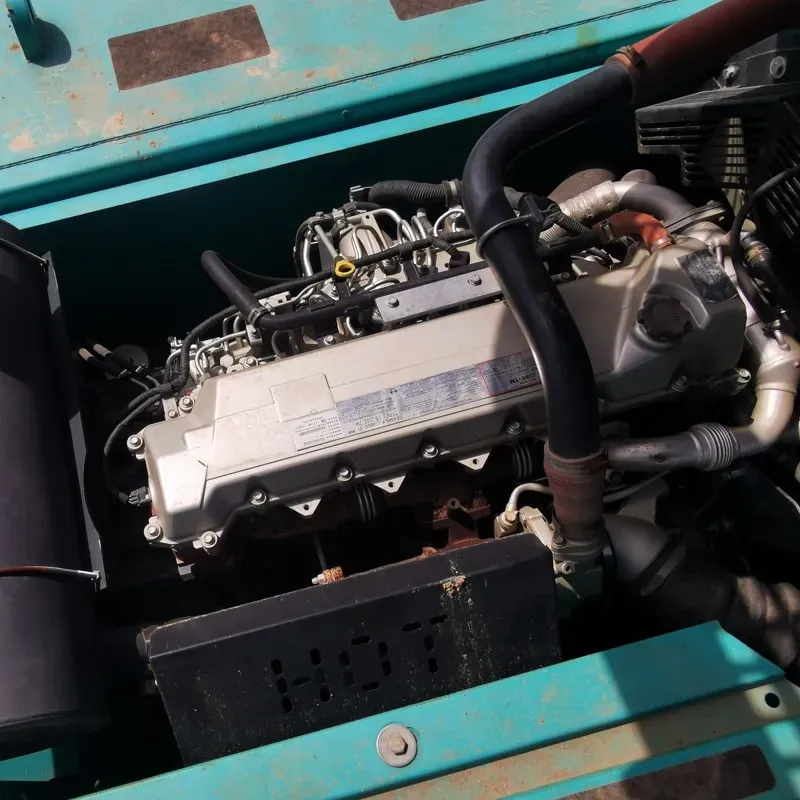

Engine	Isuzu AH-6HK1XQA, 6-cylinder, turbocharged, intercooled
Rated Power	260 HP (194 kW) @ 2,000 rpm
Max Torque	~950 N·m @ 1,400 rpm
Bucket Capacity (Standard)	1.2 – 1.7 m³ (1.57 – 2.22 yd³)
Max Digging Depth	~7,430 mm (24.4 ft)
Max Digging Reach	~10,640 mm (34.9 ft)
Max Dumping Height	~7,680 mm (25.2 ft)
Max Digging Force (Boom)	~230 kN (51,700 lbf)
Max Digging Force (Arm)	~160 kN (36,000 lbf)
Travel Speed	2.8 – 5.3 km/h (1.7 – 3.3 mph)
Ground Pressure	~65 kPa (9.4 psi)
Fuel Tank Capacity	~580 L (153 US gal)
Hydraulic System	Load-sensing, variable displacement piston pump
Emissions	Euro V / EPA Tier 4 Final (SK350LC-10E)

🧠 4. CORE TECHNOLOGIES & FEATURES

🔵 A. iCOS (Intelligent Control System) — Kobelco's Smart System

Automatically optimizes engine speed + hydraulic pump output based on workload
Reduces fuel consumption by up to 10–15% compared to conventional systems
Matches power delivery precisely to digging demand

🔵 B. Eco Mode / Green Mode

Two-stage eco mode for light-load operations
Engine RPM and pump output are automatically reduced
Saves significant fuel during loading trucks, finishing work, etc.

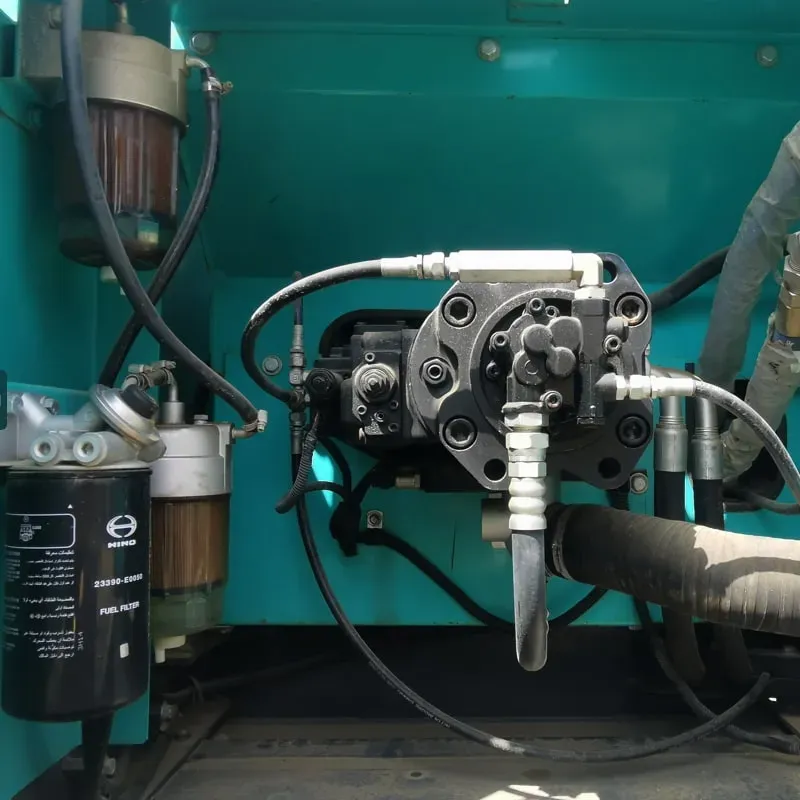

🔵 C. Advanced Hydraulic System

Variable displacement axial piston pump — only delivers the flow needed
Load-sensing + pressure-compensated system
Smooth, precise operation with reduced heat generation

🔵 D. Kobelco K-MONIT (Telematics System)

Real-time machine monitoring via GPS
Tracks: fuel consumption, operating hours, location, maintenance alerts, idle time
Helps fleet managers optimize productivity and reduce downtime

🔵 E. Automatic Boom/Arm Speed Control

Maintains consistent swing/dig speed regardless of load
Reduces operator fatigue
Improves cycle time consistency

🔵 F. Anti-Swing & Ride Control (Optional)

Reduces bucket swing during travel
Improves safety and precision

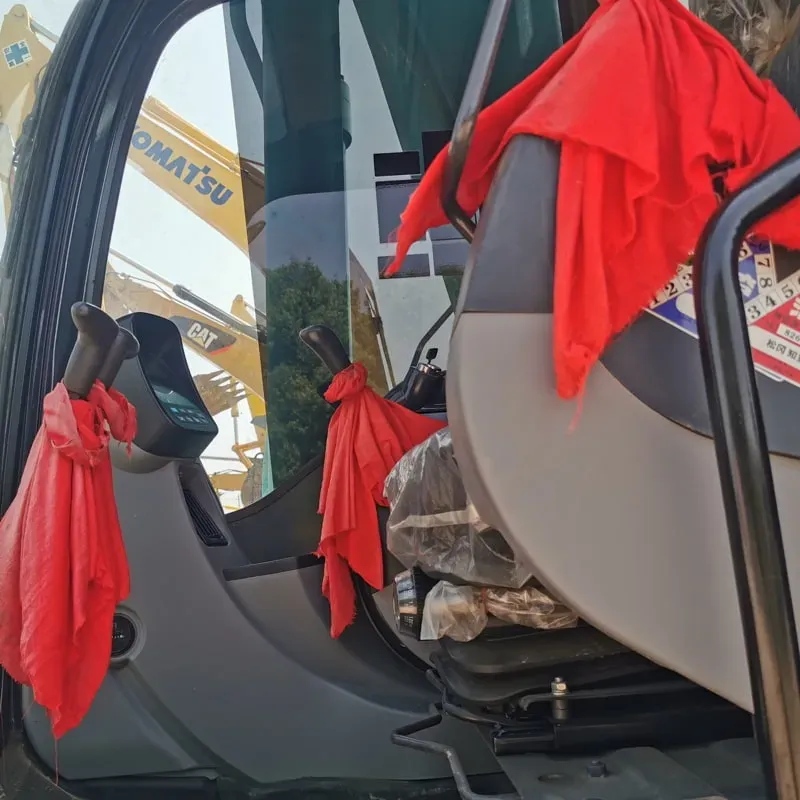

🛋️ 5. OPERATOR CABIN & COMFORT

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Air Conditioning	Full auto climate control
Seat	Air-suspended, fully adjustable, heated (optional)
Display	7-inch LCD multi-function monitor
Controls	Electronic joystick with multiple modes (Auto, Manual, Economy)
Noise Level	~70 dB(A) — very quiet for its class
Visibility	Excellent all-round visibility with large windows
USB / Bluetooth	Available for charging and audio

⭐ Kobelco cabins are consistently rated among the best in the industry for comfort and ergonomics.

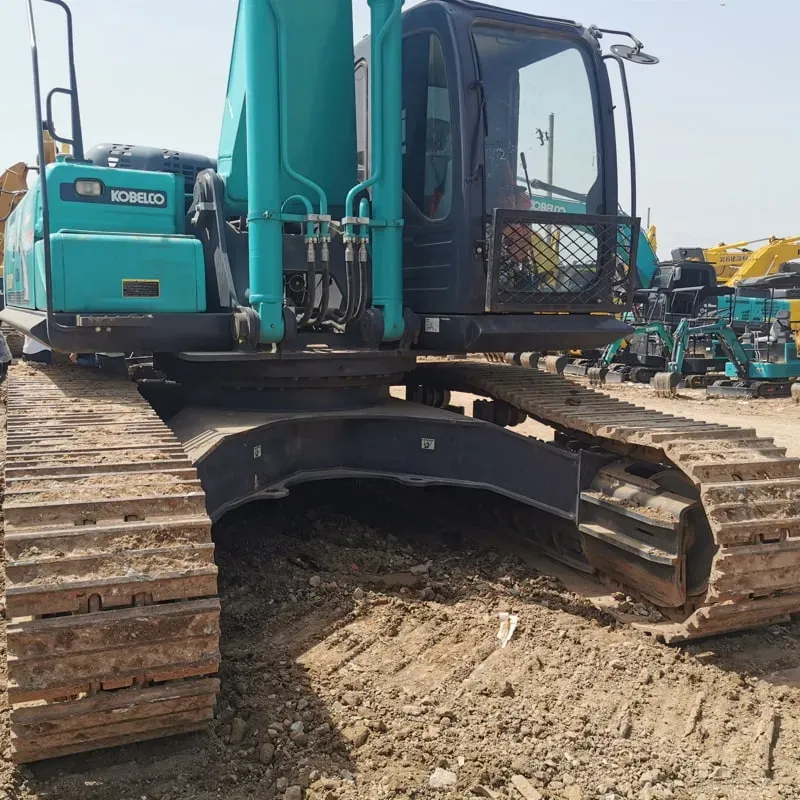

🔩 6. UNDERCARRIAGE & DURABILITY

Component	Detail
Track Frame	High-strength steel, reinforced X-frame design
Track Shoe Width	600 mm (23.6 in) — optional 700 mm for soft ground
Rollers	9 per side (upper & lower) — sealed, grease-lubricated
Sprocket	Hardened steel, long-life design
Undercarriage Life	Rated for 8,000–10,000 hours with proper maintenance

💼 7. APPLICATIONS

Application	Suitability
🏗️ Large-scale excavation	⭐⭐⭐⭐⭐
& Mining & quarrying	⭐⭐⭐⭐⭐
🏗️ Road & highway construction	⭐⭐⭐⭐⭐
🏢 Building foundation work	⭐⭐⭐⭐⭐
🪨 Demolition (with breaker attachment)	⭐⭐⭐⭐
🌲 Forestry (with grapple)	⭐⭐⭐⭐
🏗️ Pipe laying	⭐⭐⭐⭐
🏔️ Mountain/slope work (long reach)	⭐⭐⭐⭐

🆚 8. COMPETITOR COMPARISON

Spec	Kobelco SK350LC-10	CAT 336	Komatsu PC350-11	Hitachi ZX350-6
Power	260 HP	299 HP	275 HP	275 HP
Weight	35,300 kg	35,900 kg	35,300 kg	35,500 kg
Bucket	1.2–1.7 m³	1.2–1.8 m³	1.2–1.7 m³	1.2–1.6 m³
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Cab Comfort	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 Kobelco SK350 is often considered the best balance of fuel efficiency, comfort, and reliability in the 35-ton class.

💰 9. PRICING (Approximate, 2024)

Condition	Price Range (USD)
New (SK350LC-10E)	$180,000 – $230,000
Used (5,000–8,000 hrs)	$80,000 – $130,000
Used (8,000–12,000 hrs)	$60,000 – $90,000

⚠️ Prices vary by region, configuration, and attachments.

✅ 10. STRENGTHS & WEAKNESSES

✅ STRENGTHS

✔️	Detail
🛢️	Best-in-class fuel efficiency (iCOS system)
🛋️	Excellent operator comfort — low noise, great seat, easy controls
🔧	High reliability & low maintenance costs
📈	Strong resale value — Kobelco holds value very well
🌐	Excellent dealer/parts network globally
🧠	Smart telematics (K-MONIT) for fleet management

❌ WEAKNESSES

⚠️	Detail
💪	Slightly less raw power than CAT 336 (260 vs 299 HP)
🔄	Hydraulic flow is good but not the highest in class
🌎	Less common in North America compared to CAT/Komatsu (smaller market share)

🏁 11. SUMMARY

Category	Rating
Performance	⭐⭐⭐⭐ (4/5)
Fuel Efficiency	⭐⭐⭐⭐⭐ (5/5)
Operator Comfort	⭐⭐⭐⭐⭐ (5/5)
Durability/Reliability	⭐⭐⭐⭐⭐ (5/5)
Resale Value	⭐⭐⭐⭐⭐ (5/5)
After-Sales Support	⭐⭐⭐⭐ (4/5)

🎯 Bottom Line:
The Kobelco SK350LC-10 is a top-tier 35-ton excavator ideal for operators and contractors who prioritize fuel savings, operator comfort, reliability, and low operating costs. While it may not have the absolute highest horsepower, its intelligent iCOS system and excellent build quality make it one of the smartest choices in its class — especially for long-hour, high-productivity operations.
