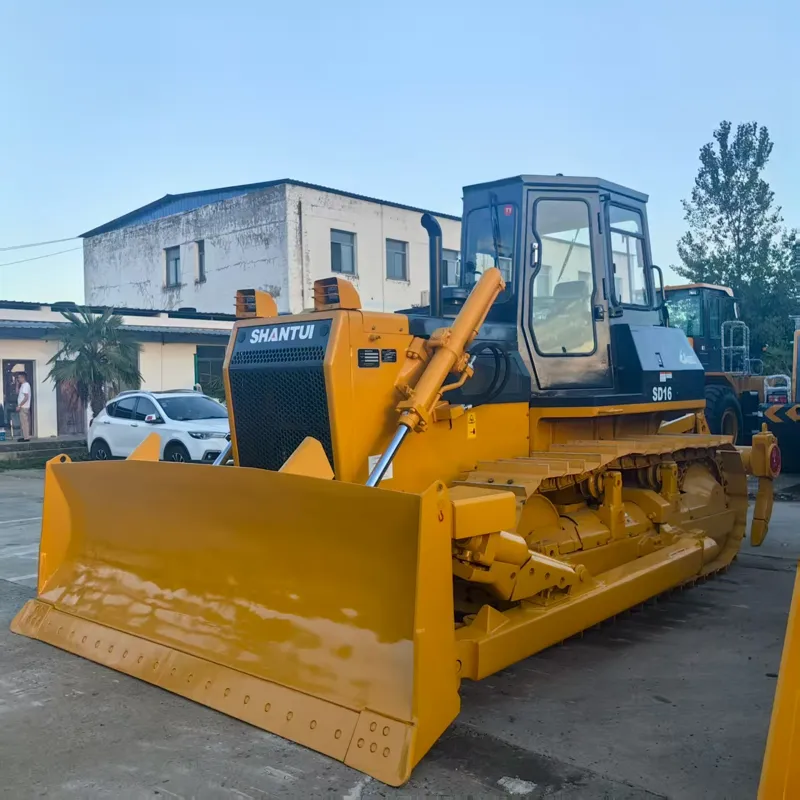

Used Shantui SD16Bulldozer

Reading: 16

🏢 Manufacturer Overview

Item	Detail
Manufacturer	Shantui Construction Machinery Co., Ltd. (山推工程机械股份有限公司)
Headquarters	Jining, Shandong Province, China
Founded	1980 (listed on Shenzhen Stock Exchange: 000680)
Global Presence	Exported to 150+ countries
Reputation	One of China's top 3 construction machinery brands, world's largest bulldozer manufacturer by volume

The SD16 is Shantui's flagship and best-selling model, produced since the late 1980s/early 1990s. It is essentially the Chinese equivalent of the Caterpillar D6 in terms of market positioning.

📋 Key Specifications

Parameter	Specification
Model	SD16 (Standard Type)
Rated Power	160 HP (118 kW) @ 1,900 rpm
Operating Weight	~16,500 kg (16.5 tons)
Engine	Shangchai SC9D220G2B1 (water-cooled, turbocharged diesel)
Displacement	9.2 L
Cylinders	6 (inline)
Transmission	Power shift, 3F + 3R
Blade Capacity (Straight)	4.5 m³ (some configs: 3.8 m³)
Blade Width × Height	3,715 mm × 1,140 mm
Max Speed (Forward)	~11 km/h
Max Speed (Reverse)	~13 km/h
Gradeability	30° (~58%)
Track Width	610 mm (standard)
Track Length on Ground	~2,370 mm
Ground Pressure	~45–50 kPa
Ripper	Single-shank, max depth ~450 mm
Fuel Tank Capacity	~290 L
Hydraulic System Flow	~180 L/min

🔧 Engine — Shangchai SC9D220G2B1

Feature	Detail
Type	6-cylinder, water-cooled, turbocharged diesel
Displacement	9.2 L
Power Output	118 kW (160 HP)
Emission Standard	China II / EU Stage II (upgraded versions available)
Fuel Consumption	~22–28 L/hour (varies by load)
Reliability	Proven over millions of operating hours worldwide

The Shangchai engine is a joint venture with Caterpillar technology, known for durability and easy maintenance.

🚜 Driveline & Transmission

Component	Detail
Transmission Type	Power Shift (no clutch needed)
Gears	3 Forward + 3 Reverse
Torque Converter	Single-stage, high-efficiency
Final Drive	Planetary gear reduction
Steering	Clutch-and-brake steering (wet multi-disc)

The power-shift transmission makes operation much easier compared to manual-shift bulldozers, reducing operator fatigue significantly.

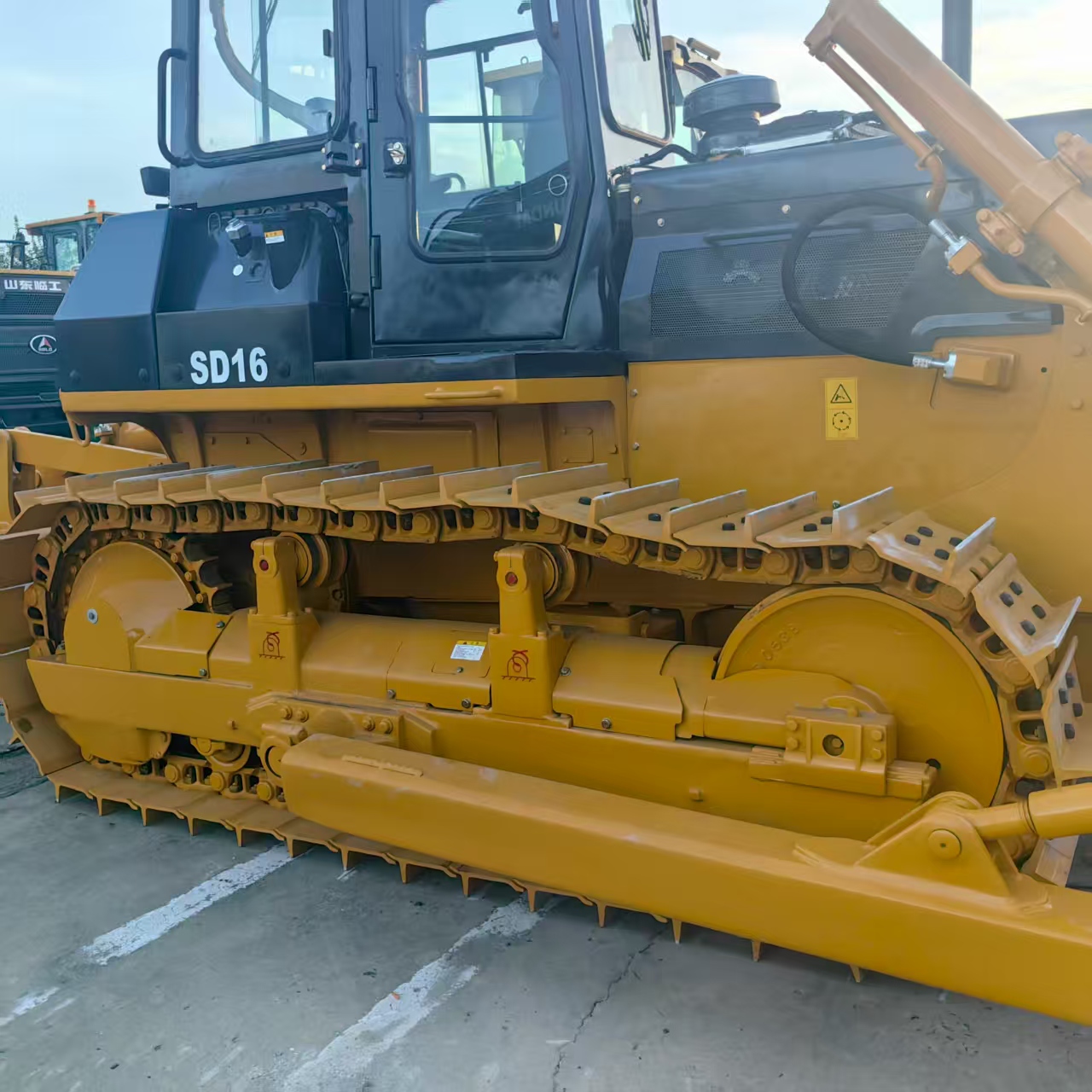

🔩 Undercarriage

Feature	Detail
Track Type	Wet pin, sealed & lubricated (SM/LGS type)
Track Shoe Width	610 mm (standard) / 500 mm (narrow option)
Number of Shoes per Side	41
Grouser Height	60 mm (optional: 76 mm for rocky terrain)
Roller	7 rollers per side (upper 3 carrier rollers)
Sprocket	Rear-mounted drive sprocket
Idler	Front-mounted, hydraulically tensioned

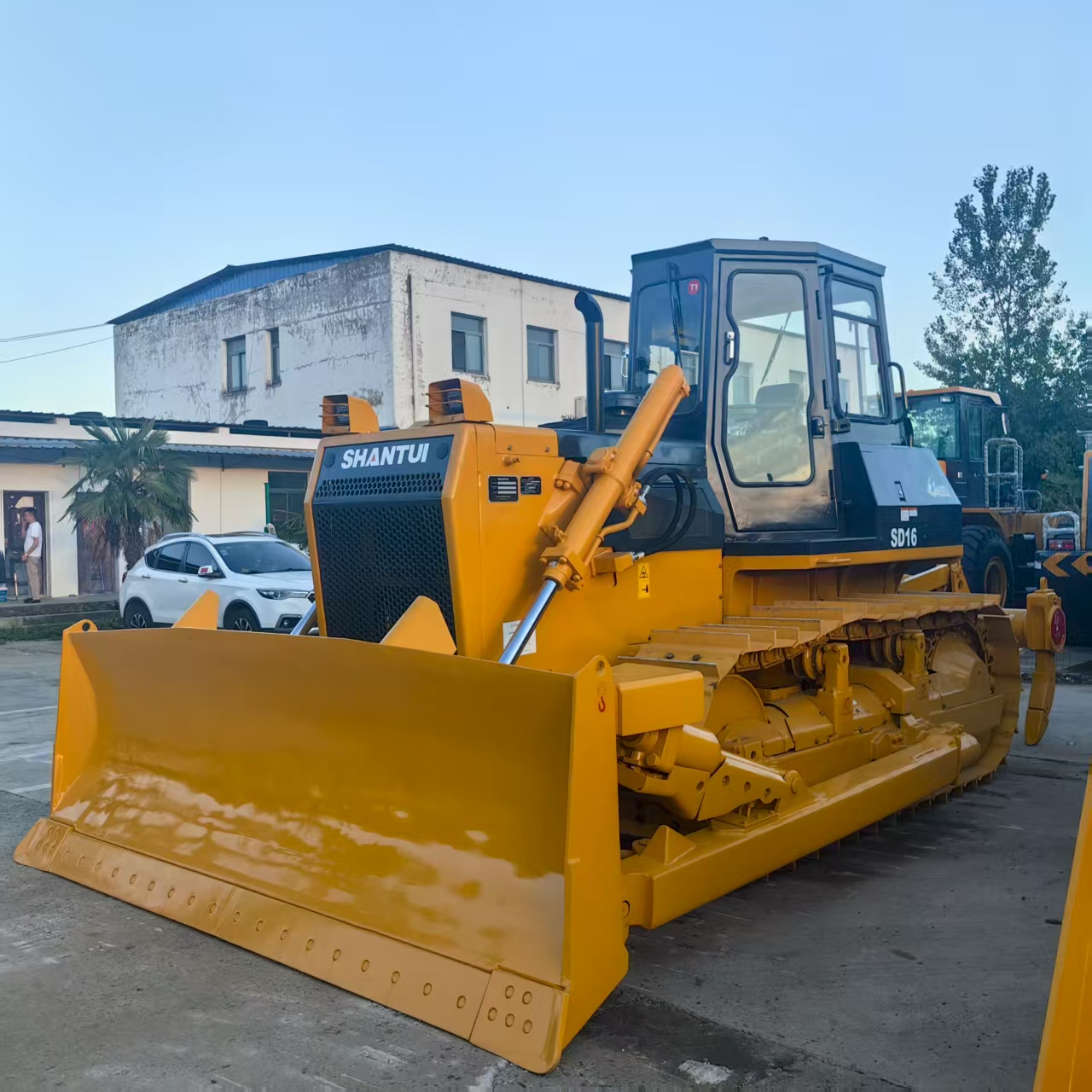

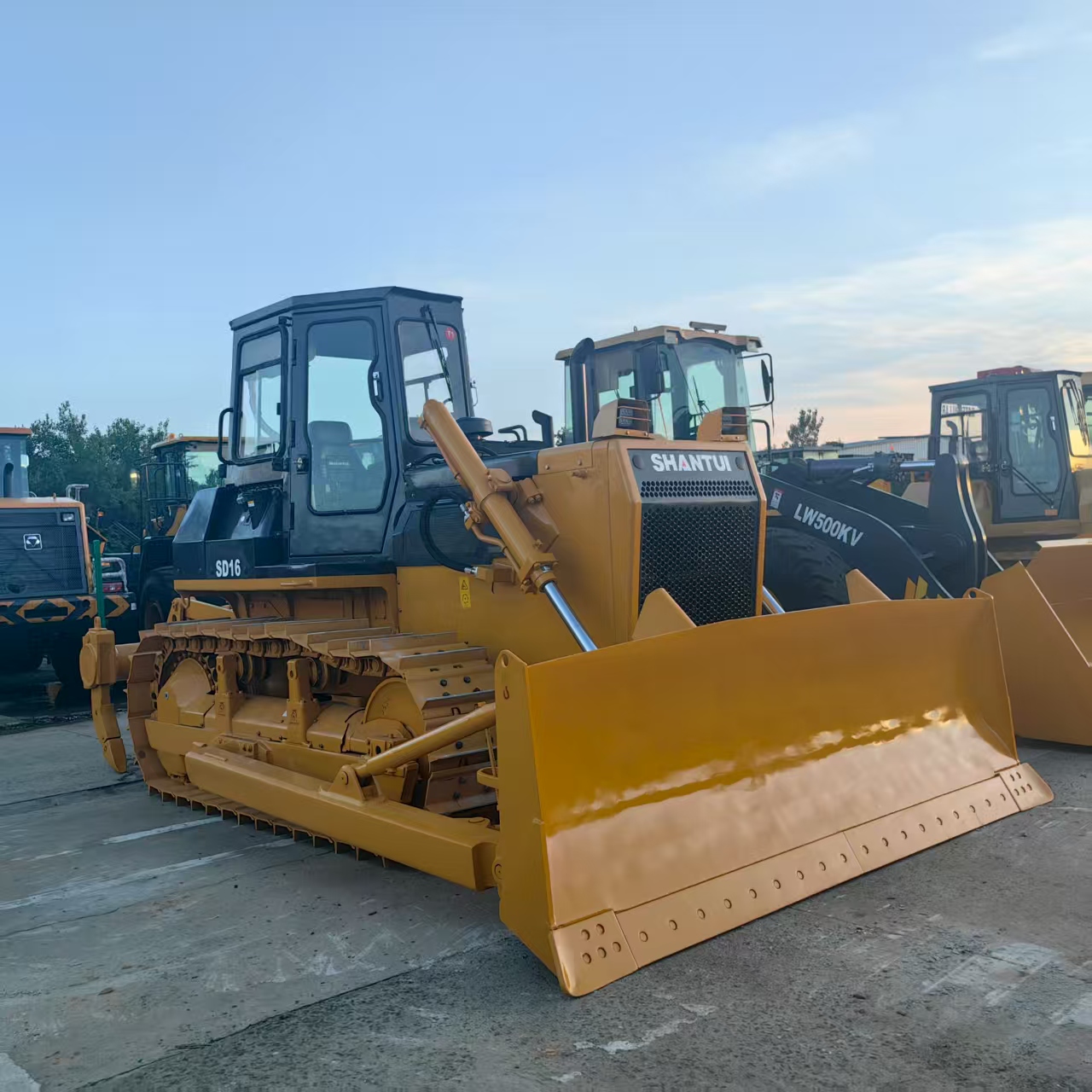

🏗️ Working Equipment

Blade (Standard)

Spec	Detail
Type	Straight blade (S-type / U-type optional)
Capacity	4.5 m³
Width	3,715 mm
Height	1,140 mm
Tilt Angle	±25°
Angle Adjustment	Hydraulic
Cutting Edge	Replaceable, 6 segments

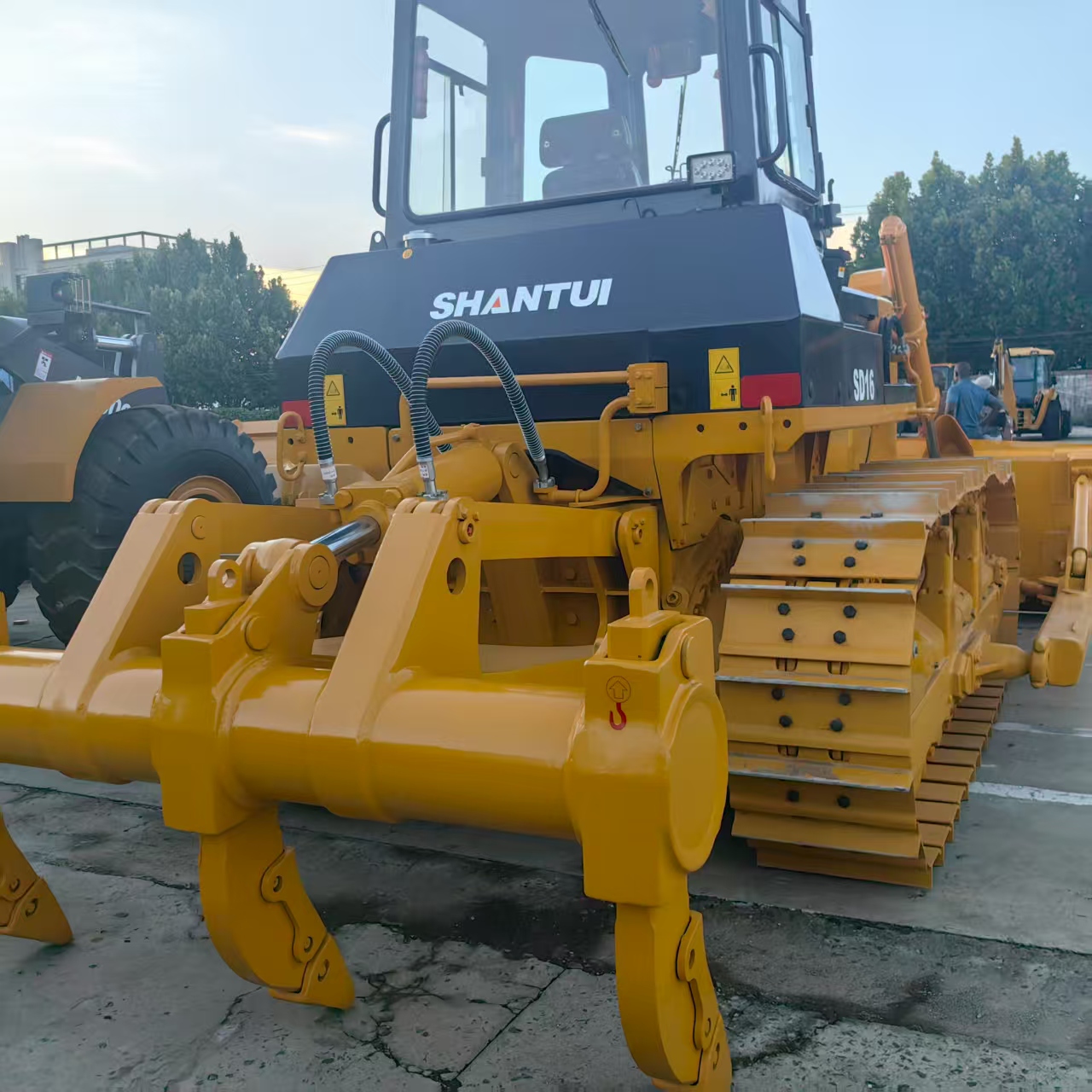

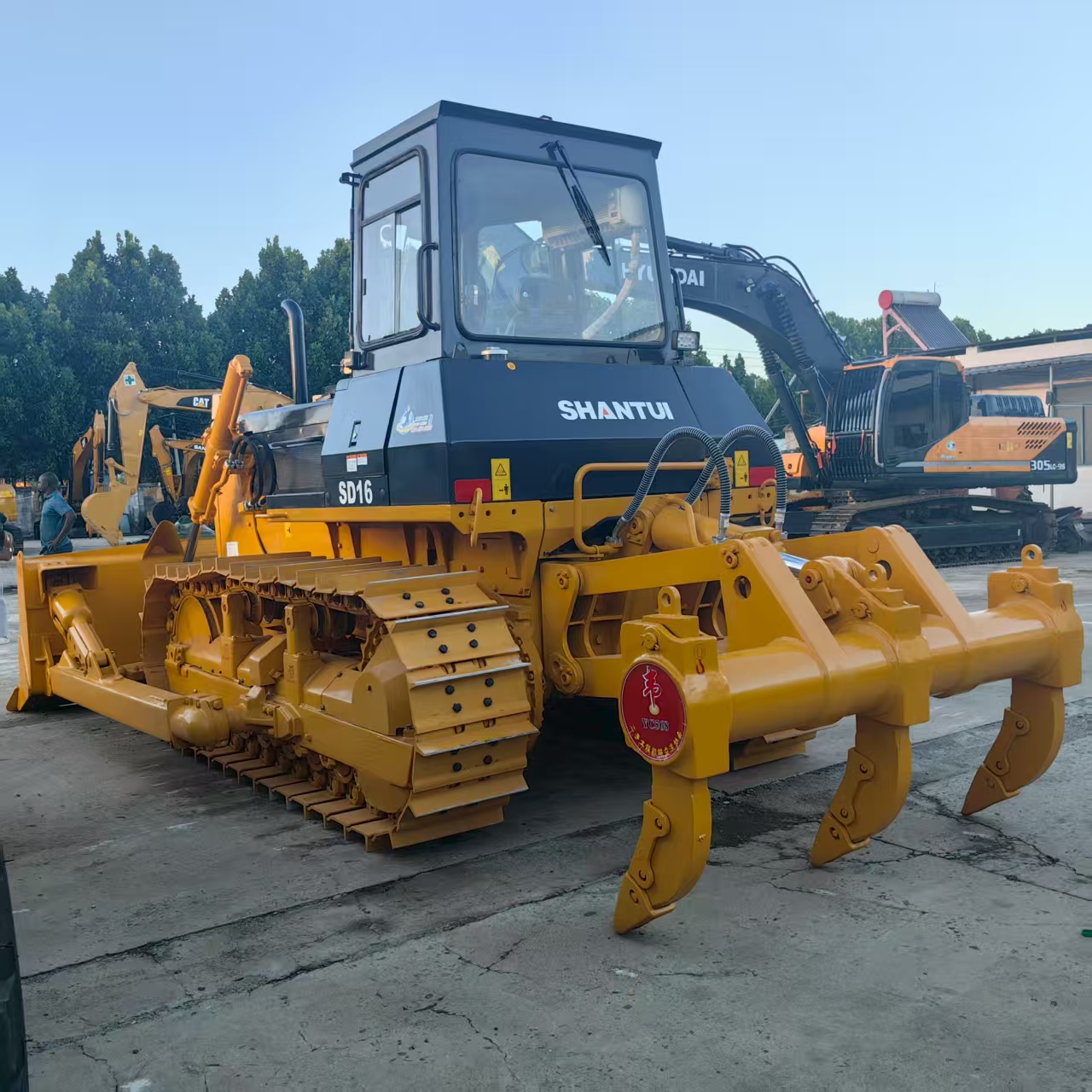

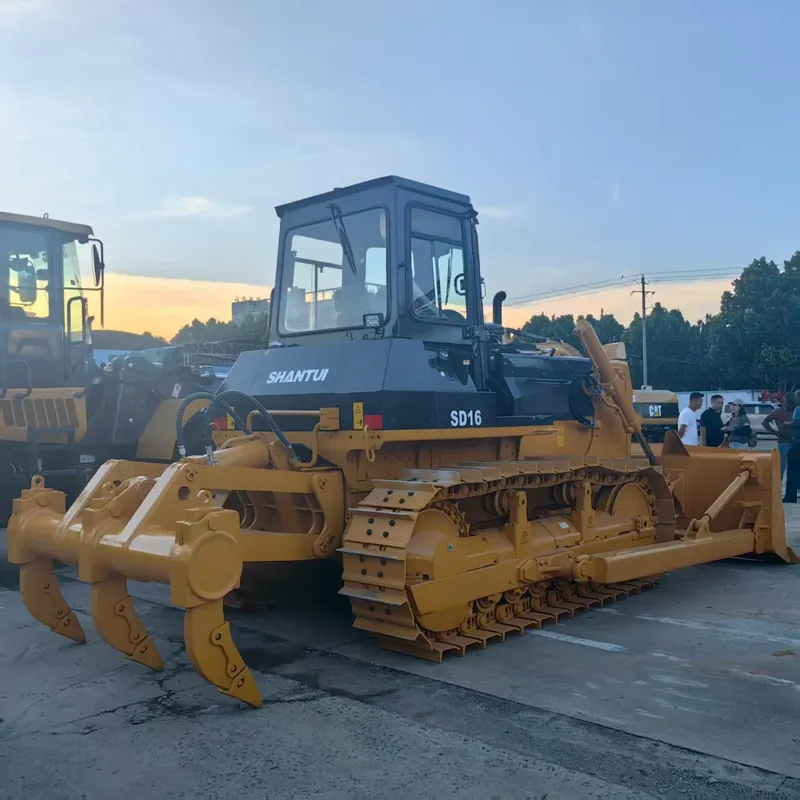

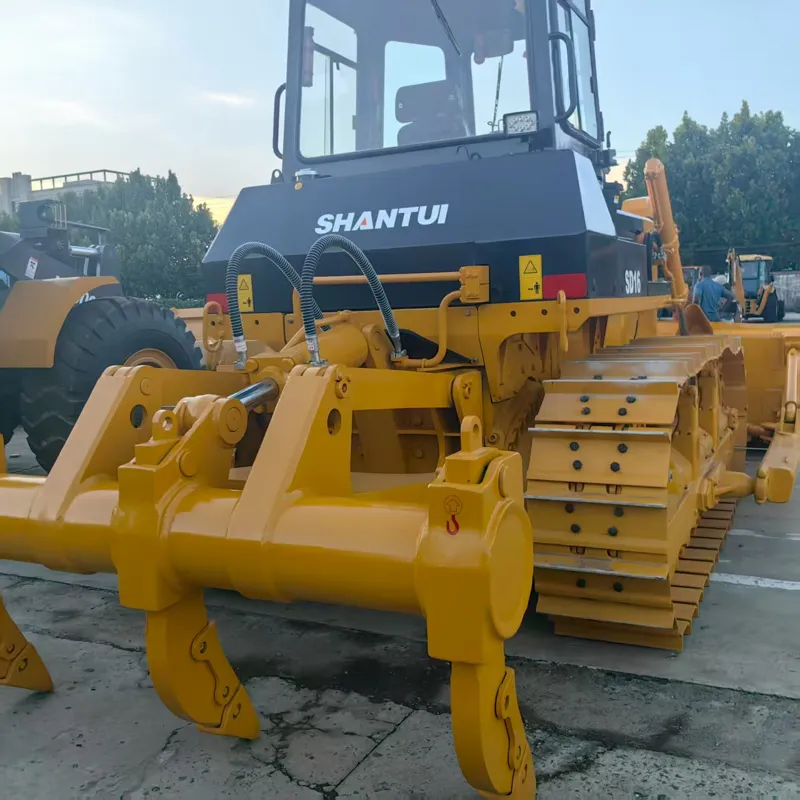

Ripper (Optional)

Spec	Detail
Type	Single shank
Max Depth	~450 mm
Teeth	3–5 teeth (replaceable)
Lift Capacity	~12,000 kgf

🛡️ Operator Cab

Feature	Detail
Type	ROPS/FOPS certified enclosed cab
Air Conditioning	✅ Standard
Seat	Suspension seat with armrest
Controls	Joystick-style (left: blade/ripper, right: transmission/steering)
Instrument Panel	Digital display: speed, engine rpm, fuel, temperature, hydraulic pressure
Visibility	Large front/side glass, rear-view mirror
Noise Level	~85 dB(A)
Vibration	Low-vibration mount

📊 Performance Summary

Task	Performance
Dozing (100m push)	~80–100 m³/hour
Ripping (soft rock)	~200–400 m³/hour
Fuel Efficiency	~8–12 m³/L (dozing)
Service Life	10,000–15,000 hours (with proper maintenance)
Maintenance Interval	Engine oil: 250h / Hydraulic oil: 500h / Track tension: 500h

🌍 Variants & Derivatives

Model	Difference
SD16L	Wetland/Swamp version — wider track (710 mm), lower ground pressure (~35 kPa)
SD16-5	Upgraded version with improved engine & cab
SD16F	Forestry version — larger blade, ripper, enhanced undercarriage
SD16W	Waste/Landfill version — U-blade, ripper, extra protection
SD16C	Compact/narrow version (500 mm track)
DH17 (Shantui)	Export market name for SD16

✅ Advantages

✅ Strength	Explanation
🏆 Best Value for Money	~50–60% cheaper than Cat D6 with 85–90% of the performance
🔧 Easy Maintenance	Parts are cheap & widely available globally
💪 Extremely Durable	Proven in harsh conditions (mines, deserts, tropics)
🌐 Global Parts Network	Shantui has dealers in 150+ countries
📈 High Resale Value	Especially in Africa, Southeast Asia, Central Asia, South America
🛠️ Simple Design	Field-repairable, mechanics worldwide can service it
📦 Spare Parts	Interchangeable with many Shangchai engine components

⚠️ Limitations

❌ Weakness	Explanation
Comfort	Cab is decent but not as refined as Cat/Komatsu
Technology	No GPS/automation (basic model)
Engine Power	160 HP vs Cat D6's 205 HP — less power reserve
Hydraulics	Slower cycle times compared to premium brands
Resale in Western Markets	Lower brand perception in USA/Europe

💰 Approximate Pricing (2024)

Region	Price (USD)
China (Domestic)	$45,000 – $55,000
Southeast Asia / Africa	$50,000 – $65,000
Middle East / South America	$55,000 – $70,000
Europe (with CE)	$70,000 – $85,000

For comparison: Cat D6N ≈ $250,000–350,000; Komatsu D61 ≈ $200,000–280,000

🌏 Where It's Most Popular

Region	Why
🌍 Africa	Mining, road construction — #1 selling brand
🌏 Southeast Asia	Palm oil plantations, infrastructure
🏔️ Central Asia	Mining (Kazakhstan, Uzbekistan)
🏜️ Middle East	Desert construction, land clearing
🌎 South America	Mining, agriculture (Brazil, Peru, Chile)
🇨🇳 China	Government infrastructure, rental fleets

🔑 Bottom Line

	Shantui SD16	Caterpillar D6
Power	160 HP	205 HP
Weight	16.5 tons	19 tons
Price	~$55K	~$300K
Reliability	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐
Value	⭐⭐⭐⭐⭐	⭐⭐⭐
Global Service	⭐⭐⭐⭐	⭐⭐⭐⭐⭐

🏆 The Shantui SD16 is arguably the BEST VALUE bulldozer in the world. It delivers 85–90% of a Caterpillar D6's capability at just 20% of the price, making it the workhorse of the developing world and increasingly popular even in developed markets for rental and secondary applications.

Would you like me to compare it with specific competitors (Cat D6, Komatsu D61, XCMG TY160) or go deeper into any specific system? 🚜
