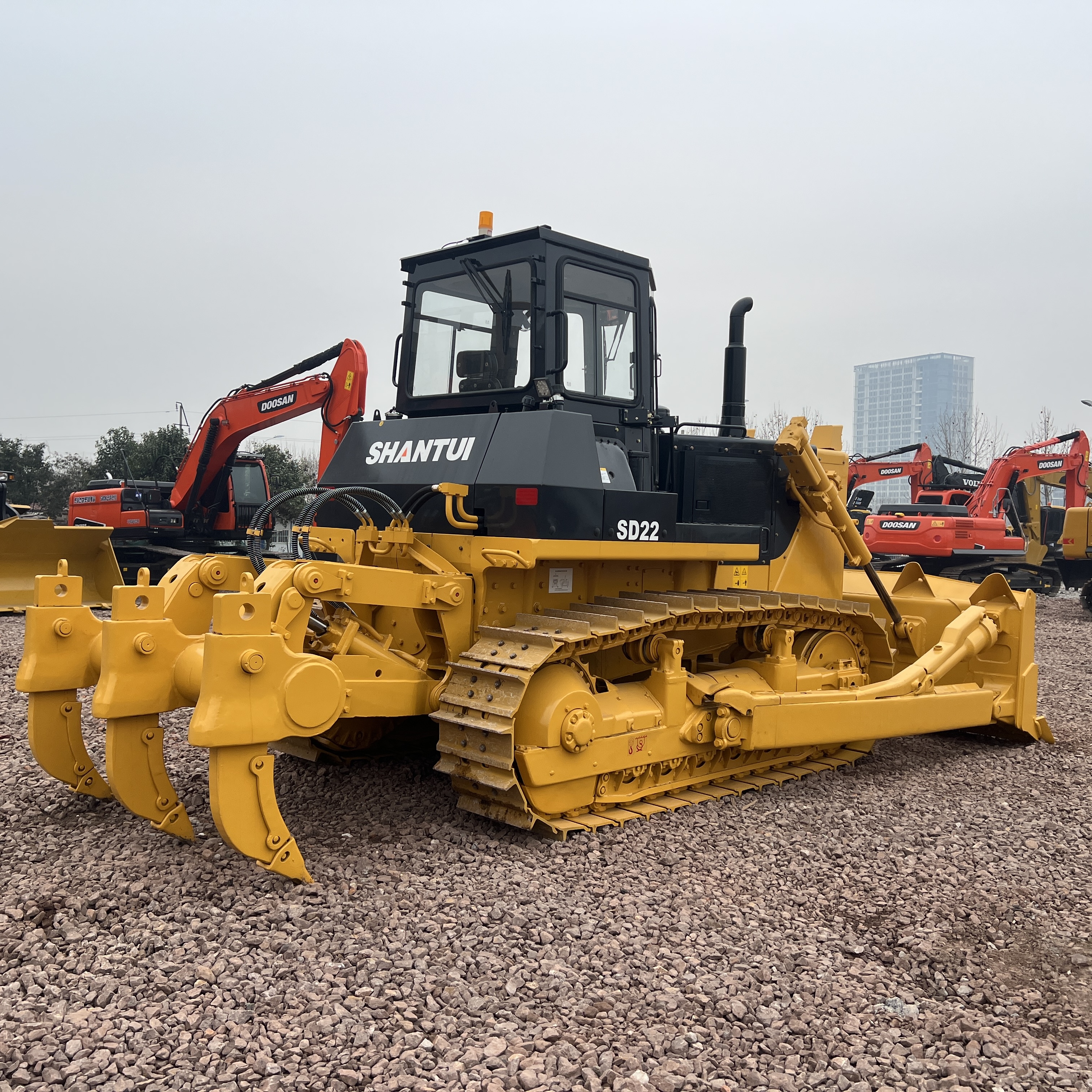

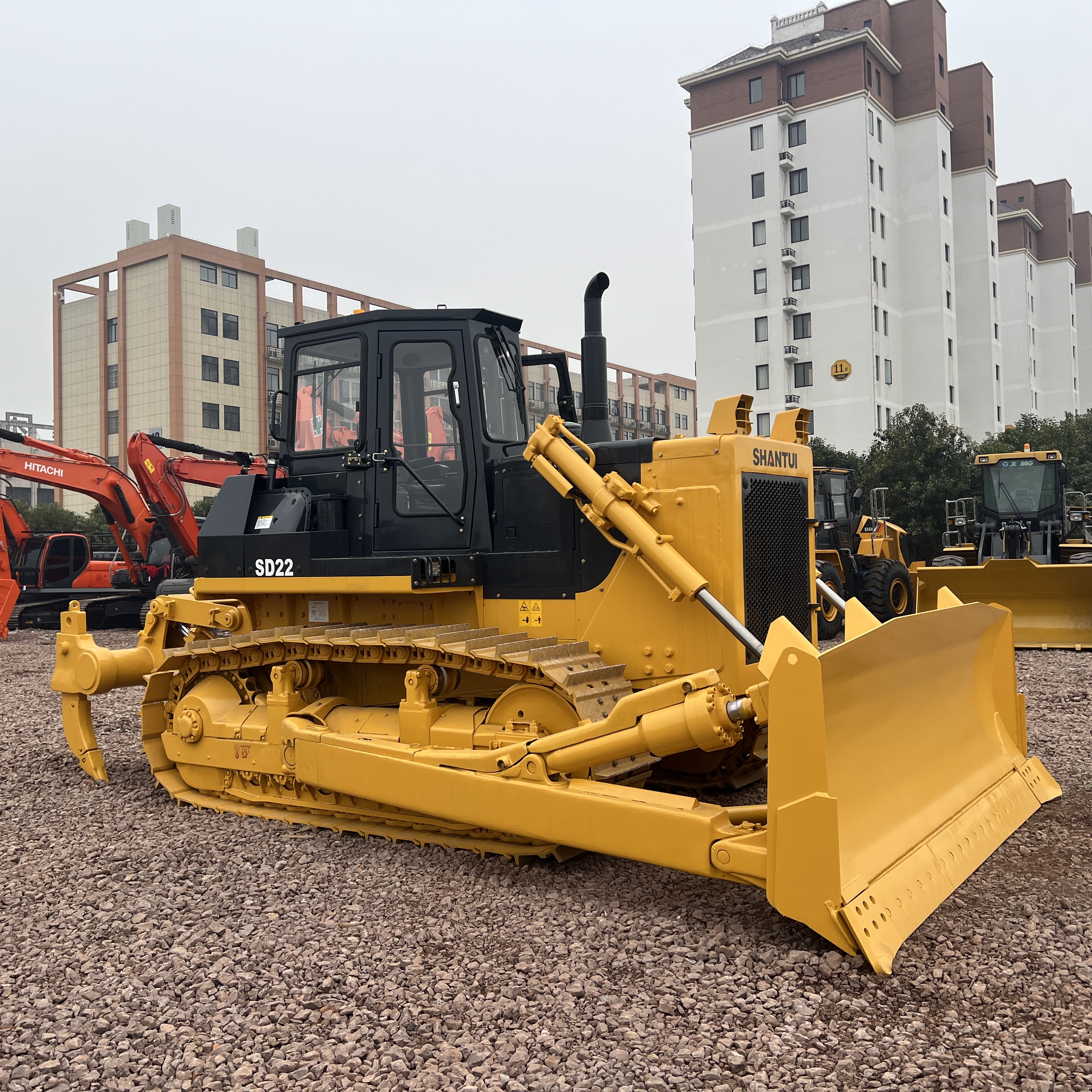

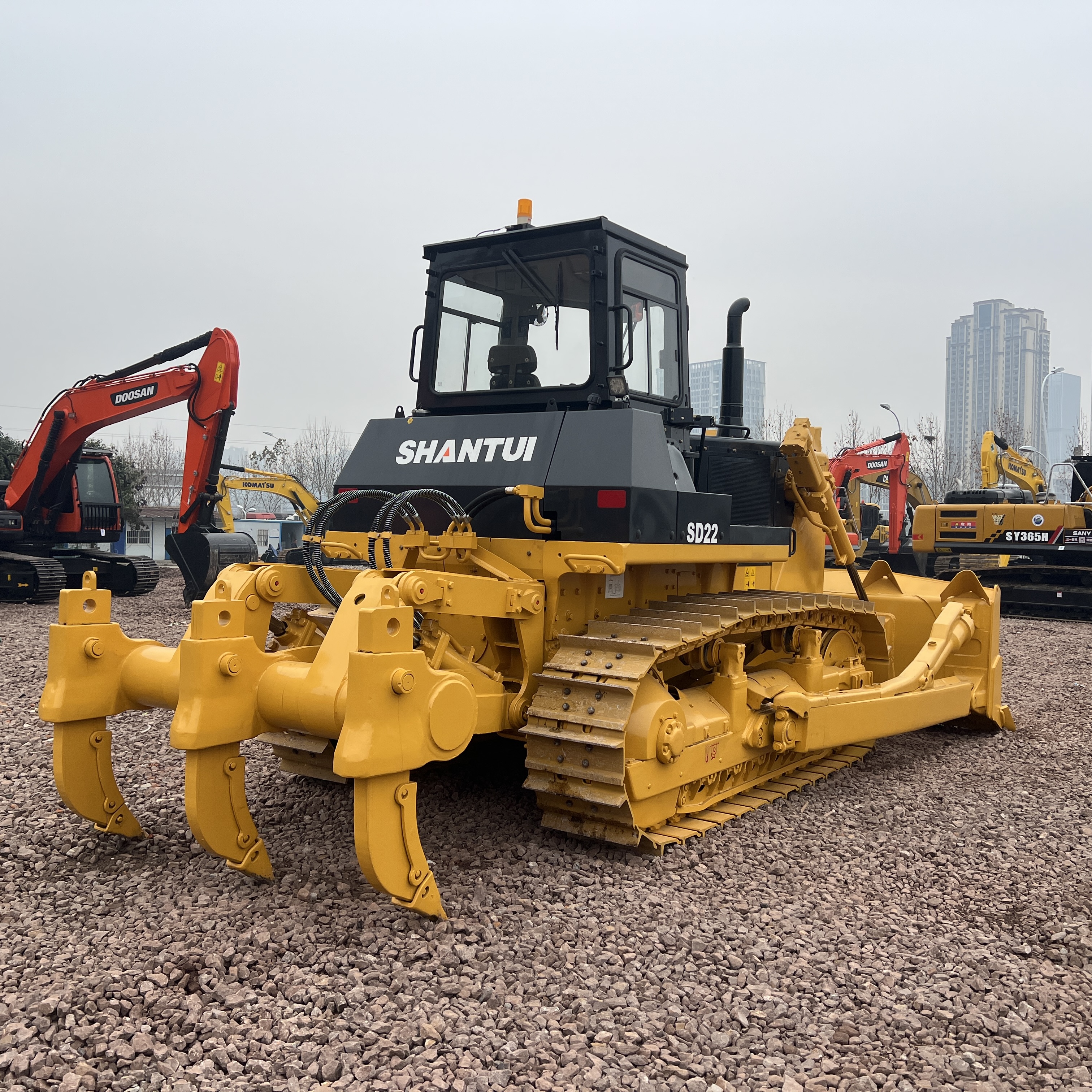

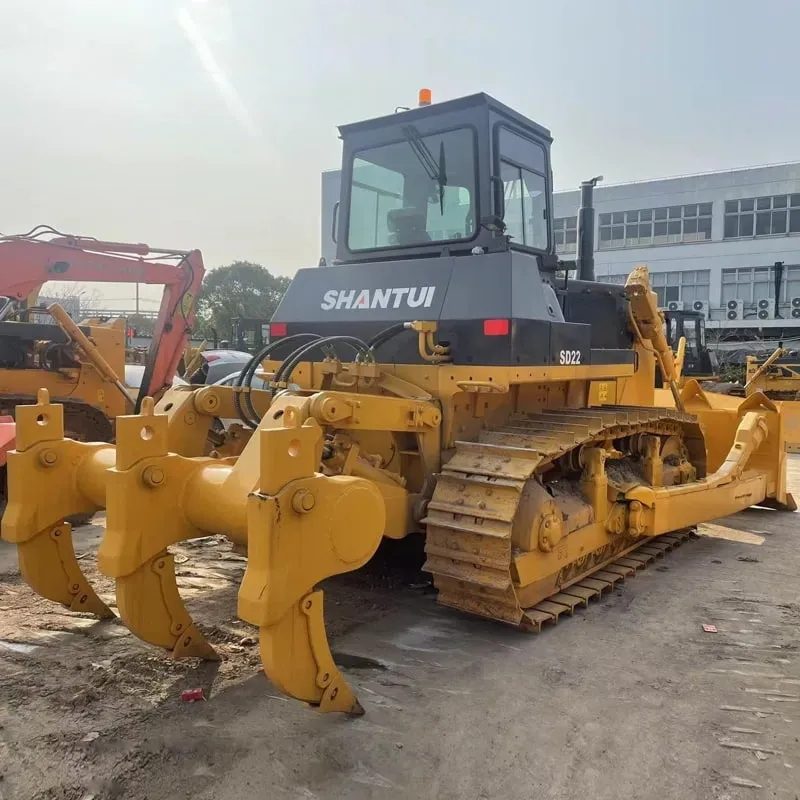

Used Shantui SD22Bulldozer

Reading: 31

📌 1. OVERVIEW

Item	Detail
Manufacturer	Shantui Construction Machinery Co., Ltd. (Shandong Heavy Industry Group)
Model	SD22
Class	Medium-large Crawler Bulldozer (220 HP)
Production	Since early 2000s, widely exported globally
Main Markets	China, Southeast Asia, Africa, Middle East, South America, Central Asia
Competitors	CAT D6, Komatsu D65, XCMG TY220, LiuGong CLGB220

The SD22 is one of Shantui's best-selling and most iconic models. It is known for high reliability, low operating cost, and excellent value for money, making it extremely popular in developing markets.

🔧 2. ENGINE

Specification	Detail
Engine Model	Cummins NT855-C280 (Tier 2) / QSNT855-C280 (Tier 3)
Alternative	Shangchai SC9D220G2B1 (in some markets)
Type	6-cylinder, turbocharged, water-cooled diesel
Displacement	14 L
Rated Power	220 HP (162 kW) @ 1,900 rpm
Max Torque	~882 N·m @ 1,400 rpm
Emission Standard	Tier 2 / Tier 3 (depending on version)

✅ The Cummins engine is renowned for durability, easy maintenance, and wide parts availability worldwide.

& 3. TRANSMISSION & DRIVETRAIN

Specification	Detail
Transmission Type	Power Shift (Planetary gear)
Torque Converter	Shantui TL200B (single-stage, 3-element)
Gears	3 Forward + 3 Reverse
Final Drive	Planetary final drive with spur gear reduction
Steering	Clutch & brake steering (wet multi-disc)
Travel Speed	Fwd: 0–11.5 km/h / Rev: 0–13.5 km/h (approx.)

📐 4. DIMENSIONS & WEIGHT

Specification	Detail
Operating Weight	~21,500 – 22,500 kg (47,400 – 49,600 lbs)
Ground Pressure	~65–72 kPa
Ground Clearance	~440 mm
Track Shoe Width	610 mm (SD22D) / 710 mm (SD22W wetland)
Track Pitch	2,030 mm
Number of Track Shoes	41 per side (standard)
Length (w/ blade)	~5,800 mm
Width (w/ blade)	3,660 mm (straight) / 3,960 mm (S-blade)
Height (to ROPS top)	~3,200 mm

🔪 5. BLADE & RIPPER

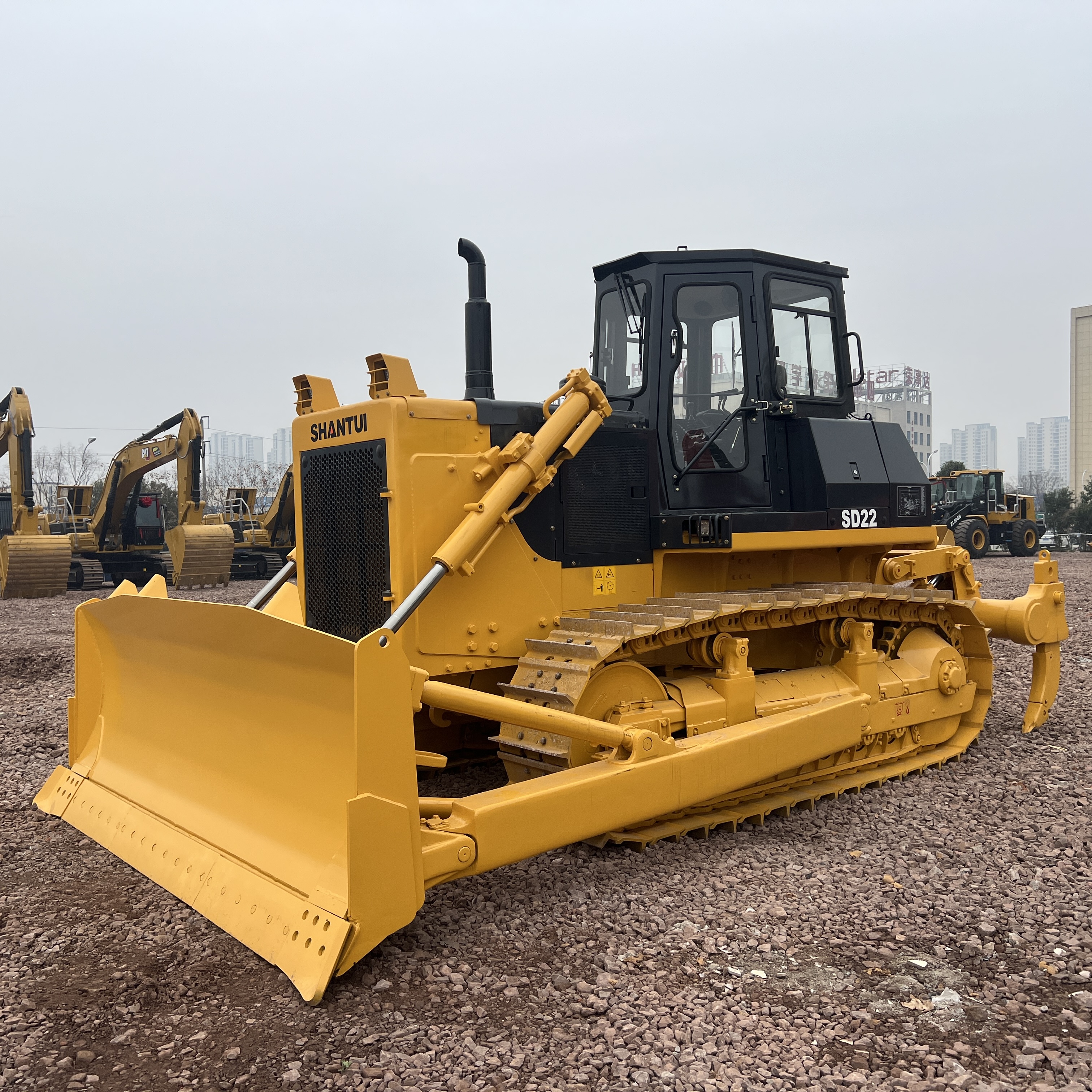

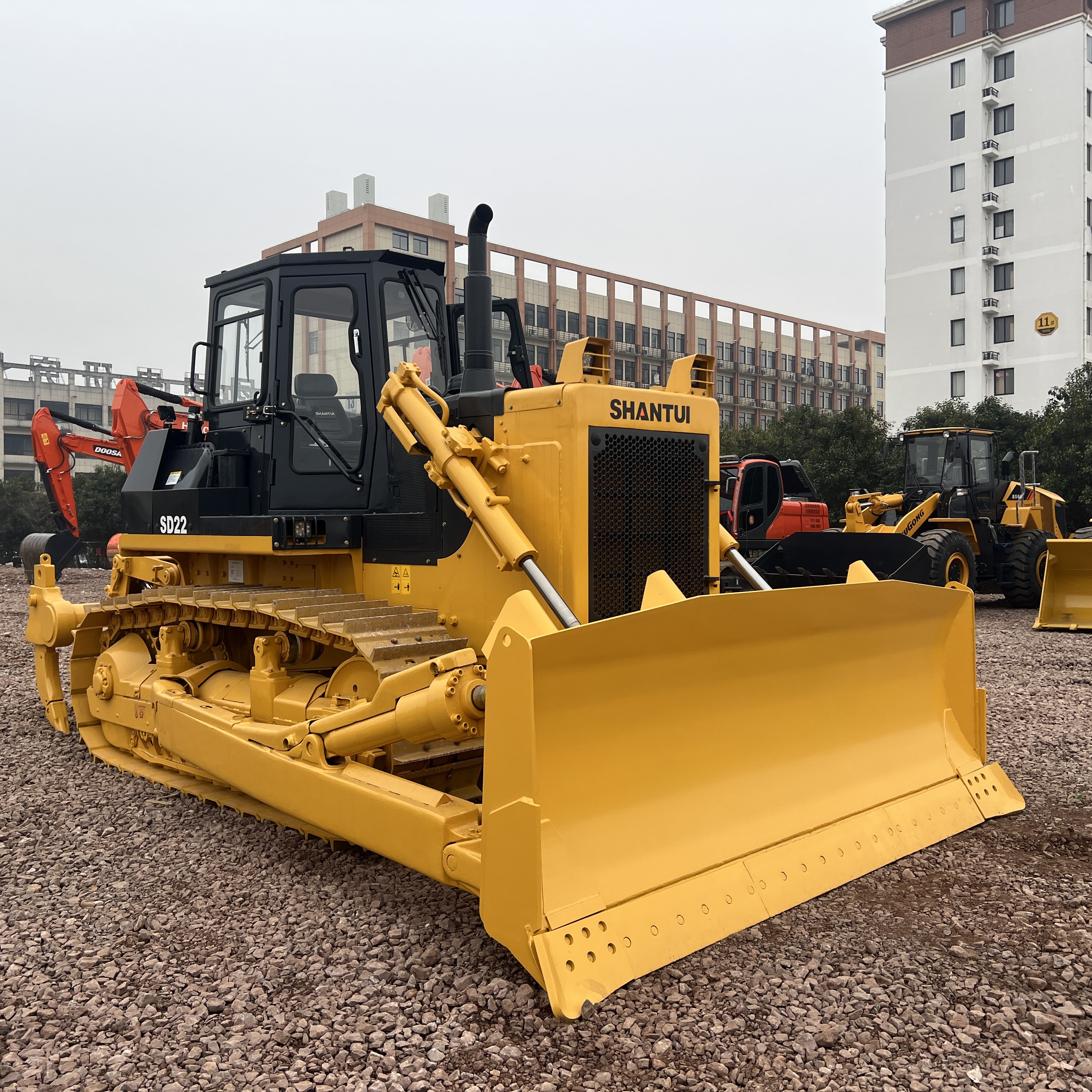

✅ Blade Options:

Blade Type	Capacity	Width	Use
Straight Blade (S-Blade)	~5.7 m³	3,660 mm	Pushing, leveling, road construction
Universal Blade (U-Blade)	~6.1 m³	3,960 mm	General purpose, better material retention
Semi-U Blade	~6.0 m³	3,860 mm	Versatile
Coal/Mining Blade	~6.5 m³	3,960 mm	Heavy-duty mining

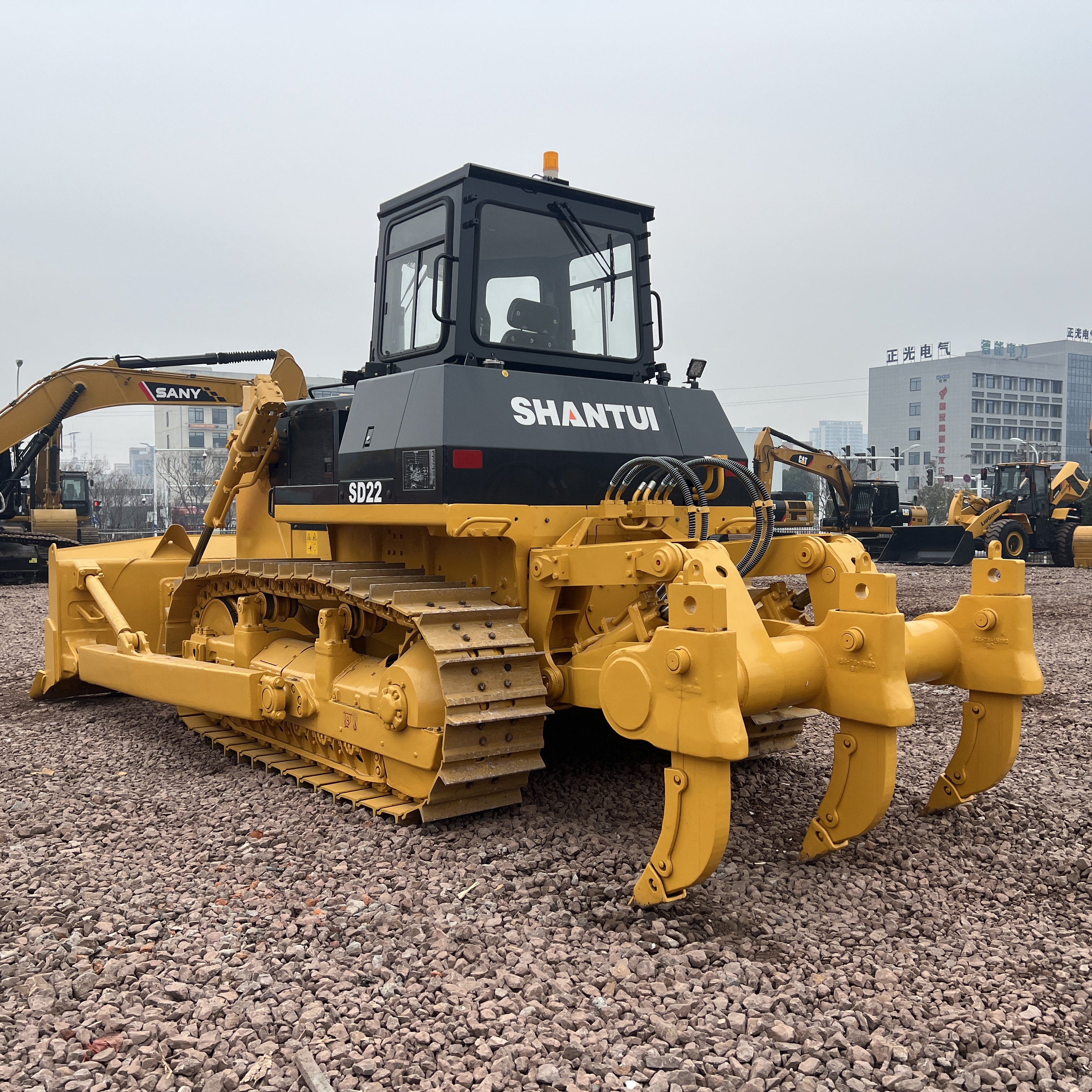

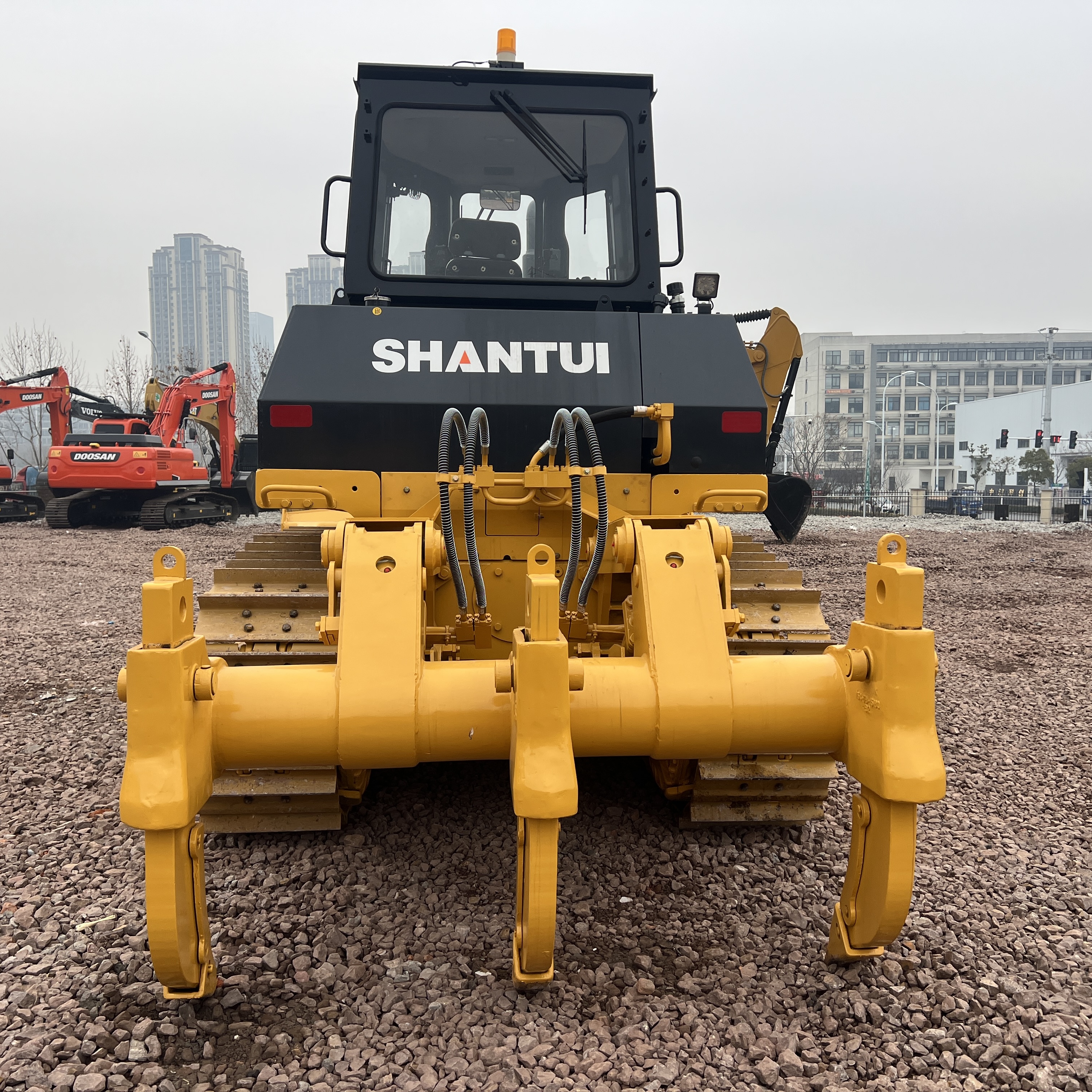

✅ Ripper:

Specification	Detail
Type	Single shank ripper (hydraulic)
Ripping Depth	400 – 550 mm (max ~600 mm)
Ripper Shank	Single tooth or multi-tooth (optional)

💡 The SD22R variant comes with a heavy-duty ripper as standard.

🪑 6. OPERATOR CABIN & COMFORT

Feature	Detail
Cab Type	Fully enclosed, ROPS/FOPS certified
Air Conditioning	✅ Standard
Seat	Suspension seat with adjustable armrest
Controls	Joystick control (optional on newer models) / Lever control
Instrument Panel	Digital display: engine RPM, oil temp, fuel level, hour meter
Visibility	Large front & rear windows, rear-view camera (on newer models)
Noise Level	~85 dB(A) — relatively quiet for its class
Noise	Good insulation, rated among the quietest in its class

🔄 7. VARIANT MODELS

Model	Description
SD22	Standard version (dry land)
SD22D	Dry land version — 610mm track shoes
SD22W	Wetland version — 710mm wide tracks, lower ground pressure (~55 kPa)
SD22-3	Updated/3rd generation — improved engine, cab, hydraulics
SD22R	Heavy-duty ripper version
SD22C	Coal mining version — reinforced blade, ripper
SD22LGP	Low ground pressure variant
SD22 Forest	Forestry version — canopy/brush guard, ripper

💪 8. PERFORMANCE HIGHLIGHTS

Parameter	Value
Max Push Force	~190–210 kN
Max Drawbar Pull	~180–200 kN
Gradeability	~30° (60%)
Fuel Tank Capacity	~350–400 L
Hydraulic System	Gear pump, ~180 L/min flow
Service Life	10,000 – 15,000 hours (with proper maintenance)

✅ 9. KEY ADVANTAGES

Advantage	Explanation
💰 Cost-Effective	30–50% cheaper than CAT/Komatsu equivalents
🔧 Easy Maintenance	Cummins engine — parts available worldwide
🛠️ Simple Design	Fewer complex components = less downtime
🌍 Global Support	Shantui has dealers in 150+ countries
🔩 Parts Availability	Very high — especially in Asia, Africa, Middle East
📈 Resale Value	Strong in developing markets
&uel Efficient**	~15–20 L/hour under normal operation

⚠️ 10. LIMITATIONS

Limitation	Detail
🏗️ Not Tier 4 Final	Older models are Tier 2/3 (SD22-3 may have Tier 4 in some markets)
🖥️ Technology	Less advanced electronics compared to CAT/Komatsu
❄️ Cold Climate	May need pre-heating system in extreme cold
🎯 Precision	Not as precise as Japanese brands (Komatsu) for fine grading

📊 11. COMPARISON WITH COMPETITORS

Spec	Shantui SD22	CAT D6N	Komatsu D65EX-18
Power	220 HP	215 HP	243 HP
Weight	~22,000 kg	~20,700 kg	~21,600 kg
Blade Cap.	5.7–6.5 m³	4.6–5.7 m³	5.5–6.2 m³
Price (approx.)	$85K–$110K	$180K–$220K	$160K–$200K
Origin	🇨🇳 China	🇺🇸 USA	🇯🇵 Japan

🏆 The SD22 wins on PRICE-TO-PERFORMANCE ratio by a large margin.

🏁 12. TYPICAL APPLICATIONS

Application	Suitability
🛤️ Road construction	⭐⭐⭐⭐⭐
🏗️ Land clearing	⭐⭐⭐⭐⭐
⛏️ Mining (open pit)	⭐⭐⭐⭐
🌲 Forestry	⭐⭐⭐⭐
🏜️ Pipeline construction	⭐⭐⭐⭐⭐
🏔️ Earthmoving / Excavation	⭐⭐⭐⭐
🏭 Landfill compaction	⭐⭐⭐⭐
❄️ Snow removal (w/ blade)	⭐⭐⭐⭐

📝 13. SUMMARY


Power	220 HP (Cummins NT855)
Weight	~22,000 kg
Blade	5.7–6.5 m³
Transmission	Power Shift, 3F+3R
Price Range	$85,000 – $110,000 (FOB China)
Best For	Cost-conscious buyers in developing markets
Rating	⭐⭐⭐⭐☆ (4/5) — Excellent value

🔑 Bottom Line: The Shantui SD22 is arguably the best value 220 HP bulldozer in the world today. It combines a proven Cummins engine, Shantui's reliable drivetrain, and an unbeatable price — making it the #1 choice for contractors in Africa, Southeast Asia, the Middle East, and South America.
