Used Caterpillar D6G2Bulldozer

Reading: 44

🏗️ Overview

The Caterpillar D6G2 is a medium-sized track-type tractor (bulldozer) manufactured by Caterpillar Inc. It was introduced around 2007–2008 as the second-generation "G2" upgrade of the popular D6G model. The D6G2 was part of Caterpillar's G-Series dozers and was designed to replace the D6G with improved engine technology, better operator comfort, and enhanced performance. Production continued until approximately 2012, when it was succeeded by the D6T (Track-Type Tractor) series.

The D6G2 is widely used in construction, mining, road building, land clearing, pipeline work, and demolition.

⚙️ Key Specifications

Specification	Details
Engine	Cat® C7.1 ACERT® Diesel
Engine Type	6-cylinder, turbocharged, aftercooled
Displacement	7.1 L (433 cu in)
Rated Power	~175 hp (130 kW) @ 2,200 rpm
Torque	~507 lb-ft (687 N·m) @ 1,400 rpm
Emission Standards	EPA Tier 3 / EU Stage IIIA
Operating Weight	~38,000–40,500 lbs (17,236–18,370 kg)
Ground Pressure	~5.8–6.5 psi (40–45 kPa)
Track Shoe Width	24 in (610 mm) — triple grouser option available
Fuel Tank Capacity	~110 US gal (416 L)
Hydraulic System Flow	~43 gpm (163 L/min)
Transmission	Powershift (4F/4R)
Travel Speed (F/R)	0–7.6 mph (0–12.2 km/h)

🔧 Engine — Cat C7.1 ACERT

The heart of the D6G2 is the C7.1 ACERT engine, which was a significant upgrade over the previous D6G's C7 engine:

Feature	Detail
Technology	ACERT (Advanced Combustion Efficiency Reduction Technology)
Fuel System	Common rail direct injection
Turbocharger	Air-to-air aftercooled
Emissions	Meets Tier 3 / Stage IIIA without DPF (Diesel Particulate Filter)
Advantages	Better fuel efficiency (~5–10% improvement), lower emissions, improved torque curve

The engine delivers strong low-end torque, making it excellent for heavy dozing and ripping operations.

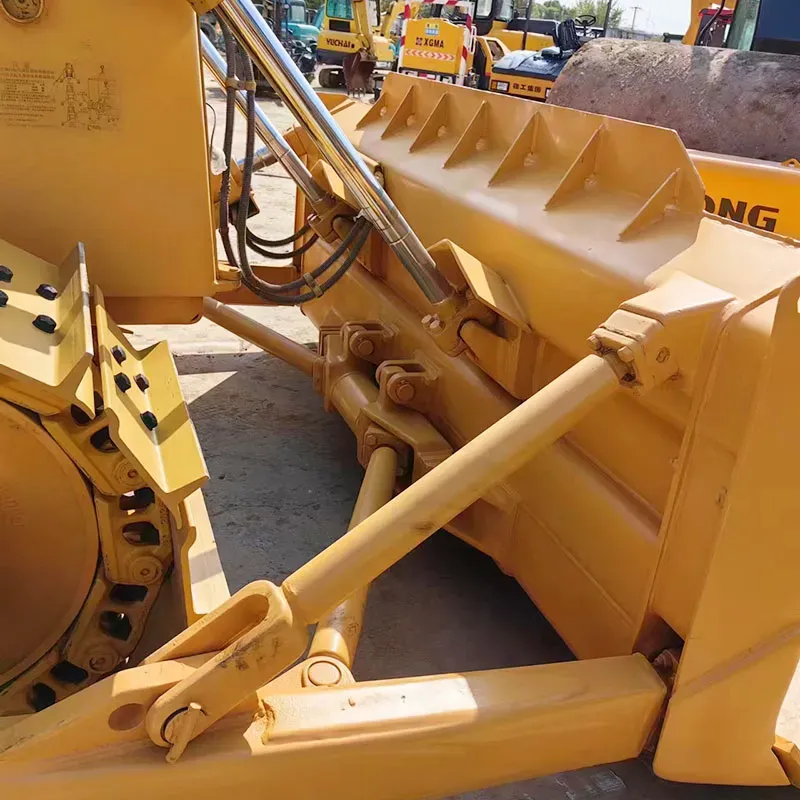

🖐️ Blade Options

The D6G2 was available with multiple blade configurations:

Blade Type	Capacity	Best For
Straight Blade (S-Blade)	~4.5–5.5 cu yd (3.4–4.2 m³)	General dozing, fine grading, trench work
Universal Blade (U-Blade)	~5.5–7.0 cu yd (4.2–5.4 m³)	Bulk material movement, stockpiling
Semi-U Blade (SU-Blade)	~5.0–6.0 cu yd (3.8–4.6 m³)	Versatile — combination of S and U
PAT Blade (Power Angle Tilt)	Varies	Angled dozing, side-casting
Coal Blade	Specialty	Coal handling

🪝 Ripper Options

Ripper Configuration	Details
Single Shank	Standard — ~14–16 in (356–406 mm) penetration
Two Shank (Dual)	Optional — wider ripping for faster production
Ripper Depth	Up to ~24–28 in (610–711 mm) depending on material
Ripper Lift	Hydraulic — adjustable

The ripper is ideal for breaking up hardpan, rock, frozen ground, and compacted material.

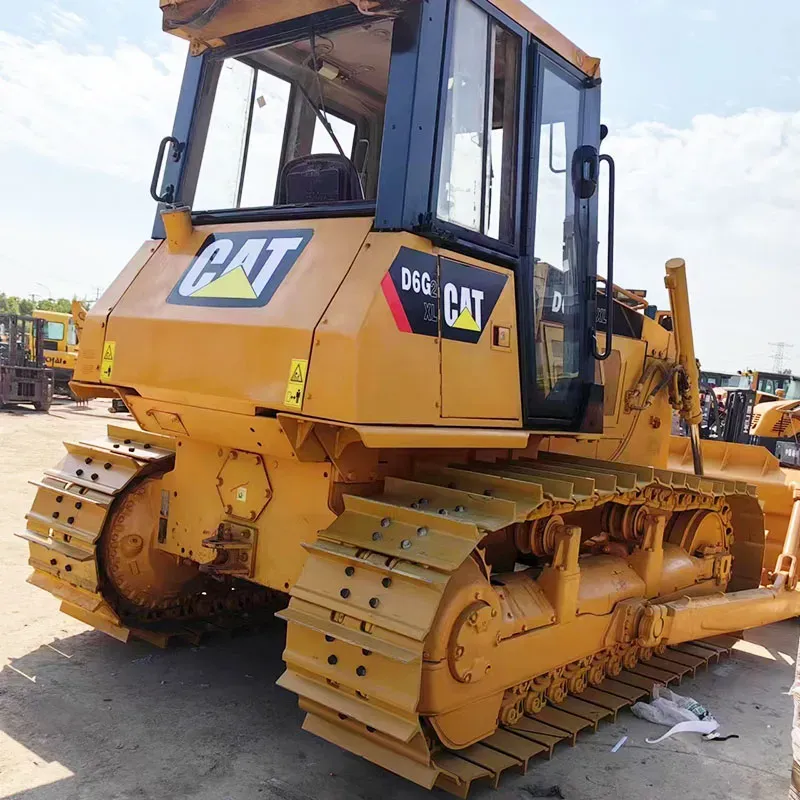

💺 Operator Station & Comfort

Caterpillar made significant improvements in the D6G2's cab compared to the D6G:

Feature	Detail
Cab Type	ROPS/FOPS certified (Rollover/Falling Object Protective Structure)
Air Conditioning	Standard — fully enclosed, pressurized cab
Seat	Air-suspension seat with armrests
Visibility	Large front and rear windows, improved all-around visibility
Controls	Lever-type controls (joystick optional on some configs)
Monitoring	Digital instrument panel with engine diagnostics
Noise Level	~72–75 dB(A) — relatively quiet for a dozer
Heater	Standard

🖥️ Technology & Systems

System	Details
Product Link™	Cat Product Link telematics for fleet management, location tracking, and diagnostics
Grade Control Ready	Compatible with GPS/laser grade control systems (e.g., Cat GRADE with 2D/3D)
Hydraulics	Load-sensing hydraulic system for better efficiency
Powershift Transmission	Smooth 4-speed forward / 4-speed reverse

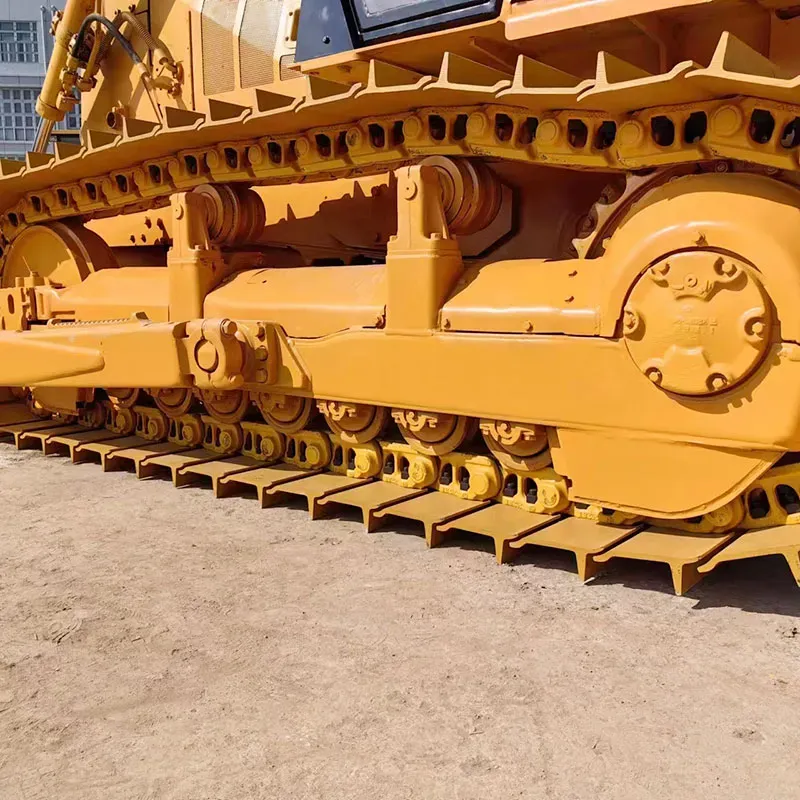

Undercarriage	Heavy-duty with sealed and lubricated (S&L) track chains
Ground Drive	Variable displacement piston motors

📊 Performance Summary

Application	Performance Rating
Dozing (loose material)	⭐⭐⭐⭐⭐ Excellent
Grading	⭐⭐⭐⭐⭐ Excellent
Ripping (medium-hard material)	⭐⭐⭐⭐ Very Good
Pipeline work	⭐⭐⭐⭐⭐ Excellent
Land clearing	⭐⭐⭐⭐ Very Good
Mining (small-medium)	⭐⭐⭐⭐ Very Good
Fuel Efficiency	~1.5–2.5 gal/hr (5.7–9.5 L/hr) depending on load

🔄 D6 Series Lineage

Model	Years (Approx.)	Engine	Notes
D6D	1986–1996	Cat 3196	First of the D6 series
D6E	1996–2001	Cat 3126	Improved engine
D6G	2001–2007	Cat C7	Very popular, workhorse model
D6G2	2007–2012	Cat C7.1 ACERT	Emission upgrade, better cab
D6T	2012–2018+	Cat C7.1/C9 ACERT	Major redesign — "T" series
D6T2	2018–Present	Cat C9.3 ACERT	Current generation

✅ Advantages of the D6G2

✅ Advantage	Explanation
💪 Strong & Reliable	Proven C7.1 engine — known for durability
🌍 Emissions Compliant	Tier 3 / Stage IIIA — works in regulated areas
🛢️ Fuel Efficient	ACERT technology saves 5–10% fuel vs D6G
🪑 Comfortable Cab	One of the best operator environments in its class
🔧 Easy Maintenance	Ground-level service points, long service intervals
📈 Resale Value	Strong on the used market due to reliability
🌐 Parts Availability	Excellent global parts support

⚠️ Limitations

❌ Limitation	Explanation
⚖️ Weight	~40,000 lbs — may need permits for road transport
🔋 No DPF	Tier 3 but no DPF — not compliant with Tier 4 Final
📉 Discontinued	No longer in production — parts still available but newer D6T is preferred
🏔️ Not for Heavy Mining	For larger mining, D8T/D9T/D11T are better suited

💰 Approximate Pricing (Used Market, 2024)

Condition	Price Range (USD)
High Hours (8,000–12,000 hrs)	$80,000 – $120,000
Medium Hours (4,000–8,000 hrs)	$120,000 – $170,000
Low Hours (<4,000 hrs)	$170,000 – $220,000+

Prices vary significantly by region, condition, configuration, and attachments.

🎯 Summary

The Caterpillar D6G2 is a highly capable, reliable, and comfortable medium-sized bulldozer that served as a bridge between the classic D6G and the modern D6T. With its 175 hp C7.1 ACERT engine, excellent dozing/grading capabilities, and improved operator environment, it remains a popular choice on the used equipment market for contractors who need a dependable workhorse without the cost of a brand-new machine.

🔑 Bottom Line: If you're looking for a proven, fuel-efficient, Tier 3-compliant dozer in the 38,000–40,000 lb class, the D6G2 is still an excellent choice in 2024–2025 — especially compared to paying premium prices for a new D6T.
