🏗️ Overview

The Caterpillar D9R is a large, tracked bulldozer manufactured by Caterpillar Inc. It is one of the most powerful and iconic earth-moving machines in the world, widely recognized for its massive size, raw pushing power, and legendary durability. Introduced in 2006, the D9R succeeded the D9N and represented a major upgrade in engine technology, operator comfort, and productivity.

The D9R is often referred to as the "King of Bulldozers" and is used extensively in mining, construction, military, forestry, and demolition operations worldwide.

📐 Key Specifications

Specification	Details
Manufacturer	Caterpillar Inc. (USA)
Model	D9R (R = "Refined" generation)
Production Years	2006 – present (successor to D9N)
Engine	Cat® C15 ACERT® Diesel
Engine Power	405 hp (302 kW) @ 1,800 rpm
Operating Weight	~49,040 kg (108,120 lb)
Blade Capacity (Straight/S-Blade)	8.8 cu yd (6.7 m³)
Blade Capacity (Universal/U-Blade)	10.4 cu yd (8.0 m³)
Track Shoe Width	610 mm (24 in) — triple grouser option available
Max Speed (Forward)	11.3 km/h (7.0 mph)
Max Speed (Reverse)	14.8 km/h (9.2 mph)
Ground Pressure	~81 kPa (11.8 psi)
Fuel Tank Capacity	~681 L (180 gal)
Ripper	Single shank, optional multi-shank
Emissions Standard	EPA Tier 3 / EU Stage IIIA (ACERT technology)

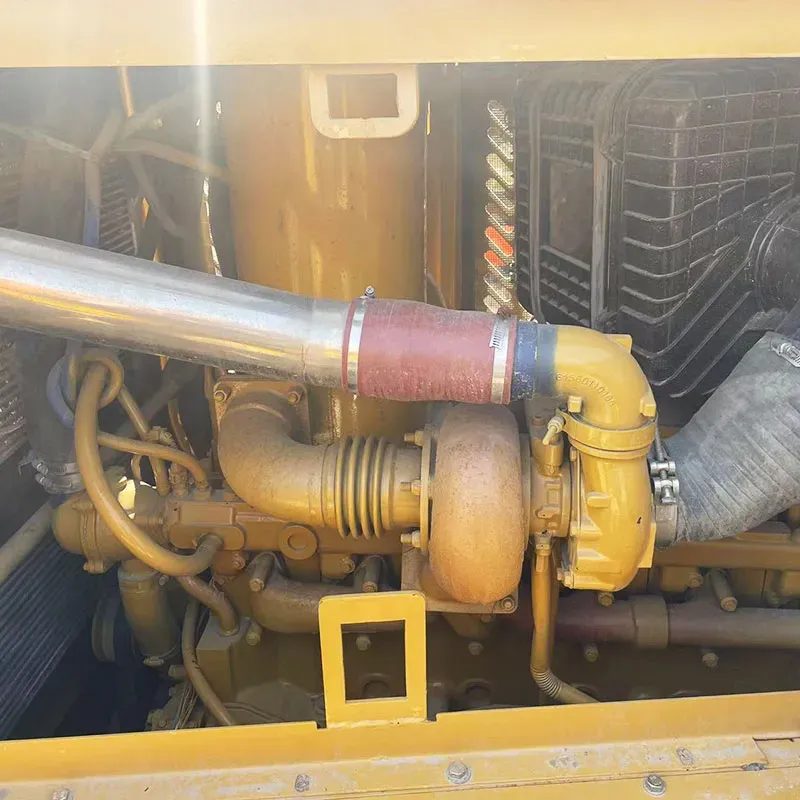

🔧 Engine — C15 ACERT®

Feature	Detail
Type	6-cylinder, inline, turbocharged diesel
Displacement	15.2 L (927 cu in)
Technology	ACERT (Advanced Combustion Emission Reduction Technology)
Fuel System	Electronic unit injection
Emissions	Meets Tier 3 / Stage IIIA with DPF (Diesel Particulate Filter)
Torque	~1,770 Nm (1,305 lb-ft) @ 1,400 rpm

The ACERT engine was a major leap forward, offering:

✅ Better fuel efficiency (~10-15% improvement over D9N)
✅ Lower emissions without DPF in some configurations
✅ Higher torque at low RPM for superior pushing power
✅ Improved reliability and longer service intervals

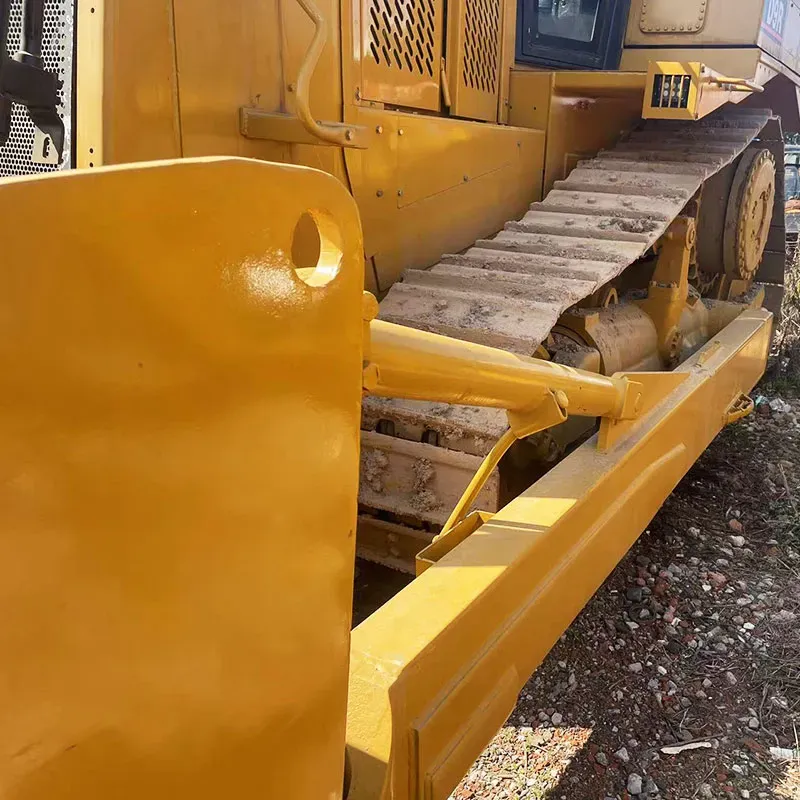

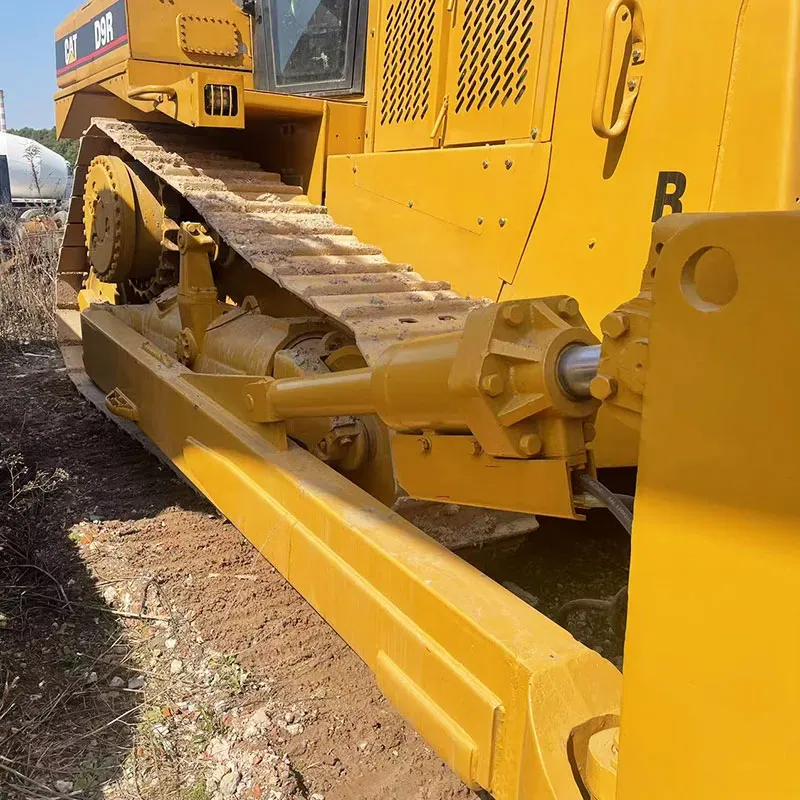

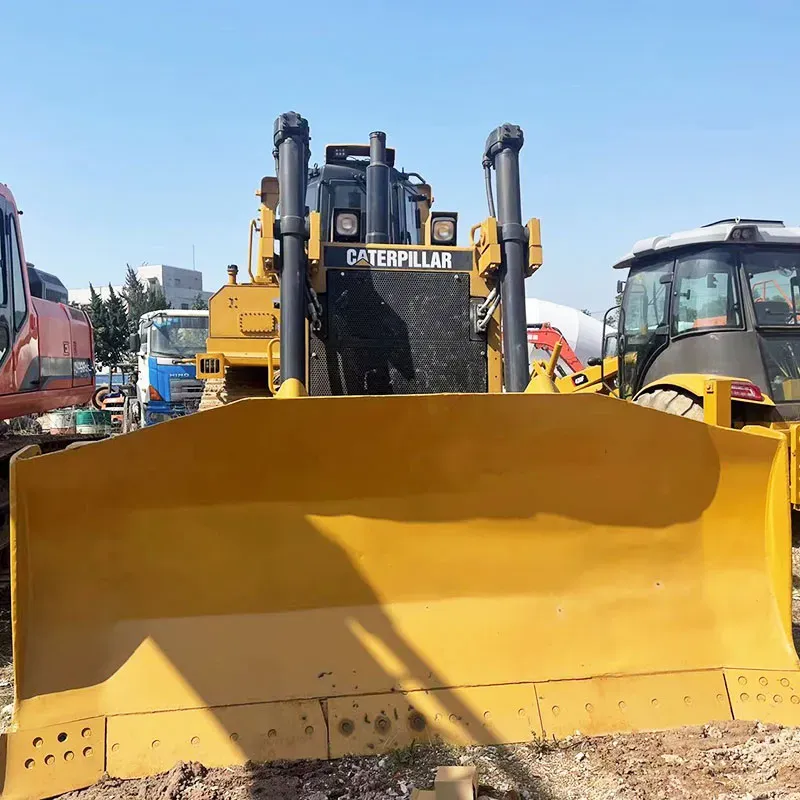

🖐️ Blade & Attachments

The D9R is known for its versatile blade options:

Blade Type	Capacity	Best For
Straight Blade (S-Blade)	8.8 cu yd (6.7 m³)	Pushing, grading, fine work
Universal Blade (U-Blade)	10.4 cu yd (8.0 m³)	Heavy pushing, carry-over work
Semi-U Blade (SU-Blade)	9.4 cu yd (7.2 m³)	General-purpose, balance of push & carry

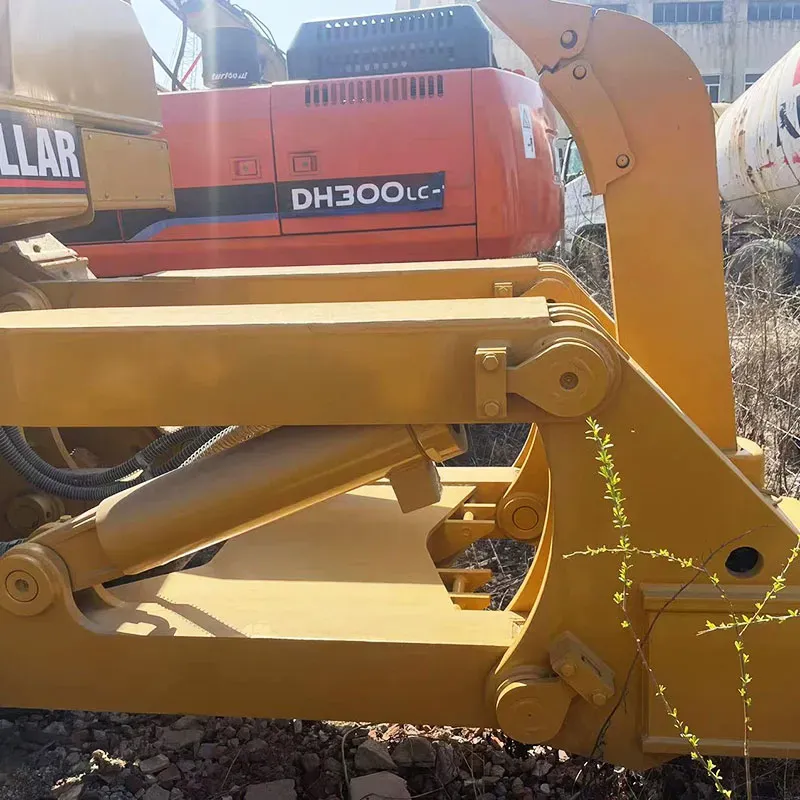

Ripper (Shank)	Single or multi-shank	Breaking hard ground, rock, frozen soil
Winch	Optional	Pulling, recovery operations

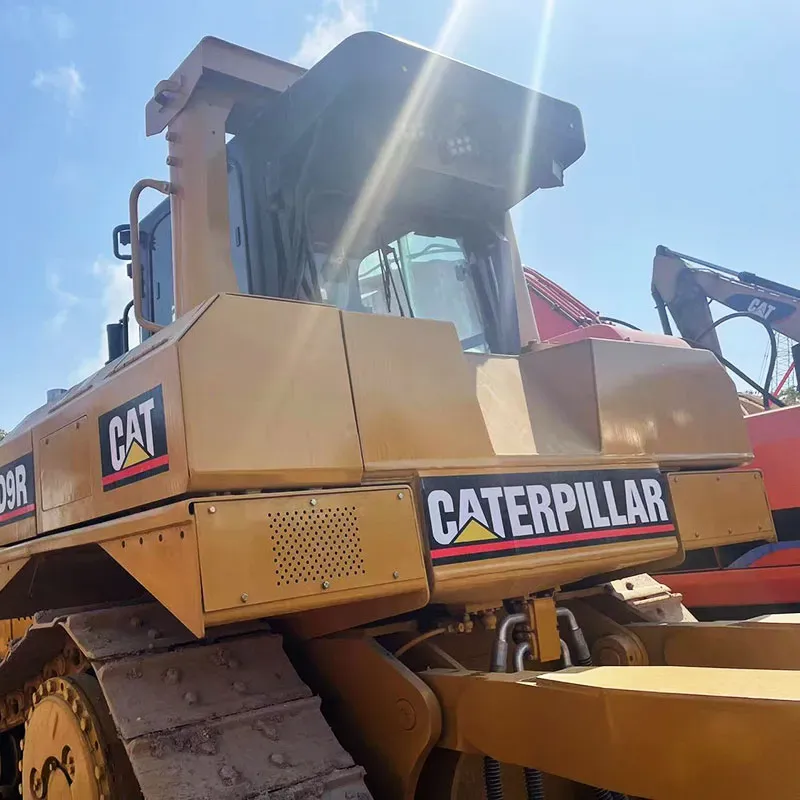

🎮 Operator Station & Comfort

Caterpillar significantly improved the operator environment in the D9R compared to earlier models:

Feature	Detail
Cab	ROPS/FOPS certified, pressurized & filtered
Air Conditioning	Standard
Seat	Air-ride suspension seat with armrests
Controls	Electronic joystick controls (left = blade, right = travel/ripper)

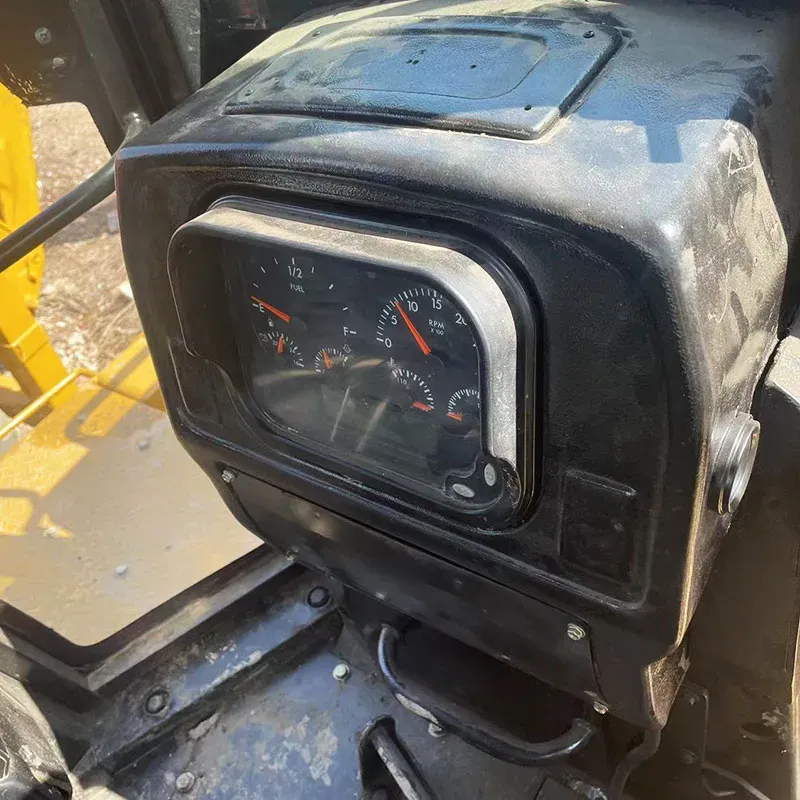

Monitor	LCD display with machine diagnostics, GPS-ready
Noise Level	~73 dB(A) — significantly quieter than D9N
Visibility	Excellent all-around visibility with large glass area
Vibration	Reduced by ~30% compared to D9N

💪 Performance & Capabilities

Capability	Detail
Max Push Force	~125,000 N (~28,100 lbf)
Drawbar Pull	~138 kN (31,000 lbf)
Gradeability	60% (31°)
Side Slope Ability	30% (17°)
Max Depth of Cut	~700 mm (27.5 in)
Ripper Depth	Up to 680 mm (27 in) single shank

⚡ The D9R can push hundreds of tons of material — making it one of the most powerful production bulldozers ever made.

🌐 Applications

Industry	Usage
🏗️ Construction	Site preparation, road building, land clearing
⛏️ Mining	Overburden removal, push loading, pit work
🌲 Forestry	Road building, brush clearing, land reclamation
🎖️ Military/Defense	Combat engineering, obstacle clearing (IDF widely uses D9R)
🏚️ Demolition	Building demolition, rubble pushing
🛢️ Oil & Gas	Pipeline construction, pad preparation
🗑️ Waste Management	Landfill compaction, waste pushing

🇮🇱 Notable: The Israel Defense Forces (IDF) is one of the largest operators of the D9R, using heavily armored versions (D9R "IDF D9") for combat engineering and demolition operations.

🔄 Comparison: D9N vs D9R

Feature	D9N (1998–2006)	D9R (2006–present)
Engine	C15 (mechanical)	C15 ACERT (electronic)
Power	410 hp	405 hp (slightly less but more efficient)
Weight	~49,000 kg	~49,040 kg
Fuel Efficiency	Good	~15% better
Emissions	Tier 2	Tier 3 / Stage IIIA
Cab Comfort	Good	Significantly improved
Controls	Levers	Electronic joysticks
Production	Discontinued	Current model

🔧 Maintenance & Service

Item	Interval
Engine Oil Change	Every 500 hours
Track Adjustment	Every 500 hours
Final Drive Oil	Every 1,000 hours
Track Replacement	~4,000–6,000 hours (varies by terrain)
Blade Edges/Cutting Edges	Replace as worn
Ripper Teeth	Replace as worn

🛠️ Caterpillar's global dealer network and Cat® S•O•S™ (Service Oil Sampling) program help maximize uptime.

💰 Approximate Pricing (2024 Estimates)

Configuration	Price (USD)
New D9R (Straight Blade)	$750,000 – $850,000
New D9R (U-Blade + Ripper)	$850,000 – $950,000+
Used D9R (10,000–15,000 hrs)	$250,000 – $450,000
IDF Armored D9R (military)	$1.5M – $2M+ (with armor kit)

🏆 Why the D9R is Legendary

Reason	Explanation
🪨 Unmatched Power	One of the most powerful track-type tractors ever mass-produced
🛡️ Durability	Built to work 24/7 in the harshest conditions
🔄 Parts Availability	Global Caterpillar parts network
📈 Resale Value	Holds value exceptionally well
🎖️ Battle-Proven	Used by militaries worldwide (especially IDF)
🔧 Serviceability	Easy access to major components

📊 Summary

Parameter	Value
Power	405 hp (302 kW)
Weight	49,040 kg
Blade Capacity	6.7 – 8.0 m³
Speed	11.3 km/h (fwd) / 14.8 km/h (rev)
Production	2006 – Present
Status	✅ Active / In Production

🗣️ "The Caterpillar D9R is not just a bulldozer — it's an institution. If you need earth moved, mountains leveled, or obstacles destroyed, the D9R is the machine that gets the job done."
