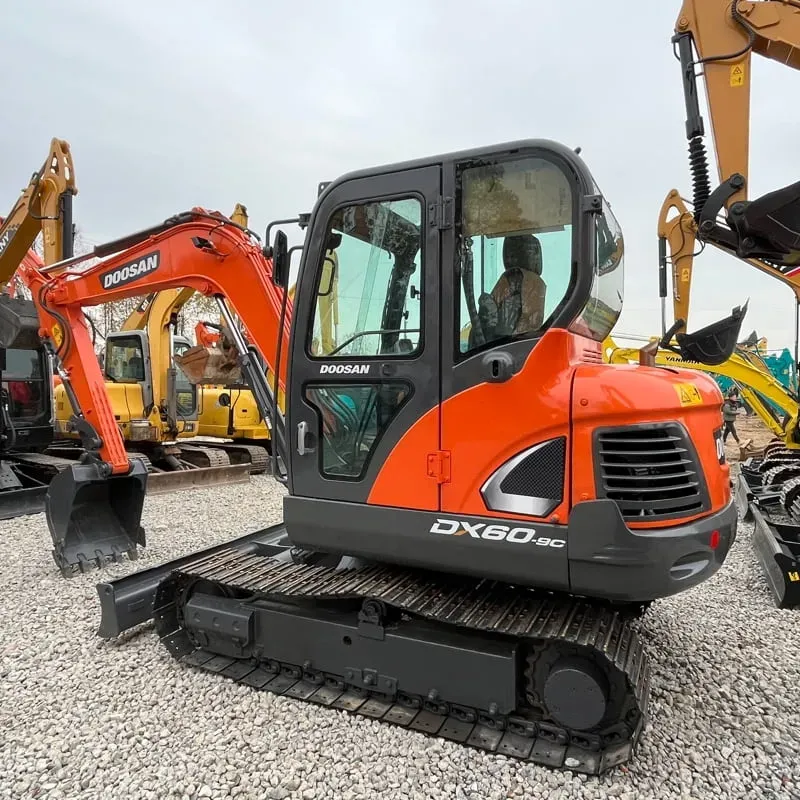

Used Doosan DX60Excavator

Reading: 18

📌 1. OVERVIEW

Item	Details
Manufacturer	Doosan Infracore (South Korea)
Series	DX Series (Compact Excavators)
Class	6-Ton (Mini / Compact Excavator)
Production	2010s – Present (Current Gen)
Target Market	Urban construction, landscaping, utilities, small-scale earthworks

The Doosan DX60 is one of the most popular 6-ton class compact excavators in the global market. It's designed for versatility in tight spaces, making it ideal for urban and residential job sites where larger machines can't operate.

📌 2. ENGINE SPECIFICATIONS

Parameter	Specification
Engine Model	Doosan DL06 (4-cylinder, turbocharged diesel)
Displacement	~2.5 Liters
Power Output	40 – 44 HP (~30 kW) @ 2,200 rpm
Emissions Standard	Stage V / Tier 4 Final (DPF + SCR)
Fuel Tank Capacity	~80 – 90 Liters
Cooling System	Water-cooled with radiator
Fuel Type	Diesel

✅ The engine is known for fuel efficiency, low noise, and reliability — key for urban work.

📌 3. DIMENSIONS & WEIGHT

Parameter	Specification
Operating Weight	5,800 – 6,200 kg (depending on config)
Overall Length	~5,800 mm
Overall Width	~1,980 mm
Overall Height	~2,560 mm (with ROPS canopy)
Track Width	300 – 400 mm (steel) / 450 mm (rubber)
Ground Clearance	~350 mm
Ground Pressure	~28 – 32 kPa (very low — good for soft ground)

📌 4. DIGGING PERFORMANCE ⭐

Parameter	Specification
Max Digging Depth	3,600 – 3,800 mm
Max Digging Reach	6,000 – 6,200 mm
Max Digging Height	5,800 – 6,000 mm
Max Dump Height	~4,100 mm
Bucket Capacity	0.16 – 0.22 m³ (standard) / up to 0.30 m³ (optional)
Bucket Digging Force	~38 – 40 kN
Arm Digging Force	~28 – 30 kN

📌 5. HYDRAULIC SYSTEM

Parameter	Specification
System Type	Load-Sensing Hydraulic System
Max System Pressure	210 bar (3,045 psi)
Pump Flow Rate	~110 – 120 L/min (dual pump)
Auxiliary Hydraulic Flow	~40 – 50 L/min (for attachments)
Auxiliary Lines	1 – 2 lines (hammer, breaker, auger, etc.)

📌 6. TRAVEL PERFORMANCE

Parameter	Specification
Max Travel Speed	4.8 km/h (2-speed)
Gradeability	70% (35°)
Track Type Options	Steel Tracks / Rubber Tracks

📌 7. KEY FEATURES & HIGHLIGHTS 🔑

Feature	Description
✅ Zero Tail Swing (ZTS)	Upper structure stays within track width — perfect for tight/urban spaces
✅ Rubber Track Option (DX60R)	Reduces ground damage, road-friendly, quieter
✅ Enclosed Cab Option	ROPS/FOPS certified, with AC & Heater, sound insulation
✅ Quick Coupler	Fast attachment change (bucket, hammer, breaker, auger, grapple)
✅ Dozer Blade	Available for grading & leveling
✅ LED Work Lights	Excellent visibility for night work
✅ Long Carriage (LC) Option	DX60LC — deeper digging (~4,200 mm depth)
✅ Compact Size	Fits through standard gates & narrow alleys
✅ Low Vibration & Noise	Operator comfort focused
✅ Auto Idle System	Saves fuel when not working

📌 8. MODEL VARIANTS

Model	Description
DX60	Standard — Steel tracks, ROPS canopy
DX60R	Rubber track version
DX60LC	Long Carriage — deeper digging (~4.2m)
DX60LCR	Long Carriage + Rubber tracks
DX60W	Wheeled version (rare, for road travel)
DX60-5	Updated generation (improved engine & cab)

📌 9. COMMON ATTACHMENTS 🔧

Attachment	Application
🪣 Standard Bucket (160–220mm)	General digging
🔨 Hydraulic Breaker	Demolition, concrete breaking
🔩 Hydraulic Hammer (Rock)	Rock excavation
🌀 Auger	Post holes, pile drilling
🪓 Grapple / Thumb	Material handling, sorting
🪚 Trencher	Utility trenching
🔄 Tilt Rotator	360° rotation for versatility
🧹 Sweeper	Road/site cleaning

📌 10. APPLICATIONS 🏗️

Sector	Use Cases
🏙️ Urban Construction	Tight-space excavation, basement work
🌿 Landscaping	Grading, planting, tree removal
🔌 Utilities	Pipe laying, cable trenching
🏠 Residential	Driveways, pools, foundations
🏚️ Demolition	Small building tear-down (with breaker)
🌾 Agriculture	Drainage, fencing, land clearing
🛣️ Road Work	Trenching, manhole work, patching

📌 11. COMPETITORS 🆚

Competitor	Model	Weight Class
🇯🇵 Kubota	KX060	6-ton
🇯🇵 Yanmar	SV60	6-ton
🇯🇵 Komatsu	PC60	6-ton
🇯🇵 Takeuchi	TB260	6-ton
🇨🇳 Sany	SY60C	6-ton
🇰🇷 Hyundai	R60CR-9	6-ton

The DX60 is competitive due to its strong hydraulics, ZTS design, Doosan engine reliability, and excellent dealer/parts network.

📌 12. PRICE RANGE (Approximate, 2024) 💰

Configuration	Price (USD)
DX60 (Canopy, steel tracks)	$55,000 – $65,000
DX60R (Rubber tracks)	$60,000 – $70,000
DX60 with Enclosed Cab	$70,000 – $80,000
DX60LC (Long Carriage)	$65,000 – $75,000

(Prices vary by region, dealer, and optional attachments)

📌 13. SUMMARY — WHY CHOOSE DOOSAN DX60? ✅

✅ Strength	Detail
🏆 Reliable Engine	Doosan DL06 — proven, fuel-efficient
📐 Zero Tail Swing	Best-in-class for urban work
💪 Strong Hydraulics	210 bar — handles tough attachments
🔧 Versatile	50+ attachments available
🌐 Global Support	Doosan has strong dealer network worldwide
💺 Operator Comfort	Low noise, AC cab, auto-idle
💰 Good Value	Competitive pricing vs. Japanese brands

🔑 Bottom Line: The Doosan DX60 is one of the best 6-ton compact excavators on the market — offering an excellent balance of power, versatility, compact size, and value. It's a go-to machine for contractors, landscapers, and utility companies working in tight or urban environments.
