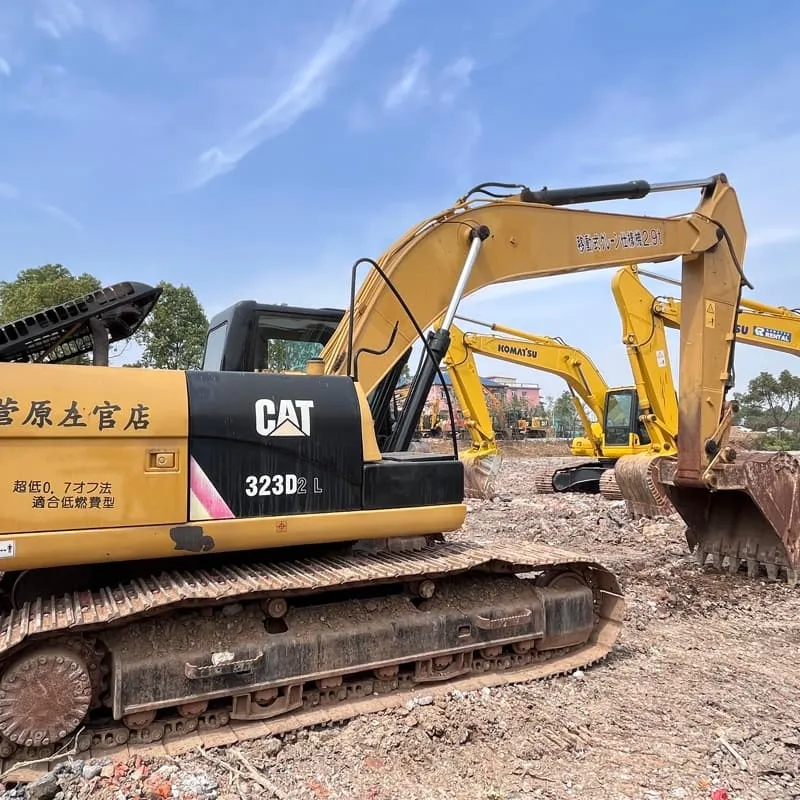

Used Caterpillar 323D2LExcavator

Reading: 17

🏗️ 1. OVERVIEW

Item	Detail
Manufacturer	Caterpillar Inc.
Series	D2 (Next Generation)
"L" Designation	Long Reach — extended boom & arm for deeper/farther digging
Class	Medium Excavator (20–25 ton class)
Primary Applications	Demolition, material handling, dredging, deep trenching, long-reach excavation
Emission Standard	EPA Tier 4 Final / EU Stage V

The 323D2L is essentially the long-reach variant of the standard 323D2, featuring an extended boom and stick to achieve greater digging depth and reach — ideal where access is limited or deep work is required.

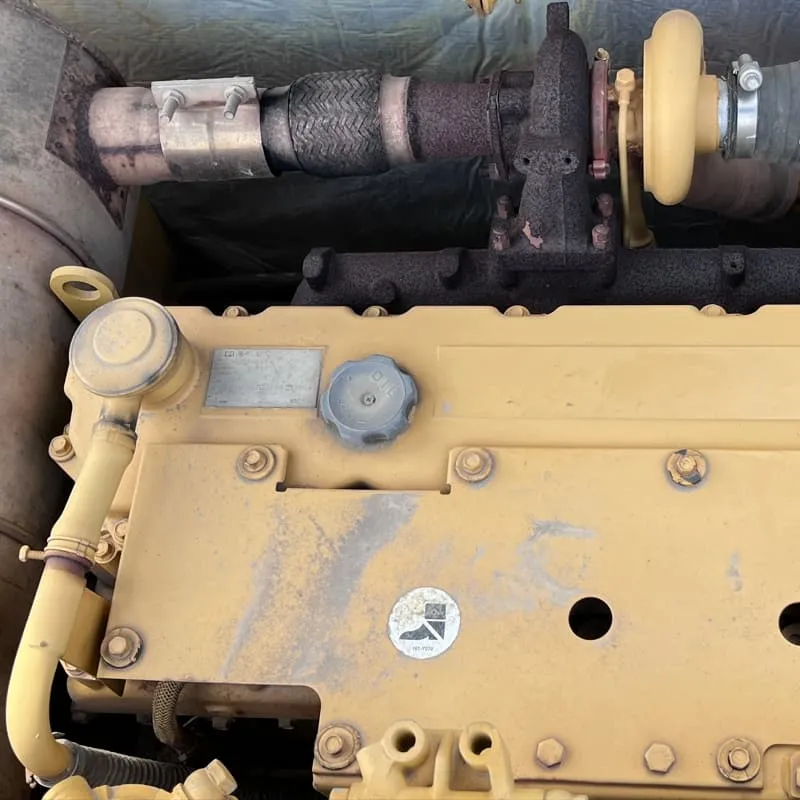

⚡ 2. ENGINE

Specification	Detail
Engine Model	Cat® C4.4 ACERT® / C4.4 Turbo Diesel
Type	4-cylinder, turbocharged, aftercooled, direct injection
Displacement	4.4 L (268 cu in)
Net Power	130 hp (97 kW) @ 2,000 rpm
Torque	~520 N·m (384 lb-ft) @ 1,400 rpm
Emissions	Tier 4 Final / Stage V (DPF + SCR/DOC)
Fuel Tank Capacity	~400 L (106 gal)
Cooling System	Pressurized, auto-reversing fan

✅ The C4.4 engine is known for fuel efficiency, reliability, and low maintenance costs.

& 3. OPERATING WEIGHT & DIMENSIONS

Specification	Detail
Operating Weight	~23,500 – 24,500 kg (51,800 – 54,000 lbs)
Transport Length	~10,500 mm (34'5")
Transport Width	2,990 mm (9'10")
Transport Height	3,120 mm (10'3")
Ground Clearance	460 mm (18.1")
Track Gauge	2,490 mm (8'2")

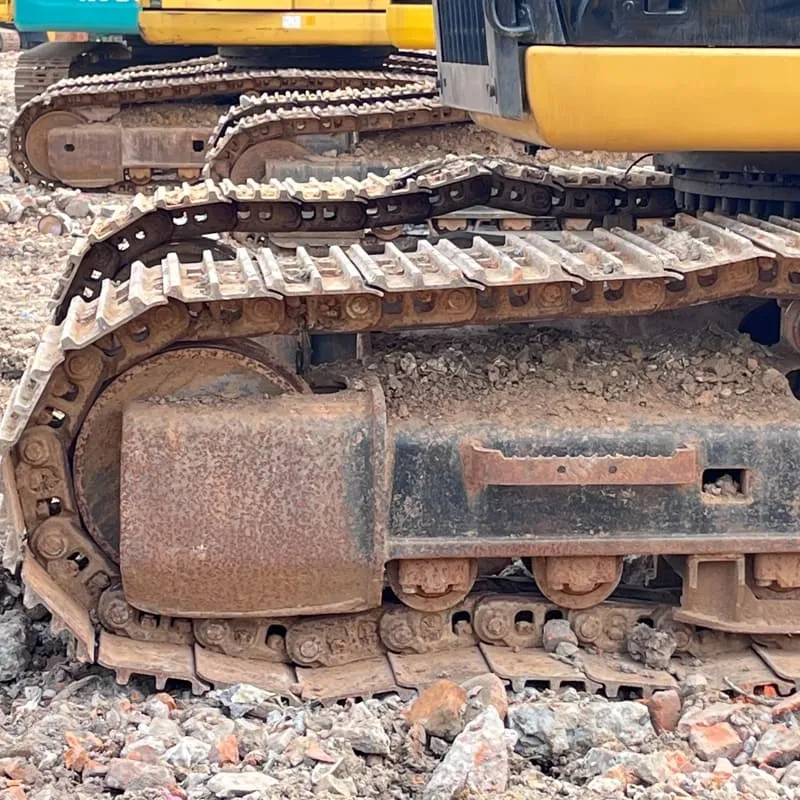

Track Shoe Width	600 mm (24") — triple grouser option available

📏 4. DIGGING PERFORMANCE (Long Reach)

Parameter	323D2L (Long Reach)	323D2 (Standard)
Max Digging Depth	~7.0 – 7.2 m (23' – 23'7")	~6.5 m (21'4")
Max Reach (Ground Level)	~10.5 – 11.0 m (34'5" – 36'1")	~9.9 m (32'6")
Max Dumping Height	~7.4 m (24'3")	~7.0 m (23')
Max Digging Reach (10' level)	~9.8 m (32'2")	~9.2 m (30'2")
Max Vertical Wall Dig	~5.8 m (19')	~5.4 m (17'8")
Breakout Force (Boom)	~115 kN (25,800 lbf)	~118 kN (26,500 lbf)
Breakout Force (Arm)	~80 kN (18,000 lbf)	~82 kN (18,400 lbf)
Bucket Capacity (SAE)	0.9 – 1.1 m³ (1.2 – 1.4 yd³)	0.9 – 1.1 m³

🔑 The long-reach configuration sacrifices some breakout force but gains ~0.5–1.0 m extra reach and depth — perfect for demolition and deep excavation.

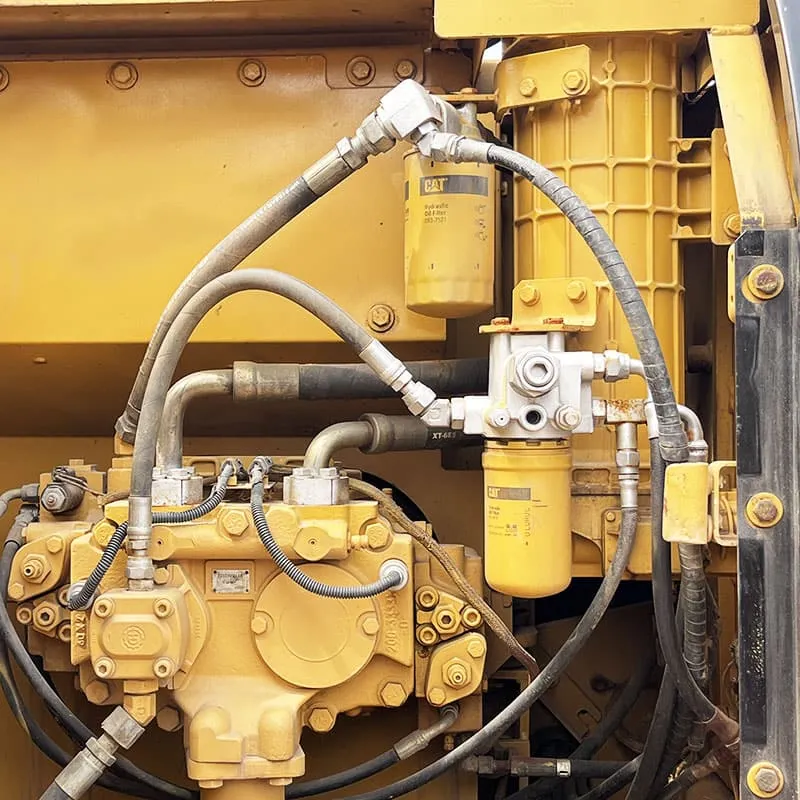

🛢️ 5. HYDRAULIC SYSTEM

Specification	Detail
System Type	Load Sensing (LS) with pressure/flow compensation
Max System Pressure	350 bar (5,076 psi)
Pump Flow	2 × Variable displacement axial piston pumps
Total Flow	~350 L/min (92 gpm)
Auxiliary Hydraulic Flow	~60 L/min (16 gpm) — for attachments (hammers, grapples, etc.)
Hydraulic Oil Capacity	~220 L (58 gal)

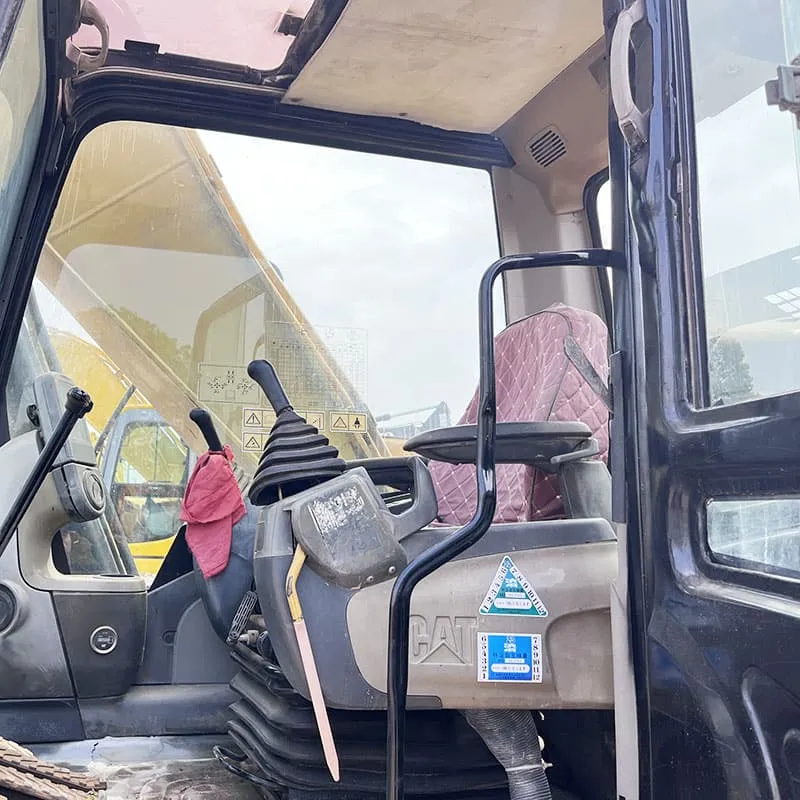

🎛️ 6. CAB & OPERATOR ENVIRONMENT

Feature	Detail
Cab Type	Next Generation (NG) — spacious, pressurized
ROPS/FOPS	✅ Certified (Roll Over & Falling Object Protection)
Seat	Air-suspension, heated, fully adjustable
Climate Control	Automatic A/C + heating
Display	8" (203 mm) touchscreen monitor with rear-view camera
Noise Level	~72 dB(A) (very quiet for its class)
Vibration	Low — ISO 5349 compliant
Controls	Electronic joystick with programmable buttons
Lighting	LED work lights (front, rear, boom)

📡 7. TECHNOLOGY & SMART FEATURES

Technology	Description
Cat Product Link™	Telematics — real-time machine tracking, health monitoring, diagnostics
Cat GRADE with 2D	Optional — GPS-guided grading for dozing, trenching, excavation
Cat Payload	Optional — real-time bucket load weighing (±1% accuracy)
Cat Detect	Optional — object detection (personnel, obstacles)
Eco Mode	Reduces engine RPM when full power isn't needed — saves up to 15% fuel
Auto Engine Idle	Engine auto-shuts off after 5 min inactivity
Auto Swing Lock	Prevents swing during travel
Security	PIN-code start, Cat Theft Detection

🔧 8. SERVICE & MAINTENANCE

Feature	Detail
Service Intervals	Engine oil: 500 hrs / 1,000 hrs (extended)
Fuel Filter	500 hrs
Hydraulic Filter	500 hrs
Ground-Level Access	✅ Most daily checks from ground level
Swing-out Engine Cover	✅ Easy engine access
Auto-lubrication	Available for boom/arm pins
Total Cost of Ownership	Among the lowest in its class

🆚 9. COMPARISON: 323D2L vs Competitors

Feature	Cat 323D2L	Komatsu PC228USLC-11	Hitachi ZX225USLC-7	Volvo ECR235L
Power	130 hp	132 hp	132 hp	130 hp
Weight	~24,000 kg	~24,300 kg	~24,100 kg	~23,800 kg
Max Depth	~7.2 m ⭐	~7.0 m	~6.9 m	~7.0 m
Max Reach	~11.0 m ⭐	~10.2 m	~10.0 m	~10.1 m
Telematics	Product Link ⭐	Komtrax	Connex	CareTrack
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 The 323D2L is widely considered the best long-reach excavator in the 20-ton class due to its superior reach, fuel efficiency, and technology.

📋 10. COMMON ATTACHMENTS

Attachment	Application
🔨 Hydraulic Breaker (Hammer)	Demolition, rock breaking
🪓 Hydraulic Shear	Demolition, scrap metal
🦾 Orange Peel / Sorting Grapple	Material handling, scrap
🪣 Thumb	Pipe handling, loading
🔧 Tiltrotator	Versatile attachment mounting
🪣 Bucket (various sizes)	General excavation
🌊 Dredge Bucket	Dredging, river/canal work

✅ 11. KEY STRENGTHS SUMMARY

✅ Strength	Description
📏 Best-in-class reach & depth	Long boom/arm gives ~1m extra reach vs standard
&Fuel efficient**	Eco mode + C4.4 = low operating cost
🧠 Smart technology	Product Link, Payload, Grade-ready
🛋️ Operator comfort	Quiet, spacious, low vibration cab
🔧 Low maintenance	Ground-level service, long intervals
💪 Reliable	Cat C4.4 is one of the most proven engines in the industry
📈 Resale value	Cat machines hold value better than competitors

🎯 12. IDEAL USE CASES

Industry	Application
🏚️ Demolition	Long reach for building tear-down
🌊 Dredging	Deep water/canal work
🚛 Material Handling	Loading trucks from distance
🏗️ Deep Trenching	Utility trenches, foundation work
🛣️ Road Construction	Long-reach grading & excavation
🌳 Land Clearing	Reach into dense areas

📌 FINAL VERDICT

The Caterpillar 323D2L is arguably the king of the 20-ton long-reach excavator market. It combines Cat's legendary reliability and fuel efficiency with an extended-reach configuration that no competitor in this class can match. Whether you're doing demolition, dredging, or deep excavation — the 323D2L delivers maximum reach, minimum cost, and maximum uptime.
