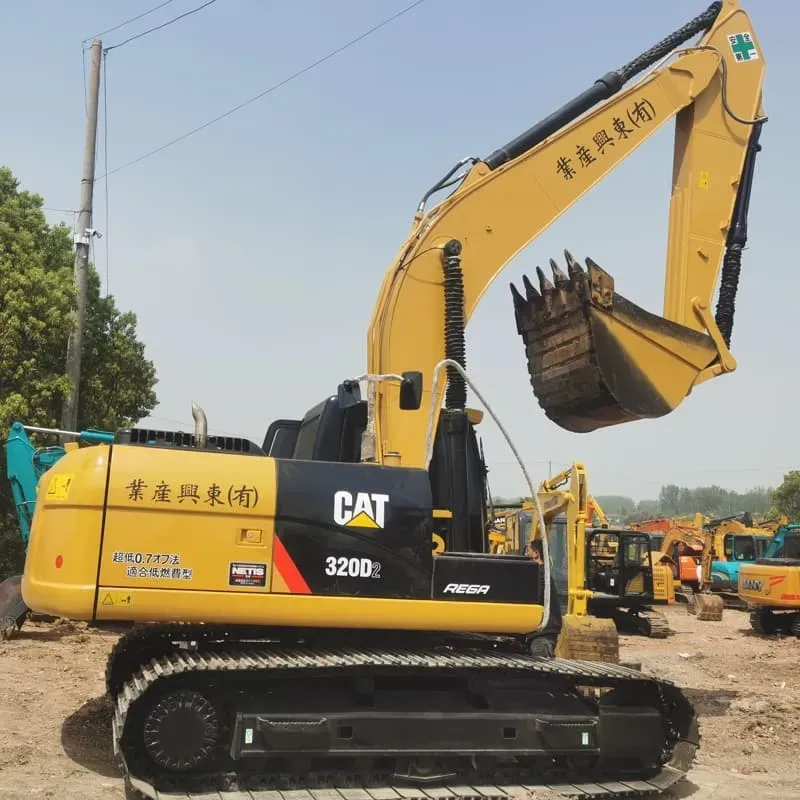

Used Caterpillar 320D2 Excavator

Reading: 130

📌 1. OVERVIEW

The Caterpillar 320D2 is a mid-size (20-ton class) hydraulic excavator belonging to Cat's D2 Series (Next Generation), introduced around 2014–2015 as a successor to the popular 320D/320DL models. It is designed for general construction, road building, utilities, landscaping, and mining applications.

It strikes a balance between performance, fuel efficiency, and operator comfort, making it one of the best-selling excavators in its class worldwide.

📌 2. KEY SPECIFICATIONS

Parameter	Specification
Engine	Cat® C4.4 ACERT® — 4-cylinder, turbocharged diesel
Net Power	129 hp (96 kW) @ 2,000 rpm
Operating Weight	20,690 – 21,280 kg (45,610 – 46,910 lbs)
Bucket Capacity	0.64 – 1.14 m³ (0.84 – 1.49 cu yd)
Max Digging Depth	6,520 mm (21 ft 5 in)
Max Reach (Ground Level)	9,690 mm (31 ft 9 in)
Max Dumping Height	7,180 mm (23 ft 7 in)
Hydraulic Flow (2 pumps)	2 × 294 L/min (77.7 gal/min)
Max Breakout Force	~136 kN (30,600 lbf)
Swing Speed	9.3 rpm
Travel Speed	4.8 km/h (3.0 mph)
Fuel Tank Capacity	400 L (106 gal)
Emissions	Tier 4 Final / Stage IIIB / EU Stage V

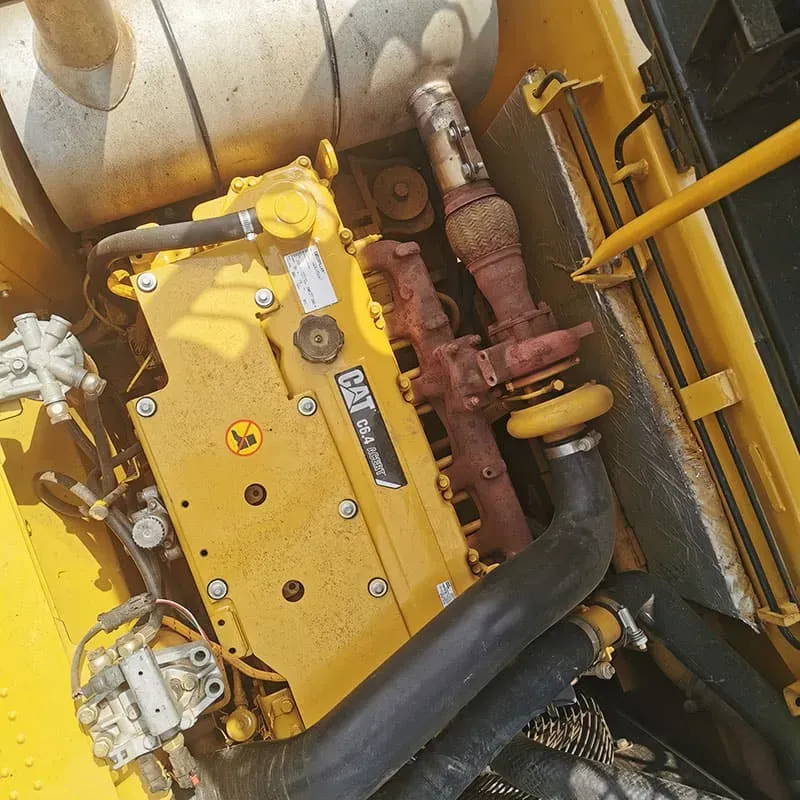

📌 3. ENGINE — Cat C4.4 ACERT®

Feature	Detail
Type	4-cylinder, turbocharged & aftercooled diesel
Displacement	4.4 L (268 cu in)
Power	129 hp (96 kW)
Emissions	Meets Tier 4 Final (EPA), Stage IIIB (EU), Korea Stage V
Aftertreatment	Diesel Oxidation Catalyst (DOC) + Diesel Particulate Filter (DPF) — NO SCR/DEF required ✅
Key Advantage	Simpler emissions system = lower maintenance cost compared to Tier 4 Final machines that use SCR

💡 The C4.4 is known for being reliable, fuel-efficient, and easy to maintain.

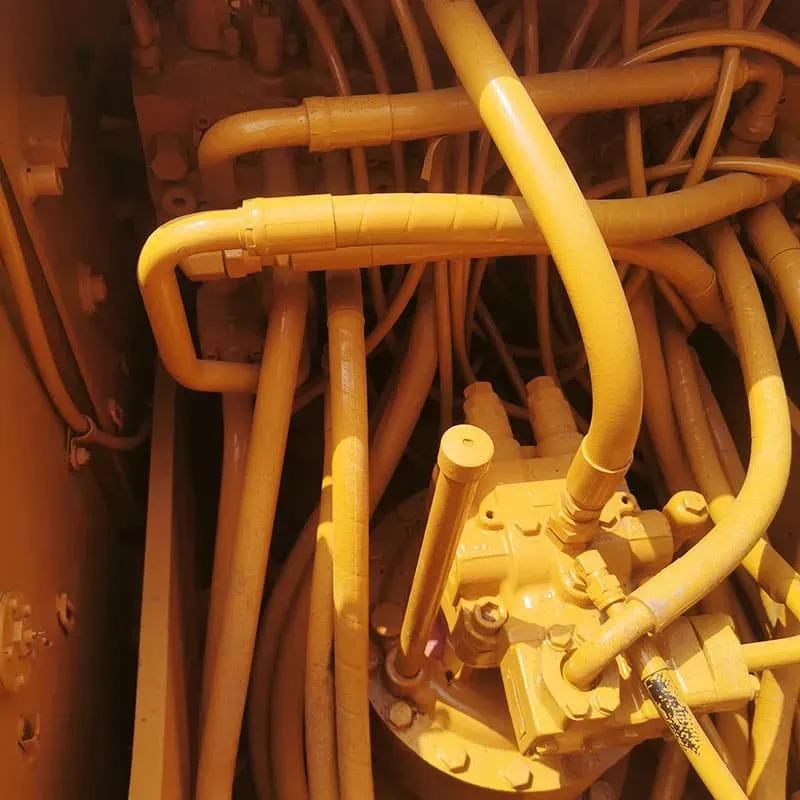

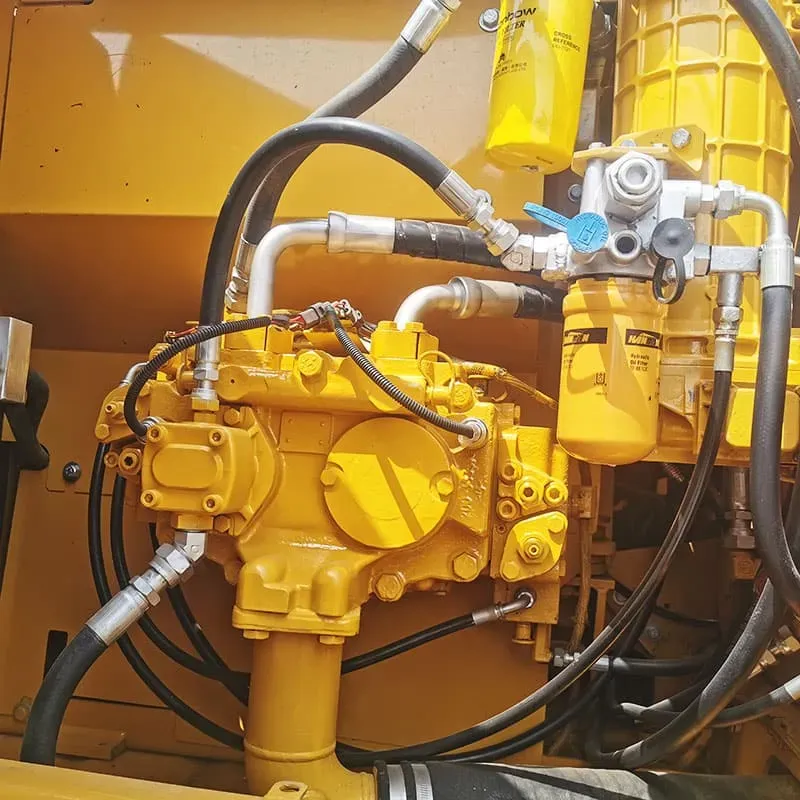

📌 4. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Variable displacement piston pumps (2)
Total Flow	2 × 294 L/min (combined ~588 L/min)
System Pressure	350 bar (5,076 psi)
Auxiliary Hydraulics	Available (for hammers, thumbs, grapples, etc.)
Flow Share	Yes — prioritizes attachment flow

The hydraulic system delivers excellent power-to-weight ratio, enabling smooth and powerful operation even with heavy attachments.

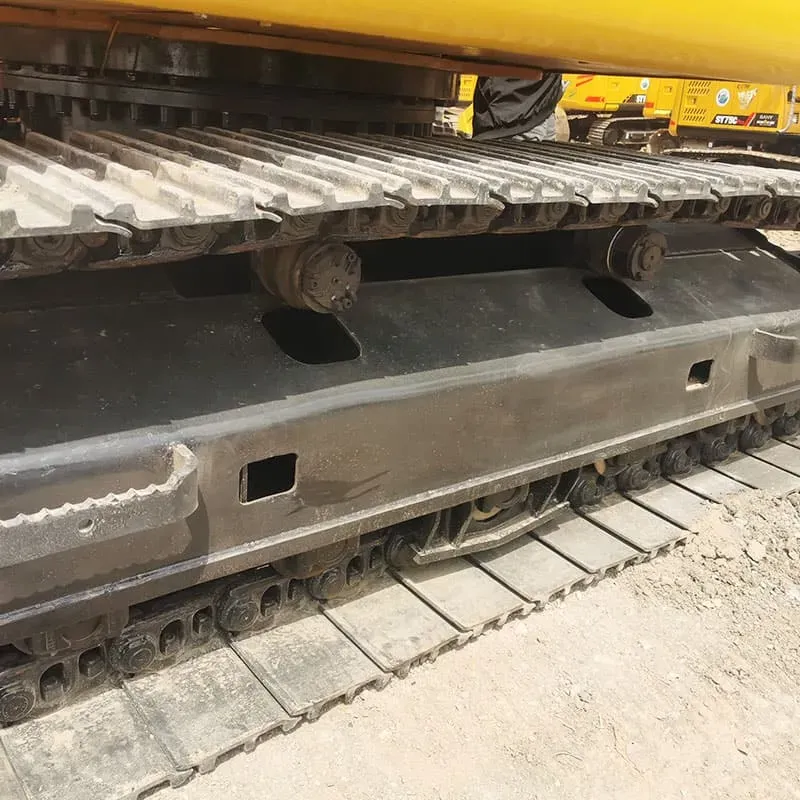

📌 5. UNDERCARRIAGE & STRUCTURE

Feature	Options
Track Width	600 mm (24 in) — standard
	450 mm (18 in) — Narrow (N) version available
Shoe Options	Single grouser, triple grouser, double grouser
Boom & Stick	One-piece boom & stick for strength & durability
X-Frame	Standard (some markets: optional)
Counterweight	Cast iron

📌 6. CAB & OPERATOR COMFORT ⭐

This is where the 320D2 really shines:

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Noise Level	69 dB(A) — one of the quietest in class 🔇
Air Conditioning	Fully automatic climate control
Seat	Air-suspended seat with heat, armrests & weight adjustment
Display	7" (178 mm) color LCD touchscreen monitor
Controls	Joystick with integrated switches, pilot-operated controls
Visibility	Large glass area, excellent all-round visibility
Storage	Ample storage compartments, cup holders, USB ports
Vibration	Low vibration levels — reduced operator fatigue

📌 7. SMART TECHNOLOGY & TELEMATICS 📡

Technology	Function
Cat Product Link™	Real-time machine monitoring, location tracking, diagnostics, fuel usage, idle time ✅
Cat Grade with 2D	Optional — for dozing, trenching, slope work with GPS/GNSS
Cat Payload	Optional — real-time bucket load weighing (±1% accuracy)
Auto Engine Idle	Automatically reduces engine RPM when not working → saves fuel ⛽
Eco Mode	Reduces power to match job demand → up to 15% fuel savings
Security	CAT Security+ (anti-theft, geofencing) available

📌 8. ATTACHMENTS & VERSATILITY

The 320D2 can be equipped with a wide range of Cat and third-party attachments:

Attachment	Application
🔨 Hydraulic Hammer (Breaker)	Demolition, rock breaking
🫳 Thumb	Grappling, loading, waste handling
🪓 Hydraulic Grapple	Scrap metal, log handling
🔄 Quick Coupler	Fast attachment changeover
🔩 Hydraulic Shear	Steel cutting, demolition
🪣 Tiltrotator	Precise positioning (trenching, grading)
🌊 Bucket (GP/GP+/BMP)	General purpose, mud, rock

📌 9. FUEL EFFICIENCY &

Feature	Benefit
Auto Idle	Saves up to 10% fuel when idle
Eco Mode	Saves up to 15% fuel during light work
Efficient Engine	C4.4 ACERT optimized for fuel economy
Typical Consumption	~14–18 L/hr (3.7–4.8 gal/hr) depending on application

💰 Lower operating cost = higher profitability for contractors

📌 10. MAINTENANCE & SERVICEABILITY 🔧

Feature	Detail
Ground-Level Service Points	Engine oil, fuel filter, coolant — all accessible from ground
Extended Service Intervals	Engine oil: 1,000 hrs / Hydraulic oil: 4,000 hrs
Drain Valves	Easily accessible for quick oil changes
Daily Checks	Simplified daily inspection points
Cat Dealer Network	Global support with genuine parts

📌 11. AVAILABLE CONFIGURATIONS

Model	Description
320D2 GC	General Construction — standard boom/stick
320D2 L	Long Reach — for deep digging, dredging
320D2 N	Narrow — 450 mm tracks for tight spaces
320D2 GC + Long Reach	Combination

📌 12. APPLICATIONS

Sector	Use Case
🏗️ General Construction	Excavation, foundation work, backfilling
🛣️ Road Building	Trenching, pipe laying, grading
💧 Utilities	Water/sewer pipe installation
🏔️ Mining & Quarrying	Rock loading, bench work (with hammer)
🌳 Landscaping	Grading, tree planting, pond digging
🏚️ Demolition	Building tear-down (with hammer/shear)

📌 13. COMPETITORS

Competitor	Model
🇯🇵 Komatsu	PC200-8 / PC210LC-11
🇯🇵 Hitachi	ZX200-6 / ZX210LC-6
🇰🇷 Doosan (Develon)	DX225LC-5 / DX235LC-5
🇰🇷 Hyundai	R220LC-9S
🇸🇪 Volvo	EC200E / EC220E
🇯🇵 Kobelco	SK200-10 / SK210LC-10

📌 14. SUMMARY — WHY CHOOSE THE 320D2? ✅

Strength	Rating
💪 Performance	⭐⭐⭐⭐⭐
⛽ Fuel Efficiency	⭐⭐⭐⭐⭐
🛋️ Operator Comfort	⭐⭐⭐⭐⭐
🔧 Low Maintenance	⭐⭐⭐⭐⭐
📡 Technology	⭐⭐⭐⭐⭐
💰 Resale Value	⭐⭐⭐⭐⭐
🌐 Dealer Support	⭐⭐⭐⭐⭐

🎯 FINAL VERDICT

The Caterpillar 320D2 is one of the most well-rounded, productive, and cost-effective 20-ton excavators on the market. Its combination of powerful C4.4 engine, excellent fuel economy, superior operator comfort, and advanced telematics makes it the go-to choice for contractors worldwide. Whether you're digging foundations, breaking rock, or grading land — the 320D2 delivers reliable performance day after day. 🚜💪

Would you like me to compare it with a specific competitor, provide pricing info, or go deeper into any particular feature? 😊
