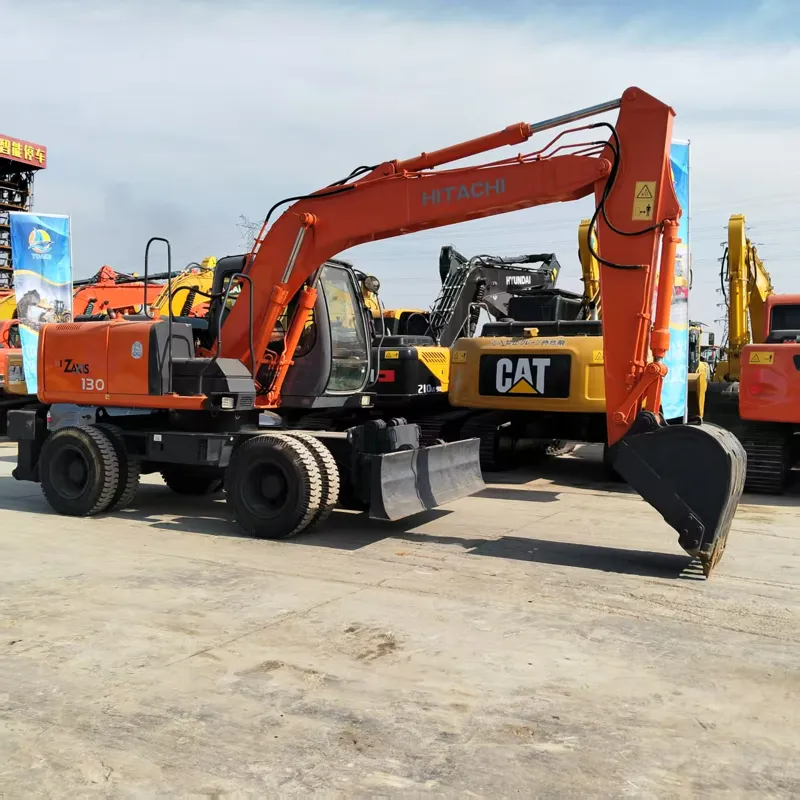

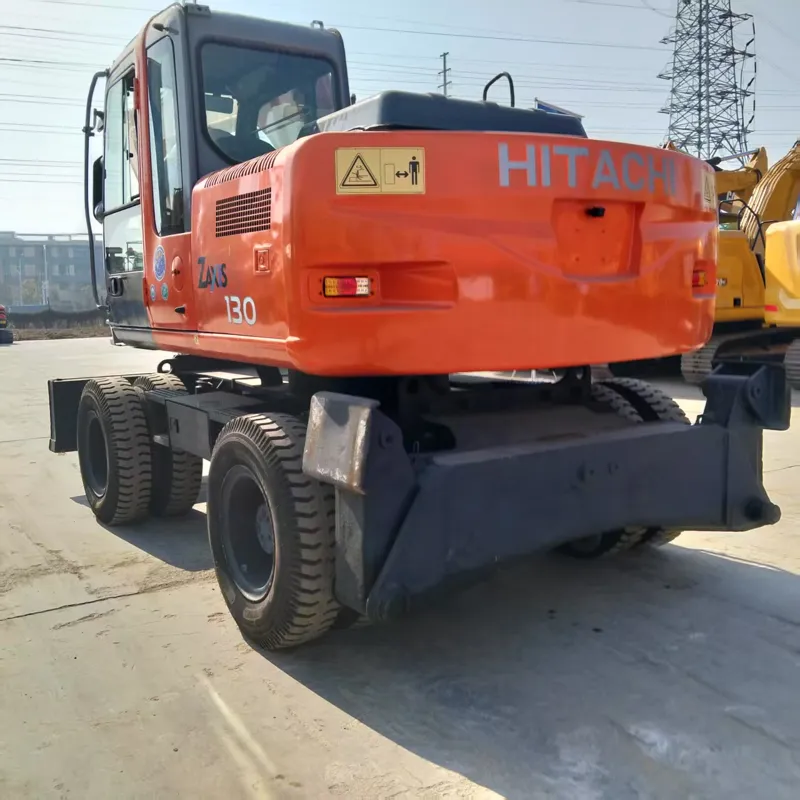

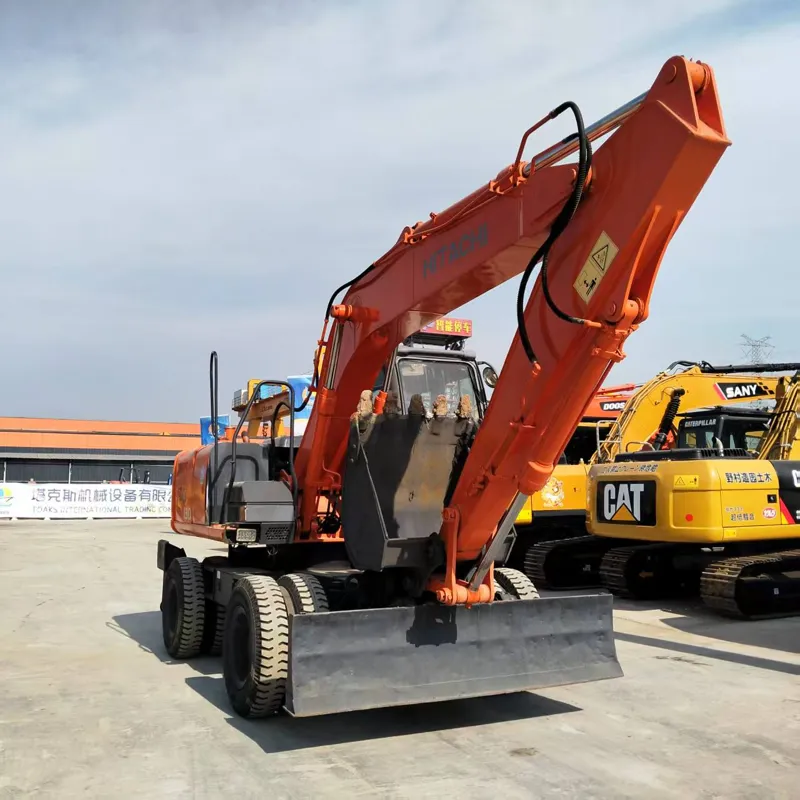

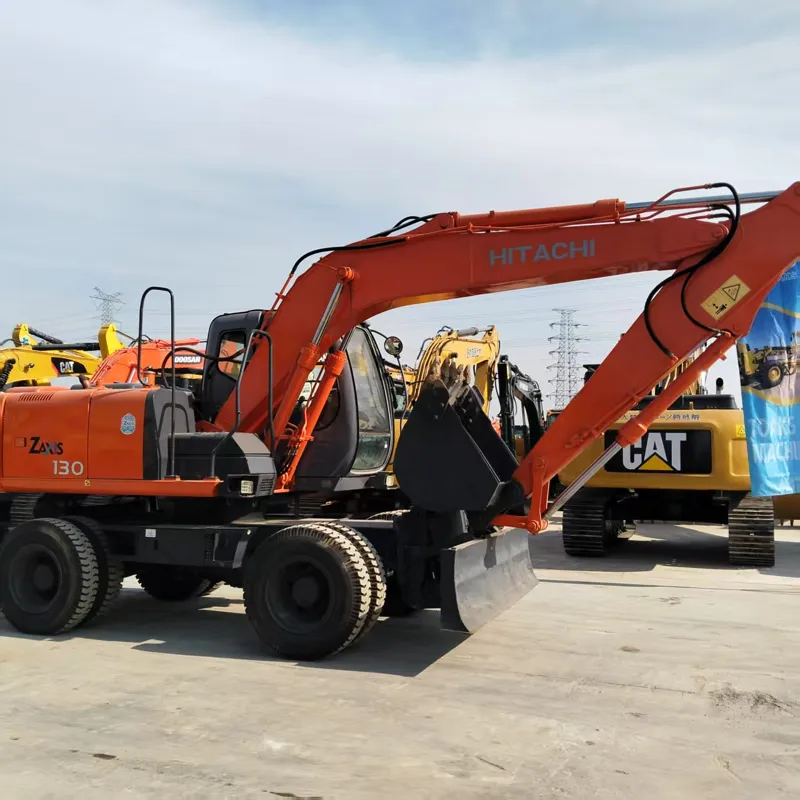

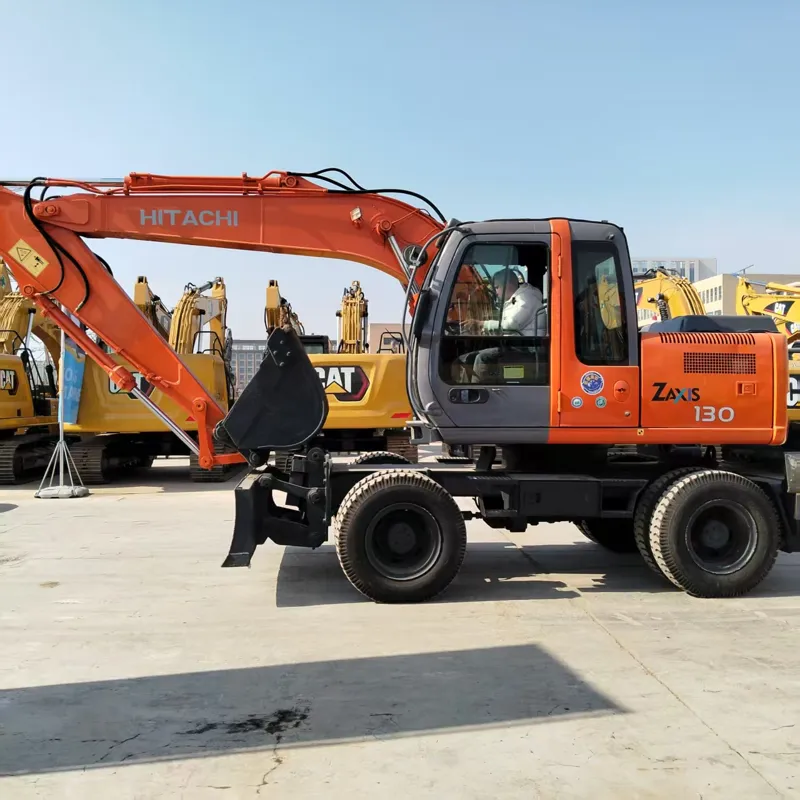

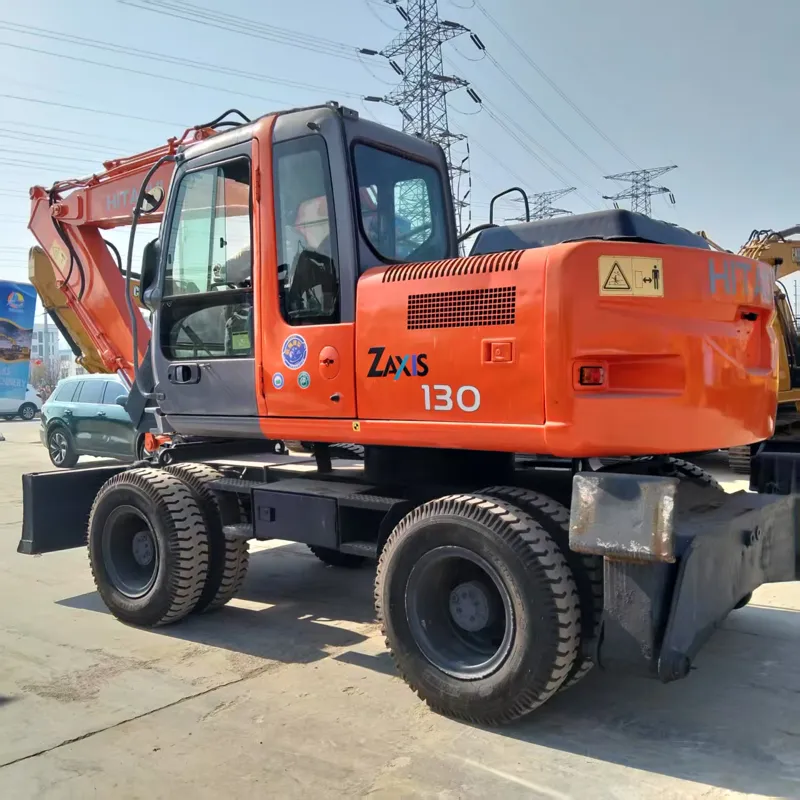

Used Wheeled HITACHI 130 Excavator

Reading: 29

📋 Overview

The Hitachi ZW130 is a 13-ton class wheeled excavator manufactured by Hitachi Construction Machinery Co., Ltd. (a subsidiary of Hitachi Ltd., Japan). It is designed for high-mobility operations on paved roads, job sites, and urban environments where speed and maneuverability are critical. It combines the digging power of a tracked excavator with the road-travel speed of a wheeled machine.

🔧 Key Specifications

Parameter	Details
Model	ZW130 / ZW130-6 (latest generation)
Operating Weight	~13,000 – 13,800 kg (28,660 – 30,420 lbs)
Engine	Isuzu AH-4HK1X Turbo Diesel
Engine Power	~96 – 103 HP (71 – 77 kW) @ 2,000 rpm
Emission Standard	Tier 4 Final / Stage V
Bucket Capacity	0.4 – 0.6 m³ (0.52 – 0.78 yd³)
Max Digging Depth	~5,500 – 5,800 mm (18.0 – 19.0 ft)
Max Digging Reach	~8,500 – 9,000 mm (27.9 – 29.5 ft)
Max Dumping Height	~6,500 mm (21.3 ft)
Max Digging Force	~85 – 90 kN (19,100 – 20,200 lbf)
Travel Speed	0 – 36 km/h (0 – 22.4 mph)
Fuel Tank Capacity	~250 L (66 gal)
Hydraulic Flow	~2 × 120 L/min (dual pump)
Tire Size	10.00 – 20 (standard)
Ground Clearance	~350 mm (13.8 in)

🏗️ Main Features & Highlights

1️⃣ High Mobility & Road Speed

Can travel up to 36 km/h (22 mph) on public roads without needing a trailer.
Self-propelled between job sites — no lowboy trailer required, saving time and money.
Equipped with road lights, mirrors, and indicators for highway-legal travel (varies by region).

2️⃣ Powerful Engine — Isuzu AH-4HK1X

4-cylinder turbocharged diesel engine.
Reliable, fuel-efficient, and meets strict Tier 4 Final / Stage V emission standards.
Automatic engine idle shutdown system saves fuel during inactivity.

3️⃣ Hydraulic System

Load-sensing hydraulic system with variable displacement pumps.
Provides smooth, precise control for delicate work.
Optional auxiliary hydraulic lines for attachments (breaker, grapple, auger, etc.).

4️⃣ Cab Comfort & Visibility

Spacious, quiet, air-conditioned cab with ergonomic controls.
Large glass area for excellent all-around visibility.
Adjustable suspension seat with armrests.
Monitor panel with digital display showing engine info, fuel consumption, working hours, etc.

5️⃣ Safety Features

ROPS/FOPS certified cab.
Rear-view camera (on newer models).
Emergency stop switches.
Auto-idle and engine overheat protection.

6️⃣ Stability & Outriggers

Equipped with 4 hydraulic outriggers (stabilizers) for stable digging operations.
Dozer blade at the rear for additional stability and grading capability.
Counterweight optimized for the wheeled configuration.

7️⃣ Versatile Attachment Options

Attachment	Application
🔨 Hydraulic Breaker	Demolition, concrete breaking
🪓 Grapple	Material handling, sorting
🔩 Auger / Drill	Pile driving, fence post holes
🪣 Thumb / Quick Coupler	Fast attachment change
🔄 Rotating Grapple	Log/scrap handling
❄️ Snow Plow	Winter maintenance

🆚 Comparison: ZW130 vs Tracked Equivalent (ZX135)

Feature	ZW130 (Wheeled)	ZX135 (Tracked)
Speed (Travel)	✅ 36 km/h	❌ 4.5 km/h
Transport	✅ Self-propelled	❌ Needs trailer
Ground Pressure	⚠️ Higher	✅ Lower (better on soft ground)
Stability	⚠️ Needs outriggers	✅ Superior
Maneuverability (Urban)	✅ Excellent	⚠️ Limited
Fuel Efficiency	✅ Better on road	⚠️ Better on rough terrain
Tire Wear Cost	⚠️ Yes	✅ No tires

🌍 Applications

Industry	Use Cases
🏗️ Construction	Excavation, trenching, backfilling
🛣️ Road Work	Utility trenching, pothole repair, road maintenance
🏙️ Urban/Municipal	Street digging, utility work, landscaping
⚡ Utilities	Water/gas/electric line installation
🏭 Demolition	Building tear-down with breaker attachment
🌲 Forestry	Log handling, land clearing
🗑️ Waste Management	Sorting, loading with grapple
❄️ Winter Maintenance	Snow removal (with plow)

📊 Advantages Summary

✅ Pros	❌ Cons
Fast self-propelled travel (no trailer)	Higher ground pressure than tracked
Lower transport/logistics cost	Less stable on very soft/muddy ground
Excellent for urban & road work	Tire maintenance & replacement cost
Quick setup — just extend outriggers	Slightly higher fuel consumption under load
Multi-functional with many attachments	Smaller bucket than same-weight tracked

🔄 Model Generations

Generation	Model	Years (Approx.)	Key Upgrade
1st Gen	ZW130	2000s	Original design
2nd Gen	ZW130-3	~2010	Improved engine, cab
3rd Gen	ZW130-5	~2015	Tier 4 engine, better hydraulics
4th Gen	ZW130-6 / ZW130MH	2020+	Stage V engine, smart monitoring, enhanced cab

ZW130MH = Material Handler version (longer boom, optimized for loading/grapple work)

💰 Approximate Pricing (2024)

Region	Price Range (USD)
🇺🇸 North America	$150,000 – $190,000
🇪🇺 Europe	€140,000 – €180,000
🇯🇵 Japan	¥18,000,000 – ¥22,000,000
🇨🇳 China	¥900,000 – ¥1,200,000

(Prices vary by configuration, attachments, and dealer)

🏁 Final Verdict

The Hitachi ZW130 is one of the best-in-class 13-ton wheeled excavators — ideal for contractors who need:

🚀 Speed between job sites
💪 Power for heavy digging
🔧 Versatility with multiple attachments
💵 Cost savings on transport & logistics

It's a workhorse for urban infrastructure, utilities, and general construction where mobility matters as much as digging performance.

📌 Want me to compare it with competitors like Volvo EW130E, Doosan DX140W, or CAT M313? 😊

Non flooded

No accident

Original product

High quality and low price

We guarantee the quality of each machine and promise
to offer you the most favorable price.
