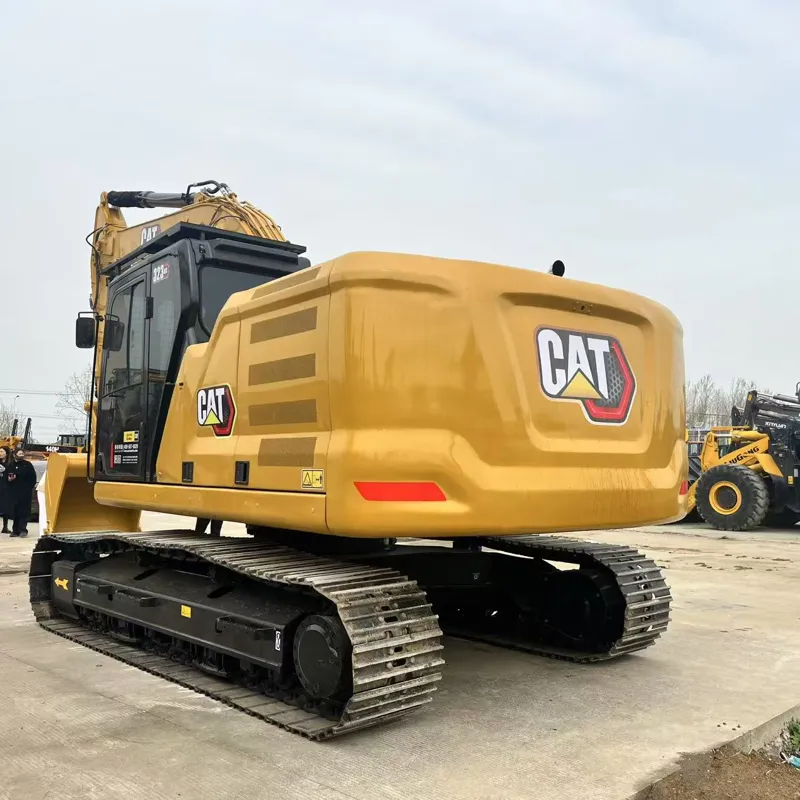

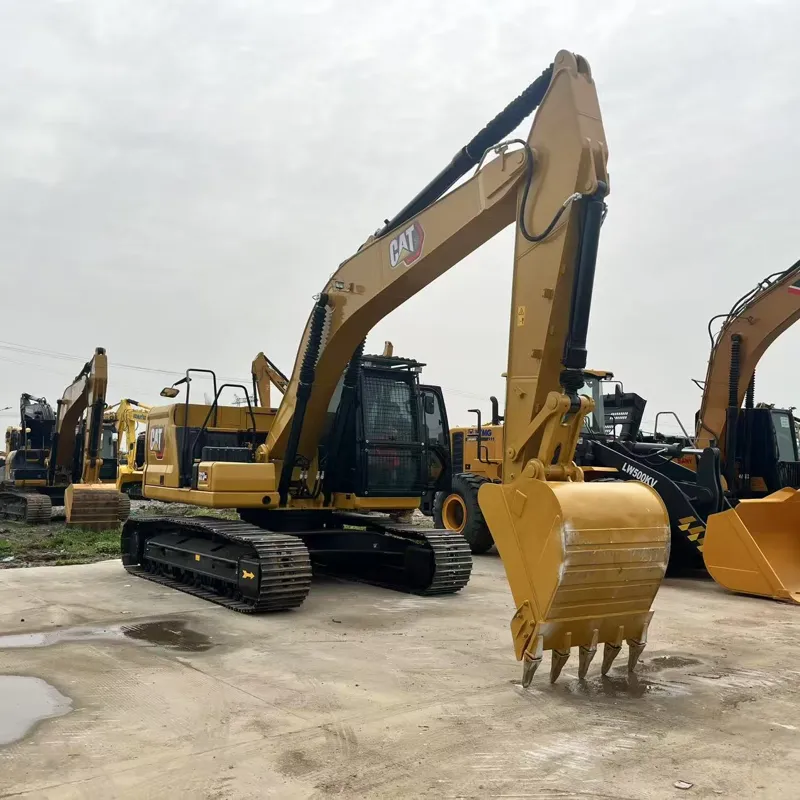

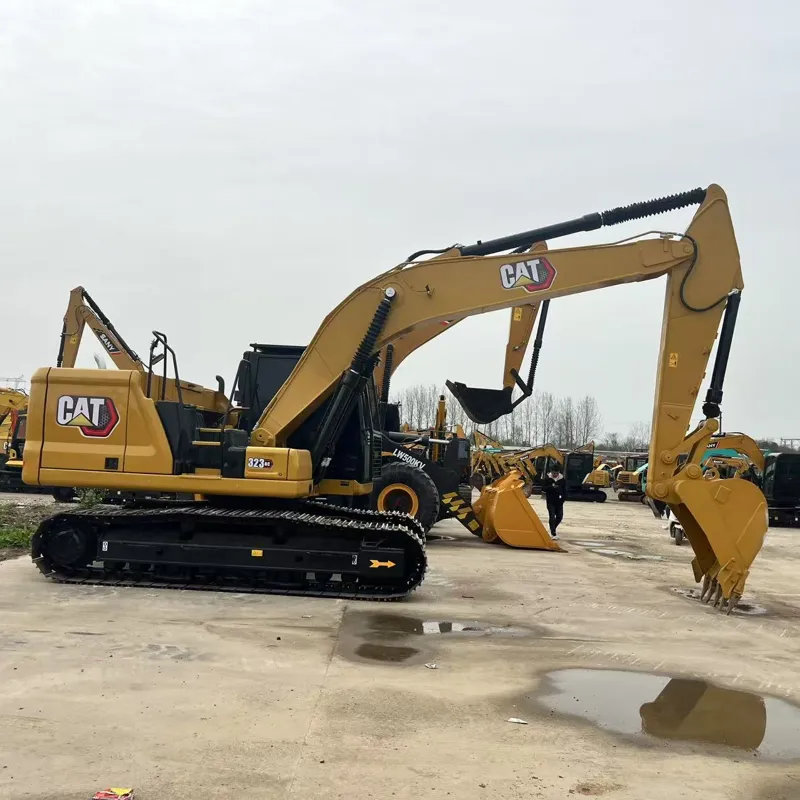

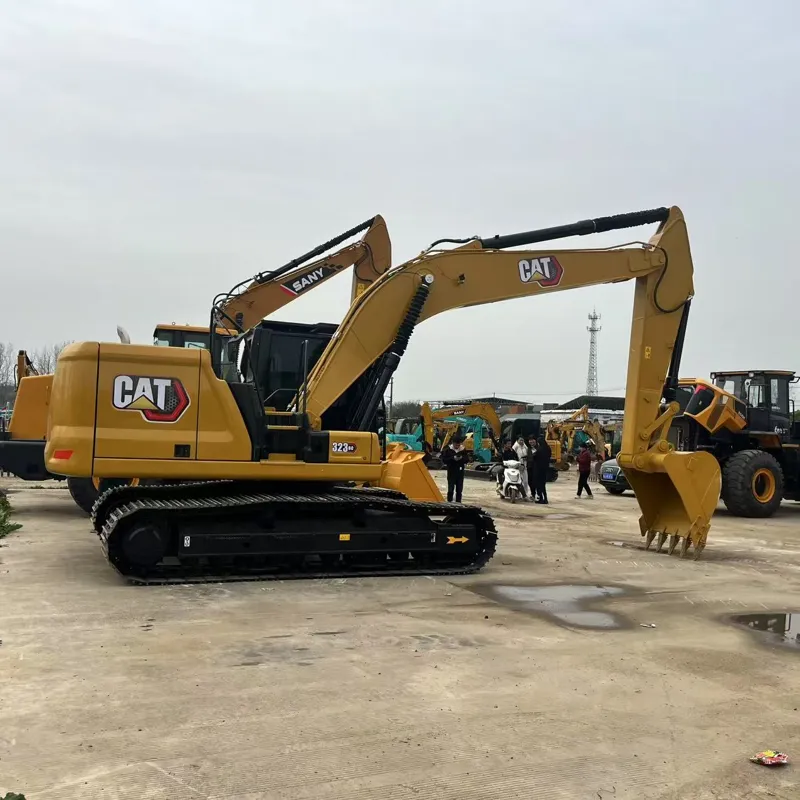

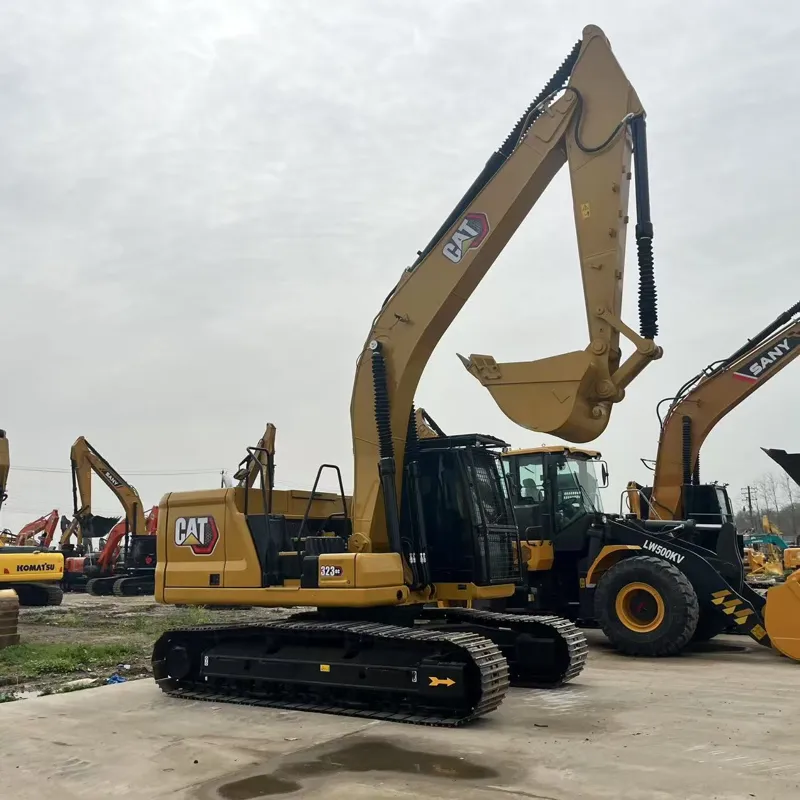

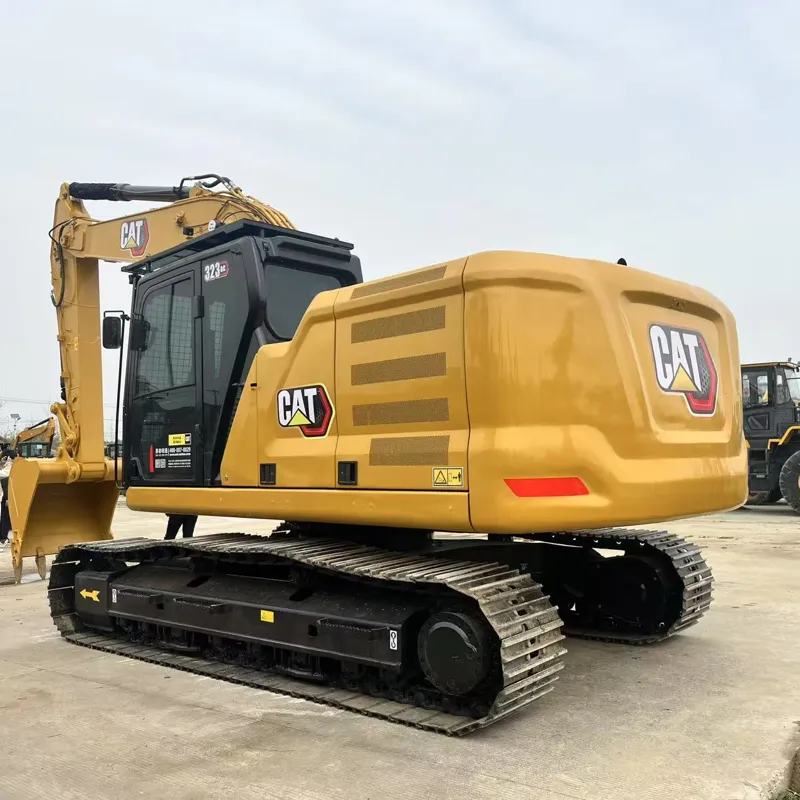

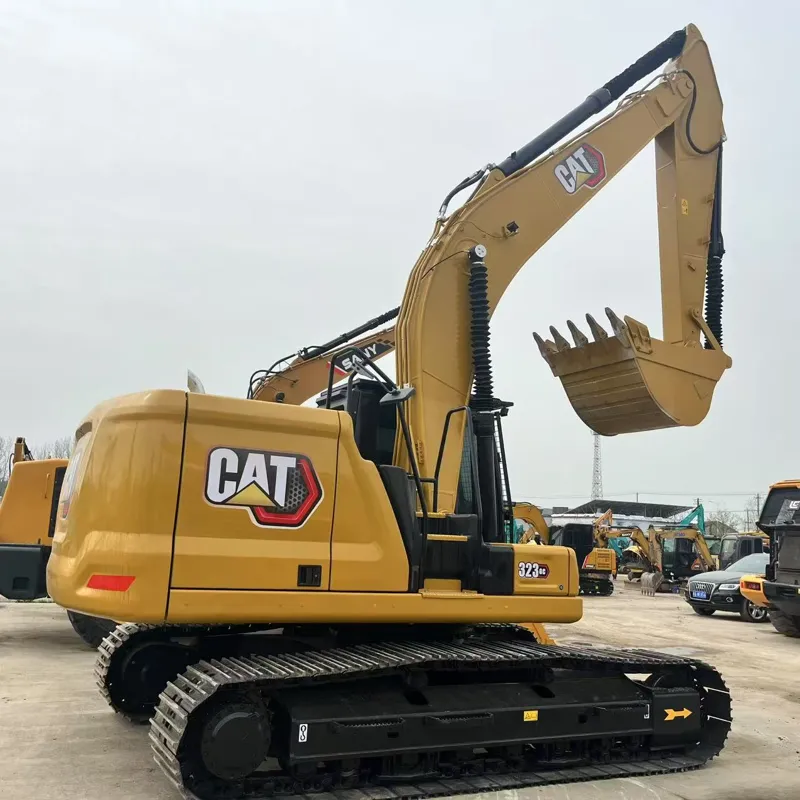

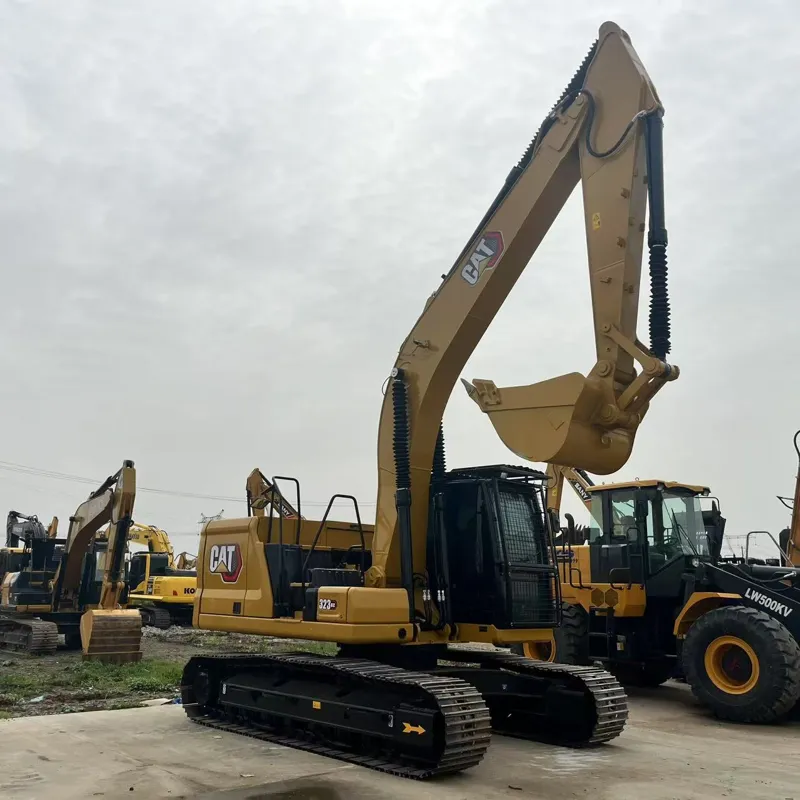

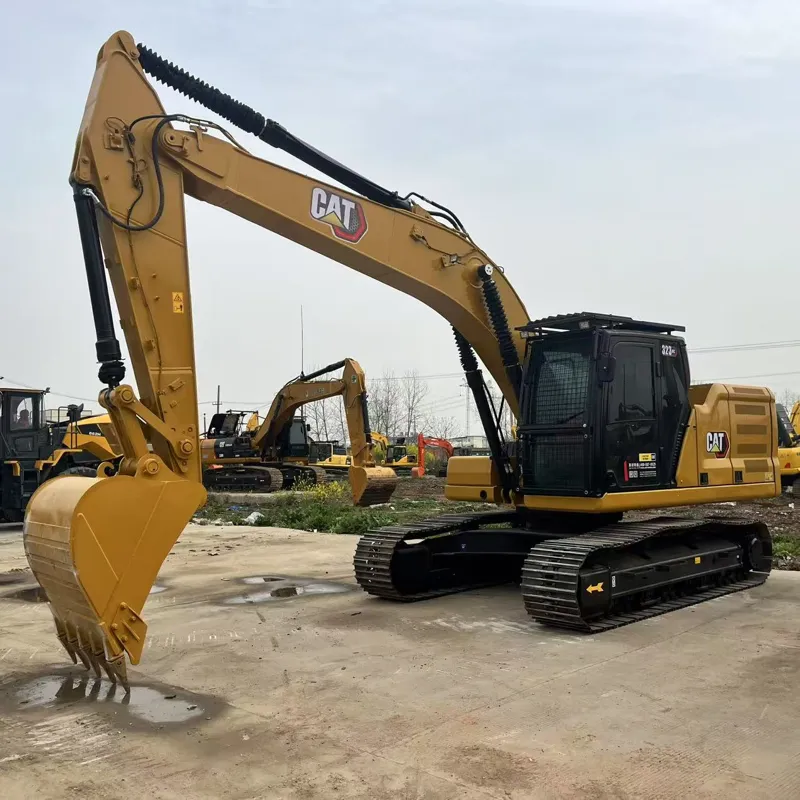

Used Caterpillar 323GC Excavator

Reading: 52

🏗️ Overview

The CAT 323 GC (GC = General Construction) is a mid-size hydraulic excavator manufactured by Caterpillar Inc. It sits between the smaller 320 GC and the larger 326 GC in Cat's lineup. It is designed for general construction, road building, utility work, landscaping, and demolition tasks.

It is known for its compact tail swing design, fuel efficiency, and operator comfort.

🔧 Key Specifications

Specification	Details
Engine	Cat® C4.4 ACERT® T4F (Turbocharged, Aftercooled)
Engine Type	4-Cylinder Diesel
Net Power	86 kW (115 hp) @ 2,200 rpm
Operating Weight	22,500 – 23,500 kg (49,600 – 51,800 lbs)
Bucket Capacity (Std.)	0.86 – 1.14 m³ (1.1 – 1.5 yd³)
Max Dig Depth	5,870 mm (19 ft 3 in)
Max Reach (Ground Level)	9,320 mm (30 ft 7 in)
Max Dump Height	6,680 mm (21 ft 11 in)
Breakout Force (Boom)	~97 kN (21,800 lbf)
Breakout Force (Arm)	~67 kN (15,100 lbf)
Track Width	600 mm (24 in) shoes
Fuel Tank Capacity	~380 L (100 gal)
Hydraulic Flow	2 × 126 L/min (33.3 gpm) pumps

🚜 Power Train & Hydraulic System

Feature	Description
Transmission	Hydrostatic with variable displacement piston pumps
Travel Motors	Axial piston motors with piston pumps
Swing Motor	Axial piston motor
Hydraulic System	Load-sensing, pressure-compensated
Swing Speed	~10.5 rpm
Travel Speed	~4.7 km/h (2.9 mph)
Gradeability	70% (35°)

🏠 Cab & Operator Comfort

The 323 GC features Cat's next-generation cab design:

Feature	Detail
ROPS/FOPS	✅ Roll-Over & Falling Object Protective Structure
Climate Control	Auto AC with filtration
Seat	Air-suspended, heated, high-back with armrests
Display	7" (178 mm) touchscreen monitor with rearview camera
Controls	Proportional joysticks with fingertip controls
Noise Level	~72 dB(A) — very quiet for its class
Visibility	Large windshield, slim pillars, excellent all-around visibility
Bluetooth/USB	✅ Audio connectivity

🧠 Technology & Smart Features

Technology	Function
Cat GRADE with 2D	Real-time grading guidance (optional)
Cat PAYLOAD	Real-time bucket load weighing (optional)
Cat LINK™	Remote machine monitoring, diagnostics, fleet management
Cat Product Link™	Asset tracking, operating hours, fuel usage, location
Eco Mode	Auto engine speed reduction to save fuel (up to 15% fuel savings)
Auto Idle	Engine automatically reduces RPM when idle
Security	Cat Security system with PIN code protection

🔩 Attachments & Versatility

The 323 GC is a highly versatile machine with quick coupler compatibility:

Attachment Options	Use Case
🪣 Standard Bucket	General digging
🪨 Ripper (Single Shank)	Breaking hard ground/rock
🔨 Hydraulic Hammer (Breaker)	Demolition, concrete breaking
🦷 Thumb / Grapple	Material handling, sorting
🔧 Auger	Drilling/post holes
🪚 Hydraulic Shear	Steel cutting, demolition
🧹 Tiltrotator	360° attachment rotation
🪨 Compactor Plate	Compaction work

& Comparison with Similar Models

Model	Weight	Power	Bucket	Class
CAT 320 GC	~20,000 kg	110 hp	0.8 m³	Smaller
⭐ CAT 323 GC	~23,000 kg	115 hp	1.0 m³	Mid-Size ⭐
CAT 326 GC	~26,000 kg	135 hp	1.2 m³	Larger
CAT 329 GC	~29,000 kg	156 hp	1.4 m³	Heavy

✅ Advantages (Pros)

✅ Pro	Detail
💪 Powerful for its class	115 hp with excellent breakout force
🔄 Compact Tail Swing	Works in tight spaces, close to structures
⛽ Fuel Efficient	Eco mode + ACERT engine = low fuel consumption (~18-22 L/hr)
🪑 Best-in-class comfort	Quiet, spacious cab with excellent ergonomics
📱 Smart technology	Cat LINK, PAYLOAD, GRADE ready
🔧 Easy maintenance	Ground-level service points, long service intervals (500/1000 hr)
🌐 Strong resale value	Cat brand holds value extremely well

❌ Limitations (Cons)

❌ Con	Detail
📏 Not for heavy mining	Better suited for general construction, not large-scale mining
💰 Higher purchase price	Compared to Chinese/Korean competitors (Komatsu PC228, Doosan DX225)
🔧 Parts cost	Cat OEM parts are expensive (but aftermarket available)

🌍 Markets & Applications

Application	Suitability
🏗️ General Construction	⭐⭐⭐⭐⭐
🛣️ Road Building	⭐⭐⭐⭐⭐
🔌 Utility / Pipeline	⭐⭐⭐⭐⭐
🌳 Landscaping	⭐⭐⭐⭐
🏚️ Light Demolition	⭐⭐⭐⭐
🪨 Quarrying	⭐⭐⭐
& Heavy Mining	⭐⭐

💵 Approximate Pricing (2024)

Configuration	Price (USD)
New Machine	$130,000 – $165,000
Used (2018-2022, 3,000-6,000 hrs)	$85,000 – $120,000
Rental (Daily)	$600 – $900/day

(Prices vary by region, configuration, and dealer)

🏆 Summary

The CAT 323 GC is one of the best mid-size excavators in its class, offering an excellent balance of power, efficiency, comfort, and technology. Its compact tail swing design makes it ideal for urban and confined-space work, while Cat's advanced electronics (PAYLOAD, LINK, GRADE) make it a smart, productive machine for modern construction companies.
