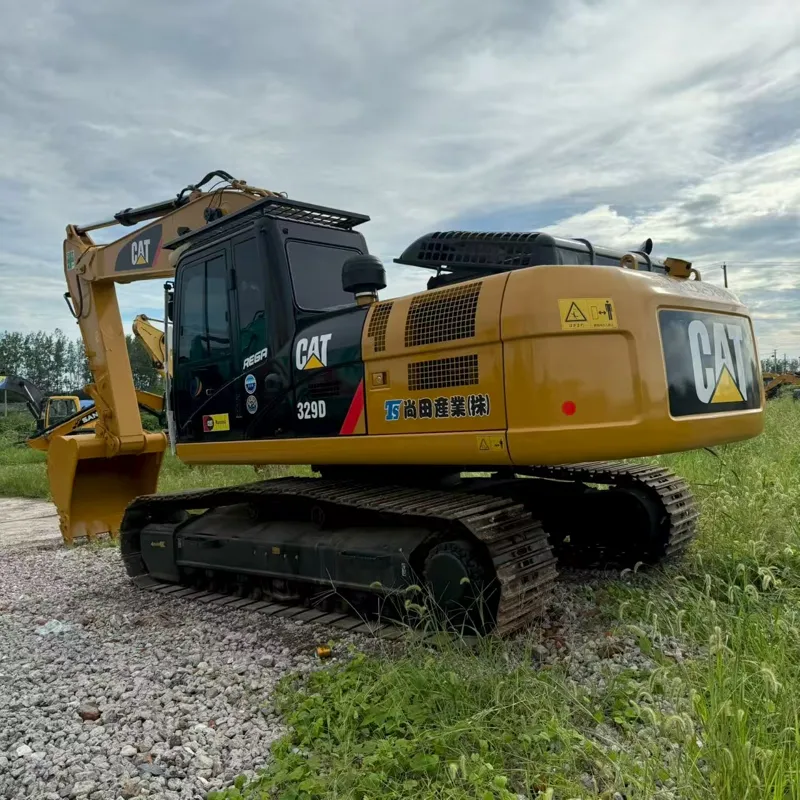

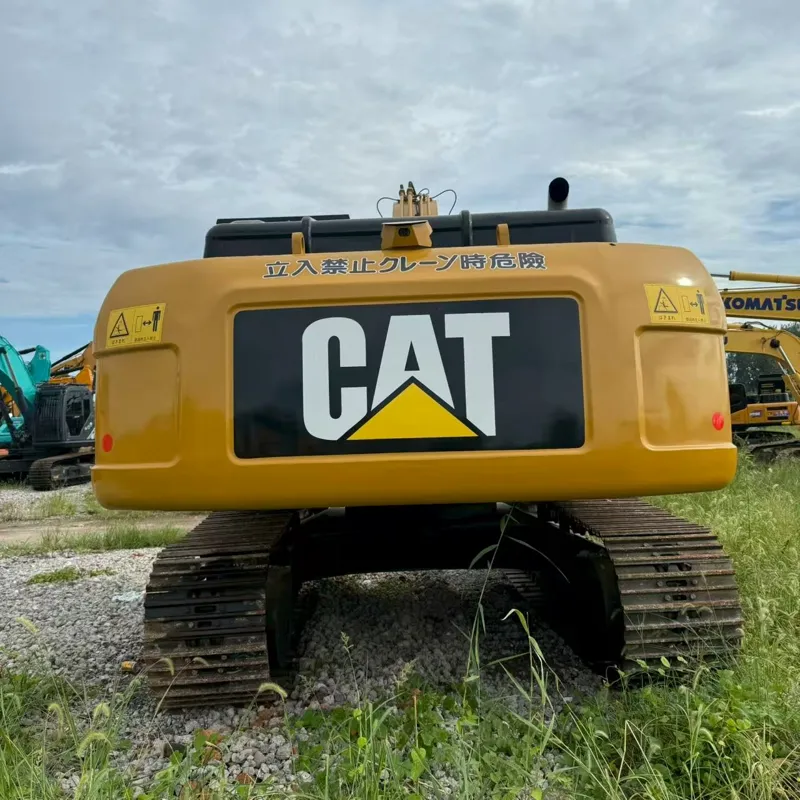

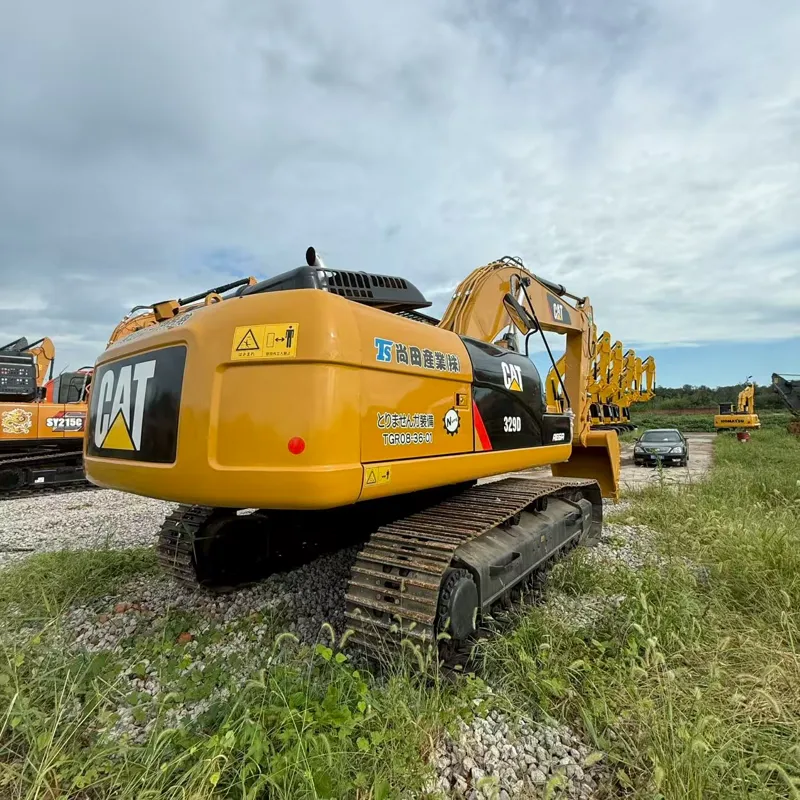

Used Caterpillar 329D Excavator

Reading: 55

📌 1. OVERVIEW

Item	Detail
Manufacturer	Caterpillar Inc. (USA)
Series	D-Series (Medium-Class Hydraulic Excavator)
Production Years	~2011 – 2016 (succeeded by 329 / 329D2 / Next Gen 329)
Class	29-ton (29,000 – 29,500 kg)
Primary Use	General construction, road building, utilities, mining, demolition

The CAT 329D sits between the 324D (lighter) and 336D (heavier) in Caterpillar's lineup. It is designed for high productivity and fuel efficiency in medium-to-heavy duty applications.

📌 2. KEY SPECIFICATIONS

Specification	Value
Operating Weight	28,980 – 29,530 kg (63,890 – 65,100 lbs)
Engine	Cat® C7.1 ACERT® (Tier 4 Final / Stage IIIB)
Rated Power	152 kW (204 hp) @ 2,000 rpm
Peak Torque	730 Nm (538 lb-ft) @ 1,400 rpm
Bucket Capacity	0.93 – 1.60 m³ (1.2 – 2.1 cu yd)
Max Digging Depth	6,940 mm (22 ft 9 in)
Max Reach (Ground Level)	9,820 mm (32 ft 3 in)
Max Dumping Height	7,220 mm (23 ft 8 in)
Swing Speed	8.2 rpm
Travel Speed	5.1 km/h (3.2 mph)
Ground Pressure	47 kPa (6.8 psi)
Fuel Tank Capacity	450 L (119 gal)
Hydraulic Flow	2 × 265 L/min (dual pump)
Operating Pressure	34.5 MPa (5,000 psi)

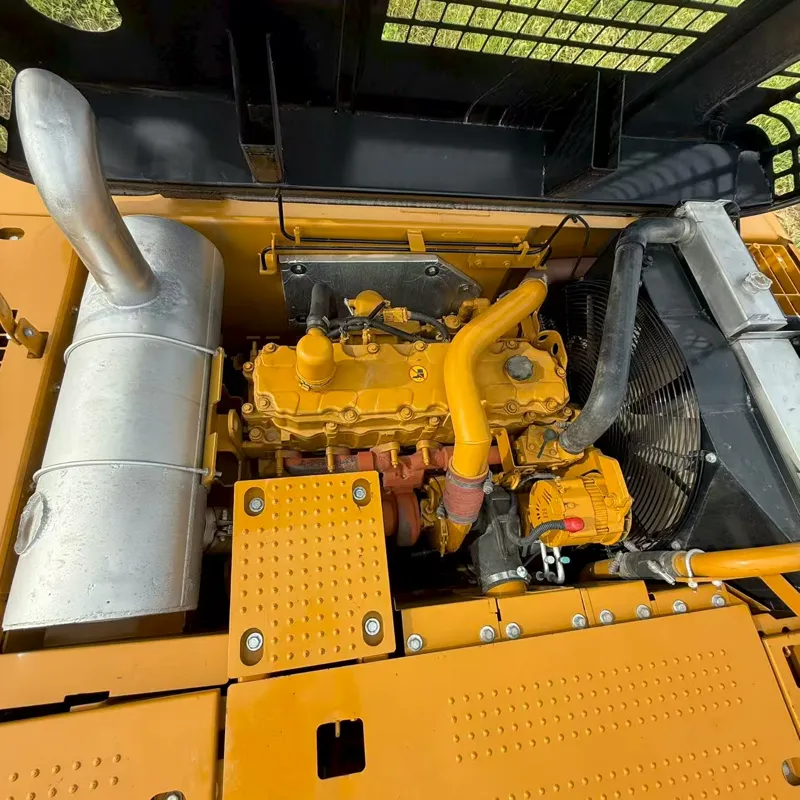

📌 3. ENGINE — Cat C7.1 ACERT®

Feature	Detail
Displacement	7.1 L (433 cu in)
Cylinders	6, inline, turbocharged
Emissions	Tier 4 Final / EU Stage IIIB (DOC + DPF + SCR)
Aftertreatment	Diesel Oxidation Catalyst (DOC) + Diesel Particulate Filter (DPF) + Selective Catalytic Reduction (SCR) with DEF (Diesel Exhaust Fluid)
Cooling	Liquid-cooled with auto-reversing fan
Advantages	Excellent fuel efficiency, lower emissions, reduced maintenance intervals

🔧 The C7.1 is known for its reliability, durability, and lower operating cost compared to older C7 engines.

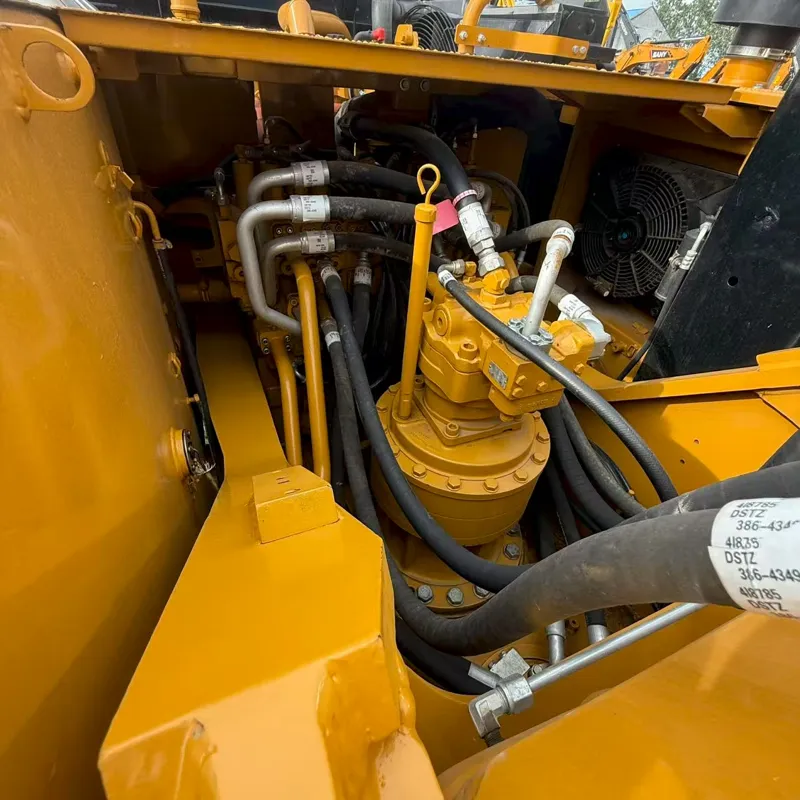

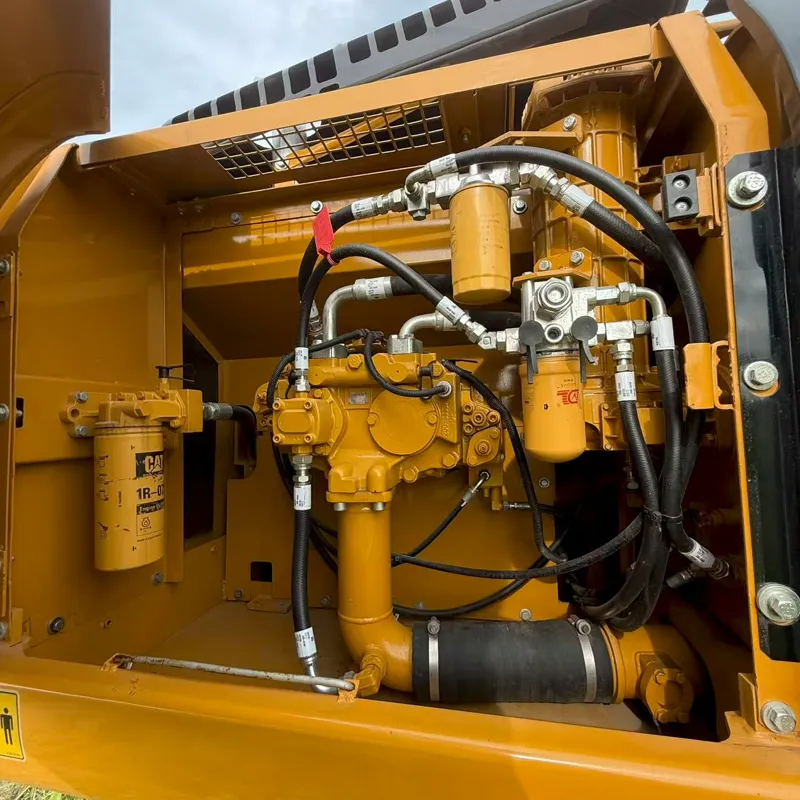

📌 4. HYDRAULIC SYSTEM

Feature	Detail
Type	Load-Sensing Hydraulic System
Pump	Dual Variable-Displacement Axial Piston Pumps
Total Flow	2 × 265 L/min (528 L/min combined)
Working Pressure	34.5 MPa (5,000 psi)
Auxiliary Flow	Up to 60 L/min for attachments (e.g., breakers, grapples)
Quick Coupler Ready	Yes — allows fast attachment changes

The hydraulic system is designed for smooth operation, precise control, and high attachment compatibility.

📌 5. UNDERCARRIAGE & STRUCTURE

Feature	Detail
Track Width	600 mm (24 in) — Triple Grouser Option available
Track Shoe	600 mm (24 in) or 700 mm (28 in) optional
Boom	Heavy-duty, reinforced for high breakout force
Stick	2.95 m (9 ft 8 in) standard; longer options available
Counterweight	~6,500 kg (14,330 lbs)
X-Frame	Heavy-duty reinforced undercarriage for durability

Configuration Options
🔩 Long Reach	3.0 m stick (for deep digging)
🔩 High Reach	3.0 m stick + extended boom (for demolition)
🔩 Heavy Duty	Reinforced boom/stick for quarrying
🔩 Track Shoe Width	600mm / 700mm
🔩 Triple Grouser	For rocky/abrasive terrain

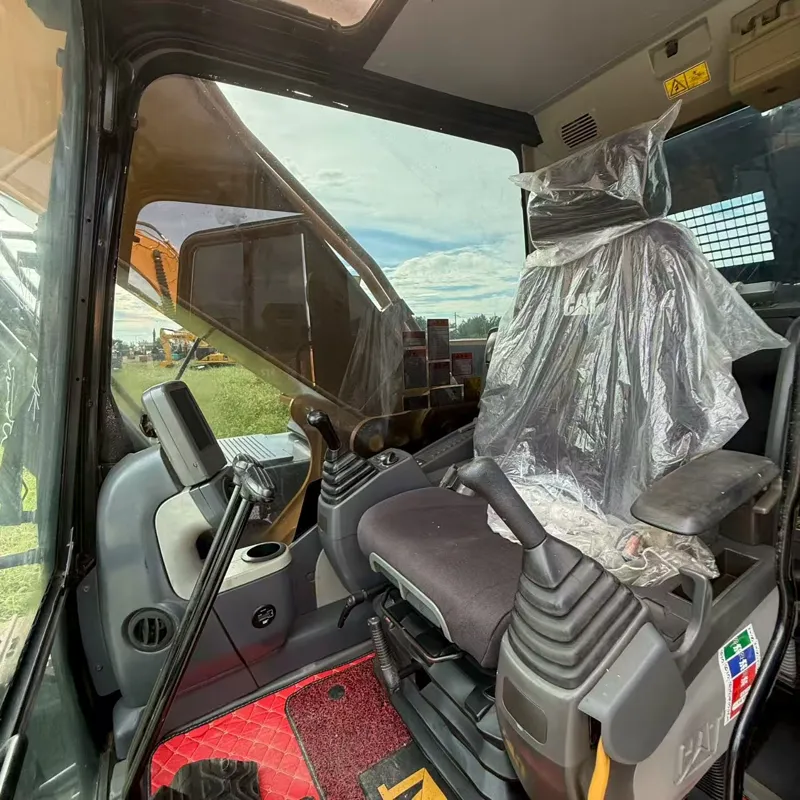

📌 6. CAB & OPERATOR ENVIRONMENT 🛋️

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Seat	Air-suspension, heated, adjustable
Climate Control	Auto A/C with heating
Display	7" (178 mm) color LCD touchscreen monitor
Cameras	Rearview & side-view cameras (optional)
Noise Level	~73 dB(A) — one of the quietest in its class
Visibility	Large glass area, excellent all-round visibility
Controls	Electronic joystick control (optional) or lever

The cab is designed for all-day comfort, reducing operator fatigue and increasing productivity.

📌 7. TECHNOLOGY & SMART FEATURES 🖥️

Technology	Description
Cat Product Link™	Remote machine monitoring, fleet management, diagnostic alerts
Cat Grade with 2D	Optional GPS-based grading system (auto-boom, auto-stick, auto-bucket)
Cat Payload	Real-time payload weighing (±1% accuracy)
Cat VisionLink®	Cloud-based fleet telematics
ECO Mode	Engine speed auto-adjusts to save fuel during light work
Power Modes	L1, L2, L3 — adjust power output to match application
Auto Idle	Engine auto-shuts down during inactivity to save fuel
Security	Cat Security (immobilizer, alarm, GPS tracking)

📌 8. PERFORMANCE HIGHLIGHTS 💪

Metric	Advantage
&Fuel Efficiency**	Up to 10-15% less fuel vs. 329C (previous model)
🏗️ Productivity	Up to 10% more productivity than 329C
🔧 Maintenance	Longer service intervals: 1,000-hr oil change, 2,000-hr filter intervals
🔩 Breakout Force	~145 kN (32,600 lbf) — excellent for tough materials
🪨 Tearout Force	~103 kN (23,200 lbf)
⏱️ Cycle Time	~7-8 seconds (typical digging cycle)

📌 9. COMMON ATTACHMENTS 🔧

Attachment	Application
🪣 General Purpose Bucket	Excavation, loading
🪨 Heavy Duty Bucket	Rock, quarrying
🔨 Hydraulic Breaker (Hammer)	Demolition, concrete breaking
🤏 Grapple	Scrap handling, log grabbing
🔄 Thumb	Material handling, pipe loading
🔩 Ripper	Hard ground, frozen soil
🌲 Rake	Landscaping, leveling
🪚 Tree Shear	Forestry, tree cutting
🏗️ Auger	Piling, drilling
🧹 Bucket with teeth	Rock excavation

📌 10. APPLICATIONS 🌎

Industry	Use Case
🏗️ General Construction	Foundation, trenching, backfilling
🛣️ Road Building	Grading, pipe laying, ditch cleaning
⚡ Utilities	Water/sewer pipe installation
🏭 Mining	Loading trucks, bench excavation
🏚️ Demolition	Building tear-down (with breaker/shear)
🌿 Landscaping	Grading, digging, tree work
🌉 Infrastructure	Bridge work, drainage

📌 11. COMPARISON WITH COMPETITORS

Model	Weight	Power	Bucket	Dig Depth
CAT 329D ⭐	29.5 t	204 hp	1.6 m³	6.94 m
Komatsu PC290LC-11	28.9 t	196 hp	1.4 m³	6.89 m
Volvo EC290E	28.6 t	201 hp	1.4 m³	6.94 m
Hitachi ZX290LC-6	28.7 t	192 hp	1.4 m³	6.93 m
Doosan DX290LC-5	28.8 t	191 hp	1.4 m³	6.85 m

✅ The 329D generally offers superior fuel efficiency, technology integration, and dealer support network compared to competitors.

📌 12. SUCCESSOR MODELS

Model	Notes
CAT 329D2 / 329 GC	Updated version with improved cab, Cat GRADE ready
CAT 329 (Next Gen)	2024+ model — new engine, updated electronics, Stage V emissions
CAT 329 XE	Extended reach version for demolition

📌 SUMMARY — WHY THE 329D? ⭐

✅ Strength	Detail
💪 Powerful	204 hp, 145 kN breakout force
&Fuel Efficient**	Best-in-class fuel consumption
🖥️ Tech-Rich	Product Link, Grade, Payload, VisionLink
🛋️ Comfortable	Quiet cab, air seat, great visibility
🔧 Reliable	Proven C7.1 engine, long service intervals
🌐 Support	Global Cat dealer network
💰 Resale Value	Excellent — Caterpillar holds value well

🎯 The Caterpillar 329D is one of the best-selling medium-class excavators in the world, prized for its balance of power, efficiency, technology, and reliability. It's a workhorse that delivers low cost-per-ton and high uptime — making it a top choice for contractors worldwide.
