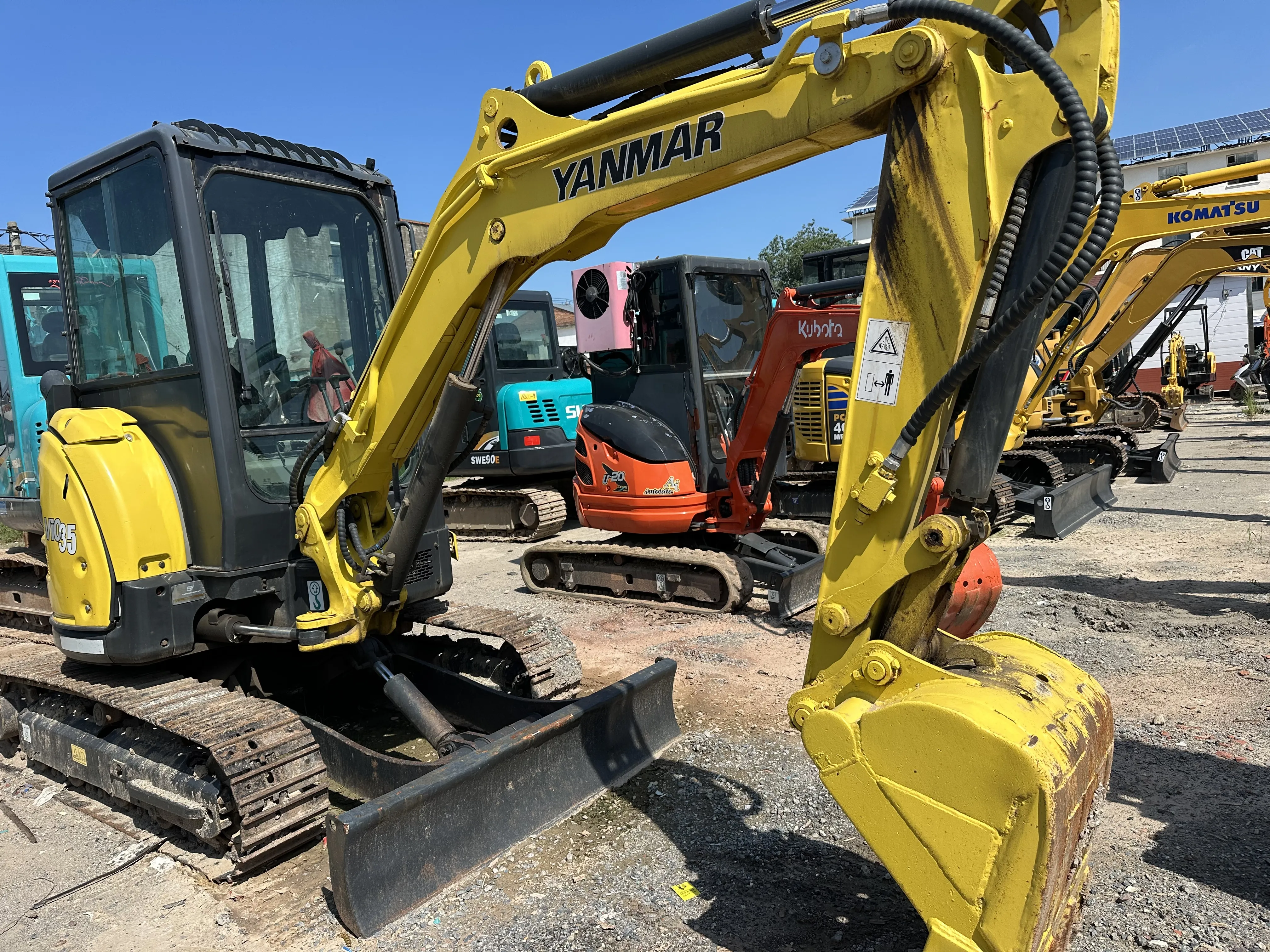

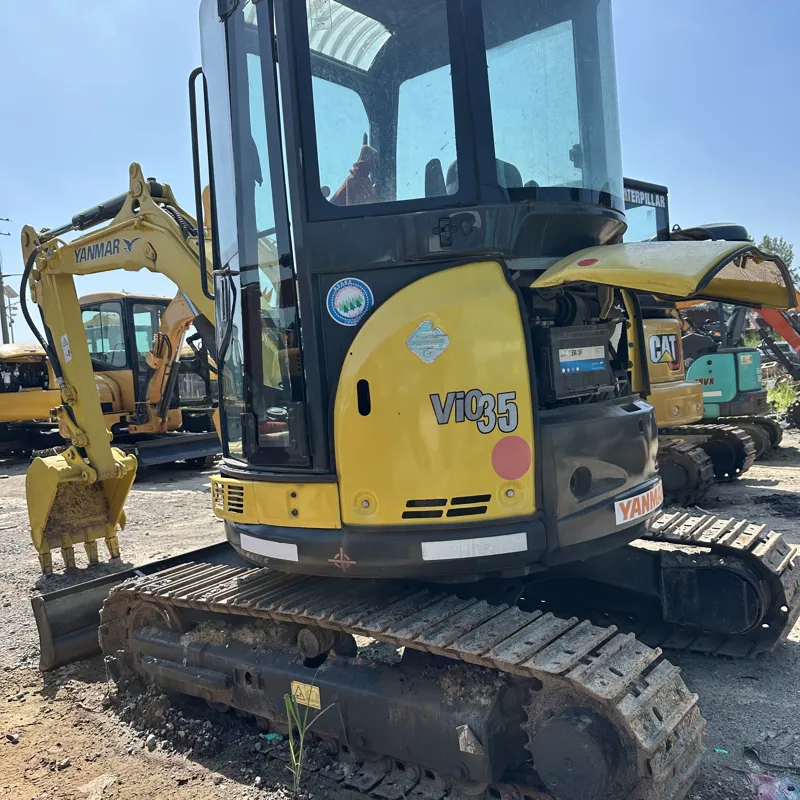

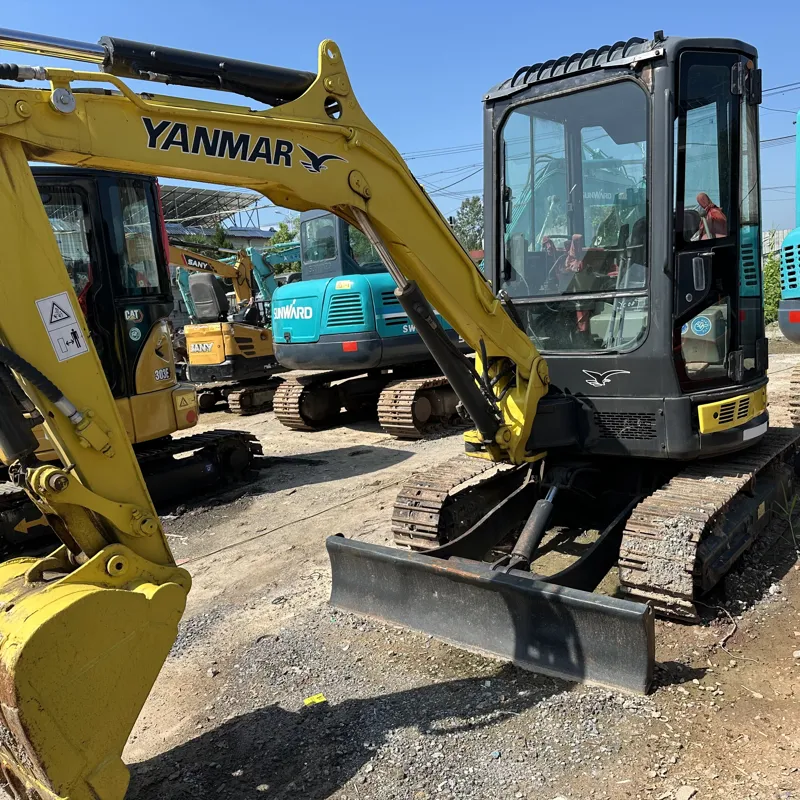

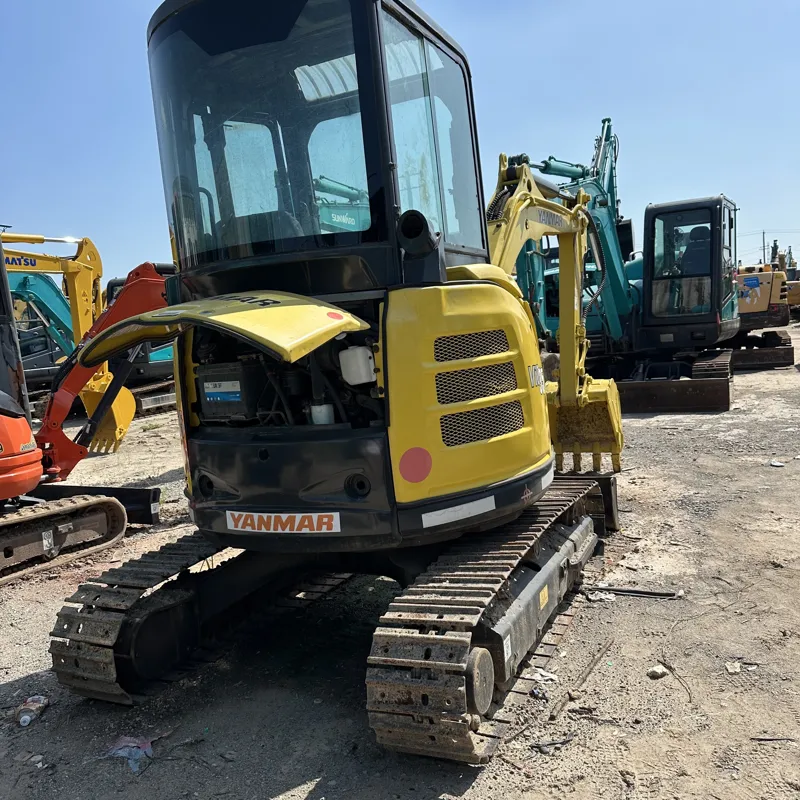

Used Yanmar 30Excavator

Reading: 19

📋 Overview

Specification	Details
Model	ViO30-6 / ViO30-6B
Class	3-Ton (Mini) Excavator
Manufacturer	Yanmar Co., Ltd. (Japan 🇯🇵)
Production	Since ~2015 (current generation)
Operating Weight	~3,060 – 3,180 kg (6,746 – 7,011 lbs)
Engine	Yanmar 3TNV88-ZPLYS Diesel
Engine Power	19.1 kW (25.6 HP) @ 2,200 rpm
Fuel Tank	~40 L (10.6 gal)
Hydraulic Oil Tank	~32 L (8.5 gal)

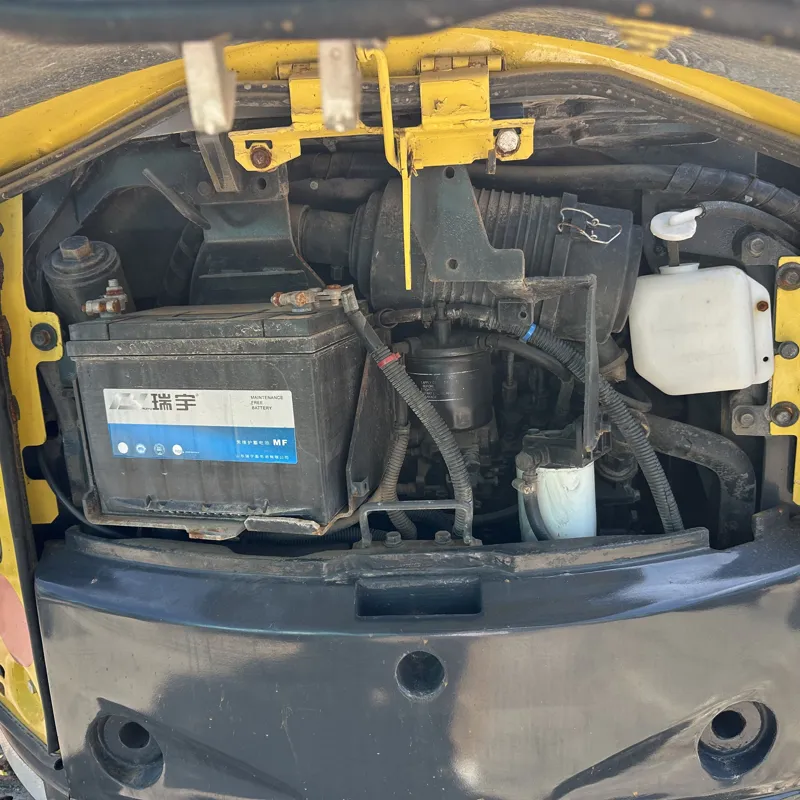

🔧 Engine Details

Feature	Specification
Engine Model	Yanmar 3TNV88-ZPLYS
Type	3-cylinder, water-cooled, turbocharged diesel
Displacement	1.642 L
Emissions	Tier 4 Final / Stage V compliant
Fuel Consumption	~4–5 L/hr (varies with workload)
Cooling System	Water-cooled with radiator
Starting	Electric start

✅ Known for fuel efficiency, low noise, and reliability — hallmarks of Yanmar engineering.

📐 Dimensions

Dimension	Measurement
Length (w/o bucket)	~4,095 mm (13.4 ft)
Width (tracks retracted)	~1,480 mm (4.9 ft)
Height (to top of cab)	~2,520 mm (8.3 ft)
Ground Clearance	~310 mm (12.2 in)
Track Width	180–300 mm (adjustable)
Tail Swing Radius	~1,310 mm (4.3 ft) — Zero Tail Swing (ZTS) ✅

🔑 The Zero Tail Swing (ZTS) design is a MAJOR advantage — it allows the machine to work very close to walls, fences, and structures without the rear swinging out.

💪 Performance / Digging Capacity

Parameter	Value
Max Digging Depth	~3,670 mm (12.0 ft)
Max Digging Reach	~5,270 mm (17.3 ft)
Max Dumping Height	~3,870 mm (12.7 ft)
Max Digging Force (Boom)	~22.3 kN (5,013 lbf)
Max Digging Force (Arm)	~16.2 kN (3,642 lbf)
Bucket Capacity	0.04 – 0.12 m³ (0.05 – 0.16 yd³)
Travel Speed	~4.2 km/h (2.6 mph)
Ground Pressure	~32 kPa (4.6 psi) — Very low! ✅

🛡️ Key Features & Highlights

Feature	Description
🔹 Zero Tail Swing (ZTS)	Works in tight spaces; ideal for urban/residential jobs
🔹 Rubber Tracks (Optional)	Available with rubber tracks for road travel & indoor use (reduces damage to surfaces)

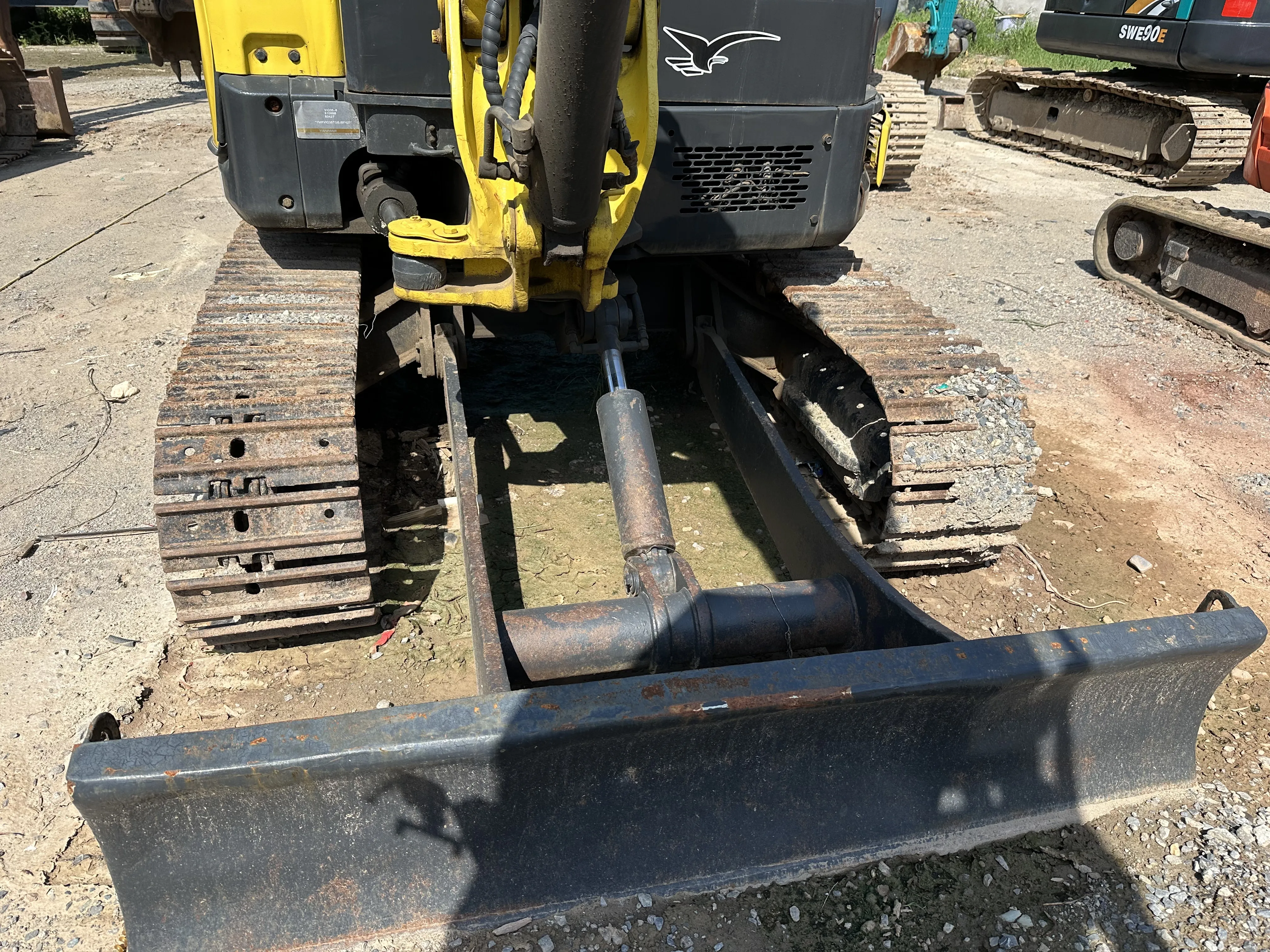

🔹 Dozer Blade	Standard — for grading, leveling, and pushing
🔹 Hydraulic Thumb Ready	Quick-coupler compatible for thumb attachment
🔹 Auxiliary Hydraulics	2-circuit for hammers, augers, breakers, etc.
🔹 Adjustable Track Width	3 positions: 180mm / 250mm / 300mm
🔹 ROPS/FOPS Cab	Foldable canopy with heater & A/C option
🔹 LED Work Lights	Standard
🔹 Eco Mode	Auto engine speed control for fuel savings
🔹 Bluetooth/Telematics (Option)	Yanmar's Y-CONNECTED system for fleet management

🔄 Attachment Compatibility (Quick Coupler)

The ViO30 uses a pin-grabber / quick coupler system, compatible with:

Attachment	Use Case
🪣 Standard Bucket (various sizes: 300mm, 450mm, 600mm)	General digging
🔨 Hydraulic Breaker (Hammer)	Demolition, concrete breaking
🔩 Hydraulic Thumb	Grappling, material handling
🌀 Auger / Earth Drill	Post holes, fencing, tree planting
🪚 Rake / Grading Bucket	Landscaping, leveling
🧹 Sweeper	Cleaning
📦 Pallet Forks	Material transport
🔌 Tilt Rotator	360° rotation of attachment

🏗️ Ideal Applications

Sector	Examples
🏠 Residential	Backyard digging, pool installation, landscaping
🏢 Urban/Tight Spaces	Sidewalk work, utility trenching, narrow lots
🌾 Agriculture	Drainage, fence line work, field prep
🏗️ Light Construction	Small foundations, utility installation
🛣️ Infrastructure	Cable/pipe laying, small trench work
🏭 Indoor Use (with rubber tracks)	Warehouse, basement work

✅ Advantages

Pro	Detail
✅ Compact Size	Fits through standard gates (~1.5m wide)
✅ Low Ground Pressure	Won't damage lawns, driveways, paved areas
✅ Fuel Efficient	~4L/hr average — very economical
✅ Low Noise	~68 dB(A) — suitable for residential areas
✅ Reliable Japanese Engine	Yanmar is legendary for durability
✅ Excellent Resale Value	Holds value very well
✅ Wide Dealer Network	Easy parts & service worldwide

⚠️ Limitations

Con	Detail
❌ Limited Lifting Capacity	Not for heavy material handling
❌ Small Bucket	Not ideal for large-volume earthmoving
❌ Price	Higher upfront cost vs. Chinese brands
❌ Limited Horsepower	Struggles with very hard rock without a breaker

💰 Approximate Pricing (2024 Estimates)

Configuration	Price Range (USD)
New — Cab + A/C + Rubber Tracks	$45,000 – $60,000
New — Canopy + Steel Tracks (Basic)	$38,000 – $48,000
Used (500–2,000 hrs)	$25,000 – $40,000
Used (2,000–4,000 hrs)	$20,000 – $32,000

📍 Prices vary significantly by region, dealer, and configuration.

🆚 Quick Comparison: Yanmar ViO30 vs Competitors

Feature	Yanmar ViO30	Kubota KX033-4	CAT 303.5	John Deere 35G
Weight	~3,060 kg	~3,400 kg	~3,500 kg	~3,700 kg
Power	25.6 HP	24.7 HP	24.5 HP	24.8 HP
Tail Swing	✅ Zero	✅ Zero	✅ Zero	✅ Zero
Fuel Tank	40L	32L	42L	47L
Price	$$$	$$$	$$$	$$$$
Best For	Versatility & Resale	Value	Durability	Comfort

🎯 Summary

The Yanmar ViO30 is widely regarded as one of the best 3-ton mini excavators on the market. It combines Japanese reliability, zero tail swing versatility, fuel efficiency, and excellent resale value. It's the go-to choice for landscapers, utility contractors, and residential excavators who need a dependable, compact, and professional-grade machine.

Would you like more details on any specific aspect — such as maintenance schedule, hydraulic system specs, or comparison with another model? 🚜
