Used Sany 365Excavator

Reading: 101

🏢 Overview

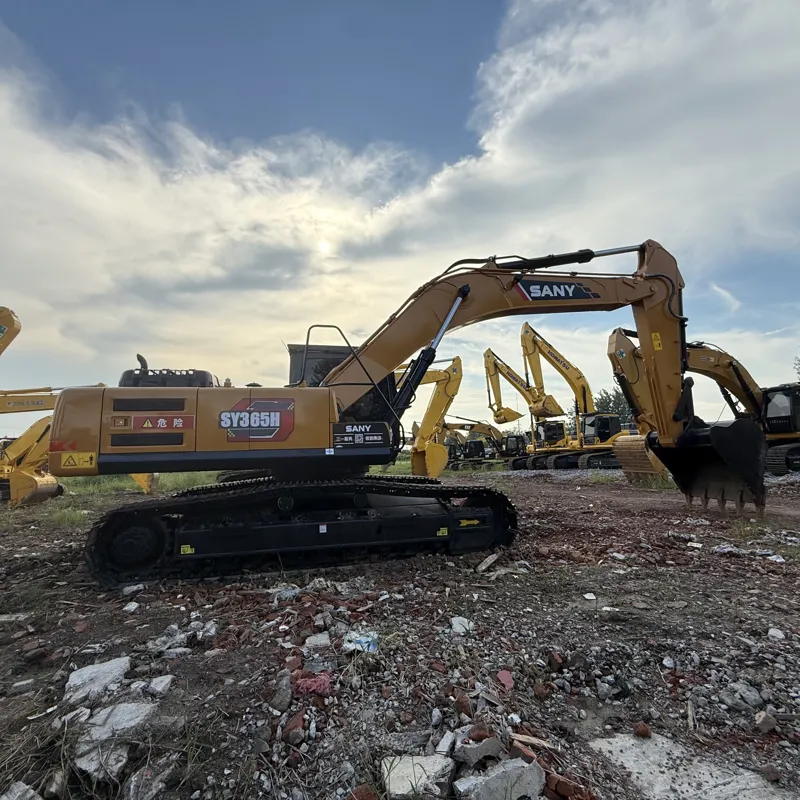

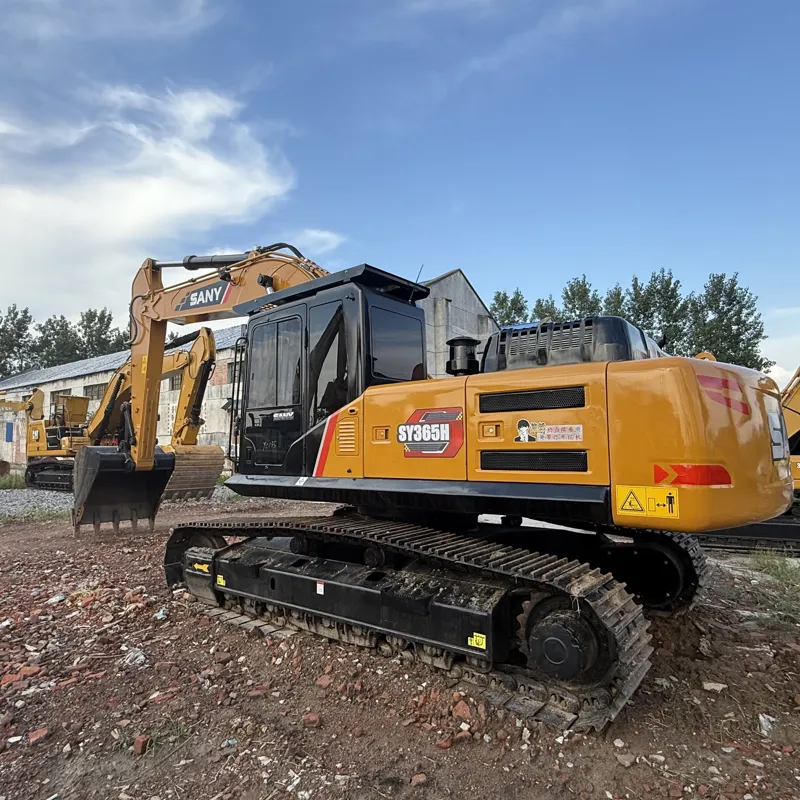

The Sany SY365H is a 36-ton class hydraulic crawler excavator manufactured by Sany Heavy Industry Co., Ltd., one of the world's top construction machinery manufacturers. It's designed for heavy-duty earthmoving, mining, and large-scale construction projects.

📋 Key Specifications

Parameter	Details
Operating Weight	~36,500 kg (36.5 tons)
Engine Model	Isuzu AH-6HK1X (6-cylinder turbocharged diesel)
Rated Power	235 kW (315 HP) @ 2,000 rpm
Bucket Capacity	1.4 - 1.8 m³ (standard: 1.5 m³)
Max Digging Depth	7,000 - 7,200 mm
Max Digging Reach	10,000 - 10,500 mm
Max Dumping Height	~7,200 mm
Travel Speed	3.5 km/h (Low) / 5.5 km/h (High)
Gradeability	70% (35°)
Ground Pressure	~65 kPa

⚡ Performance Highlights

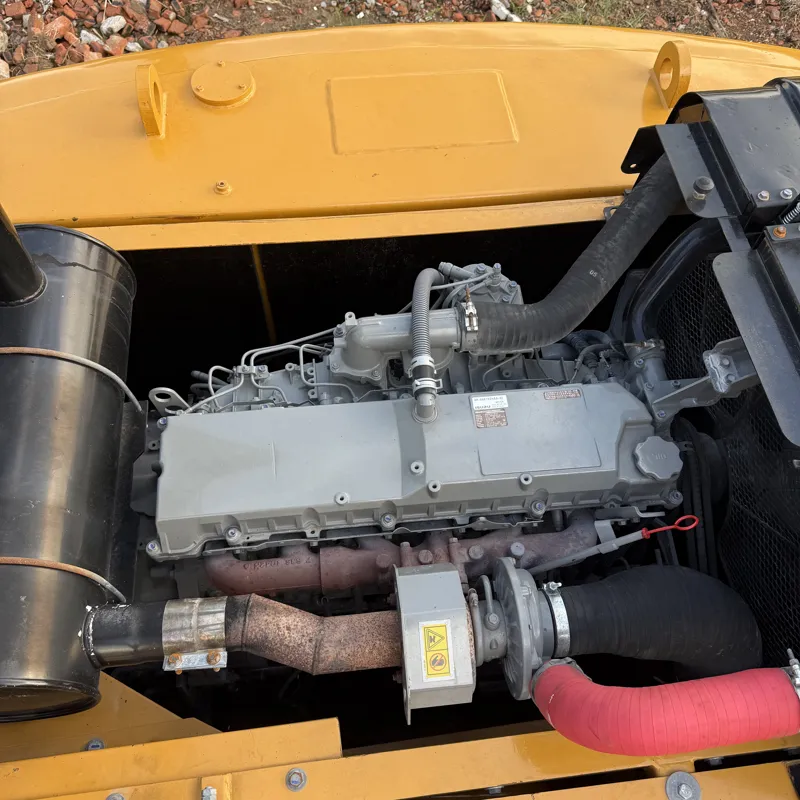

1. Powerful Engine System

Isuzu/Cummins engine with turbocharger + intercooler
Meets Tier 4 Final / China IV emission standards
Excellent fuel efficiency: ~28-32 L/hour (depending on workload)

2. Hydraulic System

Load-sensing hydraulic system with high efficiency
Dual-pump, dual-circuit design
Positive flow control (PFC) for precise operation
Maximum system pressure: 34.3 MPa

3. Intelligent Control

✅ ECO Mode - Reduces fuel consumption by up to 10%
✅ Smart Power Matching - Engine automatically adjusts to load
✅ Auto-idle - Engine reduces RPM during idle periods

🛋️ Operator Comfort

Feature	Description
Cab	ROPS/FOPS certified, spacious & sound-insulated
Seat	Air-suspension, heated, with armrests
Climate	Full AC system

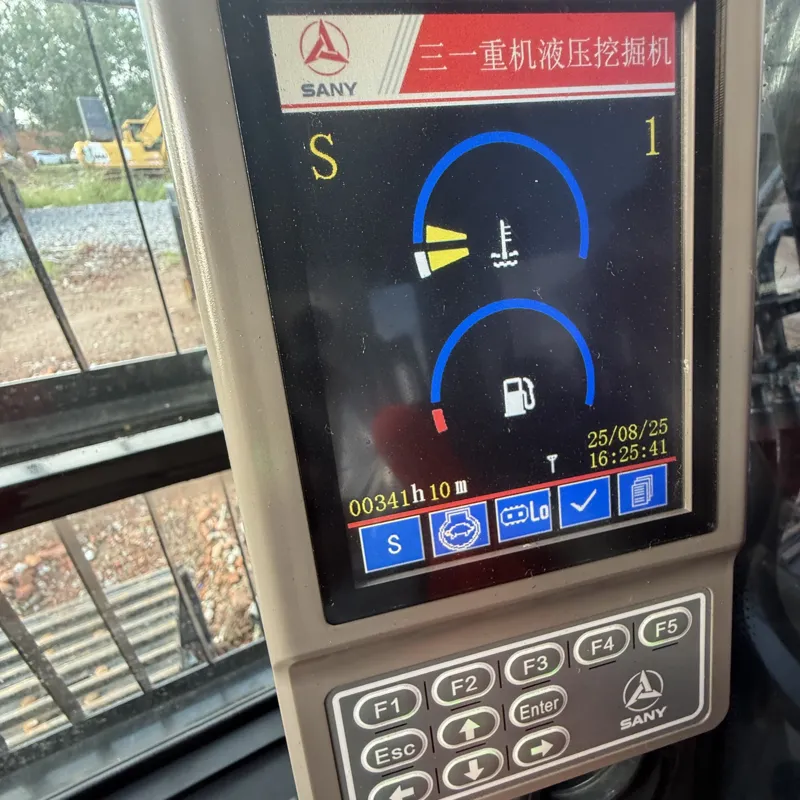

Display	7-inch LCD monitor with multi-function info
Controls	Joystick with thumb control, adjustable
Lighting	LED work lights (front, rear, boom)
Noise Level	~73 dB(A)

🔧 Maintenance Advantages

Feature	Benefit
🔑 Ground-level maintenance points	Easy daily checks
🛢️ Extended service intervals	Engine oil: 500h / Hydraulic oil: 2,000h
📐 Large access doors	Quick filter & component replacement
🖥️ Self-diagnostic system	Fault codes displayed on monitor

🎯 Working Applications

Application	Suitability
🏔️ Mining & Quarrying	⭐⭐⭐⭐⭐ Excellent
🏗️ Large Construction	⭐⭐⭐⭐⭐ Excellent
🛣️ Road Building	⭐⭐⭐⭐ Very Good
💧 Water Conservancy	⭐⭐⭐⭐ Very Good
🏢 Demolition	⭐⭐⭐⭐ Very Good

🆚 Competitive Advantages (vs. CAT 336, Komatsu PC360)

Feature	Sany SY365H	CAT 336	Komatsu PC360
Price	💰💰 15-20% lower	💰💰💰	💰💰💰
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
After-sales	⭐⭐⭐⭐⭐ (wide network)	⭐⭐⭐⭐	⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐

💰 Approximate Pricing (2024)

Region	Price Range (USD)
China	$120,000 - $145,000
Southeast Asia	$135,000 - $160,000
Middle East/Africa	$140,000 - $170,000
Europe	$155,000 - $185,000

✅ Summary

Strengths	Weaknesses
✅ Excellent price-performance ratio	❌ Brand premium lower than CAT/Komatsu
✅ Low fuel consumption (ECO mode)	❌ Limited parts availability in some regions
✅ Strong after-sales network (especially Asia)	❌ Resale value slightly lower
✅ Modern smart technology
✅ Comfortable operator environment

🏆 Verdict

The Sany SY365H is an excellent choice for cost-conscious buyers who need heavy-duty performance. It offers 80-90% of the performance of CAT/Komatsu at 70-80% of the price, making it one of the best value excavators in the 36-ton class globally.

Would you like more details on any specific aspect (attachments, comparison, etc.)? 🚜
