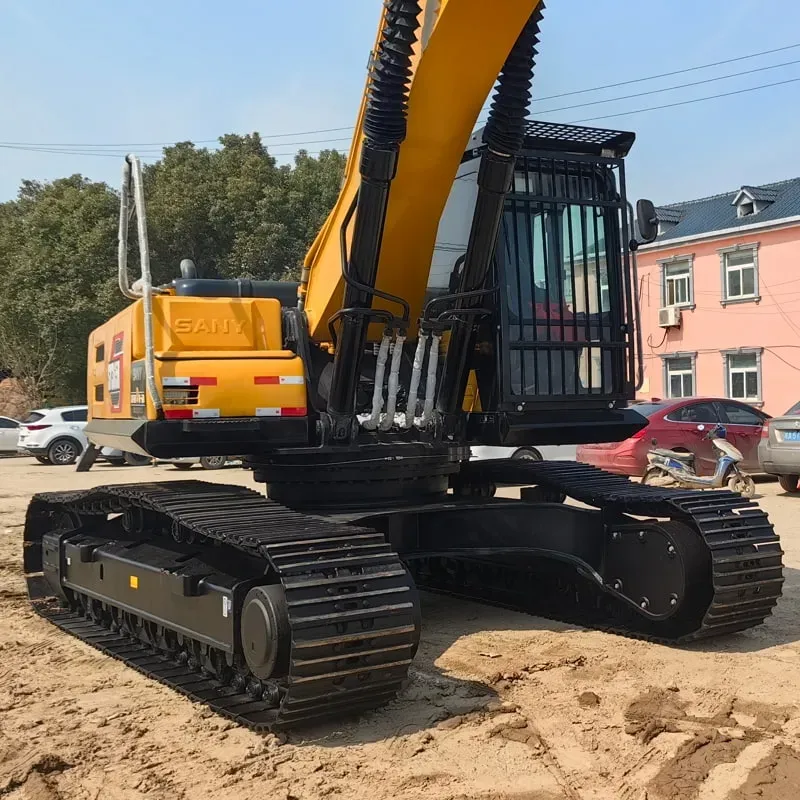

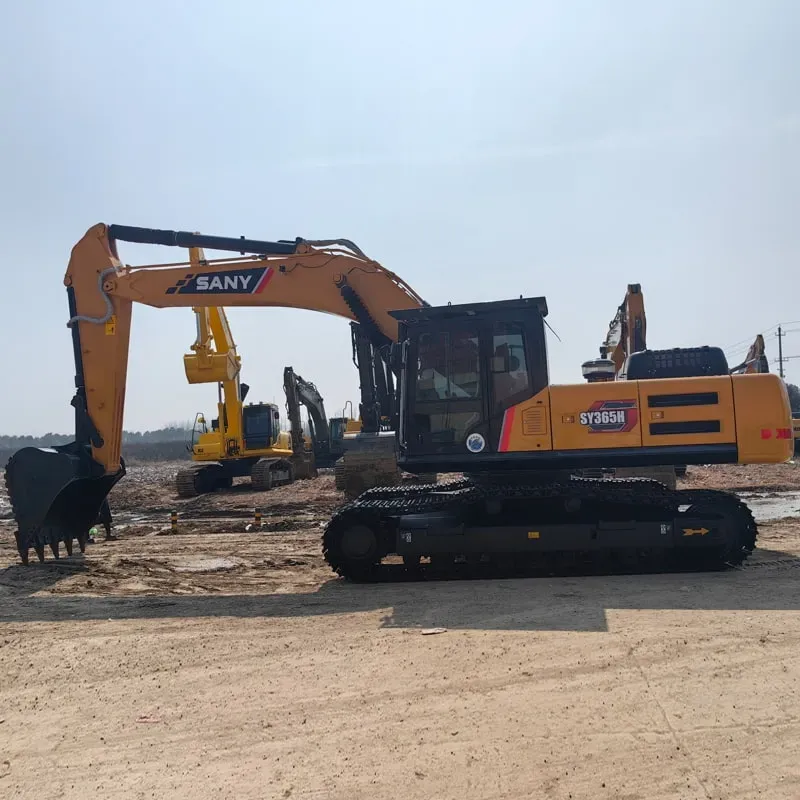

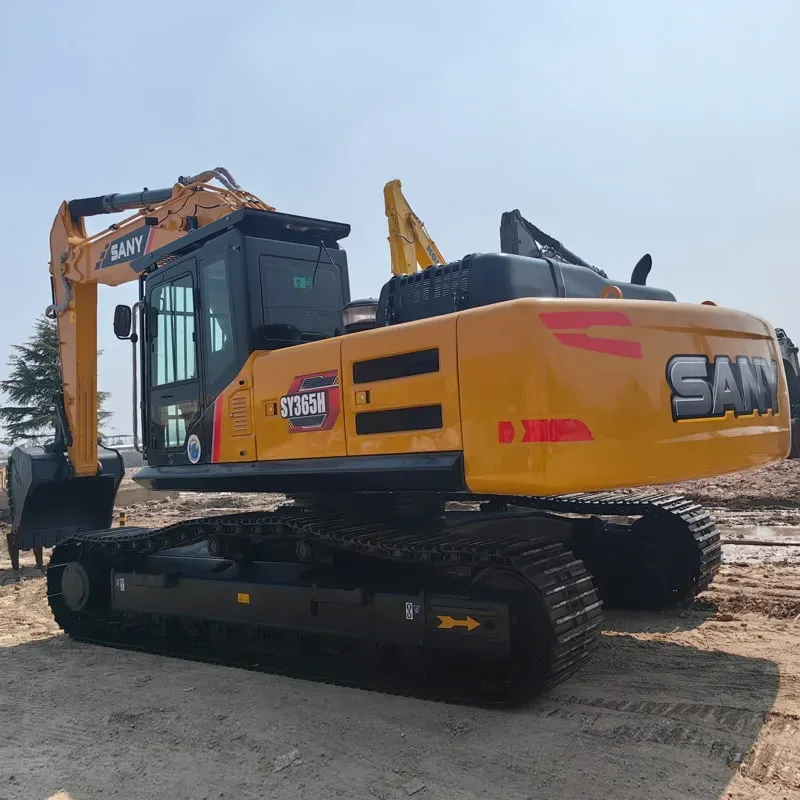

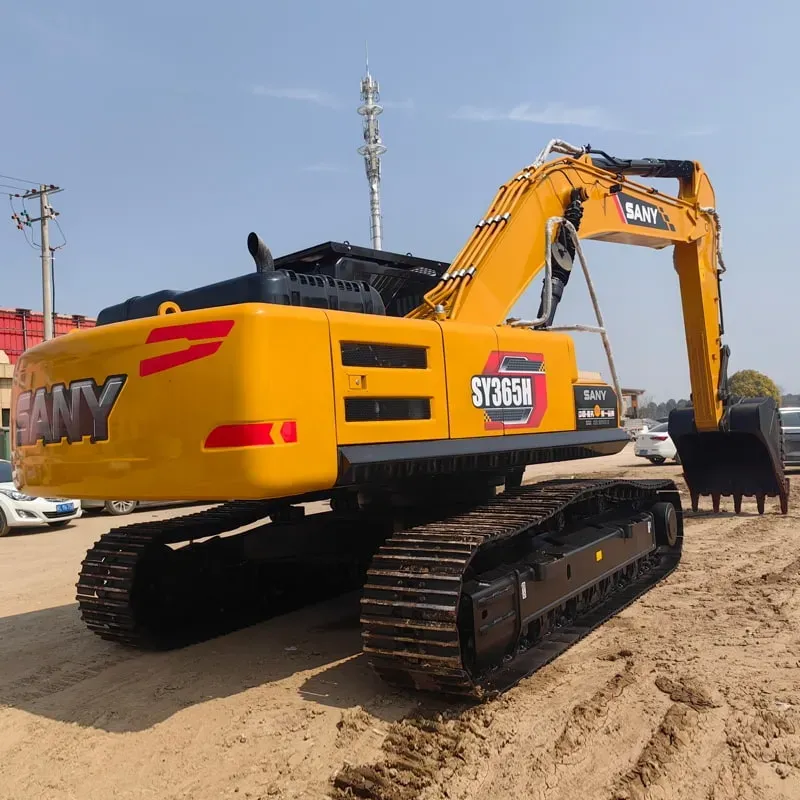

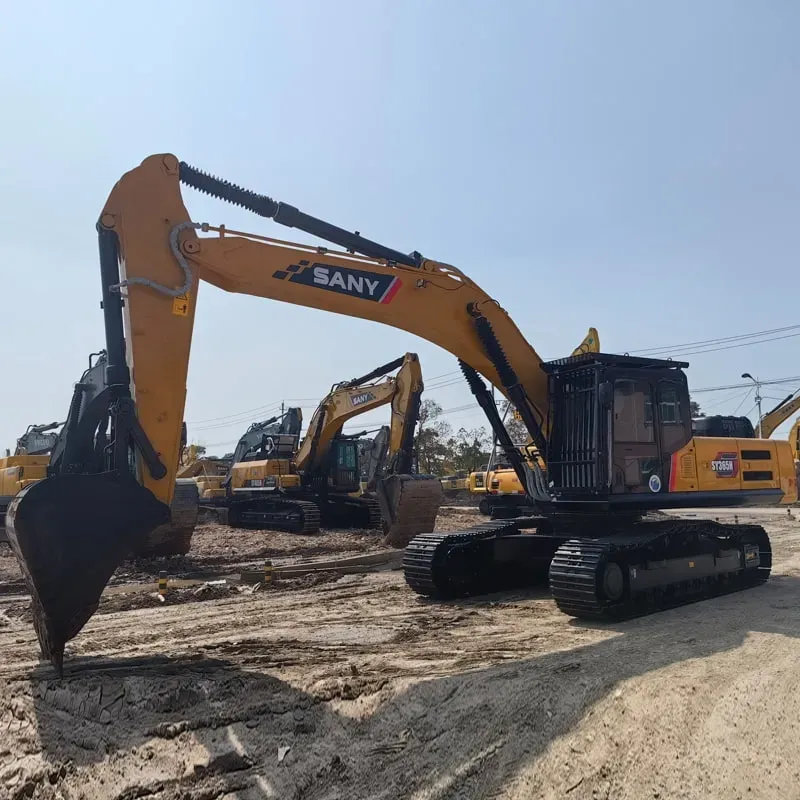

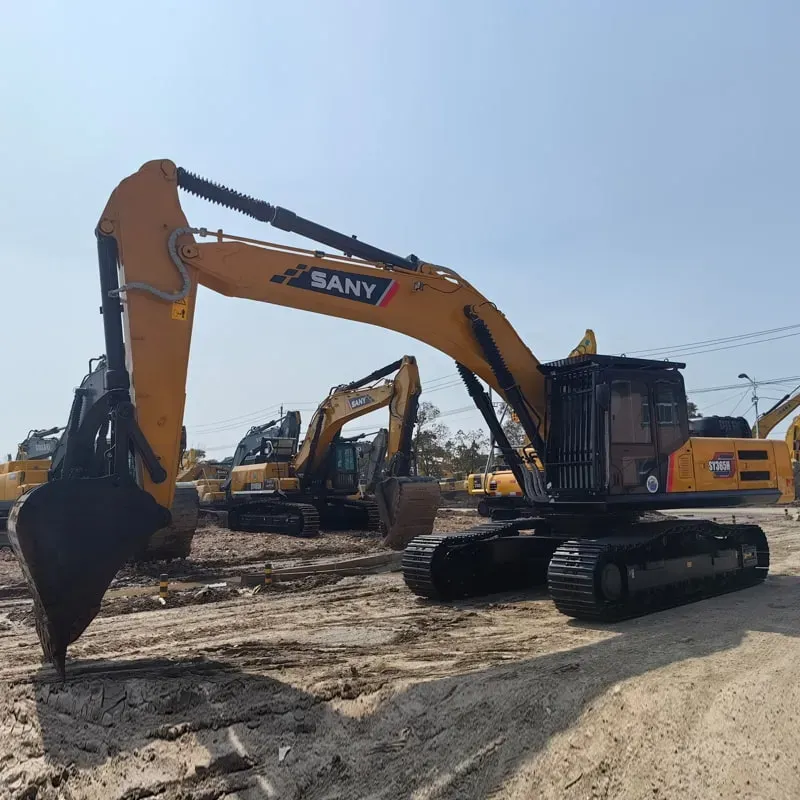

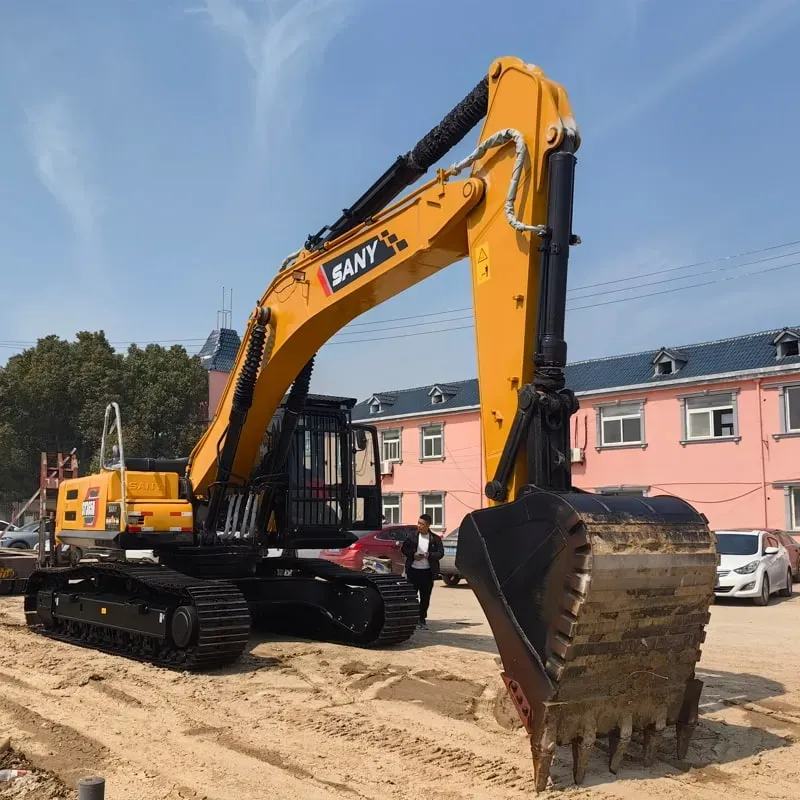

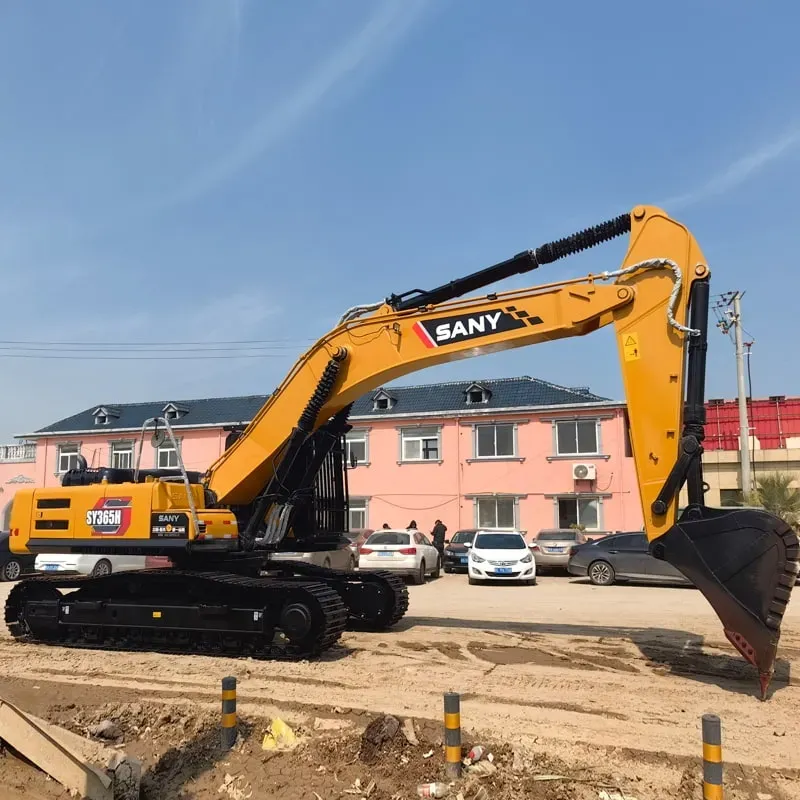

Used Sany 365Excavator

Reading: 19

📌 1. General Overview

Item	Details
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Model	SY365H (also referred to as SY365)
Class	35–37 Ton Hydraulic Excavator
Application	Mining, large-scale earthmoving, demolition, infrastructure
Production Base	SANY's "Smart Factory" in Changsha, China

The SANY SY365H is one of SANY's flagship mid-to-large excavators, designed to compete with international brands like CAT 336, Komatsu PC360, and Hitachi ZX360. It is known for its high efficiency, intelligent control, and strong durability.

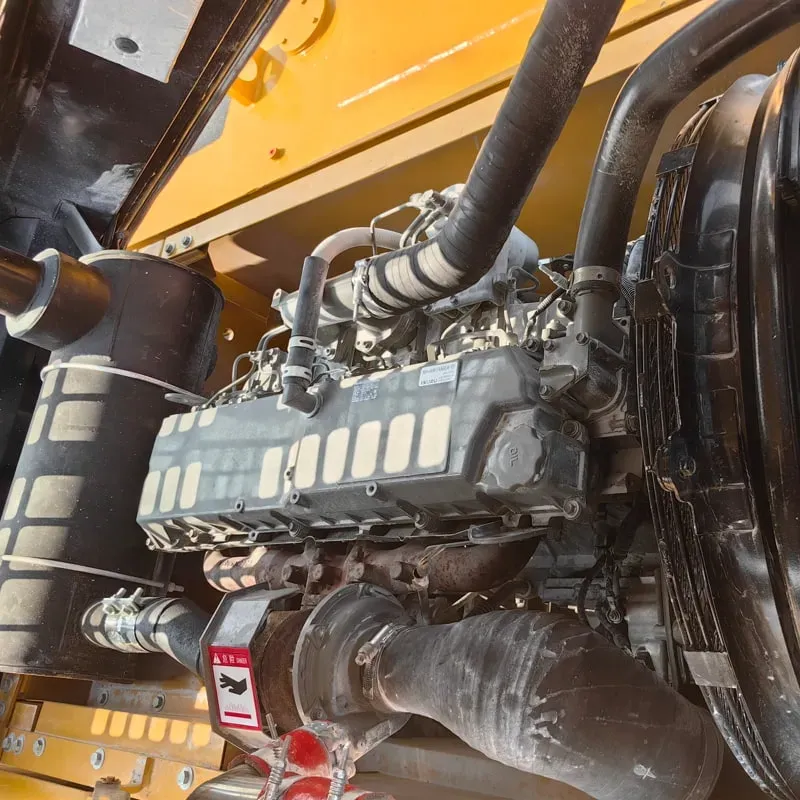

🔧 2. Engine & Powertrain

Specification	Details
Engine Model	Isuzu AH-6HK1XQA (or SANY custom diesel)
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	7.79 L
Rated Power	260–270 HP (194–201 kW) @ 2,000 rpm
Emission Standard	China III / Euro Stage IIIA (Tier 4 Final in some markets)
Fuel Tank Capacity	~550 L

✅ The engine is paired with a high-efficiency hydraulic pump for optimal power delivery.

⚖️ 3. Dimensions & Weight

Parameter	Value
Operating Weight	35,000 – 36,500 kg (varies by config)
Overall Length	~10,900 mm
Overall Width	~3,190 mm
Overall Height	~3,260 mm
Ground Clearance	~460 mm
Track Width	600 mm (standard) / 700 mm (wide)
Track Shoe Width	700 mm

🪣 4. Working Performance (Key Specs)

Performance	Value
Bucket Capacity	1.4 – 1.6 m³ (standard)
Max Digging Depth	~7,200 – 7,400 mm
Max Digging Reach	~10,000 – 10,500 mm
Max Dumping Height	~7,500 – 7,800 mm
Max Digging Force	~230 – 240 kN
Max Bucket Breakout Force	~160 – 170 kN
Swing Speed	~8.5 rpm
Travel Speed	~4.8 km/h (high) / ~3.2 km/h (low)
Gradeability	70% (35°)
Max Trench Depth	~6,800 mm

🧠 5. Intelligent Technology — SYMC System

This is one of SANY's biggest differentiators:

Feature	Description
🎛️ SYMC (SANY Intelligent Management Controller)	Central brain that optimizes engine + hydraulic pump matching in real-time
🌿 ECO Mode	Reduces fuel consumption by 8–15% automatically
📊 Load Sensing	Adjusts power output based on actual working load
📡 GPS + IoT Remote Monitoring	Real-time location, fuel usage, maintenance alerts via SANY Cloud
🎥 Rear-View Camera + 360° Monitoring	Standard or optional
🖥️ LCD Touchscreen Dashboard	Displays all operating data, fault codes, maintenance schedules

⭐ SANY claims the SYMC system delivers 10–20% better fuel efficiency than traditional excavators.

🪑 6. Operator Comfort & Cabin

Feature	Details
🌡️ Air Conditioning	Fully automatic climate control
💺 Suspension Seat	Air-suspended with armrests, heated option
🔇 Noise Level	≤ 72 dB(A) — very quiet for its class
💡 LED Work Lights	Front, rear, and boom-mounted
🪟 Large Glass Area	Excellent visibility (>300°)
📱 USB Charging Port	Standard
🎧 Bluetooth / Radio	Optional

🛡️ 7. Durability & Undercarriage

Component	Details
Boom & Arm	High-strength steel, finite-element optimized — 20% longer life
Bucket	Reinforced with wear-resistant steel (optional teeth)
Undercarriage	Heavy-duty X-frame, sealed & lubricated track rollers

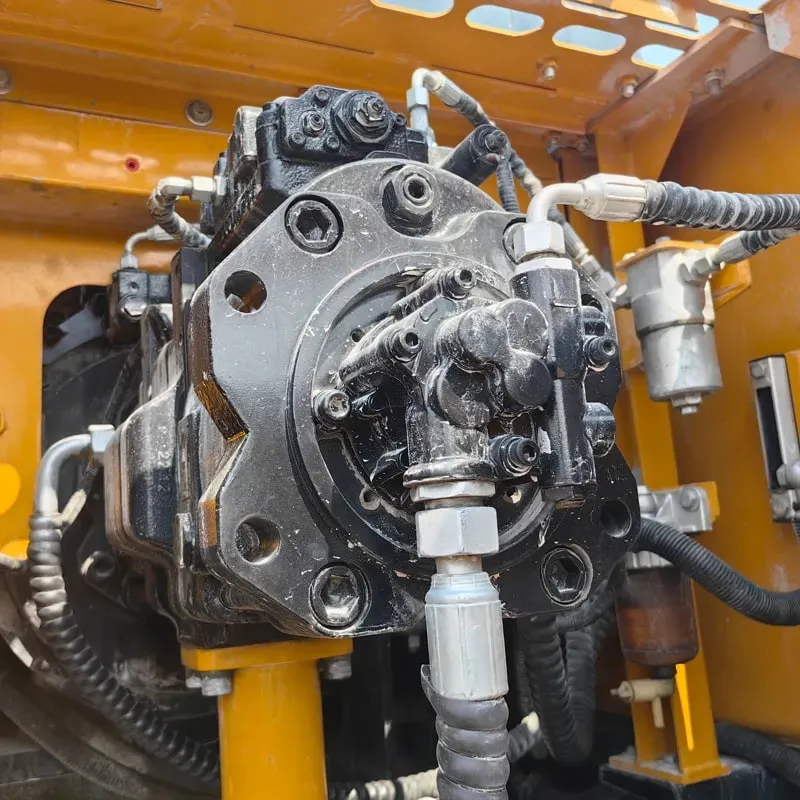

Hydraulic System	Positive flow control, main pump life >10,000 hours
Service Intervals	Engine oil: 500h，Hydraulic oil: 2000h，Fuel filter: 500h

🆚 8. Comparison with Competitors

Spec	SANY SY365H	CAT 336	Komatsu PC360	Hitachi ZX360
Power	260–270 HP	245 HP	252 HP	242 HP
Weight	~36,500 kg	~36,000 kg	~35,700 kg	~35,800 kg
Bucket	1.4–1.6 m³	1.3–1.5 m³	1.4–1.5 m³	1.4–1.5 m³
Dig Depth	~7,400 mm	~7,200 mm	~7,200 mm	~7,100 mm
Intelligent System	⭐ SYMC (Advanced)	Cat Grade (basic)	Komtrax (basic)	Site Player (basic)
Price (approx.)	💰💰	💰💰💰	💰💰💰	💰💰💰

🏆 SANY offers better specs at a lower price with superior smart technology.

💰 9. Pricing (Approximate, 2024)

Region	Price Range (USD)
China	¥1.8 – 2.2 million (~$250,000 – $300,000)
Southeast Asia	$280,000 – $340,000
Middle East / Africa	$300,000 – $360,000
Europe / Americas	$320,000 – $380,000

💡 SANY is typically 15–25% cheaper than CAT/Komatsu with comparable or better performance.

✅ 10. Summary — Why Choose SANY SY365H?

✅ Strength	📝 Detail
🔥 Powerful	270 HP, 36-ton class — handles heavy mining & demolition
🧠 Smartest in Class	SYMC + IoT = real-time optimization & remote monitoring
⛽ Fuel Efficient	8–15% fuel savings vs competitors
💰 Best Value	Lower price, higher specs than CAT/Komatsu
🛠️ Easy Maintenance	Long service intervals, global SANY dealer network
🌍 Global Presence	Sold in 150+ countries, strong in SEA, Africa, Middle East, Latin America

📞 11. Who Should Buy It?

✅ Ideal For	❌ Not Ideal For
Large-scale mining operations	Ultra-precise urban work (mini excavator better)
Highway & infrastructure projects	Markets requiring Tier 4 Final (check local spec)
Demolition & earthmoving	Buyers who only trust Japanese brands
Rental companies (low TCO)	—

🏷️ Bottom Line: The SANY SY365H is arguably the best value 36-ton excavator on the market in 2024–2025 — combining Chinese manufacturing efficiency with world-class intelligent technology, at a fraction of the price of Japanese/American rivals.
