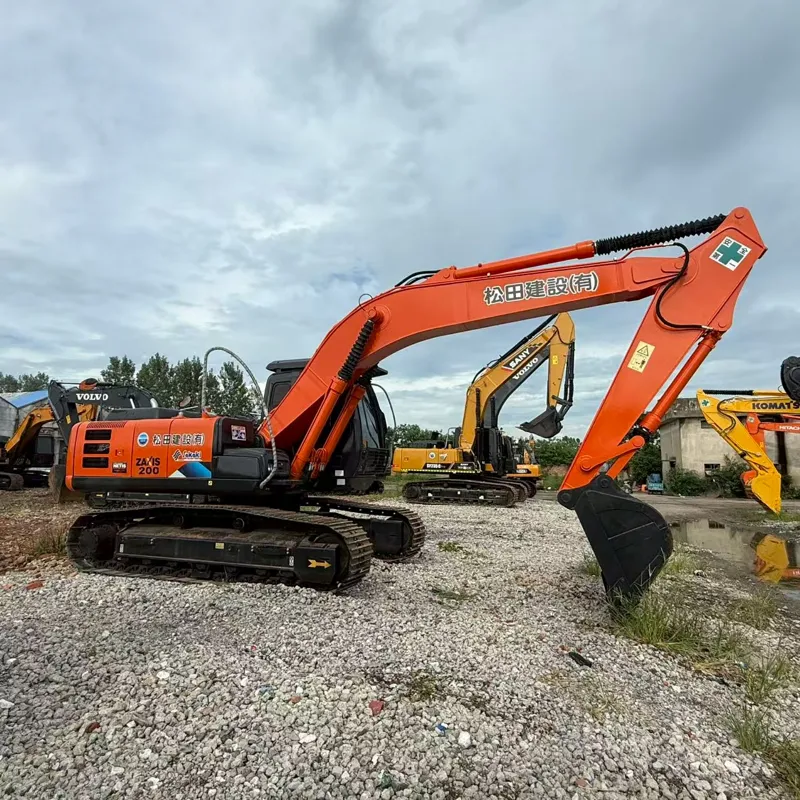

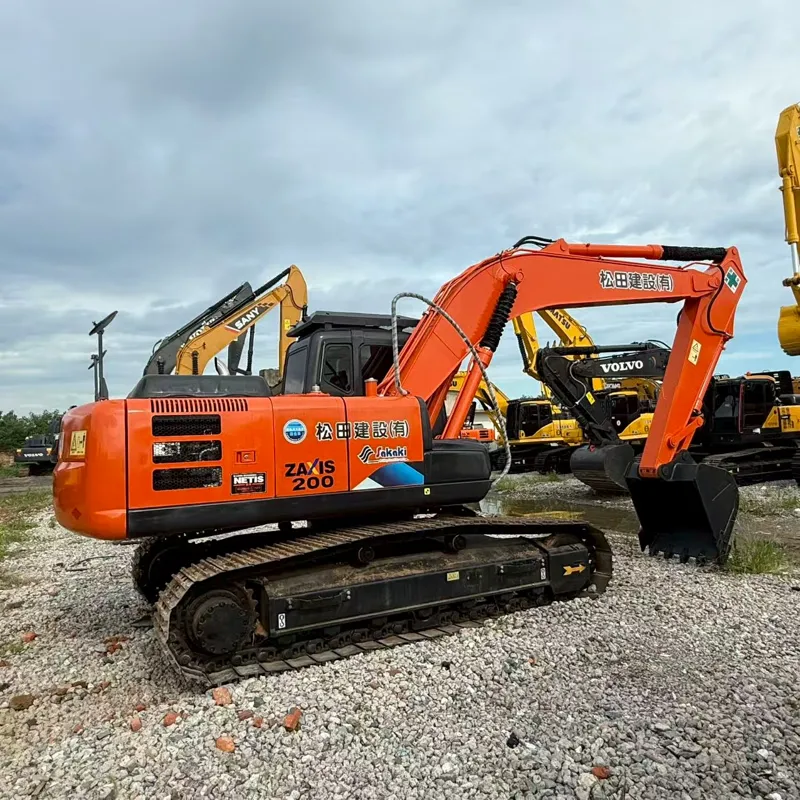

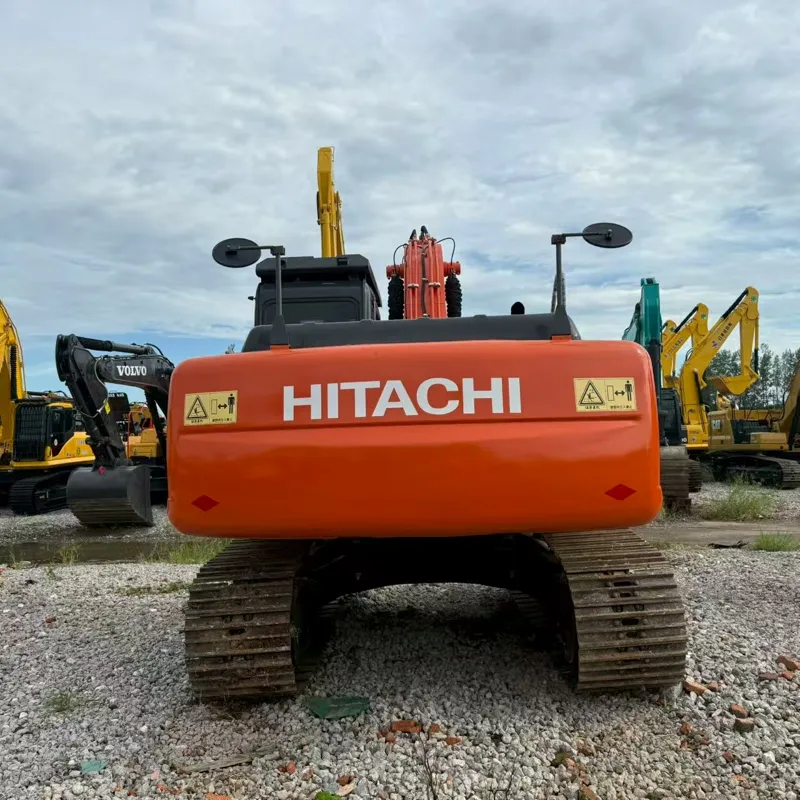

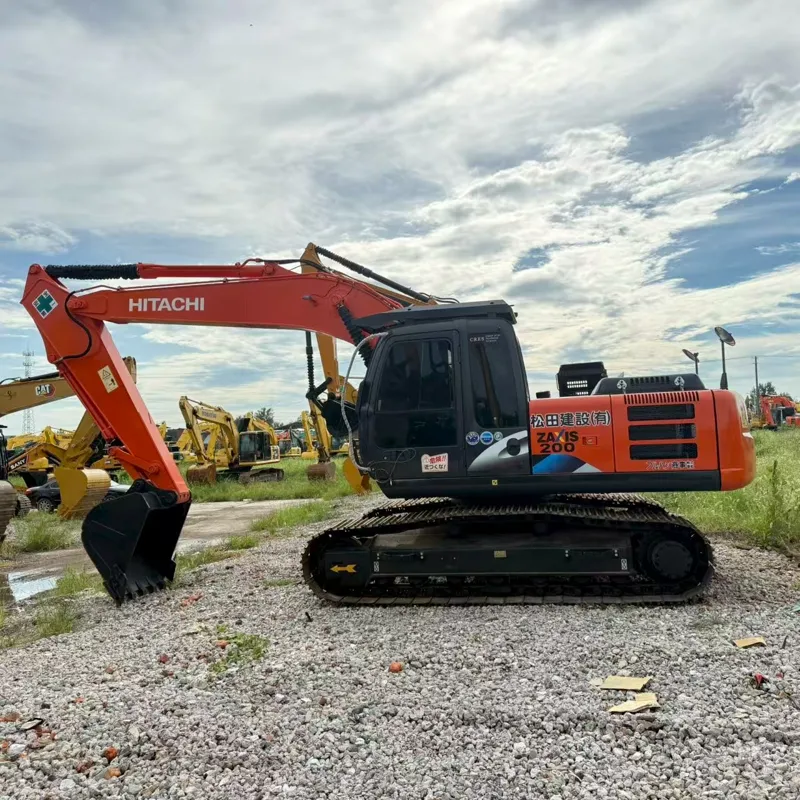

Used Hitachi 200-3Excavator

Reading: 49

🏢 1. General Overview

Item	Details
Manufacturer	Hitachi Construction Machinery Co., Ltd. (Japan)
Model	ZX200-3 / ZX200LC-3 / ZX200-3G
Class	20-ton (Medium-sized) Hydraulic Excavator
Generation	3rd Generation (followed ZX200-1 → ZX200-2 → ZX200-3 → ZX200-5)
Production Period	~2004 – 2008
Primary Markets	Global (Asia, Middle East, Europe, Americas, Africa)

The ZX200-3 was a major upgrade from its predecessor (ZX200-2), featuring improved fuel efficiency, better hydraulic performance, enhanced operator comfort, and lower emissions.

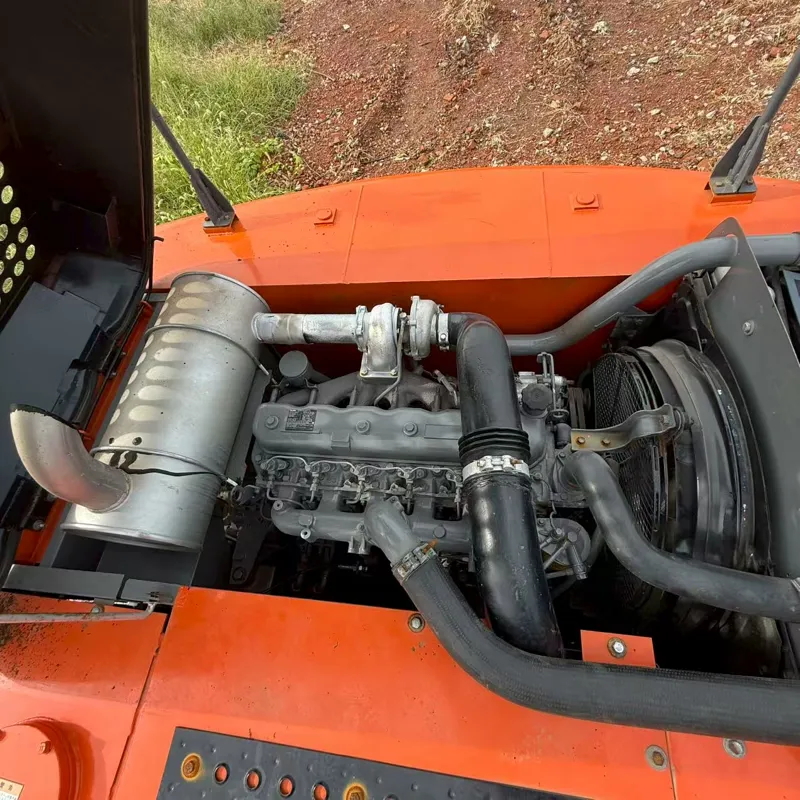

& 2. Engine Specifications

Parameter	Details
Engine Model	Isuzu AH-6HK1XQA
Type	6-cylinder, turbocharged, intercooled, direct-injection diesel
Displacement	7.79 liters
Rated Power	118 kW (158 HP) @ 2,000 rpm
Max Torque	~588 N·m @ 1,400 rpm
Emission Standard	EPA Tier 2 / EU Stage II (some markets Tier 3)
Fuel Tank Capacity	~400 liters

✅ The Isuzu engine is known for reliability, durability, and good fuel economy — a key reason Hitachi chose it as their powerplant.

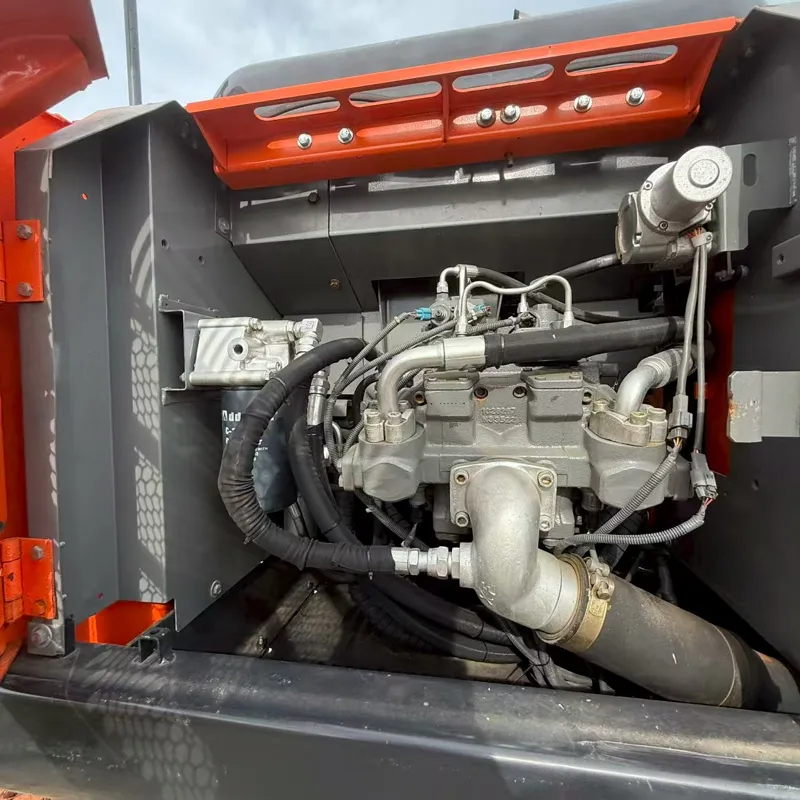

🔧 3. Hydraulic System

Parameter	Details
Pump Type	Variable displacement axial piston pump (×2)
System Pressure	34.3 MPa (350 kgf/cm²)
Total Flow Rate	~2 × 280 L/min (560 L/min total)

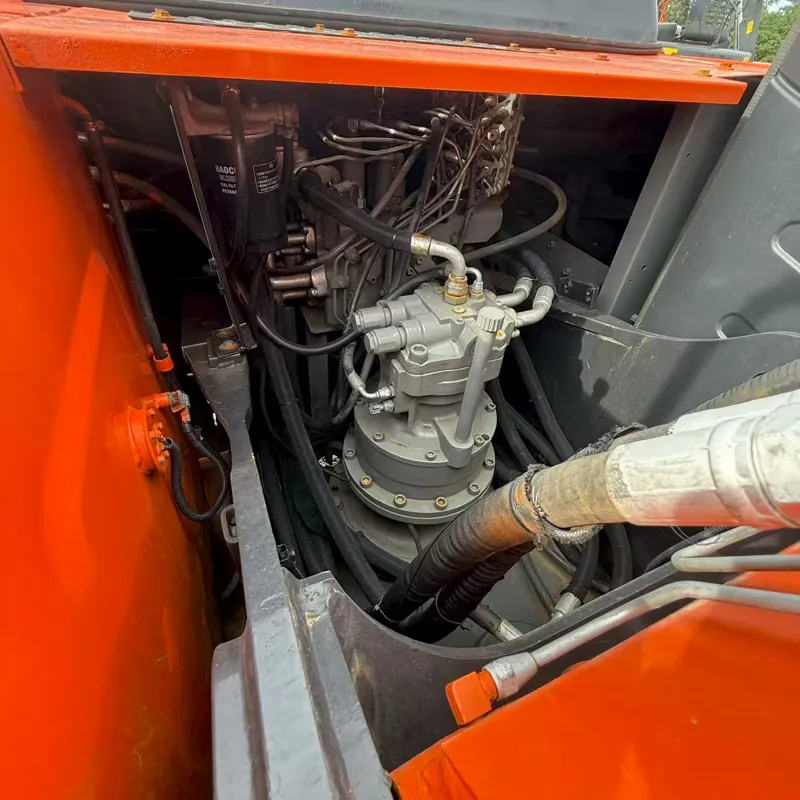

Swing Mechanism	Hydraulic motor swing with reduced-speed function
Travel Motors	Variable displacement axial piston motors (×2)

✅ The dual-pump hydraulic system allows simultaneous operation of multiple functions with excellent efficiency.

📐 4. Operating Dimensions & Performance

Parameter	Specification
Operating Weight	19,500 – 20,500 kg (43,000 – 45,200 lbs)
Bucket Capacity (Standard)	0.8 – 1.0 m³ (varies by configuration)
Max Digging Depth	6,600 – 6,700 mm (21.7 – 22.0 ft)
Max Reach (Ground Level)	9,800 – 9,900 mm (32.2 – 32.5 ft)
Max Digging Height	9,600 – 9,800 mm (31.5 – 32.2 ft)
Max Dumping Height	6,800 – 7,000 mm (22.3 – 23.0 ft)
Max Digging Radius	9,700 – 9,900 mm (31.8 – 32.5 ft)
Max Vertical Wall Digging	~5,700 mm
Track Width (Standard)	600 mm
Narrow Track Option	450 mm (for urban/tight-space work)
Ground Pressure	~43 kPa
Swing Speed	~9.5 rpm
Travel Speed	~5.3 km/h (high) / ~3.5 km/h (low)

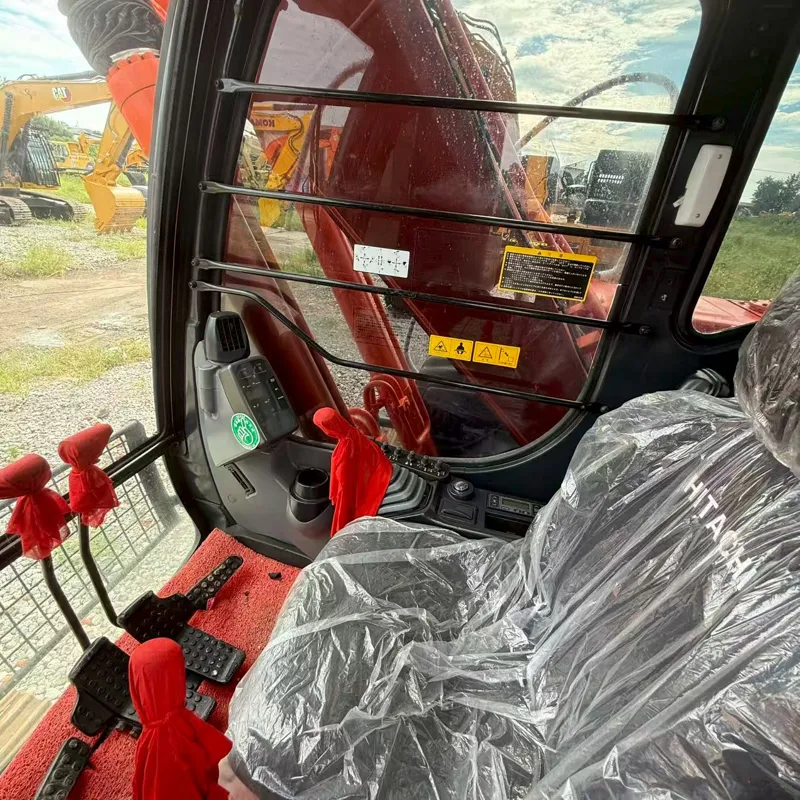

🪑 5. Operator Cab & Comfort

The ZX200-3 was praised for its spacious and comfortable cab:

Feature	Details
Certification	ROPS / FOPS (Roll-Over & Falling Object Protective Structure)
Seat	Full suspension air-ride seat with armrests
Climate Control	Full air conditioning with heater
Monitor	LCD multi-function display (engine info, hydraulics, maintenance alerts)
Controls	Pilot-operated levers (smooth & precise) + foot pedals
Noise Level	~72 dB(A) (relatively quiet for its class)
Visibility	Excellent all-around visibility with large windows
Storage	Ample storage compartments, cup holders, phone holder

✅ Hitachi invested heavily in operator comfort, making long working hours less fatiguing.

🖥️ 6. Technology & Smart Features

Feature	Description
Hitachi Monitoring System (Hi-MOS)	Real-time machine monitoring, fuel consumption tracking, fault diagnostics
Auto Idle System	Automatically reduces engine RPM when not working → saves 5-10% fuel
Eco Mode	Optimizes engine & hydraulic output for lighter tasks
Power Mode	Full power for heavy-duty applications
Anti-Theft System	Engine immobilizer (optional)
Maintenance Alerts	Reminds operator for oil change, filter replacement, etc.

🔩 7. Undercarriage & Durability

Component	Details
Track Frame	High-strength steel, reinforced X-frame design
Rollers (per side)	5 rollers (1 top carrier + 4 bottom)
Track Shoe Width	600 mm (standard) / 450 mm (narrow option)
Boom & Arm	High-tensile steel, finite-element optimized for strength & weight reduction
Bucket	Heavy-duty with replaceable teeth and side cutters
Service Life	Designed for 10,000+ hours with proper maintenance

🏗️ 8. Typical Applications

Application	Details
✅ General Construction	Foundation, building sites
✅ Road & Highway	Paving, ditching, grading
✅ Landscaping	Tree planting, garden work
✅ Pipeline Work	Trenching, pipeline laying
✅ Mining & Quarrying	Rock excavation (with heavy-duty bucket)
✅ Demolition	With hydraulic breaker or grapple
✅ River/Canal Work	Dredging, bank stabilization
✅ Agriculture	Land clearing, drainage

📊 9. Comparison: ZX200-3 vs Predecessor (ZX200-2)

Feature	ZX200-2	ZX200-3	Improvement
Engine Power	110 kW (147 HP)	118 kW (158 HP)	+7%
Fuel Efficiency	Baseline	~10% better	✅
Operating Weight	~20,000 kg	~20,000 kg	Similar
Cab Comfort	Good	Excellent	✅
Emissions	Tier 1/2	Tier 2/3	✅
Hydraulic Flow	Standard	Improved	✅
Monitoring System	Basic	Hi-MOS	✅

🆚 10. Competitors (Same Class)

Model	Weight	Power	Bucket
Hitachi ZX200-3	~20,000 kg	158 HP	0.8–1.0 m³
CAT 320D/320D2	~20,000 kg	162 HP	0.8–1.0 m³
Komatsu PC200-8	~20,000 kg	158 HP	0.8–1.0 m³
Volvo EC210B	~21,000 kg	161 HP	0.8–1.0 m³
Kobelco SK200-8	~20,000 kg	158 HP	0.8–1.0 m³
Doosan DX225LC	~22,000 kg	161 HP	0.9–1.1 m³

📌 The ZX200-3 is considered one of the most fuel-efficient and operator-friendly machines in its class.

✅ 11. Key Strengths (Why Choose ZX200-3?)

✅ Strength	Explanation
🏆 Fuel Efficiency	Among the best in the 20-ton class
🏆 Reliability	Isuzu engine + Hitachi build = proven track record
🏆 Operator Comfort	Spacious cab, low noise, air-ride seat
🏆 Low Maintenance Cost	Easy access to service points, long intervals
🏆 Resale Value	Holds value well in used equipment market
🏆 Versatility	Works in construction, mining, demolition, landscaping

⚠️ 12. Known Issues / Considerations

Issue	Details
🔧 Hydraulic oil temperature	Can run hot in extreme climates — ensure coolers are clean
🔧 Track adjuster	May need frequent adjustment in rocky terrain
🔧 Parts availability	Some regions may have longer lead times for OEM parts
🔧 Aftermarket support	Very good globally (Hitachi has strong dealer network)

📌 13. Summary


Best For	Contractors needing a reliable, fuel-efficient, comfortable 20-ton excavator for general construction
Sweet Spot	15,000 – 25,000 hours of operation (peak performance range)
Successor	Hitachi ZX200-5 (launched ~2008, 5th generation)
Verdict	⭐⭐⭐⭐⭐ One of the best 20-ton excavators ever made — excellent balance of power, efficiency, and comfort

📞 The Hitachi ZX200-3 remains a highly sought-after machine in the used equipment market due to its proven reliability and low operating costs.
