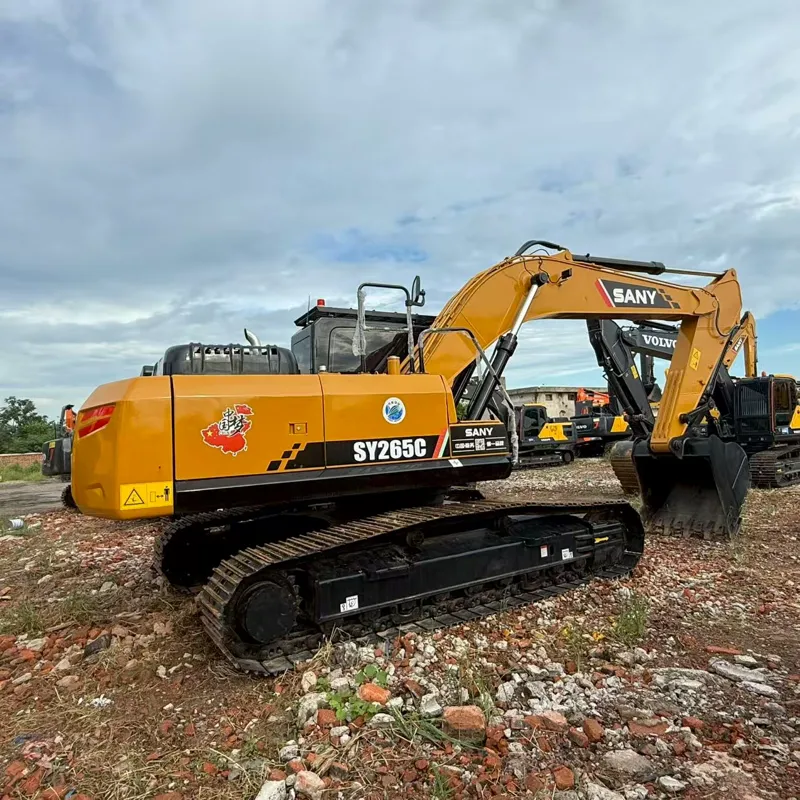

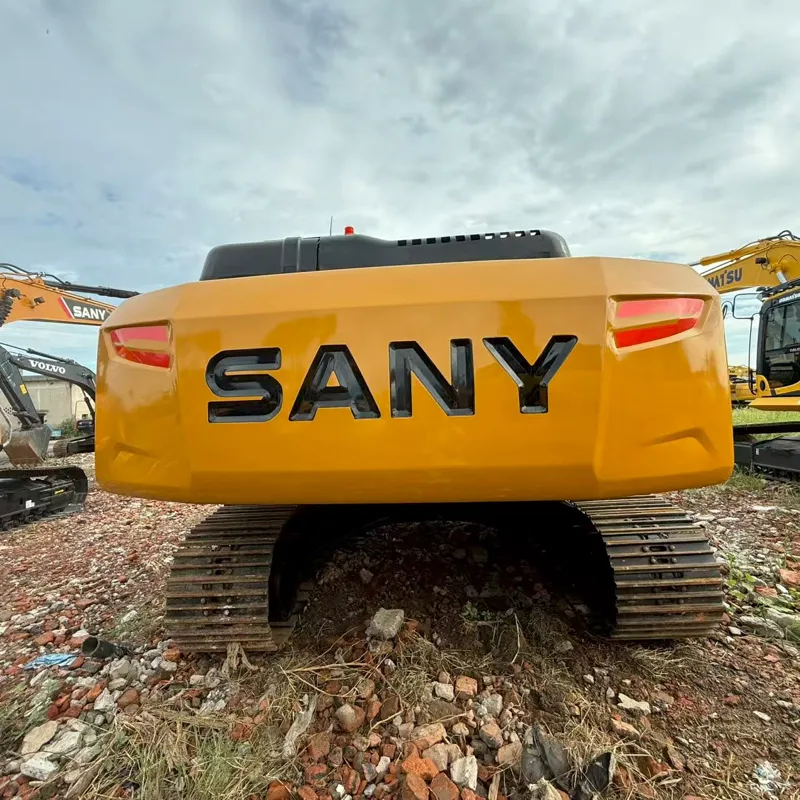

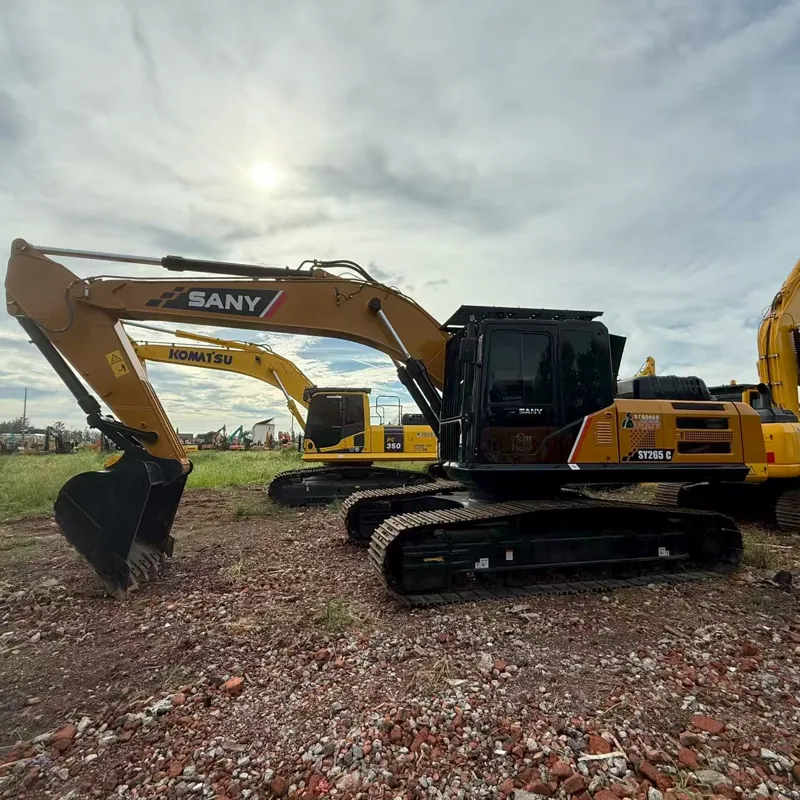

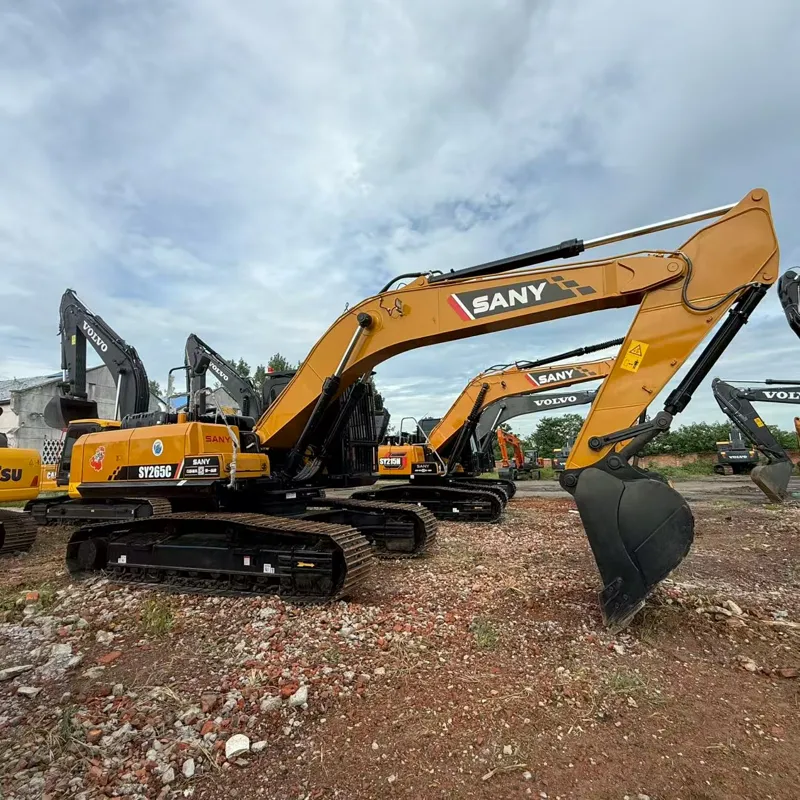

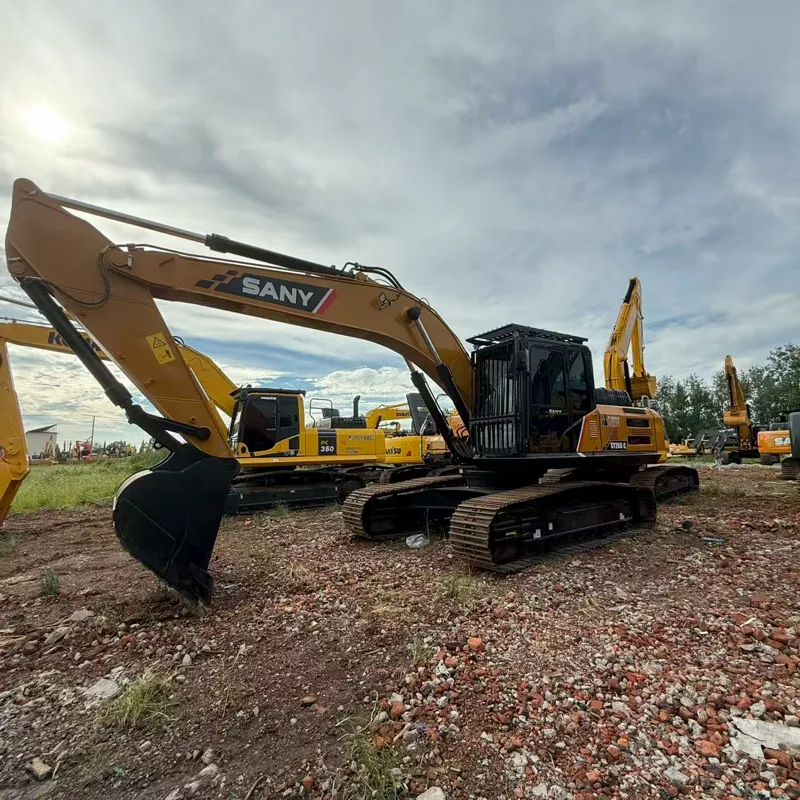

Used Sany 265Excavator

Reading: 27

📌 1. OVERVIEW

Item	Details
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Model	SY265 (SANY 265)
Class	Medium-Large Crawler Excavator (~26 ton class)
Production	Ongoing (one of SANY's best-selling models globally)
Target Markets	Construction, mining, infrastructure, demolition, municipal works

The SANY SY265 is one of SANY's flagship mid-size excavators, designed to compete directly with machines like the CAT 326, Komatsu PC270, and Doosan DX260. It is known for offering high performance at a competitive price.

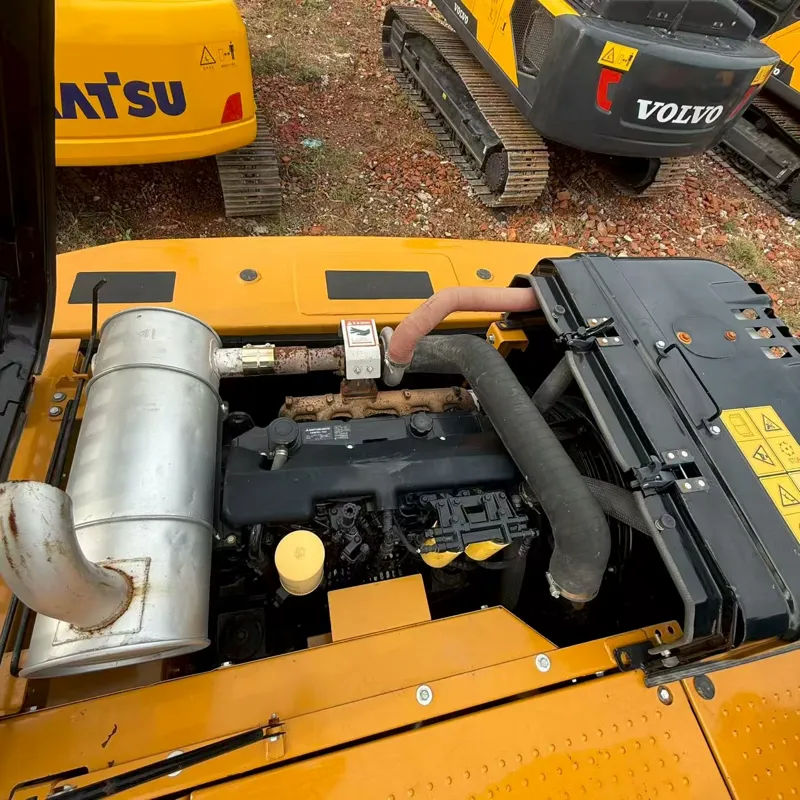

🔧 2. ENGINE SPECIFICATIONS

Parameter	Specification
Engine Model	SANY D07E / Isuzu AA-6HK1XQA (varies by market)
Type	6-cylinder, Turbocharged, Intercooled Diesel
Displacement	7.12 L
Rated Power	162–194 HP (120–143 kW) @ 2,000 rpm
Emission Standard	China III / EPA Tier 4 Final / EU Stage V (market dependent)
Fuel Tank Capacity	~400 L
Cooling System	Water-cooled with radiator

✅ The engine is known for fuel efficiency and reliability, with SANY's own D07E engine offering excellent torque at low RPM for heavy digging.

📐 3. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	25,000 – 26,500 kg (~26 tons)
Total Length (w/ bucket)	~10,000 mm
Total Width	~2,980 mm
Total Height (to cab top)	~3,050 mm
Ground Clearance	~430 mm
Track Width	~600 mm (adjustable: 500–700 mm)
Track Shoe Length	~3,200 mm
Tail Swing Radius	~2,950 mm

🪣 4. WORKING PERFORMANCE (HYDRAULIC SYSTEM)

Parameter	Specification
Bucket Capacity (Standard)	1.0 – 1.3 m³
Max Digging Depth	~7,000 – 7,200 mm
Max Digging Reach	~9,800 – 10,000 mm
Max Dumping Height	~7,000 mm
Max Dumping Reach	~6,800 mm
Max Vertical Wall Dig Depth	~5,800 mm
Max Force (Bucket)	~165 kN
Max Force (Arm)	~120 kN

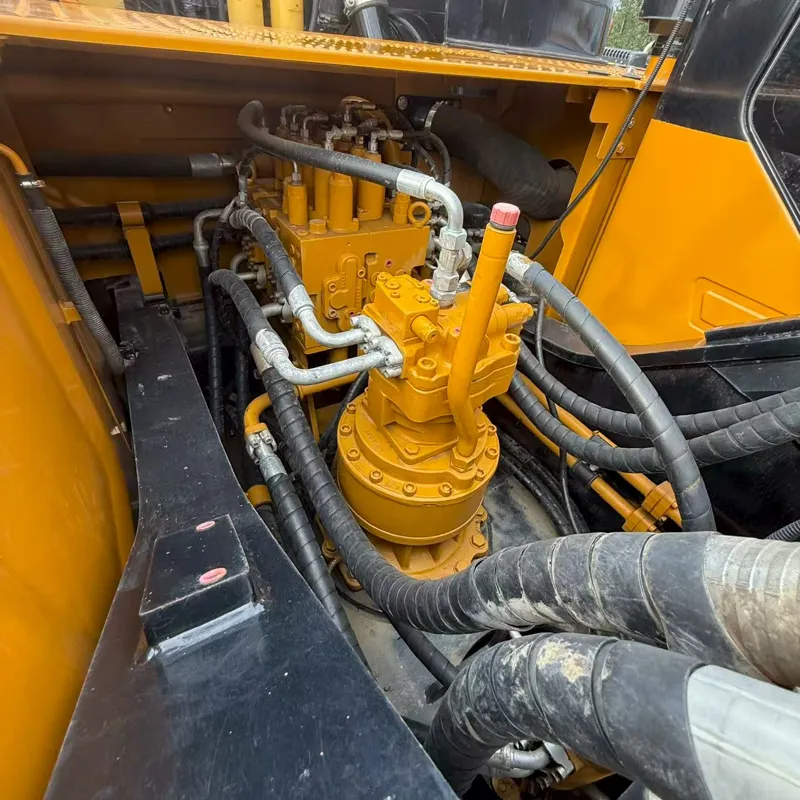

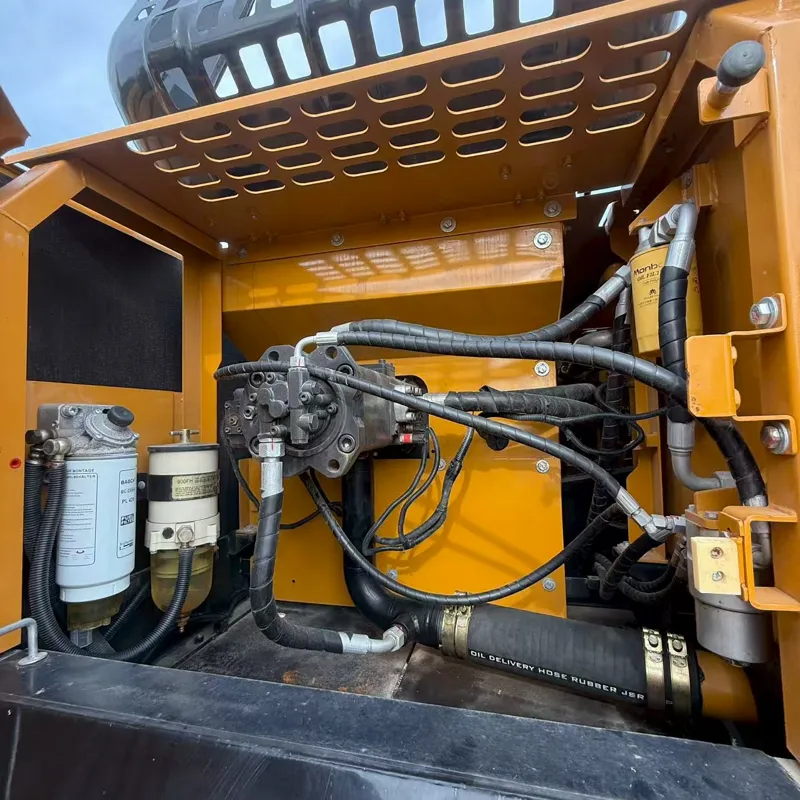

Hydraulic Pump Type	Variable Displacement Axial Piston Pump × 2
Main Pump Flow	2 × 250–300 L/min
System Pressure	34.3 – 35 MPa (5,000 PSI)
Swing Speed	~8–10 rpm
Travel Speed (Hi/Lo)	5.5 / 3.6 km/h
Gradeability	70% (~35°)
Climbing Ability	~600 mm

🖥️ 5. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS Certified, spacious
Air Conditioning	✅ Standard
Noise Level	~68–72 dB(A) (relatively quiet)
Seat	Air-suspension seat with armrest

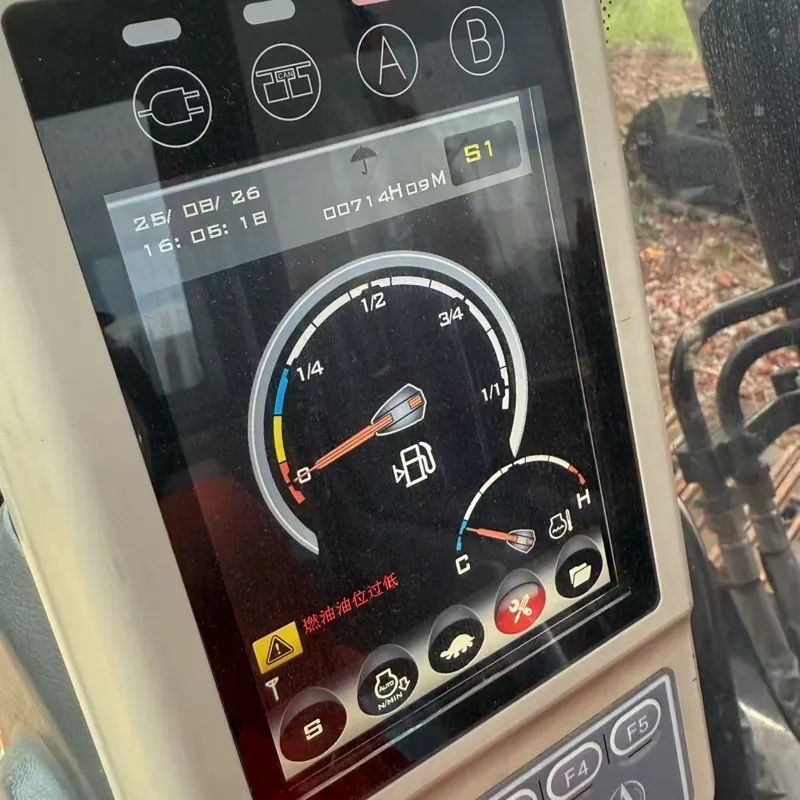

Display	LCD multi-function monitor
Controls	Pilot-operated joysticks + foot pedals
Visibility	Large glass area, excellent all-round visibility
Vibration Dampening	✅ Reduced vibration design
Storage	Cup holders, phone holder, USB charging

⭐ The SY265 cab is one of the best in its class for operator comfort, which helps reduce fatigue during long shifts.

🧠 6. SMART TECHNOLOGY & FEATURES

Technology	Description
SANY iCare / IoT	Remote monitoring via smartphone — tracks fuel consumption, working hours, location, fault codes
Auto-Idle System	Engine automatically reduces RPM when idle → saves 10–15% fuel
ECO Mode	Optimizes engine & pump output for light work
POWER Mode	Full power for heavy digging
Anti-Stall System	Prevents engine stalling under heavy load
Positive Flow Control (PFC)	Smoother, more precise operation
One-Touch Digging	Semi-automatic digging for beginner operators
LED Work Lights	Standard front & rear LED lights

🛡️ 7. DURABILITY & UNDERCARRIAGE

Component	Details
Boom & Arm	High-strength steel, stress-relieved, FATIGUE-RESISTANT
Bucket Teeth	Rock teeth / standard teeth available
Undercarriage	Heavy-duty X-frame design, reinforced track frames
Rollers	Sealed & lubricated, double-flange
Track Shoes	600mm wide, replaceable, wear-resistant
Service Intervals	Engine oil: 500h / Hydraulic oil: 2,000h / Filters: 250h
Boom/Arm Pins	Hardened, grease-able

📊 8. APPLICATIONS

Application	Suitability
🏗️ General Earthmoving	⭐⭐⭐⭐⭐
🪨 Rock Excavation	⭐⭐⭐⭐ (with rock bucket)
🏚️ Demolition	⭐⭐⭐⭐ (with hydraulic breaker)
🏗️ Foundation Work	⭐⭐⭐⭐⭐
🌲 Forestry	⭐⭐⭐⭐ (with grapple)
🚛 Material Handling	⭐⭐⭐⭐ (with magnet/grapple)
🕳️ Pipe Laying	⭐⭐⭐⭐⭐
🏔️ Mining (small-medium)	⭐⭐⭐⭐

💰 9. PRICE & MARKET POSITION (Approximate)

Region	Price Range (USD)
China	$120,000 – $150,000
Southeast Asia	$130,000 – $160,000
Middle East / Africa	$140,000 – $170,000
Europe / North America	$150,000 – $185,000

🏆 Key Advantage: SANY offers comparable or better specs than Japanese/Korean brands at 15–25% lower price, with a rapidly expanding global service network.

🆚 10. COMPARISON WITH COMPETITORS

Spec	SANY SY265	CAT 326	Komatsu PC270	Doosan DX260
Weight	26,000 kg	26,100 kg	26,500 kg	25,800 kg
Power	162–194 HP	197 HP	178 HP	180 HP
Bucket	1.0–1.3 m³	1.1 m³	1.1 m³	1.0 m³
Max Dig Depth	7,200 mm	7,240 mm	7,230 mm	7,170 mm
Price	💰💰	💰💰💰	💰💰💰	💰💰💰
Smart Tech	✅✅✅	✅✅	✅✅	✅✅

✅ 11. SUMMARY — PROS & CONS

✅ PROS	❌ CONS
Excellent price-to-performance ratio	SANY brand still perceived as "budget" in some Western markets
Powerful engine with good fuel economy	Aftermarket parts availability varies by region
Very comfortable cab	Resale value slightly lower than CAT/Komatsu
Advanced IoT & smart features	Service network still growing (but expanding fast)
Strong hydraulic system (35 MPa)	Limited availability of some attachments vs. global brands
Durable build quality	—
Fast delivery (large inventory in China)	—

🏁 FINAL VERDICT

The SANY SY265 is arguably the best value mid-size excavator on the market today. It delivers 90–95% of the performance of a CAT 326 or Komatsu PC270 at 75–80% of the price, with modern smart features and excellent operator comfort. It is an ideal choice for contractors, rental companies, and developing markets looking for reliable, high-productivity machinery without the premium price tag.

Would you like more details on any specific aspect — such as attachments, maintenance, or a specific market version? 🚜
