Used Hyundai 220HExcavator

Reading: 28

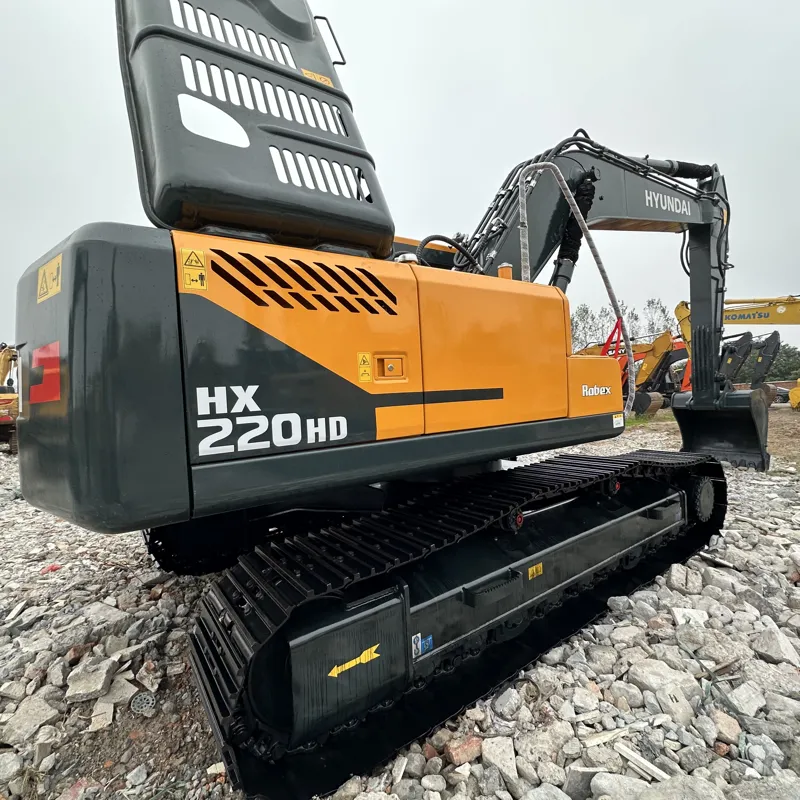

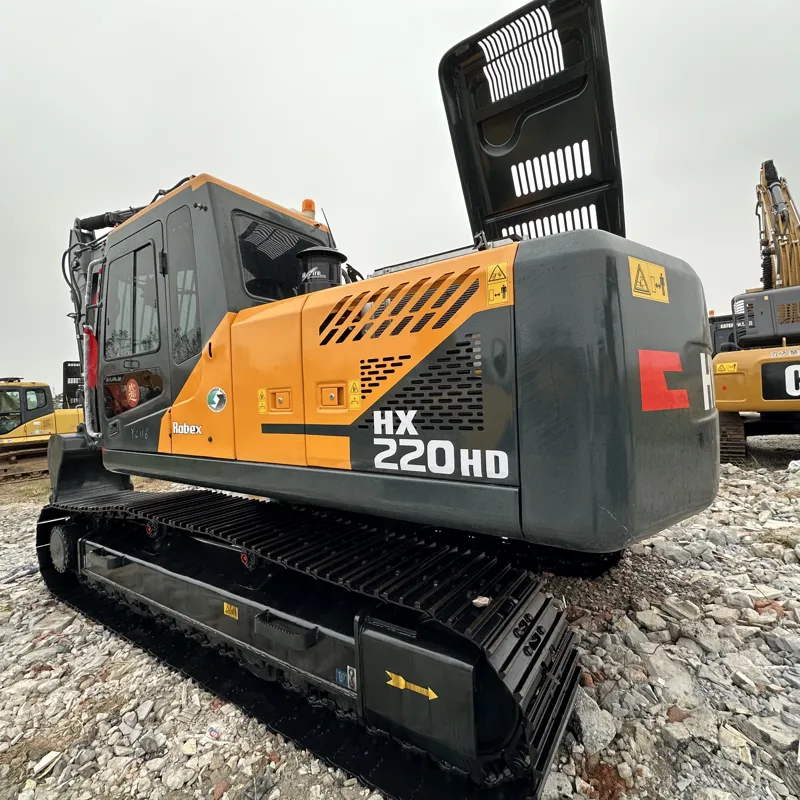

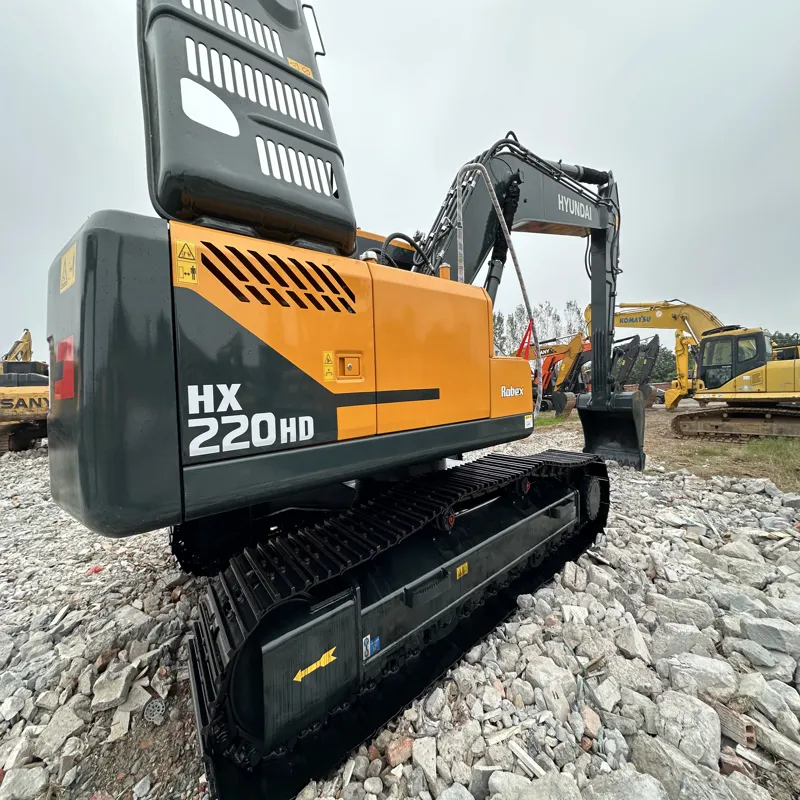

The Hyundai 220H (often designated as R220LC-9H or R220H-9) is a 22-ton class crawler excavator manufactured by Hyundai Construction Equipment (HCE). It belongs to Hyundai's "H-series" (High performance) lineup, designed for heavy-duty construction, mining, and earthmoving applications.

📋 1. GENERAL OVERVIEW

Specification	Details
Model	R220LC-9H / 220H-9
Manufacturer	Hyundai Construction Equipment (HCE)
Class	Medium-Large Crawler Excavator (~22 tonnes)
Production Era	~2010s (9th generation / H-series)
Primary Markets	Global (Middle East, Asia, Africa, Latin America, etc.)
Application	Excavation, loading, demolition, mining, road construction

⚙️ 2. ENGINE & POWER

Parameter	Specification

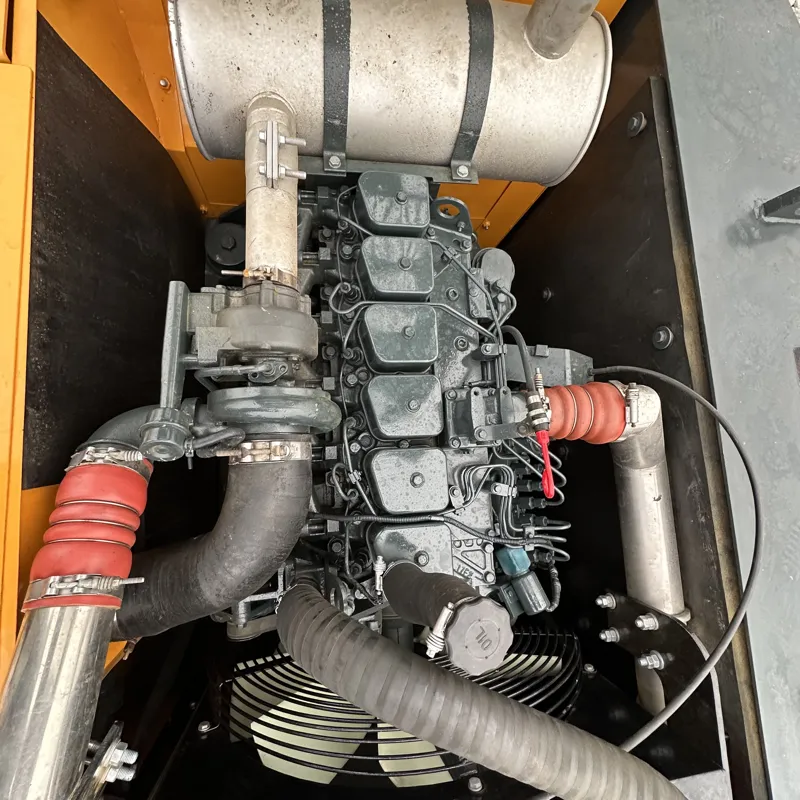

Engine Model	Doosan/Hyundai D6CC / D6GA (6-cylinder, turbocharged, intercooled diesel)
Displacement	~5.89 – 6.65 liters
Rated Power	150 – 162 HP (112 – 121 kW) @ 1,900 rpm
Max Torque	~580 – 620 N·m @ 1,500 rpm
Emission Standard	Tier 3 / Stage IIIA (varies by market)
Fuel Tank Capacity	~400 liters
Cooling System	Water-cooled with radiator

The engine is known for durability, fuel efficiency, and low emissions. Hyundai uses Doosan-developed engines in many of its excavators (both companies are under the same Hyundai Heavy Industries Group).

📐 3. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	~21,500 – 22,400 kg
Transport Length	~9,770 mm
Transport Width	~2,990 mm
Transport Height	~3,020 mm
Track Width	600 mm (triple grouser shoes)
Ground Clearance	~460 mm
Tail Swing Radius	~2,900 mm

🏗️ 4. HYDRAULIC SYSTEM & PERFORMANCE

Parameter	Specification

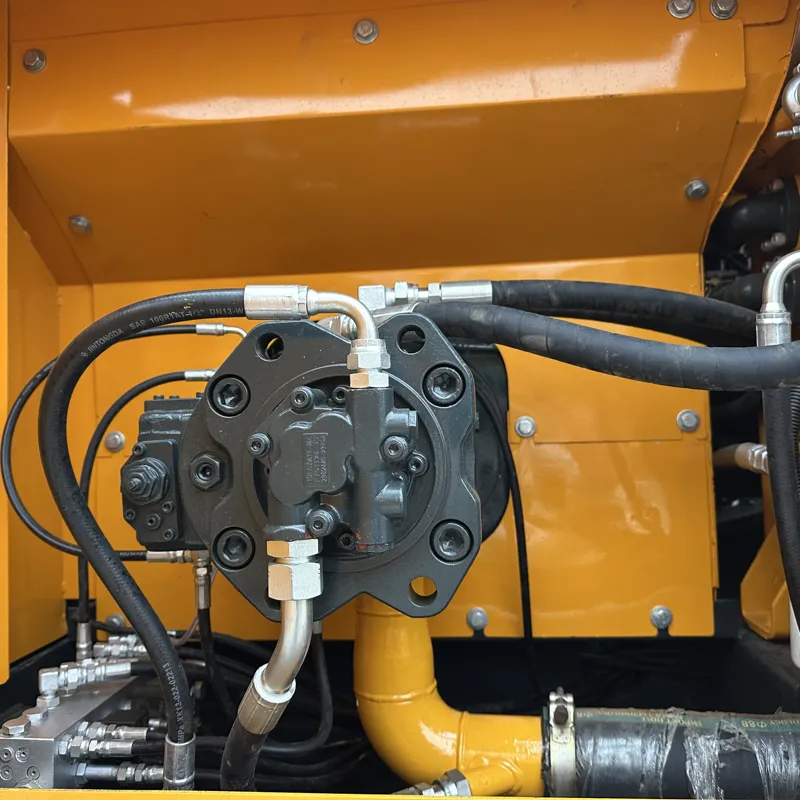

Hydraulic Pump Type	Variable displacement axial piston pump (Load-sensing + EPOS system)
Main Pump Flow	~2 × 210 – 230 L/min
System Pressure	~350 bar (35 MPa)
Swing Speed	~11.5 rpm
Travel Speed	~5.0 km/h
Gradeability	~70% (35°)
Hydraulic Tank	~130 liters

🔧 Working Range:

Performance	Value
Max Digging Depth	~7,500 – 7,650 mm
Max Digging Reach	~9,900 – 10,100 mm
Max Dumping Height	~7,200 mm
Max Digging Radius (Ground Level)	~9,800 mm
Max Vertical Wall Digging	~6,300 mm
Max Pulling/Tear Force	~155 – 165 kN

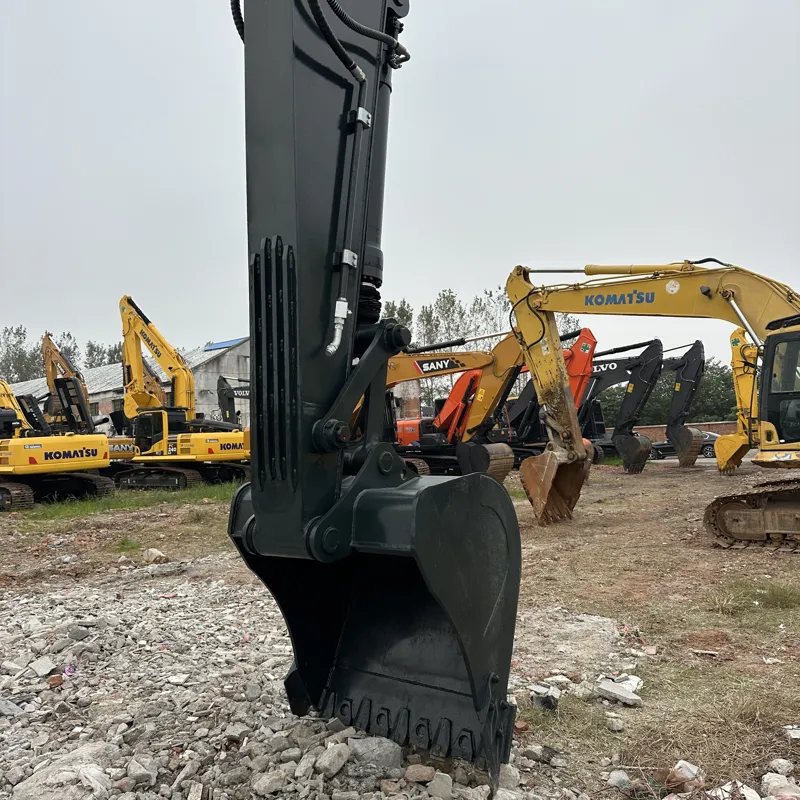

🪣 5. BUCKET & ATTACHMENTS

Attachment	Capacity
Standard Bucket	0.8 – 1.1 m³ (varies by configuration)
Heavy Duty Bucket	Up to 1.1 m³
Rock Bucket	Available (narrower, reinforced)
Thumb	Hydraulic thumb available
Quick Coupler	Available (hydraulic or mechanical)
Hydraulic Breaker	Compatible (line size: 40–75 mm)
Hydraulic Hammer	Compatible
Grapple / Shear	Compatible
Auger / Ripper	Available as options

🛋️ 6. OPERATOR CAB & COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Seat	Air-suspended seat with armrest
Climate Control	Full A/C + heater
Noise Level	~72 dB(A) (relatively quiet for its class)
Vibration Level	Low vibration design
Display	LCD monitor with machine diagnostics
Controls	Pilot-operated joystick levers, foot pedal
Safety	Seat belt, reverse alarm, backup camera (optional)
Visibility	Large windows, excellent all-around visibility

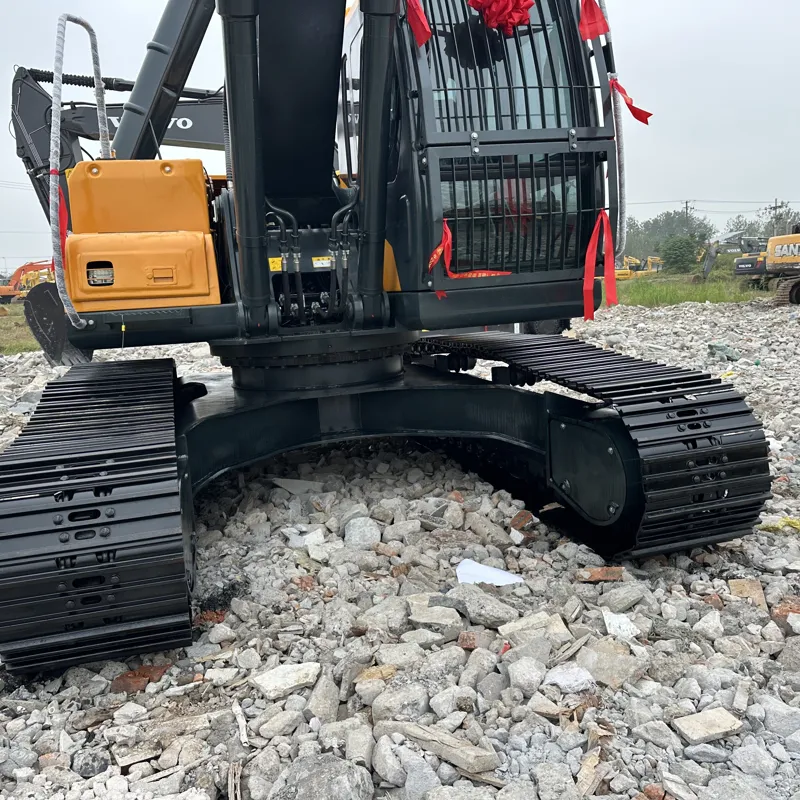

🛡️ 7. UNDERCARRIAGE & DURABILITY

Component	Details
Track Frame	High-strength steel, X-frame design
Track Shoes	600mm triple grouser (46 shoes)
Rollers	5 per side (with sealing)
Idler	Adjustable tension
Sprocket	Sealed, long-life design
Undercarriage Life	~4,000 – 5,000 hours

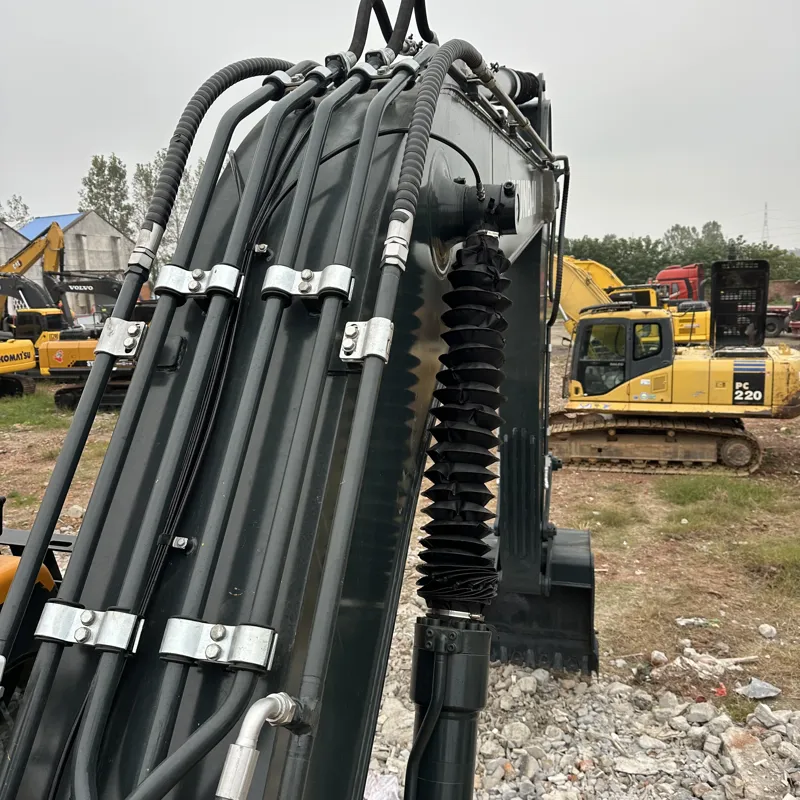

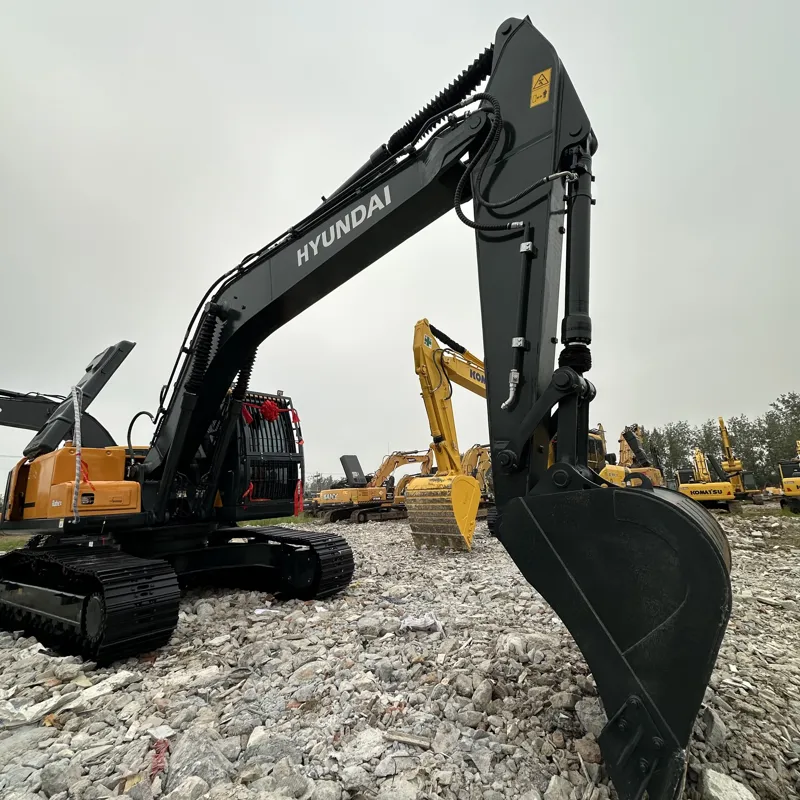

Boom & Arm	High-tensile steel, stress-relieved, finite element optimized

🔧 8. KEY TECHNOLOGIES & FEATURES

Technology	Description
EPOS (Electronic Power Optimized System)	Intelligent hydraulic system that optimizes power distribution between upper and lower structures for fuel savings up to 10%
Smart Control System	Auto-idle, auto-stop, economy mode
ECO Mode	Reduces engine RPM during light work
Auto-Lubrication	Centralized grease system for reduced maintenance
Hydraulic Oil Cooler	Ensures stable operation in hot climates
Canopy Guard	Optional ROPS/FOPS canopy

📊 9. COMPARISON WITH COMPETITORS

Model	Weight	Power	Bucket	Price Range (USD)
Hyundai R220H-9	22t	150-162 HP	0.8-1.1 m³	$120K – $150K
Doosan DX225LC-9	22.5t	158 HP	0.8-1.1 m³	$125K – $155K
CAT 320 GC	20.6t	154 HP	0.9-1.1 m³	$140K – $170K
Komatsu PC220-8	21.7t	151 HP	0.8-1.0 m³	$135K – $165K
Volvo EC220E	21.8t	158 HP	0.8-1.0 m³	$140K – $170K

The Hyundai 220H is generally known for offering excellent value for money, strong after-sales support, and competitive pricing compared to CAT/Komatsu.

✅ 10. ADVANTAGES & DISADVANTAGES

✅ Advantages:

✔️	Detail
💰	Competitive pricing – best value in its class
🔧	Easy maintenance – simplified service points
🛢️	Fuel efficient – EPOS system saves up to 10% fuel
🌡️	Great for hot climates – robust cooling system
📦	Wide parts availability – global Hyundai/Doosan network
🪑	Comfortable cab – low noise & vibration
💪	Strong boom/arm – built for heavy-duty work

❌ Disadvantages:

❌	Detail
📉	Resale value lower than CAT/Komatsu in some markets
🔩	Hydraulic system can be complex to diagnose
🏗️	Not as widely used in North America/Europe (more popular in Middle East, Africa, Asia)
📊	Resale market smaller compared to Japanese brands

🌍 11. MARKET PRESENCE

Region	Popularity
🌏 Middle East	⭐⭐⭐⭐⭐ (Very Popular)
🌏 Southeast Asia	⭐⭐⭐⭐⭐ (Very Popular)
🌏 Africa	⭐⭐⭐⭐ (Popular – good value)
🌏 Latin America	⭐⭐⭐⭐ (Growing)
🌏 North America	⭐⭐⭐ (Moderate – gaining ground)
🌏 Europe	⭐⭐⭐ (Moderate)

🔧 12. MAINTENANCE INTERVALS

Item	Interval
Engine Oil Change	Every 500 hours (or 6 months)
Hydraulic Oil Filter	Every 500 hours
Hydraulic Oil Change	Every 2,000 – 4,000 hours
Fuel Filter	Every 500 hours
Air Filter	Every 500 hours
Track Tension Check	Every 250 hours
Grease Points	Every 8 – 10 hours (auto-lube)

📌 SUMMARY


Best For	Heavy excavation, loading, mining, general construction
Ideal Operator	Contractors looking for reliability + value
Key Selling Point	"Hyundai quality at a competitive price"
Rating	⭐⭐⭐⭐☆ (4/5 – Excellent value machine)

The Hyundai 220H is a workhorse excavator that delivers strong performance, excellent fuel economy, and robust build quality — making it one of the best-value 22-ton excavators on the global market. It's especially dominant in the Middle East, Africa, and Southeast Asia where durability and cost-effectiveness are top priorities. 🚜💪
