Used Volvo 240Excavator

Reading: 13

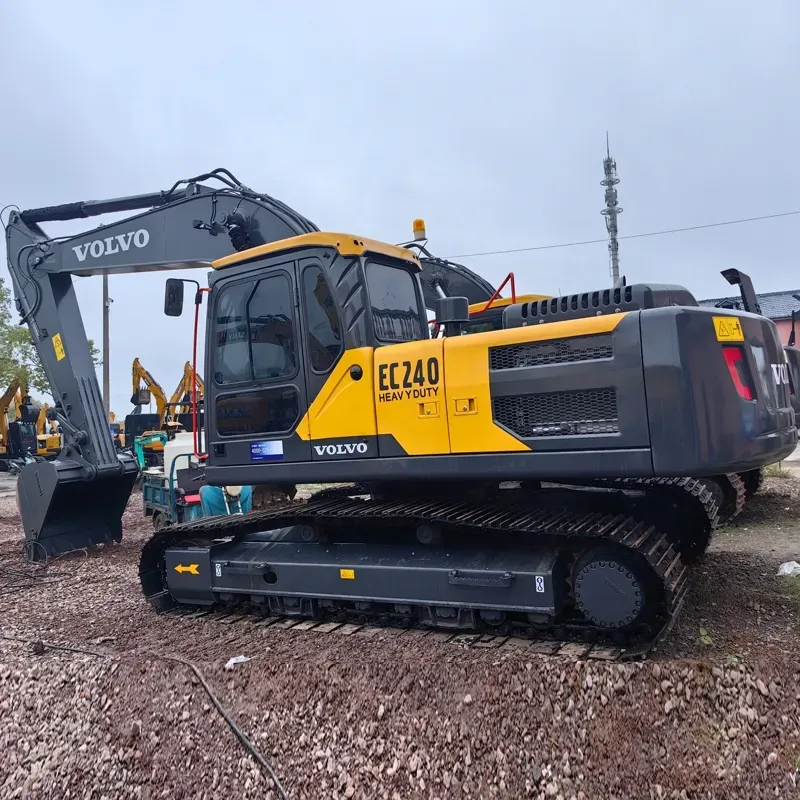

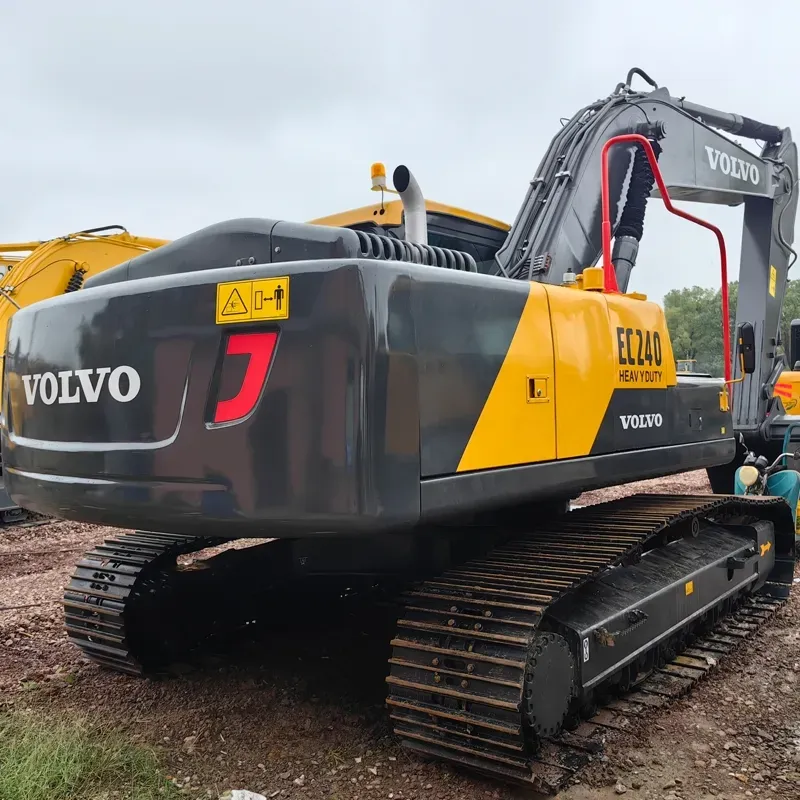

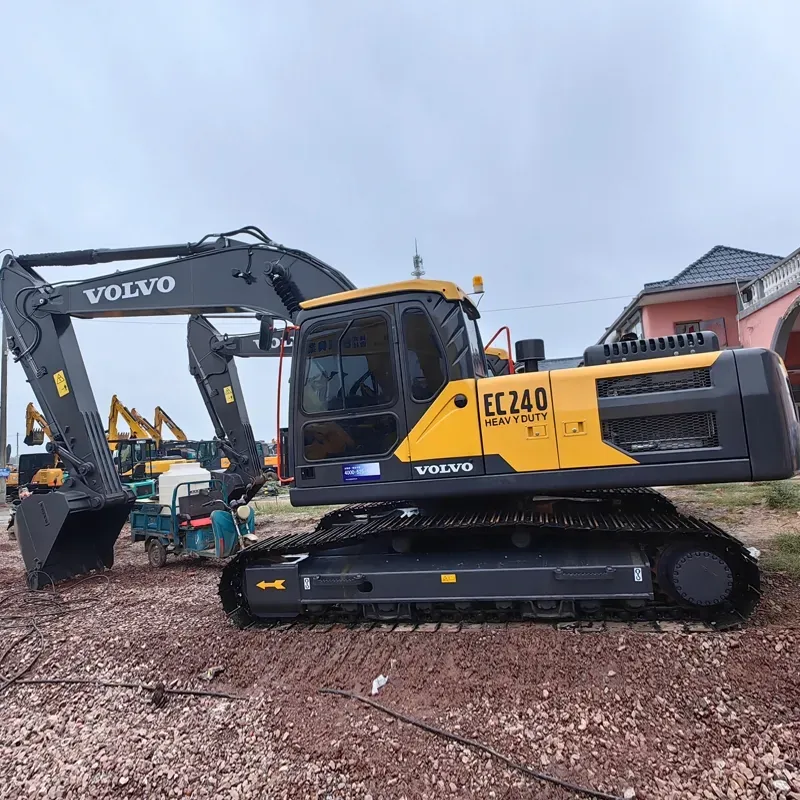

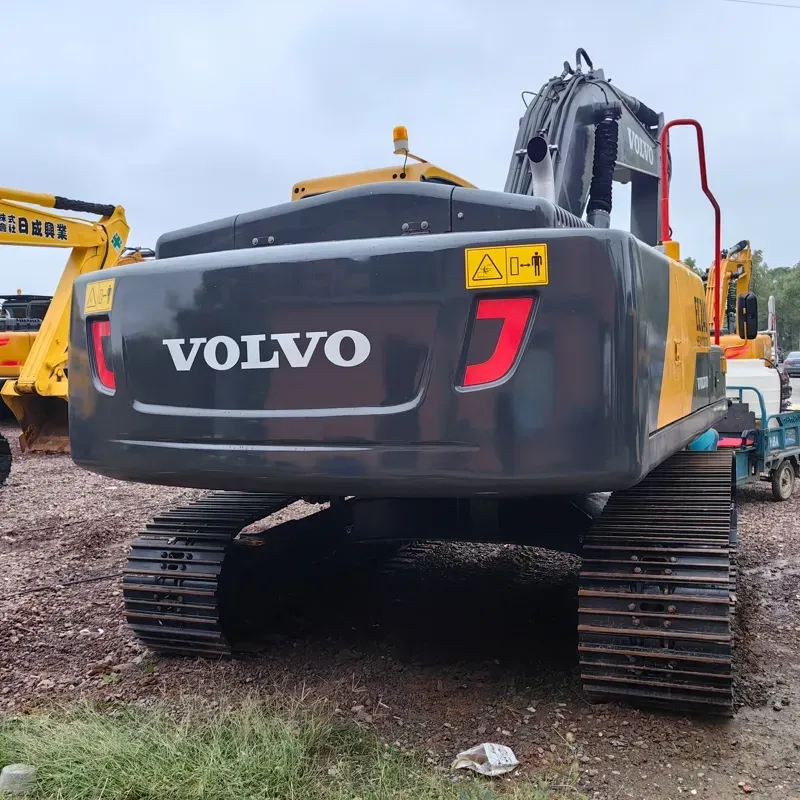

The Volvo EC240 is a mid-size crawler excavator in the 20–25 ton class, widely used in construction, mining, road building, and demolition. It has gone through several generations: EC240B → EC240C → EC240D → EC240E (current).

📋 General Overview

Feature	Details
Manufacturer	Volvo Construction Equipment
Class	24-ton (Mid-size crawler excavator)
Primary Use	General construction, road work, utilities, demolition, landscaping
Production Era	~1990s – Present
Main Competitors	CAT 324, Komatsu PC240, Hitachi ZX240, Doosan DX235

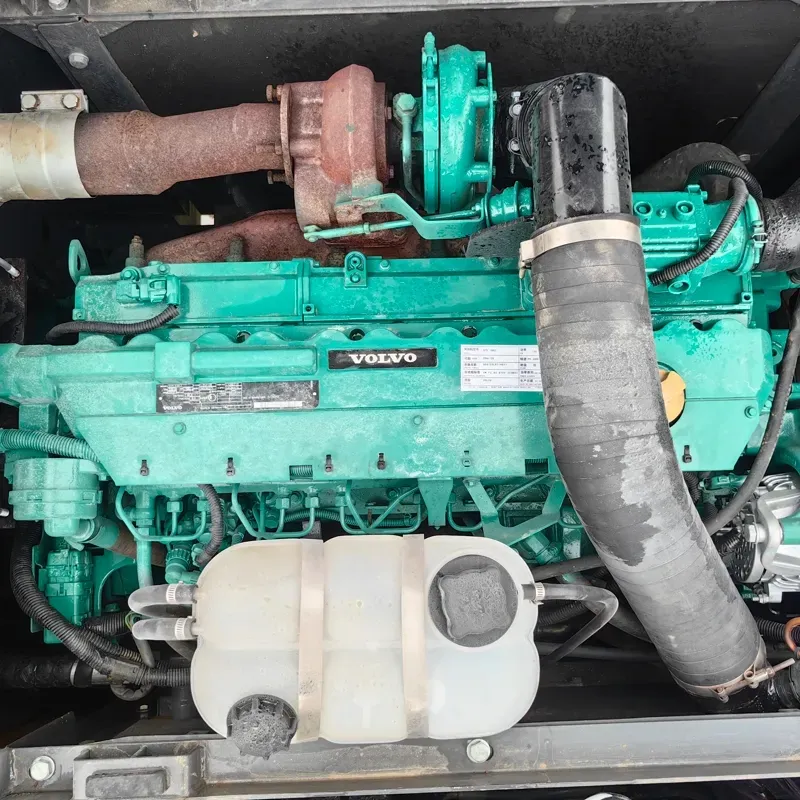

🔧 Engine Specifications (by Generation)

Generation	Engine	Power	Emissions
EC240B	Volvo TD75L (6-cyl turbo diesel)	124 kW (166 hp)	Tier 2 / Stage II
EC240C	Volvo D7E (6-cyl turbo)	128 kW (172 hp)	Stage IIIA
EC240D	Volvo D8E (6-cyl turbo)	130–138 kW (174–185 hp)	Stage IV / Tier 4 Final
EC240E ⭐	Volvo D8.8 (6-cyl turbo)	130–175 kW (174–235 hp)	Stage V / Tier 4 Final

The EC240E is the latest and most advanced version with improved fuel efficiency and lower emissions.

📐 Key Technical Specifications (EC240E)

Parameter	Specification
Operating Weight	24,000 – 25,200 kg (52,900 – 55,600 lbs)
Engine Power	130–175 kW (174–235 hp)
Max Digging Depth	~7.15 m (23.5 ft)
Max Reach (Ground Level)	~9.9 m (32.5 ft)
Max Digging Force	~160 kN (36,000 lbf)
Bucket Capacity	0.8 – 1.2 m³ (1.0 – 1.6 yd³)
Travel Speed	4.8 km/h (3.0 mph)
Fuel Tank Capacity	~400 L (106 gal)
Hydraulic Flow	2 × 180 L/min (dual pump)

🏗️ EC240B Specs (Classic / Older Model)

Parameter	Specification
Operating Weight	~23,500 kg (51,800 lbs)
Engine	Volvo TD75L
Power	124 kW (166 hp)
Max Digging Depth	~6.9 m (22.6 ft)
Max Reach	~9.6 m (31.5 ft)
Bucket Capacity	0.9 – 1.1 m³
Travel Speed	4.5 km/h

⭐ Key Features & Highlights

🖥️ Volvo Co-Pilot / Care-Taker Interface (EC240E)

Touchscreen monitor with real-time machine data
3D machine positioning (GPS/GNSS ready)
Automatic grade control ready

⚡ Efficiency

ECO mode reduces fuel consumption by up to 15%
Auto-idle shuts down engine when not in use

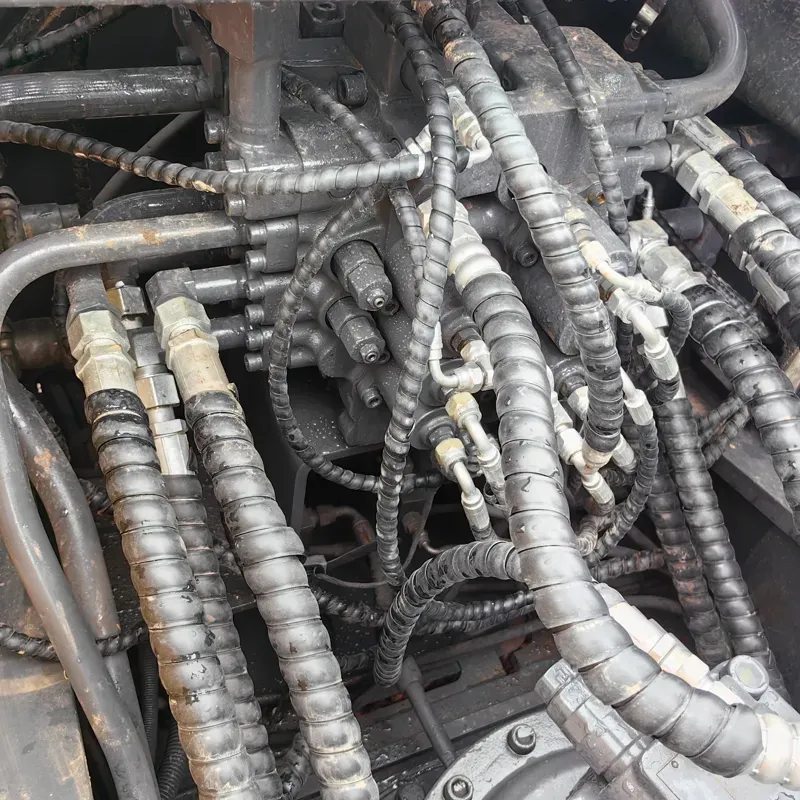

Optimized hydraulic system for smooth operation

🛡️ Durability & Comfort

Feature	Description

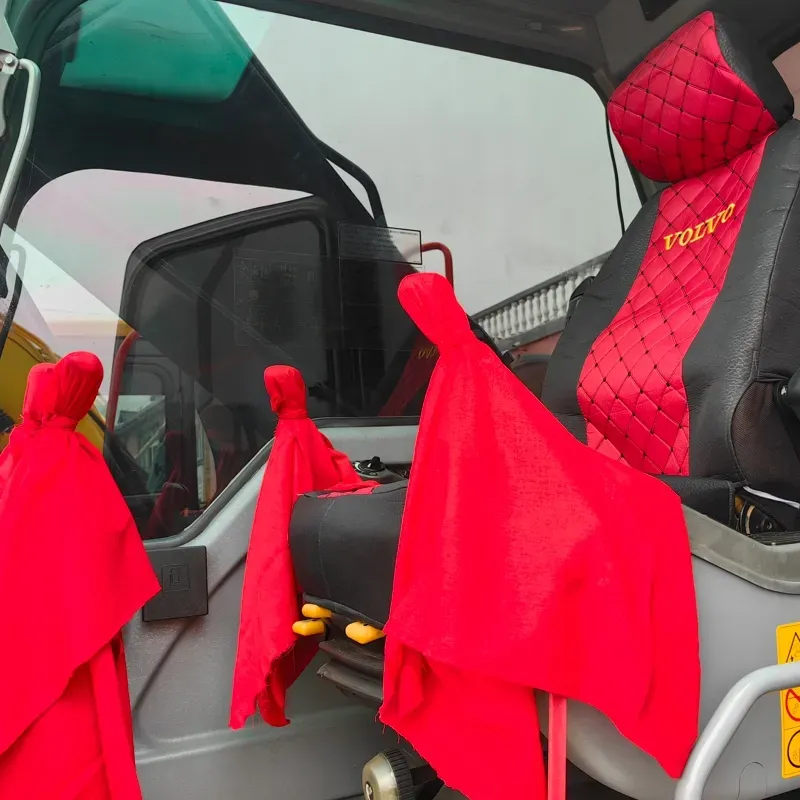

ROPS/FOPS Cab	Fully enclosed, pressurized cab with air conditioning
Suspension Seat	Air-suspended, heated seat with armrests
Noise Level	~73 dB(A) — relatively quiet for its class
Undercarriage	Heavy-duty X-frame with adjustable track width (2.2–3.0 m)
Service Access	Ground-level access points for easy maintenance

🤖 Intelligent Features (EC240E)

Volvo Active Link — Automatic boom/arm return
Boom/Stick Float — Smooth finish work
Automatic Swing Brake
Grade Assist / 2D & 3D GPS Ready
Volvo Dig Assist — Semi-automatic digging

🔧 Attachments & Versatility

The EC240 is a multi-purpose machine compatible with:

Attachment	Use
🪣 Standard Bucket	General digging
🔨 Hydraulic Breaker	Demolition, rock breaking
🪝 Quick Coupler	Fast attachment change
🪓 Grapple	Material handling, scrap
🔩 Thumb	Pipe handling, log gripping
🧹 Tiltrotator	360° rotation of attachments
🔄 Rotating Shear	Demolition & recycling
🕳️ Auger Drill	Piling & drilling
🪓 Compactor Plate	Soil compaction

📊 Performance Comparison (EC240E vs Competitors)

Spec	Volvo EC240E	CAT 324	Komatsu PC240	Hitachi ZX240
Power	175 hp	184 hp	176 hp	174 hp
Operating Weight	24,000 kg	24,500 kg	24,300 kg	24,200 kg
Max Dig Depth	7.15 m	7.24 m	7.10 m	7.20 m
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Tech/Tech	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

✅ Advantages

✅ Pros	❌ Cons
Excellent fuel efficiency (ECO mode)	Higher purchase price than some competitors
Superior operator comfort & low noise	Parts can be expensive
Strong residual/resale value	Heavier than some rivals
Advanced tech (GPS, Dig Assist)	Limited availability in some regions
Reliable Volvo diesel engine
Excellent after-sales network

💰 Approximate Pricing (2024, New)

Model	Approximate Price (USD)
EC240E (Basic)	$180,000 – $210,000
EC240E (Fully Loaded w/ GPS)	$220,000 – $260,000
EC240B (Used, 2000s)	$45,000 – $75,000
EC240C (Used, 2010s)	$70,000 – $110,000
EC240D (Used, 2015-2020)	$110,000 – $150,000

Prices vary by region, configuration, and dealer.

🎯 Who Should Buy the Volvo EC240?

Ideal For	Why
🏢 Contractors	Versatile, reliable, good resale
🛣️ Road & Utility Companies	Stable, precise, comfortable for long hours
🏗️ Rental Companies	High demand, strong resale value
🏭 Demolition Firms	Powerful, compatible with breakers & shears
🌍 Mining (small-medium)	Durable, good digging force

📌 Summary


⭐ Rating	★★★★☆ (4.5/5)
🏷️ Class	24-ton mid-size crawler
💪 Best Feature	Fuel efficiency + Operator comfort
🎯 Best For	General construction, road work, rental fleets
🏆 Verdict	One of the best mid-size excavators on the market — reliable, efficient, and technologically advanced
