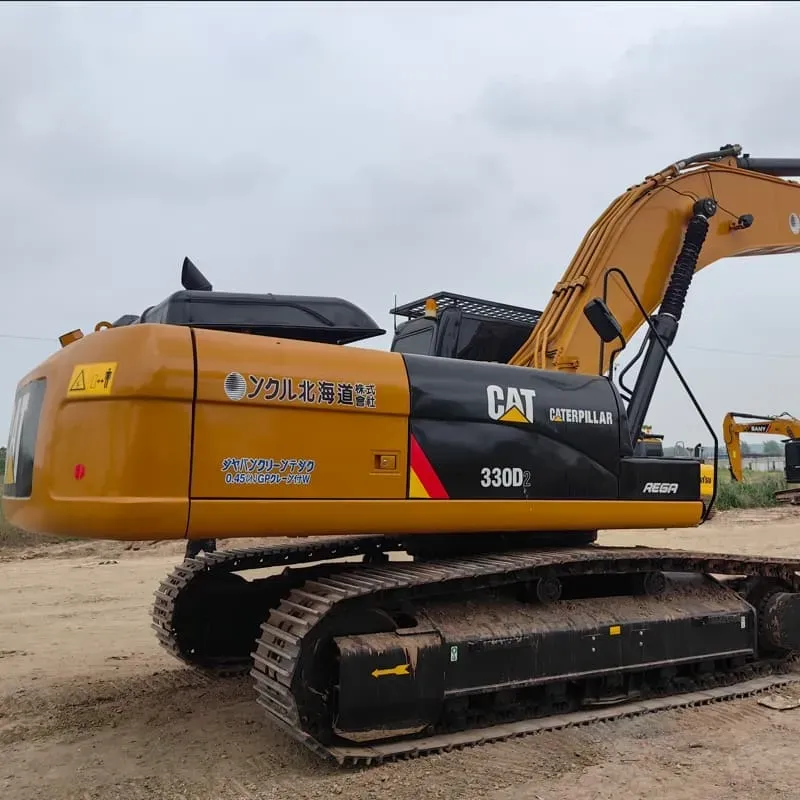

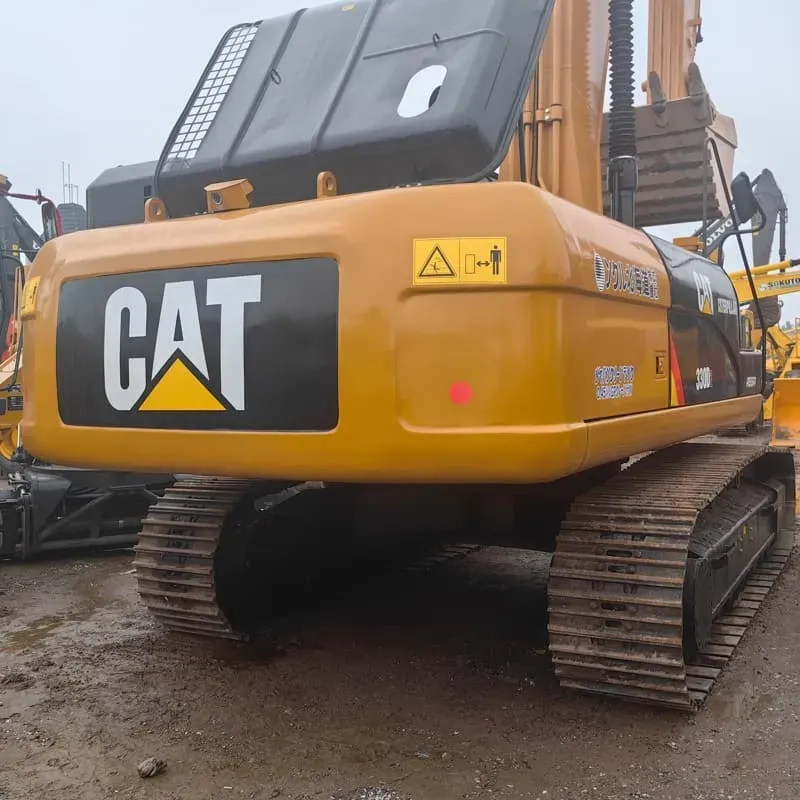

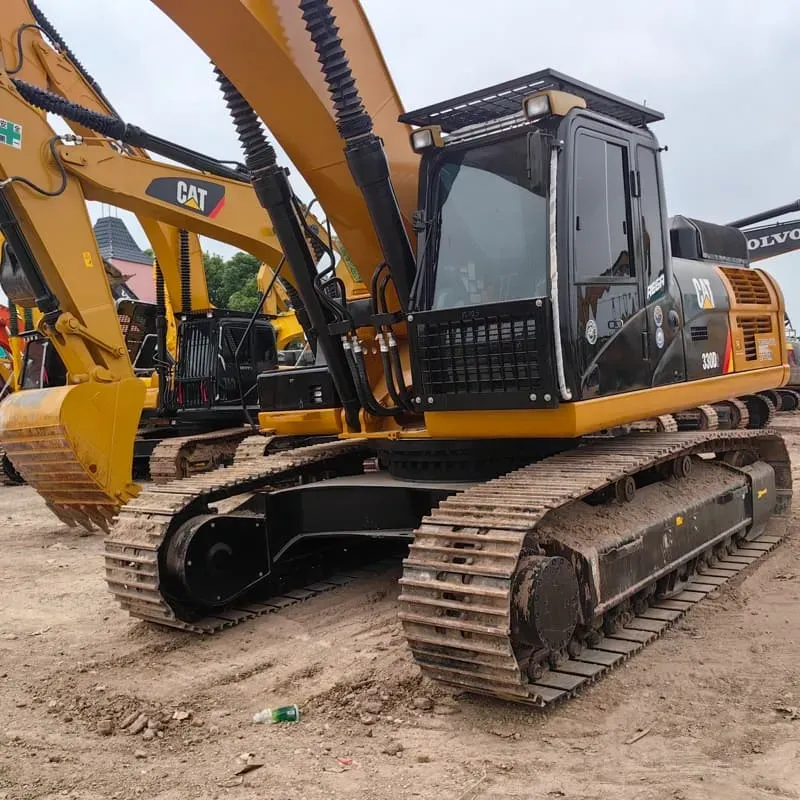

Used Caterpillar 330D2Excavator

Reading: 12

📌 1. OVERVIEW

The Cat 330D2 is a medium-sized hydraulic excavator manufactured by Caterpillar Inc. It belongs to the D2 Series (introduced around 2015), which replaced the older D-Series. It is designed for heavy-duty construction, mining, road building, and general earthmoving applications.

It sits in the 30-ton class, making it one of the most popular and versatile machines in Cat's lineup.

📌 2. KEY SPECIFICATIONS

Parameter	Details
Engine	Cat® C7.1 ACERT® Turbo Diesel
Net Power (ISO 9249)	180 hp (134 kW) @ 2,000 rpm
Operating Weight	~30,800 kg (67,900 lb)
Bucket Capacity (SAE)	1.0 – 1.6 m³ (1.3 – 2.1 yd³)
Max Digging Depth	~7,100 mm (23.3 ft)
Max Reach (Ground Level)	~9,900 mm (32.5 ft)
Max Dumping Height	~7,300 mm (24.0 ft)
Swing Speed	11.5 rpm
Travel Speed	4.9 km/h (3.0 mph)
Ground Pressure	~51 kPa (7.4 psi)
Fuel Tank Capacity	~450 L (119 gal)
Hydraulic Flow	2 × 346 L/min (91.4 gpm)
Hydraulic System Pressure	350 bar (5,075 psi)

📌 3. ENGINE — Cat C7.1 ACERT®

Feature	Detail
Displacement	7.1 L (433 cu in)
Emissions Standard	EPA Tier 4 Final / EU Stage V (using SCR + DPF — no DEG required)
Aftertreatment	Selective Catalytic Reduction (SCR) + Diesel Particulate Filter (DPF)
Fuel Efficiency	Improved ~10-15% over the 330D (D-Series)
Cooling	Air-to-air aftercooled
Turbocharger	Wastegate turbo with air-to-air aftercooler

✅ The ACERT technology ensures excellent fuel economy while meeting strict emission standards.

📌 4. HYDRAULIC SYSTEM

Feature	Detail
Type	Closed-center, load-sensing hydraulic system
Pump Flow	2 variable-displacement axial piston pumps
Total Flow	~692 L/min (183 gpm)
Working Pressure	350 bar (5,075 psi)
Auxiliary Hydraulics	2 circuits, each ~83 L/min (22 gpm)

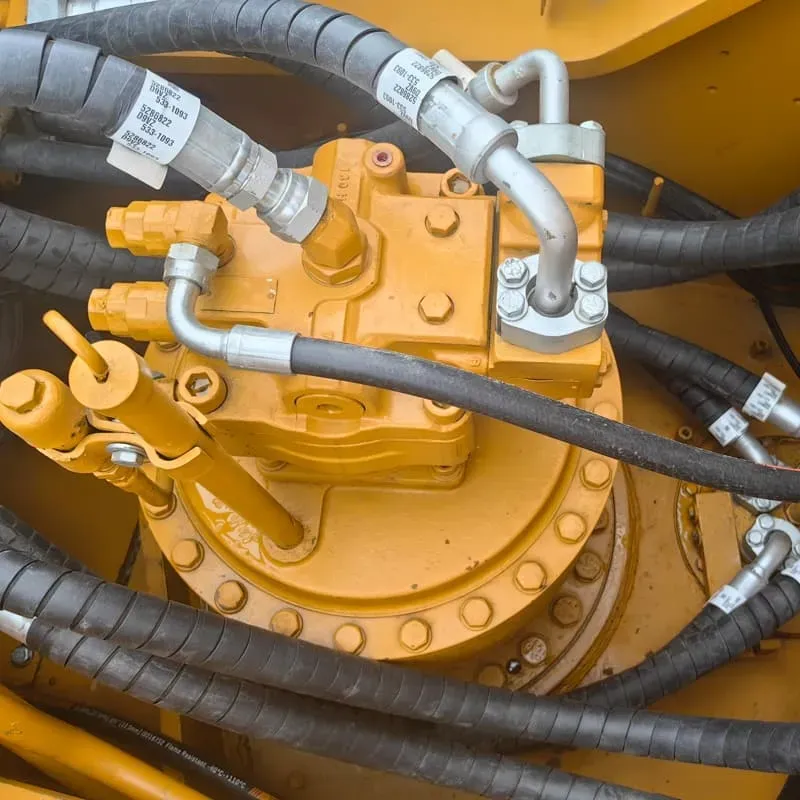

Swing Motor	Variable-displacement piston motor

✅ The hydraulic system is designed for smooth, precise operation and fast cycle times.

📌 5. UNDERCARRIAGE

Feature	Detail
Track Width	600 mm (24 in) triple-grouser pads
Track Shoe Width	600 mm (24 in)
Number of Rollers (each side)	5 top rollers + 1 carry roller
Ground Contact Length	~3,100 mm (122 in)

✅ The triple-grouser pads provide excellent traction and stability on soft/muddy terrain.

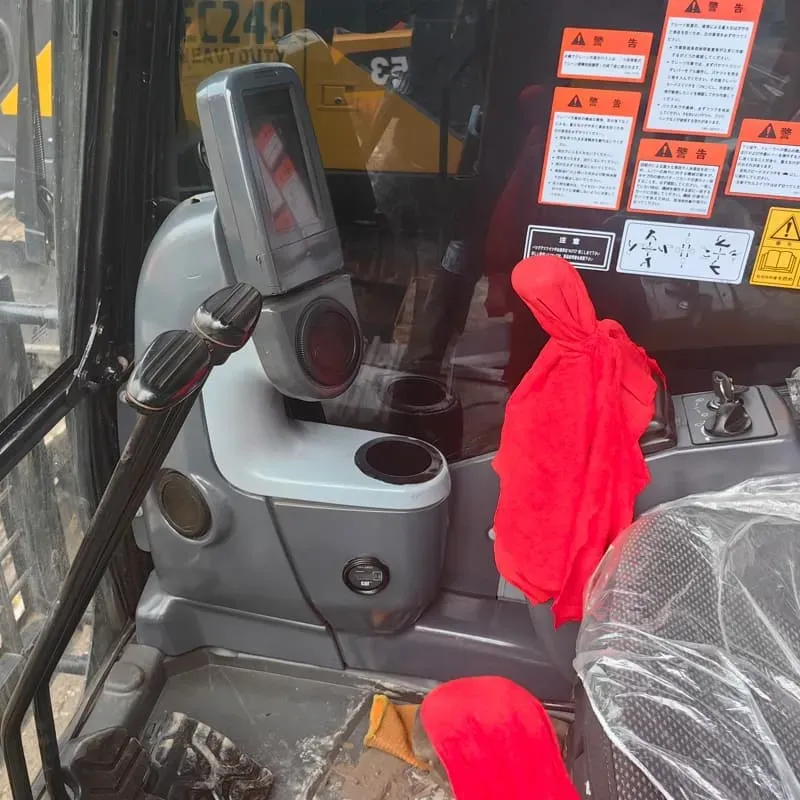

📌 6. OPERATOR ENVIRONMENT — Cab

The 330D2 features Cat's next-generation cab with significant upgrades over the D-Series:

Feature	Detail
Noise Level	~70 dB(A) — one of the quietest in its class
ROPS/FOPS	Fully certified Rollover & Falling Object Protection
Seat	Air-suspension, heated, fully adjustable
Climate Control	Fully automatic air conditioning
Display	10-inch (254 mm) LCD touchscreen monitor
Camera System	Rearview + right/left side cameras (standard)
Controls	Electronic joystick controls with auto-return
USB/Bluetooth	Available for connectivity
Lighting	LED work lights (front, rear, boom)
Sound Suppression	Improved insulation & sound-dampening materials

📌 7. TECHNOLOGY & SMART FEATURES

Technology	Description
📡 Cat Product Link™	Remote machine monitoring, diagnostics, fleet management
📐 Cat GRADE with 2D	Optional — improves grading accuracy
📐 Cat GRADE with 3D	Optional — GPS-based 3D grading
🛡️ Cat Payload	Optional — real-time bucket payload weighing
🎥 VisionLink®	Camera system for improved visibility
⚡ Eco Mode	Reduces engine RPM when full power is not needed — saves fuel up to 15%
🔧 Cat Detect	Optional — detects nearby personnel/objects
📊 CAT PL2701/2702	Optional — digital scale for precise loading

📌 8. BOOM & STICK CONFIGURATIONS

Configuration	Dig Depth	Reach
Standard (5.9 m / 19.4 ft stick)	7.1 m (23.3 ft)	9.9 m (32.5 ft)
Long Reach (7.4 m / 24.3 ft stick)	8.4 m (27.6 ft)	11.1 m (36.4 ft)
Short Stick (4.8 m / 15.7 ft)	5.8 m (19.0 ft)	8.2 m (26.9 ft)

✅ Multiple configurations allow the machine to adapt to different job requirements.

📌 9. PERFORMANCE HIGHLIGHTS

Performance Metric	Value
Breakout Force	~155 kN (34,800 lbf)
Lift Capacity at Full Reach	~8,100 kg (17,900 lb)
Swing Torque	~120 kNm (88,500 lb-ft)
Cycle Time (Load & Return)	~8–10 seconds (varies by application)
Fuel Consumption	~25–30 L/hr (6.6–7.9 gal/hr) (typical load)

📌 10. APPLICATIONS

Application	Use Case
🏗️ General Construction	Excavation, trenching, backfilling
⛰️ Mining & Quarrying	Loading trucks, bench digging
🛣️ Road Building	Grading, ditch cleaning, pipe laying
🏢 Demolition	With hydraulic breaker or grapple
🌊 Dredging	With specialized bucket
🌲 Landscaping	With thumb, ripper, or grapple
🔌 Utilities	With hydraulic hammer or auger

📌 11. COMPARISON: 330D2 vs 330D (Previous Model)

Feature	330D (Old)	330D2 (New)
Engine	C7 ACERT	C7.1 ACERT
Power	177 hp	180 hp
Weight	30,500 kg	30,800 kg
Fuel Efficiency	Baseline	~10-15% better
Emissions	Tier 4 Interim	Tier 4 Final / Stage V
Cab Noise	~73 dB	~70 dB
Display	7-inch	10-inch touchscreen
Technology	Basic	Advanced (Payload, Grade, etc.)

📌 12. PRICING (Approximate — 2024)

Condition	Price Range (USD)
New	$350,000 – $420,000 (varies by config)
Used (2016-2020)	$180,000 – $280,000
Used (2021+)	$280,000 – $380,000
Rental	$1,500 – $2,500/day

💡 Prices vary significantly by region, configuration, hours, and market conditions.

📌 13. STRENGTHS ✅ & LIMITATIONS ⚠️

✅ Strengths	⚠️ Limitations
Excellent fuel efficiency for its class	Higher purchase price than competitors
Very comfortable, quiet cab	Heavier than some competitors (e.g., Komatsu PC300)
Strong hydraulic performance	Requires DEF (Diesel Exhaust Fluid) for SCR
Excellent resale value	Maintenance costs can be high
Wide range of attachments	Limited reach compared to long-reach models
Robust & reliable	Not suitable for ultra-heavy mining (need 336/340+)
Advanced technology options

📌 14. COMPETITORS

Model	Weight	Power	Bucket
Komatsu PC300-11	~30,500 kg	174 kW (233 hp)	1.0–1.5 m³
Hitachi ZX300LC-6	~30,000 kg	164 kW (220 hp)	1.0–1.4 m³
Volvo EC300E	~30,400 kg	170 kW (228 hp)	1.0–1.5 m³
Doosan DX300LC-7	~29,800 kg	162 kW (217 hp)	1.0–1.4 m³
JCB JS300LC	~30,500 kg	165 kW (221 hp)	1.0–1.5 m³

🏆 The 330D2 is generally considered the benchmark in the 30-ton class due to its balance of power, efficiency, comfort, and technology.

📌 15. SUMMARY

Category	Rating
🔧 Power & Performance	⭐⭐⭐⭐⭐
⛽ Fuel Efficiency	⭐⭐⭐⭐⭐
🪑 Operator Comfort	⭐⭐⭐⭐⭐
💻 Technology	⭐⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐
🔩 Reliability	⭐⭐⭐⭐⭐

🎯 The Cat 330D2 is one of the best medium-class excavators in the world — offering the perfect blend of power, efficiency, comfort, and smart technology. It's the go-to machine for contractors who demand productivity and low operating costs.
