Used Caterpillar 312DExcavator

Reading: 13

📋 1. OVERVIEW

Item	Detail
Manufacturer	Caterpillar Inc.
Model	312D (D-Series / Generation D)
Class	Medium-sized hydraulic excavator (~12 ton)
Production Years	~2011 – 2016
Predecessor	Cat 312C
Successor	Cat 312 GC (Generation C) / 312D2 GC
Primary Use	General excavation, utility work, landscaping, road construction, trenching

The Cat 312D is one of the most popular mid-size excavators in Caterpillar's lineup, widely used in rental fleets, general contracting, and utility companies worldwide. It strikes an excellent balance between power, fuel efficiency, and operator comfort.

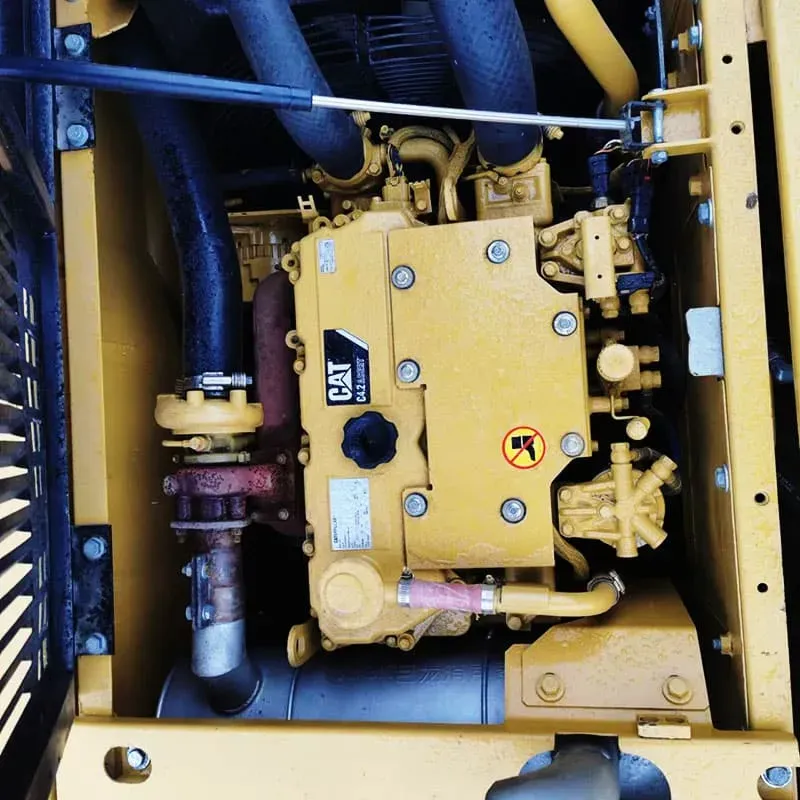

🔧 2. ENGINE SPECIFICATIONS

Parameter	Specification
Engine Model	Caterpillar C4.2 ACERT®
Type	4-cylinder, turbocharged, aftercooled diesel
Displacement	4.2 liters (255 cu in)
Rated Power	86 hp (64 kW) @ 2,200 rpm
Emission Standard	Tier 4 Final (U.S.) / Stage IIIB (EU)
Fuel Tank Capacity	~200 L (53 gal)
Fuel Consumption	~12–15 L/hr (depending on load)

✅ The ACERT technology uses exhaust gas recirculation (EGR) and diesel oxidation catalyst (DOC) — no DPF (Diesel Particulate Filter), which reduces maintenance complexity.

⚖️ 3. OPERATING WEIGHT & DIMENSIONS

Parameter	Specification
Operating Weight	12,100 – 12,500 kg (26,675 – 27,558 lb)
Transport Length	7,570 mm (24 ft 10 in)
Transport Width	2,500 mm (98 in)
Transport Height	2,980 mm (9 ft 9 in)
Ground Clearance	430 mm (17 in)
Track Width	2,500 mm (standard) / 2,200 mm (narrow option)
Track Shoe Width	600 mm (24 in)

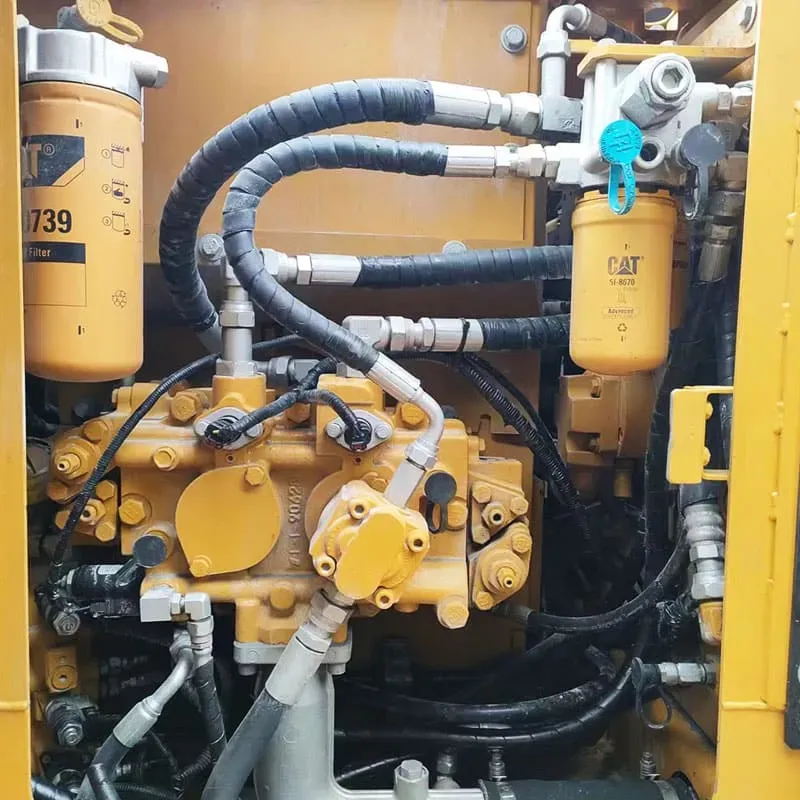

🪣 4. HYDRAULIC SYSTEM & PERFORMANCE

Parameter	Specification
Main Pump Type	Variable displacement piston pump (load-sensing)
Total Flow	2 × 140 L/min (37 gal/min)
System Pressure	35,000 kPa (5,076 psi)
Swing Speed	10.8 rpm
Swing Torque	7.2 kN·m (5,310 lb·ft)
Travel Speed	5.0 km/h (3.1 mph)
Max Gradeability	70% (35°)

📐 5. DIGGING PERFORMANCE

Parameter	Specification
Max Digging Depth	5,580 mm (18 ft 4 in)
Max Reach (Ground Level)	8,760 mm (28 ft 9 in)
Max Digging Height	8,800 mm (28 ft 10 in)
Max Dump Height	6,200 mm (20 ft 4 in)
Max Vertical Wall Dig	4,620 mm (15 ft 2 in)
Bucket Capacity (Std)	0.44 m³ (0.58 cu yd)
Bucket Capacity (Optional)	0.28 – 0.65 m³ (0.37 – 0.85 cu yd)
Breakout Force (Boom)	~68 kN (15,300 lbf)
Breakout Force (Arm)	~45 kN (10,100 lbf)
Bucket Force	~74 kN (16,600 lbf)

🔩 6. LINKAGE OPTIONS

The 312D offers three linkage configurations:

Linkage Type	Best For
Universal (Std)	General purpose digging, loading
2D / 3D Grade	Precision grading, leveling, finishing work
Long Reach	Deep trenching, demolition, pipeline work

🛋️ 7. CAB & OPERATOR COMFORT

The 312D features Caterpillar's spacious, well-insulated cab designed for all-day productivity:

Feature	Detail
Certification	ROPS / FOPS (Roll-Over & Falling Object Protection)
Seat	Air--suspension, heated, fully adjustable
Climate Control	Heater + Air Conditioning
Visibility	Large glass area with optional rearview camera
Noise Level	~72 dB(A) (one of the quietest in its class)
Controls	Pilot-operated joysticks with finger-tip controls
Display	Color LCD monitor with diagnostics
Audio	AM/FM radio with AUX/USB input
Storage	Multiple cup holders, phone mount, glove box

📡 8. TECHNOLOGY & SMART FEATURES

Technology	Description
Cat Product Link™	Real-time machine monitoring, location tracking, usage reports, maintenance alerts via satellite/cellular
Cat Grade (2D/3D)	GPS-guided grading system for precision earthmoving — eliminates staking
Cat Payload (Optional)	On-board weighing system — no need for external scales
Eco Mode	Automatically reduces engine RPM during idle/light load — saves up to 15% fuel
Auto Idle Shutdown	Engine shuts off after preset idle time (default 10 min)
Anti-Theft System	Code-protected engine start — CAT Security

🔨 9. ATTACHMENTS & VERSATILITY

The 312D is highly versatile with a wide range of Cat-compatible attachments:

Attachment	Application
🪣 Standard Bucket	General digging
🔨 Hydraulic Breaker (Hammer)	Rock breaking, demolition
' Hydraulic Shear	Scrap metal cutting, demolition
🪤 Thumb / Grapple	Material handling, sorting
🔩 Auger	Post-hole drilling
🧹 Tiltrotator	Versatile positioning (45° tilt)
🪚 Rippers	Hard ground/frozen soil
🧹 Rake	Land clearing, leveling

🛠️ 10. MAINTENANCE & SERVICEABILITY

Feature	Benefit
Ground-Level Access	Daily checks (oil, coolant, fuel) accessible from ground — no climbing needed
Side-by-Side Coolers	Easy to clean in dusty conditions
Extended Service Intervals	Engine oil: 500 hrs / Hydraulic oil: 2,000 hrs / Final drive: 4,000 hrs
Centralized Grease Points	Quick lubrication from ground level
LED Work Lights	Long-life, low maintenance
Battery Disconnect	Easy storage/transport

📊 11. COMPARISON WITH COMPETITORS

Spec	Cat 312D	Komatsu PC128US-11	Doosan DX140LCR-5	Volvo ECR145E
Power	86 hp	98 hp	102 hp	99 hp
Weight	12,200 kg	12,800 kg	14,100 kg	14,000 kg
Bucket	0.44 m³	0.42 m³	0.45 m³	0.46 m³
Dig Depth	5,580 mm	5,660 mm	5,790 mm	5,700 mm
Key Advantage	Fuel efficiency, low maintenance	Higher power	Higher power	Comfort

🏆 The 312D wins on fuel efficiency, lower operating cost, and resale value — making it the # #1 choice for rental companies.

💰 12. APPROXIMATE PRICING (2024 Used Market)

Condition	Price Range (USD)
Used (3,000–5,000 hrs)	$45,000 – $65,000
Used (5,000–8,000 hrs)	$35,000 – $50,000
New (if available)	$110,000 – $130,000

💡 Prices vary significantly by region, condition, and configuration.

✅ 13. SUMMARY — WHY CHOOSE THE 312D?

✅ Strength	📝 Detail
⭐ Fuel Efficient	ACERT engine + Eco mode = lowest fuel burn in class
⭐ Low Maintenance	No DPF, ground-level service points, long intervals
⭐ Resale Value	Cat brand = strongest resale value in the industry
⭐ Operator Comfort	Quiet, spacious, climate-controlled cab
⭐ Versatile	3 linkage options + 50+ attachments
⭐ Reliable	Proven C4.2 engine — millions of hours in the field
⭐ Technology	Product Link, Cat Grade, Grade Control ready

⚠️ Limitation	📝 Detail
❌ Not for heavy mining	12-ton class — limited for large-scale operations
❌ No DPF regeneration issues (but also no DPF!)	Simpler emissions system
❌ Smaller than 313/314	For bigger jobs, step up to 315/320

🎯 BOTTOM LINE

The Caterpillar 312D is arguably the best-selling 12-ton excavator in the world. It's the go-to machine for contractors who need a reliable, fuel-efficient, and comfortable mid-size excavator for general-purpose work. Whether you're digging trenches, grading land, or doing light demolition — the 312D delivers excellent performance at the lowest total cost of ownership in its class. 🏆

Would you like me to compare it with the newer 312 GC, or go deeper into any specific area (pricing by region, attachment recommendations, etc.)? 🚜
