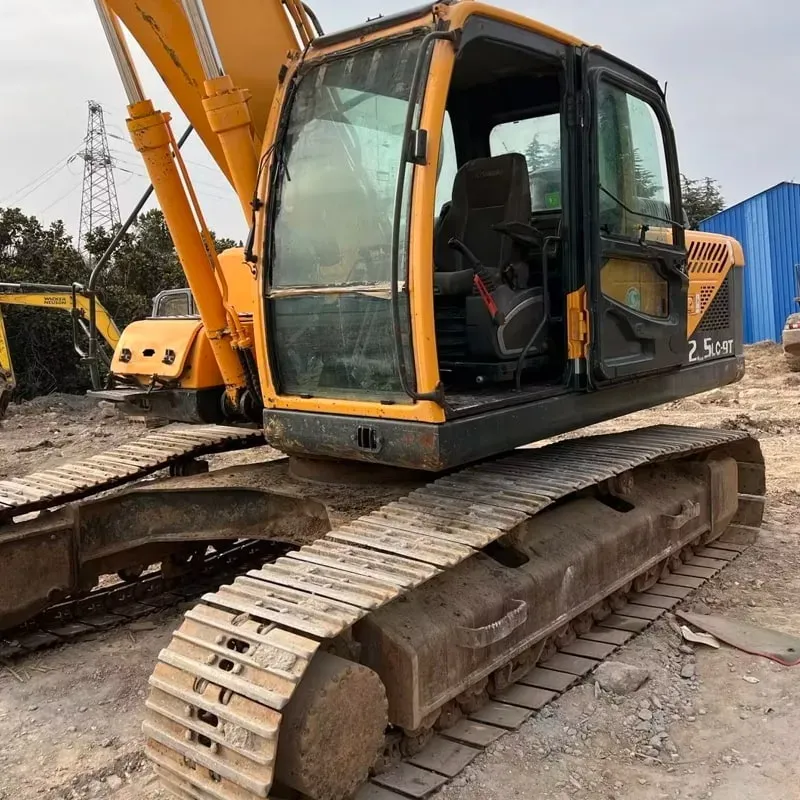

Used Hyundai 225Excavator

Reading: 50

The Hyundai Robex 225 is a mid-to-large size hydraulic excavator from Hyundai Construction Equipment (HCE). It belongs to the 20-ton class and is one of the most popular models in Hyundai's lineup, widely used in construction, mining, demolition, and infrastructure projects worldwide.

There are two main variants:

Model	Type
R225LC-9 / R225LC-9S	🔩 Crawler Excavator
R225WVS	🛞 Wheeled Excavator

📐 1. KEY SPECIFICATIONS (R225LC-9 Crawler)

Parameter	Specification
Operating Weight	~22,500 kg (49,604 lbs)
Engine	Hyundai D6GA / D6HA Diesel
Engine Power	129 hp (96 kW) @ 1,900 rpm
Max Torque	~506 Nm @ 1,400 rpm
Bucket Capacity	0.8 – 1.1 m³ (1.0 – 1.4 cu. yd)
Max Digging Depth	~7,230 mm (23.7 ft)
Max Reach	~9,930 mm (32.6 ft)
Max Dumping Height	~7,160 mm (23.5 ft)
Max Digging Force	~150 kN (33,720 lbf)
Travel Speed	4.8 km/h (3.0 mph)
Fuel Tank	~400 L (106 gal)
Hydraulic System	Load-sensing, variable displacement pump

📐 2. KEY SPECIFICATIONS (R225WVS Wheeled)

Parameter	Specification
Operating Weight	~21,000 – 22,000 kg
Engine	Hyundai D6HA Diesel
Engine Power	129 hp (96 kW)
Bucket Capacity	0.9 – 1.0 m³
Max Digging Depth	~6,800 mm
Max Reach	~9,500 mm
Travel Speed	~35 km/h (22 mph) — much faster than crawler
Tires	10.00-20

✅ The wheeled version (WVS) is ideal for projects requiring fast mobilization between job sites on roads.

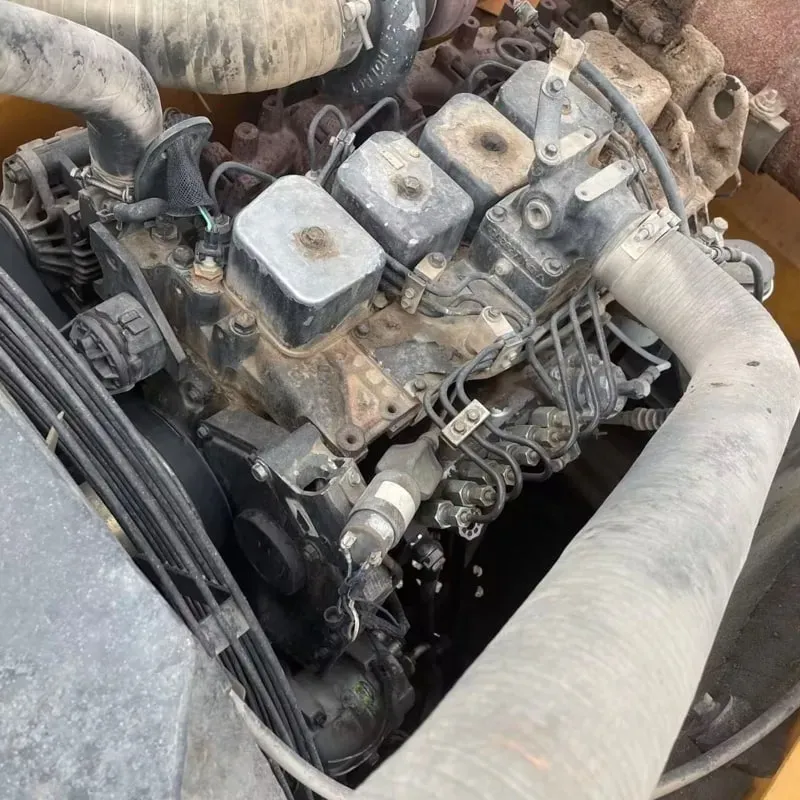

& 3. ENGINE & POWERTRAIN

Feature	Details
Engine Model	Hyundai D6GA-E3 / D6HA (Tier 4 Final / Stage V)
Displacement	5.89 L (6-cylinder, turbocharged)
Emission Standard	EPA Tier 4 Final / EU Stage V (SCR + DPF)
Aftertreatment	Selective Catalytic Reduction (SCR) + Diesel Particulate Filter (DPF) — NO DEF required in some markets
Cooling System	Water-cooled with automatic fan control
Fuel Efficiency	Optimized with ECO mode — saves up to 10-15% fuel vs previous gen

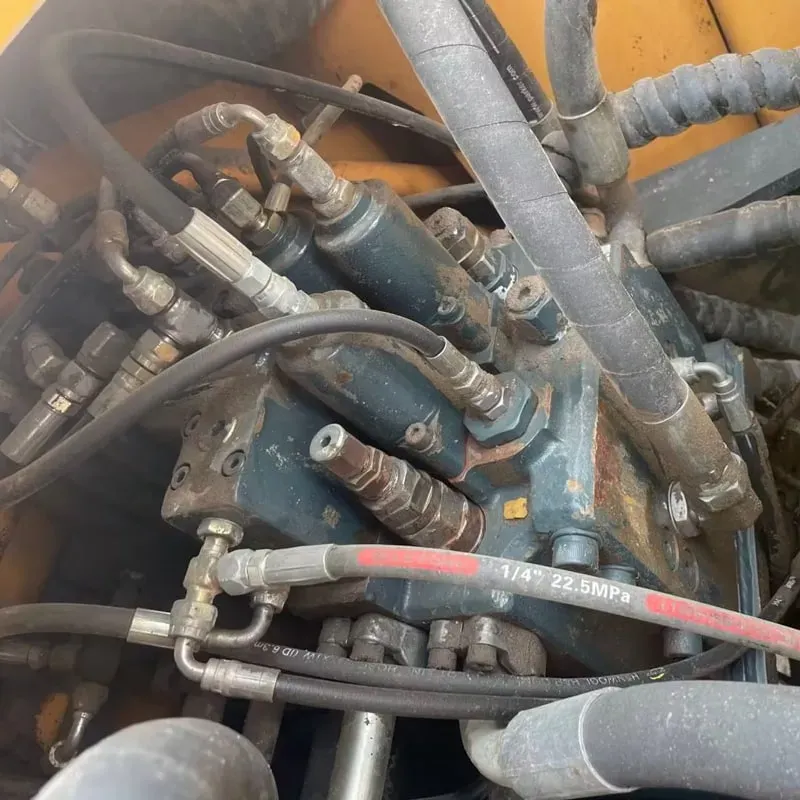

🔧 4. HYDRAULIC SYSTEM

Feature	Details

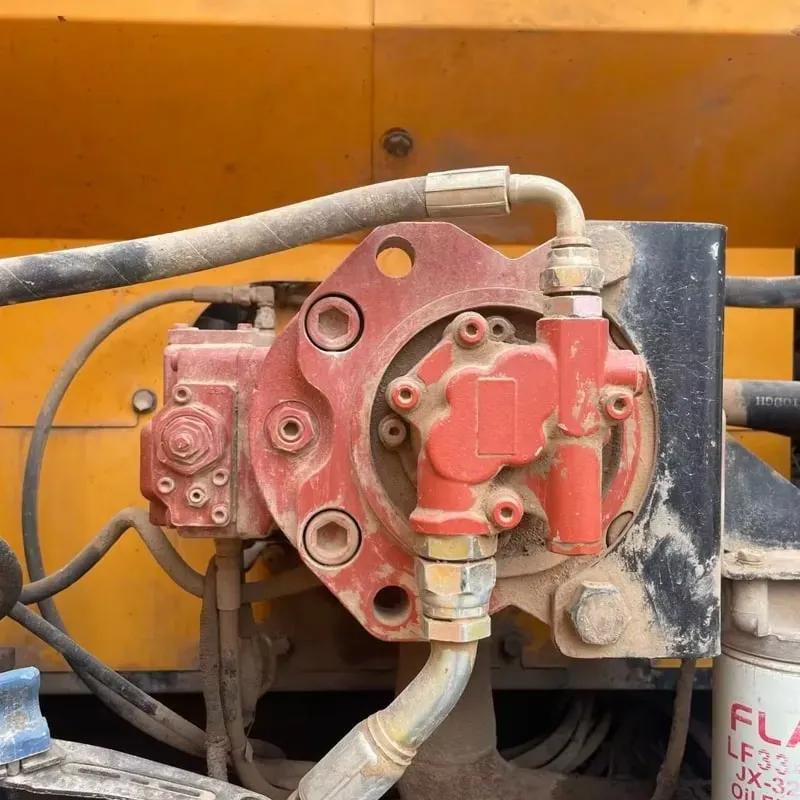

Pump Type	Variable displacement axial piston pump (load-sensing)
System Pressure	350 bar (5,076 psi)
Flow Rate	~2 × 230 L/min (dual pump for work & travel)
Control	Electronic proportional control with multiple work modes
Attachment Options	🔨 Hammer, ✂️ Shear, 🪣 Thumb, 🔄 Rotating grapple, 🔩 Breaker

🖥️ 5. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed with AC
Seat	Air-suspended, heated, with armrests
Display	7-inch LCD color monitor (R225LC-9S)
Controls	Electronic joystick with auto-idle, thumb controls
Noise Level	~68 dB(A) — very quiet for its class
Visibility	Large glass area, rear-view camera (optional)
Climate Control	Auto A/C with dust/pollen filter
USB/Bluetooth	Available for media & phone connectivity

🧠 6. SMART TECHNOLOGY (R225LC-9S — "S" = Smart)

The "S" variant includes advanced tech:

Technology	Function
HCE Smart Suite	Remote monitoring via telematics
Eco Mode	Auto-adjusts engine speed to save fuel
Auto Idle	Engine auto-stops after 5 sec of inactivity
Grade Control Ready	Compatible with 2D/3D machine control
HCE CONNECT	Fleet management, diagnostics, location tracking
Weight Mode	Adjusts hydraulic power based on attachment weight

🛡️ 7. DURABILITY & MAINTENANCE

| Feature | Details ||---------|---------|| Undercarriage | Heavy-duty X-frame with reinforced track shoes (600mm width) || Boom/Arm | High-strength steel, finite element optimized || Service Intervals | Engine oil: 500 hrs | Hydraulic oil: 2,000 hrs | Filter: 500 hrs || Ground-Level Service | Most daily checks accessible from ground level || Swing Bearing | Sealed, grease-lubricated — long life || Track Adjustment | Hydraulic auto-tensioning |

🆚 8. COMPETITORS COMPARISON

Model	Weight	Power	Bucket	Price (Approx.)
Hyundai R225LC-9	22.5t	129 hp	1.1 m³	$150K–$175K
CAT 323	23.7t	141 hp	1.1 m³	$170K–$190K
Komatsu PC228US-11	22.8t	134 hp	1.0 m³	$165K–$185K
Doosan DX225LC-9	22.2t	126 hp	1.0 m³	$145K–$165K
Volvo EC220E	21.8t	134 hp	1.0 m³	$160K–$180K

💰 Hyundai's advantage: Generally better value for money, lower maintenance cost, and strong after-sales network.

🌍 9. APPLICATIONS

✅ Ideal For	📌 Details
🏗️ General Excavation	Foundation, trench, road work
⛰️ Mining & Quarrying	Rock breaking with hammer attachment
🏚️ Demolition	With hydraulic breaker/shear
🚿 Dredging	Long-reach arm option
🌲 Forestry	Grapple & thumb attachment
🌉 Infrastructure	Bridge, highway, pipeline

✅ 10. SUMMARY — WHY CHOOSE HYUNDAI R225?

✅ Strengths	❌ Limitations
Excellent fuel efficiency (ECO mode)	Slightly less power than CAT 323
Low maintenance cost	Smaller dealer network vs CAT/Komatsu in some regions
Comfortable & quiet cab	Not the largest in 22-ton class
Strong resale value	—
Advanced telematics (HCE CONNECT)	—
Competitive pricing	—
Reliable Hyundai diesel engine	—

📌 Final Verdict

🏆 The Hyundai Robex R225LC-9/9S is one of the best value-for-money excavators in the 20-ton class. It combines Hyundai's reliable D6GA engine, excellent fuel economy, operator comfort, and modern smart technology at a price point that undercuts European and Japanese competitors. It's an ideal choice for contractors who want reliability + low operating cost.

Would you like me to go deeper into any specific area — like pricing in your country, attachment compatibility, vs a specific competitor, or maintenance schedule? 🔧
