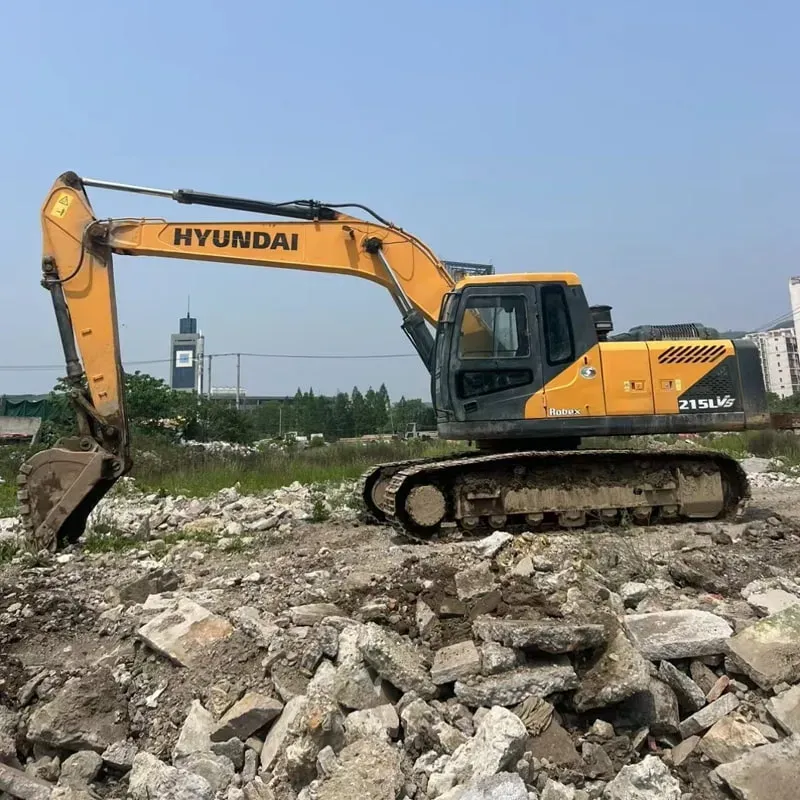

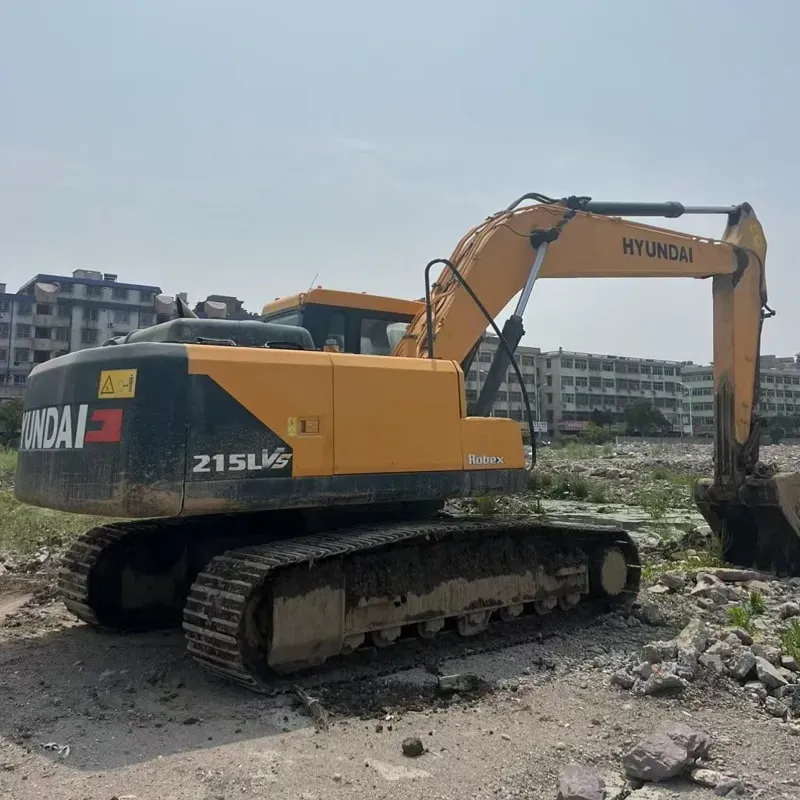

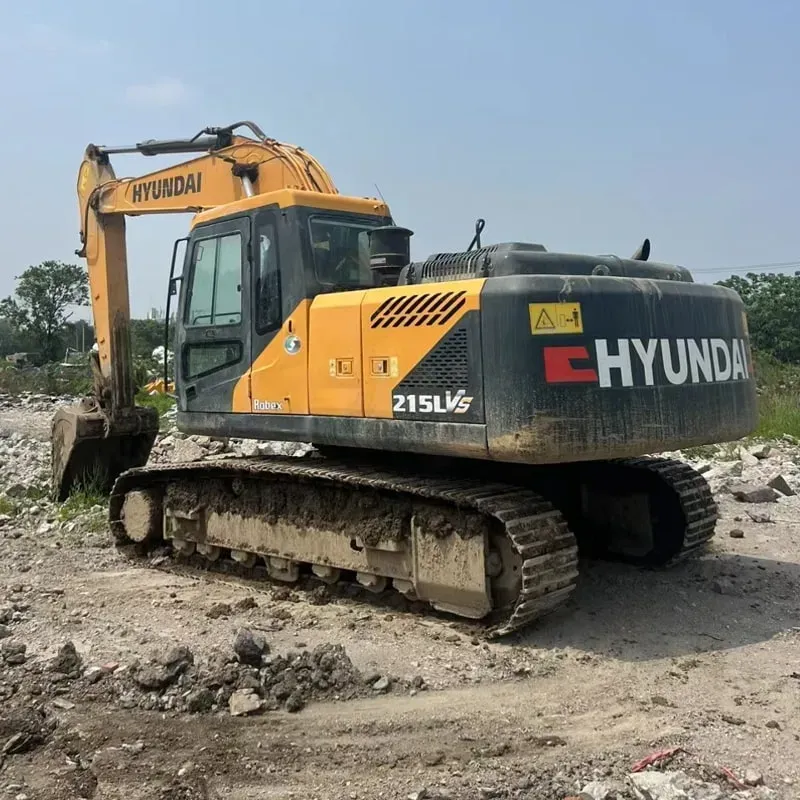

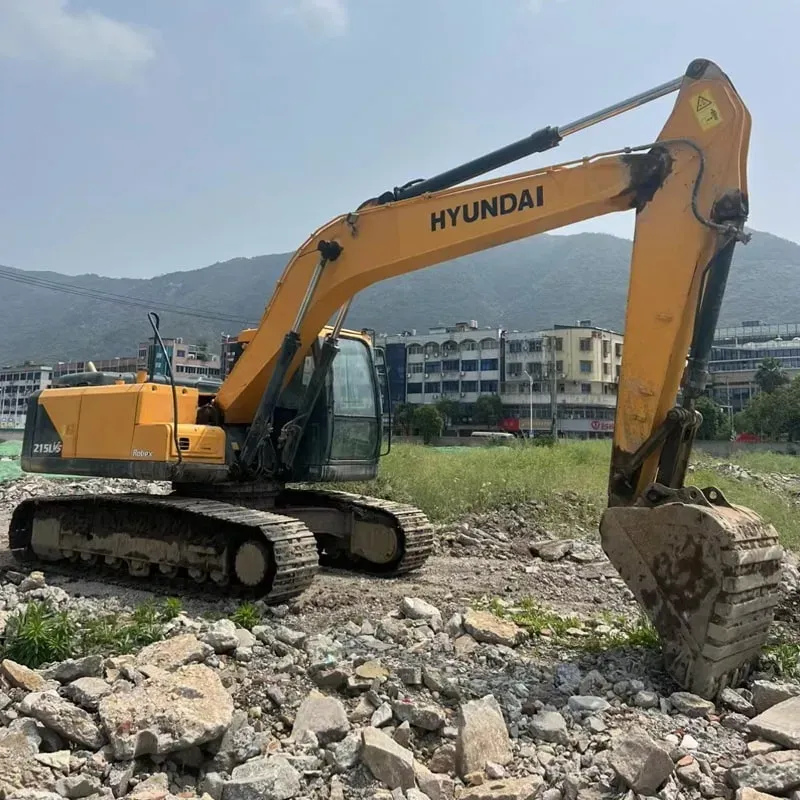

Used Hyundai 215VSExcavator

Reading: 23

📋 Overview

The Hyundai R215VS (215VS) is a 21-22 ton class crawler excavator that's part of Hyundai's popular VS series. It's designed for medium-to-heavy construction work, offering excellent balance of power, fuel efficiency, and operator comfort.

& Key Specifications

Specification	Details
Operating Weight	~21,500 - 22,000 kg (47,400 - 48,500 lbs)
Engine	Hyundai D6GA (Stage V/Tier 4 Final)
Engine Power	110 - 121 kW (148 - 162 HP) @ 1,900 rpm
Bucket Capacity	0.8 - 1.0 m³ (1.05 - 1.3 yd³)
Max Digging Depth	7.0 - 7.5 m (23 - 24.6 ft)
Max Reach	9.5 - 10.0 m (31.2 - 32.8 ft)
Max Dumping Height	7.0 - 7.3 m (23 - 24 ft)
Travel Speed	2.8 - 5.0 km/h (1.7 - 3.1 mph)
Fuel Tank	~400 L (105.7 gal)
Hydraulic Flow	2 × 250 L/min (dual pump)
Emission Standard	Stage V / EPA Tier 4 Final

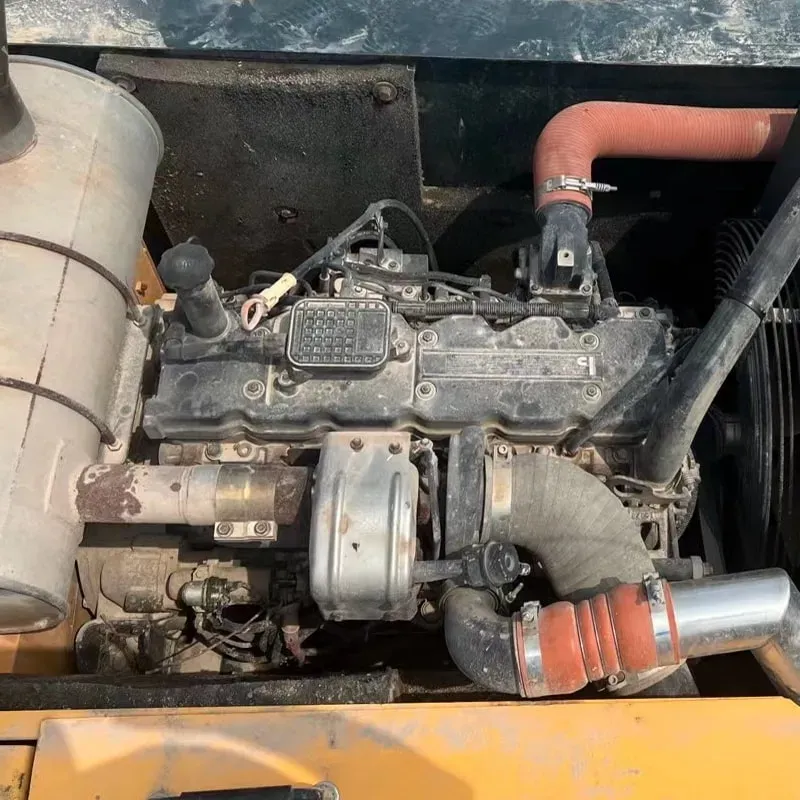

🔧 Engine & Performance

Feature	Details
Engine Model	Hyundai D6GA 6-cylinder turbo diesel
Displacement	5.89 L
Turbocharger	Yes, with intercooler
Fuel System	Common rail direct injection (CRDI)
Emission Tech	DOC + DPF + SCR (DEF/AdBlue system)
Fuel Efficiency	Optimized for ~10-15% better than predecessors

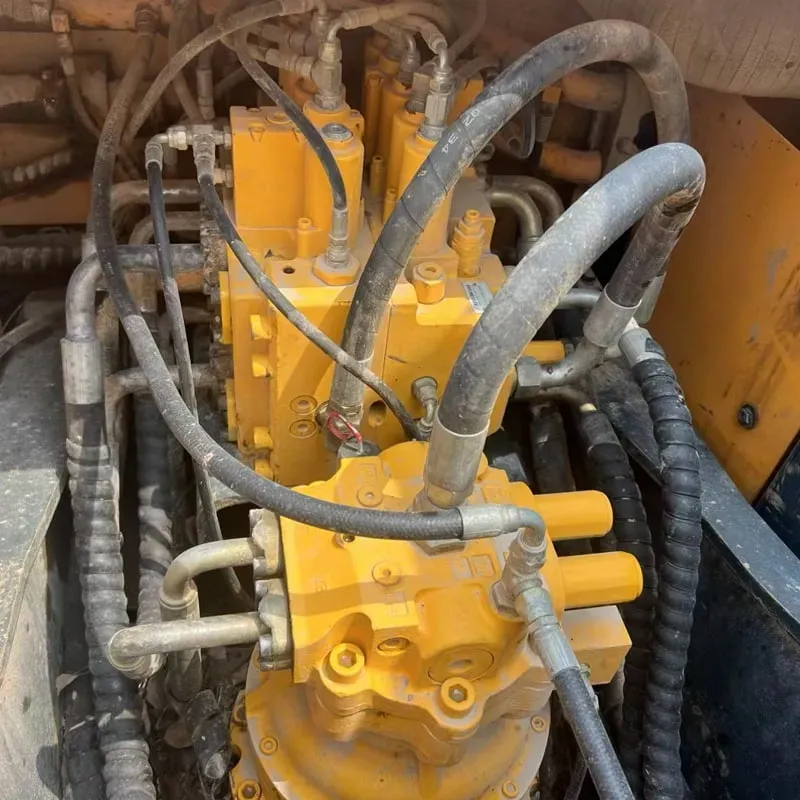

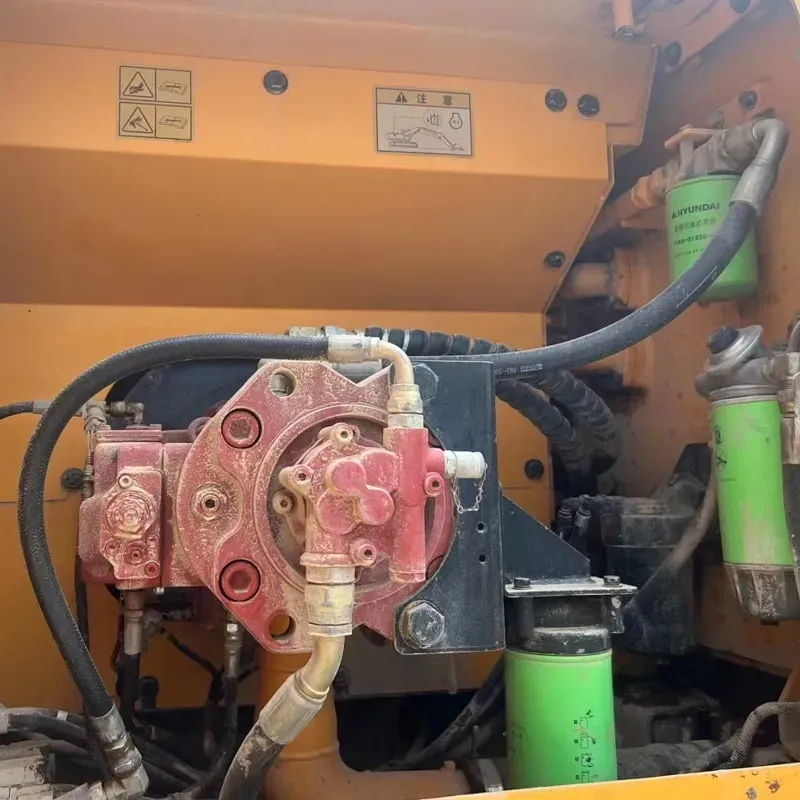

🏗️ Hydraulic System

Type: Load-sensing hydraulic system with dual variable displacement pumps
Total Flow: ~500 L/min (264 GPM)
Working Pressure: 34.3 MPa (4,975 psi)
Boom Cylinder: 135 mm bore
Arm Cylinder: 115 mm bore
Bucket Cylinder: 105 mm bore

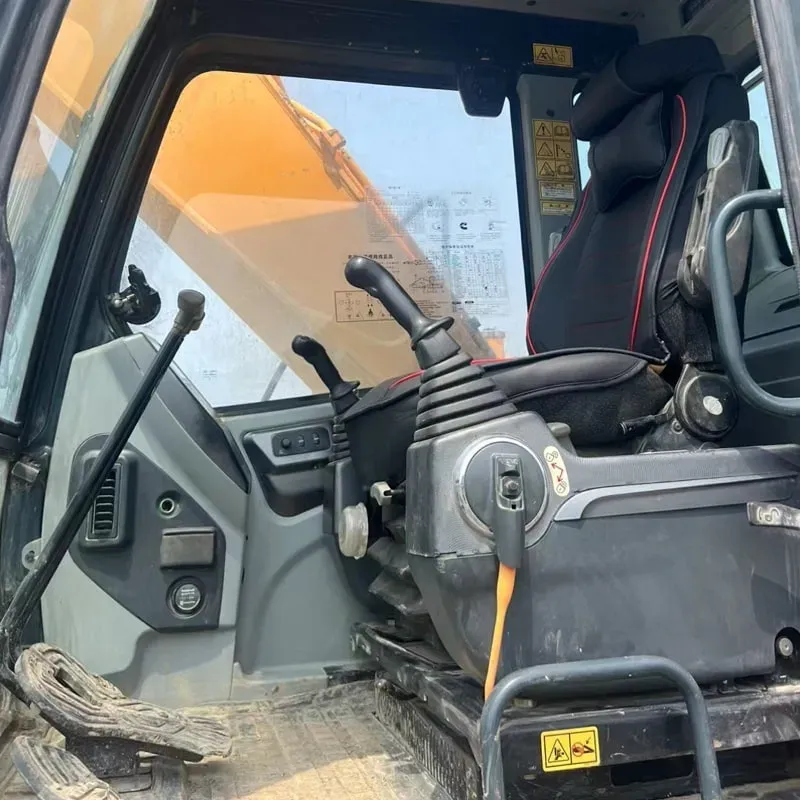

🛋️ Cab & Operator Comfort (VS Series Highlights)

Feature	✅ Included
ROPS/FOPS Certified Cab	✅
Air Conditioning	✅ Full auto climate control
Heated Seat	✅
Suspension Seat	✅ Air-suspension
7" LCD Monitor	✅ Multi-function display
Rearview Camera	✅
USB/AUX Ports	✅
LED Work Lights	✅
Noise Level	~67 dB(A) - quieter cabin
Windshield Wiper	✅ With washer

🛡️ Safety Features

Feature	Details
Auto Idle Shutdown	Engine stops after 5-10 min idle
Anti-Theft System	Immobilizer + alarm
Emergency Stop	Easily accessible
Blind Spot Detection	Available in some markets
Bucket Teeth Adapter	Quick-change system
Undercarriage Guard	Optional

🌍 Applications

Application	Suitability
🏢 General Construction	⭐⭐⭐⭐⭐ Excellent
🛣️ Road Building	⭐⭐⭐⭐⭐ Excellent
🏔️ Mining & Quarrying	⭐⭐⭐⭐ Very Good
🏗️ Landscaping	⭐⭐⭐⭐ Very Good
🔧 Pipeline Work	⭐⭐⭐⭐ Very Good
🏚️ Demolition	⭐⭐⭐⭐ Good (with breaker)
🌾 Agriculture	⭐⭐⭐ Good

📊 VS Series Advantages

Advantage	Description
💰 Fuel Efficiency	10-15% less fuel consumption vs. R210 series
🔇 Low Noise	Improved cabin insulation & engine mount
📈 Productivity	Faster cycle times with optimized hydraulics
🛠️ Easy Maintenance	Ground-level service points, easy filter access
📱 Smart Tech	Telematics-ready, remote diagnostics capable
♻️ Eco-Friendly	Meets latest emission standards (Stage V)

🔄 Comparison: R215VS vs Competitors

Model	Weight	Power	Bucket	Price Range*
Hyundai R215VS	21.5t	162 HP	0.9 m³	$$
CAT 321	21.8t	153 HP	0.94 m³	$$$
Komatsu PC210LC-11	21.3t	150 HP	0.85 m³	$$$
Volvo EC220E	22.0t	162 HP	0.95 m³	$$$
Doosan DX225LC-5	22.5t	158 HP	0.93 m³	$$

*Approximate pricing (varies by market)

✅ Pros & ❌ Cons

✅ Pros

Excellent fuel economy for its class
Superior cab comfort & visibility
Strong resale value (Hyundai brand)
Good parts availability worldwide
Competitive pricing
Low maintenance costs

❌ Cons

Slightly lower breakout force vs. CAT
Limited availability in some markets (vs. CAT/Komatsu)
Smaller bucket than some competitors

📌 Summary

The Hyundai R215VS is an excellent mid-size excavator that delivers outstanding value for money. It's ideal for contractors who want reliability, comfort, and fuel efficiency without paying premium brand prices. The VS series upgrades make it one of the most competitive machines in the 21-ton class.

Would you like more specific details about any particular aspect (pricing in your region, attachments, maintenance schedule, etc.)? 🚜
