📌 Overview

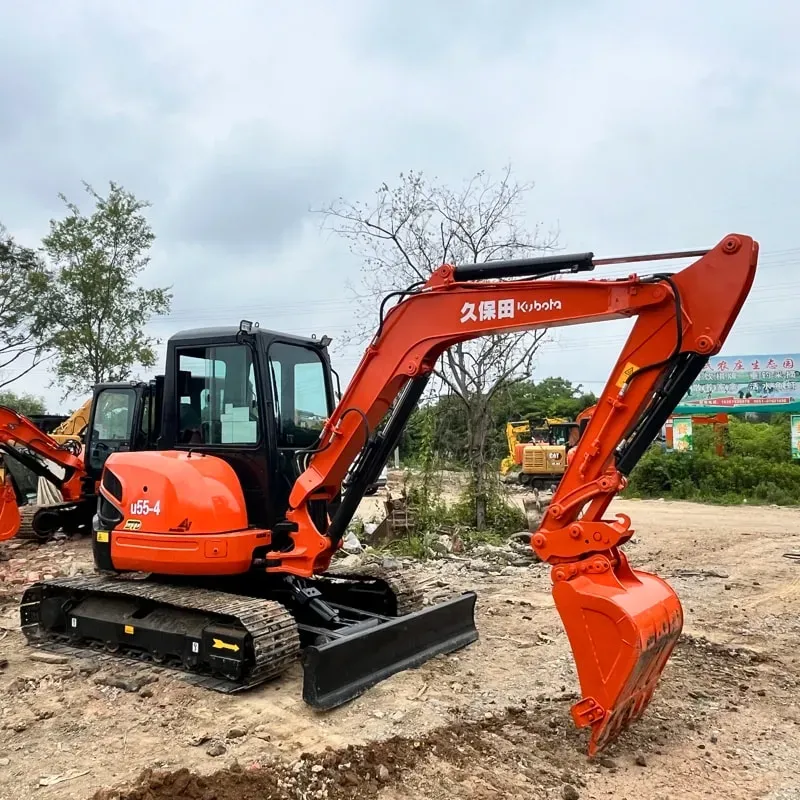

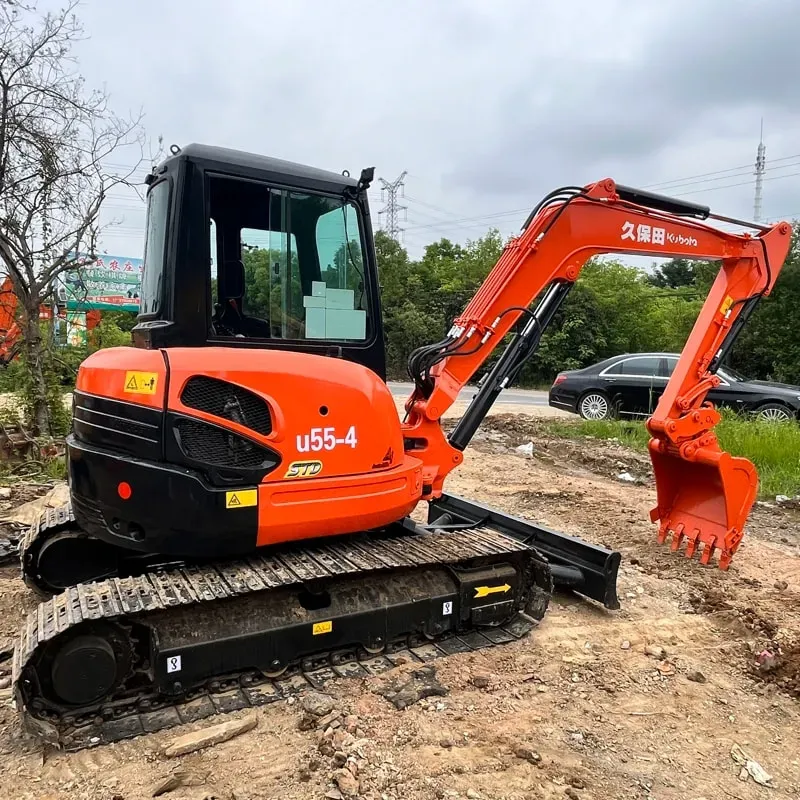

The Kubota U55-4 is a 5-ton class (5.5-tonne) zero tail swing mini excavator, representing the 4th generation of Kubota's popular U55 series. It was introduced around 2020 as the successor to the U55-3, featuring significant upgrades in engine performance, operator comfort, fuel efficiency, and hydraulic systems. It is designed for utility work, landscaping, construction, pipeline installation, and demolition in tight spaces.

🔧 Key Specifications

Specification	Details
Model	U55-4
Operating Weight	~5,460 – 5,770 kg (12,040 – 12,720 lbs)
Engine	Kubota D1105-E3B, 3-cylinder, turbocharged diesel
Engine Power	36.4 kW (48.8 hp) @ 2,200 rpm
Max Digging Depth	3,660 mm (12.0 ft)
Max Digging Height	5,560 mm (18.2 ft)
Max Dump Height	3,980 mm (13.1 ft)
Max Reach (Ground Level)	5,850 mm (19.2 ft)
Max Digging Force (Boom/Arm)	~34.4 kN (7,733 lbf)
Bucket Capacity	0.16 – 0.22 m³ (0.21 – 0.29 cu yd)
Hydraulic Flow	114 L/min (30.1 gpm) @ 21 MPa
Hydraulic Pressure	21 MPa (3,046 psi)
Fuel Tank Capacity	75 L (19.8 gal)
Travel Speed	2-speed: 2.6 / 4.6 km/h (1.6 / 2.9 mph)
Min Swing Radius (Zero Tail Swing)	1,430 mm (4.7 ft)
Ground Clearance	360 mm (14.2 in)
Undercarriage Width	1,800 mm (70.9 in) — extendable to 2,120 mm
Emissions Compliance	EPA Tier 4 Final / EU Stage V

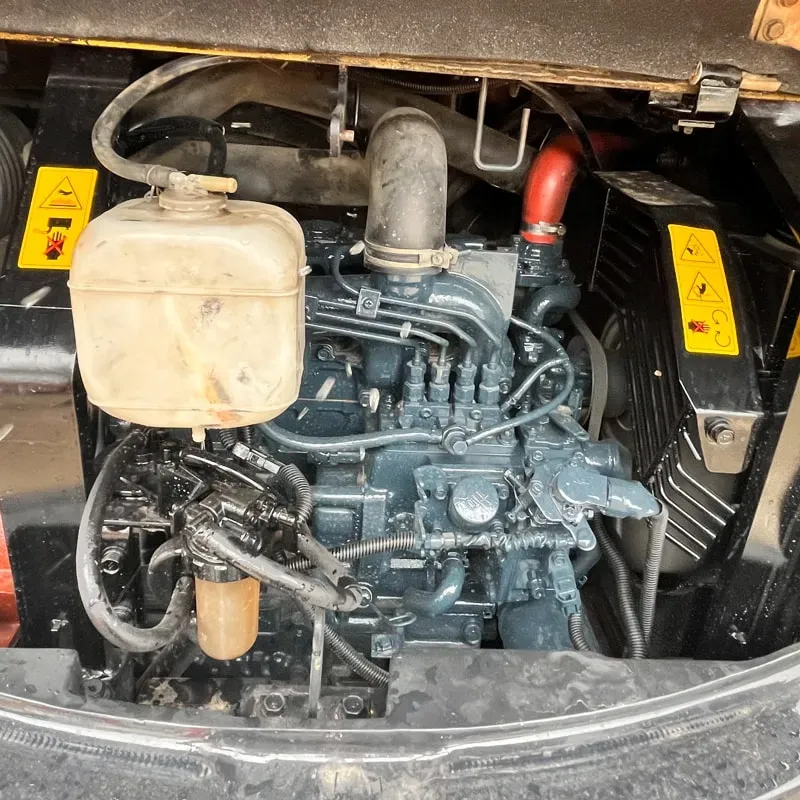

🏗️ Engine & Powertrain

Feature	Detail
Engine Model	Kubota D1105-E3B
Type	3-cylinder, water-cooled, direct injection, turbocharged diesel
Displacement	2,434 cc
Power Output	48.8 hp (36.4 kW)
Emissions	Tier 4 Final (US) / Stage V (EU) — uses DPF (Diesel Particulate Filter) + DOC
Fuel Efficiency	Improved ~10-15% over U55-3 due to enhanced engine management
Cooling System	Water-cooled with large-capacity radiator

The engine is Kubota's own proprietary unit, known for reliability, durability, and low maintenance costs.

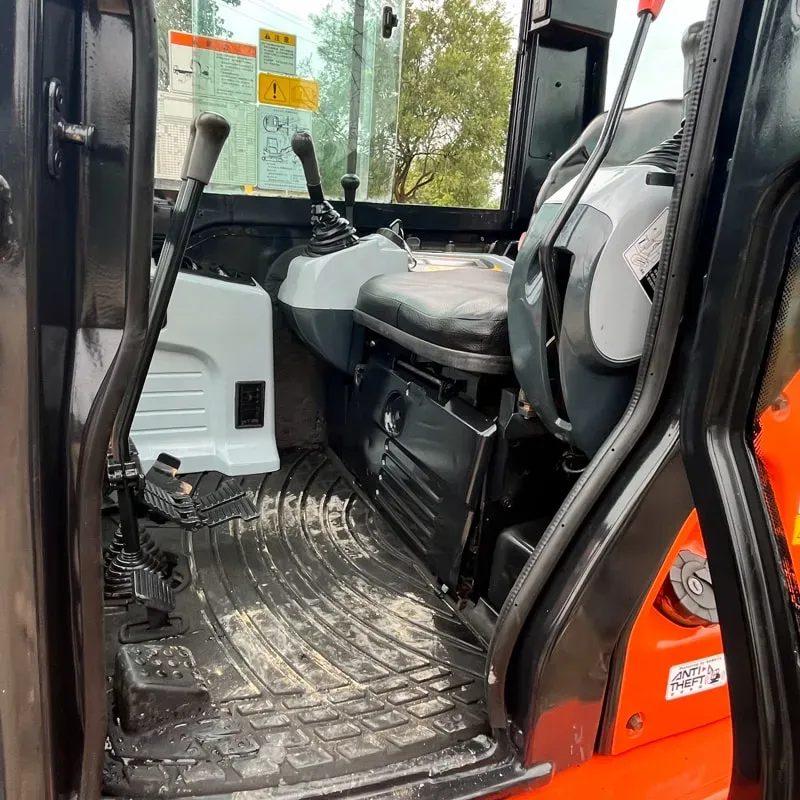

🪑 Cab & Operator Comfort

The U55-4 features a fully enclosed cab with significant comfort upgrades:

Feature	Details
ROPS/FOPS	✅ Roll-Over & Falling Object Protective Structure certified
Air Conditioning	✅ Standard
Heater	✅ Standard
Seat	✅ Suspension seat with armrest, adjustable
Joystick Controls	✅ Proportional pilot controls with finger-tip levers
Display	✅ Multi-function LCD monitor (engine info, hydraulic flow, working mode)
Sound Insulation	✅ Improved over previous generation (~73 dB(A))
Visibility	✅ Large front/rear/side windows, rear-view camera ready
Door	✅ Easy-access door with wide opening
Storage	✅ Cup holder, phone holder, document storage

🔄 Hydraulic System

Feature	Detail
Pump Type	Variable displacement axial piston pump
Max Flow	114 L/min (30.1 gpm)
Auxiliary Hydraulic Lines	✅ 1–2 lines (configurable)
Hydraulic Quick Coupler	✅ Compatible (pin-grabber type) — allows fast attachment changes
Two-Speed Travel	✅ High/Low speed with auto-shift option
Boom/Arm Combined Operation	✅ Available (improved cycle times)
Hydraulic Oil Cooler	✅ Large capacity for heavy-duty work

🚜 Undercarriage & Mobility

Feature	Detail
Track Type	Rubber tracks (standard) — steel tracks optional
Track Width	1,800 mm (standard) / 2,120 mm (extendable)

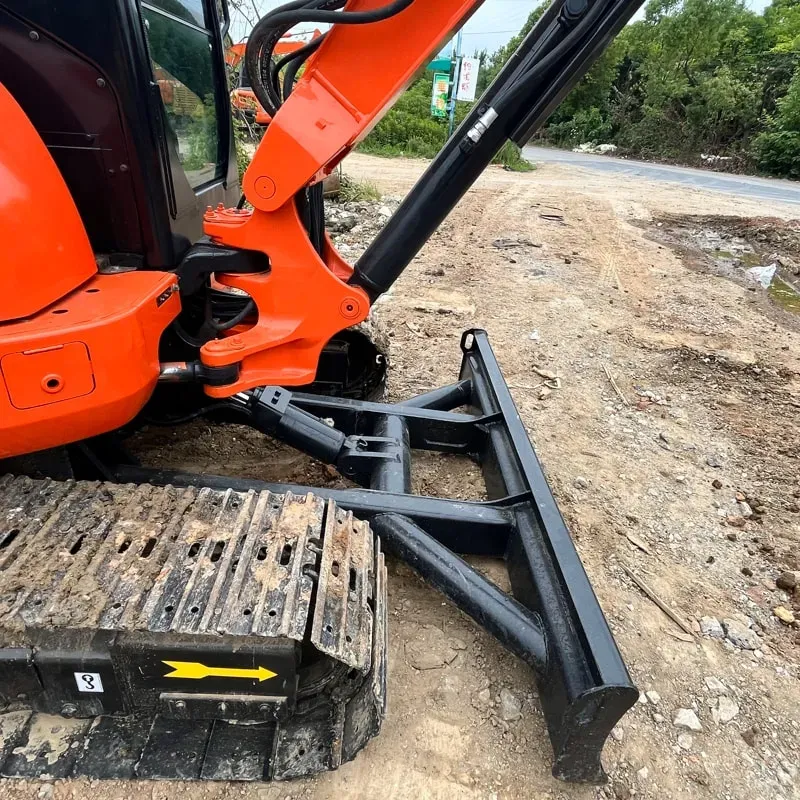

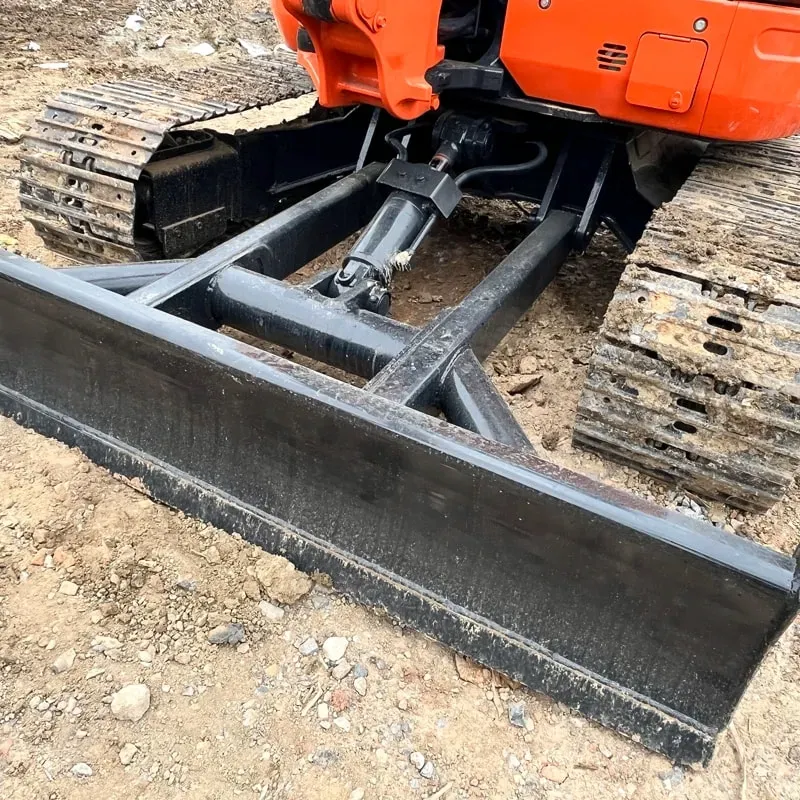

Dozer Blade	✅ Available (hydraulic angle & tilt blade)
Track Adjusters	✅ Manual with lever-type tensioning
Ground Pressure	~38 kPa (low ground pressure for soft terrain)

🔩 Available Attachments (Quick Coupler)

Thanks to the hydraulic quick coupler, the U55-4 can switch between attachments in seconds:

Attachment	Use Case
🪣 Standard Bucket	General digging
🦷 Grading Bucket	Leveling & finishing
🔨 Hydraulic Breaker	Concrete/rock demolition
🔧 Hydraulic Thumb	Grappling, sorting
🌳 Grapple	Log/debris handling
🔩 Auger / Earth Drill	Post hole drilling
🧹 Sweeper	Site cleaning
🪝 Ripper (Single Shank)	Hard ground breaking
🪓 Tilt Rotator	360° attachment rotation

⭐ Key Improvements Over U55-3 (Previous Generation)

Area	U55-3 → U55-4 Upgrade
Engine Power	45.3 hp → 48.8 hp (+7.7%)
Hydraulic Flow	100 L/min → 114 L/min (+14%)
Fuel Efficiency	Improved ~10-15%
Cab Comfort	Better insulation, updated seat, improved AC
Display	New multi-function LCD monitor
Emissions	Tier 4 Final compliance
Working Modes	Added Eco mode / Power mode selection
Boom/Arm Combined	Smoother & faster combined operation
Weight	Slight increase for better stability

📊 Working Modes

The U55-4 offers selectable working modes via the LCD display:

Mode	Description
P (Power)	Full engine & hydraulic power for heavy digging
E (Eco)	Reduced engine RPM for fuel savings during light work
S (Speed)	Optimized for faster cycle times
L (Lift)	Optimized hydraulic flow for lifting heavy loads

🏭 Dimensions

Dimension	Measurement
Length (with bucket)	5,640 mm (18.5 ft)
Width (tracks retracted)	1,800 mm (5.9 ft)
Width (tracks extended)	2,120 mm (7.0 ft)
Height (to cab top)	2,550 mm (8.4 ft)
Tail Swing Radius	0 mm (Zero Tail Swing) ✅

💰 Approximate Pricing (2024)

Region	Price Range (USD)
United States	$75,000 – $95,000 (varies by config)
Europe	€70,000 – €90,000
Asia/Australia	Varies by market

Prices depend on configuration (rubber/steel tracks, cab/canopy, attachments, etc.)

✅ Advantages

✔️ Advantage	Explanation
Zero Tail Swing	Works flush against walls, fences, buildings
Compact Size	Fits through standard gates, narrow pathways
Kubota Engine	Legendary reliability, low maintenance, high resale value
Low Operating Cost	Excellent fuel efficiency, affordable parts
Versatile	Quick coupler = many attachment options
Comfortable Cab	One of the best in its class
High Resale Value	Kubota holds value exceptionally well

⚠️ Limitations

❌ Limitation	Explanation
Not for heavy mining	5.5-ton class — limited for large-scale earthmoving
Rubber tracks wear	Faster wear than steel on abrasive surfaces
Limited lift capacity	~2,900 kg at full reach
No available cab heater in some markets	(varies by region)

🎯 Ideal Applications

Application	Suitability
🏠 Residential construction	⭐⭐⭐⭐⭐
🌳 Landscaping & grading	⭐⭐⭐⭐⭐
🔧 Utility work (water, gas, electric)	⭐⭐⭐⭐⭐
🏗️ Small commercial projects	⭐⭐⭐⭐
🪨 Light demolition	⭐⭐⭐⭐
🚜 Farm work	⭐⭐⭐⭐
🏢 Pipeline installation	⭐⭐⭐⭐⭐
❄️ Snow removal	⭐⭐⭐⭐

🏁 Summary

Category	Rating
Power	⭐⭐⭐⭐ (48.8 hp — class-leading for 5.5T)
Comfort	⭐⭐⭐⭐⭐ (best-in-class cab)
Versatility	⭐⭐⭐⭐⭐ (quick coupler + many attachments)
Reliability	⭐⭐⭐⭐⭐ (Kubota = proven)
Fuel Efficiency	⭐⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐

The Kubota U55-4 is widely regarded as one of the best 5-ton mini excavators on the market, combining Kubota's renowned engine reliability with a modern, comfortable cab and excellent hydraulic performance. It's a top choice for contractors who need a versatile, fuel-efficient, and dependable compact excavator.
