Used Sany 155Excavator

Reading: 12

📋 1. General Overview

Item	Details
Model	SANY SY155 / SY155C
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Class	Medium-sized Crawler Excavator (~15-ton class)
Primary Use	Earthmoving, construction, mining, landscaping, municipal works
Production	One of SANY's best-selling models globally

The SY155 sits in SANY's mid-range lineup — larger than the SY135 but smaller than the SY215. It's designed as a versatile workhorse for general construction and heavy-duty digging tasks.

⚙️ 2. Key Technical Specifications

Parameter	Specification
Operating Weight	~15,200 – 15,500 kg
Engine Model	Isuzu AJ-4HK1X / SANY D04CR (varies by market)
Engine Type	4-cylinder, Turbocharged, Intercooled, Diesel
Rated Power	~85–90 kW (114–120 HP) @ 2,000 rpm
Max Torque	~410–440 N·m @ 1,400 rpm
Emission Standard	China III / Euro III / EPA Tier 4 (depending on region)
Fuel Tank Capacity	~300 L
Hydraulic Tank	~180 L
Swing Speed	~8–10 rpm
Travel Speed	~2.8 / 4.8 km/h (Low/High)
Ground Pressure	~45–48 kPa
Bucket Capacity	0.4 – 0.65 m³ (standard)
Max Digging Depth	~6,000 – 6,500 mm
Max Reach (Ground Level)	~8,500 – 9,000 mm
Max Dumping Height	~7,000 – 7,200 mm
Max Digging Force	~110–118 kN
Max Tractive Force	~115–120 kN
Blade Size	3,100 mm (wide blade)

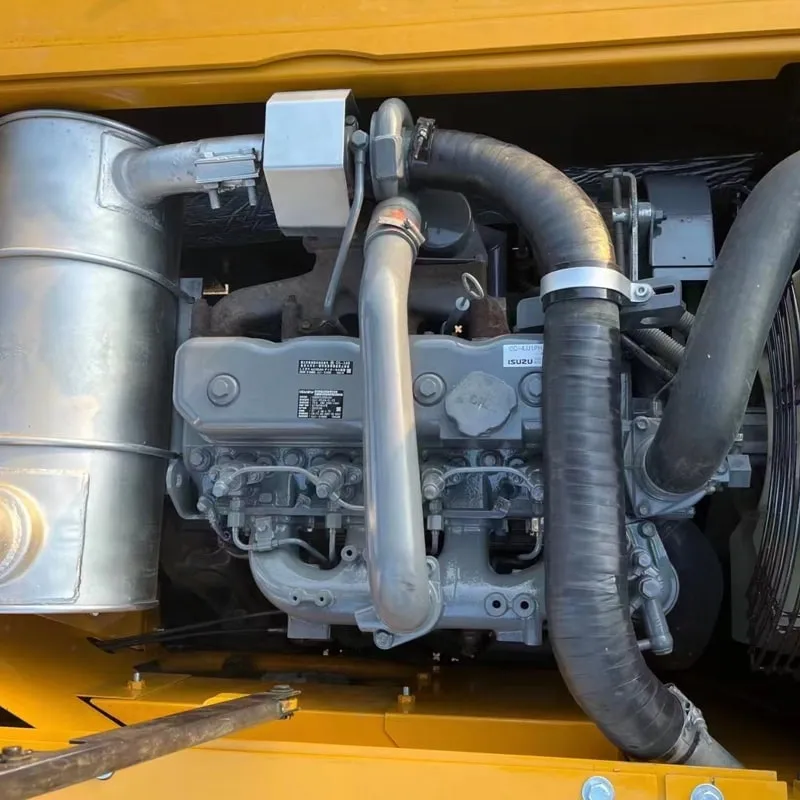

🔧 3. Engine & Powertrain

Feature	Detail
Engine Brand	Isuzu (most common) / SANY proprietary
Displacement	4.33 L (Isuzu AJ-4HK1X)
Fuel System	Common Rail Direct Injection (CRDI)
Cooling	Water-cooled with radiator + fan
Air Filter	Dual-stage (dry + safety)
Fuel Efficiency	Optimized for low fuel consumption ~12–14 L/hr
Emission	DPF + EGR (in Tier 4 versions)

✅ The Isuzu engine is known for reliability, durability, and easy maintenance — a major reason SANY chose it.

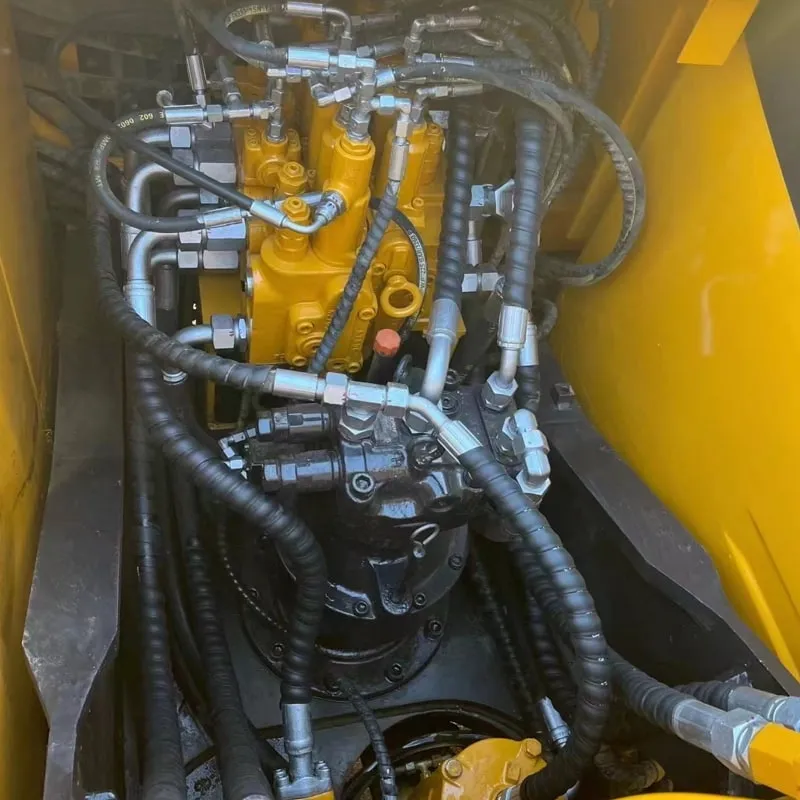

🛢️ 4. Hydraulic System

Feature	Detail

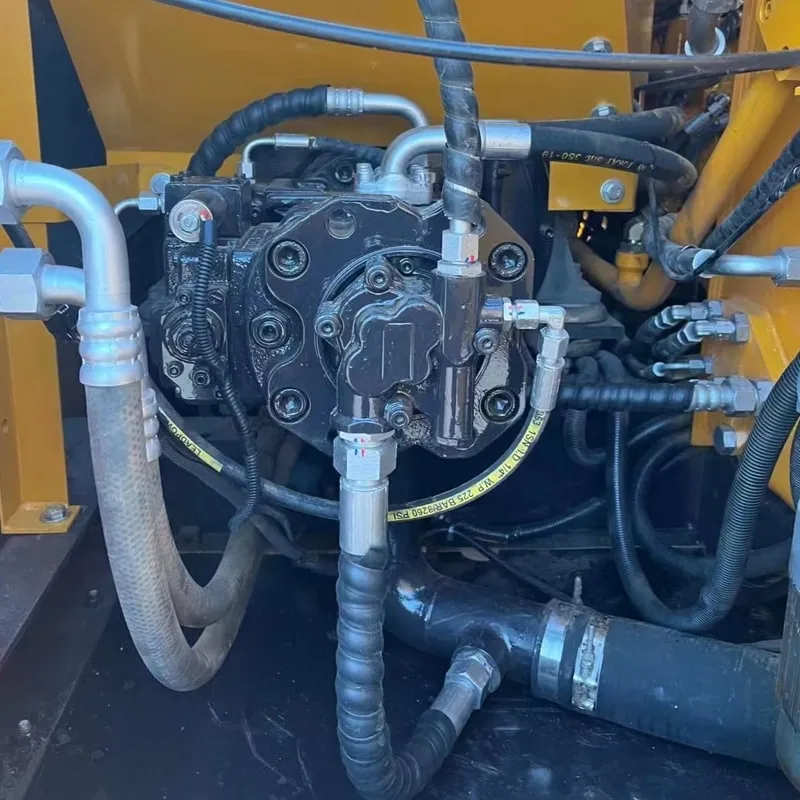

Pump Type	Variable Displacement Axial Piston Pump (2 pumps)
System Pressure	~34.3 MPa (350 bar)
Flow Rate	~2 × 180–200 L/min
Control System	Load-Sensing (LS) + Electronic Control
Attachment Options	Breaker, grapple, thumb, auger, ripper, shear, etc.
Auxiliary Lines	2 lines (pipe-ready for hammer/breaker)

🎯 The load-sensing hydraulic system ensures the engine only produces the power needed — saving fuel and reducing heat.

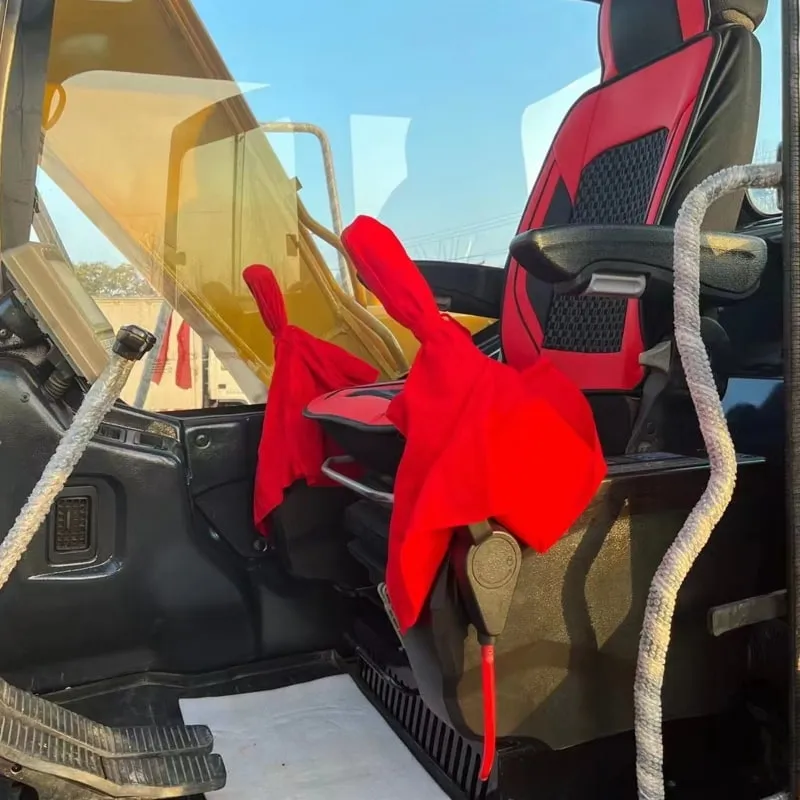

🖥️ 5. Operator Cab & Comfort

Feature	Detail
Cab Type	ROPS/FOPS Certified, Sealed & Pressurized
Noise Level	≤ 72 dB(A)
Air Conditioning	Standard
Seat	Air-suspension, adjustable, heated (some versions)
Monitor	7-inch LCD color display (SANY Smart System)
Joystick Control	Electronic proportional control (smooth & precise)
Pedals	Adjustable, with auto-idle
Camera	Rear-view camera (standard on newer models)
Lighting	LED work lights (front, rear, boom)
USB Charging	✅ Available

🌟 The cab is one of SANY's strengths — spacious, quiet, and well-insulated, making long workdays comfortable.

🧠 6. Smart Technology (SANY i-Controller)

Technology	Function
SANY i-Controller	Central monitoring system — tracks fuel, hours, maintenance alerts
Auto-Idle	Engine automatically reduces RPM when not working (saves 10-15% fuel)
Eco Mode	Optimizes engine + hydraulic power matching
Anti-Theft System	GPS tracking + remote engine shutdown
Remote Diagnostics	Dealer can diagnose issues remotely via telematics
Weight Monitoring	Prevents overloading

📱 SANY's IoT platform (SANY Cloud) connects the excavator to the cloud for fleet management.

🏗️ 7. Undercarriage & Structure

Component	Detail
Track Width	600 mm (triple-grouser shoes)
Track Shoes	600 mm wide, replaceable
Rollers	7 per side (with sealed bearings)
Carrier Rollers	2 per side
Sprocket	Segmented (replaceable teeth)
Boom & Arm	High-strength steel, finite-element optimized
Counterweight	~3,500–4,000 kg (concrete-filled)
X-Frame	Reinforced for heavy breaker use

📊 8. Performance Highlights

Category	Rating
⭐ Fuel Efficiency	⭐⭐⭐⭐⭐ (Class-leading)
⭐ Digging Force	⭐⭐⭐⭐ (110+ kN — strong for 15-ton)
⭐ Reliability	⭐⭐⭐⭐⭐ (Isuzu engine + SANY build)
⭐ Operator Comfort	⭐⭐⭐⭐⭐ (One of the best cabs)
⭐ After-Sales	⭐⭐⭐⭐ (Growing globally, strong in Asia/Africa/Middle East)
⭐ Resale Value	⭐⭐⭐⭐ (High demand in developing markets)

🆚 9. Comparison with Competitors

Model	Weight	Power	Bucket	Price Range (USD)
SANY SY155	15.5T	114 HP	0.65 m³	$95,000 – $115,000
CAT 315	15.2T	110 HP	0.62 m³	$120,000 – $140,000
Komatsu PC150	14.9T	107 HP	0.58 m³	$115,000 – $135,000
Doosan DX150LC	14.8T	108 HP	0.58 m³	$110,000 – $130,000
XCMG XE155	15.3T	114 HP	0.60 m³	$90,000 – $110,000
Volvo ECR150E	15.1T	110 HP	0.55 m³	$125,000 – $145,000

💰 SANY's biggest advantage: Price-to-performance ratio. It offers CAT/Komatsu-level specs at a 15-25% lower price.

🌍 10. Global Markets & After-Sales

Region	Presence
🇨🇳 China	#1 Domestic brand
🌏 Southeast Asia	Very strong (Indonesia, Vietnam, Philippines, Thailand)
🌍 Africa	Rapidly growing (Nigeria, Kenya, South Africa, Egypt)
🏜️ Middle East	Strong (UAE, Saudi Arabia, Iraq)
🌎 South America	Growing (Brazil, Chile, Peru)
🇪🇺 Europe	Expanding (Eastern Europe strongest)
🇺🇸 North America	Limited but growing

🔧 SANY has 500+ service centers worldwide with parts availability improving rapidly.

✅ 11. Pros & Cons Summary

✅ Pros	❌ Cons
Excellent value for money	Brand perception still behind CAT/Komatsu in some markets
Isuzu engine = very reliable	Resale value slightly lower than Japanese brands
Best-in-class operator cab	Parts availability can be slow in some regions (improving)
Low fuel consumption	Limited dealer network in North America/Western Europe
Smart telematics built-in	After-sales service quality varies by region
Strong digging force for class
Wide attachment compatibility

🎯 12. Who Should Buy the SY155?

Ideal Buyer	Reason
🏗️ Construction companies (mid-size)	Best ROI in 15-ton class
👷 Rental companies	Low TCO, high utilization
🌍 Emerging markets buyers	Affordable + reliable
🔨 Mining & quarrying	Strong dig force + breaker-ready
🏙️ Municipal/utility work	Good reach + versatility

📌 Bottom Line

🔑 The SANY SY155 is arguably the BEST VALUE 15-ton excavator on the market today. It combines a proven Isuzu engine, SANY's smart technology, a premium operator cab, and competitive pricing — making it a serious challenger to CAT, Komatsu, and Doosan in the mid-size segment.
