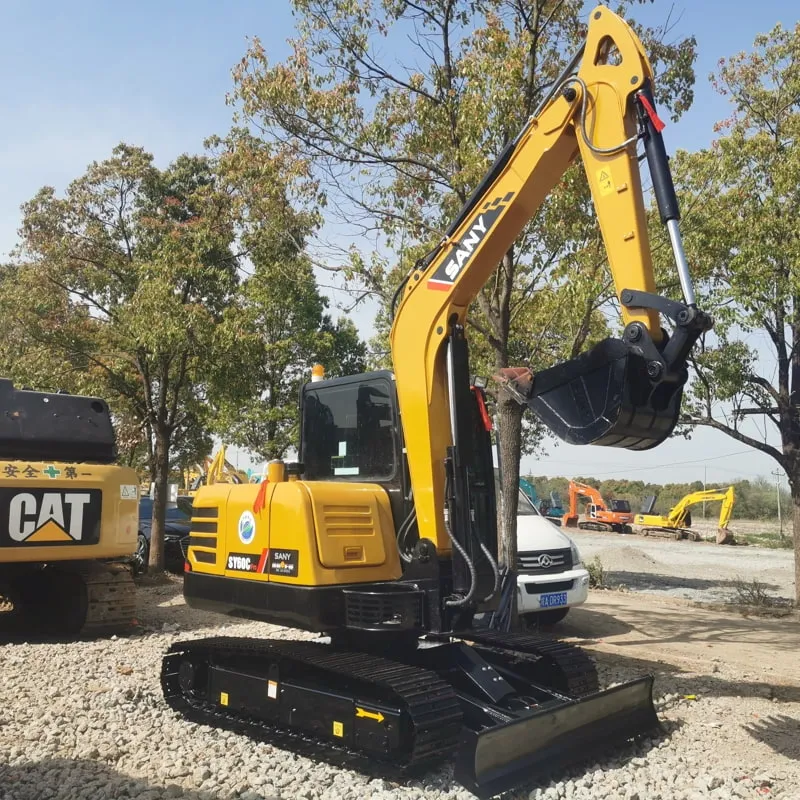

Used Sany 60Excavator

Reading: 16

📌 1. Overview

Item	Details
Brand	SANY (三一重工) — World's largest construction machinery manufacturer
Model	SY60C / SY60C Pro
Class	6-Ton Mini Excavator
Origin	Changsha, Hunan, China
Target Market	Small-scale construction, landscaping, municipal works, farmland, indoor demolition

The SANY SY60C is one of the best-selling mini excavators in the 6-ton class globally, known for its reliability, fuel efficiency, and competitive pricing. The SY60C Pro is the upgraded version launched around 2021 with improved performance and comfort.

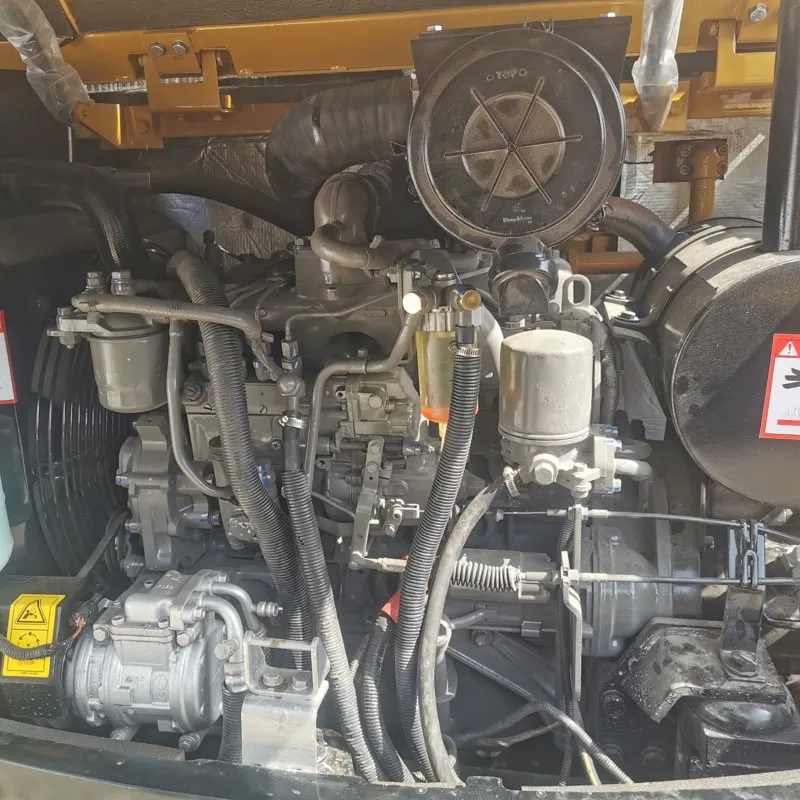

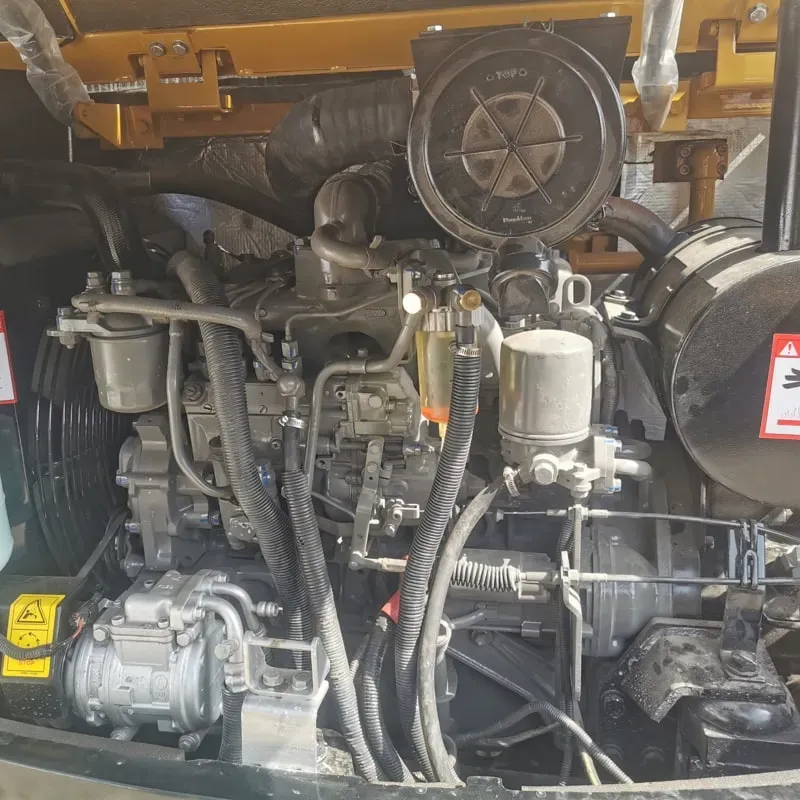

📌 2. Engine & Power System

Specification	SY60C	SY60C Pro
Engine Brand	Isuzu / Yanmar	Isuzu CC4JG1
Engine Type	4-cylinder, turbocharged, water-cooled diesel	4-cylinder, turbocharged, intercooled
Displacement	2.198 L	2.545 L
Rated Power	36 kW (48 HP) @ 2,200 rpm	40.4 kW (54 HP) @ 2,200 rpm
Emission Standard	Stage III / China IV / EPA Tier 4 Final	China IV / EPA Tier 4 Final
Fuel Tank	~80 L	~80 L

✅ The SY60C Pro offers about 12% more power than the standard version, with better torque at low RPM for heavy digging.

📌 3. Dimensions & Weight

Parameter	Value
Operating Weight	5,800 – 6,000 kg
Transport Length	5,850 mm
Transport Width	1,950 mm
Transport Height	2,570 mm
Track Width	400 mm (adjustable: 1,200 – 1,600 mm)
Ground Clearance	370 mm
Tail Swing Radius	1,420 mm
Tail Swing Type	Zero Tail Swing (ZTS) ⭐

⭐ The Zero Tail Swing design makes it ideal for working in tight spaces — the upper structure does NOT swing beyond the track width.

📌 4. Hydraulic System & Performance

Specification	Value

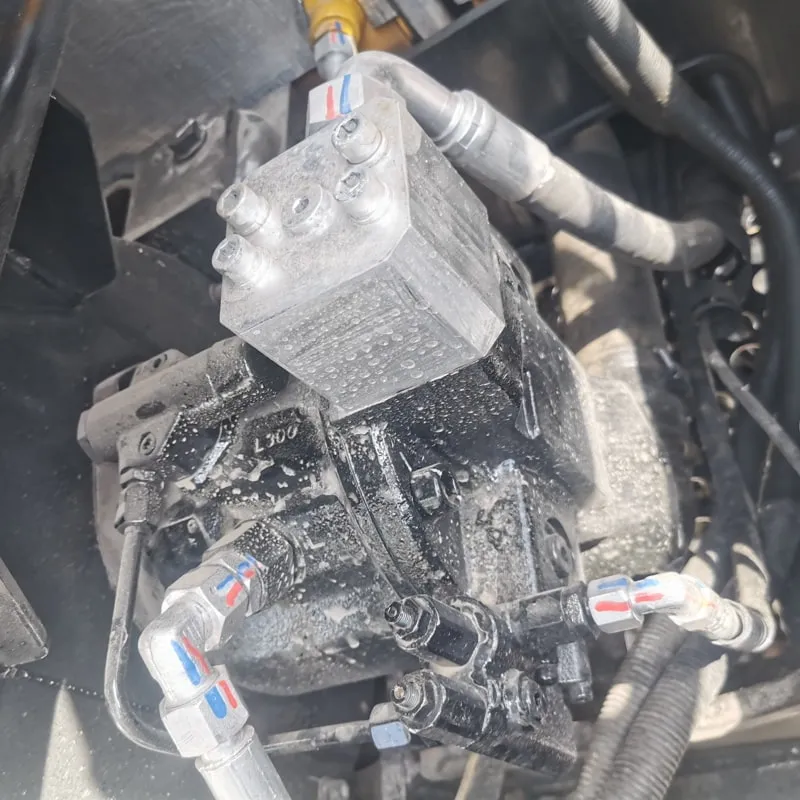

Main Pump Type	Variable displacement axial piston pump (2 pumps)
System Pressure	21 – 24.5 MPa (3,045 – 3,550 PSI)
Hydraulic Flow	2 × 40 L/min (total 80 L/min)
Control System	Proportional joystick (SY60C Pro: electro-hydraulic)
Attachment Circuit	Auxiliary line available (for breaker, auger, grapple)

Working Performance	SY60C	SY60C Pro
Max Digging Depth	3,740 mm	3,900 mm
Max Digging Reach	6,430 mm	6,700 mm
Max Dumping Height	4,340 mm	4,600 mm
Max Digging Force (Boom)	34.5 kN	37.2 kN
Max Digging Force (Arm)	24.5 kN	26.5 kN

📌 5. Bucket & Attachments

Attachment	Capacity / Spec
Standard Bucket	0.18 – 0.23 m³
Narrow Bucket	0.12 – 0.15 m³ (250/300/400/500/600/800/1000 mm widths)
Grading Bucket	Available
Quick Coupler	Optional — allows tool change in seconds
Common Attachments	Hydraulic breaker, auger drill, hydraulic grapple, ripper, compaction plate, thumb

📌 6. Travel & Mobility

Specification	Value
Travel Speed (Low)	2.5 km/h
Travel Speed (High)	4.5 km/h
Gradeability	58% (~30°)
Climbable Step	500 mm
Fording Depth	400 mm
Track Type	Rubber track (available) / Steel track

🔄 The rubber track option is great for road travel and pavement protection — no need for a trailer in many regions.

📌 7. Cab & Operator Comfort ⭐

Feature	Details
Cab Type	Enclosed ROPS/FOPS certified cab
Air Conditioning	✅ Standard (SY60C Pro)
Suspension Seat	✅ Adjustable, armrest
Display	LCD monitor (engine info, fault codes, working hours)
Noise Level	~70 dB(A) — one of the quietest in class
Lighting	LED work lights (front + rear)
Wiper	Single-speed with washer
USB Charging	✅ Available
Throttle Mode	Auto-idle — engine slows when not working → saves fuel

📌 8. Fuel Efficiency &

Condition	Fuel Consumption
Average Working	~4.5 – 5.5 L/hour
Idle	~2.5 L/hour
Daily (8 hrs)	~35 – 45 L/day

✅ SANY's load-sensing hydraulic system + auto-idle makes the SY60C Pro one of the most fuel-efficient in its class.

📌 9. Safety Features 🛡️

Feature	✅
ROPS/FOPS Certified Cab	✅
Emergency Stop Button	✅
Overload Protection	✅
Anti-theft System	✅
Backup Alarm	✅
Auto Engine Shutdown (emergency)	✅
Working Light & Beacon	✅

📌 10. Maintenance

Item	Interval
Engine Oil Change	250 hrs / 6 months
Hydraulic Oil Change	500 hrs
Fuel Filter	250 hrs
Air Filter	500 hrs
Track Tension Check	Every 100 hrs
Grease Points	8 – 12 points (daily check recommended)

🔧 SANY has a global dealer network with parts availability in 150+ countries.

📌 11. SY60C vs SY60C Pro — Quick Comparison

Feature	SY60C	SY60C Pro 🔥
Power	48 HP	54 HP
Digging Depth	3,740 mm	3,900 mm
A/C	Optional	✅ Standard
LCD Monitor	Basic	✅ Advanced
Quick Coupler	Optional	✅ Often standard
Fuel Efficiency	Good	✅ Better (~10% improvement)
Price	Lower	Slightly higher

📌 12. Price Range (2024 Estimate)

Region	Price (USD)
China	$35,000 – $45,000
Southeast Asia	$40,000 – $50,000
Europe/Australia	$50,000 – $65,000
Middle East/Africa	$45,000 – $58,000
North America	$55,000 – $70,000

💡 SANY is typically 15–25% cheaper than comparable models from Kubota, CAT, or Komatsu.

📌 13. Advantages & Disadvantages

✅ Advantages

#	Advantage
1	Excellent price-to-performance ratio
2	Zero tail swing — great for urban work
3	Fuel efficient with auto-idle
4	Strong after-sales network globally
5	Comfortable cab with A/C (Pro version)
6	Reliable Isuzu/Yanmar engine
7	Quick coupler compatible — versatile

⚠️ Disadvantages

#	Disadvantage
1	Resale value lower than Japanese brands (Kubota, Komatsu)
2	Hydraulic system not as refined as CAT/Komatsu
3	Parts availability can be slower in some remote areas
4	Build quality good but not "premium" level

📌 14. Who Should Buy SANY SY60C?

👤 Ideal Buyer	Why
🏗️ Small contractors	Best value for money
🌳 Landscaping companies	Zero tail swing + narrow bucket
🏘️ Municipal/utility workers	Compact + low ground pressure
🌾 Farmers	Affordable + multiple attachments
🏢 Rental companies	High utilization, low maintenance cost
🌍 Developing markets	SANY has strong presence & support

🏆 Summary

Category	Rating (out of 5)
Power	⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐
Comfort	⭐⭐⭐⭐ (Pro: ⭐⭐⭐⭐⭐)
Build Quality	⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐
After-Sales	⭐⭐⭐⭐
Resale Value	⭐⭐⭐

🏅 Bottom Line: The SANY SY60C / SY60C Pro is arguably the BEST VALUE 6-ton mini excavator on the market in 2024. If budget matters and you want reliable performance, SANY is hard to beat. If you want premium resale and ultimate refinement, consider Kubota KX60 or Komatsu PC60.
