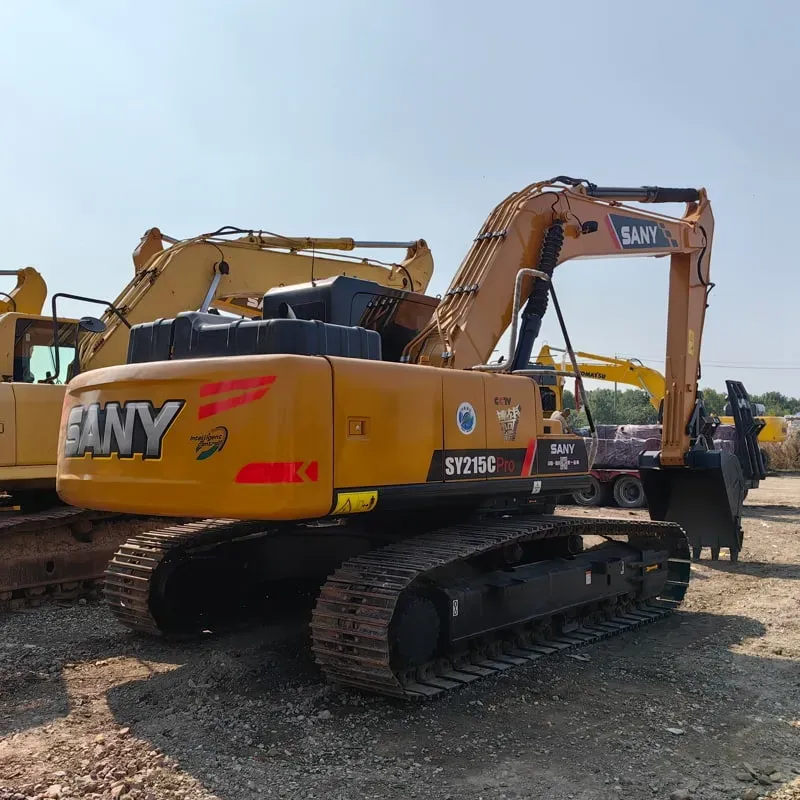

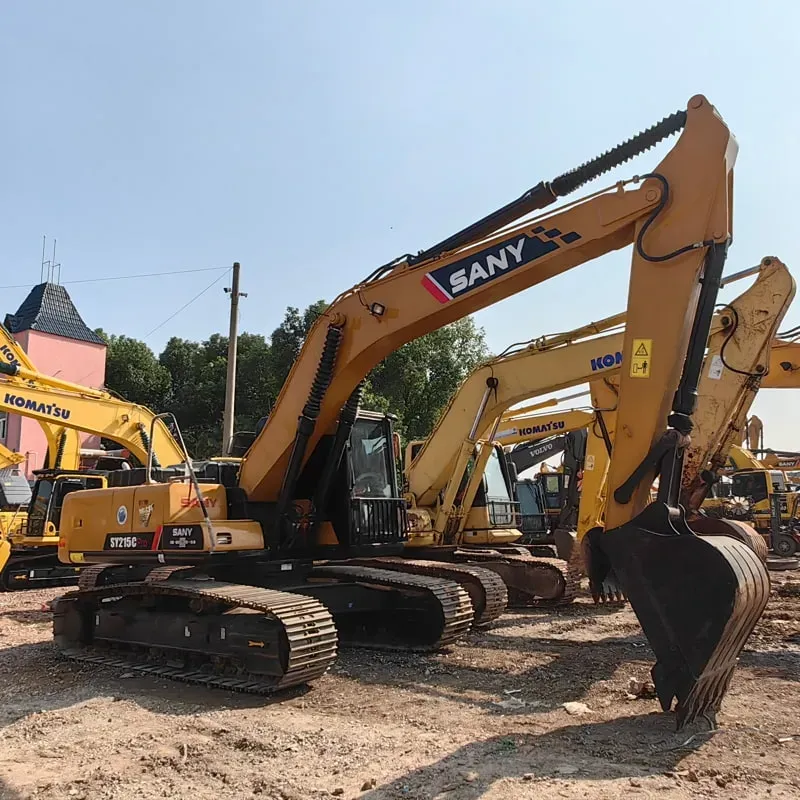

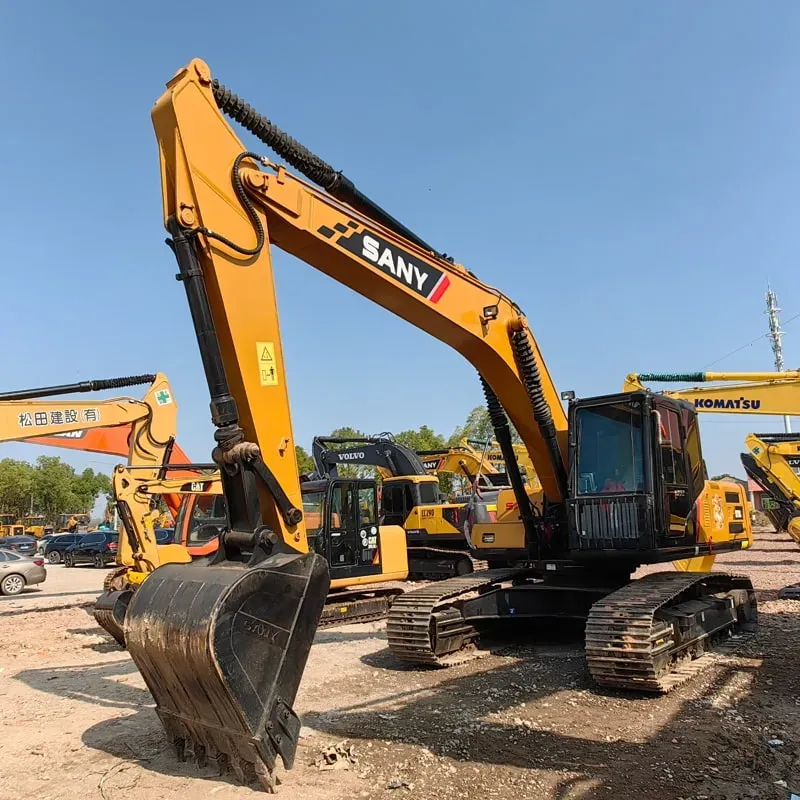

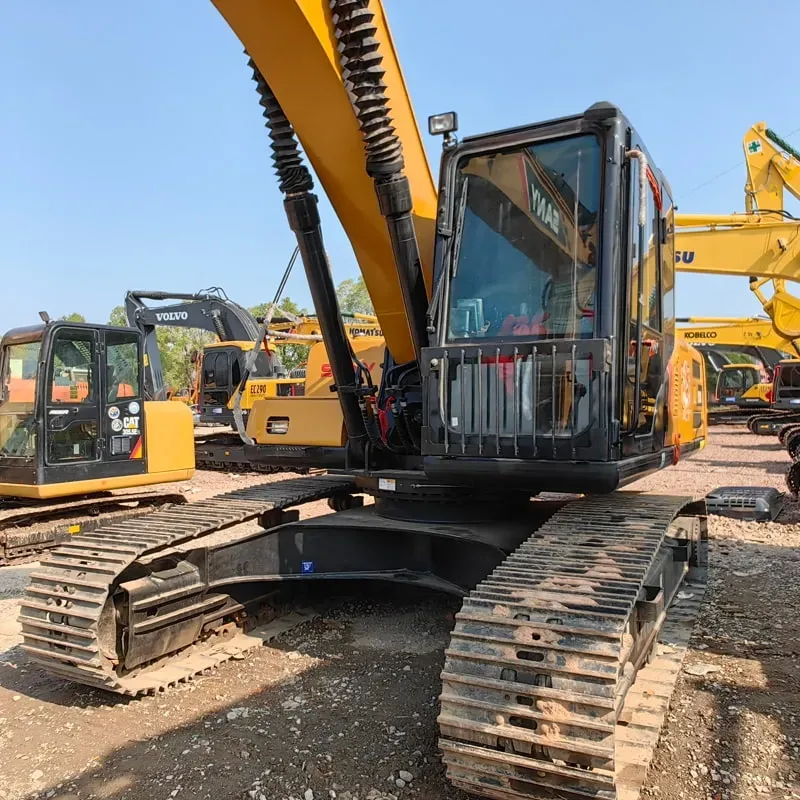

Used Sany 215Excavator

Reading: 49

📌 1. Overview

Item	Details
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Model	SY215C / SY215H (variants available)
Class	Medium Hydraulic Excavator (~21–22 ton)
Production	Globally sold in 100+ countries
Positioning	Mid-size workhorse for construction, mining, and infrastructure

The SANY SY215 is one of SANY's best-selling excavators, competing directly with machines like the Caterpillar 320, Komatsu PC210, and Hitachi ZX210. It is known for offering high performance at a competitive price.

🔧 2. Engine & Powertrain

Specification	Details
Engine Model	Isuzu AH-6HK1XQA (or Cummins QSB6.7 in some markets)
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	6.7 Liters
Rated Power	~118–122 kW (158–164 HP) @ 2,000 rpm
Emission Standard	China III / EPA Tier 4 Final / EU Stage V
Fuel Tank Capacity	~400 L
Fuel Consumption	~15–18 L/hr (varies by workload)

✅ The engine is known for reliability, fuel efficiency, and low noise.

⚖️ 3. Dimensions & Weight

Parameter	Value
Operating Weight	~21,000 – 21,500 kg
Transport Length	~9,690 mm
Transport Width	~2,990 mm
Transport Height	~3,000 mm
Ground Clearance	~440 mm
Track Width	600 mm (standard) / 500 mm (narrow option)
Track Shoe Width	600 mm

🪣 4. Working Performance

Performance	Value
Max Digging Depth	~6,900 – 7,100 mm
Max Digging Reach	~9,800 – 10,000 mm
Max Digging Height	~9,700 – 10,000 mm
Max Dump Height	~7,000 mm
Max Vertical Wall Dig Depth	~5,300 – 5,500 mm
Max Tear-out Force	~130–140 kN
Bucket Capacity (Std)	0.8 – 1.0 m³
Blade Capacity	~3.6 m³ (dozer blade option)

💧 5. Hydraulic System

Specification	Details

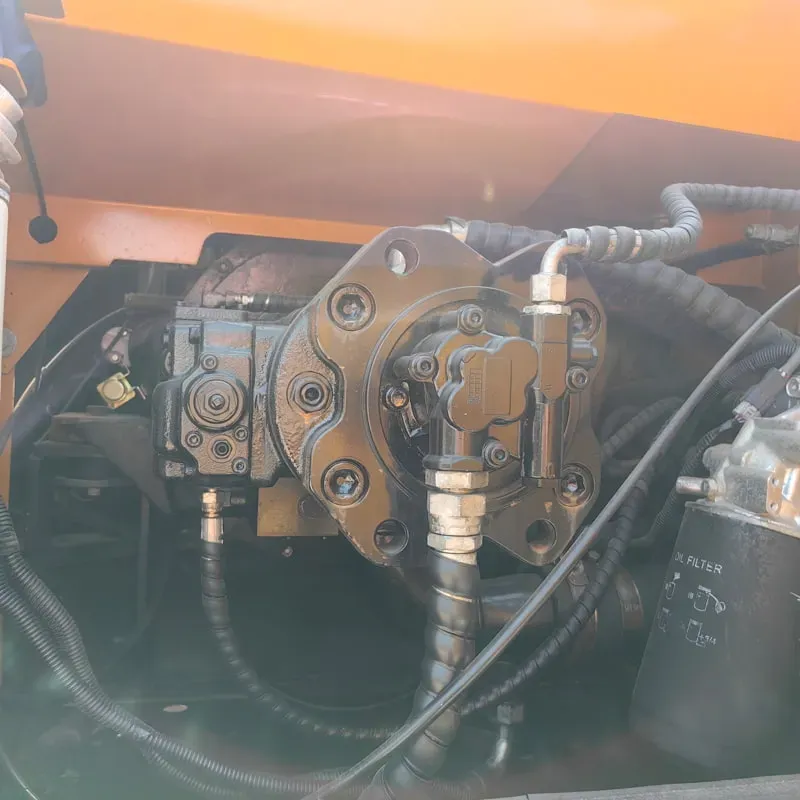

Main Pump Type	Variable displacement axial piston pump (2 pumps)
System Pressure	~34.3 MPa (343 bar)
Total Flow	~2 × 280 L/min (560 L/min total)

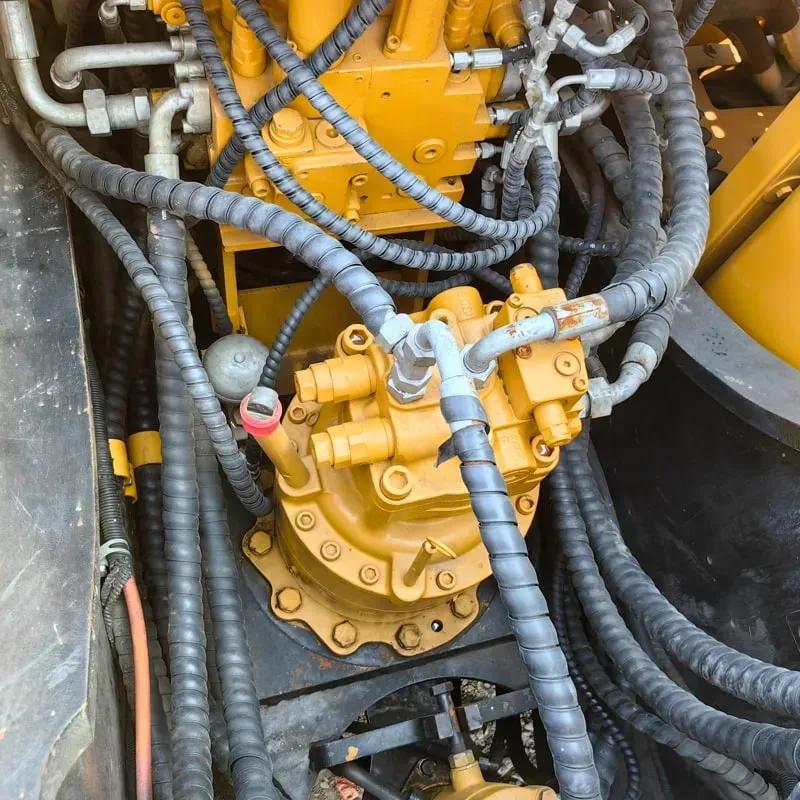

Swing Mechanism	Hydraulic motor with brake
Swing Speed	~10.5 rpm
Travel Speed	~5.5 km/h (high) / ~3.5 km/h (low)
Gradeability	~70% (35°)

🖥️ 6. Cab & Operator Comfort

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed
Air Conditioning	✅ Standard
Seat	Air-suspended, fully adjustable
Display	7-inch LCD monitor with multi-function dashboard
Camera	Rear-view camera (standard)
Noise Level	~72 dB(A) (relatively quiet for its class)
Control	Joystick with proportional control + foot pedal
Quick Coupler	✅ Available (hydraulic quick coupler for attachments)

🧠 7. Intelligent Technology — SANY i-CONTROL / Sany Smart

This is where SANY really stands out:

Smart Feature	Description
i-CONTROL System	Real-time monitoring of engine, hydraulics, and working conditions
Fuel Saving Mode (ECO)	Automatically adjusts engine RPM to save up to 10–15% fuel
Intelligent Power Matching	Automatically matches engine power to hydraulic demand
Remote Monitoring	Via SANY Cloud — fleet management, fault diagnosis, GPS tracking
Automatic Idle Stop	Engine auto-shuts off after 5 min of inactivity
Weight Management	Prevents overloading for safety

🛠️ 8. Attachments & Versatility

The SY215 can be quickly configured with:

Attachment	Use Case
🪣 Standard Bucket	General earthmoving
🪨 Rock Bucket	Mining & quarrying
🔨 Hydraulic Breaker	Demolition & concrete
🪓 Hydraulic Thumb	Log grabbing, waste handling
🔄 Rotating Grapple	Scrap metal, recycling
🪚 Hydraulic Shear	Demolition
🧹 Tiltrotator	Precision grading (SANY offers)
🚜 Ripper (1-shank)	Hard ground, frozen soil

🌏 9. Applications

Industry	Usage
🏗️ Construction	Foundation, road building, building demolition
⛰️ Mining	Open-pit mining, quarry operations
🛣️ Infrastructure	Pipeline laying, road construction
🌿 Landscaping	Grading, drainage, tree planting
🏭 Municipal	Urban demolition, utility work
🌾 Agriculture	Land clearing, pond digging

📊 10. SANY SY215 vs Competitors

Feature	SANY SY215	CAT 320	Komatsu PC210	Hitachi ZX210
Power	164 HP	164 HP	150 HP	155 HP
Operating Wt	~21.5T	~21.7T	~21T	~21.2T
Max Dig Depth	~7.1m	~6.9m	~6.8m	~6.9m
Smart System	✅ i-CONTROL	✅ Cat Connect	✅ Komtrax	✅ Hitachi InSite
Price	💰💰	💰💰💰💰	💰💰💰	💰💰💰
Value for Money	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🔑 SANY's biggest advantage: Similar performance at 15–25% lower price with strong after-sales support.

✅ 11. Advantages Summary

✅ Pros	❌ Cons
Excellent price-to-performance ratio	Brand perception still catching up in Western markets
Fuel-efficient i-CONTROL system	Parts availability varies by region
Comfortable, quiet cab	Resale value slightly lower than CAT/Komatsu
Strong hydraulic system	Some markets have limited dealer network
SANY global warranty & parts support	—
Fast attachment change (quick coupler)	—

💰 12. Approximate Pricing (2024)

Market	Price Range (USD)
🇨🇳 China	~¥800,000 – 950,000 (~$110K–130K)
🌏 Southeast Asia	~$115,000 – $140,000
🌍 Middle East / Africa	~$120,000 – $145,000
🇪🇺 Europe	~€120,000 – €150,000
🌎 South America	~$125,000 – $150,000

(Prices vary by configuration, attachments, and dealer)

🎯 13. Final Verdict

Rating	Score
Performance	⭐⭐⭐⭐☆
Fuel Efficiency	⭐⭐⭐⭐⭐
Comfort	⭐⭐⭐⭐☆
Technology	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐
After-Sales	⭐⭐⭐⭐☆

🗣️ The SANY SY215 is one of the BEST value mid-size excavators on the market in 2024–2025. It delivers near-premium performance at a mid-range price, with smart technology that rivals even Cat and Komatsu. If you're looking for a reliable, fuel-efficient 21-ton excavator without the premium price tag — the SY215 is a top choice. 🏆
